montpellier MON-SFO59MX User manual

Installation and Operating Instructions
MODEL: MON-SFO59MX
Built-In Oven with LED Timer
Please read these instructions carefully before attempting to install or use this appliance.
It is advisable to keep these instructions in a safe place for future reference.
N.B. Should your appliance require attention, our service agents will not be able to book
a service call without your unique serial number which can be found on the last page of
this manual.
montpellier
(Picture indicative of model supplied)

2
In
t
roduc
t
ion
Thank you for choosing this Montpellier branded appliance. It
has been designed to give years of trouble-free use provided
it is installed and maintained correctly.
Please read these instructions carefully before installing or
using your appliance. It is advisable to keep your purchase
and
installation receipts with these instructions in a safe place for
future reference. Included is some important safety informat
ion
in addition to guidelines and recommendations that will enab
le
you to take full advantage of all the functions available.
This quality appliance has been tested and certified to meet all
applicable UK electrical and safety standards.
This appliance must be installed and connected in
accordance with current regulations.
After unpacking the appliance ensure that there is no visible
damage. If the appliance has been damaged during transit, do
not use it, contact your retailer immediately.

3
Your 2 year Manufacturer's guarantee
THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.
Your new montpellier appliance carries a free guarantee which protects you
against the cost of repairs during the first 24 months from date of purchase
provided that:
Any claim is accompanied by evidence of the model reference, model serial
number and proof of purchase, such as a Sales Receipt, showing that the
appliance was purchased within the 24 months prior to the date of claim.
What is not covered under the Guarantee:
Any appliance not correctly installed and operated in accordance with the
manufacturer's instructions.
Any appliance that is used for anything other than domestic purposes.
Any defect caused by accident, misuse, unauthorized modification or
inexpert repair.
Cost of Call-out where a fault cannot be found with the appliance.
Cost of Call-out for work covering routine maintenance, such as, but not
exclusively, cleaning of filters or defrosting.
Cost of Call-out for work required to correct the alignment of doors
following door reversal procedures carried out by you.
Use of the appliance by anyone other than the Householder.
Use in any commercial environment.
Consumable items, such as, but not exclusively, fuses in plugs, bulbs and
breakable items which require routine replacement.
Repair costs incurred that have not been authorised by Repairtech and/or
carried out by a non-approved Repairtech engineer.
YOUR GUARANTEE IS VALID ONLY IN THE UK.
To Register your Appliance simply complete the card in your appliance pack and return it
with a stamp affixed or Alternatively you can Register online at www.repairtechuk.com
SERVICE HELP-LINE
Should your appliance develop a fault, please call the
Repairtech Service Helpline on:
01527-888133
Please remember to have all your product details available, including the model number,
serial number, date of purchase and your retailer’s details before registering a fault.
Your service call cannot progress without this information.

4
Description
Of
The
Appliance
s
1. Oven Function Control
2. Oven Thermostat Control
3. LED Display & Timer
4. Door Handle
5. Glass Oven Door
(Picture indicative of model supplied)
2.
1.
4.
5
.
3.

5
CONTENTS:
Section 1. Installation
Sect
i
o
n 2.
Safety
A
d
v
i
ce
Section 3. Operating the Appliance
Section 4. Maintenance

6
Section 1. Installation
Remove all packaging, protective film and securing tape from
the appliances
Position the appliances in a dry atmosphere.
The following dimensions are provided as a guide for
installation – your installer will carry out the installation in
accordance with the current regulations.
Your installer will connect the power cables in accordance with
the current regulations.
1.1. Kitchen Furniture Cut-Out

7
1.2. Electrical Connection
This appliance has a total Power Rating of 3kW and can be
fitted with a 13 Amp plug and plugged into a standard,
switchable 13 Amp socket.
Alternatively, the product can be ‘hard wired’ into a suitable
fused spur adjacent to the appliance housing. In this case the
product must be installed by a Qualified Electrician.
Please note that a switchable spur should be accessible
above the work surface in order that the power can be turned
off.
Electrical Connection Diagram:

8
1.3. Secure the Oven in Position
Finally, use the screws to secure the oven to the
kitchen cabinetry.

9
Section 2. Safety Advice
-Please read this booklet thoroughly before installing and
switching on the appliance. The manufacturer accepts no
responsibility for incorrect installation and usage.
-This appliance is guaranteed for Domestic Use Only.
-The appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of the
appliance by a person responsible for their safety. Children
should be supervised to ensure that they do not play with the
appliance.
-This appliance must only be used for cooking/heating food
items. Do not use it for any other purpose.
-If using an adaptor, this must be used in accordance with the
manufacturers instructions and ensure that the electrical
circuit is not overloaded as this could cause overheating.
-Do not twist or bend the cables, and keep them away from hot
surfaces.
-Following installation make sure that the power cable is not
trapped underneath the appliance.
-Keep the appliance surfaces clean. Failure to do this could
lead to the appliance malfunctioning.
-The surface of this appliance will get extremely hot during use.
Take care when using the appliance and keep children well
away.
-The interior and surface of this appliance will remain hot after
it has been turned off. Do not touch or clean the appliance
until it has completely cooled down.
-Never lift this appliance using the door handle or ‘open’ door.
-If the power supply cord is damaged, it must be replaced by
the manufacturer, it’s service agent or similarly qualified
persons in order to avoid a hazard.
-If the power supply cord(s) is damaged, it must be replaced by
the manufacturer, it’s service agent or similarly qualified
persons in order to avoid a hazard.

10
Section 3. Operating the Appliance
3.1. Oven Control Panel
3.2. Cooking & Functions
3.2.1. Setting The Clock/Timer
To set the clock, press the centre ‘mode’ button and then
press the ‘+’ and ‘-‘ buttons to set the correct hour, press the
mode button again and then press the ‘+’ and ‘-’ buttons to set
the correct minutes. Now press ‘mode’ to confirm the correct
time.
To use the timer, first press the mode button, the timer bell
symbol will appear. Then press the ‘+’ & ‘-‘ buttons to set the
required time, now press the mode button to start the timer
countdown.
To set the auto-timer, select the required oven function &
temperature then press the mode button until you see ‘Dur’,
now press the ‘+’ & ‘-‘ buttons to set the cooking period, now
press the mode button to confirm. The time will appear in the
display and an ‘A’ will also appear. Press the mode button
again until you see ‘End’ in the display. Now press the ‘+’ & ‘-‘
buttons to select the required end of cooking time and then
press the mode button to confirm.
Function Control Knob
LED Timer
Thermostat
Control Knob

11

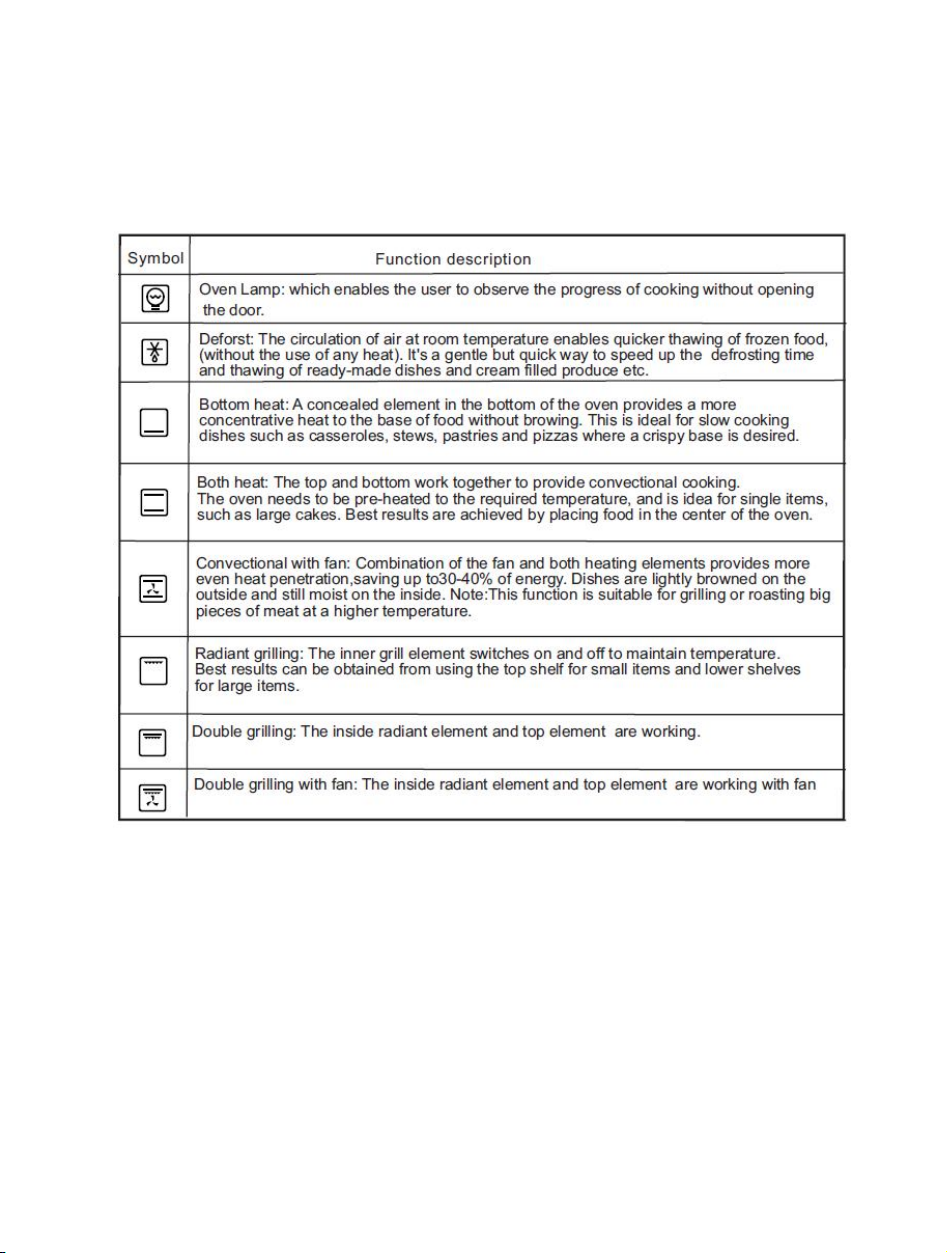

3.2.2. Cooking Functions
Turn the Oven Function Control Knob clockwise to the required
function:
3.2.3. Oven Temperature
Turn the Oven Thermostat Control Knob to the required oven
temperature. A red indicator light will show whilst the oven is
reaching temperature. When the set temperature has been
achieved, the light will go out.
When you have finished using the oven, you must turn the
thermostat control knob back to the off position.

12
3.2.4. Full Timer Instructions

13

14

15
Section 4. Maintenance
Before any maintenance or cleaning work is carried out,
DISCONNECT the appliance from the ELECTRICITY supply and
ensure that the appliance is completely cool.
4.1. Cleaning the Oven
Clean spillages from inside the oven as soon as possible after use.
Always ensure that the surface has cooled down before cleaning.
Use a cloth with warm soapy water to clean the surface. If the
spillage has dried on the surface you may need to use a specialist
oven cleaner, available from all good supermarkets.
Clean the glass door with warm soapy water – always ensure the
glass is cool before you clean it!
4.2. Changing the Oven Bulb
Proceed as follows when the glass
is cold:
Unscrew the glass cover
Remove the bulb
Fit new like for like bulb (*)
Replace glass cover
(*) Must be a 300° like for like
replacement oven bulb
available from specialist
hardware & lighting shops

16
4.3. Removing the Oven Door
If your oven is fitted with a removable door, proceed as follows:
In order to improve access when
cleaning the oven, you can remove
the door as follows:
Lift the two safety catches up then
close the oven door partially. Now
lift the door upwards and away
from the oven. To refit the door
carry out the above in reverse
order, ensuring the safety catches
are lowered back into place.
If you need to clean in between the
glass door panels, remove the 2
screws and the end panel (as
shown left) and then carefully slide
the glass out of the door frame.
Clean the glass panels and
carefully slide the glass back into
the door frame. Refit the end panel
and ensure that the 2 screws are in
place.
N.B. Your guarantee does not
cover damaged or broken glass on
the oven door.

17
4.4. What to do if something goes wrong
There is no power to the appliance:
-Check there is not a power cut
-Check there is power to the electric socket/appliance
-Check the fuse in the plug
The oven operates but the oven light is not working:
-Replace the oven bulb as described in section 4.2. above.
Please note that bulbs are not covered under the guarantee.
The Gas Hotplate will not light:
-Is the automatic ignition working – check that you have power
to the electric socket/appliance
-Are the burner caps/skirts fitted onto the burner correctly?
-Are the electrodes/thermocouples clean?
-Is your gas supply on?
YOUR GUARANTEE IS VALID ONLY IN THE UK.
To Register your Appliance simply complete the card in your appliance
pack and return it with a stamp affixed or Alternatively you can Register
online at www.repairtechuk.com
-
SERVICE HELP-LINE
Should your appliance develop a fault, please call the
Repairtech Service Helpline on:
01527-888133
Please remember to have all your product details available, including the
model number, serial number, date of purchase and your retailer’s details
before registering a fault.
Your service call cannot progress without this information.
DOMESTIC APPLIANCE DISTRIBUTORS;
HENRY JOHN HOUSE
NORTHWAY LANE
ASHCHURCH
TEWKESBURY
GLOUCESTERSHIRE
GL20 8JH

18
Important Note:
This appliance is marked according to the European directive
2002/96/EC on Waste Electrical and Electronic Equipment
(WEEE). By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences for the
environment and human health, which could otherwise be
caused by inappropriate waste handling of this product.
The symbol on the product, or on the documents
accompanying the product, the Crossed Out Wheelie Bin,
indicates that this appliance may not be treated as household
waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic
equipment.
Disposal must be carried out in accordance with local
environmental
regulations for waste disposal. For more detailed information
about treatment, recovery and recycling of this product, please
contact your local authority, your household waste disposal service
or the retailer where you purchased the product.
We continuously try to improve our products for the benefit of our
customers.
For this reason we reserve the right to make changes to any product
at any time, without notice
Issue: 02/19-12-2014
