montpellier MSE50W User manual

1
Installation and Operating Instructions
MODEL: MSE50W
Free Standing Electric Oven
Please read these instructions carefully before attempting to install or use this appliance.
It is advisable to keep these instructions in a safe place for future reference.

2
In
t
roduc
t
ion
Thank you for choosing this montpellier branded appliance. It
has been designed to give years of trouble-free use provided
it is installed and maintained correctly.
Please read these instructions carefully before installing or
using your appliance. It is advisable to keep your purchase
and
installation receipts with these instructions in a safe place for
future reference. Included is some important safety information
in addition to guidelines and recommendations that will enab
le
you to take full advantage of all the functions available.
T
his
quali
t
y
applian
c
e
has
been
t
e
st
ed
and
c
e
r
t
i
f
ied
t
o
m
e
e
t
all
applicable UK electrical and safety standards.
This appliance must be installed and connected in
accordance with current regulations.
After unpacking the appliance ensure that there is no visib
le
damage. If the appliance has been damaged during transit,
do not use it, contact your retailer immediately.

3
Your 2 year Manufacturer's guarantee
THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.
Your new montpellier appliance carries a free guarantee which protects you against the cost of
repairs during the first 24 months from date of purchase provided that:
Any claim is accompanied by evidence of the model reference, model serial number and proof of
purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24
months prior to the date of claim.
What is not covered under the Guarantee:
·Any appliance not correctly installed and operated in accordance with the manufacturer's
instructions.
·Any appliance that is used for anything other than domestic purposes.
·Any defect caused by accident, misuse, unauthorized modification or inexpert repair.
·Cost of Call-out where a fault cannot be found with the appliance.
·Cost of Call-out for work covering routine maintenance, such as, but not exclusively,
cleaning of filters or defrosting.
·Cost of Call-out for work required to correct the alignment of doors following door reversal
procedures carried out by you.
·Use of the appliance by anyone other than the Householder.
·Use in any commercial environment.
·Consumable items, such as, but not exclusively, fuses in plugs, bulbs and breakable items
which require routine replacement.
·Repair costs incurred that have not been authorised by Repairtech and/or carried out by a
non-approved Repairtech engineer.
YOUR GUARANTEE IS VALID ONLY IN THE UK.
To Register your Appliance simply complete the card in your appliance pack and return it with a
stamp affixed or Alternatively you can Register online at www.repairtechuk.com
SERVICE HELP-LINE
Should your appliance develop a fault, please call the
Repairtech Service Helpline on:
01527-888133
Please remember to have all your product details available, including the model number, serial
number, date of purchase and your retailers’details before registering a fault.
Your service call cannot progress without this information.

4

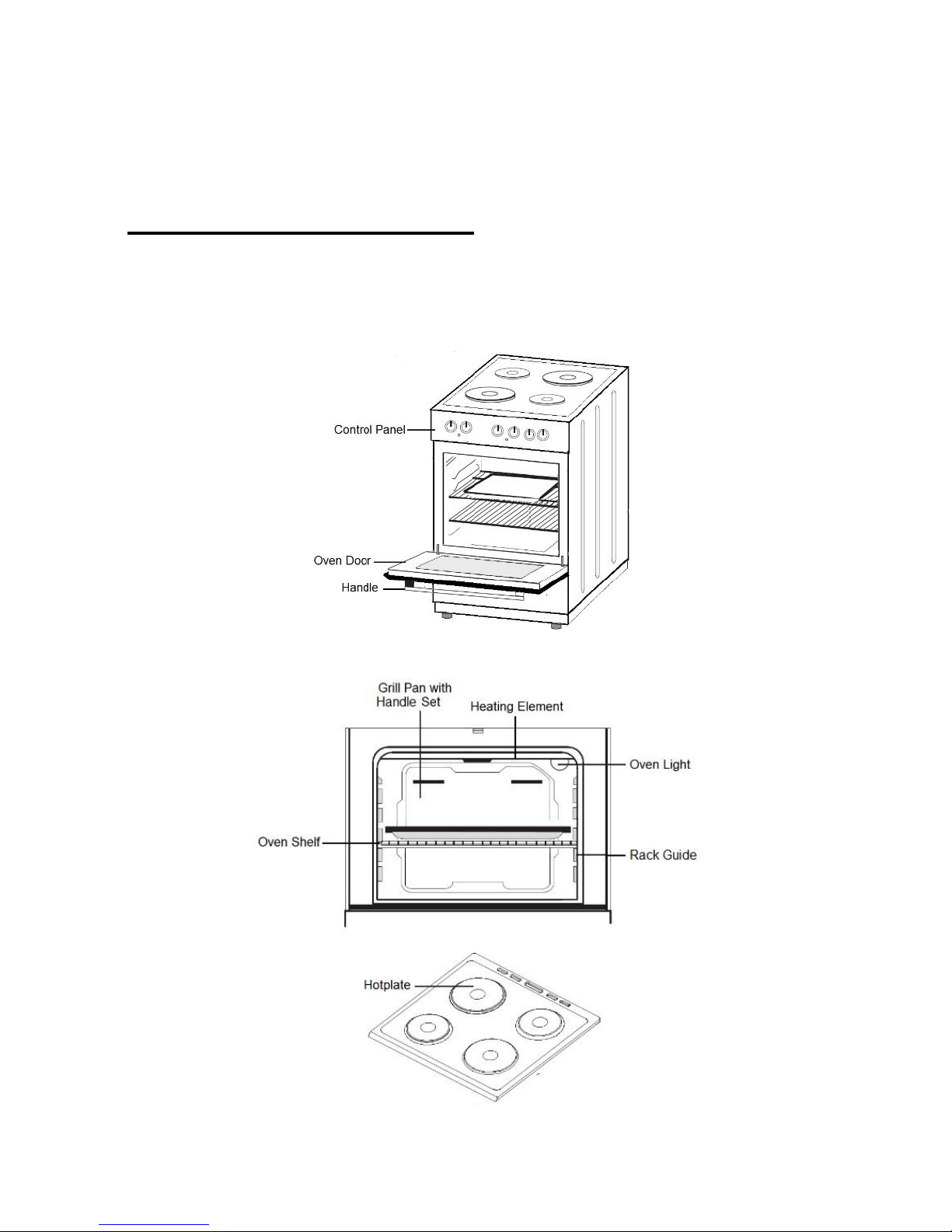

Description of the Appliance

5
CONTENTS:
Section 1. Installation
Section 2. Safety Advice
Section 3. Operating the Appliance
Section 4. Maintenance

6
Section 1. Installation
-Remove all packaging and protective film from the appliance.
-Position the appliance in a dry atmosphere.
- The following image is provided as a guide for installation –your installer will carry
out the installation in accordance with the current regulations.
- Your installer will connect the power cable in accordance with the current regulations.
To install this appliance, please proceed as follows:
1.1. Choosing a location for your oven
When choosing a location for your oven, ensure that there are no flammable or
combustible materials in the close vicinity, such as curtains. You may be required to
make changes to the area surrounding your oven.
You must ensure a minimum gap of 50mm between the edge of the hotplate and an
adjacent wall. You must ensure a minimum distance of 750mm between the hotplate
and overhanging cupboards or a cooker hood (see below image).
Note: Do not site your oven next to a cooling appliance.

7
1.2. Electrical Connection
Power Output
Oven Bottom Element - 1000W
Oven Top Element - 1000W
Grill Element - 1600W
2 x 145mm Hotplates - 2 x 1000W
1 x 180mm Hotplate - 1500W
1 x 180mm Rapid Hotplate - 2000W
This appliance has a power rating in excess or 3000W and therefore
must be ‘hard wired’to a suitable fused point adjacent to the appliance
housing and protected with a 25 amp fuse. Please note that a switchable
spur should be accessible above the work surface to allow the power to
be turned off by the consumer.
Your installer will connect this appliance in accordance with current
regulations using the correct grade of electrical cable and making a
suitable connection between the fused spur and the electrical connection
block on the rear of the appliance.

8
Section 2. Safety Advice
-Please read this booklet thoroughly before installing and switching on the
appliance. The manufacturer accepts no responsibility for incorrect
installation and usage.
-This appliance is guaranteed for Domestic Use Only.
-The appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning the use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they do not play with
the appliance.
-This appliance must only be used for cooking/heating foods and liquids.
Do not use it for any other purpose.
-If using an adaptor, this must be used in accordance with the
manufacturers instructions and ensure that the electrical circuit is not
overloaded as this could cause overheating.
-Do not twist or bend the cables, and keep them away from hot surfaces.
-Following installation make sure that the power cable is not trapped
underneath the appliance.
-Keep the appliance surfaces clean. Failure to do this could lead to the
appliance malfunctioning.
-The surface of this appliance will get hot during use. The surface of this
appliance will remain hot after it has been turned off.
-If the power supply cord is damaged, it must be replaced by a qualified
person in order to avoid a hazard.

9
Section 3. Operating the Appliance
3.1. Control Panel
3.2. Oven Functions
You are able to select various difference Oven Functions (explained below) by
adjusting the Oven Function knob on the control panel (shown above).
Oven Lamp
Only the oven light will be turned on. This light will remain on until turned off.
Static Cooking Function
The oven's thermostat and warning lights will be turned on, the lower and upper heating
elements will start to heat.
Lower Heating Function
The oven's thermostat and warning lights will be turned on, the lower heating element will
start to heat.
Upper Heating Function
The oven's thermostat and warning ligh
ts will be turned on, the upper heating element will
start to heat.

10
3.2 Oven Functions continued.
3.3. Selecting a Temperature
Once you have selected an Oven Function, simply adjust the oven temperature knob
to the desired temperature.
Grilling Function
The oven's thermostat and warning lights will be turned on, the grill heating element will start
to heat.
This function is used for grilling and toasting foods, use the upper shelves of the oven. Lightly
brush the wire grid with oil to stop foods sticking and place food in the center of the grid.
Always place a tray beneath to catch any drips of oil or fat. It is recommended to pre-heat the
oven about 10 minutes.
Warning: When grilling, the oven door must be closed and the oven temperature should be
adjusted to 190
0
C.
Faster Grilling Function
The oven's thermostat and warni
ng lights will be turned on, the grill and upper heating
elements will start to heat.
The function is used for faster grilling and for covering a larger surface area, such as grilling
meats, use the upper shelves of oven. Lightly brush the wire grid with oil to stop foods sticking
and place foods in the center of the grid. Always place a tray beneath to catch any drips of oil
or fat. It is recommended to pre-heat the oven about 10 minutes.
Warning: When grilling, the oven door must be closed and the oven t
emperature should be
adjusted to 190
0
C.

11
3.4. Hotplates Usage
The four hotplates are controlled by individual knobs on the ovens control panel.
Each hotplate offers 7 different levels of heat, which are as follows:
0 –Off
1 –Keeps hotplate warm
2/3 –Low cooking temperature
4/5/6 –High cooking temperature
To operate, turn the hotplate control knob clockwise to the required heat level.
When finished, turn the control knob to the off position.

12
Section 4. Maintenance
Before any maintenance or cleaning work is carried out, DISCONNECT the
appliance from the ELECTRICITY supply and ensure that the appliance is
completely cool.
4.1. Cleaning the interior of the oven
Clean spillages from inside the oven as soon as possible after use.
Ensure the oven is turned off before cleaning. You will obtain the best cleaning
results if you clean the oven interior while it is slightly warm. To clean, wipe your oven
with a soft piece of cloth dampened with soapy water. After this wipe the oven with
another soft piece of cloth, dampened with water, once complete, dry the oven
interior.
Do not use other abrasive cleaners and/or wire wool etc as this may damage the
interior of your oven.
4.2. Replacing the Oven Bulb
Warning!
Only ever remove/replace the oven bulb when the oven is cold and
turned off!
The oven bulb can be replaced and should be done so with a “like for like”230V 25
watt bulb having the same fitment.
4.3. What to do if something goes wrong
There is no power to the appliance:
-Check there is not a power cut
-Check there is power to the electric socket/appliance
The oven does not heat:
-Check that the temperature of the oven thermostat has been correctly set.
The oven is not cooking food evenly:
-Adjust the shelf locations, cooking time and heat values accordingly.

13
If after the previous checks there is still a fault, please
contact the Repairtech Service Helpline below. Please
ensure that you have the model number, serial number,
date of purchase and retailers information available
before you make the call.
Should your appliance develop a fault, please call the
Repairtech Service Helpline on:
01527
-
888133

14
Important Note:
This appliance is marked according to the European directive
2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate
waste handling of this product.
The
symbol on the product, or on the documents accompanying the
product, the Crossed Out Wheelie Bin, indicates that this appliance
may not be treated as household waste. Instead it shall be handed
over to the applicable collection point for the recycling of electrical
and electronic equipment.
Disposal
must be carried out in accordance with local
environmental regulations for waste disposal. For more detailed
information about treatment, recovery and recycling of this product,
please contact your local authority, your household waste disposal
service or the retailer where you purchased the product.
We continuously try to improve our products for the benefit of our customers.
For this reason we reserve the right to make changes to any product at any
time, without notice
Issue: 02/09-09-2015
