montpellier CHT0660 User manual
Cod:0103086297-00.01
T-Shaped Cooker Hood
CHT0660 (60cm) & CHT991X (90cm) - Stainless Steel
2
Impoant
j
Press the key to turn on/o the extractor. If the extractor is turned on, the delay timer can be activated by pressing the
again. The display will show the symbol flashing for 4 seconds. By pressing the keys or , the delay timer can be
adjusted (max. 9 minutes). In order to deactivate the timer delay, press the key again.
3
Using Your Extractor
For best performance, you should switch on the extractor 15 minutes before starting to cook and leave it to run for
approximately 15 minutes after the end of cooking.
Fig. 1

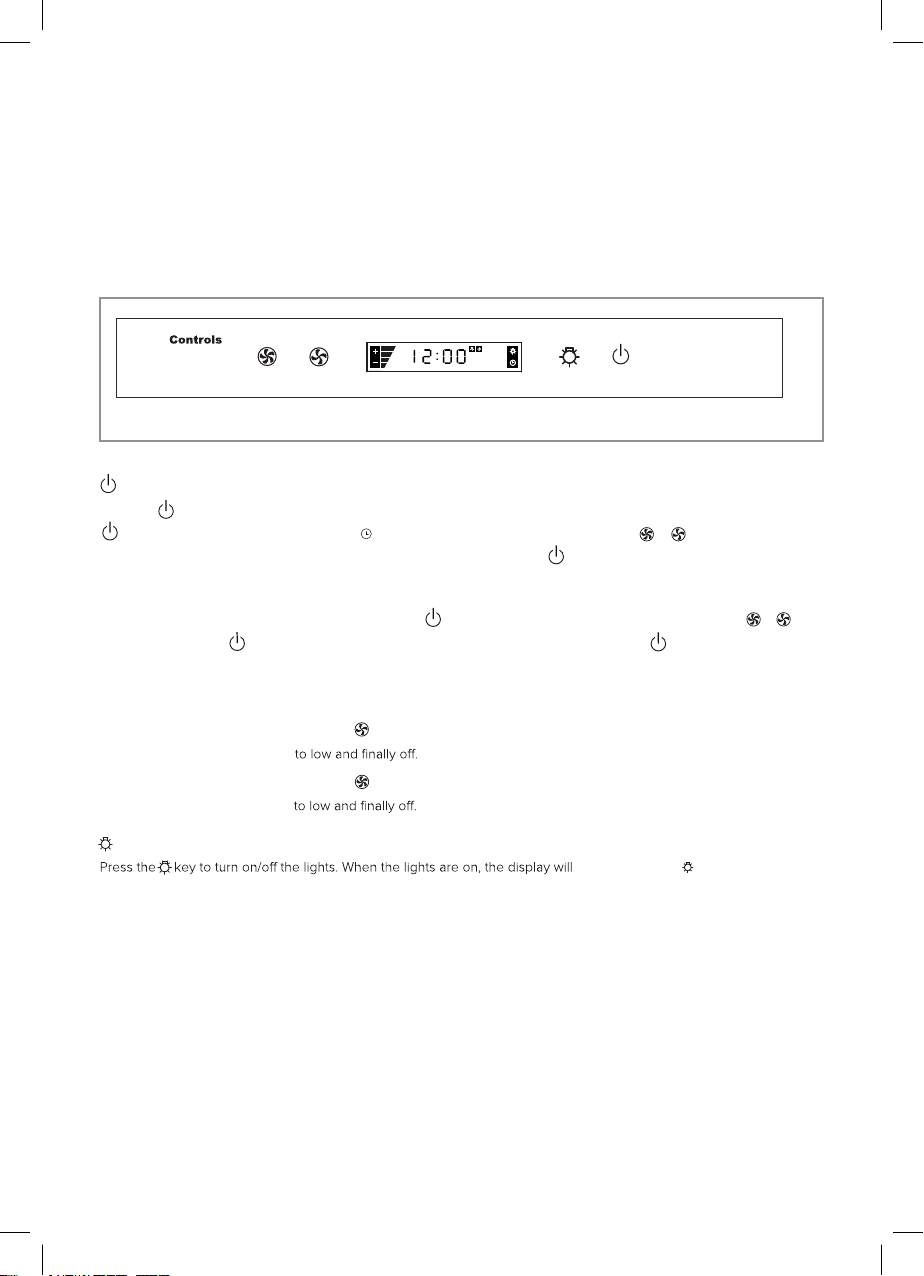

ON/OFF Key/Delay Timer:
Clock Setting
To set the clock on your extractor, press and hold the key for 2 seconds.The clock display will flash. Use or keys
to set the hour, press key to set after which you can adjust the minutes. Once set, press key to confirm. Please note,
the clock will return to its previous setting if no key is pressed for 5 seconds whilst setting the time.
Adjusting the Fan Speed
Once the extractor is turned on, press the key to set the fan motor to high speed. When pressed again, it will reduce the
fan speed from high to medium,
Light Key
show the symbol .
Once the extractor is turned on, press the key to set the fan motor to high speed. When pressed again, it will reduce the
fan speed from high to medium,
4
Care and Maintenance
IMPORTANT : DO NOT PERFORM MAINTENANCE OR CLEANING
OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE
ELECTRICITY SUPPLY.
Cleaning
Use a non-abrasive cleaner. Any abrasive cleaner (including Cif) will
scratch the surface and could erase the control panel markings.
solution of water and mild detergent and drying to a shine with a clean
cloth.
The grease filter should be kept clean to minimise the risk of fire.
You should remove and clean the grease filter with hot soapy water at
least once a month.You can also wash the grease filter in a
dishwasher, ensuring that you place it in an upright position to prevent
damage from other items in the dishwasher. After rinsing and drying,
replace the filter.
To remove the grease filter, push in the button on the handle and then
pull down on the filter at the front. When you have released it at the
front, pull out the filter. To replace the grease filter, repeat the above
steps in reverse.
Please note:
Cleaning the grease filter in the dishwasher may lead to discolouration.
This is normal and does not constitute a fault with the appliance.
Fig. 2
&KDUFRDOƪOWHULQVWDOODWLRQ
&DUHDQG0DLQWHQDQFH
,03257$17'2127$77(037720$,17$,125&/($17+(
(;75$&725:,7+287),5676:,7&+,1*2))7+((/(&75,&,7<
6833/<
In recirculating mode, air is vented back into the kitchen through the
opening in the cooker hood.
This method is advised if you are not using your hob intensively.
Recirculated air requires the use of charcoal filters to remove odours.
To ensure the best performance from your cooker hood, the charcoal
filter should be replaced every 3-6 months, dependent on use.
Check with your local retailer or dealer for information on how to obtain
replacement charcoal filters.

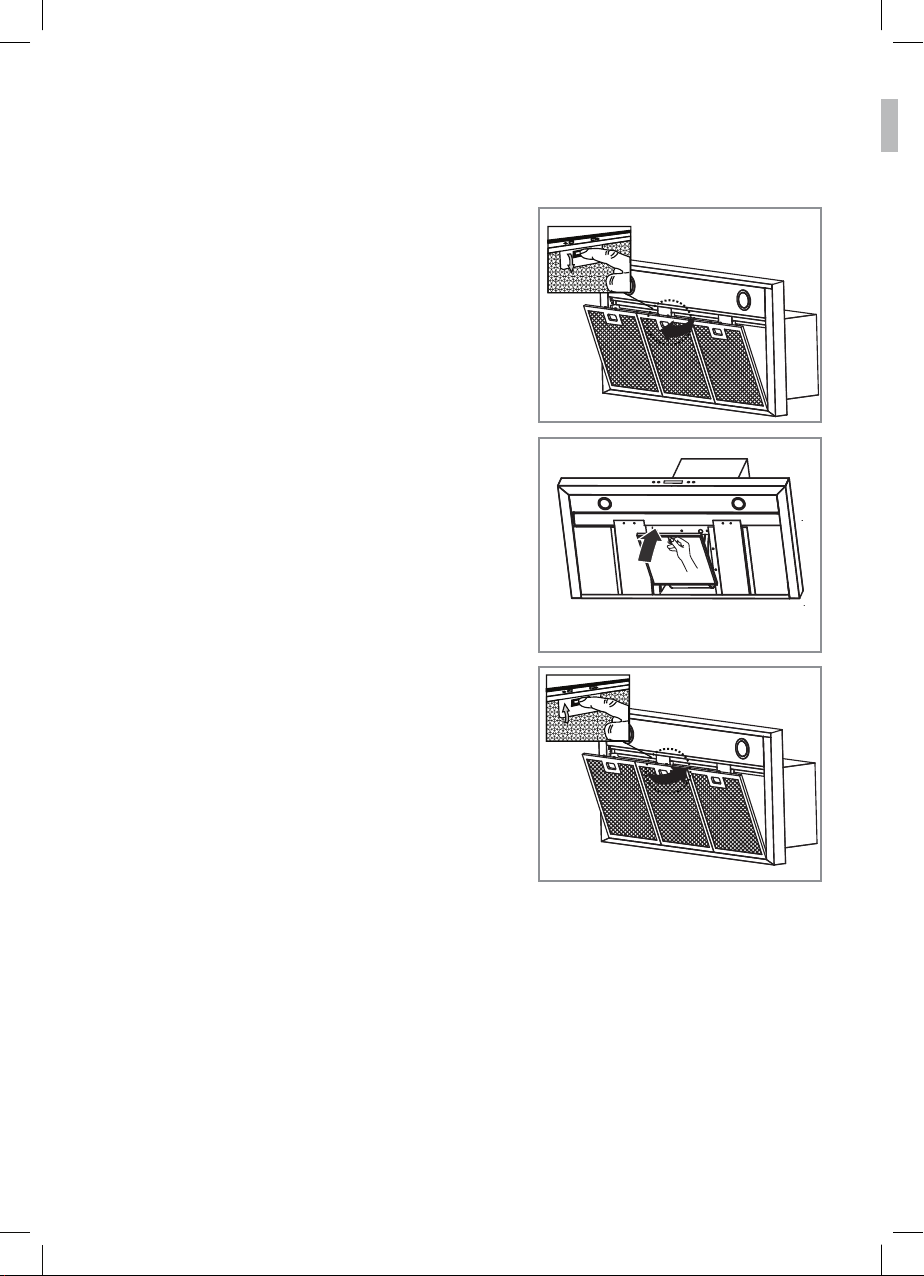

Note: This charcoal filter is non-washable and must be replaced as
required. To install a new charcoal filter, first remove the grease filter,
as shown in Fig. 3-I. Install the charcoal filter as shown in Fig. 3-II and
replace the grease filter (Fig. 3-III).
5
Fig. 3-II
Fig. 3-III
Fig. 3-I
6
Fig. 4-I
Fig. 4-II
Fig. 4-III
220V 2X1W LED MAX
Changing the Light
NOTE: Replacement of the LED lights MUST be
FDUULHGRXWE\DTXDOLƪHGHOHFWULFLDQ
IMPORTANT: DO NOT PERFORM MAINTENANCE
OR CLEANING OF THE EXTRACTOR WITHOUT FIRST
SWITCHING OFF THE ELECTRICITY SUPPLY.

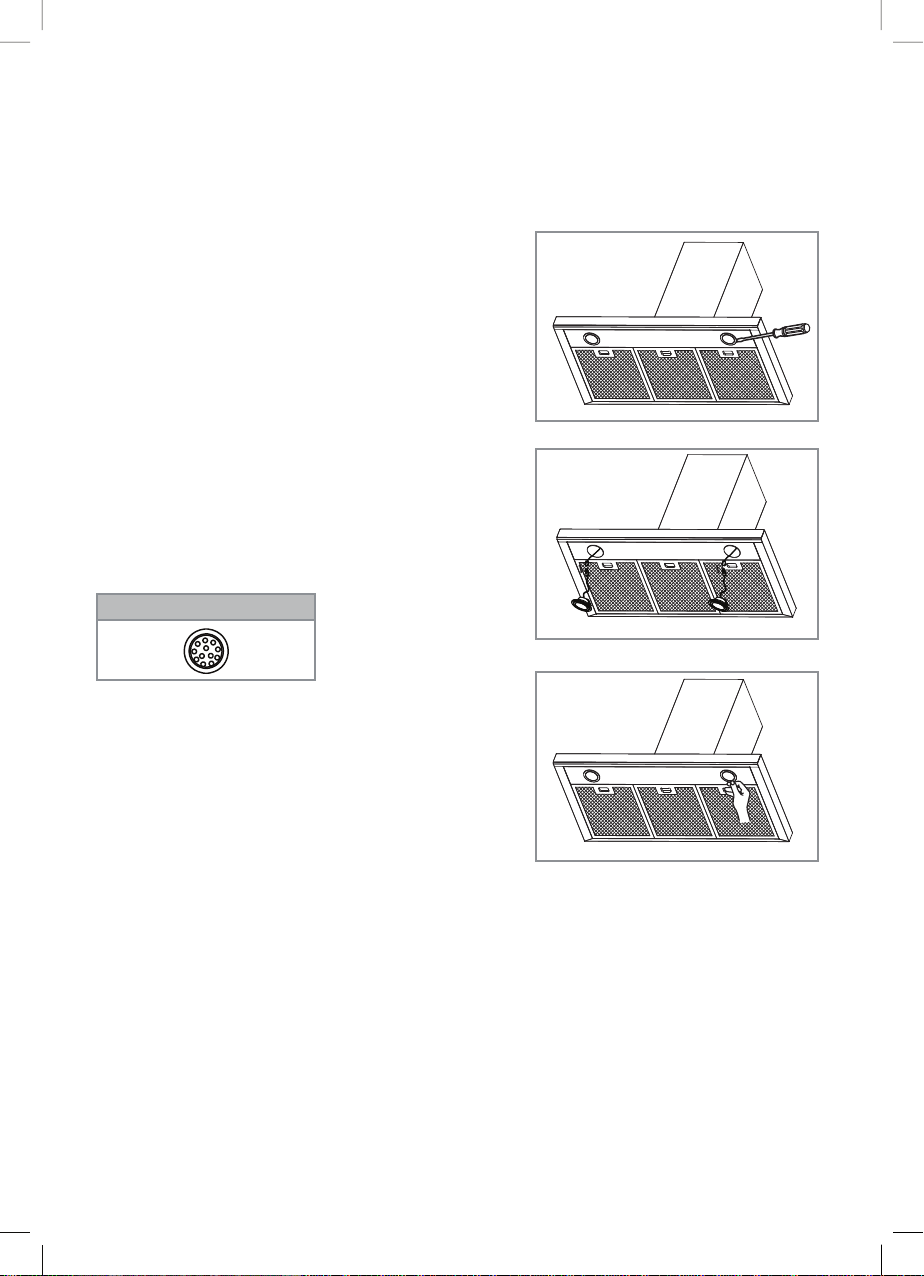

Remove the lamp using a flat-head screwdriver (Fig. 4-I).
Remove the lamp. Unplug the lamp wire connector. Replace the lamp
(Fig.4-II).
Plug the wire connector into the new lamp. Place the new lamp into
the lamp holder. Push the LED lamp into position until it clicks into
place (Fig. 4-III).
The lights are designed for use during cooking and not for general
room illumination. Extended use of the lights can reduce their life
span. Please contact your local retailer in order to purchase suitable
replacement LED lights.
Please note that the LED lights are NOT covered by the guarantee.
DOUBLE POLE SWITCHED
FUSE SPUR OUTLET
USE A 3 AMP FUSE
Mains Electricity Connection
THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY BY
A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE POLE
SWITCHED FUSE SPUR OUTLET AND PROTECTED BY A 3A FUSE.
Warning! This appliance MUST be earthed.
We recommend that the appliance is connected by a qualified
electrician who is a member of the N.I.C.E.I.C. and who will comply with
the I.E.T. and local regulations.
The wires in the mains lead of this appliance are coloured in
accordance with the following code:
Green & Yellow = Earth, Blue = Neutral, Brown = Live.
As the colours of the wires in the mains lead for the appliance may
not correspond with the coloured markings identifying the terminals
connecting to the fuse spur, proceed as follows:
The wire which is coloured green and yellow must be connected to
the terminal marked E (Earth) or coloured green.
The wire which is coloured blue must be connected to the terminal
marked N (Neutral) or coloured black.
The wire which is coloured brown must be connected to the
terminal marked L (Live) or coloured red.
Note: Use a 3A Fuse
Assembly and electrical connection MUST be carried out by suitably
qualified personnel.
When installing this product we recommend you seek the help of
another individual.
Do not mount the isolation switch behind the chimney section. It is
a requirement that you must be able to isolate the extractor from the
mains electrical supply after installation.
This appliance is intended to be connected to the mains electrical
supply by means of an isolation switch and fused spur and is intended
to be protected by a 3A fuse. The use of a 13A fuse can cause damage
to the internal wiring in the event of a fault, and may also invalidate the
warranty.
7
6
A
B
C*
D
E
F
34.5
189
380
75
60
Height dependent
CHT0660/CHT991X
For best performance and lowest noise output, we recommend
the use of a 125mm ducting.
greater than 700mm, then that is the distance that should be
observed. This is a legal
RIDDOR (the height
The width of any hob must not be greater than the width of the
extractor installed above it.
9
Fig. 5
A
B
C
F
E
Centre
D
Gas hob:750mm recommended
Electric hob:650mm recommended
INSTALLATION
IMPORTANT SAFETY WARNING: ONLY USE THE SCREWS PROVIDED WITH THE EXTRACTOR TO MOUNT
THE DUCTING ADAPTOR. THE USE OF LONGER SCREWS MAY CAUSE DAMAGE TO THE INTERNAL WIRING
WHICH WILL NOT BE COVERED BY THE WARRANTY.
10
10mm
Fig. 7 Fig. 8
Fig. 9 Fig. 10

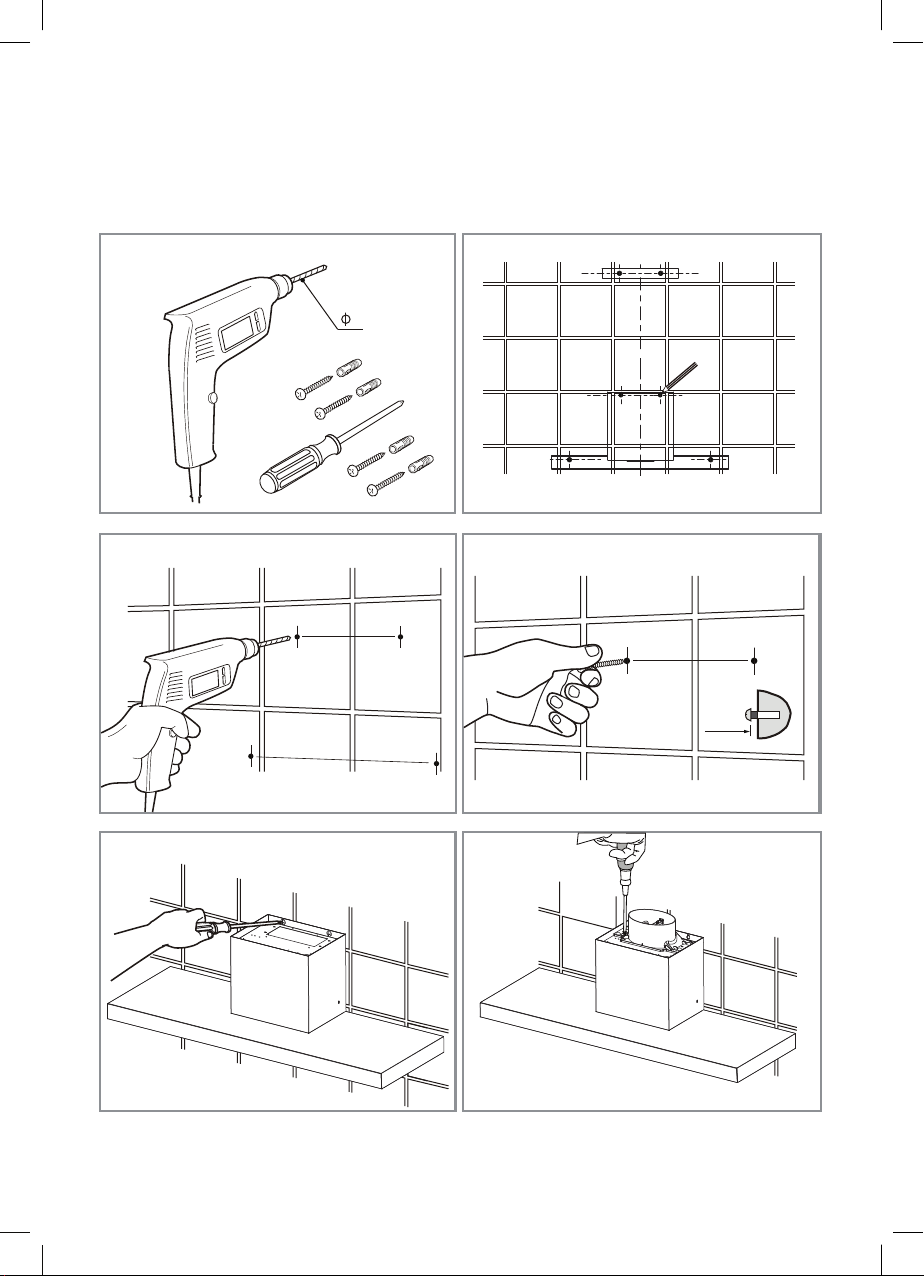

Tools required Mark wall as required (see Fig.5)
Drill 4 holes for mounting the body Fit wall fixings and top screws - Ensure that any fixings you use
are appropriate for the wall type.
8
Fig. 11
Secure hood (tighten all screws)
Fig. 12
Fit ducting adaptor
The metal casing of this appliance has been coated with a preservative to protect it during transport and storage.
This should be removed during installation by using a non-abrasive stainless steel cleaner. Always follow the
instructions given with the cleaner being used.
11
Fig. 14
Fig. 15 Fig. 16

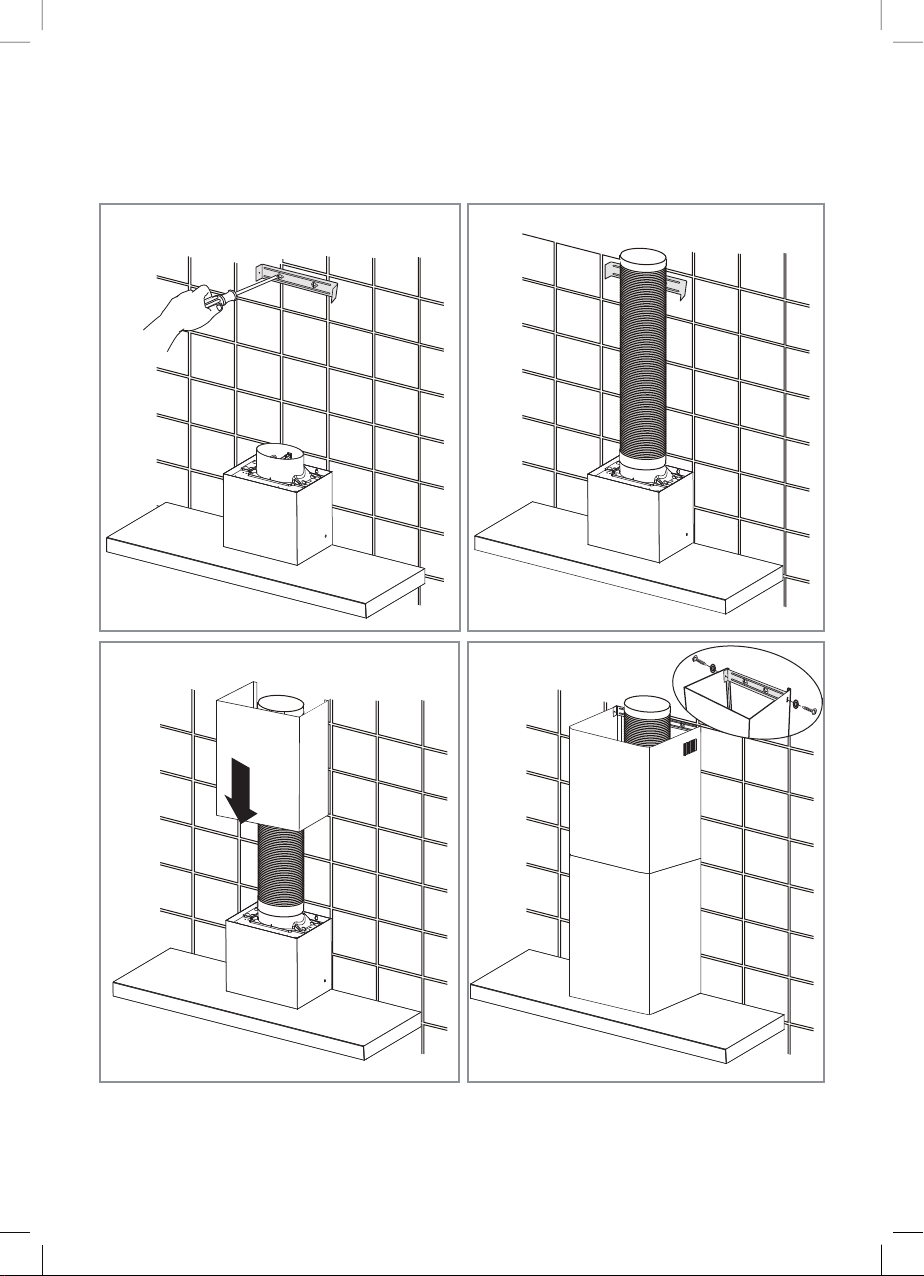

Fix ducting (seal joint)
Mount the lower chimney Adjust and secure the upper chimney
Fig. 13
Drill 2holes and mount the chimney bracket
Attribute Symbol Value Units
Model identification CHT0660/CHT991X
Annual Energy Consumption AECHood 55.8 kWh
Time increase factor f 1.6
FDEHood 10.5
EEIHood 83.5
Measured airflow at Best QBEP 213.9 m3/h
Measured Pressure at Best PBEP 161 Pa
Maximum airflow QMAX 334.9 m3/h
Measured electric power at Best WBEP 91.7 W
Nominal lighting power WL 2.0 W
Average illumination of the
lighting system on the cooking
surface
EMiddle 95 Lux
Measured power consumption in
standby
PS0.402 W
Measured power consumption PO--- W
Sound power level LWA 69 dBA
GFEHood 79.7 (C) %
LEHood 48 (A) %
12
evreserREILLEPTNOM.ylnoecnadiugrofdedivorperasnoitartsullidnasnoisnemid,snoitcurtsnillA.EO&E
the right to change specifications without prior notice.
Here For You
Here For You
After-sales assistance
If you continue to experience problems with your Cooker Hood, please call the Montpellier customer service
helpline on: 01759 487839
Please have all your product details available, including the model number, serial number, date of purchase,
and your retailer’s details before registering a fault.
The service call cannot progress without this information.
Your 2 year Manufacturer’s guarantee
THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.
Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the
rst 24 months from date of purchase provided that:
Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such
as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date
of claim.
What is not covered under the Guarantee
•Any appliance not correctly installed and operated in accordance with the manufacturer’s instructions.
•Any appliance that is used for anything other than domestic purposes.
• Any defect caused by accident, misuse, unauthorised modification or inexpert repair.
•Cost of Call-out where a fault cannot be found with the appliance.
•C ost of Call-out for work covering routine maintenance, such as, but not exclusively, cleaning of filters or
defrosting.
•Cost of Call-out for work required to correct the alignment of doors following door reversal procedures
carried out by you.
•Use of the appliance by anyone other than the Householder.
•Use in any commercial environment.
•Consumable items, such as, but not exclusively, fuses in plugs, bulbs and breakable items which require
routine replacement.
•Repair costs incurred that have not been authorised by Montpellier and/or carried out by a non-approved
Montpellier engineer.
•Montpellier Appliances do not accept claims for consequential loss, rusting, corroding, delivery damage
or scratches.
YOUR GUARANTEE IS VALID ONLY IN THE UK.
To register your appliance simply complete the card in your appliance pack and return it with a stamp axed or
alternatively you can register online at www.montpellier-appliances.com/support
SERVICE HELP-LINE
Should your appliance develop a fault, please call the Montpellier customer service helpline on: 01759 487839
Please remember to have all your product details available, including the model number, serial number, date of
purchase and your retailer’s details before registering a fault.
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall
be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product,
SOHDVHFRQWDFW\RXUORFDOFLW\RƱFH\RXUKRXVHKROGZDVWHGLVSRVDOVHUYLFHRUWKHVKRSZKHUH\RXSXUFKDVHGWKHSURGXFW
www.montpellier-appliances.com
Montpellier Domestic Appliances Ltd.
Unit 1, T
ewkesbury Retail Park, Northway Lane,
7HZNHVEXU\*ORXFHVWHUVKLUH*/-8
This manual suits for next models
1
Table of contents
Other montpellier Ventilation Hood manuals
montpellier
montpellier MCA52S User manual
montpellier
montpellier MIN60S User manual
montpellier
montpellier MHD650BK User manual
montpellier
montpellier CHG613MSS User manual
montpellier
montpellier MHG600X User manual
montpellier
montpellier CHV601MW User manual
montpellier
montpellier MON-ICHT101 User manual
montpellier
montpellier CHV611MSS User manual
montpellier
montpellier CHG613MB-EDGE User manual
montpellier
montpellier MH600X User manual
montpellier
montpellier MHE600LX User manual
montpellier
montpellier CHV60W User manual
montpellier
montpellier ICHT02101 User manual
montpellier
montpellier CHC602MSS User manual
montpellier
montpellier CHC902MSS User manual
montpellier
montpellier CHG903MSS User manual
montpellier
montpellier DDCH60 User manual
montpellier
montpellier CHG913MSS User manual
montpellier
montpellier MHT600X User manual
montpellier
montpellier CACH510 User manual
Popular Ventilation Hood manuals by other brands
Cylinda
Cylinda FK250C user manual
Davoline Telescopic Lux
Davoline Telescopic Lux 1144 instruction manual
FALMEC
FALMEC PRESTIGE ISOLA GLASS BLACK 75 Instruction booklet
Broan
Broan B5936SS installation manual
Jenn-Air
Jenn-Air 36" Installation Instructions and Use & Care Guide
Amica
Amica OMP6441 Series operating instructions
FALMEC
FALMEC Massimo INSERT Instruction booklet
Dacor
Dacor DHD30M700WS installation instructions
Omega
Omega ORU52MB instruction manual
KOBE
KOBE RA3830SQD Installation instructions and operation manual
ELICA
ELICA Elite 14 LUX GR+IX A/50 Instruction on mounting and use
Raypak
Raypak 181/182 Installation & operating instructions
