montpellier CHG613MB-EDGE User manual

Cod:0103086589-00.02
/

Thank you for choosing this Montpellier &XUYHG*ODVV&RRNHU+RRG.
Our +RRGVhaYH been designed to provide you with the best combination of style, reliability and performance to
give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing
or using your &RRNHU+RRG to ensure you get the most from your purchase.
We recommend that you keep this manual in a safe place for future reference.
Your &RRNHU+RRGis covered by a comprehensive two year Parts & Labour
Guarantee. In the unlikely event that you experience a problem with your +RRG,
you can rest assured that you are fully protected against WKHFRVWRIUHSDLUVIRU
WKHILUVWPRQWKV3OHDVHQRWHWKDWDQ\FODLPPXVWbe accompanied by the
model reference number, serial number and proof of purchase.
To activate your guarantee, you will need your product serial number. This can
be found on the rear of the machine.
There are two ways to register your Guarantee:
•Online: Visit the Support page on our website and complete the online Product
Registration form. www.montpellier-appliances.com
•By Post:6LPSO\GHWDFKDQGƮOOLQWKHIRUPSURYLGHGDWWDFKDVWDPSDQGVHQG
it in the post. Don’t forget to include your e-mail address so that we can send
FRQƮUPDWLRQWKURXJKWR\RX
Welcome
Note: We are unable to take registrations over the phone.
ACROSS ALL OUR MODELS
YEAR
GUARANTEE
PA R T S & LA B O U R
www.montpellier-appliances.com



<YMgDiODI|rMrIDiil|HMYM`LrMzoljzZH`MOlrZi^rZMzlr`lzzMzIDzMLHZiIlrrzMlrZiz|D``D|ZlilO|Y[zorlLI|
5`MDzMil|M}YD||YMgDiOGI}sMrrMzMrMz|YMrZXY||lZiD`ZLD}M|YMXDrDi|MMzo`ZMLZ|Y|YZzorlLI|On``l[iX
ZiIlrrMI|Ziz|D``D|ZlilrgZzzMlO|YMDoo`ZDiIMlrzMZiDIlggMrIZD`MiZrligMi|
<YZzDoo`ZDiIMZzil|LMzZXiML|lHMzMLHoMlo`MZiI`LZjXIYZ`LrMiZ}YrMLIKoYzZID`zMizlrZD`lrgMi|D`
IDoDIZ~lrYl`DI_MoMrZMjIMlr_il`MLXMDHl|Z|i`Mzz}YMYDMYDLzoMrazblilr%iz|rI|ZlizliYl|lzM
|YMDoo`ZDiIMHzlgMliMYlZzrMzolizZH`MOlr|YMZrzDOM|
>iLMtilIZrIgz|DiIMzzYl`LDiM}MrjD`IlMrzHMrMglMLOnrzMr[IZiXltgDi|MiDiIMMIMo}HzZ|DH`
qD`ZOZMLoMrzliiM`
ppf\EkJN\kPmuhE\mk
5`MDzMMi|Mr|YMLM|DZ`zli|YMDoo`ZDiIMrD|ZiXo`D|MHM`lOnrrMOMrMiIM|lDzzZz| z|lgMrDrMZi|YMMMi|lQD
T`|Z|YlrDoo`ZDiIMDiL|lrMXZz|MrlrDoo`ZDiIMOlrXDrDi|MMorolzMz
oo`ZDiIM.lLM`
&:MrZD`0gHMr
 NJcEvE\mk{mPmkUvh\
<YZzDoo`ZDiIMYDzHMMigDiODI}rML|l}YMz|tZI|Mz|z|DiLDrLzDiLIlgo`ZMzZ|Y))Doo`ZIDH`M`MXZz`D|ZliZiI`LZiX
#DzzDOM|!`MI}rZID`zDOM|+@DiL!`MI|rlgDXiM|ZIZi|MrOMrMiIMIlgoD|ZHZ`Z}!.w
'/627=1='1"27/='21"27277 =';62;,2"=$ 672?='1 491 B'=$ (7 ='A 
 
||YMMiLlQZ|zlr_ZiX`ZOM}YMorlLI|gz|HM|D_Mi|lDzoMIZD``lID`D|YlrZ|Dz|MIl`dMI}ZliIMi|rMlr|lD
LMD`MrorlZLZiXDoo`ZDiIMsMII`ZiXzMrZIMzZzolzZiXlODYlzMYl`LDoo`ZDiIMzMoDrD|M`DlZLzolzzZH`MiMXD|ZM
IlizMqMiIMzOnr|YMMiZrligMi|DiLYMD`|Y)|D`zlMiDH`Mz|YMIliz}Z|Mi|gD|MrZ`z|lHMrMIlMrMLzDZiXHl|Y
MiMsXDiLrMzlrIMz
zDrMgZiLMrlO|YMiMML|lLZzolzMlOYlzMYl`LDoo`ZDiIMzzMoDrD}M`}YMorlL-I|ZzgDr_MLZ|YDIrlzzMLl|
YMM`MLLz|HZi
6cNE{NkmN
>iLMrilIZrIgz|DiIMzzYl`L|YMM|rDI|lrHMIliiMI|ML|lDiXDzMi|Z`D|Zly zz|MgO`Mzz|MglrYl|DZr
LI|ZiXzz|Mg
lil|Mi||YMM|rDI|lrZi|lDiD||ZIlr`lWzoDIM
3j`YlzM|YMM|rDI|lr[irllgzZ|YDLMqD|MMi|[`D}Zli8MgMgHMr|YD||YM|rDI}lrZzolMrO`DiLYD|MMr
DZrZzM}rDI|MLiMMLz|lHMrMo`DIML
lil||Z`M|YMM|rDI|lr[i*|zYl`LHMrMglDH`MVrzMrZIMlrgDZi|MiDiIM
lil|zMzZ`ZIliMzMD`Di}|lzMIrM|YMYllL|l|YMD``
Clgz|HMDH`M|lZzl`D|M|YMM|rDI|lrOrlg}YMgDZizM`MI|rZID`zoo`DWMrZi F``D|Zli
:|MDgI`MDiMrzgz|il|HMzMLYMiI`MDiZiX|YZzDoo`ZDiIM
<YMoMrSlrgDiIMlOlrM}rDI|lrZ`dDrLMoMiLZiXliDigHMrlOODI|lrz<eMzM%iI`LM|oMlOM|rDI|Zli
`MjX|YlOLI|ZiXrllgl`gMMi|[`D}ZliDDZ`DH`MDiLI`MDi`ZiMzzlO|YMR]`|Mrz


Using your Extractor
For best performance, you should switch on the extractor 15 minutes before starting to cook and leave it to run
for approximately 15 minutes after the end of cooking.

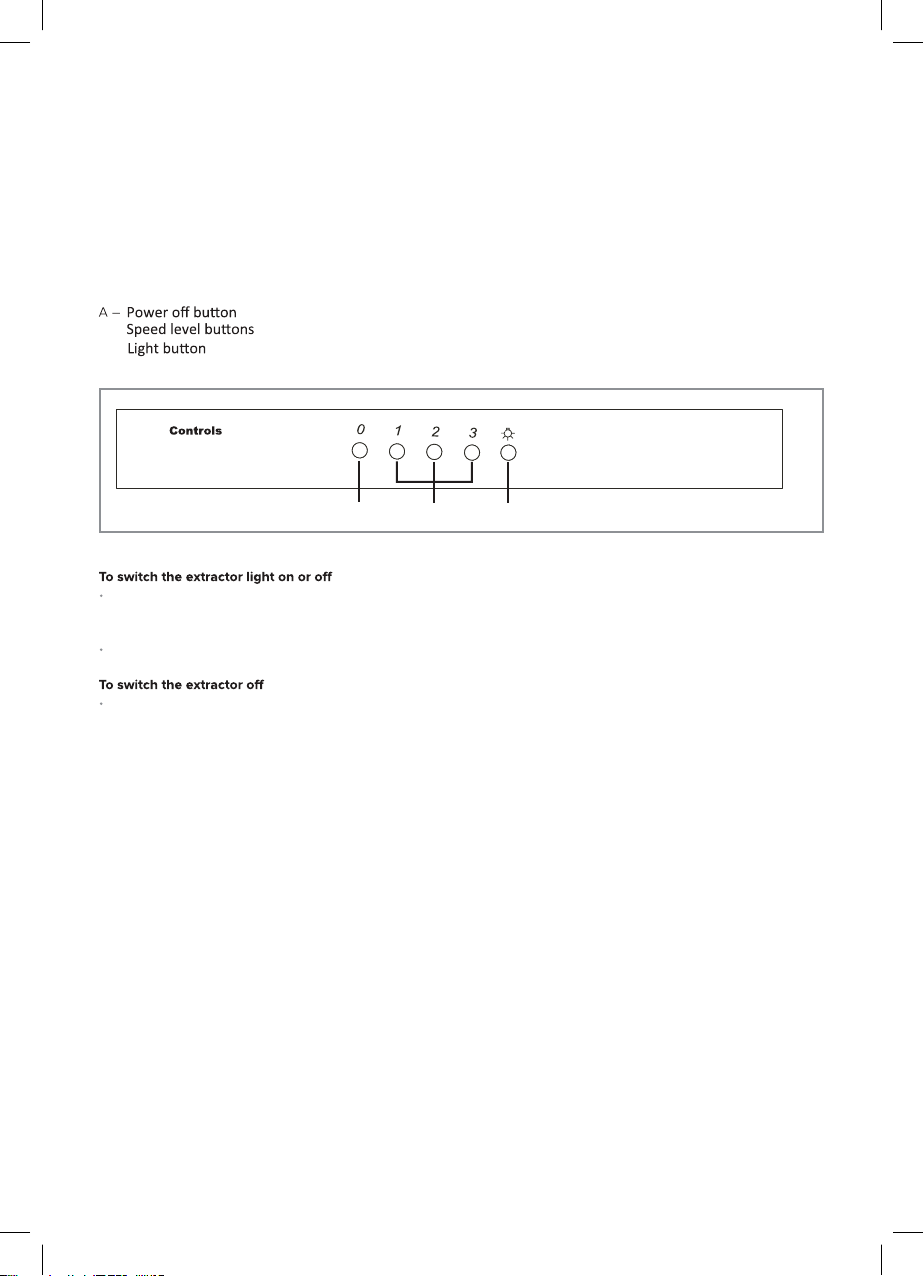

Control Panel
B –
C –
Press button C.
To switch on the extractor or change the motor speed at any time when the extractor is running
Press button B for the first, second or third speed as required.
Press button A.
Fig. 1 ABC

Care and Maintenance
IMPORTANT : DO NOT PERFORM MAINTENANCE OR CLEANING
OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE
ELECTRICITY SUPPLY.
Cleaning
hse a nonͲabrasivecleaner. Any abrasive cleaner (including Cif) will
scratch the surface and could erase the control panel markings.
solution of water and mild detergent and drying to a shine with a clean
cloth.
The grease filter should be kept clean to minimise the risk of fire.
zou should remove and clean the grease filter with hot soapy waterĂƚ
ůĞĂƐƚŽŶĐĞĂŵŽŶƚŚ.You can also wash the grease filter in a
dishwasher, ensuring that you place it in an upright position to prevent
damage from other items in the dishwasher.After rinsing and drying,
replace the filter.
To remove the grease filter, push in the button on the handle and then
pull down on the filter at the front. When you have released it at the
front, pull out the filter.To replace the grease filter, repeat the ĂďŽǀĞ
steps in reverse.
Please note:
Cleaning the grease filter in the dishwasher may lead to discolouration.
This is normal and does not constitute a fault with the appliance.
Fig. 2


Fig. 3-I
Fig. 3-II
Fig. 3-III
&KDUFRDOƪOWHULQVWDOODWLRQ
&DUHDQG0DLQWHQDQFH
,03257$17'2127$77(037720$,17$,125&/($17+(
(;75$&725:,7+287),5676:,7&+,1*2))7+((/(&75,&,7<
6833/<
In recirculating mode, air is vented back into the kitchen through the
opening in the cooker hood.
This method is advised if you are not using your hob intensively.
Recirculated air requires the use of charcoal filters to remove odours.
To ensure the best performance from your cooker hood, the charcoal
filter should be replaced every 3-6 months, dependent on use.
Check with your local retailer or dealer for information on how to obtain
replacement charcoal filters.
Note: This charcoal filter is non-washable and must be replaced as

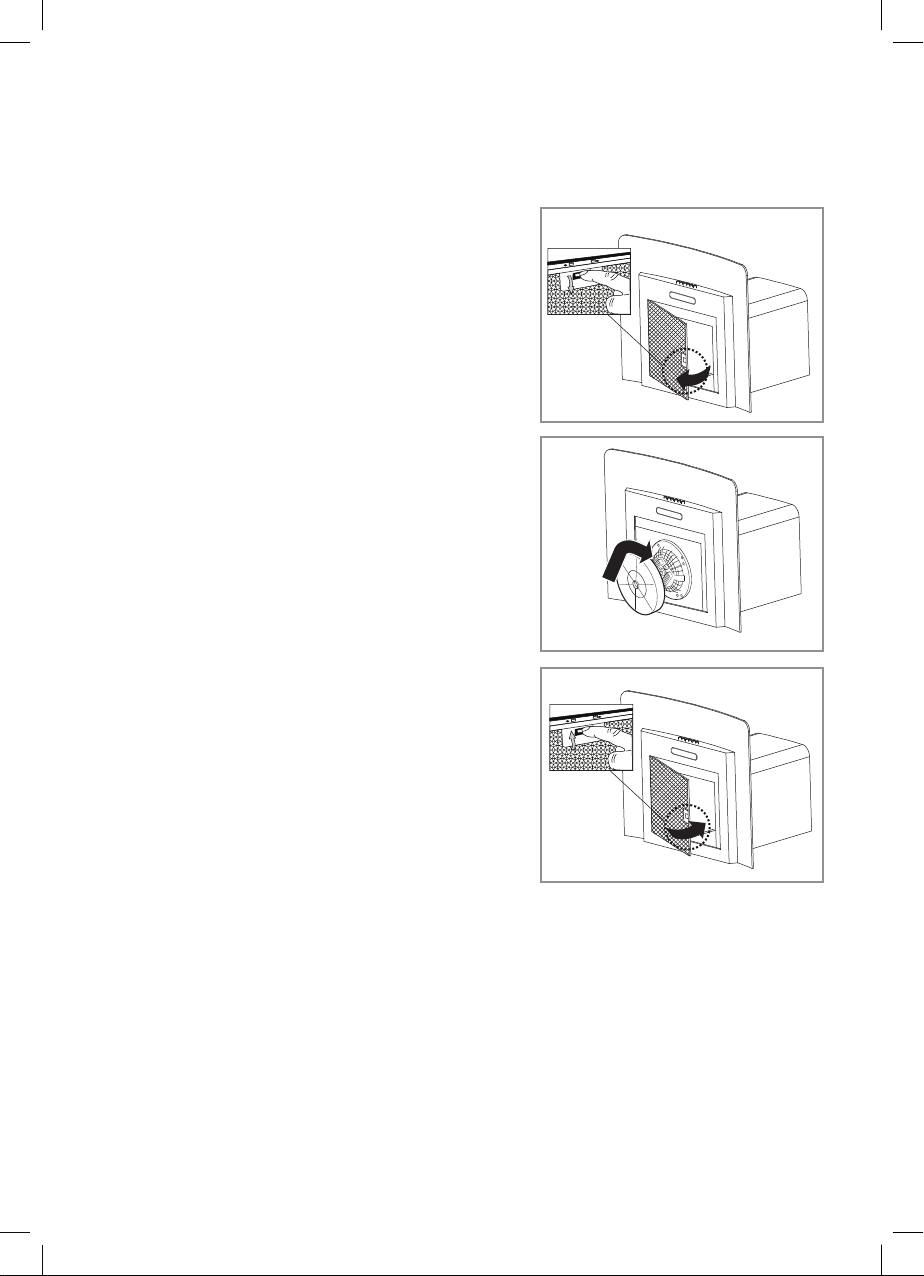

required. To install a new charcoal filter, first remove the grease filter,
as shown in Fig.3Ͳ/dŚĞŶŝŶƐƚĂůůƚŚĞĐŚĂƌĐŽĂůĨŝůƚĞƌĂƐƐŚŽǁŶŝŶ&ŝŐϯͲ//
ĂŶĚƌĞƉůĂĐĞƚŚĞŐƌĞĂƐĞĨŝůƚĞƌ;&ŝŐϯͲ///Ϳ.



NOTE: Z
ZĞƉůĂĐĞŵĞŶƚŽĨƚŚĞ>ůĂŵƉŵƵƐƚďĞĐĂƌƌŝĞĚŽƵƚ
ďLJĂƋƵĂůŝĨŝĞĚĞůĞĐƚƌŝĐŝĂŶ

IMPORTANT: DO NOT PERFORM MAINTENANCE
OR CLEANING OF THE EXTRACTOR WITHOUT FIRST
SWITCHING OFF THE ELECTRICITY SUPPLY.
Please note that the LED lamp is not covered by the guarantee.

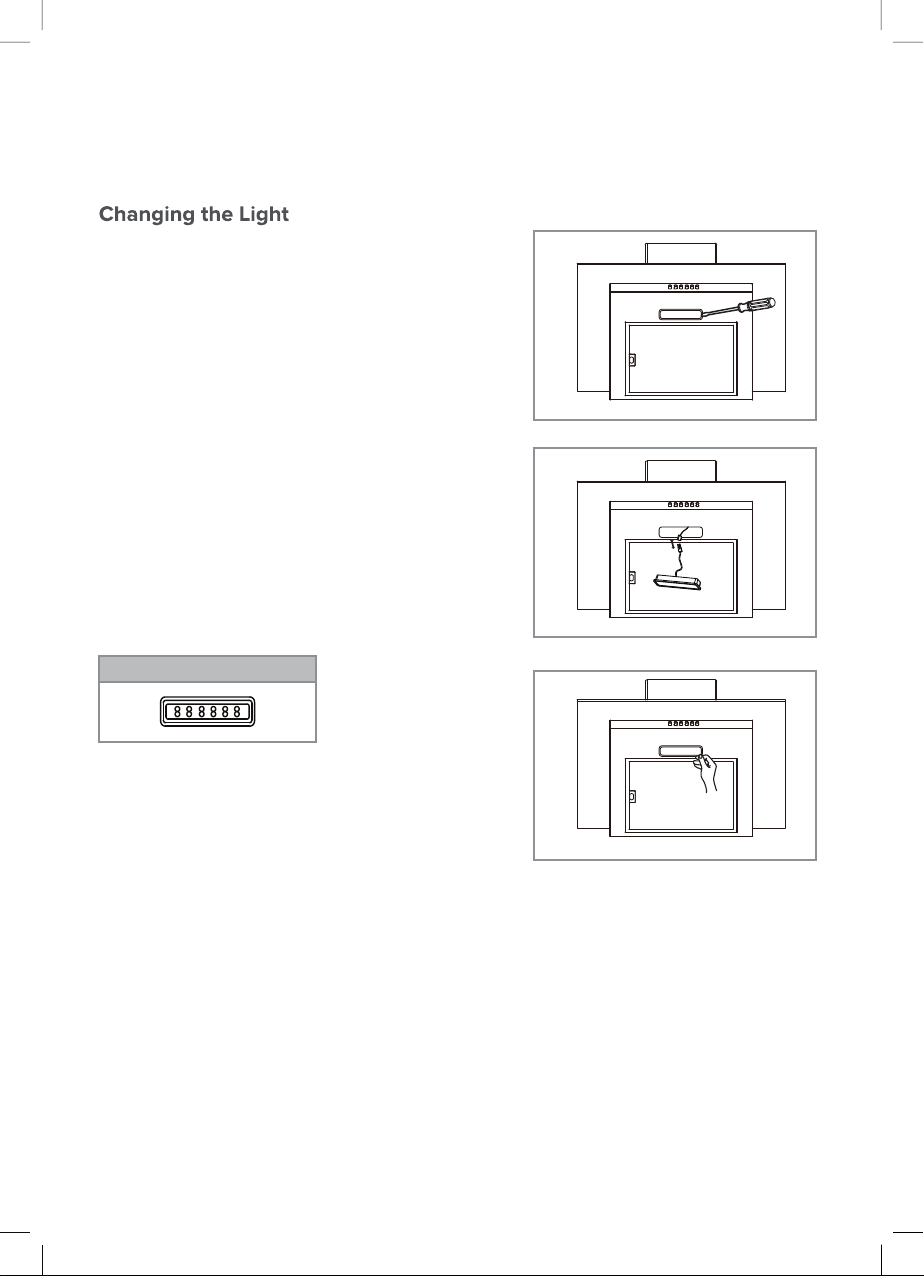

Remove the lamp using a flat-head screwdriver(Fig.4-I).
Pull out the lamp. Unplug the lamp wire connector. Replace the lamp
(Fig.4-II).
Plug ƚŚĞwire connector ŝŶƚŽƚŚĞ new lamp. ZĞƉůĂĐĞthe new lamp in
ƚŚĞlamp holder.Push the LED lamp into ƉŽƐŝƚŝŽŶƵŶƚŝůŝƚĐůŝĐŬƐŝŶƚŽ
ƉůĂĐĞ (Fig.4-III).
dŚĞlight is designed for use during cooking and not for general room
illumination. Extended use of the light can reduce ŝƚƐlife span.Please
contact your local retailer in order to purchase a new LED lamp when
replacing a damaged orĂfaulty ŽŶĞ.
1X1W LED MAX
Fig. 4-I
Fig. 4-II
Fig. 4-III

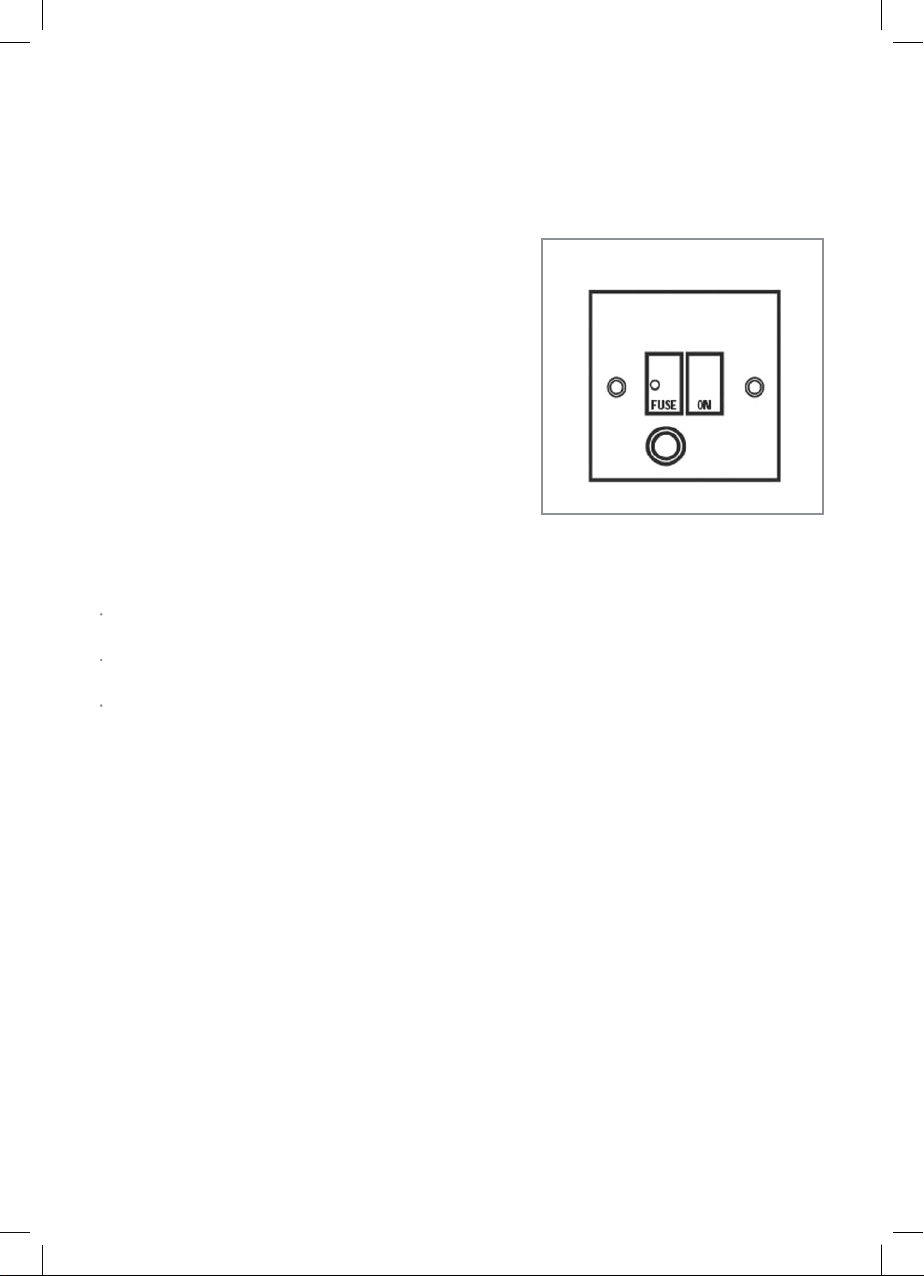

DOUBLE POLE SWITCHED
FUSE SPUR OUTLET
USE A 3 AMP FUSE
Mains Electricity Connection
THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLYBY
A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE POLE
SWITCHED FUSE SPUR OUTLET AND PROTECTEDBY A 3A FUSE.
Warning! This appliance must be earthed.
We recommend that the appliance is connected by a qualified
electrician who is a member of the N.I.C.E.I.C. and who will comply with
the I.E.T. and local regulations.
The wires in the mains lead of this appliance are coloured in
accordance with the following code:
Green& Yellow = Earth, Blue = Neutral, Brown = Live.
As the colours of the wires in the mains lead for the appliance may
not correspond with the coloured markings identifying the terminals
connecting to the fuse spur, proceed as follows:
The wire which is coloured green and yellow must be connected to
the terminal marked E (Earth) or coloured green.
The wire which is coloured blue must be connected to the terminal
marked N (Neutral) or coloured black.
The wire which is coloured brown must be connected to the
terminal marked L (Live) or coloured red.
Note: Use a 3A Fuse
Assembly and electrical connection ŵƵƐƚ be carried out by ƐƵŝƚĂďůLJ
ƋƵĂůŝĨŝĞĚ personnel.
When installing this productwe recommend you seek the help of
another individual.
Do not mount the isolation switch behind the chimney section. It is
a requirement that you must be able to isolate the extractor from the
mains electrical supply after installation.
This appliance is intended to be connected to the mains electrical
supply by means of an isolation switch and fused spur and is intended
to be protected by a 3A fuse. The use of a 13A fuse can cause
damage to the internal wiring in the event of a fault and may also
invalidate the warranty.


31W

service engineer

5
A
B
C*
D
E
F
16
94
79
86.5
75
Height dependent
CHG613MB-EDGE/CHG613MSS-EDGE
CHG913MB-EDGE/CHG913MSS-EDGE
For best performance and lowest noise output.
10
observed. This is a legal requirement and may lead to your hob
being reported to RIDDOR (the height should be measured from
extractor installed above it.
C
E
F
D
Centre
B
A
Gas: 750mm recommend
Electric: 650mm recommend
6

INSTALLATION
)2elbatees(deriuqersallawkraMderiuqerslooT
sgnixfiynatahterusnE-swercspotdnasgnixfillawtiFselohllirD
you use are appropriate for the wall type.
)swercsllanethgit(dooheruceS
IMPORTANT SAFETY WARNING: ONLY USE THE SCREWS PROVIDED WITH THE EXTRACTOR TO MOUNT
THE DUCTING ADAPTOR. THE USE OF LONGER SCREWS MAY CAUSE DAMAGE TO THE INTERNAL WIRING
WHICH WILL NOT BE COVERED BY THE WARRANTY.
8
10mm


Fig. 13
)tniojlaes(gnitcudxiFstekcarbyenmihctnuoM
yenmihcehterucesdnatsujdAyenmihcehttnuoM
Fig. 12
The metal casing of this appliance has been coated with a preservative to protect it during transport and storage.
This should be removed during installation by using a non-abrasive stainless steel cleaner. Always follow the
instructions given with the cleaner being used.
1

13

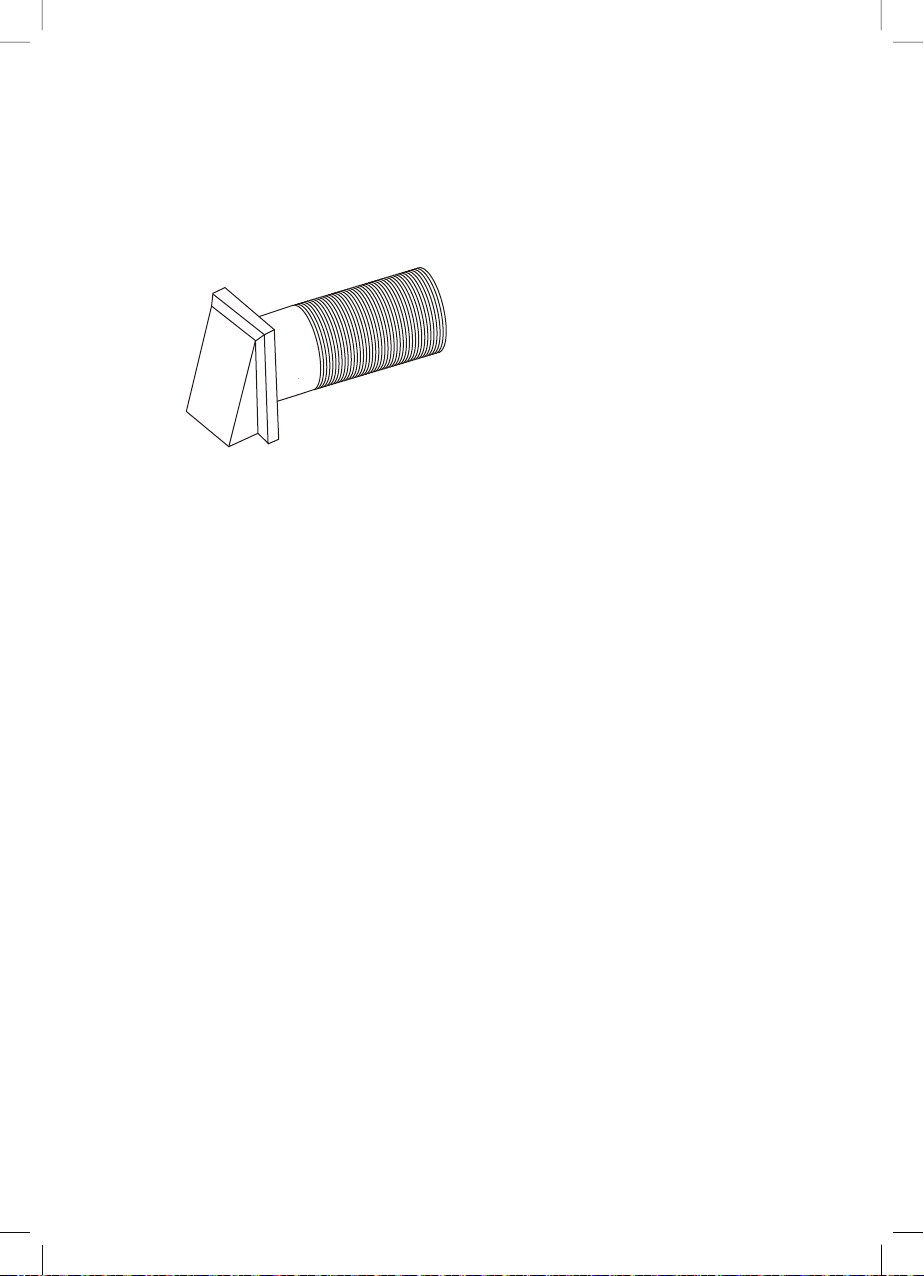

150mmx1m COOKER HOOD KIT D5
1m
CONTENTS LIST:
Fitting Instructions
1. External wall vent x 1
2. 150mm x 1m Hose
3. Cable Tie x 2
4. Fixing Screws with wall Plugs x 4
5. Hose Fixing Studs x 3
IMPORTANT:
Ensure that you check your cooker hood grease filter on a regular basis as grease vapours can become trapped and this
could aect the eciency of your extraction unit.
WARNING:
It is important that where an air extraction unit is fitted in a room with an open flame appliance, an air back flow should be
provided to avoid the reversal of flue gasses.

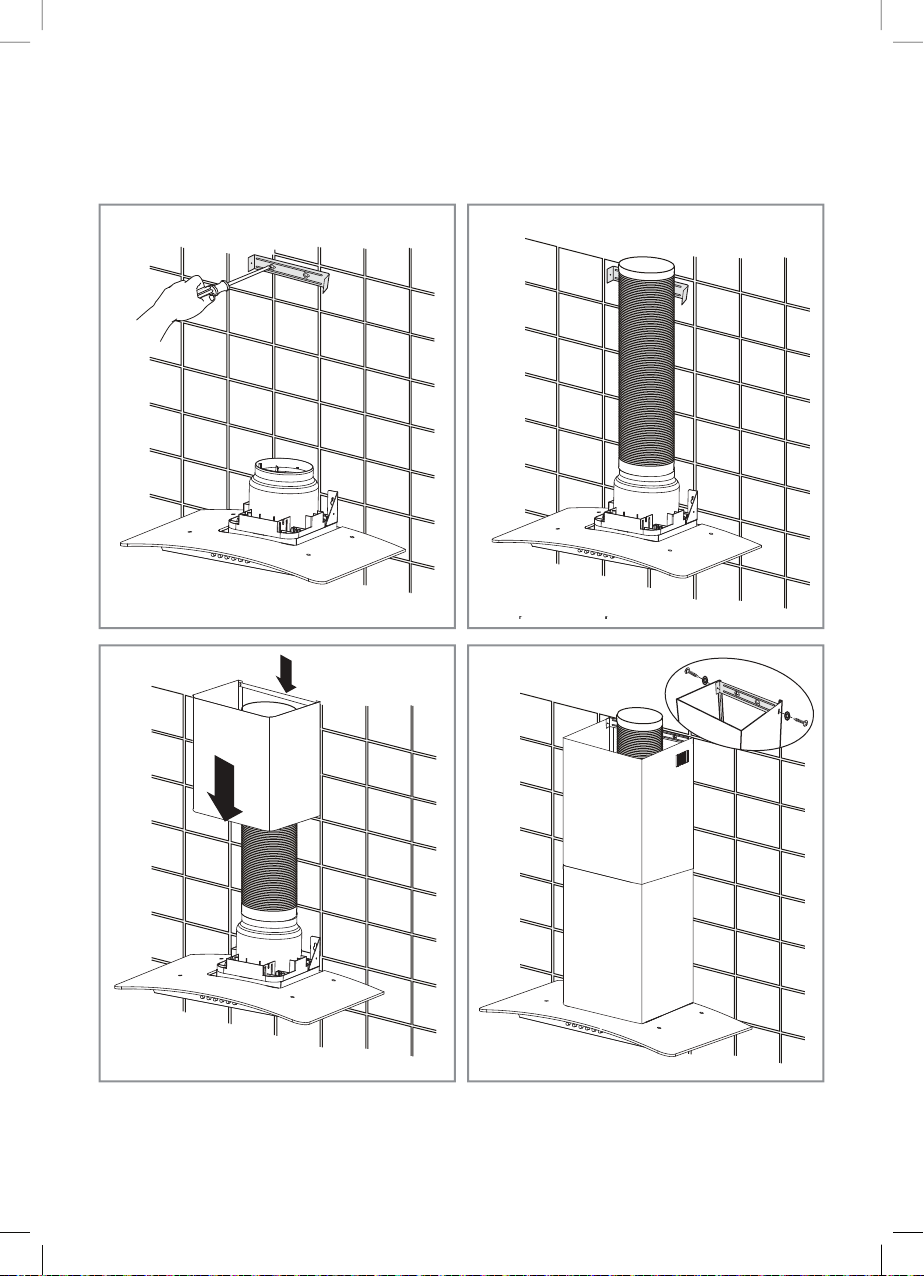

1. Using a core drill cut apertures through wall.
2. Thread flexible hose through hole in wall and fix to outside wall ventusing 3 studs supplied.
3. Position outside wall vent, mark 4 fixing positions, drill fixing holes, then fit vent using 4 screws and wall plugs supplied.
4. Ensuring flexible hose is as straight as possible, trim to length, fit over cooker hood spigot and fix with cable tie provided.
(NOTE: Do not kink hose as this could restrict airflow.)

evreserREILLEPTNOM.ylnoecnadiugrofdedivorperasnoitartsullidnasnoisnemid,snoitcurtsnillA.EO&E
the right to change specifications without prior notice.
Attribute Symbol Value Units
Model Identification CHG613MB-EDGE
CHG613MSS-EDGE
CHG913MB-EDGE
CHG913MSS-EDGE
21.3
1.8
6.5
64.5
67
60.0(E)
17(C)
122.1
50
282.6
26.3
6.0
103
---
0.00
Annual Energy Consumption AECHood kWh
Time Increase factor f
FDEHood
EEIHood
Measured Airflow at Best QBEP m3/h
Measured Pressure at Best PBEP Pa
Maximum Airflow QMAX m3/h
Measured Electric Power at Best WBEP W
Nominal Lighting Power WL W
Average Illumination of the
lighting system on the cooking
surface
EMiddle Lux
Measured Power Consumption in
standby
PSW
Measured Power Consumption POW
Noise level LWA dBA
GFEHood %
LEHood %


Here For You
Here For You
After-sales assistance
If you continue to experience problems with your &XUYHG*ODVV+RRG, please call the Montpellier customer
service helpline on: 01759 487839
Please have all your product details available, including the model number, serial number, date of purchase,
and your retailer’s details before registering a fault.
The service call cannot progress without this information.
Your 2 year Manufacturer’s guarantee
THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.
Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the
ƮUVWPRQWKVIURPGDWHRISXUFKDVHSURYLGHGWKDW
Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such
DVD6DOHV5HFHLSWVKRZLQJWKDWWKHDSSOLDQFHZDVSXUFKDVHGZLWKLQWKHPRQWKVSULRUWRWKHGDWH
of claim.
What is not covered under the Guarantee
•Any appliance not correctly installed and operated in accordance with the manufacturer’s instructions.
•Any appliance that is used for anything other than domestic purposes.
•$Q\GHIHFWFDXVHGE\DFFLGHQWPLVXVHXQDXWKRULVHGPRGLILFDWLRQRULQH[SHUWUHSDLU
•Cost of Call-out where a fault cannot be found with the appliance.
•&RVWRI&DOORXWIRUZRUNFRYHULQJURXWLQHPDLQWHQDQFHVXFKDVEXWQRWH[FOXVLYHO\FOHDQLQJRIILOWHUVRU
defrosting.
•Cost of Call-out for work required to correct the alignment of doors following door reversal procedures
carried out by you.
•Use of the appliance by anyone other than the Householder.
•Use in any commercial environment.
•Consumable items, such as, but not exclusively, fuses in plugs, bulbs and breakable items which require
routine replacement.
•Repair costs incurred that have not been authorised by 0RQWSHOOLHUVHUYLFH and/or carried out by a non-
approved 0RQWSHOOLHU engineer.
•Montpellier Appliances do not accept claims for consequential loss, rusting, corroding, delivery damage
or scratches.
YOUR GUARANTEE IS VALID ONLY IN THE UK.
7RUHJLVWHU\RXUDSSOLDQFHVLPSO\FRPSOHWHWKHFDUGLQ\RXUDSSOLDQFHSDFNDQGUHWXUQLWZLWKDVWDPSDƱ[HGRU
alternatively you can register online at www.montpellier-appliances.com/support
SERVICE HELP-LINE
Should your appliance develop a fault, please call the Montpellier customer service helpline on: 01759 487839
Please remember to have all your product details available, including the model number, serial number, date of
purchase and your retailer’s details before registering a fault.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall
be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product,
SOHDVHFRQWDFW\RXUORFDOFLW\RƱFH\RXUKRXVHKROGZDVWHGLVSRVDOVHUYLFHRUWKHVKRSZKHUH\RXSXUFKDVHGWKHSURGXFW
www.montpellier-appliances.com
Montpellier Domestic Appliances Ltd.
Unit 1, Tewkesbury Retail Park, Northway Lane,
7HZNHVEXU\*ORXFHVWHUVKLUH*/-8
