Mooer Ocean Machine User manual

Premium Dual Delay, Reverb and Looper pedal

Precautions
Connections
or disconnecting, this will help prevent malfunction and / or damage to
other devices. Also make sure to disconnect all connection cables and
the power cord before moving this unit.
Power Supply
Please connect the designated AC adapter to an AC outlet of the
correct voltage. Please be sure to use only an AC adapter which
supplies 9V DC(±10%), , center negative. Unplug the AC
power adapter when not in use or during electrical storms.
Cleaning
Clean only with a soft, dry cloth. If necessary, slightly moisten the cloth.
Do not use abrasive cleanser, cleaning alcohol, paint thinners, wax,
solvents, cleaning fluids, or chemical-impregnated wiping cloths.
Interference with other electrical devices
Radios and televisions placed nearby may experience reception
interference.
Operate this unit at a suitable distance from radios and televisions.
FCC certification
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
that may cause undesired operation.
Strong vibrations or shocks
Location
Direct sunlight
Magnetic fields
Excessive dusty or dirty location
To avoid deformation, discoloration, or other serious damage, do not
expose this unit to the following conditions:
Heat sources
Extreme temperature or humidity
High humidity or moisture

Contents
Back Panel Layout 02
Front Panel Layout 01
Panel Layout 01
Setup 03
Play Mode 05
Patch Mode 07
04
Modes
11
Looper
13
Settings Menu
Wireless Footswitch
09
Effect Types
Reverb
09
Delay B 09
Delay A 10
Expression pedal 10
13
Wireless
Exp. 14
Tone 14
Merge 15
Midi Mapping 15
Trail 15
IN & OUT 16
Global EQ 16
Reset 17
MIDI
Storing Presets 17
Firmware Update
18
19
22

Dist-Ve rb FL- Ver b
Real
Tri-Mod
Mod-Inv
Echo
Rainbow
Crystal
Low-Bit
Fuzzy
MIX
Simultaneously depress
DelayB and DelayA
footswitches to access Looper
When in Play mode simultaneously depress
Reverb and DelayB footswitches to enter
tap tempo. Then use the Reverb footswitch
for master tap tempo or DelayA/DelayB
footswitch for their corresponding tap tempos
Reverb Parameter controls
Shimmer: Mix shimmer effect
Decay: Length of reverb decay
Tone: Reverb tonality
R.Mix: Reverb wet/dry mix
Delay B parameter controls
FeedbackB: DelayB repeats
TimeB: DelayB time
ToneB: DelayB tonality
D.MixB: DelayB level
DelayA parameter controls
FeedbackA: DelayA repeats
TimeA: DelayA time
ToneA: DelayA tonality
D.MixA: DelayA level
Menu/Mix Control
During standard
operation rotate the
Menu control to adjust
the master mix of the
ocean machine.
Press to access the on
screen menu. Rotate
to navigate, press to
enter.
Looper: Rotate to
adjust looper level
(this is independent
from the master mix)
Reverb type
Selects the Reverb effect type
Back Button
Used for stepping backwards
during menu navigation
Setting button
Enter/Exit global settings menu
Reverb Footswitch
Play Mode: Reverb on/off.
Hold for Reverb frozen
feedback effect
Patch Mode: Tap tempo
Looper: Record/Play/Stop
DelayB Footswitch
Play Mode: DelayB on/off. Hold
for DelayB feedback effect
Patch Mode: Previous preset
Looper: Half speed on/off
DelayA Footswitch
Play mode: DelayA on/off. Hold for
DelayA feedback effect
Patch Mode: Next preset
Looper: Reverse on/off
DelayB type
Selects the
delay type for
DelayA
DelayB type
Selects the
delay type
for DelayB
Store button
Used for storing
presets
Mode button
Changes
operation mode
Panel Layout
Front Panel Layout
01

EXPRESSION
/EXTERNAL
Input for external
expression pedals
or control switches
LEFT/MONO INPUT
Left channel input
Mono input
RIGHT INPUT
Right channel input
LEFT/MONO OUTPUT
Left channel output
Mono output
RIGHT OUTPUT
Right channel output
MIDI THRU
Bypass output from
midi in signal
MIDI IN
Input for midi signal
from external devices
9V DC
Power input (9 v
DC, 500 ma, centre
pin negative)
500
Back Panel Layout
02

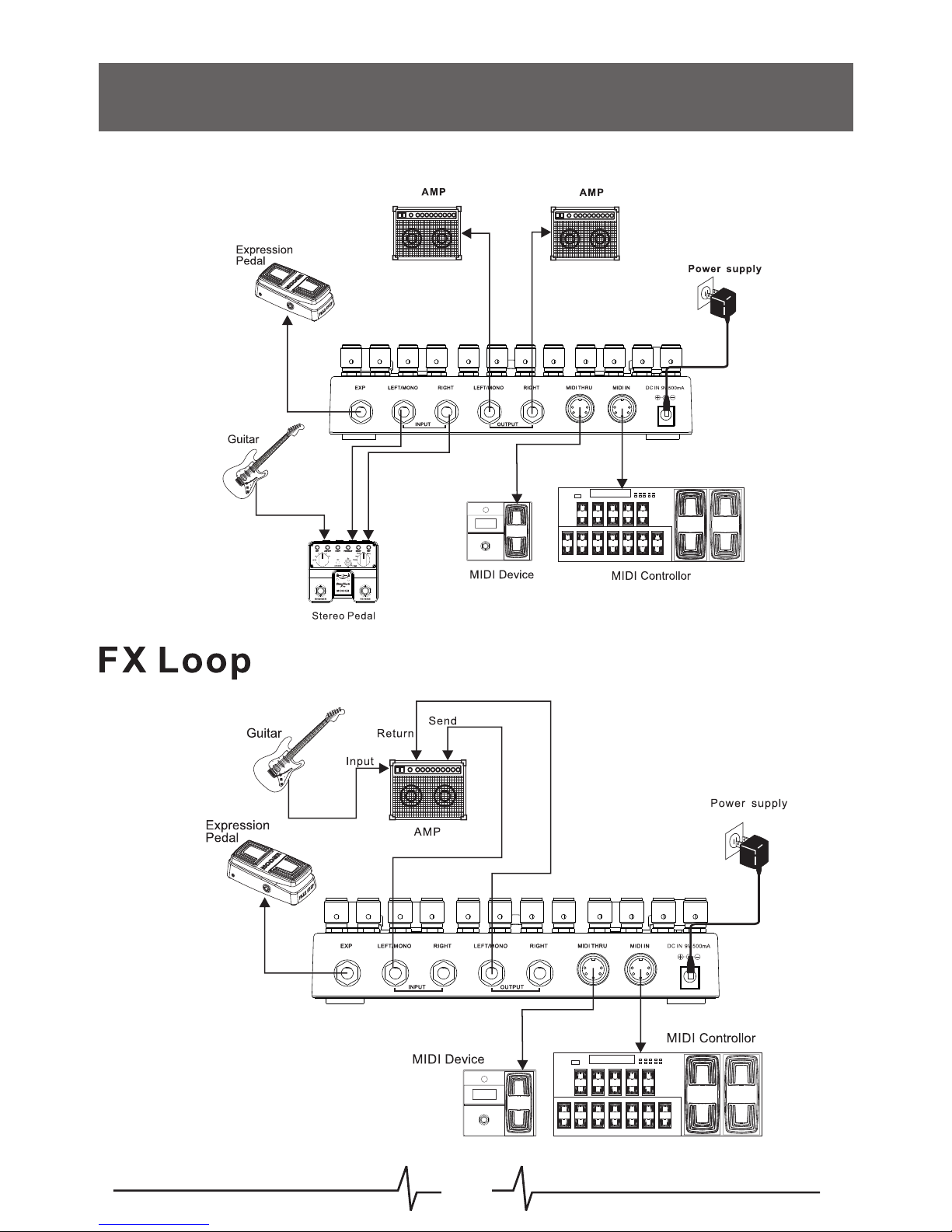

Setup
Front of amp
03

The Ocean Machine has two main operation modes to allow the
device to be used in different ways.
PLAY Mode - In this mode the Ocean machine operates like a
tradition effects pedal and every basic effect parameter value
is the same as that of it's corresponding control knob.
PATCH Mode - In this mode the Ocean machine recalls saved
presets and all basic effect parameter values will be the same
as the recalled preset until adjusted via their corresponding
control knob.
Press the Preset button to change the mode of operation.
Modes
04

Ocean Machine will boot directly to Play mode by default when powered on. In this mode the
ocean machine will operate like a traditional stompbox. All basic effect parameters are depicted
directly by the values of the physical control knobs.
Reverb/DelayB/DelayA
Depressing any of these footswitches once will turn on or turn off it's respective effect.
Holding down any of these footswitches while it's respective effect is turned on will put
the effect into a state of infinite feedback until the footswitch is released.
Simultaneously depress the Reverb and DelayB footswitches to access tap tempo control.
You will then have a few seconds to tap your desired tempo.
Reverb footswitch = master tap tempo
Delay B footswitch = Delay B tempo
Delay A footswitch = Delay A tempo
Auto sub-division values can be set for each delay separately in the menu screen.
TAP Tempo
Effect Parameters
All of the basic effect parameters can be adjusted directly using their respective control knobs.
More effect parameters, tempo sub-divisions, ping pong, effects chain, etc. can all be edited
and adjusted within the menu screen.
Rotate the Menu control when nothing is selected within the menu screen to adjust the master
output effect mix of the ocean machine.
Master Mix
Play Mode
MIX
05

Menu Screen
The menu screen allows access to deeper editing options. To access the menu screen options
press the Menu control knob once.
When inside the menu screen the currently selected effect block or parameter will be highlighted
with a red border.
Mod
Echo Mod-Rev
970ms 917ms
OFF
OFF
Rotate the Menu control to navigate the menu screen and adjust parameter values
Press the Menu control to access parameter screens, enter parameters and set states
Press the Back button to return to the menu screen
Press the Back button whilst on the menu screen to resume normal operation
(Menu control will now be a master mix control)
Navigation
Highlight the effect block you wish to move by rotating the Menu control knob.
Press and hold the Menu control.
Rotate the Menu control whilst holding it down, to move the effect block where you
want it in the signal chain
Release the Menu control to confirm effect block placement
Edit effects signal chain
Highlight the Delay tempo you wish to edit at the bottom of the screen using the Menu
control knob
Press the Menu control to enter the Tempo sub-division screen
Once in the sub-division screen press the Menu control to turn sub division on/off.
Rotate the Menu control to adjust
the sub division value. Press the Back button to return to the Menu Screen
Tempo sub division
06

In patch mode the ocean machine recalls all effect settings from the stored presets and the
controls work slightly differently.
Reverb - Dedicated master Tap tempo. The footswitch LED will always show the current Tap
tempo
DelayB - Previous preset
DelayA - Next Preset
Simultaneously depress the Reverb + DelayB footswitches to toggle between the preset
selection screen and the Patch Control page
Simultaneously depress the DelayB + DelayA footswitches to enter/exit the looper
When on the Patch Control page all three footswitches and controls will maintain the same
functions (except tap tempo) as in play mode, allowing you to engage or disengage the reverb
or delays within your selected preset in real-time.
Effects Parameters
All of the basic effect parameters can be adjusted directly using their respective control
knobs. More effect parameters, relative tempos, ping pong, effects chain, etc. can all be
edited and adjusted within the Patch Control Page
Rotating the Menu control will adjust the master mix
Pressing the Menu control will enter the Patch Control Page
Patch Mode
MIX
07

Real
Crystal
862ms
Reverse
Crystal Real
998ms
OFF
OFF
970ms
Press the menu button whilst in patch mode on the preset selection screen to enter the
Patch Control page.
Alternatively you can simultaneously depress the Reverb + DelayB footswitches to toggle
between the Patch Control page and the preset selection screen
Navigation
Rotate the Menu control to navigate the patch control page and adjust parameter values
Press the Menu control to access parameter screens, enter parameters and set states
Press the Back button to return to the patch control page
Press Back whilst on the patch control page to resume normal operation (Menu control will
now be a master mix control)

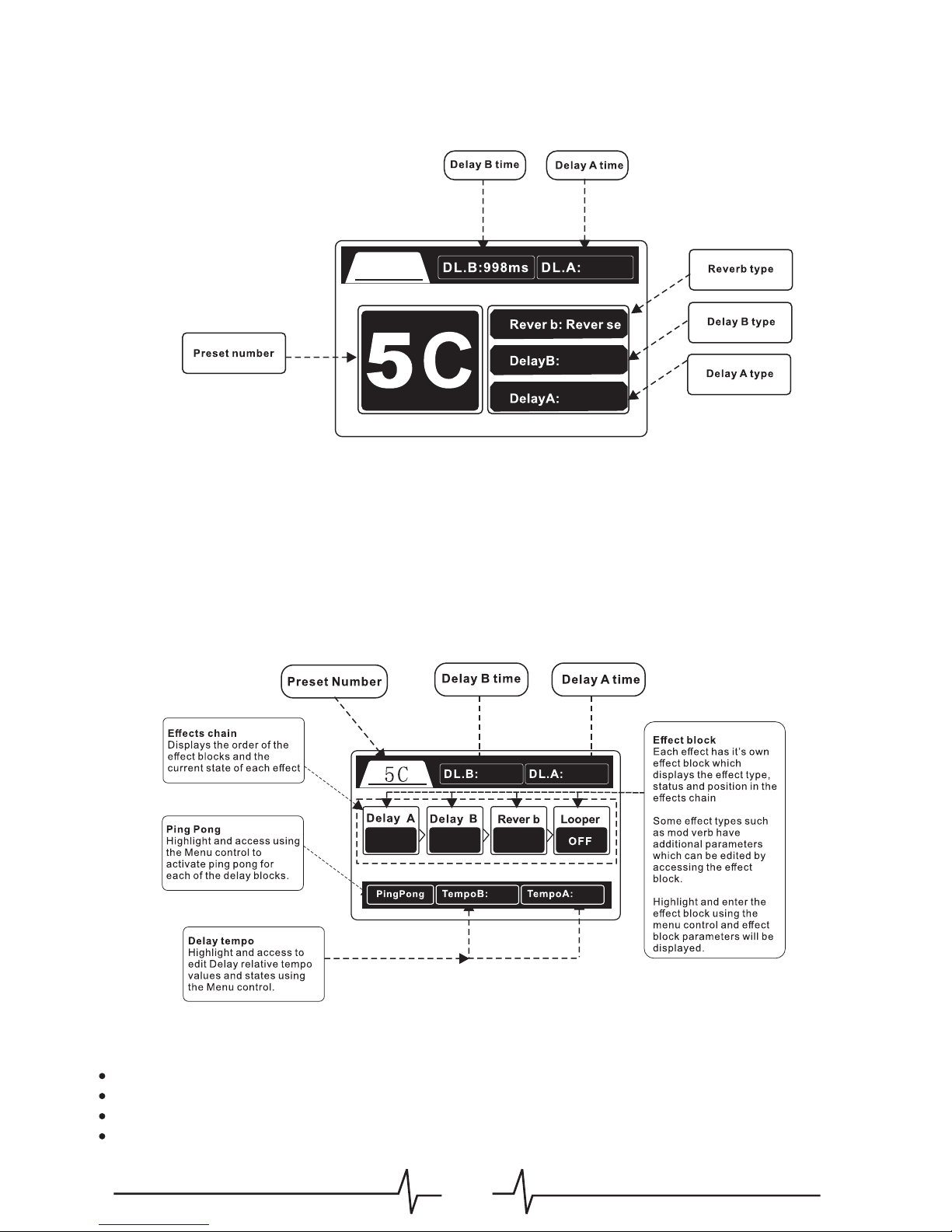

Patch Control Page
Preset selection screen
Patch
08

Effect Types
Dist-VerbFL-Verb
Room:Small room Reverb with a short decay
Hall:Large spacious Reverb with a long decay
Plate:Based on a traditional mechanical plate reverb
Dist Verb:Distorted Reverb
FL-Verb:Reverb with a modulated Flanger
Filter:Reverb with a modulated envelope follower
Reverse:Backwards Reverb
Spring:Based on a vintage, large tank, spring reverb
Mod:Reverb with a modulated Chorus
Reverb
Delay B
Digital:High fidelity delay with clean repeats
Analog:Vintage BB style delay with warm degrading repeats
Tape:Based on a classic reel to reel tape echo
Real:Clear delay with natural sounding repeats
Dyna:Dynamic Delay
Galaxy:Delay with swelled repeats and a light modulation
Mod:Delay with modulated repeats
Tri mod:80’s style delay with thick modulated repeats
Mod-Inv:Reverse delay with modulation
Real
Tri-Mod
Mod-Inv
09

Delay A
Echo
Rainbow
Crystal
Low-Bit
Fuzzy
Digital:High fidelity delay with clean repeats
Analog:Vintage BB style delay with warm degrading repeats
Tape:Based on a classic reel to reel tape echo
Echo:Based on a vintage echorec
Liquid:Digital Delay with modulated Phaser repeats
Rainbow:Special effect pitch Delay with modulation
Crystal:Special effect pitch Delay with glistening highs
Low-Bit:Delay with bit crusher
Fuzzy:Delay with Fuzz
Note: All effects marked with a have extra parameters available for adjustment.
Highlight the effect block and enter it’s edit screen using the Menu control
Expression pedal
An external expression pedal can be used to control various parameters of
the ocean machine
Connect an expression pedal to the EXP input of Ocean Machine using a
TRS stereo jack cable
You can select the parameters which the expression pedal controls on the
Exp. page inside the Settings Menu
10

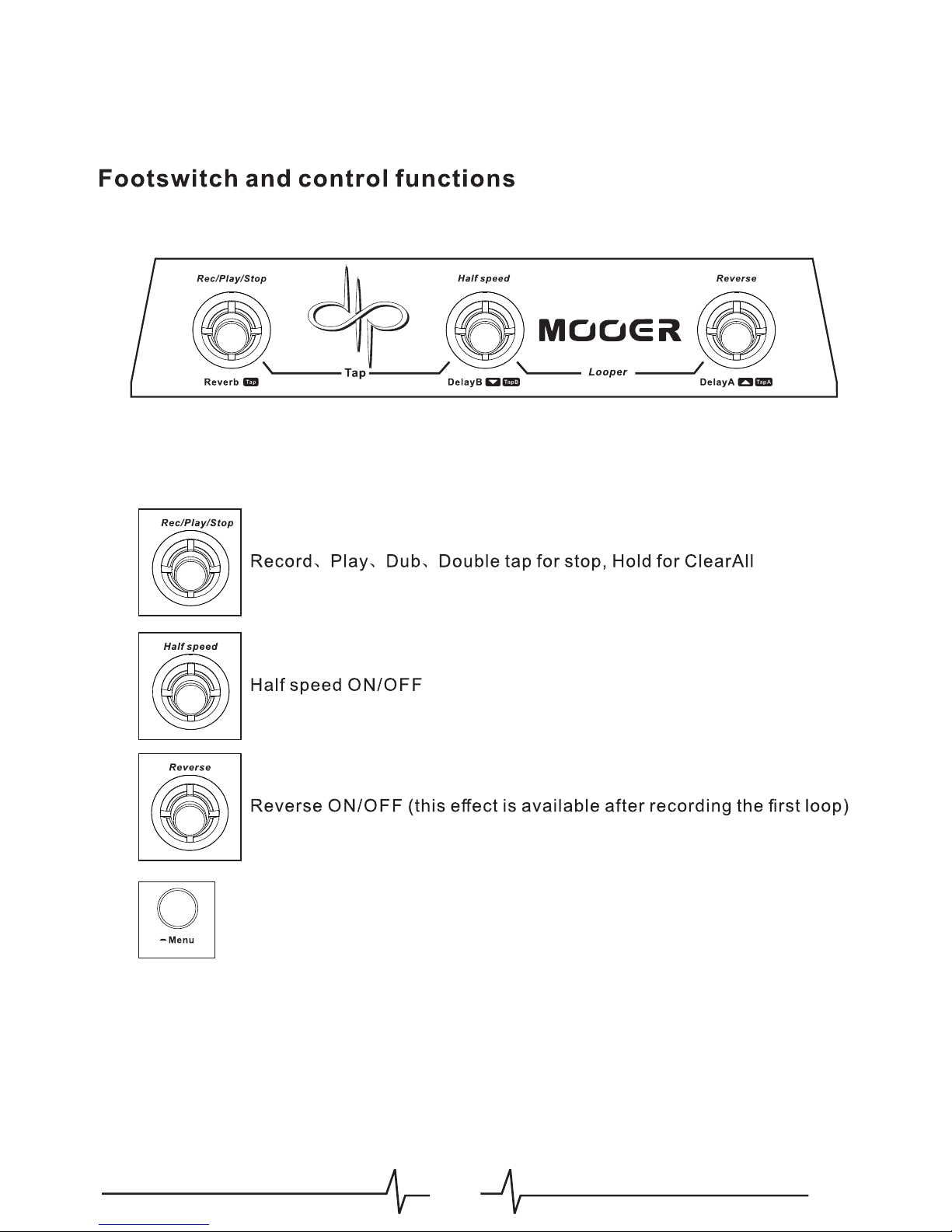

Ocean machine comes complete with a looper with up to 44 seconds of
recording time, overdubbing, independent level control and full featured
half speed + reverse effects.
To access the looper simultaneously depress the DelayB + DelayA footswitches.
- +
OFF
Looper
Looper lever
11

When on the Looper screen, rotating the Menu control will adjust the
playback level
* Note: You can go back and forth between the looper and your current operation screen
while the looper is in operation by simultaneously pressing DelayB and DelayA footswitches
MIX
12

Inside this menu you will find various global settings
Press the Setting button to enter the settings menu
Press the Back button to exit the settings menu
Settings Menu
Setting
WirelessTrail: OFF
MIDI Mapping
Exp.
IN & OUT
Tone
Global EQ
Reset
Merge:OFF
Tone
Setting
WirelessTrail: OFF
MIDI Mapping
Exp.
IN & OUT
Tone
Global EQ
Reset
Merge:OFF
Tone
Rotate the Menu control to navigate the settings menu
Press the Menu control to access parameter screens, enter parameters and set states
Patch Reverb Setting wirelessswitch Patch Reverb Setting wirelessswitch
Type11Switch Type24Switch
Wireless
Here we can select the wireless footswitch type when we have one connected to the Ocean
Machine.
Rotate the Menu knob to select the correct footswitch and press the Back button to confirm
and return to the Settings menu
13

Exp.
In this page we can select which parameter is controlled by an external expression pedal
and adjust the minimum threshold when the expression pedal is in heel down posit
Setting Expression
Shimmer Decay R.Tone R.Mix
Min Value: 0%
Tone.A D.Mix A A.P2 Master Mix
A.P1
F.Back B Time.B Tone.B
R.P1 R.P2
D.Mix B F.Back A Time.A
B.P1 B.P2
Rotate the Menu control to select which parameter you want the expression pedal to control.
This will be a global setting and can not be changed per preset
Press the Menu control to confirm your selectionion
At the bottom of this page is a parameter named “Min Value”. Changing this percentage will
adjust the minimum threshold when the expression pedal is in the heel down position
Tone
Patch Reverb Setting
Tone
Tone.R Tone.B Tone.A
HighPass
LowPass LowPass LowPass
HighPass HighPass
The tone controls on Ocean machine’s delay and reverb effect blocks can independently be
setup as high pass or as low pass filters
Press the Menu control to select which tone control you wish to change
Rotate the Menu control to select High pass or Low pass
Press the Back button to return to the settings menu
14

Merge
With Merge activated, trails of the delays and reverbs will blend into each other when the
effect type or preset is changed
Press the Menu control to switch Merge on/off
Midi Mapping
Ocean Machine contains a full contents table of it’s midi mapping so you don’t need to carry
a manual with it for programming midi control
MIDI PC#
MIDI CC#
Preset
1A
1B
1C
2A
2B
PC#
#1
#2
#3
#4
#5
*
*
*
*
*
*
MIDI PC#
MIDI CC#
Function CC#
23
3
46
47
48
Valuerange
0-127
Reverb on/off
Reverb Type
Shimmer
Decay
Tone
0-8
0-127
0-127
0-127
Ocean Machine operates on Midi Channel 1. It can receive midi signals
but can not transmit them
Press the Menu control to change between CC and PC tables
Rotate the Menu control to scroll up and down these tables
Trail
With Trail activated the Ocean Machine operates in buffered bypass mode and the trails of
delays and Reverbs will continue to finish after the effect is bypassed
With Trail deactivated the Ocean Machine operates in true bypass mode and the trails of
delays and reverbs will terminate as soon as they are bypassed
Press the Menu control to switch Trail on/off
15

IN & OUT
On this page we can adjust the global input and output levels
Patch Reverb Setting IN & OUT
100
IN
Patch Reverb Setting IN & OUT
80
OUT
Press the Menu control to change between Input level and Output level
Rotate the Menu control to adjust the level
Global EQ
Ocean Machine is equipped with a Global EQ section which will affect both your dry guitar
signal and the sound of the effects. This can be switched on or off
Setting OFF
L.FREQ BASS TREBLE H.FREQ
MID
Global EQ
OFF 0dB 0dB 0dB OFF
1.ON/OFF
Switches the Global EQ on or off
2.L.FREQ
Adjustable low frequency cut
3.EQ
Cut or boost BASS, MID, and TREBLE frequencies up to +-12dB
12 O’clock is 0dB boost or cut
4.H.FREQ
Adjustable high frequency cut
Press the Menu control to select the parameter you wish to adjust
Rotate the Menu control to adjust the parameters value
16
EQ
01
02 04

After creating a sound in Play mode or the Patch Control Page you wish to save,
press the Save button.
The screen will display a preset number
Rotate the Menu control till you find the preset space where you want to save your sound
Press the Save button one more time to confirm or press Back to exit the saving procedure
Reset
Storing Presets
This will perform a factory reset of your ocean machine
Rotate the Menu control to select YES
Press the Menu control to confirm factory reset
Select NO or press the Back button to cancel the factory reset procedure
17
Setting
YES NO
Reset
Setting
YES NO
Reset Setting
YES NO
Reset
Setting
YES NO
Reset
Continue,press again!
