Moore FCT [UB] User manual

FCT [UB]
Page 1
The Interface Solution Experts
FCT
FCT [UB]
Signal Converter/Isolator
April 2016
146-715-00 B
Signal Converter/Isolator
[UB]
SPAN ZERO
FCT SIGNAL CONVERTER/
ISOLATOR

Page 2
FCT [UB]
The Interface Solution Experts
Table of Contents
Introduction 3
Description 3
Specifications 4
OrderingInformation 4
Calibration 5-6
Installation 7-9
Operation 8
Customer Support 8

FCT [UB]
Page 3
The Interface Solution Experts
Introduction
Moore Industries’ FCT [UB] Signal Converter/
Isolator takes in either current or voltage input and
provides isolated current or voltage output.
This manual contains the information necessary to
calibrate, install, operate, maintain, and trouble-
shoot the FCT [UB]. It includes a brief unit
description, a table of performance and operational
specifications, and an explanation of Moore
Industries’ model/serial number-based product data
tracking system.
The following guidelines are used throughout the
manual:
• A “ Note” provides information to help you in
avoiding minor inconveniences during
calibration, installation, or operation.
•A “ Caution ” provides information on steps to
take to avoid procedures and practices that
could risk damage to the FCT [UB] or other
equipment.
• A “ WARNING ” provides information on steps
to take to avoid procedures and practices that
could pose safety risks to personnel.
Description
The FCT [UB] is a compact, versatile device,
featuring universal powering, and user-set zero and
span potentiometers.
Universal Power Input signifies that the FCT [UB]
can be powered either by alternating or direct
current. The standard unit accepts from 90-260Vac
and from 22-300Vdc power. No field configuration
is required.
CompleteInput/Output/Power isolation stops
ground loops up to 1000Vrms.
UB Housing with U-back mounting bracket for
surface mounting.

Page 4
FCT [UB]
The Interface Solution Experts
Specifications
Specifications and information subject to change without notice.
Performance
Ambient
Condition
Ratings
Weight
Performance
(continued)
Accuracy: ± 0.1% of
span (includes
adjustment resolution
and linearity)
Isolation: 1000Vrms
between input, output
and power
Dielectric Withstand
Capability: 1500Vrms
between case, power,
inputs and outputs
Frequency Response:
5Hz at -3dB
Ripple: 10mV peak-to-
peak at maximum span
and maximum load
resistance.
Common Mode
Rejection: Exceeds
120dB at 60Hz with a
limit of 1000Vrms
Maximum Input
Overrange: Voltage
inputs, ±60V; Current
Inputs, ±50mA for
0-20mA inputs, ±100mA
for 0-50mA inputs
Output Limiting: 160%
of full scale, maximum
RFI/EMI Effect:
10V/m -ABC ≤ ±0.5% of
full scale when tested
according to SAMA
Standard PMC 33.1
Load Effect: ±0.01% of
span from zero to
maximum load
resistance
Power Supply Effect:
<0.05% of span over the
full power supply range
Transmitter Excitation
(Optional): Regulated,
24Vdc @ 25mA for one,
2-wire external transmitter
Temperature Range:
-30°C to +82°C
(-22°F to 180°F)
Effect on Accuracy:
±0.015% of span/°C
maximum change over
-30°C to +70°C range
(±0.008% of span/°F over
-22°F to 158°F range)
Type: External multiturn
potentiometers
Span: ±10%
Zero: ±5%
300 grams (0.6 lbs)
Performance
(continued)
Adjustments
Ordering Information
Input OutputUnit
FCT
[UB] 0-20mA into 50 ohms 4-20mA into 50 ohms
0-50mA into 20 ohms
10-50mA into 20 ohms
0-1V into 1 megohm
0-5V into 1 megohm
1-5V into 1 megohm
0-10V into 2 megohms
SPECIAL INPUTS
Special input ranges to
accommodate almost any
application. Spans from 1 to
24V, or 1 to 100mA
0-20mA into 0-1200 ohms
4-20mA into 0-1200 ohms
0-1V into 20K ohms, minimum
0-5V into 20K ohms, minimum
1-5V into 20K ohms, minimum
0-10V into 40K ohms, minimum
SPECIAL OUTPUTS
Special output ranges to
accommodate almost any
application. Spans from 10mV
to 20V, or 1 to 50mA
Power Options Housing
U Universal
power
accepts
22-300Vdc or
90-260Vac,
sensing and
switching
automatically
(3.5W
nominal, 5W
maximum,
depending on
output)
UB Standard
housing with
U-back bracket
for surface
mounting
-TX Transmitter
Excitation
Options
TX Option – This option provides a regulated
24Vdc supply at 25mA to power one external 2-wire
transmitter.
FCT [UB] Model Numbers
To order additional or replacement modules for your
system, refer to the Ordering Information table and
“build” a model number using the information in bold
text. Specify the following in order:
Product / Input / Output / Power / Option [Housing]
For a standard FCT [UB], specify:
FCT / 4-20MA / 4-20MA / U / [UB]
Look for the model and serial numbers on a silver
label mounted above the terminal strips.

FCT [UB]
Page 5
The Interface Solution Experts
Calibration
Prior to shipment, every FCT [UB] is subjected to
rigorous testing by our team of skilled technicians.
Every product Moore Industries manufactures, sells
and services is guaranteed to meet the strict quality
standards that have become synonymous with our
name.
Before placing your FCT [UB] into service, a bench
check of basic operation is recommended to ensure
that the unit hasn’t sustained any damage during
transit.
Every unit should be:
• Checked to verify that the appropriate FCT [UB]
model has been ordered for the intended application.
• Connected in a calibration setup (described later in
this section) and checked for desired output.
• Adjusted for desired zero and span.
Even if a unit has been configured to your specifica-
tions by the factory (factory calibration), it is a good
idea to perform this calibration as a simple bench
check. The procedures provide a safe means to
uncover any unit damage that may have occurred
during shipping, and offer a simple familiarization
with FCT [UB] operation in the safety of a testing
environment, separate from the intended process or
application.
These procedures should be carried out in an
environment considered appropriate for general
testing of electronic equipment, rather than in the
field. Use a technician’s bench or a similar, lab-
type environment.
Table 1. Calibration Equipment
Equipment Specifications
Voltage
or Current
Source
Power
Source
Multimeter,
Ammeter, or
Voltmeter
Load
Resistor
Screwdriver
Calibrated, adjustable source unit, capable
of discrete output levels, ±0.025%, in the
approrpriate range.
AC or DC, from 22-300Vdc or 90-260Vac
Calibrated meter capable of verifying output,
level, current or voltage. Accuracy 0.025%.
A voltmeter may be used in combination with
a load resistor for measuring current
outputs.
Required for verifying current outputs with
voltmeter only. Tolerance of ±0.01%,
minimum. Use 250 ohm resistor with current
output ranges from 0-50mA.
Blade tip width <2.54 mm (0.10 in.) maximum
Setting Up for Zero/Span
Calibration
The equipment listed in Table 1 is needed when
calibrating the FCT [UB]. These items are not
supplied by Moore Industries, but should be
available in most testing labs.
Be sure to use calibrated test equipment when
performing the bench check and zero/span
adjustment of the FCT [UB]. The use of inaccurate
test equipment will result in unreliable settings and
precipitate costly process down-time.
Figure 1 shows the basic hookup used in the
calibration procedures. Use a screwdriver to loosen
terminal screws and connect appropriate leads to
the labeled terminals. With connections completed
as shown, apply the appropriate power to the setup
and allow a few minutes for stabilization/warm-up.

Page 6
FCT [UB]
The Interface Solution Experts

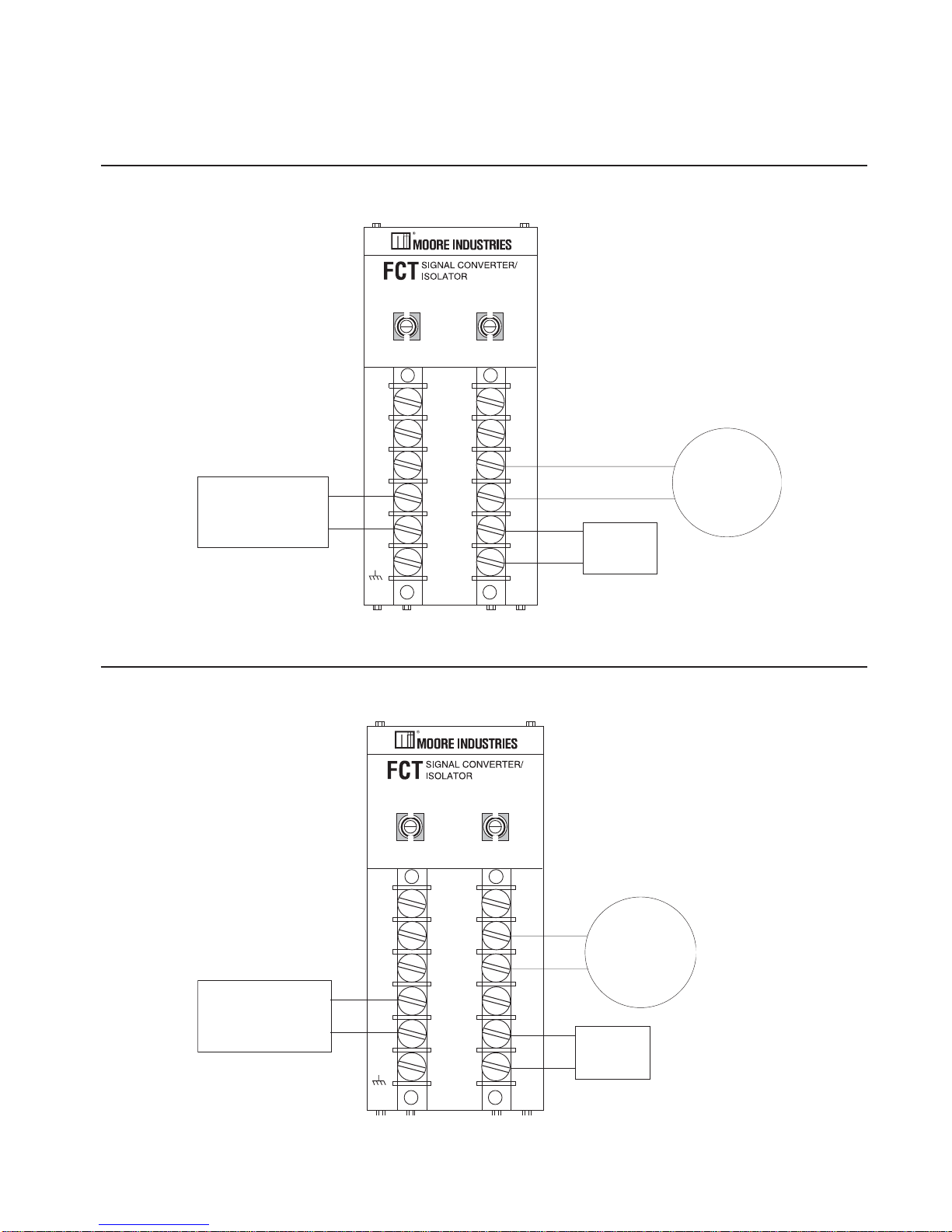

Figure 1. Calibrating the FCT [UB]
Calibrating Zero and Span
Before beginning this procedure, check the model
number of the unit to be calibrated for the appropri-
ate input/output type and range, and the required
power input type.
The two pots on the front panel of the FCT [UB] are
labeled “ZERO” and “SPAN”. They are both 15-turn
potentiometers, equipped with slip clutch mecha-
nisms to prevent damage in the event of
overturning.
When calibrating the FCT [UB] zero and span, turn
the appropriate pot clockwise to increase the
setting, and counterclockwise to decrease the
setting.
To Calibrate Zero and Span:
1. Turn both pots fully counterclockwise (minimum
zero and span, 15 turns), then approximately 7
turns clockwise. This approximates mid-scale
for the pots.
2. Set the input source in the setup to 0% (zero
percent). 1V, for example, if the FCT [UB] being
calibrated is rated for 1-5V input.
3. Note the meter reading, and turn zero pot
clockwise to raise 0% output, or
counterclockwise to lower 0% output, until the
correct level is achieved.
4. Set the input source to 100% (full scale). 5V, for
example, if the FCT [UB] being calibrated is
rated for 1-5V input.
5. Note the meter reading, and turn span pot
clockwise to raise 100% output, or
counterclockwise to lower 100% output, until the
correct level is achieved.
6. Repeat steps 2 through 5 until output is stable at
both zero and 100 percent input.
SPAN ZERO
+
–
ADJUSTABLE
SIGNAL
SOURCE
(VOLTAGE OR
CURRENT)
+
–
VOLTAGE
OR
CURRENT
METER
+
–
VDC OR VAC
POWER
SOURCE
+IN
–IN
+OUT
–OUT
GND
PWR
PWR

FCT [UB]
Page 7
The Interface Solution Experts

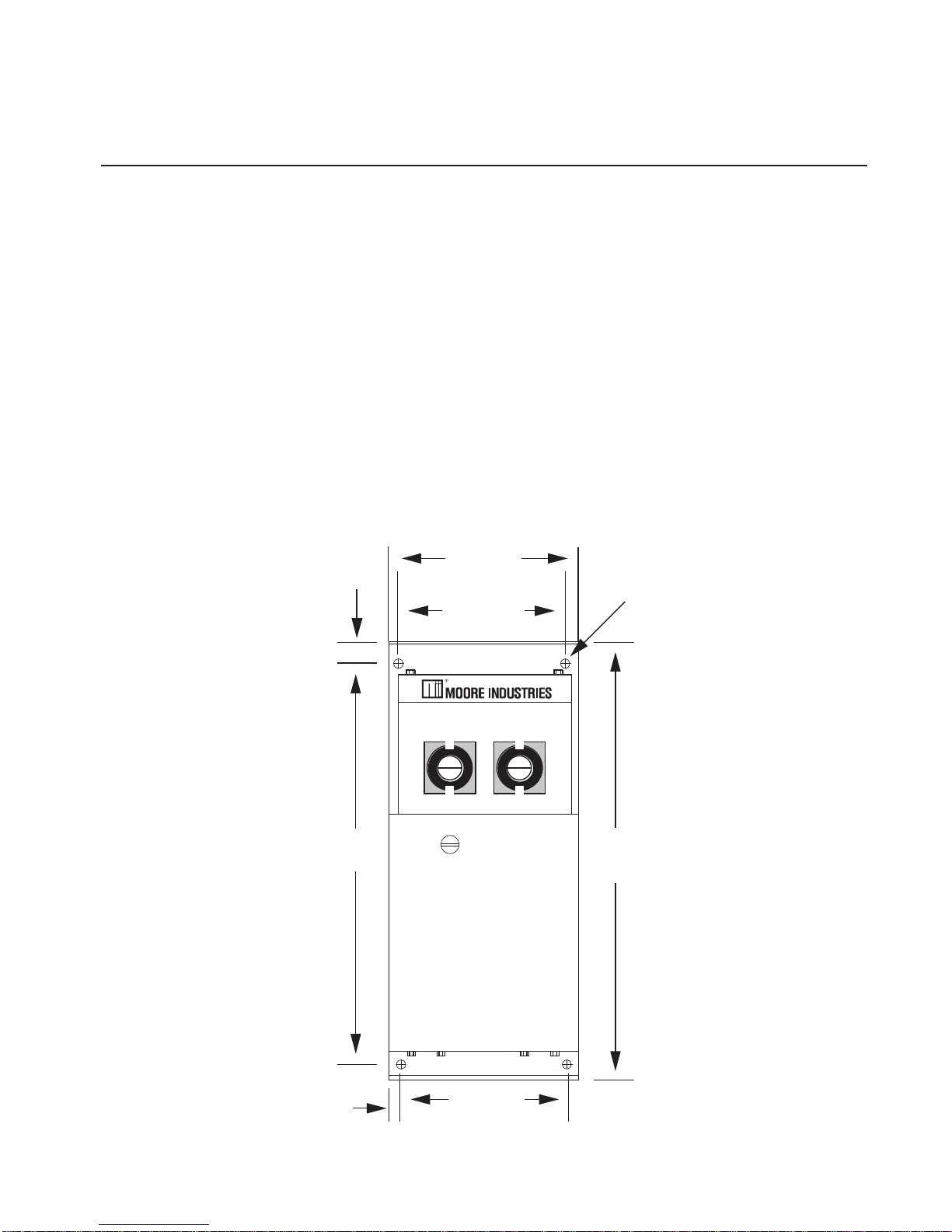

Figure 2. FCT [UB] Dimensions
Installation
Installation of the FCT [UB] is a two-step process.
First, the unit is mounted, and then the electrical
connections are made.
Before installing the FCT [UB], Moore Industries
suggests that the calibration procedures be carried
out to confirm that the configuration of the unit is
appropriate for the intended application. Costly
down-time will result if an inappropriately configured
unit is installed.
SPAN ZERO
FCT
SIGNAL CONVERTER/
ISOLATOR
167 mm
(6.56 in)
9.5 mm
(0.38 in)
63.3 mm
(2.49 in)
186 mm
(7.31 in)
6.4 mm
(0.25 in)
63.3 mm
(2.49 in)
76.2 mm
(3.00 in)
MOUNTING HOLE
S
.250 X 4

Page 8
FCT [UB]
The Interface Solution Experts
Electrical Connections
All electrical connections are made to terminals on
the front of the unit. Each terminal is labeled.
Refer to the Installation drawings for connections.
To make a connection, loosen the screw that
corresponds to the terminal, install #6 ring or spade
lug on all wires and tighten the screw until snug or 8
inch pounds maximum.
Recommended Ground Wiring
Practices
The following ground wiring practices must be followed
to ensure proper performance of the FCT [UB]:
• Any Moore Industries product in a metal case
or housing should be grounded.
• All signals to and from Moore Industries’
products should be wired using a shielded,
twisted pair technique. Shields are to be
connected to an earth or safety ground at the
unit.
• The maximum length of any unshielded input
and/or output signal wiring is 2 inches.
Operation
Once properly calibrated, connected, and powered,
the FCT [UB] will operate reliably for an extended
period of time. Unit maintenance is a simple check
of terminal connections every six months.
If an FCT [UB] begins to malfunction or to function
below rated specifications, complete the following
checklist before calling the factory for assistance.
• Verify that all electrical connections are clean
and tight.
• Verify that the power source for the unit is
supplying power at levels rated safe and
appropriate according to product
specifications.
• Check the calibration of the instruments used
in calibrating the FCT [UB].
• Verify that other devices in the process loop
are not the cause of the problem.
If the difficulties continue, remove the unit
from service and recalibrate.
Customer Support
Moore Industries is recognized as the industry
leader in delivering top quality to its customer, both
in products and services. We perform a battery of
stringent quality asurance checks on every unit we
ship. If any Moore Industries product fails to
perform up to rated specifications, call us for help.
Our highly skilled staff of trained technicians and
engineers pride themselves on their ability to
provide timely, accurate, and practical answers to
your process instrumentation questions. Factory
phone numbers are on the back cover.
If problems involve a particular FCT [UB], there are
several pieces of information you can gather before
you call the factory that will help our staff to get
your answers more efficiently. When you call,
please have:
• The model number of the unit in question.
• The serial number of the unit in question.
• The job number (if available).
• The purchase order under which the unit
was shipped (if available).

FCT [UB]
Page 9
The Interface Solution Experts
Figure 3. Installing the FCT [UB]
Figure 3. Installing the FCT [UB] with the -TX option
SPAN ZERO
+
–
RECEIVER
+
–
VOLTAGE
OR
VOLTAGE
TRANSMITTER
+
–
VDC OR VAC
POWER
SOURCE
+IN
–IN
+OUT
–OUT
GND
PWR
PWR
SPAN ZERO
+
–
RECEIVER
+
–
2-WIRE
TRANSMITTER
(4-20mA)
+
–
VDC OR VAC
POWER
SOURCE
+TN
+IN
+OUT
–OUT
GND
PWR
PWR -IN

To return equipment to Moore Industries for repair, follow these four steps:
1. CallMooreIndustriesandrequest a ReturnedMaterialAuthorization (RMA) number.
WarrantyRepair–
If you are unsure if your unit is still under warranty, we can use the unit’s serial number
to verify the warranty status for you over the phone. Be sure to include the RMA
numberonalldocumentation.
Non-WarrantyRepair –
If your unit is out of warranty, be prepared to give us a Purchase Order number when
you call. In most cases, we will be able to quote you the repair costs at that time.
The repair price you are quoted will be a “NotTo Exceed”price, which means that the
actual repair costs may be less than the quote. Be sure to include the RMA number on
alldocumentation.
2. Provideus with the following documentation:
a) A note listing the symptoms that indicate the unit needs repair
b) Completeshippinginformationforreturnoftheequipmentafterrepair
c) The name and phone number of the person to contact if questions arise at the factory
3. Use sufficient packing material and carefully pack the equipment in a sturdy shipping
container.
4. Ship the equipment to the Moore Industries location nearest you.
The returned equipment will be inspected and tested at the factory. A Moore Industries
representative will contact the person designated on your documentation if more information is
needed. The repaired equipment, or its replacement, will be returned to you in accordance with
theshippinginstructionsfurnished in your documentation.
WARRANTY DISCLAIMER
THECOMPANYMAKESNOEXPRESS,IMPLIEDORSTATUTORYWARRAN-
TIES(INCLUDINGANYWARRANTYOFMERCHANTABILITYOR OFFITNESS
FORAPARTICULARPURPOSE)WITHRESPECT TO ANYGOODSORSER-
VICESSOLDBYTHECOMPANY. THECOMPANYDISCLAIMSALLWARRAN-
TIESARISINGFROM ANYCOURSEOF DEALING ORTRADEUSAGE, AND
ANYBUYEROFGOODS OR SERVICESFROMTHECOMPANY ACKNOWL-
EDGES THAT THERE ARE NO WARRANTIES IMPLIED BY CUSTOM OR
USAGEINTHETRADEOFTHE BUYER AND OFTHECOMPANY,ANDTHAT
ANYPRIOR DEALINGS OFTHE BUYER WITHTHECOMPANY DONOTIM-
PLYTHATTHECOMPANYWARRANTS THE GOODS ORSERVICESINANY
WAY.
ANYBUYEROFGOODSORSERVICESFROMTHECOMPANY AGREES
WITHTHE COMPANYTHAT THE SOLEAND EXCLUSIVEREMEDIES FOR
BREACHOFANY WARRANTYCONCERNINGTHE GOODSORSERVICES
SHALLBEFOR THE COMPANY,ATITSOPTION, TO REPAIRORREPLACE
THE GOODS OR SERVICES OR REFUND THE PURCHASE PRICE. THE
COMPANYSHALLINNOEVENTBELIABLEFORANYCONSEQUENTIALOR
INCIDENTALDAMAGES EVEN IFTHE COMPANYFAILSIN ANYATTEMPT
TOREMEDYDEFECTSINTHEGOODSORSERVICES,BUT IN SUCH CASE
THEBUYER SHALL BEENTITLED TONO MORE THANA REFUNDOF ALL
MONIESPAIDTOTHECOMPANYBYTHEBUYERFOR PURCHASE OF THE
GOODSORSERVICES.
RETURN PROCEDURES
ANYCAUSEOFACTIONFORBREACHOFANYWARRANTYBYTHE
COMPANY SHALL BE BARRED UNLESS THE COMPANY RECEIVES
FROMTHEBUYERA WRITTEN NOTICEOFTHEALLEGED DEFECT OR
BREACHWITHINTENDAYSFROMTHE EARLIESTDATEONWHICHTHE
BUYERCOULDREASONABLY HAVE DISCOVEREDTHEALLEGEDDE-
FECTORBREACH, ANDNOACTION FORTHEBREACH OF ANYWAR-
RANTY SHALL BE COMMENCED BY THE BUYER ANY LATER THAN
TWELVEMONTHSFROMTHEEARLIEST DATE ONWHICHTHEBUYER
COULDREASONABLYHAVEDISCOVEREDTHEALLEGEDDEFECT OR
BREACH.
RETURN POLICY
Fora period of thirty-six (36)months fromthe date of shipment, and under
normalconditionsof use andservice,Moore Industries ("TheCompany")will
atits optionreplace, repair orrefund thepurchase pricefor anyof its manu-
facturedproductsfound,upon return totheCompany(transportationcharges
prepaidandotherwise inaccordancewith the returnprocedures established
byThe Company), to be defective in materialor workmanship. Thispolicy
extendsto the originalBuyer onlyand not toBuyer's customers orthe users
ofBuyer'sproducts, unlessBuyeris an engineeringcontractorin whichcase
thepolicyshall extendtoBuyer's immediate customeronly. Thispolicy shall
notapply if theproduct hasbeen subject toalteration, misuse, accident,ne-
glect or improper application, installation, or operation. THE COMPANY
SHALL IN NO EVENT BE LIABLE FOR ANY INCIDENTAL OR CONSE-
QUENTIALDAMAGES.
United States • [email protected]
Tel: [phone] • FAX: [phone]
Australia • [email protected]
Tel: [phone] • FAX: [phone]
Belgium • [email protected]
Tel: [phone] • FAX: [phone]
The Netherlands • [email protected]
Tel: [phone] • FAX: [phone]
China • [email protected]
Tel: [phone] • FAX: [phone]
United Kingdom • [email protected]
Tel: [phone] • FAX: [phone]
Specifications and Information subject to change without notice.©2007 MooreIndustries-International, Inc.
