MOOV MI500 User manual

Moov Inverter
MI500-MI650-MI900-MI(C)1100-MI(C)1400
Inverter Heat Pump for Swimming Pools
Please read the manual in real time

Content
I. Application .............................................................................................. 3
II. Features .................................................................................................. 3
III. Technical Parameter ............................................................................. 4
IV. Dimension ............................................................................................... 5
V. Installation instruction ........................................................................... 6
VI. Operation instruction ........................................................................... 10
VII. Testing ................................................................................................... 13
VIII. Precautions .......................................................................................... 14
IX. Maintenance ......................................................................................... 15
X. Trouble shooting for common faults ................................................. 15
XI. Warranty & After-Service……………………………………………...17

1
A little thank you from us:
Thanks for trusting us!
We know how much your time is valuable and we want to make sure you
enjoy as much as possible the swimming season. By choosing Moov
Pool Products, you’re choosing amongst the most innovative products
there is on the market.
For over 30 years pool heat pumps knew little innovation… Until now.
The Moov Inverter uses an Inverter technology in its compressor which
allows it to modulate its speed to your needs. This new feature allows
your product to do much more than any other on the market such as:
 Lowest electrical usage for the most thrifty electrical bill.
 Most silent heat pump on the market.
 Higher coefficient of performance to maximize its efficiency as
confirmed by AHRI.
 Longer durability with lower electrical requirements and smart
utilization.
We ask of you to read this manual carefully and operate the unit strictly
to what is detailed below. Not following such indications can cause
damage to the heat pump or any user of the product. If any questions
arise at any point, please reach out to the technical service team at Moov
Pool Products.
Sit back, relax, and welcome to Moov!
The team at Moov

2
Special Attention:
A. This product is only for swimming pool water heating applications and
can’t be used for the heating for any other liquid materials.
B. The inlet and outlet water nozzles can’t bear the weight of external
pipes.
C. The main power switch should be out of the reach of children.
D. Make sure the power is switched off before opening the case of the
product.
NOTE:
A. The swimming pool heat pump must be installed by a qualified
electrician. These regulations may change depending on the Country,
Province or State you live in.
B. To maximize your swimming comfort, set proper heating temperature.
The recommended heating temperature is 85’F. The unit can work above
and below this recommendation up to a specific capacity depending on
operating conditions. Please contact Moov for more information.
C. Don’t put obstacles near the air inlet and outlet of the heat pump.
D. This heat pump has power-off memory function.
E. When the ambient temperature is below 3’C, make sure to switch off
the main power, and drain off the water from heat exchanger.
F. Never place your hand or any other object in the air inlet or outlet of
the heat pump.
G. If any abnormal circumstances discovered, ex: abnormal noise, smells,
smokes and leakage of electricity, switch the main power off immediately
and contact your local dealer/installer or Moov Pool Products directly. Do
not try to repair the heat pump yourself.

3
I. Application
1- Set swimming pool water temp efficiently and economically to
provide you comfort and pleasure.
2- User may choose the model based off technical parameters
presented in this manual. This series of swimming pool heater has
been optimized in factory (refer to technical parameter table).
II. Features
1- Sensitive and accurate temp control and water temp display.
2- High-pressure and low-pressure protection.
3- Protection in case of too low or no water flow
4- Exceeding low temp auto stop protection.
5- Temp control compulsory defrosting.
6- International brand compressor.
7- High efficient titanium heat exchanger
8- Easy installation and operation.

4
III. Technical Parameter
Model MI500 MI650 MI900 MI1100 MI1400
Voltage 208-230V 208-230V 208-230V 208-230V 208-230V
Frequency/phase 60Hz/1Ph 60Hz/1Ph 60Hz/1Ph 60Hz/1Ph 60Hz/1Ph
Heating current
(air80°F,water80°F) A 2.00-11.0
2.30-14.8 2.34~19.1 2.65~25.6 3.69~29.8
Heating power
(air80°F,water80°F) kW 0.46-2.53
0.53-3.39 0.54~4.39 0.61~5.9 0.85~6.85
Design pressure (High) ≤609 PSIG ≤609
PSIG
≤609
PSIG
≤609
PSIG
≤609
PSIG
Design pressure (Low) ≤261 PSIG ≤261
PSIG
≤261
PSIG
≤261
PSIG
≤261
PSIG
Refrigerant(R410A) oz 38.8 45.9 98.8 141.1 247
Net weight Kgs 52 62 103 113 144
Water circulation flow L/min 83~116 108~142 125~158 133~167 145~179
Noise at 10Feet dB(A) ≤50 ≤50 ≤50 ≤50 ≤50
Waterproof class IPX4 IPX4 IPX4 IPX4 IPX4
Notice:
1. This product works well under water temp 80oF to104oF, air temp 32oF to 109oF,
efficiency will not be guaranteed out of this range. Please take into consideration that
the pool heater performance and parameters are different under various conditions.
Always refer to your pool expert on the correct unit for the size of your pool and your
needs as these will vary depending on operating conditions. You may also contact
Moov Pool Products for confirmation.
2. Related parameters are subject to adjustment periodically for technical
improvement without further notice. For details on your unit please refer to the
nameplate on the product.

5
IV. Dimension
※ Above data is subject to modification without notice.
A B C D E F G H
MI500 12.4 23.2 12.3 13.4 37.8 13.0 2.9 25.9
MI650 15.6
23.2 15.4 16.5 37.8 15.4 2.9 29.8
MI900 15.6
28.3 15.4 16.5 43.0 24.4 2.9 37.7
A B C D E F G H
MI1100 36.3 17.6 35.6 37.2 27.8 20.9 3.3 38.5
MI1400 39.8 20.5 32.3 40.8 39.2 20.9 3.3 41.5
Name Size(inch)
Model
Name
Size(inch)
Model
C
H
D
A
E
FG
B

6
Note:
The picture above is the specification diagram of the pool heater, for
technician’s installation and layout reference only. The product is subject
to adjustment periodically for improvement without further notice.
V. Installation instruction

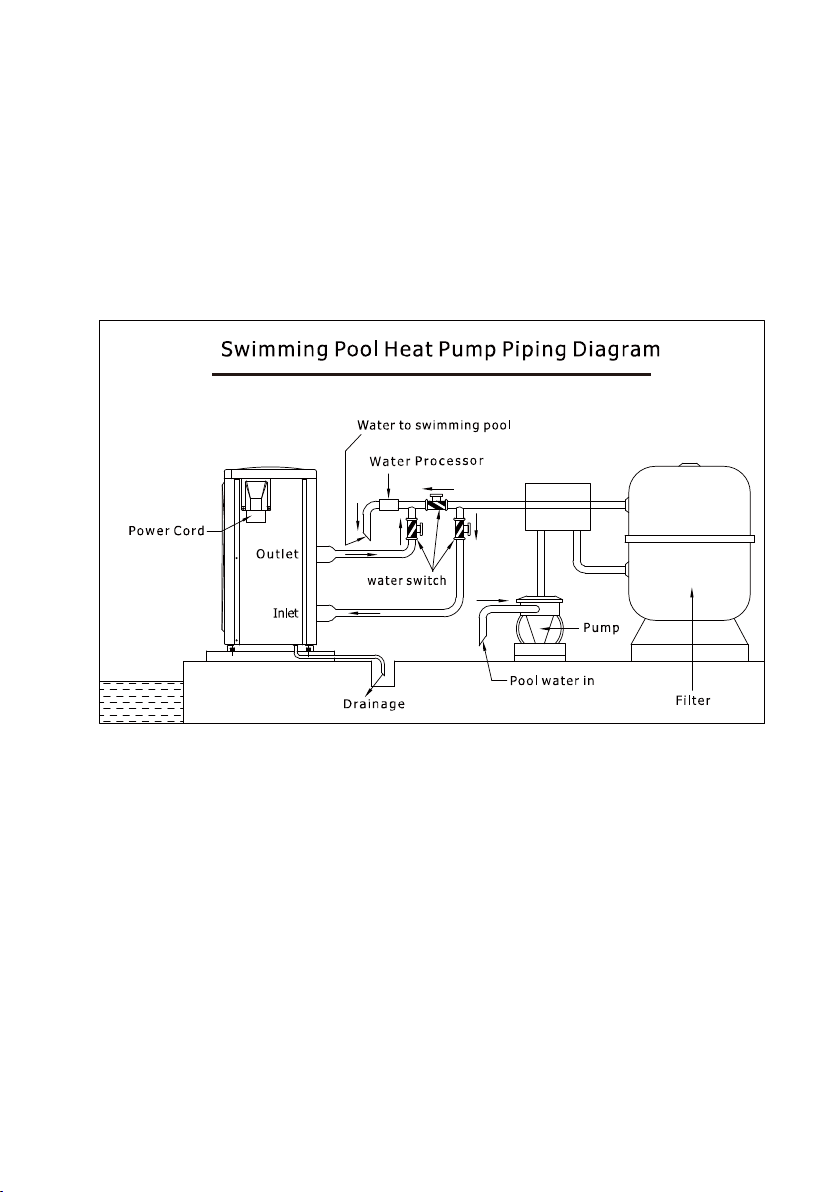

1. Drawing for water pipes connection.
（Notice：The drawing demonstration and layout of the pipes is only for reference.）

7
2. Electric Wiring Diagram
Note：1) Must be hard wired, no plug allowed.
2) The swimming pool heater must be grounded.
Options for protecting devices and cable specification
※ Above data is subject to modification without notice.
Note: The above data is adapted to power cord ≤ 10 m. If power cord is
＞10 m, wire diameter must be increased. The signal cable can be
extended to 50 m at most.
MODEL MI500 MI650 MI900 MI1100
MI1400
Breaker
Rated Current
A 20 30 30 40 50
Rated
Residual
Action
Current
mA
30 30 30 30 30
Fuse A 20 30 30 40 50
Power Cord （AWG） 2×12 2×10 2×10 2×8 2×8
Signal cable （AWG） 2×20 2×20 2×20 2×20 2×20
Grounding
Grounding

8
2. Installation and Requirements
The swimming pool heater must be installed by a pool professional. End users are
not qualified to install the heater. Damage may occur to the heater or threaten the
safety of the user. Pool professional guidelines will vary depending on your country,
state or province regulation and can include HVAC technicians or electricians.
Warranty will be voided if done otherwise.
A. Installation
1) The swimming pool heater should be installed in a location with good ventilation;
2) The frame must be fixed by bolts (M10) to concrete foundation or brackets. The
concrete foundation must be solid and fastened; the bracket must be strong and
antirust treated;
3) Don’t stack substances that will block air flow near inlet or outlet area, and no
barrier within 20in behind the main heater, or the efficiency of the heater will be
reduced or even halted;
4) The heater needs an appended pump (Supplied by the user). The recommended
pump specification-flux: refer to Technical Parameter, Max. lift ≥10m;
5) When the heater is running, there will be condensation water discharged from the
bottom. Attach the drainage nozzle (accessory for MI500-MI650-MI900 models)
into the hole under the unit, then connect the pipe to drain the condensation water
out.
Ｂ．Wiring
1) Connect to appropriate power supply; the voltage should comply with the rated
voltage of the products.
2) Heater must be grounded.
3) Wiring must be handled by a professional technician respecting circuit diagram.
4) Moov Inverter units do not require a GFCI to function. If required by code, please
respect following guidelines.
i. Set GFCI according to the local code for wiring (current leakage ≤ 30mA).
ii. Some GFCI breakers may cause nuisance trips with variable speed
products. Consult a certified electrician, your retailer or Moov to confirm
wiring. Product Warranty does not cover electrical wiring.
5) The layout of power cable and signal cable should be orderly and not interfere

9
with each other.
C．Switch on after finishing all wiring construction and re-checking.
Pay attention to the following points:
1． The heat pump must be installed OUTSIDE in a well ventilated area to avoid air
recirculation, or in a place with adequate room for both installation and
maintenance. Please refer to the following illustration for side fan models (MI500-
MI650-MI900).
2． For top fan models (MI1100-MI1400), clearance above the unit should be 8’
unobstructed and 20’’ around.
A minimum of 20’’ of clearance from walls, shrubbery, equipment, etc. is required around the entire
pump circumference. This allows for ample air intake. No less than 8’ clearance on the air outlet
is required to prevent recirculation of air. We recommend to not place the unit underneath eaves,
decks, or porches, as this causes recirculation of discharged air, or the efficiency of the heater
will be reduced or even stopped.
The unit shouldn’t be installed in a confined space or an area with poor ventilation

10
VI. Operation instruction

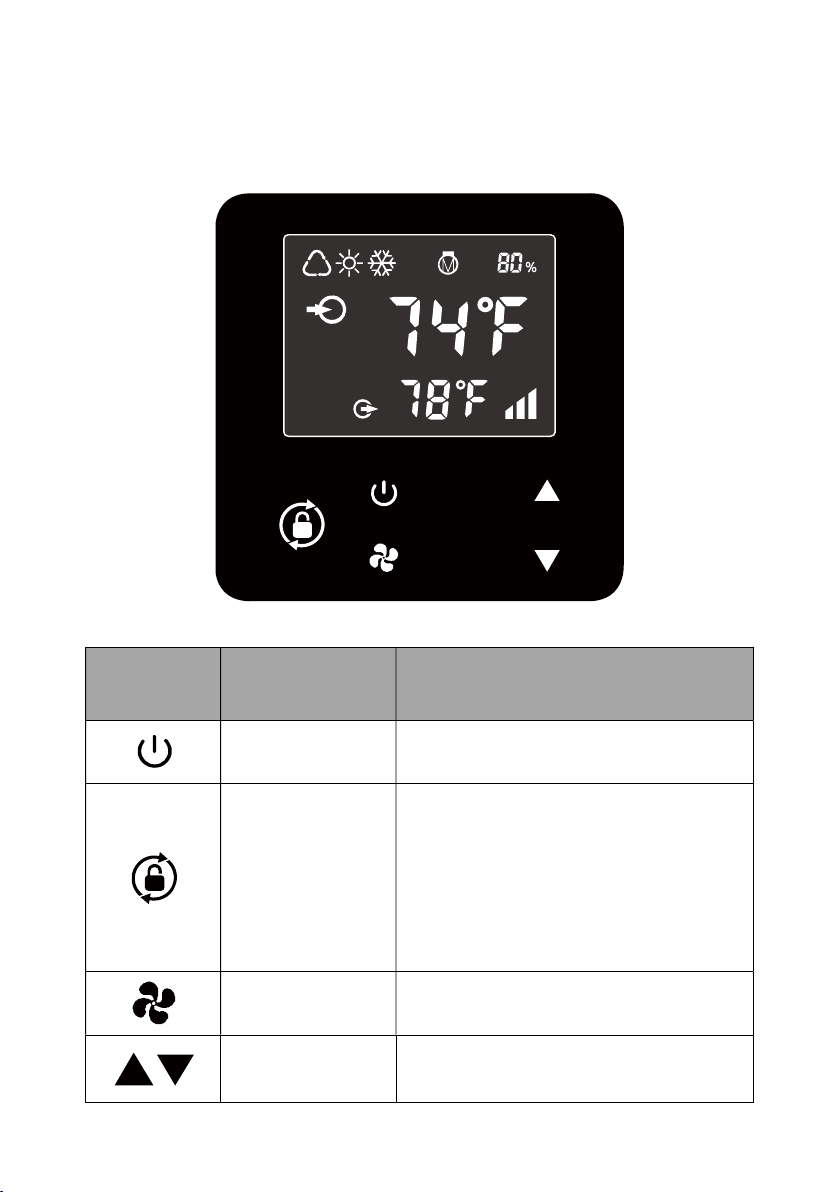

Picture for keys
SYMBOL DESIGNATION FUNCTION
ON/OFF Power On/Off
Unlock
1. Press it for 3 seconds to
unlock/lock screen
2. After screen is unlocked, press it
to select mode.
Auto (54~104 ℉) Heating
(64~104℉) / Cooling (54~86℉)
Speed Select Smart/Silence mode
Up / Down Adjust set temperature

11

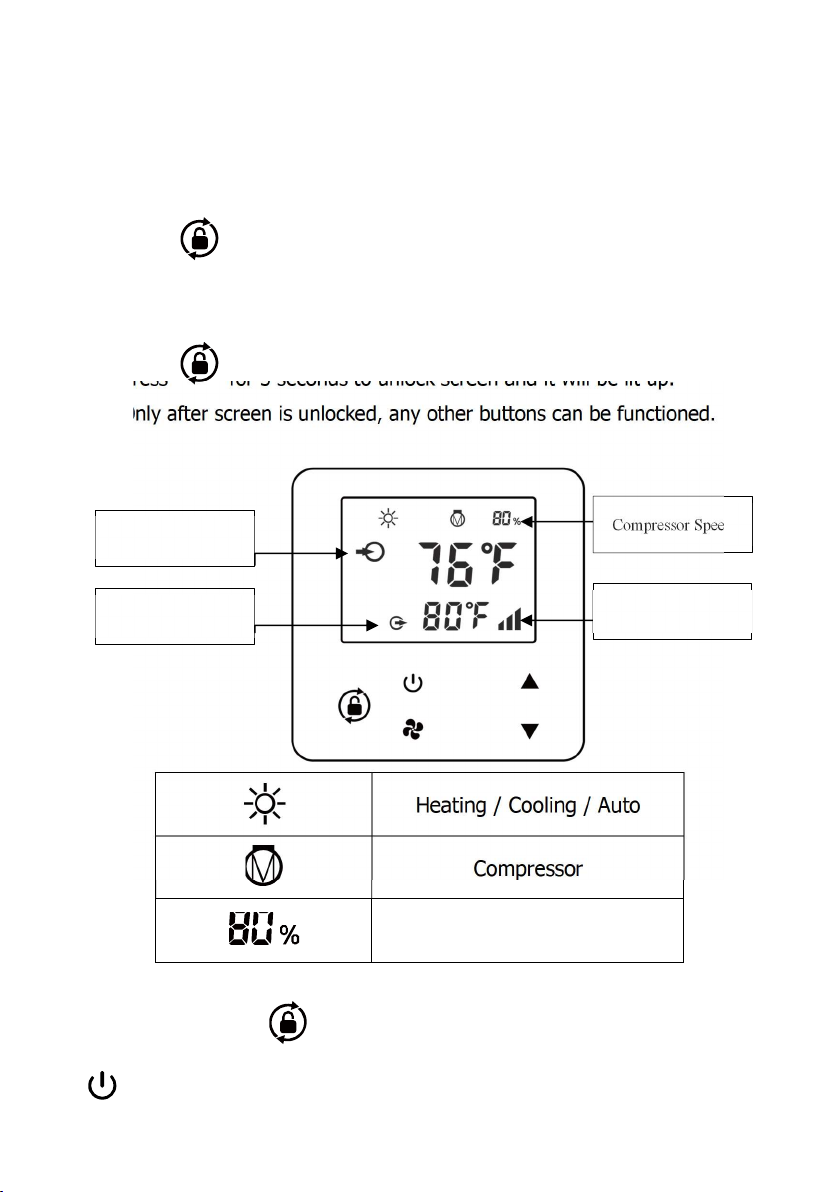

Note:
① Screen lock:
a. If no operation in 30 seconds, screen will be locked.
b. When HP is off, screen will be dark and “0%” will be displayed.
c. Press for 3 seconds to lock screen and it will be dark
② Screen unlock:
a. Press for 3 seconds to unlock screen and it will be lit up.
b. Only after screen is unlocked, any other buttons can be functioned.
Heating / Cooling / Auto
Compressor
Heating capacity percentage
1.Power On: Press for 3 seconds to light up screen, then press
to power on heat pump.
Compressor Speed
Smart/Silent Mode
Outlet Temperature
Inlet Temperature

12
2.Adjust Set Temperature: When screen is unlocked, press or
to display or adjust the set temperature.
3.Smart/Silence mode selection:
① Smart mode as default will be activated when heat pump is on, and
screen shows .
② Press to enter Silence mode, and screen shows .
(Smart mode: Unit will run from 20% to 100% / Silent mode: Unit will
run from 20% to 80%)
4.Defrosting
a. Auto Defrosting: When heat pump is defrosting, will be
flashing. After defrosting, will stop flashing.
b. Compulsory Defrosting: When heat pump is heating, press and
together for 5 seconds to start compulsory defrosting, and
will be flashing. After defrosting, will stop flashing.
(Note: Compulsory defrosting intervals should be more than 30 minutes
and the compressor should run for more than 10 minutes.)
5.Celsius & Fahrenheit
Unlock the screen and hold the and for 5 seconds to shift.

13
6.Heat/Cool (Only available for models with MICxxx codification)
Press to select mode:
a. Auto : adjustable temperature range 54~104℉
b. Heating : adjustable temperature range 64~104℉
c. Cooling : adjustable temperature range 54~86℉
VII. Testing
１．Inspection before use
A. Check installation of the entire heater and pipe connections
according to the pipe connecting drawing;
B. Check the electric wiring according to the electric wiring diagram;
and grounding connection;
C. Make sure that the main heater power switch is off;
D. Check the temperature setting;
E. Check the air inlet and outlet.
２．Trial
A. The user must start the water pump before the heat pump, and turn
off the heat pump before the water pump, or the heat pump could
be damaged;
B. The user should start the water pump, and check for any leakage
of water. Power the heat pump on by pressing the ON/OFF button
of the heat pump, and set suitable temperature in the thermostat.
C. In order to lower the electrical surcharge, the heater is equipped
with a timer delayed starting function. When starting the heater; the
fan will start 1 minute earlier than the compressor;
D. After the pool heat pump starts up, check for any abnormal noise
from the heater.

14
VIII. Precautions
１. Attention
A. Avoid overheating and set to get comfortable water temperature.
B. Do not stack substances that can block air flow near inlet or outlet
area as the efficiency of the heater will be reduced or even stopped.
C. Do not put hands near the water outlet in the swimming pool, and
don’t remove the screen of the fan at any time;
D. If there are abnormal conditions such as noise, smell, smoke,
electrical issues or leakage, please switch off the machine
immediately and contact the local dealer or Moov Pool Products.
Don’t try to repair it yourself;
E. Don’t use or stock combustible gas or liquid such as thinners, paint
and fuel to avoid fire;
F. In order to optimize the heating effect, please install heat
preservation insulation on pipes between swimming pool and the
heater. During running period of the swimming pool heater, please
use a recommended cover on the swimming pool;
G. Connecting pipes of the swimming pool and the heater should be
≤10m, or the heating effect of the heater cannot be ensured;
２. Safety
A．Please keep the main power supply switch far away from the
children;
B．When a power stoppage happens during running, and later the
power is restored, the heater will start up automatically. So please
switch off the power supply when there is a power cut, and reset
temp when power is restored;
C．Please switch off the main power supply in lightning and storm
weather to prevent from machine damage that caused by lightning;
D．If the machine is stopped for a long time, please cut off the power
supply and drain water clear of the machine by opening the tap of
inlet pipe and outlet pipe.

15
IX. Maintenance
A． In winter season or in the off-season
1. Cut off power supply to prevent any heater damage
2. Drain water clear of the heater.
3. Cover the heater body when not in use.
B．Please clean the heater’s coil with household detergents or clean
water, NEVER use gasoline, thinners or any similar fuel. This will ensure
a good air flow.
C．Check bolts, cables and connections regularly.
X. Trouble shooting for common faults
Failure Reason Solution
Swimming pool
heat pump does
not run
No power Wait until the power recovers
Power switch is off Switch on the power
Fuse burned Check to change the fuse
1. “Cut off” power supply of the heater before cleaning, examination and repairing
2. Do not touch the electronic components until the LED indication lights on PCB
is off/ turn off.
Caution: Danger of electric shock
Important:
Unscrew the water nozzle of inlet pipe to
let the water flow out.
When the water in machine freezes in winter season, the
titanium heat exchanger may be damaged. This is not
covered on warranty.

16
The breaker is off Check to turn on the breaker
Running but not
heating
Air inlet blocked Remove the obstacles
Air outlet blocked Remove the obstacles
3minutes protection Wait patiently
Set temp too low Set proper heating temperature
If the above solution doesn’t work, please contact your dealer or Moov
Pool Products. Don’t try to repair the heater yourself.

17
NO. Display Not failure description
1 E3 No water protection
2 E5 Power supply excesses operation range
3 E6 Excessive temp difference between inlet and outlet water(Insufficient water
flow protection)
4 Eb Ambient temperature too high or too low protection
5 Ed Anti-freezing reminder
NO. Display Failure description
1 E1 High pressure protection
2 E2 Low pressure protection
3 E4 3 phase sequence protection (three phase only)
4 E7 Water outlet temp too high or too low protection
5 E8 High exhaust temp protection
6 EA Evaporator overheat protection (only at cooling mode)
7 P0 Controller communication failure
8 P1 Water inlet temp sensor failure
9 P2 Water outlet temp sensor failure
10 P3 Gas exhaust temp sensor failure
11 P4 Evaporator coil pipe temp sensor failure
12 P5 Gas return temp sensor failure
13 P6 Cooling coil pipe temp sensor failure
14 P7 Ambient temp sensor failure
15 P8 Cooling plate sensor failure
16 P9 Current sensor failure
17 PA Restart memory failure
18 F1 Compressor drive module failure
19 F2 PFC module failure
20 F3 Compressor start failure
21 F4 Compressor running failure
22 F5 Inverter board over current protection
23 F6 Inverter board overheat protection
24 F7 Current protection
25 F8 Cooling plate overheat protection
26 F9 Fan motor failure
27 Fb Power filter plate No-power protection
28 FA PFC module over current protection
Failure code

18
XI. Warranty & After-Service
Please note that the warranty begins at the time of purchase. If this purchase is delayed such
as on a new pool build or installation will be delayed, the installation date must be proved
with appropriate documentation to have the warranty start at the time of installation. Warranty
is only valid upon first install.
Some claims will not be approved under any circumstances by Moov Pool Products. Such
claims include and are not limited to:
- Heat Exchanger broken due to water left in through unproper winterization.
Appropriate winterization can be found on Moov Pool Products website or on page
15 of this manual. Any other winterization default claims will be refused.
- Heat Pump damaged by meteorological events such Hurricanes, Tornados, Hail,
Earthquakes and any other act of god event.
- Units not installed by an appropriate technician. The trade job of these technicians
will vary depending on the region of the install and can include HVAC technicians
or electricians. Electrical wiring or product manipulations are included.
- Any unsatisfactory claim. Heat Pumps efficiency will vary depending on various
factors such as outdoor temperature, required temperature, air flow, sun presence,
humidity, pool sizing, heat pump distance from the pool and much more. Please
always refer to your pool expert to select the right unit tailored to your needs or
contact Moov Pool Products for a recommendation.
All warranty claims must be approved by an authorized Moov Pool Products employee. For
more information on warranties or to submit a claim, contact Moov Pool Products.
Moov Pool Products Canada – (450)-328-5858
Moov Pool Products Inc. (USA) - (407)-559-2077
www.moovpool.com/contact
The factory reserves the final interpretation right and keep the right to stop or change product
specification and design without prior notice at any time, no need to bear the resulting
obligations.
