ASSEMBLY INSTRUCTIONS
HANNAH
SHOE CABINET

Join Mopio Club
and enjoy your 1-Year Warranty
Scan the QR code or go to the link to find out more:
www.mopio.com/club
We’ve got more for you. Be part of Mopio Club and enjoy:
• Privileged Customer Care
• 10% Off Your Next Purchase (no min spend)
• 1-Year Free Warranty
• Early Access To Upcoming Launches
For any enquiries or issues regarding your purchase, chat with us
at www.mopio.com#chat.
Chat With Us!
www.mopio.com
@mopioinc
[email protected]
Or connect with us through other channels:

HANNAH SHOE CABINET | 03
Instructions Manual
Read instructions carefully and check no
parts are missing.
Carefully identify all components in order to
differentiate which pieces are left and right.
Install your new product carefully following
the instructions. Don’t skip ahead!
Lay out all hardware on a soft surface so
you can easily identify them.
Ensure you have received all cartons and
familiarize yourself with the workload. Make
sure there are enough helping hands to
assist you, and that you have allocated the
time required to assemble your new product.
Make sure you have cleared enough space
in your home for the assembly. We
recommend protecting your floor with a
mat or cardboard to avoid scratches during
the assembly process.
DO NOT over tighten screws or use a drill.
It will damage the product.
If you need further assistance with
assembling your Mopio product, please
chat with us at www.mopio.com#chat.
Before you start...
... ... ...

Ax1
Bx1
Cx1
Dx1
Ex3
Gx3
Hx2
Jx2
Ix4
Parts
A
G
C
G
H
D
B
I
K
J
F
F
F
E
3X
G
H
I
I
I
J
K
Fx9
Kx2
HANNAH SHOE CABINET | 04

Hardware
There are inner box(es) that include components required
to complete this assembly.
Before discarding the packaging, please use the checklist
to ensure that you have all the parts required to assemble
your product. Please kindly note you will need the original
package if you want to return the product later.
Please do not completely tighten all the hardware, until
each assembly step is complete.
If parts are missing or damaged, we will gladly ship your
replacements parts free of charge. Please contact us at
[email protected] or chat with us at www.mopio.com#chat.
x1 x2 60 mins
x6
Ø 6 x 30 mm
x4
M 7 x 50 mm
x6
M 6.4 x 53 mm
x20
Ø 8 x 30 mm
x8
Ø 6 x 35 mm
x8
Ø 15 mm
x3
M 4 x 25 mm
x24
x3
x3
x4
x18
x18
H19
H18
H17
H12
H11
H10
H9H1
H2
H3
H4
H5
H6
M 3.5 x 13 mm
x1
x1
H8
H7
x18
x4
x24
x4
H16
H15
H14
H13
M 3.5 x 15.5 mm
Ø 20 mm
x4
H20
L 4
M 6.5 x 12 mm
M 4 x 16 mm
HANNAH SHOE CABINET | 05

Missing parts? Or feeling stuck?
Chat with us at www.mopio.com#chat
Step 1
Step 2
2X
H1
H3
A
H
H1
H1
H3
H3
C
D
HANNAH SHOE CABINET | 06
H1
x8
H3
x4
H1
x4
H3
x4

Missing parts? Or feeling stuck?
Chat with us at www.mopio.com#chat
Step 3
Step 4
H12
H12
H12
H12
H13
H13
D
C
H
H
H4
C
HANNAH SHOE CABINET | 07
H13
x12
H12
x3
H4
x2

Missing parts? Or feeling stuck?
Chat with us at www.mopio.com#chat
Step 5
Step 6
HANNAH SHOE CABINET | 08
H4
C
G
D
G
B
H5
H7
H4
x2
H7
x1
H5
x4

Missing parts? Or feeling stuck?
Chat with us at www.mopio.com#chat
Step 7
Step 8
HANNAH SHOE CABINET | 09
2X
J
H15
H14
± 2 mm
H15
K
K
J
J
± 2 mm
H15
Do not fully tighten the screw (leave about 2mm), you
will tighten it on Step 11. Please refer to the illustration
carefully for the bracket placement orientation.
H14 x4 H15 x12
Do not fully tighten the screw (leave about 2mm), you
will tighten it on Step 11. Please refer to the illustration
carefully for the bracket placement orientation.
H15 x12

Missing parts? Or feeling stuck?
Chat with us at www.mopio.com#chat
Step 9
Step 10
HANNAH SHOE CABINET | 10
H1
H7
H6
H1
x8
H7
x1
H6
x6

Missing parts? Or feeling stuck?
Chat with us at www.mopio.com#chat
Step 11
Step 12
HANNAH SHOE CABINET | 11
Illustration 1
H8
H16
H17
Illustration 2
I
I
I
I
H20
H4
A
G
Tighten all the screws on the
leg frame as indicated in
illustration 1 and illustration 2.
H17 x4 H16 x4 H8 x1
H20
x4
H4
x4

Missing parts? Or feeling stuck?
Chat with us at www.mopio.com#chat
Step 13
HANNAH SHOE CABINET | 12
3X
H10
H12
F
F
F
Step 14
3X
H13
H13
H10
H10
H2
E
H10
Ensure to allocate the screw
position correctly according to
the illustration.
Ensure to allocate the screw
position correctly according to
the illustration.
H12H10
x18 x3
H13
x6
H10
x6
H2
x6

Missing parts? Or feeling stuck?
Chat with us at www.mopio.com#chat
Step 15
HANNAH SHOE CABINET | 13
Step 16
3X
E
H9
H11
Illustration 1
Illustration 2
Illustration 1:
Slot in bottom pin as indicated.
Illustration 2:
Slide in the pin until it goes inside the rail.
H11 x3 H9 x3

Missing parts? Or feeling stuck?
Chat with us at www.mopio.com#chat
Step 17
HANNAH SHOE CABINET | 14
Step 18
H18
H19
90°
8
-
1
0
c
m
8
-
1
0
c
m
HA1
HA4
HA1 x 2
HA2 x 4
HA3 x 4
HA4 x 4
H18
x18
H19
x18
For safety reason:
This product only can be use when
anti-tipping kit on this step is installed.
Please do not skip step 18 and 19.

Missing parts? Or feeling stuck?
Chat with us at www.mopio.com#chat
Step 19
HANNAH SHOE CABINET | 15
HA2
HA1
HA1
HA3
3
4
Grids Surface
Illustration 1
Illustration 2
Illustration 3

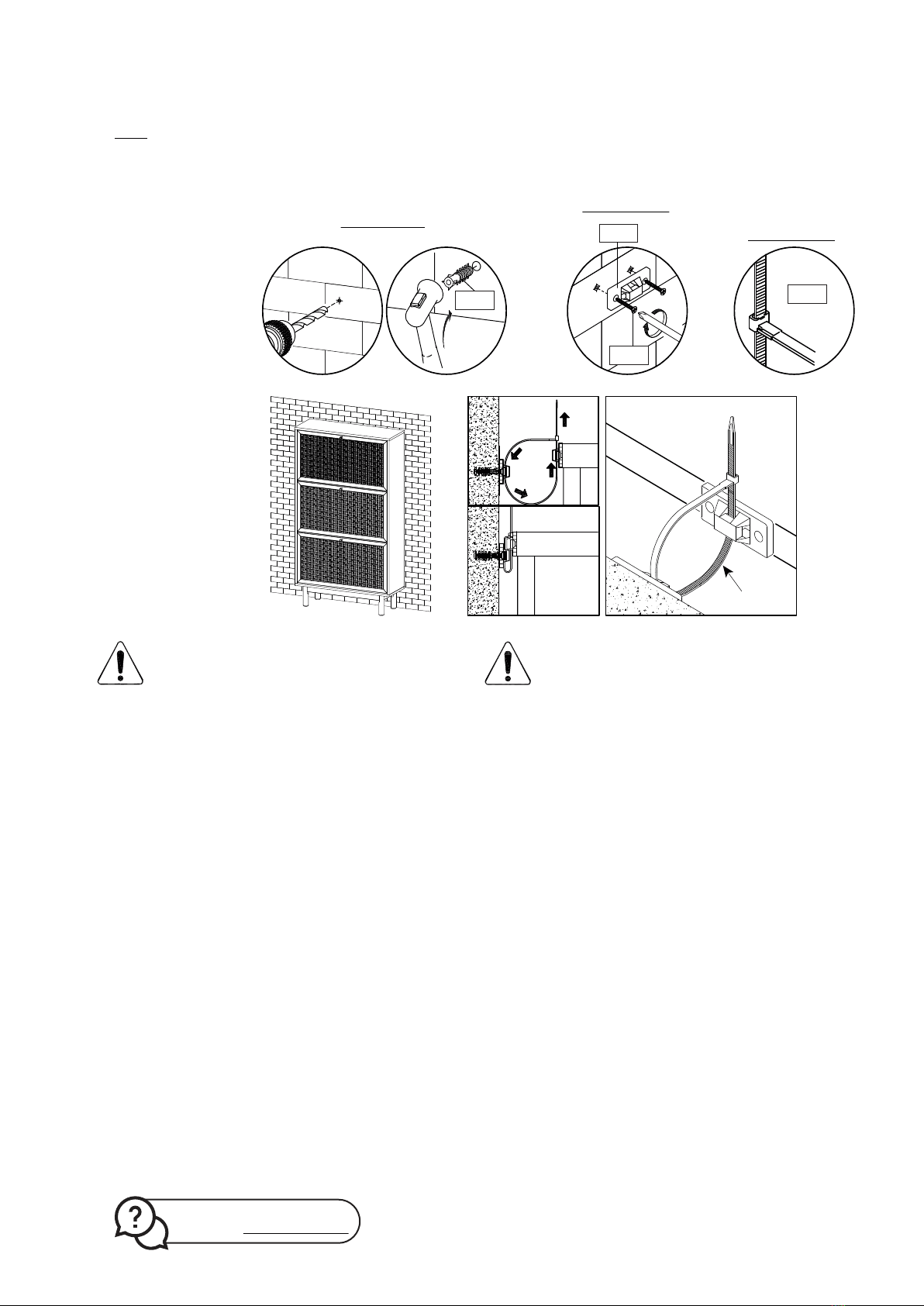

Illustration 1:
Mark the position of anti-tipping kit on the wall, drill
and insert the wall anchor.
Illustration 2:
Screw the anti-tipping kit
on the wall.
Illustration 3:
Strap together
installed anti-tipping
(HA1) on the wall
and on the product
Ensure that it is tight
enough to prevent
tipping.
Please seek professional advice if unsure
of wall constructions.
Properly affixing furniture to your wall will
depend on the wall material: concrete,
drywall, masonry, or wood will require the
appropriate hardware.
Wall anchor and wall screw provided is
suitable for concrete wall only.
please source the right wall anchor and
wall screw according to the wall type.
Please consult with your local hardware
store to ensure you are using the correct
hardware for your wall type.
This anti-tip kit is not a substitute for proper
adult supervision.
This anti-tip kit may provide protection
against tipping furniture.
Tips:
Teach and do not allow children to climb on
furniture or drawers.
Always keep the heavy load at the bottom of
the drawer.
Do not put toys or objects on the top that
can attract children to climb.
By installing anti-tip kit, you acknowledge
that you are fully aware of the safety
requirement and accept to adhere to it.
Illustrations in this guide are for reference
only and may be slightly dierent from the
actual object.
Anti-tip Kit
To prevent injury or property
damage from the unexpected tipping
of furniture, we highly recommend
installing the anti-tip kit.
Periodically check the screws. In
case of loosening, change the screw
position.
With extra help, move the product
into position. Please do not drag the
product across your floor.
Reposition product and fix using
hardware recommended.

Finished!
Congratulations! We’re almost there! Please perform
following checks to ensure assembly is properly done.
• Ensure all legs frame are fully tightened, please refer
to Step 11.
Move your Mopio product carefully, with 2 people
lifting it to the preferred location. Clean the product
with a dry cloth. You are all set!
Enjoy your fresh and updated living space thanks to the
addition of your new Mopio product!
Weight Limit
26 cm
75 cm
131.4 cm
13 KG
MAX
9 KG
MAX
9 KG
MAX
9 KG
MAX
• A safety strap / bracket is included with this item. Please
ensure the strap / bracket is attached to the product and
the wall to ensure it remains stable at all times during use.
• The unit must only be used on a level floor.
HANNAH SHOE CABINET | 16
Check and re-tighten all screws
Periodically check the screws. In case
of loosening, change the screw
position.
Do not overload or place heavy load.
6Months

Your furniture, if treated with respect and love, will last you a long time. Each piece requires
light maintenance to maximize its longevity.
Few quick tips before using this product:
1. For the recommended weight limit, refer to illustration on page 16.
2. Avoid uneven weight distribution for long time as it may cause damage to the product
shape.
3. Check and tighten the camlock and screw periodically as it may loose over the time.
How to take care of it?
1. Avoid direct sunlight or use curtains or blinds to limit the sun exposure to the product.
2. Clean the product regularly with a dry, soft cloth.
3. Avoid using abrasive or liquid cleanser.
4. We recommend always attaching the provided floor protector to the leg ends to protect
your floor
5. Avoid placing hot objects onto the table top surface.
6. Spillage may damage the surface. Clean immediately with a dry cloth.
7. We recommend using placemats or coasters underneath glasses, cups, bowls or plates to
prevent scratches to the table surface.
Follow the care instructions and look after your furniture, in return, your furniture will look
after you.
We hope to see you soon!
Care
Instructions
HANNAH SHOE CABINET | 17

1. What should I do if my product received is incomplete?
Frequently
Asked Questions
Mopio products are flat packed and come in separate boxes. Once your order has dispatched
and been sent with Fedex, you will receive an email with tracking information. Please note that
Fedex may deliver your boxes in separate deliveries. Kindly follow the tracking information,
allowing all boxes to be received before starting assembly. If you need further assistance on
deliveries tracking, feel free to reach out to us at www.mopio.com#chat or [email protected].
2. What should I do if my shipment is damaged or products received are
defective?
We’re sorry to hear that! Please email us at [email protected] or chat with us at
www.mopio.com#chat and provide a detailed description of the damage, as well as photos (or
videos, where appropriate) showing the damage. We will do our best to resolve the issue as
soon as possible.
3. Can replacement parts be ordered?
Yes. Simply write to our customer service team at [email protected] or chat with us at
www.mopio.com#chat, let us know your order ID and we will be happy to assist further.
4. Who do I contact for repair queries?
You may write to us at [email protected] specifying your queries and we will be able to assist
you further.
5. What warranty do you offer for your products?
You’ll just need to submit your warranty registration upon receiving product at
www.mopio.com/warranty/register. You can print a copy of your order from Order Details
in Amazon and upload it as your proof of purchase. More details can be found in
Warranty section.
6. How do I claim my warranty?
Easy! Just email us at [email protected] and provide a detailed description of the fault as well
as photos.
7. What should I do if I want to return the product?
We offer 30-day return policy upon product received. To initiate a return request, please
message us through Amazon or contact our customer service team at [email protected] or
www.mopio.com#chat with your reason of returning so we can facilitate the request and assist
you further. For more details on the return policy, please refer to Return section.
HANNAH SHOE CABINET | 18

Warranty &
Return
1 YEAR LIMITED WARRANTY STATEMENT FOR
MANUFACTURING DEFECTS
Please read this limited warranty carefully. To maintain your warranty, you will need to comply
with the conditions stated here. This warranty is for manufacturing defects only and does not
cover damages as a result of misuse.
1. Please be sure to register your product at www.mopio.com/warranty/register to
activate your warranty. We recommend you doing so within 30 days upon receiving.
2. Your new product comes with 1-year warranty against manufacturing defects, upon
activation. The warranty starts on the date of receipt. No warranty will be honored
without a proof of purchase. The warranty and financial responsibility of the
manufacturer only applies to the products itself.
3. Manufacturing defects include circumstances where the product has broken under
normal use and no longer provides proper support. In the event you encounter a
manufacturing defect, please stop using this product immediately and contact customer
service.
4. This warranty applies only when the product has been properly used by consumers who
purchased the product from authorized channels as a new product. Proper use means
using the product on a level surface where all legs touch the floor with an equal
distribution of weight. Proper use also means that the product was not abused by the
consumer, as defined by the manufacturer. This warranty does not constitute agreement
to replace other parts.
5. If the product fails due to manufacturing defects, the manufacturer will repair or replace
at its discretion and reserves the right to substitute comparable materials or models and
does not guarantee that the replacement part will match existing pieces.
6. In the event the product needs to be inspected by the manufacturer to determine a
warranty claim, the transportation cost or removal cost is borne by the consumer.
MOPIO’S 30-DAY RETURN POLICY
We believe you will be thrilled with your purchase from Mopio. That’s because we go out of our
way to ensure that products are designed and built to be just what you need. We understand,
however, that sometimes a product may not be what you expected it to be. In that event, we
invite you to review the following terms related to returning a product.
HANNAH SHOE CABINET | 19
