Sirius Satellite Radio SU-DD2-L TC Quick start guide

Models covered by this instructions:
INSTALLATION, USE AND MAINTENANCE INSTRUCTION
SU-DD2-L TC
SU-DD2-L INOX
SU-DD3 TC
*** BEFORE INSTALLATION ***
ENSURE THERE IS NO VISIBLE OR HIDDEN DAMAGE
SUSTAINED
DURING SHIPPING
*** SHIPPING DAMAGE ***
MUST BE REPORTED WITHIN 5 DAYS OF RECEIPT

WARNING
Thank you for purchasing a Sirius Range Hood.
• Please read all the instructions in this manual before installing the appliance.
• Save these instructions for future reference.
• Only use this appliance as an exhaust ventilation system for the removal of cooking vapors.
DO NOT use to expel ammable substances or any other materials or vapors.
• The installation procedures in this manual are intended for qualied installers, service
technicians or persons with similar qualied background. DO NOT attempt to install this
appliance yourself.
• Ensure that electrical power is turned off at source before commencing installation.
• All electrical wiring must be properly installed, insulated and grounded and conform to all
applicable codes and standards.
• Make sure all existing duct work is clean of grease build up, or duct work should be replaced, if
necessary, to avoid the possibility of a grease re.
• Check all joints on ductwork to ensure proper connection and all joints should be properly
taped. Be careful when cutting through ceilings or walls not to damage any hidden pipes or
electrical wiring. Ensure your kitchen has sufcient air return vents to replace the exhausted air.
• Fan ducts should always be vented to the outside of your home and never into spaces within
walls, ceilings, lofts or attics
• Only use rigid, smooth steel for ducting.
• The exhaust point of the blower requires a 5” 29/32 round connection if the downdraft it’s con
nected with SUM1 external motor or with motor on board and a 7” 7/8 if the downdraft it’s con
nected with SUM6 external motor.
• The appliance must be used by adults. Make sure that the appliance is out of reach of children
and that they do not use it to play with. Make sure that children do not operate the controls.
• Do not ever change or try to change the char-acteristics of this appliance. This would be a dan
ger. Repairs must be performed only by an authorised technician.
Always disconnect the hood before carrying out cleaning or maintenance operations.
• Adequately ventilate the room when a cooker hood and other appliances, powered by
ener gy other than electricity, are used simultaneously, so that the hood does not suck
anycombustion fumes
• This appliance must not be used over cook tops powered by wood or coal or in any case,
over cook tops with power levels that could damage the appliance.
Never use steam or high-pressure devices for cleaning your hood (regulations regarding
electrical safety.
• The minimum distance between the Downdraft (closed) and the surface above it must be
at least 400 mm.
• When handling the downdraft, never put your hands in the eld of action of the extractable
unit.
• In the case of the version with external motor, fornormal downdraft operation, it is
necessary to use a suctioning unit (external motor) made by the same manufacturer.
3
SUDD2L - SUDD3

The symbol on the product or on its packaging indicates that this product may not be treated as household
waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about recycling of this product,
please contact your local city ofce, your household waste disposal service or the shop where you pur-
chased the product. This appliance is marked according to the European directive 2012/19/EC on waste
electrical and electronic equipment (WEEE).
4SUDD2L - SUDD3

EN
DESCRIPTION OF THE APPLIANCE ......................................................................................6
INSTALLING THE HOOD .........................................................................................................7
Grease lter removal, mounting the activated charcoal lter ..................................................8
Electrical connection of the hood ............................................................................................9
HOW THE COOKER HOOD WORKS ....................................................................................10
CLEANING THE HOOD .........................................................................................................12
OPERATIONAL ANOMALIES ................................................................................................13
AFTER SALES SERVICE ......................................................................................................13
CONTENTS
5
SUDD2L - SUDD3

DESCRIPTION OF
THE APPLIANCE
EN
16
S-002-L FLUSH T OP
EN
DESCRIPTION
OF THE
APPLIANCE
16
S-002-L FLUSH T OP
EN
DESCRIPTION
OF THE
APPLIANCE
16
S-002-L FLUSH T OP
EN
DESCRIPTION
OF THE
APPLIANCE
16
S-002-L FLUSH T OP
EN
DESCRIPTION
OF THE
APPLIANCE
6SUDD2L - SUDD3

EN
Before carrying out the appliance installation,
please check that all components are not da-
maged, in such a case contact your retailer
and do not carry out any installation operation.
Furthermore, please read carefully all of the
following installation instructions.
● Use an air exhausting pipe whose maximum
length does not exceed 5 meters.
● Limit the number of elbows in the piping,
since each elbow reduces the air capacity of
1 linear meter. (Ex. : if you use no. 2 x 90 °
elbows, the length of piping should not exceed
3 meters).
● Avoid abrupt direction changes.,
● Use a 5”29/32. constant diameter pipe for
the whole length.(for SUM1 or motor on bo-
ard). Use a 7” 7/8 constant diameter pipe for
the whole length.(for SUM6).
● Use piping approved by standards in force.
The manufacturer shall not be deemed re-
sponsible for air capacity or noise problems
caused by failure to comply with the above
instructions and no warranty on the product
shall be provided.
Before making the hole, check that there are
no structural or other parts inside the cabinet,
where the appliance is to be placed, which
could hinder a proper installation.
Check that the dimensions of the Downdraft
and the ones of the cook top are compatible
with the cabinet so that the installation can be
carried out properly.
Make a rectangular opening, 3” 15/16 X 19”
9/32 in size, in the back of the cook top for
the SU-DD2L 22” 1/16 model, 3” 15/16 x 31”
3/32 for the SU-DD2L 33” 27/32 model and 4”
6/64 x 19” 9/32 in size, in the back of the cook
top for the SU-DD3 model and 1142 x100 mm
for the 120 cm model. In the version with the
motor already installed, remove the screws
and the suc- tioning unit in order to insert the
down-draft in the hole made.
INSTALLING THE
COOKER HOOD
1.
2.
3.
Put the Downdraft in the opening, inserting it
from above as shown in (Fig. 2).
Fix the downdraft inside the cabinet, using the
special xing brackets supplied with the pro-
duct (Fig. 3).
Insert the brackets in the lower side of the
downdraft (Fig. 3), in such a way that there
is a 2 mm distance between the lower side of
bracket and the bottom of the cabinet (Fig. 3).
This distance will allow the traction to be po-
sitioned downwards of the product, at the mo-
ment of xing, in order to have the stain- less
steel trim perfectly adhering with the work
surface. Before inserting the screws, please
make sure that the appliance is per- fectly per-
pendicular with the work surface.
Place the metal box containing the electronic
components in an easily reachable area for
possible technical assistance operations.
by connecting the related connectors (g. 5).
Once the installation is complete and after
connecting the appliance to the mains pow-
er, lift up the downdraft and remove the door
block (Fig. 4); then open the door (Fig. 5) and
t the lters in place (Fig. 6). In the ver- sion
of the Downdraft equipped with internal motor,
install the power unit orienting the air outlet to
the desired position, either down- wards or up-
wards (Fig. 7).
The motor can be installed either on the front
or rear side of the downdraft After having in-
stalled the motor, connect the air ducts.
For versions with external motor, place the
suctioning unit (external motor) in a suitable
area and t the exhaust air ue as illustrated.
Then t the air outlet ducts between the ex-
ternal motor and the downdraft. Select an air
outlet from the ve possibilities (Fig. 9) and t
the union supplied with the appliance.
Place the metal box with the electronic com-
ponents in an easily reachable area for even-
tual technical assistance operations. (Fig. 9),
connecting the three connectors: 9 pole con-
nector for the actuator control and the safety,
4 pole connector for led lamp (only for SU-
DD2 model) and push-button connector) (Fig.
10). Connect the internal motor or the external
motor’s cable to the 6 poles connector of the
downdraft wiring.
4.
5.
6.
7.
8.
7
SUDD2L - SUDD3

EN

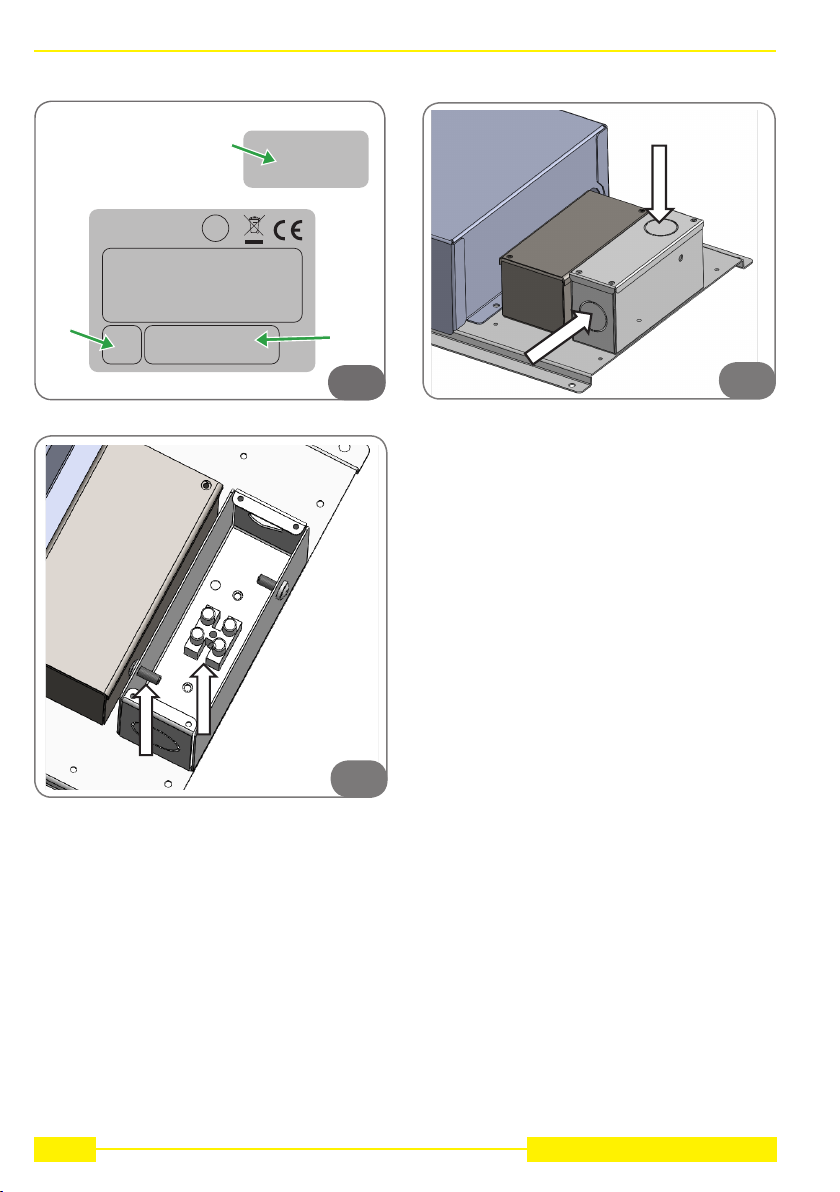

Power the cookerhood. Scegliere da quale
foro si desidera entrare con il cavo alimen-
tazione (Fig.14), Rimuovere il metallo pre
tranciato, applicare il passacavo (non fornito)
e collegare l’alimentazione al morsetto rispet-
tando la targa (L –N) e la terra alla vite M4x10
(Fig.15) Inne richiudere la scatola alimenta-
zione.
Before connecting the air exhaust hose, make
sure that the non-return valves can rotate fre-
ely.
WARNING
HOW TO USE THE COOKER HOOD
This appliance is intended to suck cooking fumes,
greases and steam. It has been designed to work
in both suctioning mode, with outside evacuation,
and ltering mode.
Outside - discharge version
The cooker hood can be mounted in the version
with outside discharge of suctioned air: in this case
it is necessary to connect the exhausting channel
to the outside (exhausting pipes are not supplied
with the products.)

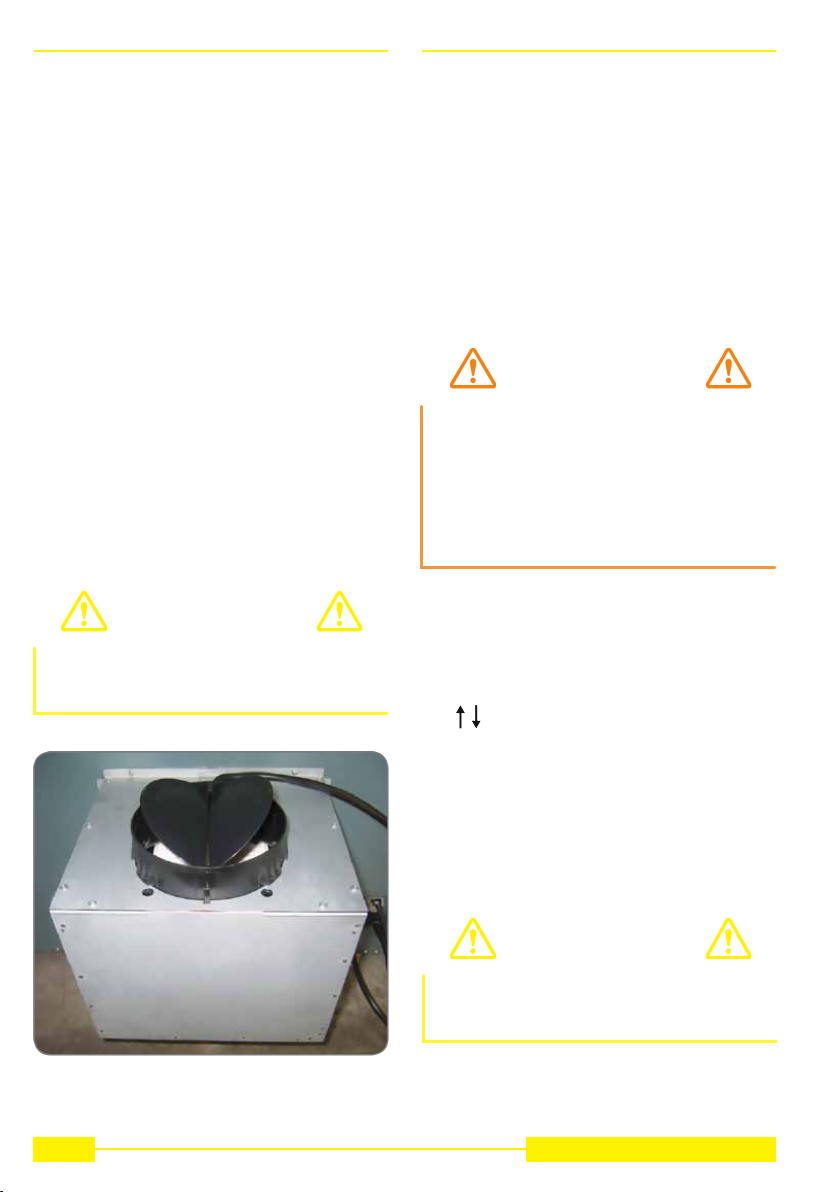

Non-return valve blockage
10.
In case of outside air discharge installation, t a
non-return valve to prevent wind and back air.
Filtering mode
In case fumes and vapour cannot be evacuated
outside, the appliance can be used in the ltering
mode.
Activated charcoal lters are required for this type
of cooker hood.
Air recycled through the charcoal lters is recircu-
lated into the kitchen, thanks to a duct conveying
the air on one side of the cabinet (Fig. 11).
CAUTION
Installation must comply with the regulations
in force regarding the ventilation of enclosed
environments. In particular, discharged air
must not be conveyed into a duct used for
fumes discharge or discharge from applian-
ces using gas or other combustible materials.
The use of discontinued ducts is not allowed
without the approval of a qualied technician.
GREASE FILTER REMOVAL, MOUNTING THE
ACTIVATED CHARCOAL FILTER
The removal and tting of the grease and carbon
lters need to be carried out with the downdraft in
the open position. To open the downdraft, push
the key. Then remove the front panel, pull
ing the upper part of each side at the same time.
The panel will rotate forwards to make it possible
to access in the grease lters (g. 6). Remove the
grease lters to access the carbon lters (g. 12).
The replacement of the charcoal lters has to be
carried out accordingly to the effective use of the
Downdraft, and in any case at least once every 6
months.
After having replaced the lters, reinstall the
front stainless steel pan’el, otherwise the
Downdraft is not enabled to function.
WARNING
8SUDD2L - SUDD3

EN
If the cooker hood presents any anomaly, di-
sconnect the appliance or remove the fuse
corresponding to the appliance power di-
sconnecting line.
DANGER
ELECTRICAL CONNECTION
OF THE COOKER HOOD
Place the metal box containing the electronic
components at a distance of no less than 65
cm from gas-operated cook tops or in any
case, 65 cm from the suctioning surface of
the cookerhood.
WARNING
We recommend installing the metal box con-
taining the electronic components at least 10
cm above oor level and at a suitable distan-
ce from all heat sources (e.g. oven sides or
cook top).
NOTA
Electrical Supply.
This range hood requires a 120V, 60 Hz supply
and draws a maximum or 3 amps.
We decline any responsibility in case of acci-
dents caused by a lack of ground connection
or incorrect ground connection.
CAUTION
WARNING: All electrical work must be perfor-
med by a qualied electrician.
Please ensure that the appropriate electrical co-
des or prevailing local building codes and ordinan-
ces are adhered to.
Ensure that the electricity supply is disconnected
at source. Do not use an extension cord or adapter
plug with this appliance.
This appliance must be grounded. Connect to a
properly grounded branch circuit, protected by a
15 amp circuit breaker.
9
SUDD2L - SUDD3

MODEL SDD2-L GLASS VERSION
MODEL SDD2-L INOX VERSION
A: Light ON/OFF key
The light switches on and off only when the carria-
ge is fully OPEN.
Pressing this button with the carriage closed will
cause the carriage to open and then the light will
switch on .
The button also serves to switch off the light if it
is on.
B: ON/OFF key
This starts the extraction carriage upward move-
ment and when it is fully open, it sets the second
extraction speed.
With the carriage open: it switches off the mo- tor
and if on, the light; then it retracts the ex- traction
carriage.
C: (-) Key
This reduces the speed of the extractor motor from
the 4th speed until the motor switch- es off, without
closing the pull-out car- riage.
D: Indicators
• This signals the speed setting, by only the rele-
vant LED switching on.
• This signals that all lters have been saturated by
all LEDs switching on.
EN
HOW THE COOKER
HOOD WORKS
10 SUDD2L - SUDD3
E: (+) Key
This increases the speed of the extractor mo- tor,
from 1st to 4th speed, without moving the extractor
panel.
F: Timer
10 min after setting, it serves to stop the ex- tractor
motor, close the carriage and switch the lights off,
if they are on. The set function is signalled by the
ashing LEDs “D” for the set speed. The timer can
be cancelled by press- ing the key again.
MODEL SU-DD3 VERSION
OFF switch: (Fig. 16G) It is used to close the aspi-
ration panel completely or to position it at in-terme-
diate heights at least mm 180 above the cooktop.
While closing the aspiration panel keeps on wor-
king at the speed set up to the height of mm 180
from the cooktop. Below this height the aspiration
function is automatically cut out.
On switch/+: (Fig.16H) It is used to extract the
aspiration panel up to the maximum height of mm.
300 and to set automatically the rst aspiration
speed when reaching the height of mm 180 from
the cooktop.
When pressing the button again after reaching this
height, the aspiration motor speed can be encre-
ased.
If the aspiration panel is positioned at an interme-
diate height between mm 180 and mm 300, the
aspiration panel can start raising again by pressing
rst the OFF switch and then the On/+.
Switch.
Leds: (Fig. 16I) The different speed levels are in-
dicated leds.
MINUS SWITCH: (Dis. 16L) it is working only if the
position reached by the aspiration panel is higher
than mm 180 from the cooktop. It is used to decre-
ase the aspiration motor speed.
TIMER SWITCH: (Fig.16M) : it is used to stop au-
tomatically the aspiration system and to close au-
tomatically the aspiration panel ten minutes it has
been set.

EN
Other functions:
Automatic turn off:
After 4 hours of continuous working from the last
setup, the appliance turns off and closes automa-
tically.
Grease lters saturation:
After 30 hours of working, the speed indicators
“D” will all ash simultaneously, signaling the gre-
ase lters saturation.
To reset this alarm, push the “TIMER” key when
the downdraft is completely off and the extractable
unit is closed.
Calibration SU-DD2-L:
The cooker-hood carries out its self-calibration
every 3 complete cycles of its extractable unit.
By pushing the “TIMER” key 6 times consecuti-
vely (MAX break between one push and the other
is 3 sec.) all the leds will ash and the calibration
will be reset.
After the next 3 cycles the downdraft will carry out
its self-calibration.
Calibration: SU-DD3
After the downdraft has been installed, the aspi-
ration panel must be calibrated. This operation is
necessary to regulate the power exstraction of the
aspiration panel. Connect the product to the po-
wer line, making sure that it is conformed to the
supply voltage indicated on the technical data tag.
Pushing the ON/1 button (Fig. 15H) the aspiration
panel rises. After it has reached a height of 180mm
from the cooketop, press OFF (Fig. 15G), to stop
the extraction then the Timer and after 2 sec. the
OFF button. The downdraft will carry out the cali-
bration of its aspiration panel rising and retracting
for some centimeters.
During this phase, the buttons on the pushbutton
control panel blink. At the end of the calibration,
the aspiration panel get back to the previous po-
sition and the button end to blink. Wait until the
aspiration panel stops moving before re-activating
the extraction.
After the self-calibration stage, close the lter unit
completely using the OFF button.
Stand-by:
When the extractable unit is closed and the light
is switched off, the control panel, after 6 secon-
ds, activates the Stand-by function, reducing the
brightness of the leds.
This function can be stopped by pressing ON/ OFF
or LIGHT key.
Security System:
If there is an obstacle while the extractable unit
is closing, the Downdraft stops closing and rises
again thanks to a security system.
11
SUDD2L - SUDD3

EN
Careful maintenance ensures proper operation and good performances over time.
CLEANING
THE COOKER HOOD
The hood must be disconnected from the electrical network.
CAUTION
MAINTENANCE HOW TO PROCEED? ACCESSORY PRODUCTS TO
USE
External surfaces and
accessories
Do not use metallic scrubbers, abra-
sive products, or hard brushes.
To clean the external surfaces of the
cookerhood and the light housing
screen use only commercially avail-
able household detergents diluted in
water. Then rinse with clean water
and dry with a soft cloth.
Activated charcoal
lter with extractable
unit open
Activated charcoal
lter
After 30 hours of operation, the
downdraft will signal the grease lter
saturation. The saturation is signa-
led by the blinking of the 4 central
leds.
To reset, hold down the timer button
for at least 3 seconds, while the
carriage is open.
In the recirculation mode, the active
charcoal lter must be replaced pe-
riodically.
To remove the charcoal lter rst of all
it is necessary to remove the grease
lter and then pull the plastic key of
the panel itself, in order to disengage
it from its seating.
Follow these steps in reverse order to
insert the active charcoal lter.
Replace the used charcoal lter on an
average of every six months.
The grease lters can be washed by
hand or in the dishwasher. These l-
ters need to be cleaned on a regular
basis, because otherwise they may
represent a re risk.
Ret the grease lters and front pa-
nel, making sure that the panis pro-
perly tted at the sides so that it it
does not cause the downdraft to stop
operating.
12 SUDD2L - SUDD3

EN
OPERATIONAL
ANOMALIES
PROBLEM SOLUTION
The cooker hood
does not work...
The cooker hood has
low performances...
The cooker hood
stops in the middle of
operation.
Check that:
● There is not a power outage.
● A specic speed has actually been selected.
● The 9 pole connection is inserted properly.
● The red reset key, found over the electrical system box, is pushed.
● Make sure that the wires of the 9 pole connection are inserted prop- erly
in the connector itself (during the connection phase, an excessive pressure
could bend the contacts).
Check that:
● The motor speed selected is sufcient for the quantity of fumes and
vapors present in the room.
● The kitchen is ventilated well enough to allow air for intake.
● The charcoal lter is not worn out.( ltering version cooker hood).
● The air outlet channel is free and compliant with paragraph no. 2.
● The non-return valves of the suctioning unit are free to rotate.
Check that:
● There is not a power outage.
● The omnipolar device has not tripped.
AFTER SALES SERVICE
Any maintenance operation on your appliance should be carried out by:
● Either your retailer;
● Or another qualied professional technician, authorized for that brand.
13
SUDD2L - SUDD3
When calling, please mention the appliance details (Type Fig. 13a and equipment Fig. 13b and
production date Fig. 13c).
This information is mentioned on the rating label and the production date one placed on the
lower side of the downdraft.
NOTA

Three Year Limited Warranty
YOU MUST REGISTER THE PURCHASE OF YOUR PRODUCT ON LINE AT www.siriuscappe.
com/usa/warranty.htm TO CONVALIDATE YOUR WARRANTY.
YOU CAN FIND THE DATA OF YOUR HOODS ON A LABEL INSIDE THE HOOD. JUST REMOVE
THE GREASE FILTER TO READ IT.
WARRANTY SERVICE
To qualify for warranty service, you must notify Sirius After sale service at the email ad-
dress stated below or call toll free USA 1-877-474-8770 and provide the model number,
description of the fault or defect and original date of purchase. Sirius reserves the right
to request proof of original purchase. Sirius will at its sole option and discretion replace
products that arrive damaged through shipping, provided shipping damage is reported
as stated above WITHIN 5 BUSINESS DAYS OF RECEIPT of the shipped product or products.
ONE YEAR SERVICE REPAIR WARRANTY:
During the rst year from date of original purchase, Sirius will, at its option, repair or repla-
ce, without charge, any product or part which is found to be defective under normal use and
service.
THREE YEAR PARTS WARRANTY:
For three years from date of purchase, Sirius will provide free of charge, non-consumable repla-
cement parts which are found to be defective under normal use and service.
WHO IS COVERED:
Sirius warrants to the original consumer purchaser of its products that such products will be
free from defects in materials and workmanship for a period of three years from the original
date of purchase. There are no other warranties, express or implied, including, but not limited
to, implied warranties of merchantability or tness for a particular purpose or application.
WHAT IS NOT COVERED:
This warranty does not extend to lters, lamps, batteries, ducts and ductwork components. This
warranty does not cover normal maintenance and service or products or parts which have been
subject to misuse, negligence, accident, improper maintenance or repair, faulty installation or
installation contrary to recommended installation instructions. The warranty on glass screens
is limited to manufacturing defects only and expressly excludes cracks and breakages as a
result of faulty installation. Labor and associated costs associated directly with removal and re-
installation are expressly excluded.
The duration of any implied warranty is limited to the three year period as specied for the
express warranty. Some states and provinces do not allow limitation on how long an implied
warranty lasts, so the above limitation may not apply to you.
Sirius S.P.A.
Zona industriale Berbentina 6/A
60041 SASSOFERRATO (AN)
ITALY
Sirius after sale service
Telephone (toll free): 1-877-474-8770
Email: [e-mail]
Register Online! www.siriuscappe.com/usa/warranty.htm

IMAGES
15
SUDD2L - SUDD3

S-DD2-L FLUSH TOP66
2 mm
2
6
34
5
1
16 SUDD2L - SUDD3

S-DD2-L FLUSH TOP 67
9
8
7
10
11 12
17
SUDD2L - SUDD3

S-DD2-L FLUSH TOP68
10/09
90002103999
N
220 - 240V - 50 HZ
ATTUATORE 12Vcc 68W
MAX 68W
TYPE
FSEE
EQUIPMENT
S - 002 - EM_TC X22 - Q3 - X0
90002002001

A
C
B
13
14
14
15
18 SUDD2L - SUDD3

19
SUDD2L - SUDD3

90002020004 - 11/16
