INSTRUCTION MANUAL
160-bottle compressor wine cooler MFC-15426
Please read carefully and follow all safety rules and opera ng instruc ons

- 2 -
Contents
1. Your Wine Cooler……………………………………………………………………………………………………………………………………………… 3
2. Technical Data………………………………………………………………………………………………………………………………………………3
3. Safety Precautions……………………………………………………………………………………………………………………………………… 4
4. Important Precautions………………………………………………………………………………………………………………………………4
5. Installation Instructions……………………………………………………………………………………………………………………… ..5
6. Operating your wine cooler………………………………………………………………………………………………………………………….5
7. Care and Maintenance………………………………………………………………………………………………………………………………6
8. Problem disposal………………………………………………………………………………………………………………………………………………….7

- 3 -

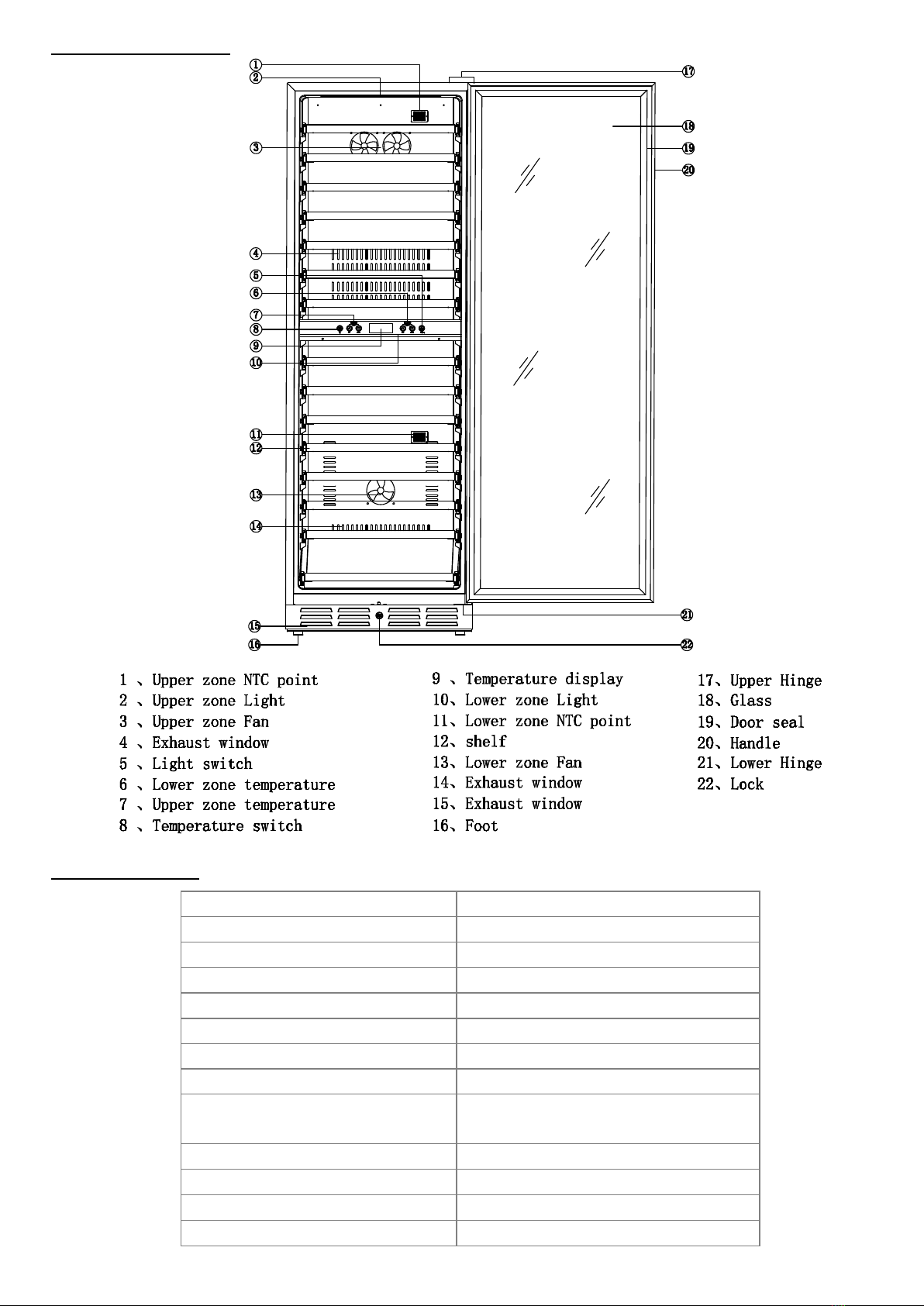

Your Wine Cooler
Technical Data
Model no.
MFC-15426
Capacity 450 L
Voltage 220-240V AC
Current 1 A
Frequency 50Hz
Protect on class I
Climate class T/ST/N/SN
Input power 130W
Temperature Control Range Upper zone:5-10°C
Lower zone:10-18°C
Net weight 100.8 KG
Gross weight 109.5 KG
Shape size(W×H×D) 595W x 1769Hx 680D mm
Packing size(W×H×D) 663W x 1922Hx 736D mm
i

- 4 -
Electrical Circuit Diagram
Safety Precau�ons
PLEASE READ all instrucons before installing, operang, or servicing the appliance.
Danger and Warning: Failure to follow this safety statement will result in severe personal injury or death, property or
equipment damage.
RISK OF CHILD ENTRAPMENT. Before you throw away your old refrigerator or freezer, take othe doors and leave shelves
in place so children may not easily climb inside.
SHOCK HAZARD - Electrical Grounding required.
Never aempt to repair or perform maintenance on the unit unl the electricity has been disconnected.
Never remove the round grounding prong from the plug and never use a two-prong grounding adaptor.
Altering, cung of power cord, removal of power cord, removal of power plug, or direct wiring can cause serious injury,
re and or loss of property and or life, and will void the warranty.
Never use an extension cord to connect power to the unit.
Always keep your working area dry.
Important Precau�ons
Do not liunit by door handle.
Never install or operate the unit behind closed doors.
Be sure front grille is free of obstrucon. Obstrucng free airow can cause the unit to malfuncon and will void the
warranty.
Failure to clean the condenser every six months can cause the unit to malfuncon.
Allow unit temperature to stabilize for 24 hour before use.
Do not block any internal Fans.
Use only genuine supplier's replacement parts. Imitaon parts can damage the unit, aect its operaon or performance
and may void the warranty.
To reduce the risk of re, electrical shock, or injury when using your
appliance, follows these basic precauons;
θθ
θ θ M MM MMM
CONTROL PCB
DISPLAY PCB
COMPRESSORPTC HEATER
TRANSFORMER
PLUG
SENSOR1
SENSOR2 LIGHT FAN1 FAN2 FAN3 FAN4
MM
FAN5

- 5 -
Installation Instructions
Before using your wine cooler:
Remove the exterior and interior packing
Before connecting the appliance to the power source, let it stand upright for approximately 2
hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
Clean the interior surface with lukewarm water using a soft cloth.
Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded.
To level your appliance, adjust the front legs at the bottom of the appliance.
Operating Your Wine Cooler
The Control Panel:
To control the upper zone temperature, press UP and DOWN button on the left side where Upper Zone (Zone I) wordings
is. Each press would adjust the temperature by 1°C among 5~10°C or 1°F among 40~64°F.
To control the lower zone temperature, press UP and DOWN button on the right side where Lower Zone (Zone II) wording
is. Each press would adjust the temperature by 1°C among 10~18°C or 1°F among 50~64°F.
To turn on or off the internal LED lighting, press LIGHT button on the right side.
To switch the temperature display from Celsius Degree to be Fahrenheit Degree or vice versa, press C/F button.
The Display Panel:
On the display panel in middle of the control panel, you can read the following information and adjust the
temperature setting according to your condition:
