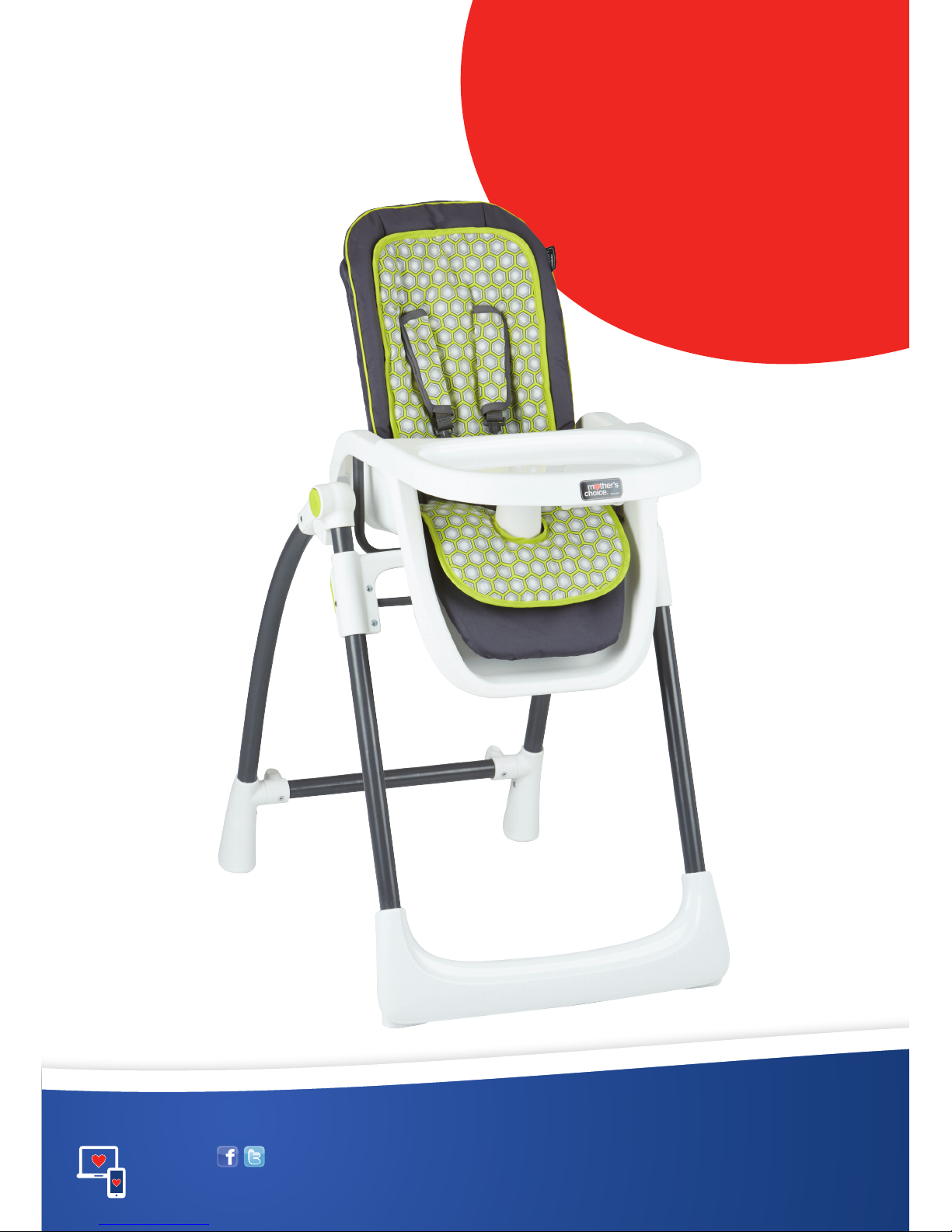

Mothers choice citrus User manual

•vvv
citrus
hi-lo chair
motherschoice.com.au
follow us on
the only choice
instruction
manual

•vvv
2
assembling the highchair pg.
Components list .................................... 4
Opening highchair ............................... 5
Height adjust ........................................ 6
Back rest adjust ................................. 7
Meal tray ........................................... 8 - 9
using the highchair
Folding highchair ............................... 10
Restraint system ................................. 11
Rear wheels ...................................... 12
care and maintenance
Care and maintenance ...................... 12
Notes ................................................... 13
Product registration ........................... 15
contacts
Customer service .............................. 16
2
contents

•vvv
3
These instructions detail the safe use, assembly and maintenance of your
product. Please read these instructions carefully and ensure that they are
followed at all times. Failure to do so could result in serious injury or death.
• FOLLOWTHEMANUFACTURER’SINSTRUCTIONS.
• DONOTLEAVECHILDRENUNATTENDED.
• THEHARNESSMUSTALWAYSBEUSEDANDCORRECTLYFITTED.
MOSTINJURIESFROMHIGHCHAIRSARECAUSEDBYFALLS.
• POSITIONTHEHIGHCHAIRAWAYFROMSOLIDSTRUCTURES
ANDBENCHESTOAVOIDINJURIESCAUSEDBYFALLSANDBY
ACCESSTODANGEROUSITEMS.
• Theweightofthechildusingthehighchairshouldnotexceed15kg.
• Thechildshouldbesecuredinthehighchairatalltimesbythe
restrainingsystem.Itisrecommendedthatthehighchairbeusedinthe
uprightpositiononlybychildrencapableofsittinguprightunassisted.
• Checkthatthehighchairisfullyerectedandensurethatalllocksare
engagedbeforeplacingachildinit.
• Ensurethatthehighchairisplacedonaflat,even,horizontalandstable
surface.
• Neverusethehighchairwiththeseatpadremoved.
• Donotelevatethehighchaironanystructureortable.
• Toreducetheriskofinjury,positionthehighchairawayfromfurniture,
walls,hotsurfaces,hotliquids,windowcoverings,windowcordsand
electricalcords.Positionthehighchairawayfromfurniturewhenthechair
isnotbeingusedatatablewiththetrayremoved.
• Donotraise,lower,foldormovethehighchairwhenachildisinit.
• Makesurechildrenandtheirfingersareclearofanymovingparts.
• Donotallowchildrentostandontheseat,asthehighchairmaybecome
unstable.
• Toavoiddangerofsuffocation,keepanyplasticbagsawayfrombabies
andchildren.
• Regularlyinspectthehighchairforanypartthatisloose,broken,tornor
missing.Attendtotheproblemassoonasitisnoticed.
• Donotusethehighchairifitisnotworkingcorrectlyandimmediately
seekrepair.
• UseonlythoseaccessorieswhicharesuppliedbyDorelAustraliaand
approvedforusewiththishighchair.
• Thisproductisnotintendedforcommercialuse.
WARNING TOAVOIDINJURYORDEATH:

•vvv
4
citrus
hi-lo chair
components list
ABack rest
BSeat insert
CFold button
(left and right)
DHeight adjusters
(left and right)
ETray storage
FFoot rest
GCrotch restraint
HMeal tray
ISafety harness
JSeat back recline lever
(not shown)
E
F
G
H
I
J
A
B
C
D

•vvv
5
citrus
hi-lo chair
assembly
Step 1: open the highchair
• Place the highchair with its feet secure on the
oor.
• Depress the buttons located in the centre of
each hinge together (Figure 1a).
• Extend the legs outward (Figure 1b).
• Continue this action until the leg assembly
is securely locked in position on both sides
(Figure 1c).
• Ensure that the frame assembly locks have
fully engaged.
1a
1b
1c
mother’s choice tip...
If the highchair has a security tie,
please remove it.

•vvv
6
mother’s choice tip...
It may be easier to adjust the seat height by
placing your foot on the front leg cross tube
to steady the highchair while adjusting.
2
citrus
hi-lo chair
assembly
Step 2: adjust seat height
• To adjust the seat height, squeeze and
hold the buttons (A) on each side of
the legs and slide the seat up or down
(Figure 2).
• Once adjusted, release the buttons and
allow the seat to lock into position.
A

•vvv
7
citrus
hi-lo chair
assembly
3
Step 3: adjust back rest
• Adjust the position of the back rest by
lifting the adjustment lever at the rear
of the seat upwards (Figure 3).
• Position the back rest in the required
position and release the adjustment
lever to allow the seat to lock into
position.
The highchair should be used
in the upright position only
by children capable of sitting
upright unassisted.
WARNING

8
• Align the tracks on the
underside of the tray with the
tray supports on either side of
the seat.
• Insert the tray into the supports
until it locks into position.
• Squeeze the release lever (A)
located on the underside of the
tray, and remove (Figure 4a).
• Insert the tray into the holes on
the rear legs to store
(Figure 4b).
4b
Step 4: attach the tray
removing the tray
citrus
hi-lo chair
meal tray
•vvv
8
A
4a

9
citrus
hi-lo chair
meal tray
Step 5: adjusting the tray
• The tray can be adjusted to different positions.
• The release lever is located on the underside of the tray.
• Squeeze the release lever and move the tray to the
desired position.
• Once adjusted, release the lever. Ensure that the tray has
locked into position.
5
9
•vvv
9
release lever

•vvv
10
citrus
hi-lo chair
folding highchair
to fold the highchair
• Before folding: remove the tray, adjust the seat to the
upright position and lower the seat fully (Figure 6a).
• Press the buttons located on the centre of each hinge
together, to allow the hinges to fold, (Figure 6b).
• Assist the front and rear legs to come together.
• Ensure that the frame has closed and the locks have
fully engaged and secured on both hinges (Figure 6c).
• Store in a safe location.
6a
6b
6c
press

•vvv
11
citrus
hi-lo chair
restraint system
to use the restraint system
• Place child in the seat with the crotch
strap between the child’s legs and fasten
both buckles and shoulders (Figure 7).
• The harness straps can be adjusted by
moving each strap slider.
• The buckle is release by squeezing the
buckle tongues together.
to adjust the shoulder strap
• Fold the T-shaped strap ends and then
push through the desired slots (Figure 8).
8
Prevents serious injury or
death from infant falling or
sliding out. ALWAYS use the
restraint system provided.
WARNING
7

•vvv
12
citrus
hi-lo chair
rear wheels
to use the rear wheels
• Removethechildfromthehighchair,slightlyliftthefrontlegsfromtheoor.
• The highchair can now be manoeuvred on the rear wheels.
highchair and trays
• Wipe with soft, damp cloth and warm, soapy water and allow to dry
insert trays (if supplied)
• Dishwasher safe - top rack only
seat pad
• Wipe with soft, damp cloth and warm, soapy water and allow to dry
• DO NOT BLEACH
• Do not place in dryer
harness
• Harness and crotch straps should be surface washed and air dried only
• Do not place in washing machine or dryer
•
care and maintenance

•vvv
13

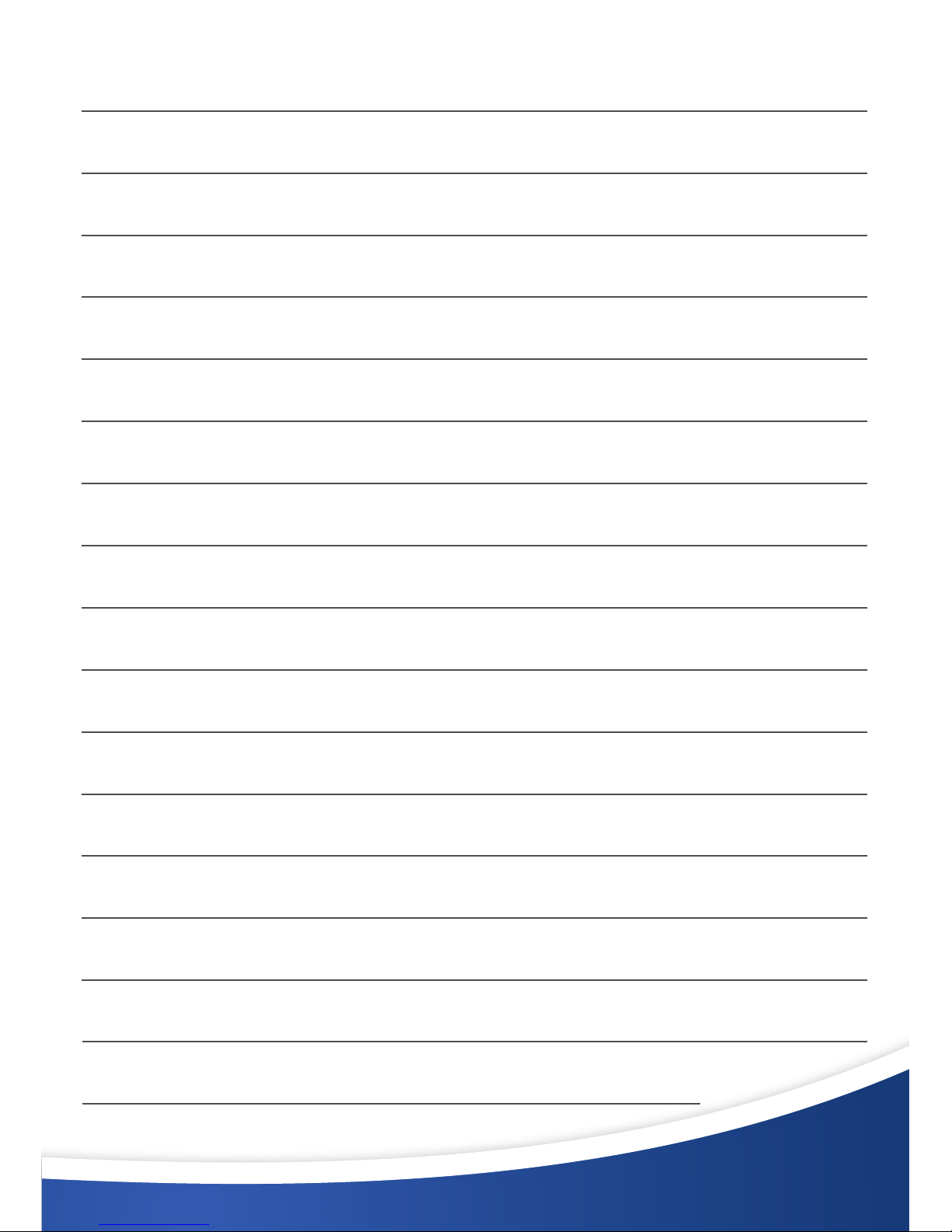

notes:

•vvv
14
notes:

•vvv
15
to prevent loss or fading,
please attach your receipt here:
www.dorel.com.au/product-registration
mother’s choice tip...
Visit us online to register your new
Mother’s Choice product.
benefits of registration
• Yoursafety-allowsustocontactyouwithimportantproductnotications.
• Conrmationofownership-providesarecordincaseofproductlossortheft.
• Improved product development - helps us continue to design products
that meet your needs.
motherschoice.com.au
follow us on

•vvvv
Specifications are subject to change without notice.
Copy or reproduction without permission is prohibited.
© 2013 Dorel Australia Pty Ltd. All Rights Reserved.
www.dorel.com.au
015019 - Citrus Hi-Lo Chair - 03 - 14
