Mothers choice raindrop User manual

motherschoice.com.au
follow us on
the only choice
instruction
manual
IMPORTANT: RETAIN FOR
FUTURE REFERENCE.
Illustrations and designs may vary.
raindrop
compact highchair

•vvv
2
assembling the highchair pg.
Warnings ............................................... 3
Components list .................................... 4
Attach backrest, footrest ..................... 6
Attach legs .......................................... 7
Attach harness, meal tray .................. 8
using the highchair
Highchair to lowchair ............................ 9
Restraint system ................................... 9
Storing meal tray ................................ 10
care and maintenance
Care and maintenance ...................... 13
Notes ................................................... 14
Product registration ........................... 15
contacts
Customer service .............................. 16
contents

•vvv
3
WARNING:
These instructions detail the safe use, assembly and maintenance of your
product. Please read these instructions carefully and ensure that they are
followed at all times. Failure to do so could result in serious injury or death.
• FOLLOW THE MANUFACTURER’S INSTRUCTIONS.
• DO NOT LEAVE CHILDREN UNATTENDED.
• THE HARNESS MUST ALWAYS BE USED AND CORRECTLY FITTED
– MOST INJURIES FROM HIGHCHAIRS ARE CAUSED BY FALLS.
• POSITION THE HIGHCHAIR AWAY FROM SOLID STRUCTURES AND
BENCHES TO AVOID INJURIES CAUSED BY FALLS AND BY ACCESS
TO DANGEROUS ITEMS.
• The child should be secured in the highchair at all times by the restraining
system.
• This highchair should only be used once the child is capable of reliably
and consistently sitting upright.
• Check that the highchair is fully erected and ensure that all locks are
engaged before placing a child in it.
• Ensure that the highchair is placed on a at, even, horizontal and stable oor.
• Do not elevate the highchair on any structure or table.
• To prevent child coming into contact with hazards and reduce the risk of
injury, position the highchair at least 500mm away from walls, windows,
unsecured doorways, stoves, hot surfaces, hot liquids, appliance cords,
curtains or blind cords. Position the highchair away from furniture when
the chair is not being used at a table.
• Do not raise, lower, fold or move the highchair when a child is in it.
• Make sure children and their ngers are clear of any moving parts.
• Do not allow children to stand on the seat, as the highchair may become
unstable.
• Place the highchair out of reach when not in use to prevent a child from trying
to climb into it.
• To avoid danger of suffocation, keep any plastic bags away from babies and
children.
• Regularly inspect the highchair for any part that is loose, broken, torn or
missing. Attend to the problem as soon as it is noticed.
• Do not use the highchair if it is not working correctly and immediately seek
repair.
• Use only those accessories which are supplied by Dorel Australia and
approved for use with this highchair.
• This product is not intended for commercial use.
• The weight of the child using this highchair should not be more
than 15kg.

•vvv
4
x4
x4
x4
x4
*assembly requires Phillips head screwdriver (not included)
*
raindrop
highchair
components list

•vvv
5
step 1: securing frame
• Remove highchair from carton and remove cable
tie if attached.
• Slide seat-back frame (A) over the lower frame (B),
(Figure 1a).
• Do not click into place until both frame pieces have
been partially inserted.
• On both sides, push the lower frame until it clicks
into place.
• Conrmthatthepinsemergecompletelythrough
the hole (Figure 1b).
1
2
aa
b b
1
2
aa
b b
raindrop
highchair
assembly
seat-back
frame
lower frame
1a
1
2
aa
b b
1b
x2
click!

•vvv
6
step 2: preparing tray table
• Attach tray clips (x2) to tray frame
(Figure 2a).
• Laytrayonaatsurface(suchasatable)and
align tray frame over the top.
• Ensure the tray tether strap has been
positionedcorrectly,layingatandtowards
the back of the tray (Figure 2b).
• Insert screws (x4) into the holes
(Figure 2b).
• Tighten the screws with a Phillips head
screwdriver (not included).
1
2
aa
b b
tray frame
tray
tray tether strap
x4
raindrop
highchair
assembly
2a
2b
x2

•vvv
7
x4
x4
step 3: attaching tray table
• Push the tray frame into the seat-back
frame on both sides until it clicks into
place (Figure 3a).
• Conrmthatthepinsemerge
completely through the hole (Figure 3b).
• Push the tray frame into the seat-front frame
on both sides underneath the frame until it
clicks into place (Figure 3c).
• Loop the tray tether strap around the seat-
front frame and secure the press stud until
youheara‘CLICK!’toconrm.
1
2
aa
b b
1
2
aa
b b
raindrop
highchair
assembly
x4
3a
3b
3c
x2
push
x2
click!
click!
click! click!

•vvv
8
raindrop
highchair
assembly
7
CLICK
OK
NO
CLICK
OK
x4
7
CLICK
OK
NO
CLICK
OK
7
CLICK
OK
NO
CLICK
OK
step 4: attaching legs
• Flip highchair (as shown in Figure
4a) and slide legs into upper frame
pieces.
• Push lower frame until it clicks into
place, repeating for all 4 sides.
• Conrmthatthepinsemerge
completely through the hole
(Figure 4b).
(Note: Front legs have
pins facing inwards.)
4a
4b

•vvv
9
1
34
2
using: storing tray table
• The tray table can be stored behind the
highchair when not in use.
• Unclip the press stud of the tray tether
strap underneath the tray (Figure 5a)
and unloop the strap from the seat-front
frame (Figure 5b). Lift the tray frame up to
detach it from the seat-front frame.
• Lift the tray frame and allow it to swing
over the seat (Figure 5c) until it reaches
the rear of the highchair (Figure 5d).
raindrop
highchair
using
1
34
2
1
34
2
5b
5a
1
34
2
1
2
34
CLICK
OK
NO
CLICK
OK
NO
5c 5d

•vvv
10
using: folding the highchair
• Raise the locking clip (Figure 6a)
on both sides to unlock legs.
• Allow highchair to fold to a close (Figure
6b).
• Position the tray table behind the highchair
(Figure 6c, 6d).
raindrop
highchair
using
1
34
2
1
34
2
6a
6b 6c 6d
x2

•vvv
11
1
2
34
CLICK
OK
NO
CLICK
OK
NO
1
2
34
CLICK
OK
NO
CLICK
OK
NO
using: unfolding the highchair
• Simply pull the legs apart to unfold (Figure
7a).
• The locking clip will automatically engage
when legs are fully apart
(Figure 7b).
• Conrmthelockhasengagedbeforeplacing
child in the seat.
raindrop
highchair
using
1
2
34
CLICK
OK
NO
CLICK
OK
NO
7b
x2
click!
7a

•vvv
12
using: safety harness
• Place child in the seat with the crotch strap
between the child’s legs and fasten both
buckles (Figure 8a).
• Clip shoulder straps to waist belt.
• To adjust strap length, move each strap
slider (5 places, Figure 8b) to the required
length to tighten snugly such that you can
comfortablyslideyourngerbetweenthe
strap and your child.
Always secure child in
the harness.
WARNING
raindrop
highchair
using
8a
8b

•vvv
13
highchair and tray
• Wipe with soft, damp cloth and warm, soapy water and allow to dry.
seat pad
• Wipe with soft, damp cloth and warm, soapy water and allow to dry.
• DO NOT BLEACH.
• Do not place in dryer.
safety harness
• Harness and crotch straps should be surface washed and air-dried only.
• Do not place in washing machine or dryer.
raindrop
highchair
care and maintenance

•vvv
14

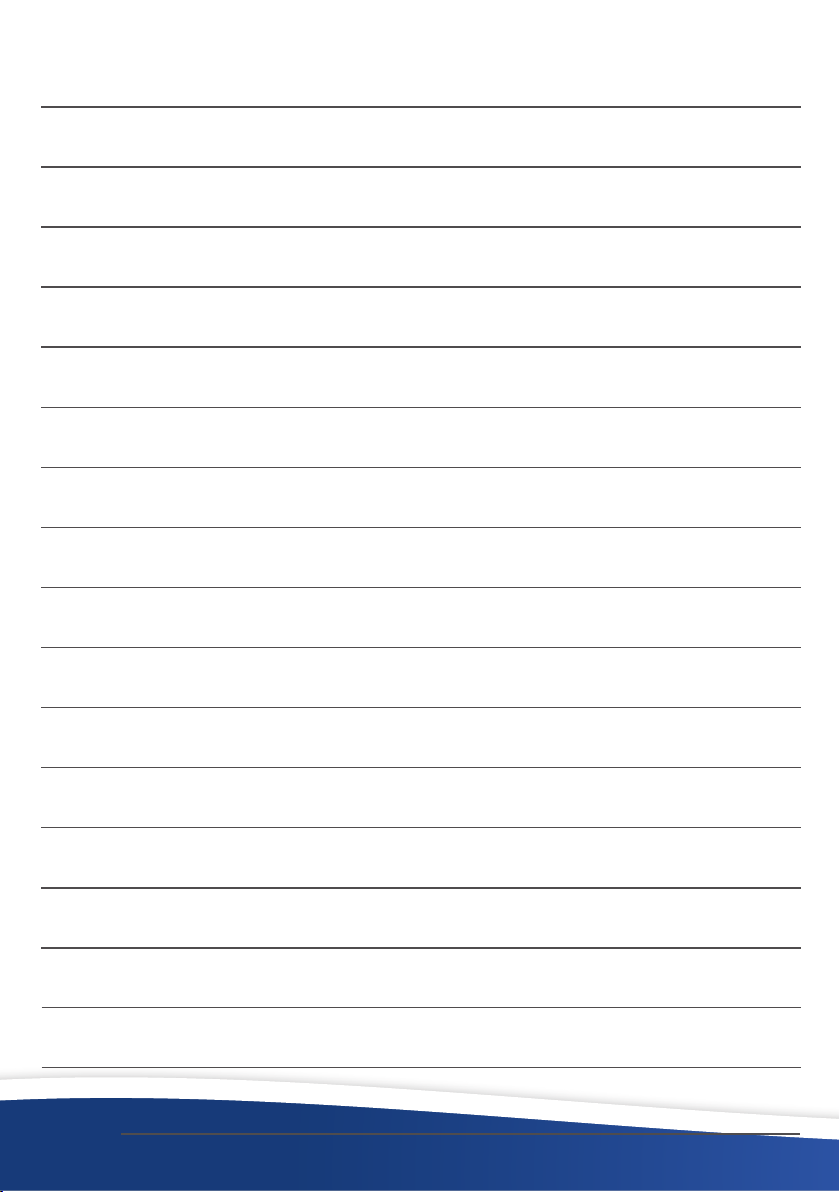

notes:

•vvv
15
to prevent loss or fading,
please attach your receipt here:
www.motherschoice.com.au/product-registration
mother’s choice tip...
Visit us online to register your new
Mother’s Choice product.
benefits of registration
• Yoursafety-allowsustocontactyouwithimportantproductnotications.
• Conrmationofownership-providesarecordincaseofproductlossortheft.
• Improved product development - helps us continue to design products
that meet your needs.
motherschoice.com.au
follow us on

Specifications are subject to change without notice.
Copy or reproduction without permission is prohibited.
© 2015 Dorel Australia Pty Ltd. All Rights Reserved.
www.dorel.com.au
motherschoice.com.au
DOREL AUSTRALIA PTY LTD
655-685 Somerville Road
Sunshine West Victoria 3020
Email: cust[email protected]
Phone: [phone]
Hours: 8:30 am - 5:00 pm Monday to Friday
IGC DOREL NEW ZEALAND LTD
14 Sir William Avenue
East Tamaki Auckland 2013
Email: cust[email protected]
Phone: [phone] (toll free)
Hours: 8:00 am - 5:00 pm Monday to Friday
#017011 - Raindrop Compact Highchair - 12 - 15
