S5 CONNECT / S5 CONNECT DHC Electric Trolley
Instruction Manual
Distance Measurement Device (DMD) features are legal to use when local USGA and R&A
rule 14-3 is in effect. Always check local and competition rules prior to commencing play
REGISTERONLINE
www.motocaddy.com/warranty

Page 2
Contents
Contents Table
Serial Number Location / DHC Information ................... 3
Attaching the Wheels ..................................................... 4
Battery Care and Advice ................................................ 5
Charging & Caring for your Lithium Battery................... 6
Caring for your Lithium Battery ...................................... 7
Unfolding your Trolley .................................................... 8
Folding your Trolley........................................................ 9
Using the Upper & Lower Bag Supports ...................... 10
Adjusting the Bag Supports ......................................... 11
Safety Cut-out / Safe Use ............................................. 12
Safe Use / Caring for your Trolley................................. 13
Equipment Overview.................................................... 14
Handle Overview.......................................................... 15
Using your S5 CONNECT / Power & Battery Level...... 16
Using the Adjustable Distance Control ........................ 17
Using the USB Charging Port ....................................... 18
Adjusting the Front Wheel Alignment.......................... 19
Introduction to DHC / DHC Parking Brake................... 20
Smart Features / Disabling the Smart Features............ 21
Installing the Motocaddy App / Language Settings..... 22
Pairing Mode................................................................ 23
GPS Mode / Power Save Mode.................................... 24
Automatic Hole Advancement / Units of Measure....... 25
Push Notications / Notication Settings..................... 26
Notication Stacking / Standalone Notications.......... 27
Using the Clock / Round Timer .................................... 28
Over the Air Updates / Closing the App...................... 29
FCC Statement............................................................. 30
Declaration of Conformity ............................................ 31

Page 3
Locating your Serial Number / Information about DHC
Locating your Serial Number
The serial number for your S5 CONNECT trolley is located on the underside of the battery tray. This number is required when
registering your warranty online and should be kept handy for future use.
The same number should also be on the box received with your trolley. Please ensure you keep hold of the packaging in case
you need to return your trolley for any reason. A proof of purchase must also be kept in case your trolley requires servicing
during its warranty period.
Please keep a record of your trolley serial number here for future reference
MCS
Information about S5 CONNECT DHC (Downhill Control)
The information in this instruction manual applies to both standard and DHC models.
For DHC specic functionality, please turn to page 20.

Page 4
Attaching the Wheels
Attaching the Wheels

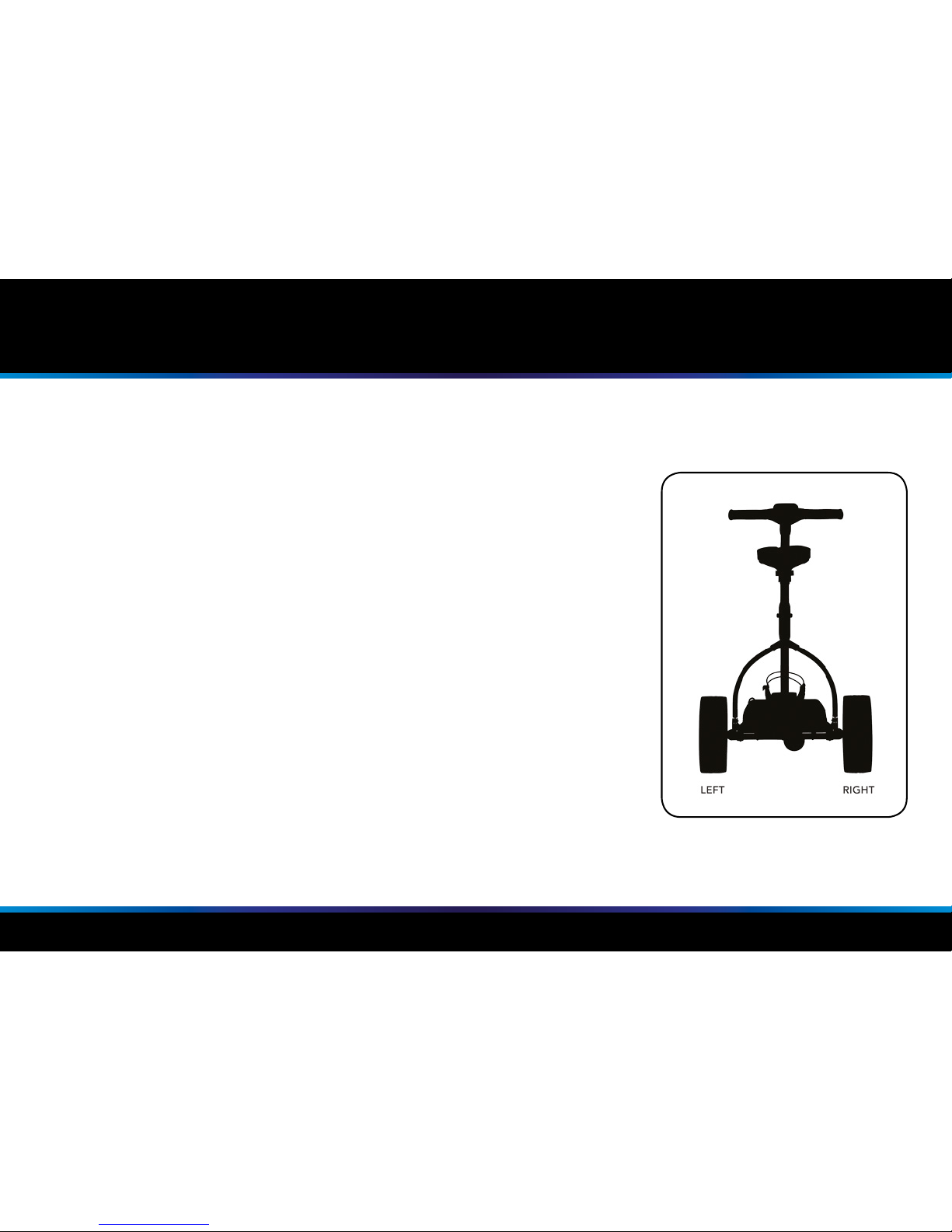

There is a left and a right wheel and it is important that you put them on the
correct side, otherwise the trolley will not move. There is an ‘L’ and ‘R’ on the
inside of the wheel on the central hub. Left and Right sides are determined when
stood behind the trolley at the handle.
NB : DHC trolley models do not have a specic left and right wheels.
To attach the wheels, follow these simple steps:
1. Push the quick release in towards the centre of the wheel
2. Slide the wheel on to the axle as far as it will go
3. Release the button and pull the wheel outwards slightly to lock
4. You will hear a small click which will conrm they are in the correct position
The outer groove can be used as a ‘free-wheel’ option if you run out of battery
power during a round of golf.
IMPORTANT : To check you have attached the wheels correctly onto the
inner groove, you will nd they will only rotate freely in one direction.
(This does not apply with DHC models)

Page 5
Battery Care and Advice
Battery Care and Advice
All batteries must be charged as soon as possible after each use. Leaving batteries discharged for long periods of time will
affect the battery life.
Please ensure that only batteries supplied by Motocaddy are charged with Motocaddy chargers. Cyclic battery chargers are
designed specically in accordance with the battery manufacturer’s requirements. The Lithium battery charger MUST NOT be
used to charge any other battery and is designed for use with Motocaddy Lithium batteries only.
The charger should only be connected to an earthed socket outlet and the battery charger should only be opened and
maintained by authorised personnel. Unauthorised opening will invalidate your warranty.
The battery must be stored and charged on a dry non-carpeted surface and charged at temperatures ranging between 10°C
and 30°C. Charging above or below these temperatures is not recommended as it can reduce the battery capacity.
When connecting your battery to the trolley, please ensure that the connections match up black to black and blue/red to blue
depending on your battery type.

Page 6
Charging your Lithium Battery / Caring for your Lithium Battery
Charging your Lithium Battery
1. Unplug the Lithium battery from the trolley. This should always be performed before folding the trolley to avoid damage to
the battery and/or trolley
2. Plug the charger into your mains supply
3. Attach the battery cable to the charger matching the black and blue connections
4. When the charging LED indicator has turned green, the battery is fully charged and ready to be used
RED - Battery Charging GREEN - Battery fully charged and ready to be disconnected
5. The charging process will take between 3 to 5 hours depending on the depth of discharge
(please be aware that this may take longer for the rst few charges)
6. Once charging is complete please disconnect the charger from the mains power supply
7. Finally disconnect the charger from the battery
Caring for your Lithium Battery
• Try to avoid getting the battery too wet (i.e. do not submerge the battery, avoid deep puddles and do not clean
your trolley while the battery is still in the battery tray)
• Dropping the battery may cause damage to the internal cells
• Do not lift or carry the battery by the cable
• Use a damp cloth to clean off any dirt

Page 7
Caring for your Lithium Battery
Recommendations for the Hibernation of Lithium Batteries During Winter Months
If for any reason your Lithium battery is not going to be used for lengthy periods, e.g. 3 months over the winter, it is advised to
store the battery half charged. To do this simply use the battery for a round of golf as usual and charge it for 1.5 hours at the
end of the round. Before the battery is used again, recharge it (top it up) prior to use. We recognise that extended absences
are not always planned in advance, however when it is likely that you will not be using your battery for a period of time it
is good practice to follow these steps to extend the life of your Lithium battery. Please ensure that the charger is ALWAYS
disconnected from the battery after charging.
Battery Management System (BMS)
Motocaddy Lithium batteries are tted with a comprehensive battery management system (BMS) to protect the battery from
excessive abuse, high currents, deep discharge and overcharge. When the battery is delivered there may be no output as the
BMS is designed to maximize safety while shipping. Please ensure that the battery is fully charged prior to connecting it to your
trolley as this will activate the BMS and effectively ‘switch-on’ the battery. From time to time, at deep discharge or long term
storage the BMS may switch-off the battery. A full battery charge will rectify this problem.
Motocaddy golf trolleys are designed to work with the BMS system installed in the Lithium batteries and the voltage meter
is also synchronised to work in conjunction with the battery. If for any reason the voltage on the battery falls below the low
battery warning on the trolley, then the BMS may disable the battery to protect it. Again if this occurs please recharge fully.
Please be aware that Lithium batteries tend to ‘drop off’ quickly at the end of the cycle so it is not advisable to attempt to play
excessive holes as the BMS will activate for protection purposes.

Page 8
Unfolding your Trolley
This Motocaddy trolley is tted with the QUIKFOLD system, allowing you to fold and unfold your trolley quicker than ever before.
Unfolding your Trolley
1. Press and hold the upper QUIKFOLD release button (g. 1)
2. Lift the handle and release the button (g. 2)
3. Unfold the upper frame section fully (g. 3)
4. Lift the main frame from the central hinge using the section marked ‘Hold Here’ until the QUIKFOLD system clicks in place.
Do not hold/touch the trolley anywhere else during this process (g. 4)
5. Unfold the upper bag support
NB : Do not lift from the handle (step 4 above) as this will complicate the folding process and may damage your trolley.
Fig 1 Fig 3 Fig 4Fig 2

Page 9
Folding your Trolley
Folding your Trolley
1. Make sure your battery is unplugged and if you have a Lead-acid battery you will need to remove this from the battery tray
2. Ensure that the upper bag support has been folded up to avoid damage to the frame while folding
3. Press and hold the lower QUIKFOLD release button (g. 1)
4. Lower the main frame completely, releasing the button at any point (g. 2)
5. Once the frame is completely at, fold the handle towards the front wheel until the QUIKFOLD system clicks in place (g. 3)
6. You may need to gently push as indicated if you do not hear a click (g. 4)
NB : To avoid injury, ensure the latch has clicked in place securely before carrying.
Fig 1 Fig 2 Fig 3 Fig 4

Page 10
Using the Upper and Lower Bag Supports
Using the Upper Bag Supports
The upper bag support straps are secured using the following steps:
1. Stretch the elasticated strap around the bag & loop the rounded bar underneath the hook (g. 1)
2. Position the two placement straps centrally on your golf bag (g. 2)
Using the Lower Bag Supports
This Motocaddy trolley is tted with the EASILOCK™ bag attachment system.
If you are using an EASILOCK™ compatible golf bag please follow these simple instructions:
1. Remove the two pre-tted lower bag straps by depressing the rear button and sliding (g. 3)
2. Match up the indicating line on the golf bag with the line on the lower bag support
3. Lower the bag until the pins lock in position. You should hear a small click
If you are using a non-EASILOCK™ golf bag, please use the following instructions:
1. Stretch the lower bag strap around the bag base & loop the rounded bar underneath the hook
2. Position the two placement straps centrally on the base of your golf bag
Please ensure all straps are hooked securely before releasing. Failure to do so could result in injury.
Fig 2
Fig 3
Fig 1

Page 11
Adjusting the Bag Supports
Adjusting the Bag Supports
The bag support straps are manufactured from elasticated material to allow your golf bag to be
held tightly in place.
The strap should be adjusted to be reasonably tight around the golf bag:
1. Unclip the elasticated straps from the housing by pulling outwards in the direction shown (g. 1)
2. Move the bar as required to tighten or loosen the strap tting. Pulling the bar downwards will
tighten, pushing it upwards will loosen (g. 2)
3. Ensure that the straps are clipped back into the housing before use (g. 3)
Fig 1
Fig 2
Fig 3

Page 12
Safety Cut-out
The S5 CONNECT trolley is tted with a safety cut-out feature which will help prevent damage to your
trolley in the event of it being inadvertently switched on and in a position where it is not able to move
for 30 seconds. If this should occur, the trolley will automatically cut the power to the motor.
If your trolley has cut out for this reason, the LED panel will display an ‘L’ where the speed setting
would usually be shown (g. 1).
Pressing the on/off button will reset your trolley.
Safe Use of your Trolley
Your Motocaddy trolley is designed for the transportation of golf bags and clubs contained within.
Using the trolley for any other reason may cause damage to the trolley and cause harm to the user.
• Do not attempt to transport any other equipment
• The trolley is not designed for the transportation of people
• Do not use the trolley to assist you when going up hills
Safety Cut-out / Safe Use of your Trolley
Fig 1

Page 13
Safe Use of your Trolley / Caring for your Trolley
• Submerging the trolley in water (e.g. a lake) is likely to cause damage to the trolley
• Do not operate the trolley while under the inuence of drugs or excessive amounts of alcohol
• All batteries must be disconnected from the trolley before transporting
• Lead-acid batteries must be removed from the battery tray before transporting your trolley
• Always use the carry strap when moving and transporting Lead-acid batteries
Caring for your Trolley
Although your Motocaddy trolley has been weatherproofed, please follow these simple guidelines to help protect your trolley:
• Do not store your trolley outside
• Try to minimise exposure to rain as much as possible with an umbrella during heavy rainfall
• Wipe excess water from the trolley prior to storage
• Never use a pressure washer to clean your trolley. To prevent water damage, wipe down with a damp cloth
• Avoid using high pressure air hoses near moving components
Your Motocaddy trolley is designed to require very little maintenance. We do however recommend giving your trolley regular
checks to ensure:
• There is no build up of excess mud and dirt
• The front wheel nut is on tightly and quick release lever is clamped down
• The front wheel is not clogged up and turns freely
• The QUIKFOLD track is kept clean and well lubricated
Only original Motocaddy parts should be used when repairing your trolley.

Page 14
S5 CONNECT Equipment Overview
S5 CONNECT Equipment Overview
1. Smart Display
2. Speed Setting, Power & Battery Indicators
3. Upper Bag Support
4. QUIKFOLD Upper Release Button
5. QUIKFOLD Lower Release Button
6. Rear Wheels
7. Rear Wheel Release Button
8. EASILOCK™ Lower Bag Support
9. Battery
10. Battery Tray
11. Motor (located under Battery Tray)
12. Front Wheel
13. Front Wheel Alignment Adjusters
14. Battery Connector
15. USB Charging Port (located under handle)
12
3
5
6
7
8
9
10
13
12
15
11
14
4

Page 15

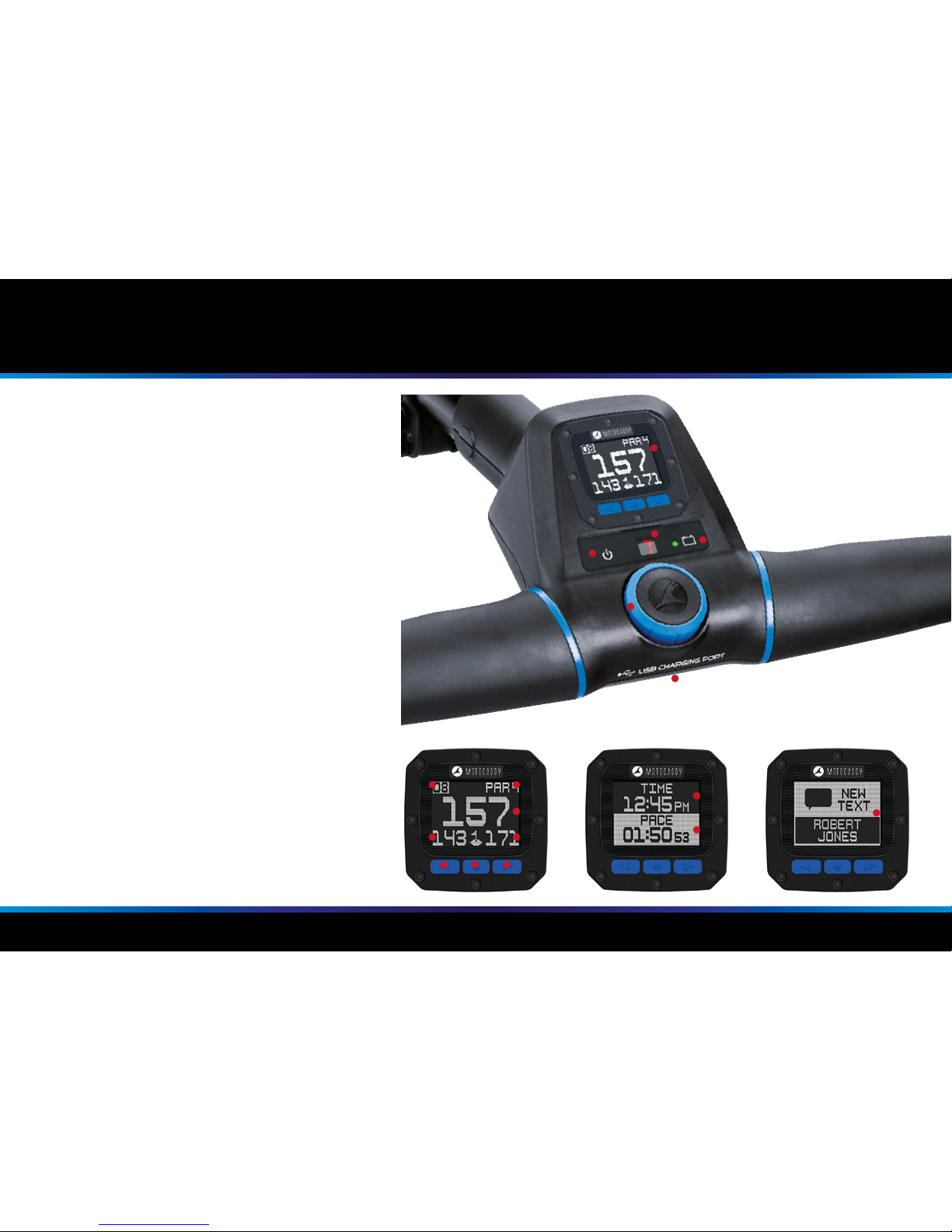

S5 CONNECT Handle Overview
S5 CONNECT Handle Overview
1. Speed Setting
2. Battery Indicator
3. Power Indicator
4. Speed Controller & Stop/Start
5. USB Charging Port (underneath)
6. Smart Display
7. Previous Hole
8. Change Mode & Clear Notications
9. Next Hole
10. Hole Number
11. Hole Par
12. Distance to Middle of Green
13. Distance to Front of Green
14. Distance to Back of Green
15. Time
16. Round Timer
17. Push Notications
1
32
4
5
6
12
13 14
798
15
16
17
GPS Mode Clock Mode Notications
10 11

Page 16
Using your S5 CONNECT / Power and Battery Level
Using your S5 CONNECT
The S5 CONNECT is extremely simple to control. There is one main button that is used to turn the trolley on and off,
while also controlling the speed of the trolley. The speed can be adjusted while the trolley is stationary or in motion.
The trolley has 9 speed settings (1 to 9) with 1 being the slowest setting and 9 the fastest. To increase the speed,
rotate the speed dial clockwise, or anti-clockwise to decrease the speed.
To start the trolley, simply select your required speed setting and press the button. The trolley will smoothly accelerate until it
reaches the selected speed. To stop the trolley, simply press the button again - there is no need to reduce the speed setting.
Power and Battery Level
There are two indicating LEDs below the speed display. The right hand LED displays the battery capacity (green, amber & red)
and will illuminate as soon as the battery is plugged in. The left hand LED will illuminate when the power is on.
The trolley is designed to protect your battery from being fully discharged, should your battery capacity drop too low the
trolley will cut the power to the motor. If this should happen you will see “b” ashing on the screen.

Page 17
Using the Adjustable Distance Control
The S5 CONNECT features a basic, easy to use adjustable distance control which will allow you to
send your trolley ahead of you from 15 - 45 metres.
1. While stationary select the speed that you wish to set your trolley off at
2. Hold down the on/off button for a couple of seconds, you will see the outer digits of the LED
display rotate once clockwise (g. 1) and “1” will then ash on the display (g. 2). There are three
settings for the distance, 1 = 15 metres, 2 = 30 metres and 3 = 45 metres
3. Turn the button clockwise to increase and anti-clockwise to decrease to your preferred distance
4. Press the on/off button to set the trolley in motion. While the trolley is powered using ADC,
the left hand indicating LED will ash
5. The trolley can be stopped manually by pressing the button again
In the unlikely event that your trolley fails to register distance while in ADC mode, the trolley will cut
power to the motor to prevent the trolley from travelling too far. The trolley screen will ash “E” to
indicate that this safety feature has been instigated (g. 3).
The trolley can be reset by pressing the on/off button once, thereby allowing you to continue to use
the trolley with ADC disabled until you are able to contact our technical support team.
Using the Adjustable Distance Control
Fig 1
Fig 2
Fig 3

Page 18
Using the USB Charging Port
Using the USB Charging Port
The S5 CONNECT features a USB charging port that can be used to top up your smartphone if required.
Simply remove the covering cap and plug a USB cable into the charging port located on the underside of the handle.
The phone will continue charging for the duration of time that the cable is attached and the battery is connected.
It is important to note that the speed of charge will be lower than that of a mains AC charger and similar to plugging the phone
into a PC. The USB charger takes power from the main trolley battery and continuous charging will reduce the battery capacity
between charges. The trolley is designed to disable the USB port when the battery capacity reaches a preset level.

Page 19
Adjusting the Front Wheel Alignment
Adjusting the Front Wheel Alignment
In the unlikely event that your trolley is not tracking in a straight line, the alignment of the front wheel
can be adjusted to rectify the fault. This problem can be caused by a number of factors including a
slightly loose bag support or an unevenly packed golf bag. Should you wish to alter the alignment of
the front wheel, follow these simple steps:
1. Lift the quick release lever positioned on the front wheel housing and loosen the
wheel nut (g. 1)
2. There are two small metal dials on either side of the housing that are used to realign
the wheel (g. 2)
3. If your trolley is veering to the right, you will need to turn the left hand dial clockwise and
the right hand dial anti-clockwise
4. If your trolley is veering to the left, you will need to turn the right hand dial clockwise and
the left hand dial anti-clockwise
5. Tighten the wheel nut and push down the lever to lock the wheel back into place (g. 3)
This procedure can be carried out until you are happy the trolley is moving
in a straight line (please note you may only need to adjust one dial at a time).
NB : These instructions are based on positioning yourself in front of the trolley looking at the wheel.
Fig 1
Fig 2
Fig 3

Page 20
Fig 2
Fig 1
Introduction to DHC / Using the DHC Parking Brake (DHC model only)
The below information is applicable to S5 CONNECT DHC model ONLY.
Introduction to DHC
The letters DHC stand for ‘Downhill Control’ and mean that your trolley will maintain a controlled
speed while travelling down hills.
Whenever you are looking to move the trolley, even if just to reposition it ready to use, always put it
on a low speed setting to make it easier to steer.
Using the DHC Parking Brake
The S5 CONNECT DHC is tted with an electronic parking brake. To use this feature, the trolley must
be in a stationary position. The parking brake is initiated by rotating the speed dial down to 1 and then
rotating one click further.
Once activated, the screen will toggle between ‘P’ (g. 1) and ‘1’ (g. 2).
The speed setting can be adjusted while the parking brake is activated by turning the speed dial.
To release the parking brake, press the on/off button to start the trolley.
