Motor City Wash Works 7ELECTFRFLSH014 Technical manual

© Motor City Wash Works, Inc. 48285 Frank, Wixom Michigan 48393 U.S.A. Phone: [phone] ▪ Fax: [phone]
8MANULPWRSUP004 04-12-21 www.motorcitywashworks.com 1
POWER SUPPLY DOCUMENT
150W/2000W
Part # 7ELECTFRFLSH014
PANELCUSTOM0364
TABLE OF CONTENTS
Warnings and Caution………………………………………………………………………………………………..Page: 1
Descriptions……………………………………………………………………………………………………………Page: 2
Support Documents…………………………………………………………………………………………………..Page: 3
Warranty……………………………………………………………………………………………………………….Page: 7
NOTE: PROVIDES FURTHER INFORMATION!
WARNING! DANGEROUS SITUATION WHICH MAY CAUSE
EQUIPMENT DAMAGE, PERSONAL INJURIES OR FATALITIES!
STOP! PRECAUTION TO TAKE TO AVOID EQUIPMENT
MALFUNCTION OR ERROR!
IMPORTANT NOTE:
DO NOT PUNCH HOLES ON TOP OF ENCLOSURE.
DOING SO WILL VOID YOUR WARRANTY!
STOP! VERIFY THE VOLTAGE BEFORE CONNECTING!

© Motor City Wash Works, Inc. 48285 Frank, Wixom Michigan 48393 U.S.A. Phone: [phone] ▪ Fax: [phone]
8MANULPWRSUP004 04-12-21 www.motorcitywashworks.com 2

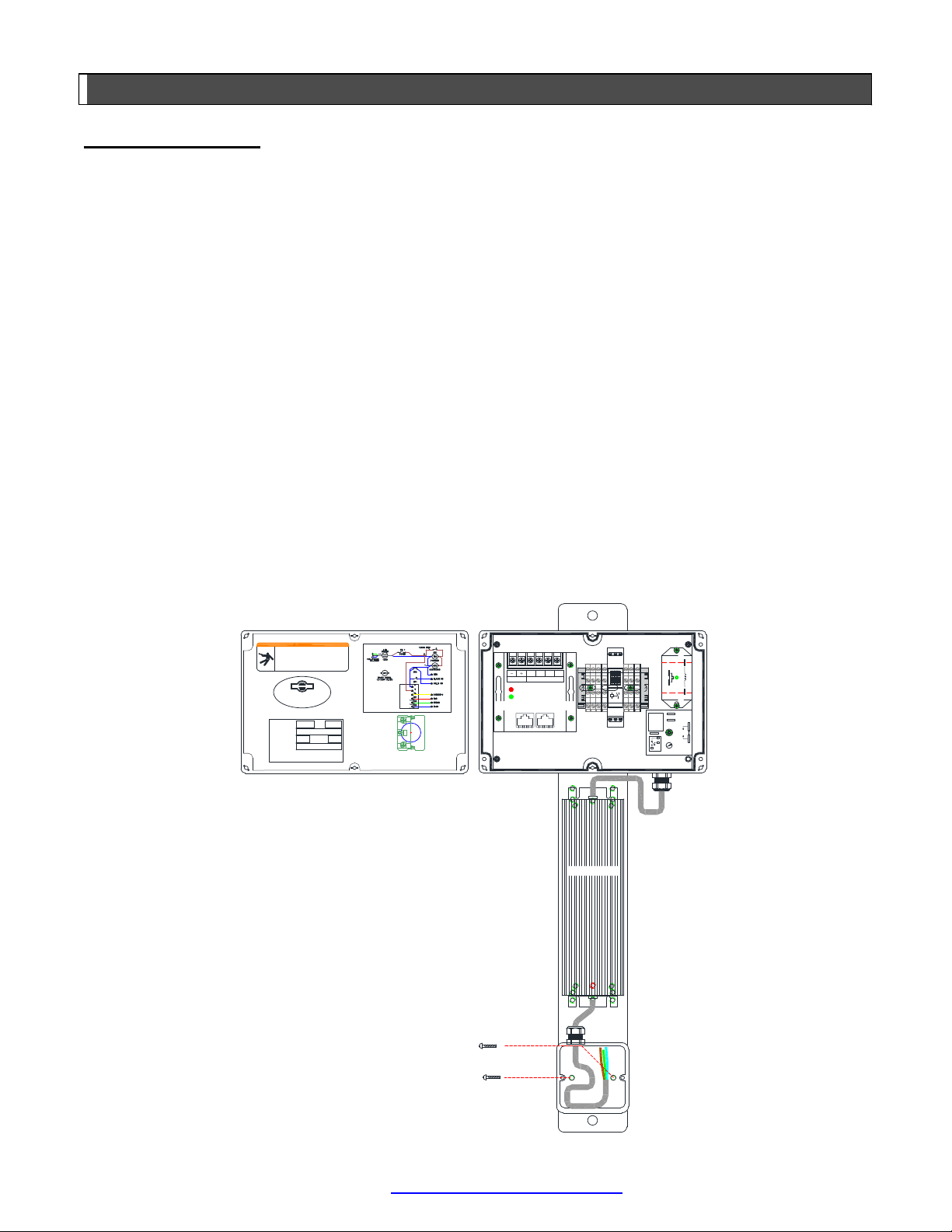

DESCRIPTION – 150W
7ELECTFRFLSH014
150W RGB FLASHING
6.25A
The function of this unit is to turn on a set of lights at or below its capabilities. The output
wiring color code is printed on power supply. The incoming power source is from a
dedicated 15A circuit. With 110VAC hot, a neutral and a ground. When powering DC
lights from a MCWW product located on the back next to the enclosure is a schematic
diagram for that product.
Output voltage is polarity sensitive. Positive of light must be connected to 24VDC
(+COMMON+) in panel! Negative(s) of lights must be connected to either ‘Red’, ‘Green’,
‘Blue’ or 0VDC (-NEGATIVE-) terminals in the panel.
Red: 0VDC to Red Light
Green: 0VDC to Green Light
Blue: 0VDC to Blue Light
+Common+: 24VDC
A2: CW Controller Output Neutral
(-24-120 AC/DC)
A1: CW Controller Output Hot
(+24-120 AC/DC)
Solid On: 0VDC of ‘Solid On’ Light
Flash On: 0VDC of ‘Flashing’ Light
-Negative-: 0VDC
WASH WORKS
100% TESTED
DATE:
TESTE D BY:
8DCALELCWRN0001
LOSS OF PR OTECTION - Risk of Fire or Elec tric Shock
To maintain o vercurrent, short -circuit and ground- fault protection:
Follow ins tructions for select ing overload a nd short-circuit prot ection.
If over load or fault curren t interruption occ urs:
Check all circuits and dete rmine cause of inte rruption.
Examine all current-carrying components, and replace if damag ed.
If burnout occurs, replace the complete overl oad relay.
Failure to follo w these instru ctions can result in serious injury .
Control Volt:
Part #:
24-250VOLT AC-DC
[phone]
www.mo torcit ywashwork s.com
7ELECTFRF LSH014
FLA: 1.7
MCWW 48285 Frank St, Wixom MI USA
Watts: 150
Power Volt: 90-240 HZ : 50-60
HGL-150H-24
8ELEC RLYTMR 0011
NO
NC
C
NO
C
NC
~
~
V
1
2
10
9
8
7
6
5
4
3
2
1
0.1
Signal
OUT
Signal
IN
123456 78 12345678
Pin1:Data+
Pin2:Data-
Pin7:GND
Pin8:GND
POWEROUTPUT
V+
CH1
(red)
CH2
(green)
CH3
(blue)
powersignal
VOLTAGE 12-24VDC
MAX
CURRENT
3*10A (30A)
8ELECLEDCTLR005
8ELECRLYSPS0002
0 1
6
4
A1 A2
24VDC
30A
8ELECTNLBLK0011
14 12 1 1
A2 A1
A1
A2 11
12 14
ELKO
8ELECTNLBLK0011
SW1
+
-
46
CNO
NC
A2A1
11 14
NC
16AWG BLU
16AWG RED
16AWG GREEN
16AWG BLUE

© Motor City Wash Works, Inc. 48285 Frank, Wixom Michigan 48393 U.S.A. Phone: [phone] ▪ Fax: [phone]
8MANULPWRSUP004 04-12-21 www.motorcitywashworks.com 3

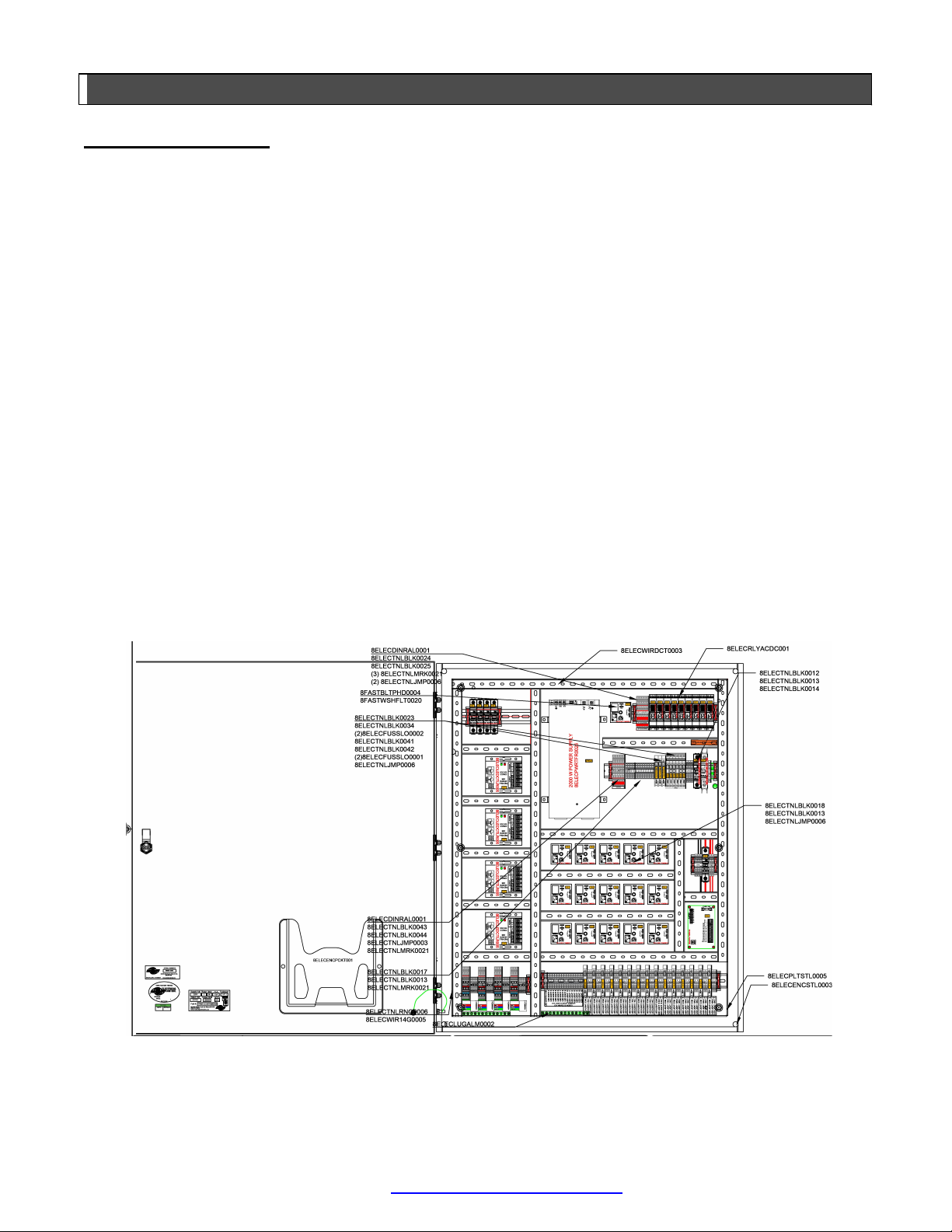

DESCRIPTION – 2000W
PANELCUSTOM0364
2000W RGB FLASHING
83.33A
The function of this unit is to turn on a set of lights at or below its capabilities. The output
wiring color code is printed on power supply. The incoming power source is from a
dedicated 15A circuit. With 220VAC hot, a neutral and a ground. When powering DC
lights from a MCWW product located on the back next to the enclosure is a schematic
diagram for that product.
Output voltage is polarity sensitive. Positive of light must be connected to 24VDC
(+COMMON+) in panel! Negative(s) of lights must be connected to either ‘Red’, ‘Green’,
‘Blue’ or 0VDC (-NEGATIVE-) terminals in the panel.
Red: 0VDC to Red Light
Green: 0VDC to Green Light
Blue: 0VDC to Blue Light
+Common+: 24VDC
LED Light COM: CW Controller
Output Neutral
(-24-120 AC/DC)
LED Light 2-16: CW Controller
Output Hot
(+24-120 AC/DC)
LED Light COM (Fused): 0VDC of
Sign’s Light
LED Light NO (2-16): 24VDC of
Sign’s Light (on when called for)
LED Light NC (2-16): 24VDC of
Sign’s Light (off when called for)

© Motor City Wash Works, Inc. 48285 Frank, Wixom Michigan 48393 U.S.A. Phone: [phone] ▪ Fax: [phone]
8MANULPWRSUP004 04-12-21 www.motorcitywashworks.com 4

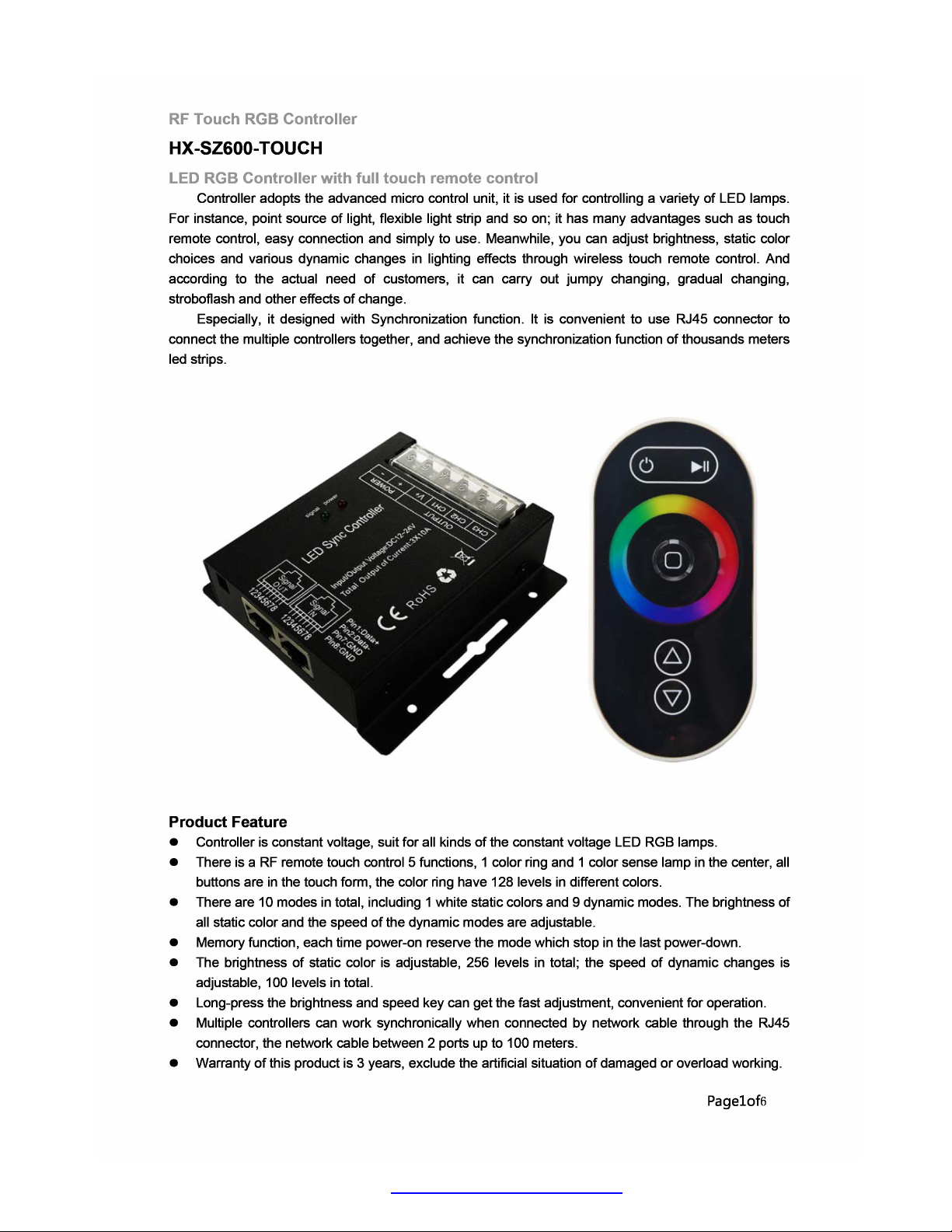

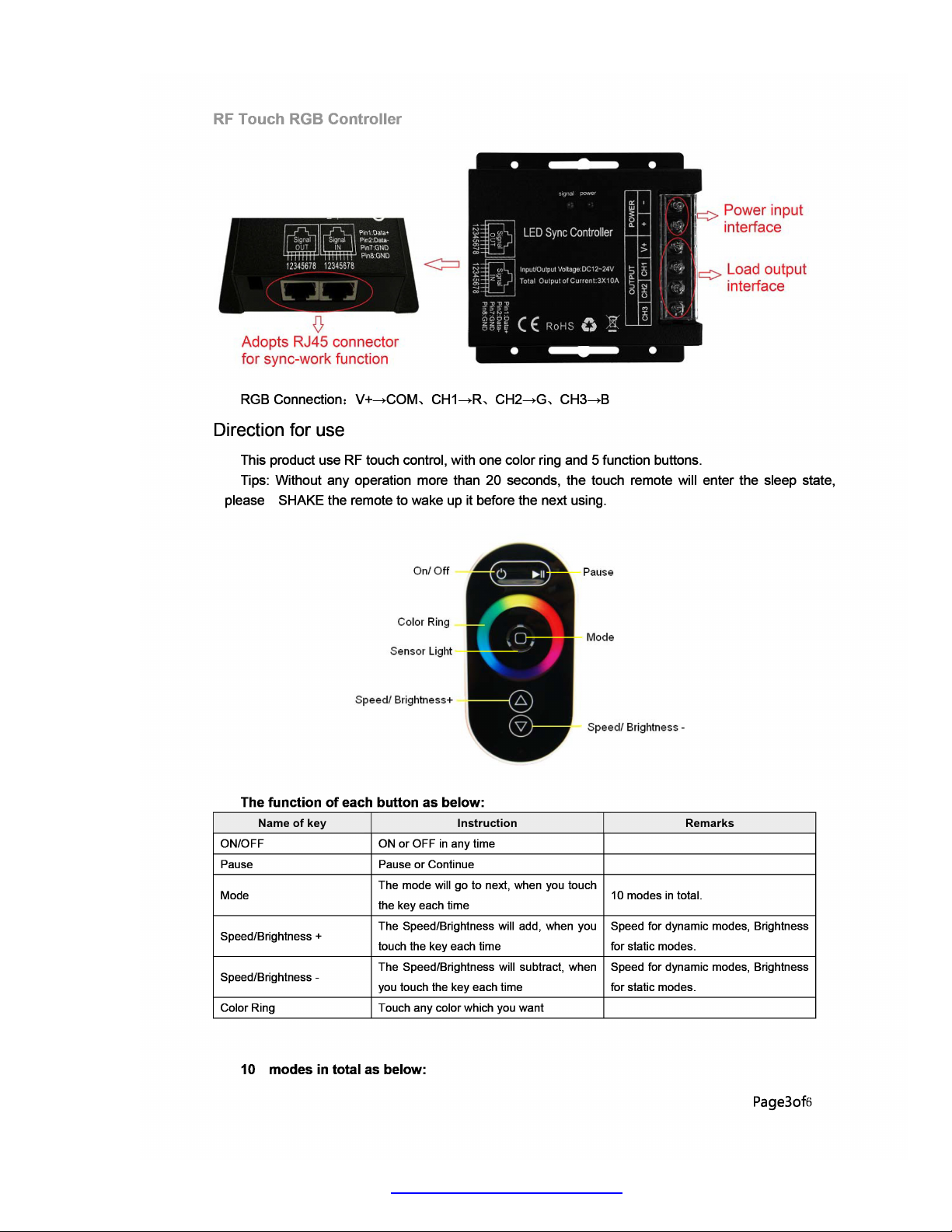

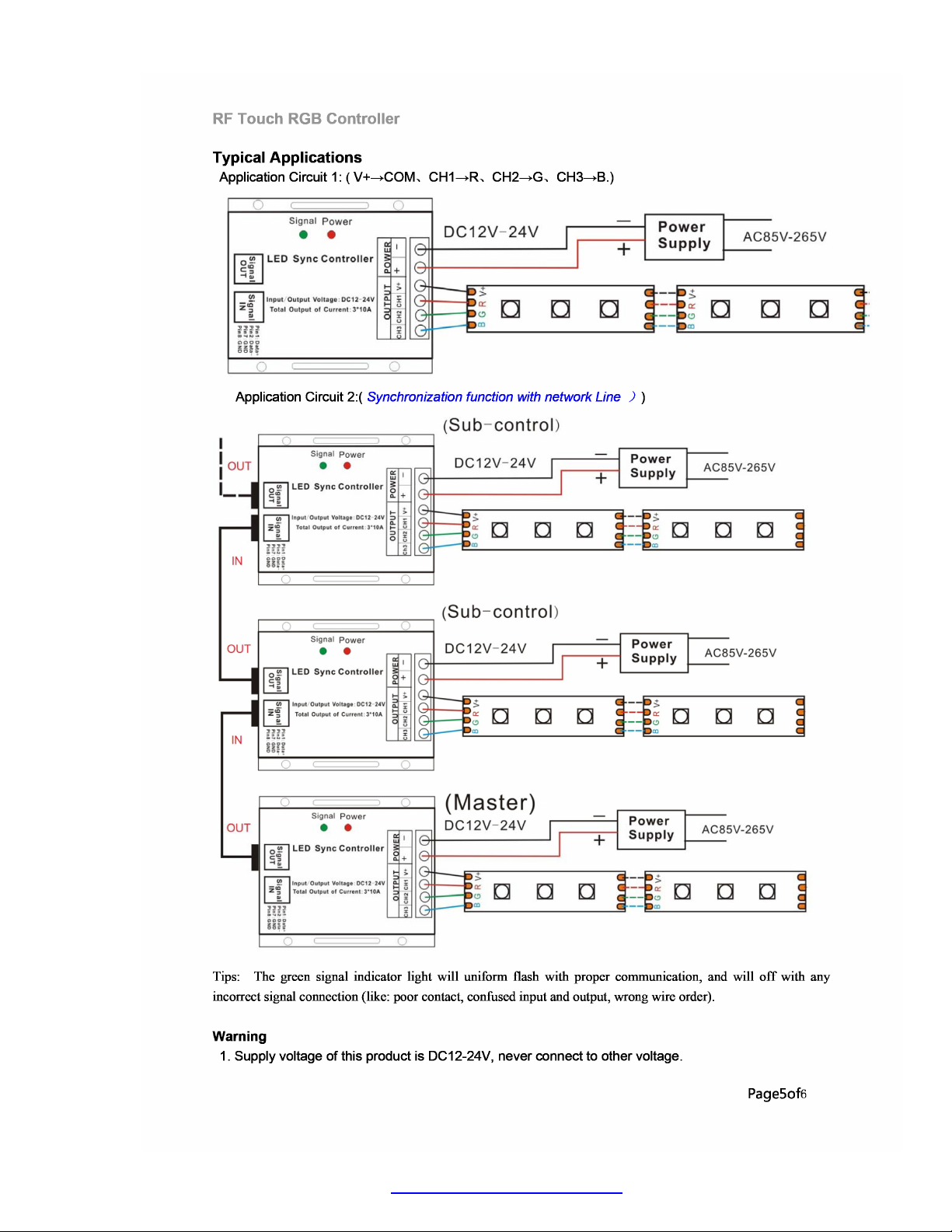

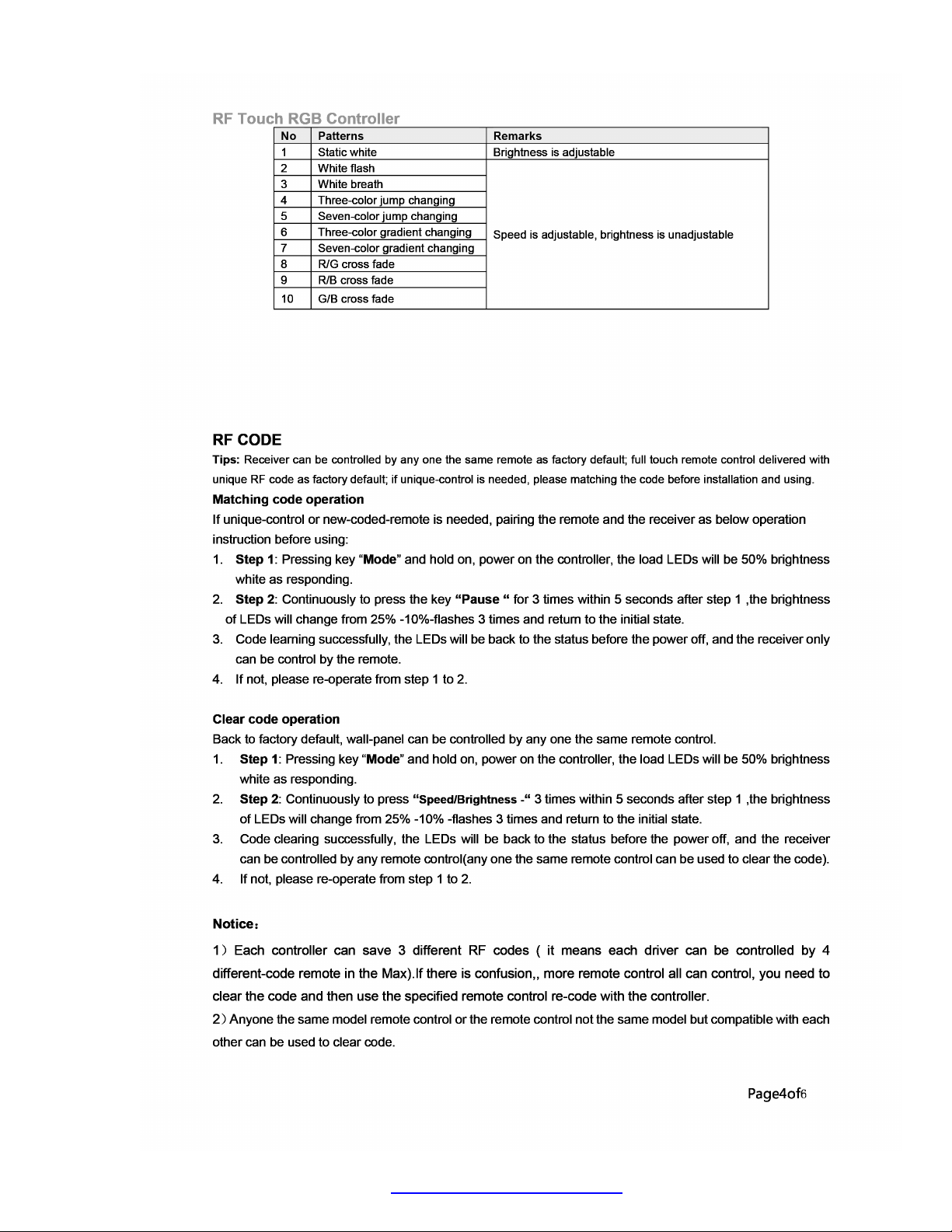

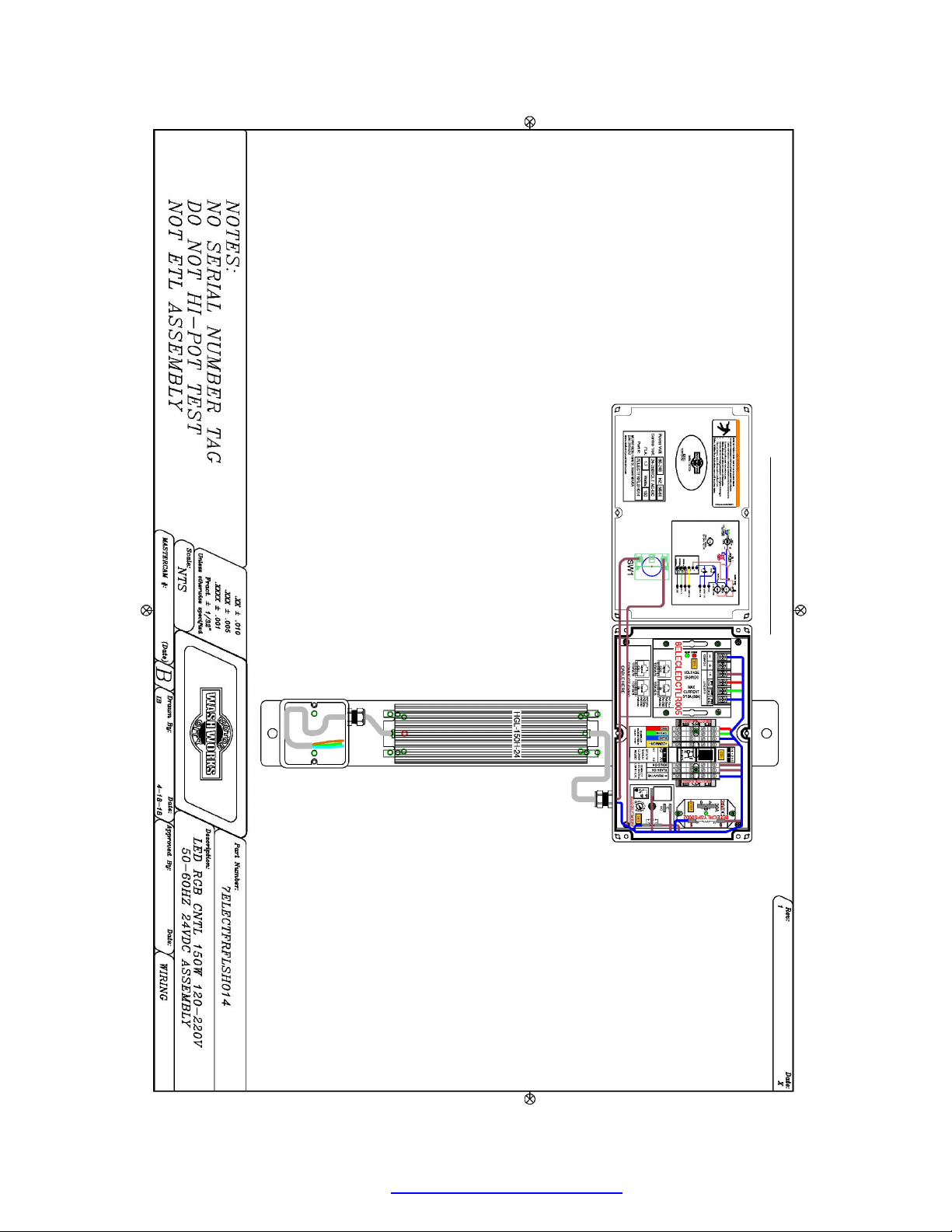

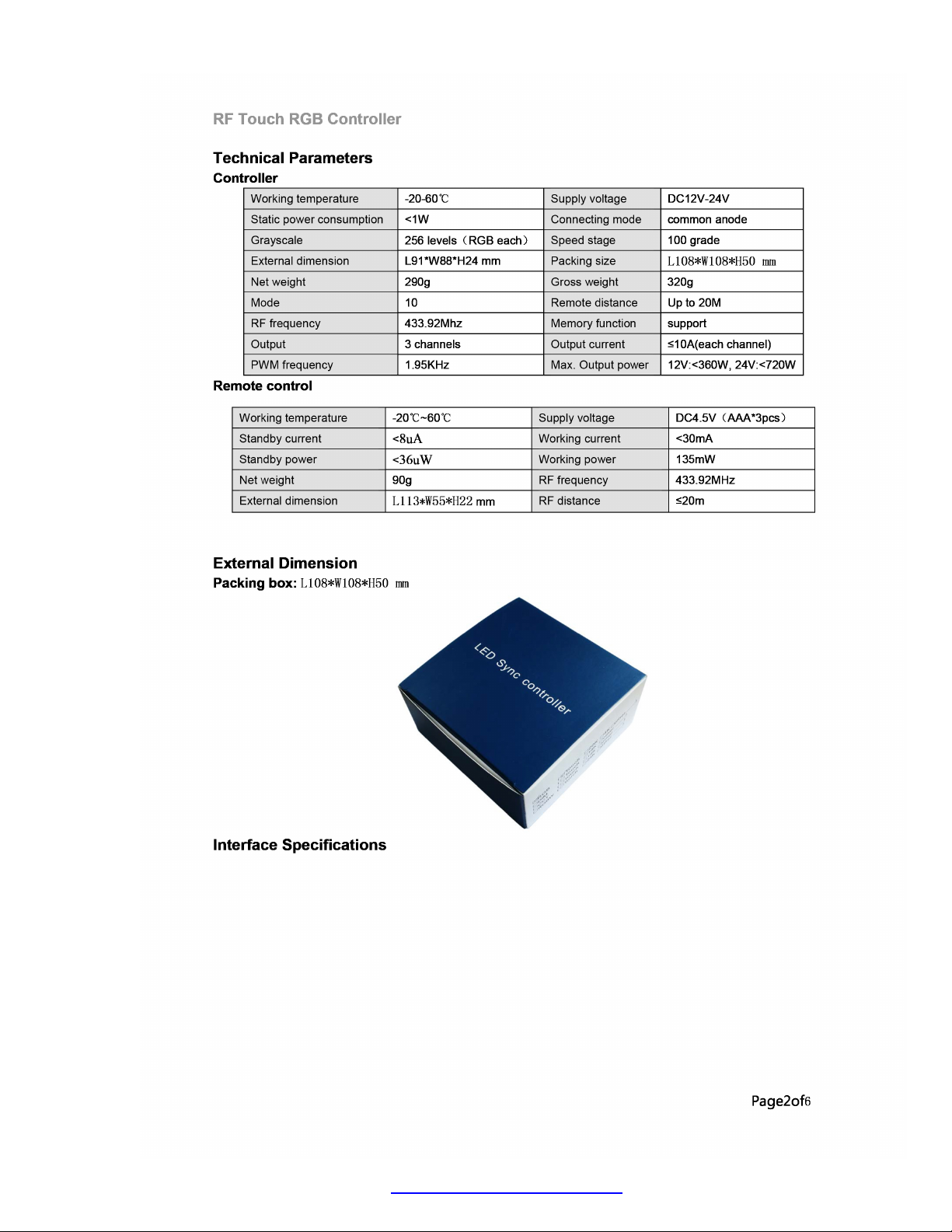

SUPPORT DOCUMENTS

© Motor City Wash Works, Inc. 48285 Frank, Wixom Michigan 48393 U.S.A. Phone: [phone] ▪ Fax: [phone]
8MANULPWRSUP004 04-12-21 www.motorcitywashworks.com 5

© Motor City Wash Works, Inc. 48285 Frank, Wixom Michigan 48393 U.S.A. Phone: [phone] ▪ Fax: [phone]
8MANULPWRSUP004 04-12-21 www.motorcitywashworks.com 6

© Motor City Wash Works, Inc. 48285 Frank, Wixom Michigan 48393 U.S.A. Phone: [phone] ▪ Fax: [phone]
8MANULPWRSUP004 04-12-21 www.motorcitywashworks.com 7

© Motor City Wash Works, Inc. 48285 Frank, Wixom Michigan 48393 U.S.A. Phone: [phone] ▪ Fax: [phone]
8MANULPWRSUP004 04-12-21 www.motorcitywashworks.com 8

© Motor City Wash Works, Inc. 48285 Frank, Wixom Michigan 48393 U.S.A. Phone: [phone] ▪ Fax: [phone]
8MANULPWRSUP004 04-12-21 www.motorcitywashworks.com 9

© Motor City Wash Works, Inc. 48285 Frank, Wixom Michigan 48393 U.S.A. Phone: [phone] ▪ Fax: [phone]
8MANULPWRSUP004 04-12-21 www.motorcitywashworks.com 10

© Motor City Wash Works, Inc. 48285 Frank, Wixom Michigan 48393 U.S.A. Phone: [phone] ▪ Fax: [phone]
8MANULPWRSUP004 04-12-21 www.motorcitywashworks.com 11

© Motor City Wash Works, Inc. 48285 Frank, Wixom Michigan 48393 U.S.A. Phone: [phone] ▪ Fax: [phone]
8MANULPWRSUP004 04-12-21 www.motorcitywashworks.com 12

© Motor City Wash Works, Inc. 48285 Frank, Wixom Michigan 48393 U.S.A. Phone: [phone] ▪ Fax: [phone]
8MANULPWRSUP004 04-12-21 www.motorcitywashworks.com 13

© Motor City Wash Works, Inc. 48285 Frank, Wixom Michigan 48393 U.S.A. Phone: [phone] ▪ Fax: [phone]
8MANULPWRSUP004 04-12-21 www.motorcitywashworks.com 14

© Motor City Wash Works, Inc. 48285 Frank, Wixom Michigan 48393 U.S.A. Phone: [phone] ▪ Fax: [phone]
8MANULPWRSUP004 04-12-21 www.motorcitywashworks.com 15

© Motor City Wash Works, Inc. 48285 Frank, Wixom Michigan 48393 U.S.A. Phone: [phone] ▪ Fax: [phone]
8MANULPWRSUP004 04-12-21 www.motorcitywashworks.com 16
WARRANTY AND RETURN PROCEDURE:
Motor City Wash Works warrants this product to be free of defect in material and/or workmanship for a period of
one year from the date of purchase. During the warranty period MCWW will at its discretion, at no charge to the
customer, repair or replace this product if found defective, with a new or refurbished unit, but not to include costs of
removal or installation. Any product returned to MCWW for warranty has to have a Return Material Authorization
Number. All shipping costs to MCWW are assumed by the customer. This is only a summary of the MCWW
Limited Warranty. Please, communicate with MCWW for our complete warranty.
Prior to returning any product to MCWW, the customer must call in for a Return Material Authorization Number
and a copy of our Return Material Authorization Form must be completed. The RMA number must be written
clearly on the outside of the shipping package and a copy of the form must be included in the package.
