01. SAFETY INSTRUCTIONS
GENERAL WARNINGS
•This manual contains very important safety and usage information.
very important. Read all instructions carefully before beginning the
installation/usage procedures and keep this manual in a safe place
that it can be consulted whenever necessary.
•This product is intended for use only as described in this manual. Any
other enforcement or operation that is not mentioned is expressly
prohibited, as it may damage the product and put people at risk
causing serious injuries.
•Thismanual isintended firstly for specialized technicians, and does not
invalidate the user’s responsibility to read the “User Norms” section in
order to ensure the correct functioning of the product.
•The installation and repair of this product may be done by qualified
and specialized technicians, to assure every procedure are carried
out in accordance with applicable rules and norms. Nonprofessional
and inexperienced users are expressly prohibited of taking any action,
unless explicitly requested by specialized technicians to do so.
•Installations must be frequently inspected for unbalance and the
wear signals of the cables, springs, hinges, wheels, supports and other
mechanical assembly parts.
•Do not use the product if it is necessary repair or adjustment is
required.
•When performing maintenance, cleaning and replacement of parts,
the product must be disconnected from power supply. Also including
any operation that requires opening the product cover.
•The use, cleaning and maintenance of this product may be carried
out by any persons aged eight years old and over and persons whose
physical,sensorialormentalcapacitiesarelower,orbypersonswithout
any knowledge of the product, provided that these are supervision
and instructions given by persons with experienced in terms of usage
of the product in a safe manner and who understands the risks and
dangers involved.
•Children shouldn’t play with the product or opening devices to avoid
the motorized door or gate from being triggered involuntarily.
WARNINGS FOR TECHNICIANS
•Before beginning the installation procedures, make sure that you have
all the devices and materials necessary to complete the installation
of the product.
•You should note your Protection Index (IP) and operating temperature
to ensure that is suitable for the installation site.
•Provide the manual of the product to the user and let them know how
to handle it in an emergency.
•If the automatism is installed on a gate with a pedestrian door, a door
locking mechanism must be installed while the gate is in motion.
•Do not install the product “upside down” or supported by elements do
not support its weight. If necessary, add brackets at strategic points
to ensure the safety of the automatism.
•Do not install the product in explosive site.
•Safety devices must protect the possible crushing, cutting, transport
and danger areas of the motorized door or gate.
•Verify that the elements to be automated (gates, door, windows,
blinds, etc.) are in perfect function, aligned and level. Also verify if the
necessary mechanical stops are in the appropriate places.
•The central must be installed ona safeplace ofany fluid (rain, moisture,
etc.), dust and pests.
•You must route the various electrical cables through protective tubes,
to protect them against mechanical exertions, essentially on the
power supply cable. Please note that all the cables must enter the
central from the bottom.
•If the automatism is to be installed at a height of more than 2,5m from
the ground or other level of access, the minimum safety and health
requirements for the use of work equipment workers at the work of
Directive 2009/104/CE of European Parliament and of the Council of 16
September 2009.
•Attach the permanent label for the manual release as close as possible

EN
01. SAFETY INSTRUCTIONS
to the release mechanism.
•Disconnect means, such as a switch or circuit breaker on the electrical
panel, must be provided on the product’s fixed power supply leads in
accordance with the installation rules.
•If the product to be installed requires power supply of 230Vac or
110Vac, ensure that connection is to an electrical panel with ground
connection.
•The product is only powered by low voltage satefy with central (only
at 24V motors)
WARNINGS FOR USERS
•Keep this manual in a safe place to be consulted whenever necessary.
•If the product has contact with fluids without being prepared, it must
immediately disconnect from the power supply to avoid short circuits,
and consult a specialized technician.
•Ensure that technician has provided you the product manual and
informed you how to handle the product in an emergency.
•Ifthesystemrequiresanyrepairormodification,unlocktheautomatism,
turn off the power and do not use it until all safety conditions have
been met.
•In the event of tripping of circuits breakers of fuse failure, locate
the malfunction and solve it before resetting the circuit breaker or
replacing the fuse. If the malfunction is not repairable by consult this
manual, contact a technician.
•Keep the operation area of the motorized gate free while the gate in in
motion, and do not create strength to the gate movement.
•Do not perform any operation on mechanical elements or hinges if the
product is in motion.
RESPONSABILITY
•Supplier disclaims any liability if:
•Product failure or deformation result from improper installation
use or maintenance!
•Safety norms are not followed in the installation, use and
maintenance of the product.
•Instructions in this manual are not followed.
•Damaged is caused by unauthorized modifications
•In these cases, the warranty is voided.
MOTORLINE ELECTROCELOS SA.
Travessa do Sobreiro, nº29
4755-474 Rio Côvo (Santa Eugénia)
Barcelos, Portugal
SYMBOLS LEGEND:
• Important safety
notices
• Useful information
• Programming
information
• Potentiometer
information
• Connectors
information
• Buttons
information

A B
10
9
6
78
5
4 2
1
6
11
10
3
5
7
8
9
N
F
ON
1 2
ANT
STRSEC12 13NL R G B + -
22
RC
7
RA
21
RB
R/L1 S/L2 T/L3 U/T1 V/T2 W/T 3
B2+2/B1
DC+/+1
DC-
10
MI1
11
MI2
5
MI3
6
MI4
8
MI5
20
MI6
-
MI7
4
24V
4
24V
12
DCM
12
DCM
-
DFM
16
10V
13
ACM
14
AVI
15
ACI
17
AFM
14
M01
15
M02
-
24V
9
S1
9
S2
15
DCM
-
SG+
-
SG-
-
SGND
13
MCM
BR1
N
N
L
L
L
L
L
L
M1 M2 M3 OP C/P COM FAP FCH COM DS BL GND 24V BR2 E1E1 R G B 12V
14 3
2
56mm
40mm
137mm
137mm
300mm
400mm
ENEN
. PRODUCT
. PRODUCT
DESCRIPTION OF PRODUCT COMPONENTS MAP
DIMENSIONS
TECHNICAL CHARACTERISTICS
•Control board capable of working with motors up to 4000W. It has a frequency inverter that allows a soft
start and stop, thus providing greater reliability and durability of the product. The control board also
allows the regulation of the opening/closing speed as well as the adjustment of the slowdown speed
both in opening and in closing.
•This control board allows easy and intuitive operation of various parameters and menus through a
display.
•It also has other functions such as Human Presence, possibility to view the count of cycles carried out by
the door so far (complete opening and closing corresponds to one cycle).
•This control board is also capable of receiving a ROLLING CODE remote controls signal (MR13 receiver)
and allows the connection of MF2020 Photocells.
The control board is composed of the following components:
1 · Frequency inverter
2 · Braking resistor
3 · MR13 receiver
4 · Magnetic loop detector (Optional)
5 · Connections connectors
6 · Quick connection plug
7 · Closing button
8 · Opening button
9 · Stop button
10 · MF2020 column photocell
MC115PR
• Power 4000W max.
• Power Supply 230Vac 50/60Hz
• Protection class IP64
• Working temperature -25°C ~ 55°C
• Relative Humidity <90%
• Accessory output 24Vdc 3W / 12Vdc 2W
• Maximum frequency output 90Hz

A B
4
5
6
7
8
9
10
9
10
1
2
3
4
5
6
7
8
ENEN
. COMPONENTS. COMPONENTS
The MF is a column photocell designed to safeguard all types of industrial doors (sectional and rapid
doors) up to a maximum width of  meters.
The emitter and receiver create a grid of infrared beams offering protection up to . meters high (depending
on the height of the same, due to the existence of doors whose size does not allow for a cover of .m).
When the infrared beams are interrupted, a signal is sent to the control board. As soon as the detention area
is free, a new signal is sent to the control board to indicate that the area is clear.
The photocell has three operating modes:
• Static, Sequential and Sequential for transparent tarpaulins

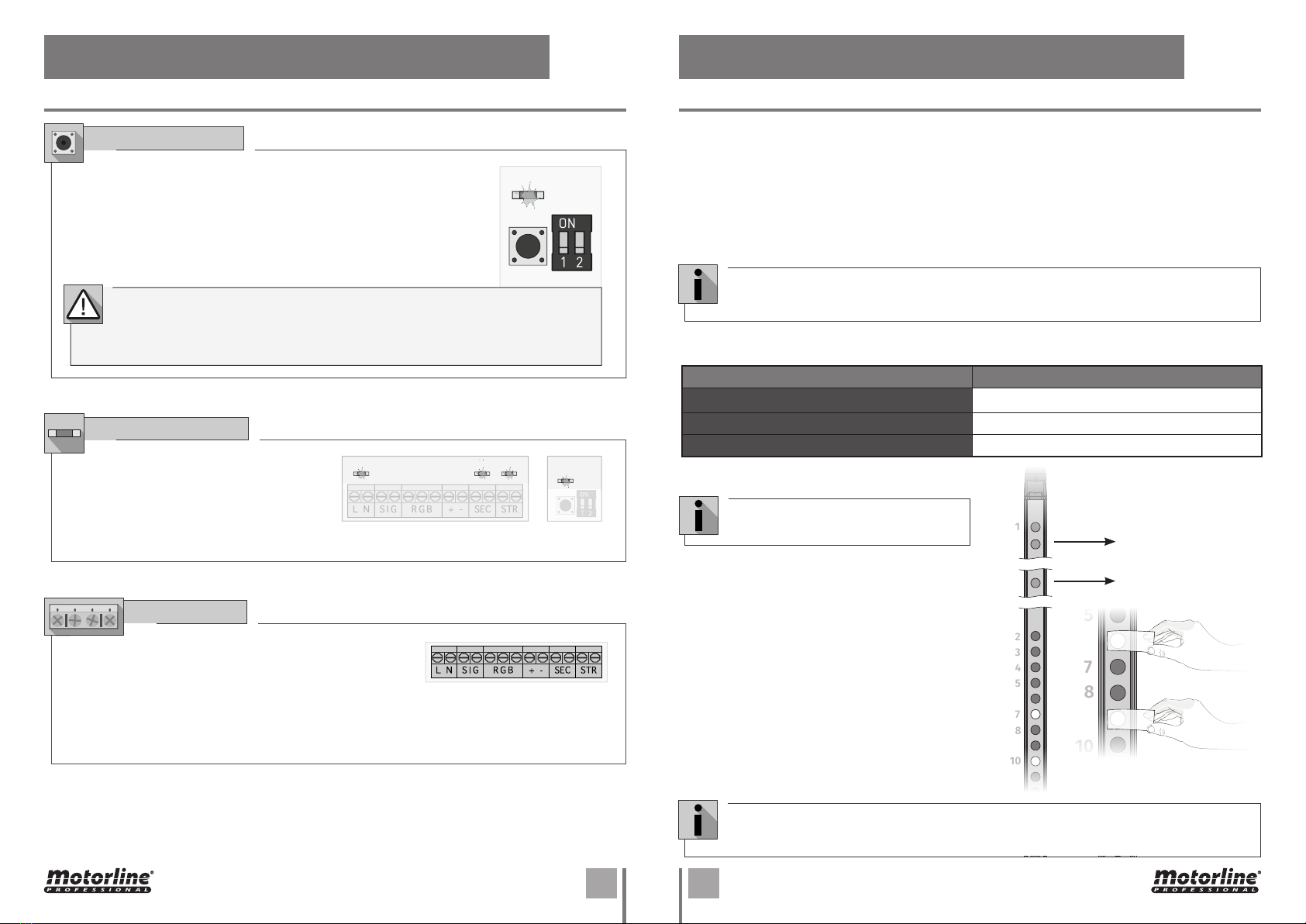

MFMR - RECEIVER
LED4
LEARN SW1
LEARN BUTTON
•This button is used to program Rolling Code Motorline remote controls.
Programming Remote Control:
1 • Press the LEARN button 1 time and LED4 will flash 1 time.
2 • Then press the button you want to program.
• To RESET the memory, press the LEARN button for 10 seconds and all remote controls
will be erased.
• While pressing the LEARN button, LED4 is on.
At the end of 10 seconds LED4 will flash and turn off confirming the operation.
LEDs
•LED 1: (ON) Indicates that it is being powered at
230Vac. | OFF - No power.
•LED 2: (ON) "SEC" contact closed | (OFF) "SEC"
contact open
•LED 3: (ON) "STR" contact closed | (OFF) "STR"
contact open.
•LED 4: Programming LED.
LED2 LED3 LED1 LED4
CONNECTORS
• L/N: 230Vac power input.
SIG: Input of frequency inverter pulses.
R/G/B: Connection of RGB led's
• +/-: Power supply for external accessories (max. 150mA).
• SEC: NC safety signal output (not used).
• STR: NO open signal output.
• ANT: Antenna hot pole input.
• ↓: Antenna mass input.
Whenever you carry out the steps to change the Operating Mode, the photocell assumes the
mode immediately following the mode it is in in the following order:
• SEQUENTIAL  STATIC  SEQUENTIAL FOR TRANSPARENT TARPAULINS  SEQUENTIAL 
NOTE: For more information about the MF2020 photocell, consult the product manual.
To select the next Operating Mode, follow these
steps:
01 • Turn off the power supply photocells;
02 • On the photocell receiver (RX) cover sensors 6
and 9from the top and keep the others clear;
03 • Reconnect the photocells to the power supply.
The photocell will operate in the next Operating
Mode.
04 • Uncover sensors 6and 9again.
Photocell Status LED
Sector Status LEDs
By default, the photocells are in
SEQUENTIAL Mode (max. speed of 1.4 m/s).
Mode Status LED (Photocell RX)
SEQUENTIAL Blinks  time every  seconds
STATIC Always ON
SEQUENTIAL FOR TRANSPARENT TARPAULINS Blinks  times every  seconds

A B
22
RC
7
RA
21
RB
R/L1 S/L2 T/L3 U/T1 V/T2 W/T3
B2+2/B1DC+/+1DC-
10
MI1
11
MI2
5
MI3
6
MI4
8
MI5
20
MI6
-
MI7
4
24V
4
24V
12
DCM
12
DCM
-
DFM
16
10V
13
ACM
14
AVI
15
ACI
17
AFM
14
M01
15
M02
-
24V
9
S1
9
S2
15
DCM
-
SG+
-
SG-
-
SGND
13
MCM
BR1
N
N
L
L
L
L
L
L
M1 M2 M3 OP C/P COM FAP FCH COM DS BL GND 24V BR2 E1E1 R G B 12V
ENEN
R/L1 • 230Vac Power Supply
S/L2 • 230Vac Power Supply
U/T1 • Motor output – Phase 1
V/T2 • Motor output – Phase 2
W/T3 • Motor output – Phase 3
T/L3 • Not used
•Ground
DC- • Not used
DC+/+1 • Not used
+2/B1 • Braking resistor connection
B2 • Braking resistor connection
• Ground

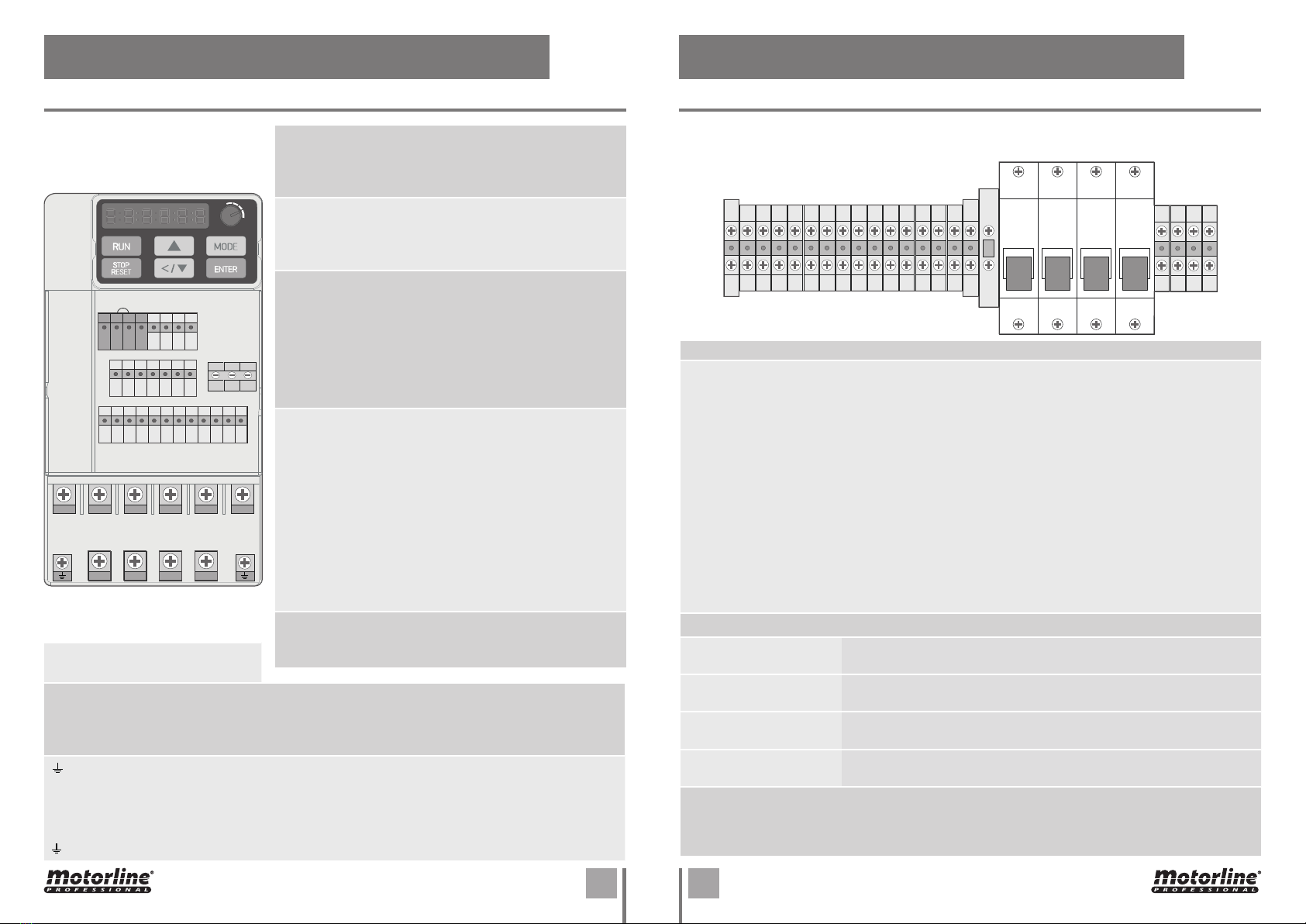

FREQUENCY INVERTERS CONNECTIONS CONNECTIONS CONNECTORS
The below panel ate all inputs and outputs of connection connectors.The following panel are all inputs and
outputs of frequency inverter.
24V • Common STOP
S1 • STOP button
S2 • STOP button
DCM • Not used
SG+ • Not used
SG- • Not used
SGND • Not used
MCM • Voltage input for M01 and M02 outputs
10V • Not used
ACM • Not used
AVI • Not used
ACI • Not used
AFM • Not used
M01 • Pulse output for MR13
M02 • Output for optional interlocking or pre-flashing light relay.
Programmable at parameter 04.61
MI1 • Opening button
MI2 • Closing button
MI3 • Limit switch
MI4 • Limit switch
MI5 • Photocells
MI6 • STOP button
MI7 • Not used
24V • Photocells and Radars Input (24Vdc 3W)
24V • Photocells and Radars Input (24Vdc 3W)
DCM • Negative output 24Vdc 3W
DCM • Negative output 24Vdc 3W
DFM • Not used
RA • NO relay output for electric brake
RB • Not used
RC • Common relay for electric brake
.FREQUENCYINVERTERSAND CONECTORS .FREQUENCY INVERTERSAND CONECTORS
E1 • Ground
M1 • Motor output – Phase 1
M2 • Motor output – Phase 2
M3 • Motor output – Phase 3
OP • Opening button
C/P • Closing/Pedestrian Button
COM • Common
FAP • Opening limit switch
FCH • Closing limit switch
COM • Common
DS • Photocells input
BL • STOP
GND • 24V Negative
24V • Photocells and Radars Input (24Vdc 3W)
BR1 • Output with fuse for electric brake (1A 250V fuse)
BR2 • Electric brake
E1 • Ground
N• 230Vac Power Supply
L• 230Vac Power Supply DPN 16A circuit breaker
N• 230Vac Power Supply
L• 230Vac Power Supply DPN 16A circuit breaker
N• 230Vac Power Supply
L• 230Vac Power Supply DPN 16A circuit breaker
N• 230Vac Power Supply
L• 230Vac Power Supply DPN 16A circuit breaker
R• RED LED output
G• GREEN LED output
B• BLUE LED output
12V • 12Vdc 2W LED Power Supply


1 2 3 4 5 6 7 8 9 10 11 12
13 14 15 16 17 18 19 20 21 22 23 24
4 2
1 6
11 10
3 5 7 8 9
N
F
ON 1 2
ANT
STRSEC12 13NL R G B + -
22
RC
7
RA
21
RB
R/L1 S/L2 T/L3 U/T1 V/T2 W/T3
B2+2/B1
DC+/+1
DC-
10
MI1
11
MI2
5
MI3
6
MI4
8
MI5
20
MI6
-
MI7
4
24V
4
24V
12
DCM
12
DCM
-
DFM
16
10V
13
ACM
14
AVI
15
ACI
17
AFM
14
M01
15
M02
-
24V
9
S1
9
S2
15
DCM
-
SG+
-
SG-
-
SGND
13
MCM
BR1
N N
L
L
L L
L L
M1 M2 M3
OP
C/P
COM FAP FCH COM
DS
BL
GND
24V
BR2 E1E1
R
G
B
12V
810 9
U/T1 V/T2 W/T3 4 5 6 4 12
7
3 4 5 24
20
7
2 1
EN

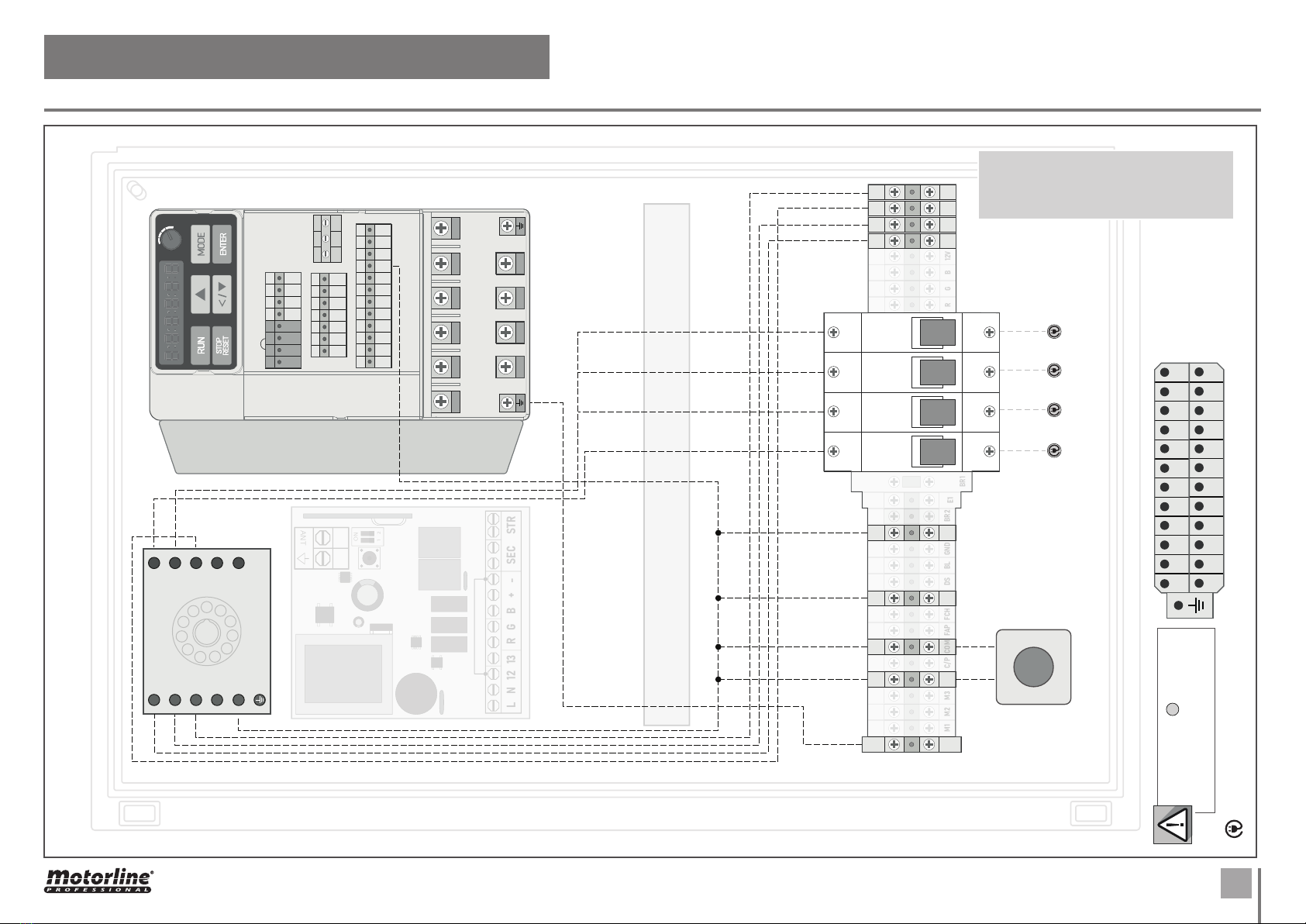

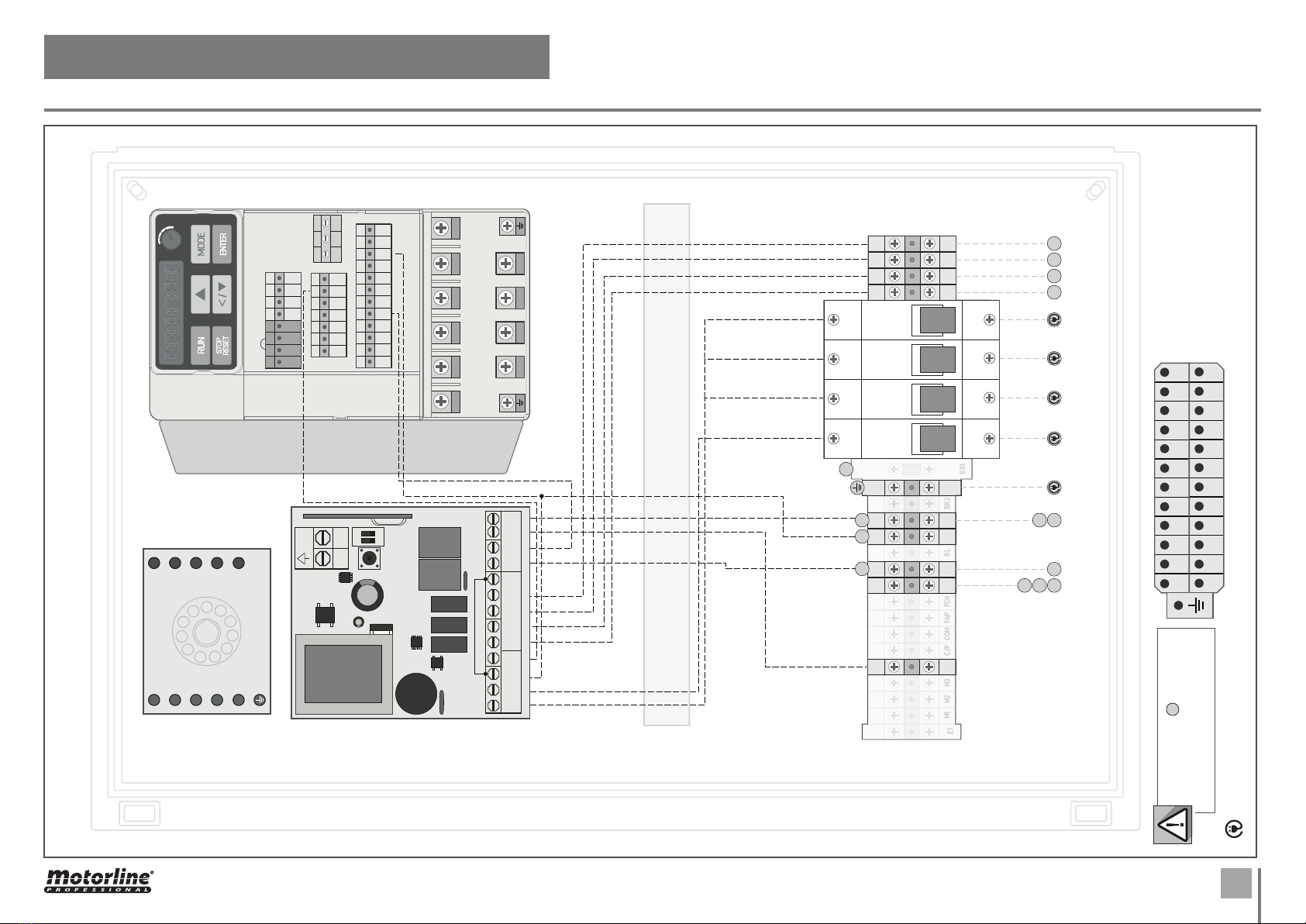

. CONNECTIONS SQUEME
FREQUENCY INVERTER CONNECTIONS
FREQUENCY
INVERTER
Black
Black
Black
Blue
The numbers “ ” indicate the connection to be made on the connector.
0
POWER SUPPLY


1 2 3 4 5 6 7 8 9 10 11 12
13 14 15 16 17 18 19 20 21 22 23 24
4 2
1 6
11 10
3 5 7 8 9
N
F
ON 1 2
ANT
STRSEC12 13NL R G B + -
22
RC
7
RA
21
RB
R/L1 S/L2 T/L3 U/T1 V/T2 W/T3
B2+2/B1
DC+/+1
DC-
10
MI1
11
MI2
5
MI3
6
MI4
8
MI5
20
MI6
-
MI7
4
24V
4
24V
12
DCM
12
DCM
-
DFM
16
10V
13
ACM
14
AVI
15
ACI
17
AFM
14
M01
15
M02
-
24V
9
S1
9
S2
15
DCM
-
SG+
-
SG-
-
SGND
13
MCM
BR1
N N
L
L
L
L
L L
M1
M2
M3
OP
C/P
COM
FAP
FCH
COM DS
BL
GND 24V
BR2
E1
E1
R G B 12V
12
7
22
18
21
17
12
19 14 13 12 11
SEC STR
EN
. CONNECTIONS SQUEME
MR RECEIVER CONNECTIONS
MR13
FREQUENCY
INVERTER
The numbers “ ” indicate the connection to be made on the connector.
0
POWER SUPPLY
Blue
Black
Black
Black


1 2 3 4 5 6 7 8 9 10 11 12
13 14 15 16 17 18 19 20 21 22 23 24
4 2
1 6
11 10
3 5 7 8 9
N
F
ON 1 2
ANT
STRSEC12 13NL R G B + -
22
RC
7
RA
21
RB
R/L1 S/L2 T/L3 U/T1 V/T2 W/T3
B2+2/B1
DC+/+1
DC-
10
MI1
11
MI2
5
MI3
6
MI4
8
MI5
20
MI6
-
MI7
4
24V
4
24V
12
DCM
12
DCM
-
DFM
16
10V
13
ACM
14
AVI
15
ACI
17
AFM
14
M01
15
M02
-
24V
9
S1
9
S2
15
DCM
-
SG+
-
SG-
-
SGND
13
MCM
BR1
N N
L L
L L
L L
M1
M2
M3
OP
C/P
COM
FAP
FCH
COM
DS
BL
GND
24V
BR2
E1
E1
R
G
B
12V
LOOP
2
LOOP
2
LOOP
1
LOOP
1
5634
EN
. CONNECTIONS SQUEME
OTHER CONNECTIONS MAGNETIC LOOP DETECTOR, RESISTOR AND PUSH BUTTON
RESISTOR
MAGNETIC
LOOP DETECTOR
FREQUENCY
INVERTER
Black
Black
Black
Blue
The numbers “ ” indicate the connection to be made on the connector.
0
POWER SUPPLY
PUSHBUTTON
LOOP1 • LOOP1 for Magnetic Loop
LOOP1 • LOOP1 for Magnetic Loop
LOOP2 • LOOP2 for Magnetic Loop
LOOP2 • LOOP2 for Magnetic Loop


4 2
1 6
11 10
3 5 7 8 9
N
F
ON 1 2
ANT
STRSEC12 13NL R G B + -
22
RC
7
RA
21
RB
R/L1 S/L2 T/L3 U/T1 V/T2 W/T3
B2+2/B1
DC+/+1
DC-
10
MI1
11
MI2
5
MI3
6
MI4
8
MI5
20
MI6
-
MI7
4
24V
4
24V
12
DCM
12
DCM
-
DFM
16
10V
13
ACM
14
AVI
15
ACI
17
AFM
14
M01
15
M02
-
24V
9
S1
9
S2
15
DCM
-
SG+
-
SG-
-
SGND
13
MCM
BR1
N N
L L
L L
L
L
M1
M2
M3
OP
C/P
COM
FAP
FCH
COM
DS
BL
GND
24V
BR2
E1
E1
R
G
B
12V
NO
COM
4 15
EN
. CONNECTIONS SQUEME
CLOSING PRE FLASHING LIGHT
SECONDARY FLASHING LIGHT
OPTIONAL FLASHING LIGHT
(OPENING AND CLOSING
OPERATION)
To configure flashing light operation, see page 17B.
FREQUENCY
INVERTER
NO • 24Vdc 3W Negative Output
COM • Common


STRSEC12 13NL R G B + -
R/L1 S/L2 T/L3 U/T1 V/T2 W/T3
B2+2/B1
DC+/+1
DC-
BR1
N
N
L L
L L
L L
M1
M2
M3
OP
C/P
COM
FAP
FCH
COM
DS
BL
GND
24V
BR2
E1
E1
NLN L
A1A2
NC
COM
IN
230V
OUT
230V
EN
. CONNECTIONS SQUEME

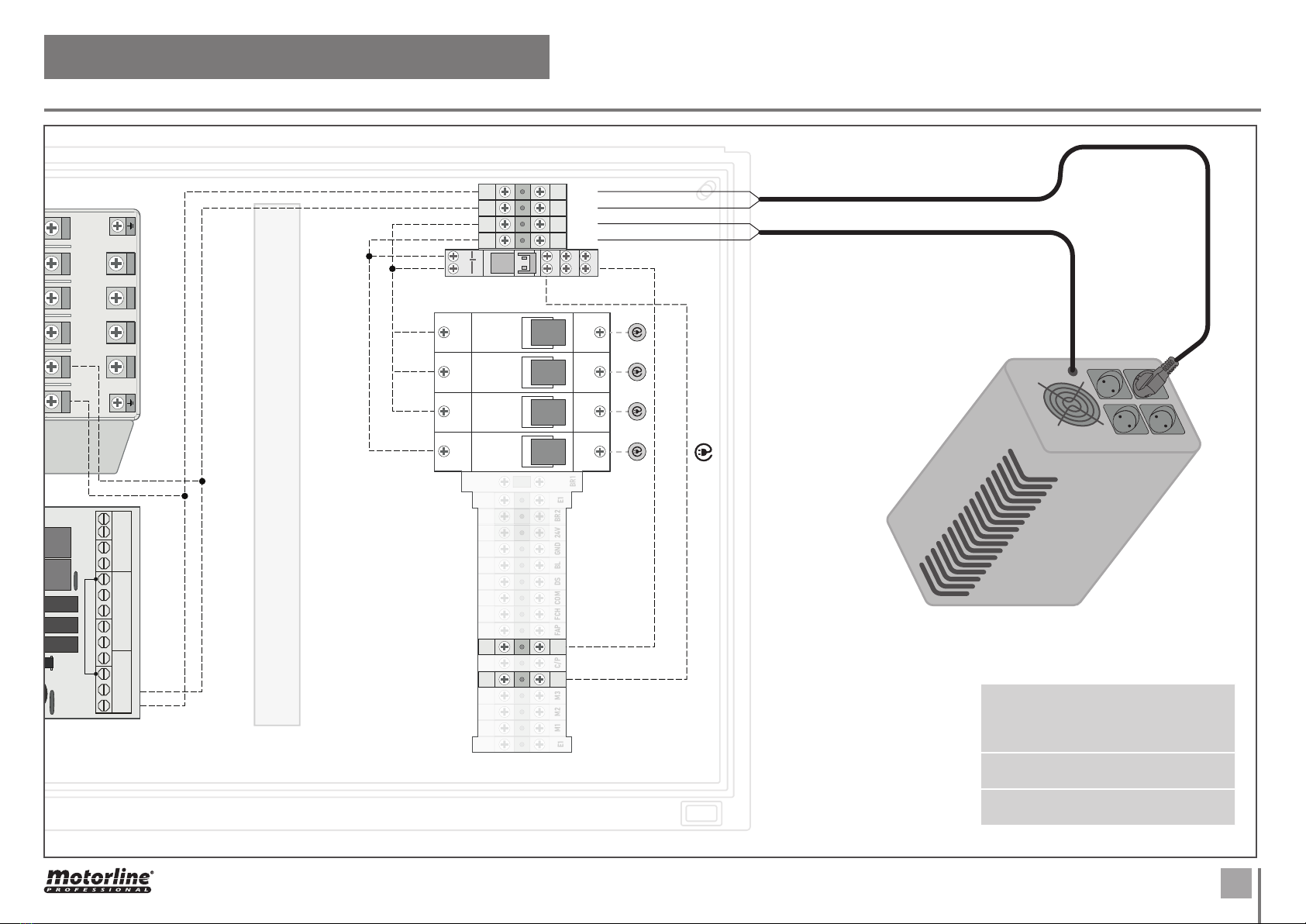

UPS UNIT CONNECTION
UPS UNIT
POWER SUPPLY
UPS POWER SUPPLY INPUT
UPS POWER SUPPLY OUTPUT
COM • Common
NC • Relay Contact
A1 • Power Supply
A2 • Power Supply
N (OUT) • Power Supply
L (OUT) • Power Supply
N (IN) • Power Supply
L (IN) • Power Supply


9
ON 1 2
ANT
STRSEC12 13NL R G B + -
22
RC
7
RA
21
RB
R/L1 S/L2 T/L3 U/T1 V/T2 W/T3
B2+2/B1
DC+/+1
DC-
10
MI1
11
MI2
5
MI3
6
MI4
8
MI5
20
MI6
-
MI7
4
24V
4
24V
12
DCM
12
DCM
-
DFM
16
10V
13
ACM
14
AVI
15
ACI
17
AFM
14
M01
15
M02
-
24V
9
S1
9
S2
15
DCM
-
SG+
-
SG-
-
SGND
13
MCM
BR1
N N
L L
L L
L
L
M1
M2
M3
OP
C/P
COM
FAP
FCH
COM
DS
BL
GND
24V
BR2
E1
E1
R
G
B
12V
A B
NC COM
BA
ON 1 2
ANT
STRSEC12 13NL R G B + -
9
ON 1 2
ANT
STRSEC12 13NL R G B + -
22
RC
7
RA
21
RB
R/L1 S/L2 T/L3 U/T1 V/T2 W/T3
B2+2/B1
DC+/+1
DC-
10
MI1
11
MI2
5
MI3
6
MI4
8
MI5
20
MI6
-
MI7
4
24V
4
24V
12
DCM
12
DCM
-
DFM
16
10V
13
ACM
14
AVI
15
ACI
17
AFM
14
M01
15
M02
-
24V
9
S1
9
S2
15
DCM
-
SG+
-
SG-
-
SGND
13
MCM
BR1
N N
L L
L L
L L
M1
M2
M3
OP
C/P
COM
FAP
FCH
COM
DS
BL
GND
24V
BR2
E1
E1
R
G
B
12V
A B
NC COM
BA
ON 1 2
ANT
STRSEC12 13NL R G B + -
EN
. CONNECTIONS SQUEME
RELAY FOR TWODOOR INTERLOCK
FREQUENCY
INVERTER
FREQUENCY
INVERTER
For the two-door Interlock system to work, it is necessary to set parameter 04.61 of
PROGRAMMING MENU 4 to the value 1 (Interlock). When using relay for two-door interlock, it is
necessary to change the connection indicated for
this wire on page 9, to the one indicated here.
When using relay for two-door interlock, it is
necessary to change the connection indicated for
this wire on page 9, to the one indicated here.
COM • Common
NC • Relay Contact
A • Connector
B • Connector


1 2 3 4 5 6 7 8 9 10 11 12
13 14 15 16 17 18 19 20 21 22 23 24
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
1 2 3 4 5 6 7 8 9 10 11 12
13 14 15 16 17 18 19 20 21 22 23 24
BL GND
COM
COM
NO
AC/DC
12/24V
LED
COM
NO
AC/DC
12/24V
~ + - ~
EN
. CONNECTIONS SQUEME
EXTERNAL COMPONENTS CONNECTIONS
CONTROL BOARD CONNECTIONS
MF2020 COLUMN PHOTOCELL
CRANK SENSOR
RADAR 1
RADAR 2
ELECTRIC BRAKE
LIMIT SWITCH
OPENING
CLOSING
LINE 1 LINE 2
LINE 2
LINE 2
LINE 1
LINE 1
Red
Blue
Black
Green
Yellow

A B
1
1
46
78
5
3
2
1
2
3
4
5
6
ENEN
. DESCRIPTIONS

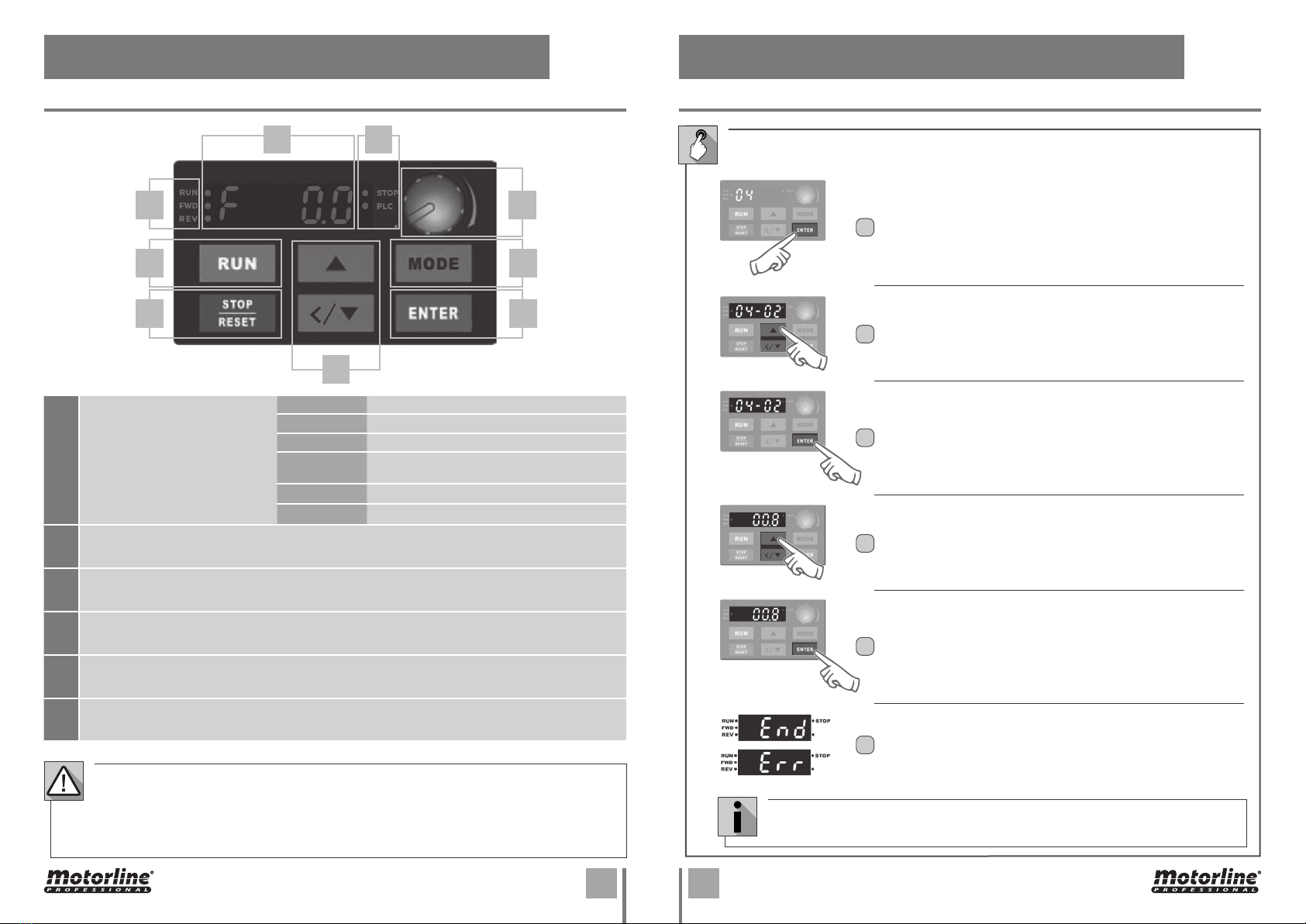

DIGITAL NUMERIC KEYBOARD
1Status Display Shows the current state of the
control board
RUN OK Inverter
FWD Ascent Motion
REV Descent Motion
STOP
FLASHING Stand By
STOP OFF STOP is active or door is moving
PLC The PLC is working
2LED Display
Indicates the frequency, voltage, current, user-defined units, etc
5UP and DOWN arrows
Allows you to set a number of parameters and change the numeric data for a main frequency
6MODE
Changing the different display modes
7STOP/RESET
Restarts the device after a failure occurs
8ENTER
Used to enter/change programming parameters
•3 and 4cannot be used.
• Only the menus on page 16A can be set by the user. Any change made in a menu other than
those mentioned on page 16A, void the warranty. Motorline shall not be liable for damages
caused if this is not observed.
. DESCRIPTIONS
MENU NAVIGATION
Press ENTER to enter the MENU
Using the arrows, select one of the SUBMENUS referenced
on page 16A.
End indicates the success of the operation.
Err indicates an operation error.
To exit MENU press “MODE” until you reach “C”
Press ENTER to enter the SUBMENU.
Using the arrows to change the value
Press ENTER to confirm.

A B
1
2
3
4
2x
10’
ENEN
. DESCRIPTIONS. DESCRIPTIONS
PROGRAMMING MENU ACCESS (MENU )LOCK/UNLOCK KEYBOARD
Press ENTER to enter on 04
RESET FACTORY SETTING
1 · Enter at parameter 00.07 the code 9999 twice.
2 · Then hold the ENTER button for 10 seconds.
The factory settings are restored.
DISABLE PASSWORD
1 · Enter at parameter 00.07 and enter password.
2 · Enter at parameter 00.08 and change the value from
1to 0.
Password will be disable.
SET PASSWORD
Enter at parameter 00.08 and set password to lock the
keyboard.
The parameter value will change from 0 (disabled) to 1
(enabled)
CHANGE A PARAMETER
1 · Enter at parameter 00.07 and set password.
You will temporarily unlock the keyboard.
2 · Change the parameter you want.
The release will remain until the motor make a new
operation.
WRONG PASSWORD
1 · You have 3 attempts to enter the correct password in
parameter 00.07. LED Display indicates the number of failed
attempts from 01 to 03.
Example: The wrong first attempt appears on the LED
Display 01.
2 · On the 4th wrong attempt appears on the LED Display
Pcode error message.
3 · Power off the power supply to retry 3 attempts.
Press MODE until you find Hfunction.
Press ENTER to enter on Hfunction.
Check page 14B for menu navigation.Check page 14B for menu navigation.
Use the arrows to find the value 04.
Keyboard locking is done through a password. Below are the setps for configuring and using the
password.

A B
ENEN
PROGRAMMING MENU -  PROGRAMMING MENU - 
. DESCRIPTIONS . DESCRIPTIONS
Parameter Function Settings Factory Setting
04.00 OPEN SPEED
Allows set door opening speed. 00.00 to 70.00 Hz 50.00 to 70.00 Hz
04.01 CLOSE SPEED
Allows set door closing speed. 00.00 to 60.00 Hz 30.00 to 40.00 Hz
04.02
OPENING DECELERATION SPEED
Allows you to select the deceleration speed on the ascent.
NOTE • The changes on deceleration opening or closing speed will
change the length of the deceleration.
00.00 to 40.00 Hz 25.00 Hz
04.03 CLOSING DECELERATION SPEED Allows you to select the deceleration speed on the descent.
NOTE • If change the door speed it is necessary adjust this parameter. 00.00 to 40.00 Hz 25.00 Hz
04.50
LENGHT OPENING DECELERATION
Allows to set the lenght of deceleration. The lenght can be set in
course programming or in the menu diretly.
0 to 1000 150
(250mm)
04.51
LENGHT CLOSING DECELERATION
Allows to set the lenght of deceleration. The lenght can be set in
course programming or in the menu diretly.
0 to 1000 150
(250mm)
04.52
PAUSE TIME
Allow to set the time the door is paused when it is open.
NOTE • By set 0 seconds, the door has no pause time.
0 = OFF
0 to 99
(ex: 99=99 sec.)
5s
04.53
HUMAN PRESENCE
This menu allows the door to open with an impulse until it reaches
the limit switch.
In order to close the door the user must be permanently pressing the
door down button.
In this function the pedestrian button will be descent.
0 = Disabled
1 = Enabled 0 = Disabled
04.54
OP-CH/PED BUTTON LOGIC
This menu allows to add 3 working modes each with their
specifications.
0 = Step by step
1 = Condominium
2 = Inversion 1 = Step by step
04.55 ACCELERATION RAMP AT OPENING This menu allows you to adjust the opening acceleration ramp time
to allow a smoother start of the door.
0 to 30
(ex: 10=1 sec.)
15
04.56 ACCELERATION RAMP AT CLOSING This menu allows you to adjust the closing acceleration ramp time to
allow a smoother start of the door.
0 to 30
(ex: 10=1 sec.)
15
Parameter Function Settings Factory Setting
04.57
PEDESTRIAN OPENING TIME
This menu can select the lenght of the pedestrian opening. Knowing
that 100 means 8M if put 12 means opening of a meter. If the Human
presence is active this menu doesn't work. If set to 0 the CH/PED
button will only be closed.
0 to 100 15
(aprox. 1.5m)
04.58 DECELERATION RAMP AT INVERSION Allows to set the deceleration time at inversion. Steeper or smoother
stop.
0 to 20
(ex: 10=1 sec.)
10
(1 s)
04.59
04.60
MANEUVERS COUNT
This function allows to view all complete maneuvers performed by
the automation.
The menu 04.60 show the number of maneuvers performed to the
thousands while the menu 04.59 show up to hundreds of thousands
(see example).
04.61
FLASHING LIGHT OUTPUT
Allows to change the operating logic of flashing light. If it is set to 0 the
flashing light will be active only when the motor is working. If select
1 the flashing light is active as long as it exits the closing limit switch,
when it reaches the closing limit switch it will remain ON for the time
set in menu 04.63.
0 = connected
in opening and
closing
1 = courtesy light
0 = opening and
closing
04.62
RESET MANEUVER COUNT
This menu allows to reset the maneuvers of menus 04.59 and
04.60. In order to be able to reset, will need to enter the password
available only to the Motorline technical department.
Password must be entered
04.63
COURTESY LIGHT TIME
This menu allows adjust the time when the light is on, since
reaching the limit switch if selected in menu 04.61. 0 to 50 Min 0
04.64
PROGRAMMING MENU
This menu has the function of placing the control board in course
programming.
0 to 1 1 = control board
in programming
04.65
REVERSE SLOWDOWN ADJUSTMENT
This menu allows you to adjust the inversion slowdown. When the
door movement is reversed, the slowdown may be higher or lower
than the reference value. Therefore, with this menu you can adjust
to the desired value.
0 to 1000 150
Menu 04.59
Total maneuvers = 20502
Notes: 1 maneuver = 1 opening
and closing cycle.
Example:
Menu 04.60
If the values are incorrectly adjusted, there is a risk of damage to the motor and inverter.

 EN
. PROGRAMMING

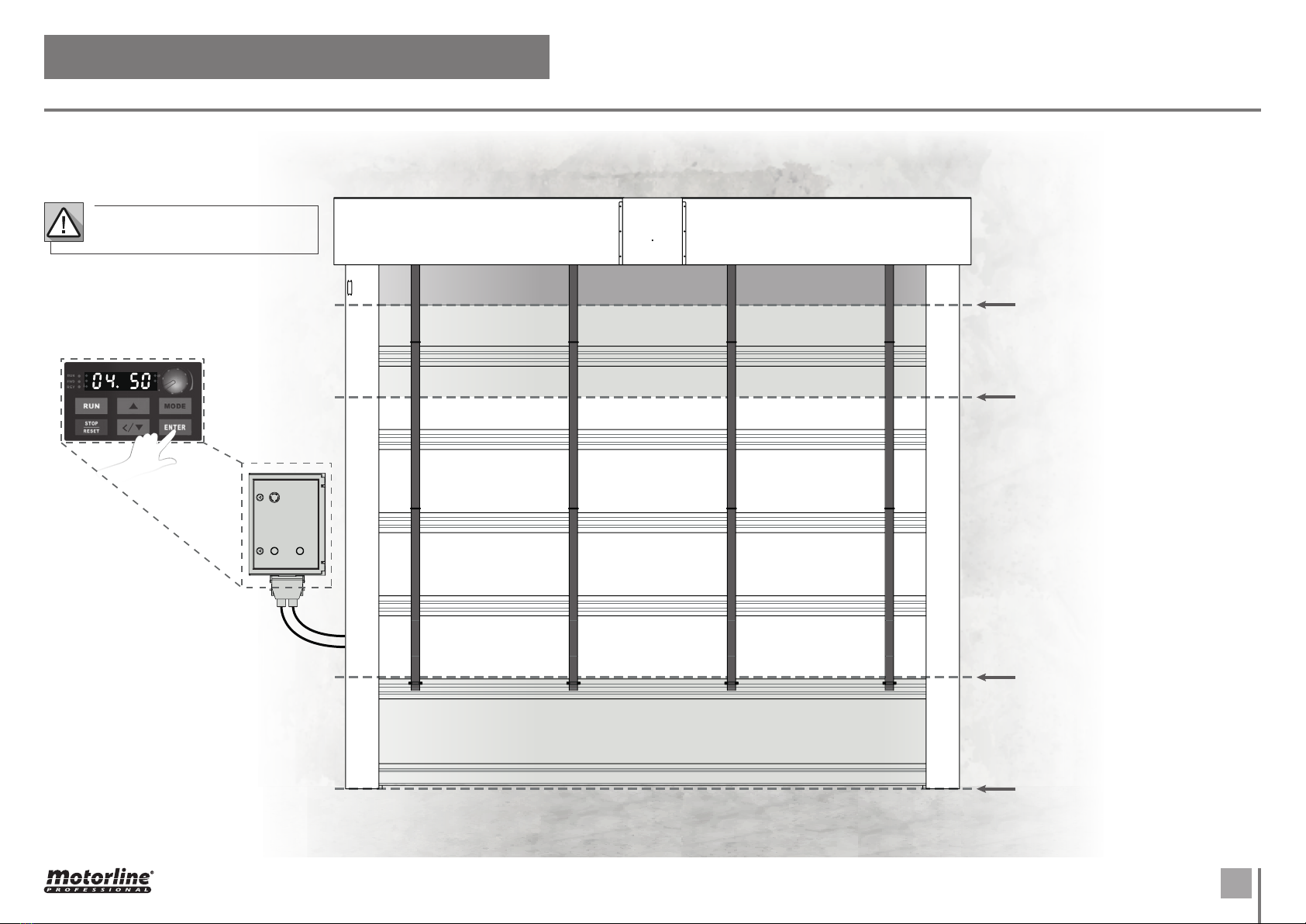

SLOWDOWN ADJUSTMENT
When the door reaches the
opening limit switch, press
OP or the remote control
again and the door will close.
Slowdown is a reduction in the door's movement speed until it reaches the limit switch.
To adjust the slowdown at opening and closing the door, follow these steps in the following order:
Press the OP button or a
previously programmed
remote control, when you
want the opening slowdown
to start (the speed
automatically reduces).
Press the OP button or a
previously programmed
remote control, when
you want the start of the
closing slowdown (the
speed automatically
reduces).
When the door reaches
the closing limit switch,
the programming is
completed.
Press the OP button or a
previously programmed
remote control to open
the door.
2
Go to menu 04.64
and set to 1 and
press ENTER.
14
3
5
6
Ensure that the limit switches are
adjusted to the movement of the door.

A B
ENEN

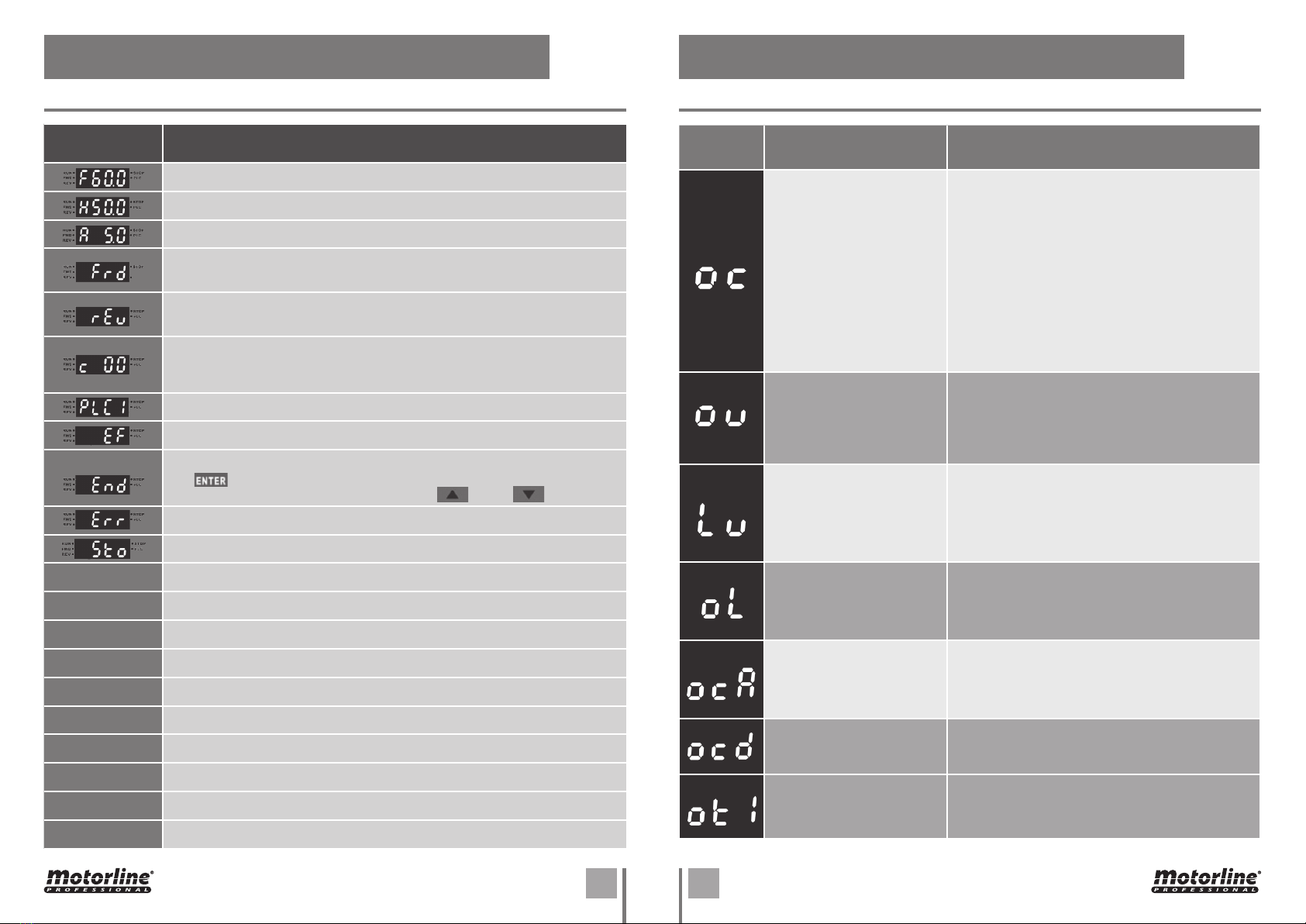

Fault identifi-
cation Description of failure Corrections
OVERCURRENT
Abnormal increase of current.
01 • Check if the motor power corresponds to the output
power of the AC motor inverter.
02 • Check for possible short circuits on U / T1, V / T2, W
/ T3 wiring connections.
03 • Check for possible short circuits in the wire
connections between the AC motor inverter and the
motor and ground wire.
04 • Check for loose contacts between the AC motor
inverter and the motor.
05 • Check for possible overload conditions on the motor.
06 • After a short circuit, if there are still anomalies in
the operation of the AC motor inverter, you must send
the product to the manufacturer.
OVERVOLTAGE
The DC voltage has exceeded
the maximum allowed value.
01 • Check if the input voltage of the AC motor inverter is
within the rated voltage class.
02 • Check for possible voltage variations.
03 • Check if the power required for the brake is within the
specified limits.
LOW VOLTAGE
The AC motor inverter detects
that the DC terminal voltage is
below the minimum value.
01 • Check if the input voltage of the AC motor inverter is
within the rated voltage class.
02 • Check for abnormal motor load.
03 • Check if the input power connections are correct with
R-S-T (for 3-phase models) without losing the phase.
OVERLOAD
The AC inverter detects
excessive current at the control
output.
01 • Check if the motor is overloaded.
02 • Use the following model with AC motor inverter
power.
OVERLOAD DURING
ACCELERATION
01 • Short-circuit at the motor output: Check that the
isolation on the output lines is in good condition.
02 • Acceleration time too short: Increase the acceleration
time.
OVERCURRENT DURING
DECELERATION 01 •
Short-circuit at the motor output: Check that the
isolation on the output lines is in good condition.
DETECTION OF EFFORT AND
EXCESS OF CONSUMPTION
01 • Check parameter 06.04 and set lower sensitivity (set
a value closer to 200%).
02 • Check if the door is stucked at some point.
. TROUBLESHOOTING
INSTRUCTIONS FOR CONSUMERS AND SPECIALIZED TECHNICIANS
. PROGRAMMING
Message
displayed Description
Displays the master frequency of the AC inverter.
Displays the effective output frequency at the U / T1, V / T2, and W / T3 terminals.
Displays the output current at the U / T1, V / T2, and W / T3 terminals.
Door in opening - Displays the opening operation status on the AC inverter.
Door in closing - Displays the closing operation status on the AC inverter.
Input indications.
This indication is displayed whenever there is no common input or the PLC1
parameter is in PLC0. It may also happen a short circuit in the 24V.
Mandatory mode for operation (do not change this menu)
External fault
Displays "End" for approximately 1 second if the input is accepted by pressing
the button. After a value is set in the parameter, the new value is
automatically added to the memory. To modify an entry, use the and buttons.
Displays “Err” if the input is invalid.
STOP enable the crank sensor
C111 Limit switch enabled and opening button pressed.
C222 Limit switch enabled and closing button pressed.
C333 Nothing activated.
C444 Opening limit switch enabled and descent button pressed
C555 Closing limit switch enabled and descent button pressed
C888 Photocells enabled.
C101 Ascent limit switch enabled.
C202 Descent limit switch enabled.
C999 Emergency stop, STOP or crank sensor.
C800 No connection/limit switches and safety.
LED DISPLAY MESSAGES
