Motorline professional MPXR92MSK Instruction Manual

V1.0
REV. 02/2021
MPXR92MSKMPXR92MSK EN
USER/INSTALLER MANUAL

A B
1B
4A
4A
4B
4A
5
6A
6A
ENEN
CABLE DESCRIPTION
PRODUCT DESCRIPTION
INSTALLATION OF WALLMOUNT
TECHNICAL CHARACTERISTICS
BASIC CONTENT
DIMENSIONS AND PRODUCT DIAGRAM
OPERATING SHCEME
. SAFETY INSTRUCTIONS
. PRODUCT
. INSTALLATION
00. CONTEÚDO
6B
8B
8A
7A
7B
DIP SWITCH CONFIGURATION
INSTRUCTIONS FOR FINAL CONSUMERS / SPECIALIZED INSTALLERS
DEVICE TEST
CONNECTION TO MRAC CONTROL BOARD
EXTERNAL POWER CONNECTION
. DIP SWITCH
. TROUBLESHOOTING
. COMPONENTS TEST
. CONNECTION SCHEME
01. SAFETY INSTRUCTIONS
This product is certified in accordance with European
Community (EC) safety standards.
This product complies with Directive 2011/65/EU of the
European Parliament and of the Council, of 8 June 2011, on
the restriction of the use of certain hazardous substances
in electrical and electronic equipment and with Delegated
Directive (EU) 2015/863 from Commission.
(Applicable in countries with recycling systems).
This marking on the product or literature indicates that the
product and electronic accessories (eg. Charger, USB cable,
electronic material, controls, etc.) should not be disposed
of as other household waste at the end of its useful life. To
avoid possible harm to the environment or human health
resulting from the uncontrolled disposal of waste, separate
these items from other types of waste and recycle them
responsibly to promote the sustainable reuse of material
resources. Home users should contact the dealer where
they purchased this product or the National Environment
Agency for details on where and how they can take these
items for environmentally safe recycling. Business users
should contact their vendor and check the terms and
conditions of the purchase agreement. This product and
its electronic accessories should not be mixed with other
commercial waste.
This marking indicates that the product and electronic
accessories (eg. charger, USB cable, electronic material,
controls, etc.) are susceptible to electric shock by direct or
indirect contact with electricity. Be cautious when handling
theproductandobserveallsafetyproceduresinthismanual.
ÍNDICE ATENÇÃO:

EN
01. SAFETY INSTRUCTIONS
GENERAL WARNINGS
•This manual contains very important safety and usage information.
very important. Read all instructions carefully before beginning the
installation/usage procedures and keep this manual in a safe place
that it can be consulted whenever necessary.
•This product is intended for use only as described in this manual. Any
other enforcement or operation that is not mentioned is expressly
prohibited, as it may damage the product and put people at risk
causing serious injuries.
•Thismanual isintended firstly for specialized technicians, anddoesnot
invalidate the user’s responsibility to read the “User Norms” section in
order to ensure the correct functioning of the product.
•The installation and repair of this product may be done by qualified
and specialized technicians, to assure every procedure are carried
out in accordance with applicable rules and norms. Nonprofessional
and inexperienced users are expressly prohibited of taking any action,
unless explicitly requested by specialized technicians to do so.
•Installations must be frequently inspected for unbalance and the
wear signals of the cables, springs, hinges, wheels, supports and other
mechanical assembly parts.
•Do not use the product if it is necessary repair or adjustment is
required.
•When performing maintenance, cleaning and replacement of parts,
the product must be disconnected from power supply. Also including
any operation that requires opening the product cover.
•The use, cleaning and maintenance of this product may be carried
out by any persons aged eight years old and over and persons whose
physical,sensorialormentalcapacitiesarelower,orbypersonswithout
any knowledge of the product, provided that these are supervision
and instructions given by persons with experienced in terms of usage
of the product in a safe manner and who understands the risks and
dangers involved.
•Children shouldn’t play with the product or opening devices to avoid
the motorized door or gate from being triggered involuntarily.
WARNINGS FOR TECHNICIANS
•Before beginning the installation procedures, make sure that you have
all the devices and materials necessary to complete the installation
of the product.
•You should note your Protection Index (IP) and operating temperature
to ensure that is suitable for the installation site.
•Provide the manual of the product to the user and let them know how
to handle it in an emergency.
•If the automatism is installed on a gate with a pedestrian door, a door
locking mechanism must be installed while the gate is in motion.
•Do not install the product “upside down” or supported by elements do
not support its weight. If necessary, add brackets at strategic points
to ensure the safety of the automatism.
•Do not install the product in explosive site.
•Safety devices must protect the possible crushing, cutting, transport
and danger areas of the motorized door or gate.
•Verify that the elements to be automated (gates, door, windows,
blinds, etc.) are in perfect function, aligned and level. Also verify if the
necessary mechanical stops are in the appropriate places.
•The central must be installed ona safeplace ofany fluid (rain, moisture,
etc.), dust and pests.
•You must route the various electrical cables through protective tubes,
to protect them against mechanical exertions, essentially on the
power supply cable. Please note that all the cables must enter the
central from the bottom.
•If the automatism is to be installed at a height of more than 2,5m from
the ground or other level of access, the minimum safety and health
requirements for the use of work equipment workers at the work of
Directive 2009/104/CE of European Parliament and of the Council of 16
September 2009.
•Attach the permanent label for the manual release as close as possible

EN
to the release mechanism.
•Disconnect means, such as a switch or circuit breaker on the electrical
panel, must be provided on the product’s fixed power supply leads in
accordance with the installation rules.
•If the product to be installed requires power supply of 230Vac or
110Vac, ensure that connection is to an electrical panel with ground
connection.
•The product is only powered by low voltage satefy with central (only
at 24V motors)
WARNINGS FOR USERS
•Keep this manual in a safe place to be consulted whenever necessary.
•If the product has contact with fluids without being prepared, it must
immediately disconnect from the power supply to avoid short circuits,
and consult a specialized technician.
•Ensure that technician has provided you the product manual and
informed you how to handle the product in an emergency.
•Ifthesystemrequiresanyrepairormodification,unlocktheautomatism,
turn off the power and do not use it until all safety conditions have
been met.
•In the event of tripping of circuits breakers of fuse failure, locate
the malfunction and solve it before resetting the circuit breaker or
replacing the fuse. If the malfunction is not repairable by consult this
manual, contact a technician.
•Keep the operation area of the motorized gate free while the gate in in
motion, and do not create strength to the gate movement.
•Do not perform any operation on mechanical elements or hinges if the
product is in motion.
RESPONSABILITY
•Supplier disclaims any liability if:
•Product failure or deformation result from improper installation
use or maintenance!
SYMBOLS LEGEND:
• Important safety
notices
• Useful information
• Programming
information
• Potentiometer
information
• Connectors
information
• Buttons
information
•Safety norms are not followed in the installation, use and
maintenance of the product.
•Instructions in this manual are not followed.
•Damaged is caused by unauthorized modifications
•In these cases, the warranty is voided.
01. SAFETY INSTRUCTIONS

A B
01
02
04
04
06 05
1 2 3
4 5 6
7 8 9
*0 #
1 2 3
4 5 6
7 8 9
*0 #
1 2 3
4 5 6
7 8 9
*0 #
ENEN
• Power Supply 12V DC 1A
• Current 200mA (max)
• IP IP65
• Communication RS485
• Keyboard Numeric(0-9, * , #)
• Card Reading Format Mifare (13.56 MHz)
• Read Range 3-5 cm
• ID Setting DIP Switch
• Operating Temperature -25°C a 55°C
• Operating Humidity 20% ~ 80%
• Dimension 77x120x22mm (LxAxP)
Reader for external use with backlit numeric keypad that is part of the control and access management
of a given location.
TECHNICAL CHARACTERISTICS
BASIC CONTENT
01 • 01 MPXR92MSK
02 • 01 Metallic Rear Plate
03 • 02 Screw for fixing to the wall
04 • 01 Mounting plate screw
05 • 01 Hex Key
06 • 01 Cable
CLOSE DOOR
CHECKS THE ACCESS
CODE
EVENTS LOG
STORED
IDENTIFICATION
MRAC
CONTROL BOARD
REGISTER CARD OR
ACCESS CODE
REGISTRATION IN THE
SOFTWARE MANAGEMENT
VERIFICATION
FAILED
Please try again!
CREATE
OPEN DOOR
ACCESS CODE
DATA BASE
SUCCESSFULLY
VERIFIED
Thank you
. PRODUCT . PRODUCT
PRODUCT DESCRIPTION OPERATING SHCEME


ON
1 2 3 4 5 6
1 2 3
4 5 6
7 8 9
*0 #
77mm 22mm
26mm
114mm
120mm
EN
Indicator
LED
14 Pin Conectors:
• RS485
• Power Supply Input
ID Setting
Case button
(On the back of the
mounting plate)
Numeric
keyboard
and MIFARE
Card
Area
Star-shaped screw hole to secure the
reader to the rear plate
REAR PLATE FRONT
BOTTOM
SIDE BACK
. PRODUCT
DIMENSIONS AND PRODUCT DIAGRAM

A B
1
7
1 2 3
4 5 6
7 8 9
*
0 #
01
01
02
02
03
ENEN

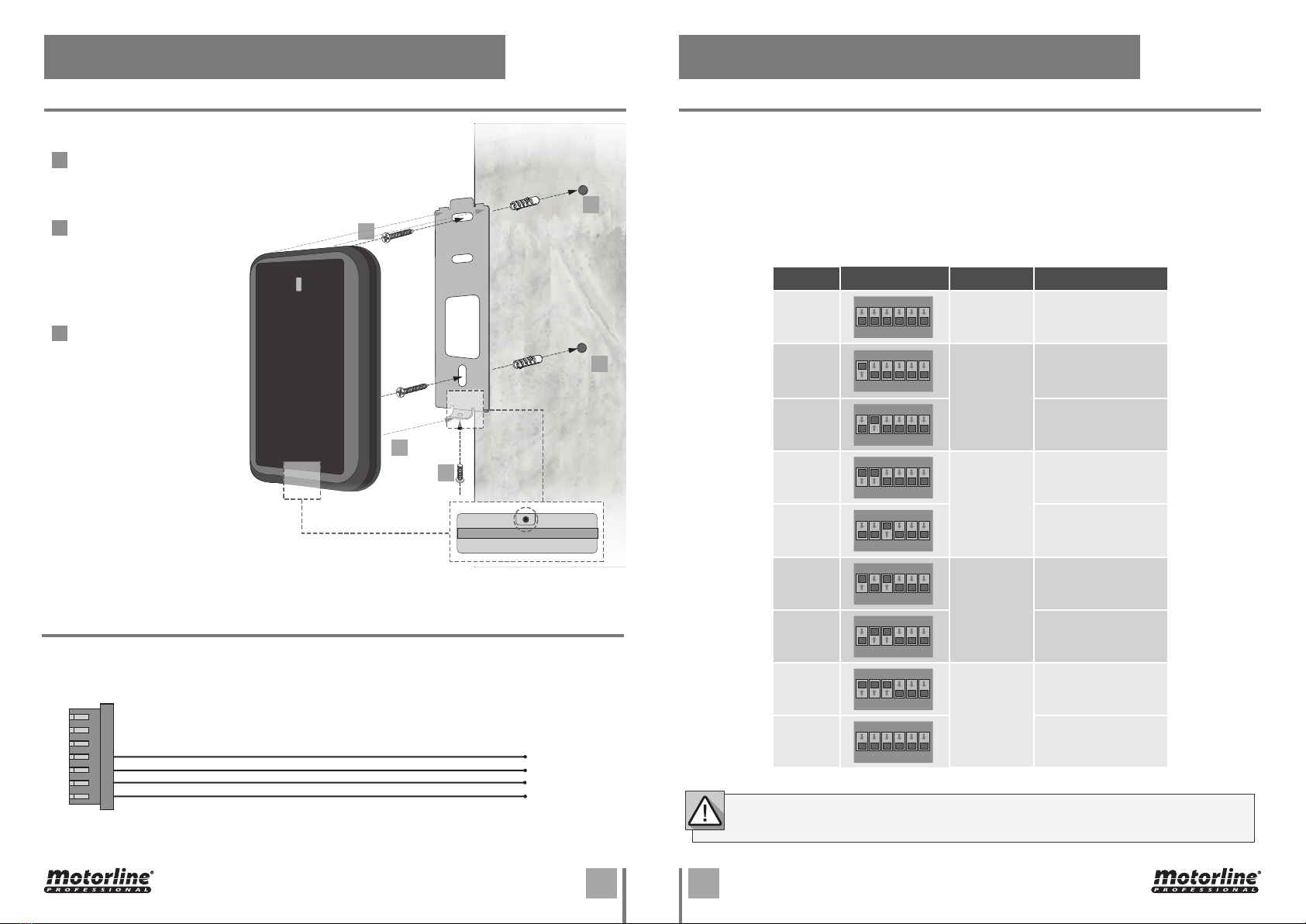

. DIP SWITCH
DIP SWITCH CONFIGURATION
 A (blue)
V (red)
GND (black)
 B (yellow)
Secure the rear plate to the wall using the wall
mounting screws. (Use suitable dowels for this
purpose).
Secure the MPXR92MSK
and the rear plate using a
star-shaped screw.
BOTTOM VIEW
Mount the MPXR92MSK
terminal on the rear plate.
1
2
3
In order for the control centre to be able to identify the task of each of the interconnected readers in an
access control system, each of these devices must have a unique identification ID.
This ID is crucial to identify the task that each device performs and which port/access is installed.
The definition is made through the existing dip switch frame on the back of each reader, according to
the following table:
Ifyouconnecttwoormoredeviceswiththe sameIDinacentral,itwillcreateacommunication
conflict and none will work correctly.
ID Dip switch Door Function
No ID
ON
1 2 3 4 5 6
- -

ON
1 2 3 4 5 6
Door 
Entry

ON
1 2 3 4 5 6
Exit

ON
1 2 3 4 5 6
Door 
Entry

ON
1 2 3 4 5 6
Exit
5
ON
1 2 3 4 5 6
Door 
Entry
6
ON
1 2 3 4 5 6
Exit
7
ON
1 2 3 4 5 6
Door 
Entry
8
ON
1 2 3 4 5 6
Exit
RS output and power input:
CABLES DESCRIPTION
. INSTALLATION
INSTALLATION OF WALLMOUNT

A B
1 2 3
4 5 6
7 8 9
*0 #
GND GND GND PWR
GND DATA1
CLK1
ERR1BZ1
DATA2
CLK2
PWR
DATA3
CLK3
DATA4
CLK4
485+ TXD1
485- RXD1
TXD3
RXD3 OK2 OK1
ERR2BZ2
1 2 3
4 5 6
7 8 9
*0 #
ENEN
. CONNECTION SCHEME
CONNECTION TO MRAC CONTROL BOARD
. CONNECTION SCHEME
EXTERNAL POWER CONNECTION
12Vdc (Red)
12Vdc (Red)
RS485 RXD (Blue)
RS485 RXD
(Blue)
RS485 TXD
(Yellow)
RS485 TXD
(Yellow)
GND (Black)
GND (Black)
Recommended power supply:
• 12Vdc ±10%, at least 500mA;
• Comply with IEC / EN 60950-1 standard;
• To share power with other devices, use a power supply with higher current ratings.
Nº PIN DESCRIPTION WIRE
1 Vdc Red
 GND Black
FA3
MPXR92MSK
MRAC
MRAC
CONTROL
BOARD
MPXR92MSK

A B
1 2 3
4 5 6
7 8 9
*0 #
1 2 3
4 5 6
7 8 9
*0 #
ENEN
PROBLEM SOLUTION
The keyboard backlight does not turn on. Check that the power and the RS
connection are connected correctly.
I don't hear the beep when entering the code or
when reading the card. Please contact our technical support depart- ment.
. TROUBLESHOOTING. COMPONENT TEST
INSTRUCTIONS FOR FINAL CONSUMERS / SPECIALIZED INSTALLERSDEVICE TEST
To avoid self-sensing interference from the touch sensor, please do not touch the sensor when turning
on the device power.
1• When the power is on, the reader will flash the green LED and hear the audible tone simultaneously.
2 • Place the supplied card close to the reader. The reader should beep simultaneously.
