Motorline professional MA115 Operation and installation manual

v3.4
REV. 01/2024
MA115
MA115
EN
INSTALLER AND USER’S MANUAL

1A 1B
1B
4A
4A
4B
4B
5
6
8A
7
ENEN
00. CONTENT
INDEX
MA AND MB
INSTALLATION MAP
ANTENNA INSTALLATION
INICIAL SETTING
CONNECTION SCHEME
TECHNICAL CHARACTERISTICS
DIMENSIONS
PACKING
. SAFETY INSTRUCTIONS
. PRODUCT
. INSTALLATION
. PROGRAMMING
. CONNECTIONS
01. SAFETY INSTRUCTIONS
This product is certified in accordance with European Community
(EC) safety standards.
This product complies with Directive 2011/65/EU of the European
Parliament and of the Council, of 8 June 2011, on the restriction
of the use of certain hazardous substances in electrical and
electronic equipment and with Delegated Directive (EU) 2015/863
from Commission.
(Applicable in countries with recycling systems). This marking on
the product or literature indicates that the product and electronic
accessories (eg. Charger, USB cable, electronic material, controls,
etc.) should not be disposed of as other household waste at the
end of its useful life. To avoid possible harm to the environment
or human health resulting from the uncontrolled disposal
of waste, separate these items from other types of waste and
recycle them responsibly to promote the sustainable reuse
of material resources. Home users should contact the dealer
where they purchased this product or the National Environment
Agency for details on where and how they can take these items
for environmentally safe recycling. Business users should contact
their vendor and check the terms and conditions of the purchase
agreement. This product and its electronic accessories should
not be mixed with other commercial waste.
This marking indicates that batteries should not be discarded like
other household waste at the end of their useful life. Batteries
must be delivered to selective collection points for recycling.
The different types of packaging (cardboard, plastic, etc.) must be
subject to selective collection for recycling. Separate packaging
and recycle it responsibly.
This marking indicates that the product and electronic accessories
(eg. charger, USB cable, electronic material, controls, etc.) are
susceptible to electric shock by direct or indirect contact with
electricity. Be cautious when handling the product and observe
all safety procedures in this manual.

2EN
01. SAFETY INSTRUCTIONS
GENERAL WARNINGS
•This manual contains very important safety and usage information.
Read all instructions carefully before beginning the installation/
usage procedures and keep this manual in a safe place that it can
be consulted whenever necessary.
•This product is intended for use only as described in this manual.
Any other enforcement or operation that is not mentioned is
expressly prohibited, as it may damage the product and put people
at risk causing serious injuries.
•This manual is intended firstly for specialized technicians, and does
not invalidate the user’s responsibility to read the “User Norms”
section in order to ensure the correct functioning of the product.
•The installation and repair of this product may be done by qualified
and specialized technicians, to assure every procedure are carried
out in accordance with applicable rules and norms. Nonprofessional
and inexperienced users are expressly prohibited of taking any
action, unless explicitly requested by specialized technicians to do
so.
• Installations must be frequently inspected for unbalance and the
wear signals of the cables, springs, hinges, wheels, supports and
other mechanical assembly parts.
• Do not use the product if it is necessary repair or adjustment is
required.
• When performing maintenance, cleaning and replacement of
parts, the product must be disconnected from power supply. Also
including any operation that requires opening the product cover.
•The use, cleaning and maintenance of this product may be carried
out by any persons aged eight years old and over and persons
whose physical, sensorial or mental capacities are lower, or by
persons without any knowledge of the product, provided that
these are supervision and instructions given by persons with
experienced in terms of usage of the product in a safe manner and
who understands the risks and dangers involved.
• Children shouldn’t play with the product or opening devices to
avoid the motorized door or gate from being triggered involuntarily.
• If the power cable is damaged, it must be replaced by the
manufacturer, after-sales service or similarly qualified personnel
to avoid danger.
•The device must be disconnected from the electrical network when
removing the battery.
• Ensure that blocking is avoided between the actuated part and its
fixed parts due to the opening movement of the actuated part.
WARNINGS FOR TECHNICIANS
• Before beginning the installation procedures, make sure that you
have all the devices and materials necessary to complete the
installation of the product.
•You should note your Protection Index (IP) and operating temperature
to ensure that is suitable for the installation site.
• Provide the manual of the product to the user and let them know
how to handle it in an emergency.
• If the automatism is installed on a gate with a pedestrian door, a
door locking mechanism must be installed while the gate is in motion.
• Do not install the product “upside down” or supported by elements
do not support its weight. If necessary, add brackets at strategic
points to ensure the safety of the automatism.
• Do not install the product in explosive site.
• Safety devices must protect the possible crushing, cutting, transport
and danger areas of the motorized door or gate.
• Verify that the elements to be automated (gates, door, windows,
blinds, etc.) are in perfect function, aligned and level. Also verify if
the necessary mechanical stops are in the appropriate places.
•The control board must be installed on a safe place of any fluid
(rain, moisture, etc.), dust and pests.
•You must route the various electrical cables through protective
tubes, to protect them against mechanical exertions, essentially on

3EN
01. SAFETY INSTRUCTIONS
the power supply cable. Please note that all the cables must enter
the control board from the bottom.
• If the automatism is to be installed at a height of more than 2,5m
from the ground or other level of access, the minimum safety and
health requirements for the use of work equipment workers at the
work of Directive 2009/104/CE of European Parliament and of the
Council of 16 September 2009.
• Attach the permanent label for the manual release as close as
possible to the release mechanism.
• Disconnect means, such as a switch or circuit breaker on the
electrical panel, must be provided on the product’s fixed power
supply leads in accordance with the installation rules.
• If the product to be installed requires power supply of 230Vac or
110Vac, ensure that connection is to an electrical panel with ground
connection.
•The product is only powered by low voltage satefy with control
board (only at 24V motors).
• Parts/products weighing more than 20 kg must be handled with
special care due to the risk of injury. It is recommended to use
suitable auxiliary systems for moving or lifting heavy objects.
• Pay special attention to the danger of falling objects or uncontrolled
movement of doors/gates during the installation or operation of
this product.
WARNINGS FOR USERS
• Keep this manual in a safe place to be consulted whenever necessary.
• If the product has contact with fluids without being prepared, it
must immediately disconnect from the power supply to avoid short
circuits, and consult a specialized technician.
• Ensure that technician has provided you the product manual and
informed you how to handle the product in an emergency.
• If the system requires any repair or modification, unlock the
automatism, turn off the power and do not use it until all safety
MOTORLINE ELECTROCELOS SA.
Travessa do Sobreiro, nº29
4755-474 Rio Côvo (Santa Eugénia)
Barcelos, Portugal
SYMBOLS LEGEND:
• Important safety notices
• Useful information
• Programming information
• Potentiometer
information
• Connectors
information
• Buttons information
conditions have been met.
• In the event of tripping of circuits breakers of fuse failure, locate
the malfunction and solve it before resetting the circuit breaker or
replacing the fuse. If the malfunction is not repairable by consult
this manual, contact a technician.
• Keep the operation area of the motorized gate free while the gate
in in motion, and do not create strength to the gate movement.
• Do not perform any operation on mechanical elements or hinges if
the product is in motion.
RESPONSABILITY
• Supplier disclaims any liability if:
•Product failure or deformation result from improper installation
use or maintenance!
• Safety norms are not followed in the installation, use and
maintenance of the product.
• Instructions in this manual are not followed.
• Damaged is caused by unauthorized modifications
• In these cases, the warranty is voided.

4A 4B
06•
01•
05•
04•
03•
02•
445mm 382mm
445mm 70mm
40mm
382mm
ENEN
The MA is a long-range RFID antenna, designed to work as a vehicle or even a personal access control,
provided it is accompanied with an MB programmed for that antenna. The dimensions of the MA are as follows:
In the kit you will find these components:
The MB is an RFID tag with adhesive that can be attached to the car's windscreen, forklift, or personal
belongings (eg purse or mobile phone).
It only works connected to the MCA /  control board or to an access control device with
built-in relay (eg MLB).
02. PRODUCT 02. PRODUCT
MA115 AND MB3
TECHNICAL CHARACTERISTICS
PACKING
TECHNICAL CHARACTERISTICS
01• 01 MA
02• 01 Fixing bracket
03• 04 Screws DIN933 M8x20
04• 04 Power rammers DIN127 M8
05• 04 Washers DIN125 M8
06• 01 Wall bracket
MA115 Technical Data
• Working frequency
US: – MHz (America)
CH: – MHz (China)
EU: – MHz (Europe)
• Worhing voltage 12Vdc
• Reading distance 5-15m (adjustable)
• Protocols MA MOTORLINE, ISO-B, (EPC GEN)
• Environment temperature -25~55C
• Environment humidity 20% ~ 95% (IP54)
• Power 2.4W standby 14W TAG reading: 14W
• Antenna dB to dBi
• Interface Wiegand-bit, Wiegand-bit
• Signal power 0 ~ 30dBm (adjustable)
• Reading Sensitivity Dual polarization reading
• Working indication Alarm and LED

5EN
. INSTALLATION MAP
INSTALLATION GUIDE
PC
(optional)
MCA
EF380
Electromagnetic
lock
MA115
MB3
MLS
Access
controller
Possible angles
MB3 in automobiles should be fixed to the car glass away from the metal frame of the
vehicle. On motorcycles it must be fixed to the plastic front frame.
15°-20°

6
3
12
3
3
4
5
1
2
EN

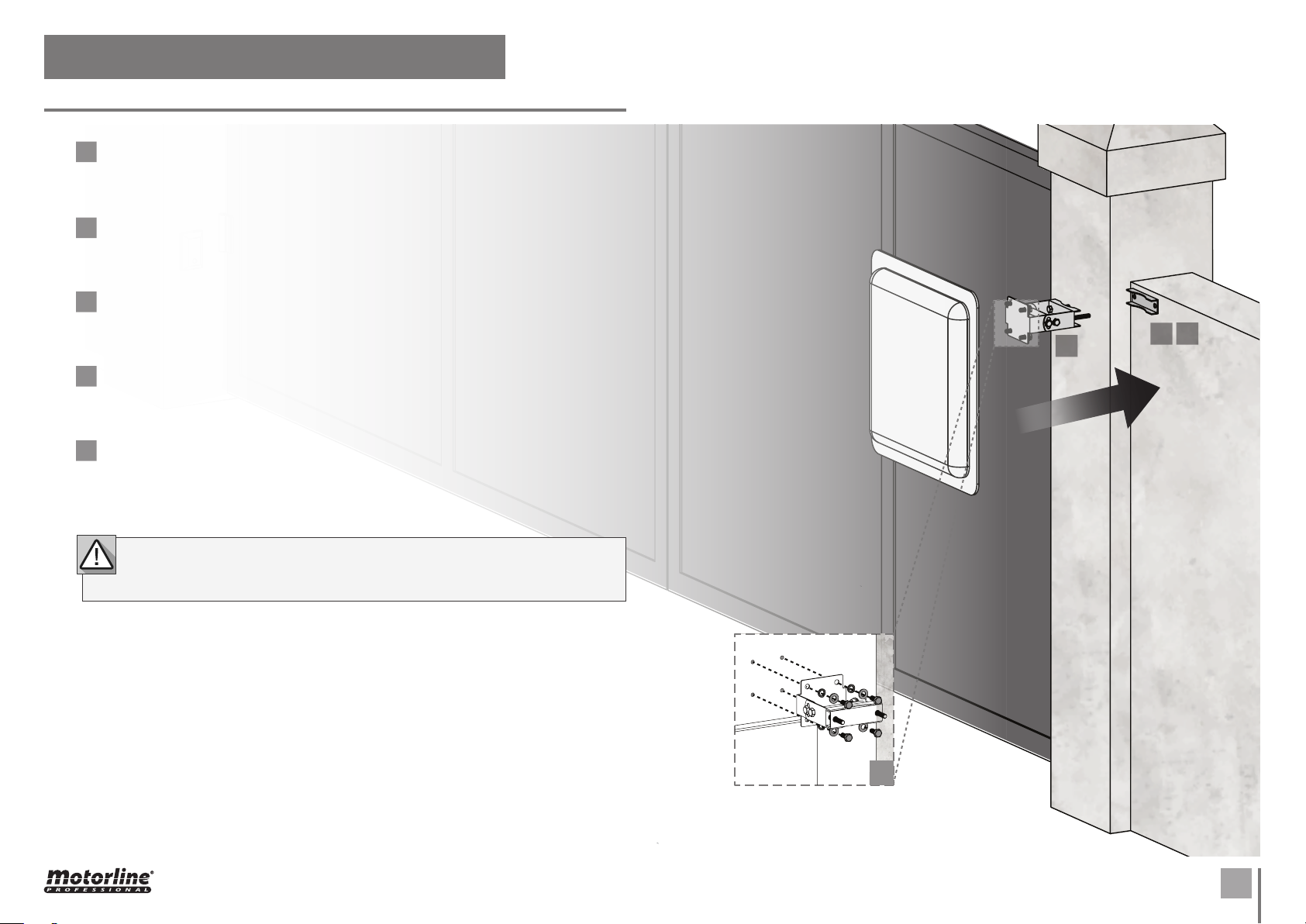

. INSTALLATION
MARKING THE HOLES
Position the wall bracket at the desired installation location between a height of 1.5m and
2m.
DRILL HOLES
Drill holes. Replace the wall bracket and attach the two brackets to the wall through the
bracket.
FIX THE ANTENNA
Attach the antenna to the fixing bracket with the four screws, force rings and washers
successively, provided in the kit
POSITION THE ANTENNA
Position the antenna at the angle that is most convenient for you to read the MB3.
CONNECTING ANTENNA
Connect the antenna to the MCA, the USB cable to the computer and the power supply
according to the diagrams on the following pages.
STEPS TO FOLLOW
The same antenna can not be used for entrances and exits. You will need to get an
antenna for each effect.

7
12V GND
GND P1
12VGNDS1GND COMNONCS2GND COMNONC
D1
D0 LED
12V GND
D1
D0 LED
DR1
DR2
SYS
IN
ERR
POWER
LINK ACT
JD1
JD2
J12
GND
P2
12VGND
D1
D0LED12V
GND
D1
D0LED
EF380
MB17
MA115
USB
+12V
GND
+12V
GND
HA0488
HA0488
EF30
EF380
+12V
GND
EF30
EN
. CONNECTIONS
CONNECTION SCHEME
Power Supply
Power Supply
Power Supply
 card reader
(In)  card reader
(Exit)
Red
Black
Yellow or white
Brown and blue
Green
 Door
Exit Button
Interface of
alarm and
fire control
 Door
Exit Button
Red
Black
Black
White
Yellow or white
Green
Green
Brown and blue
Card
reader (In)
Card
reader (Exit)
Connecting the antenna to
the computer is required
for configuration only.
Once configured, it is not
necessary to continue
using the antenna
connected to a computer.
In EF, in case
of electrical
failure the door
will open.
Red
Black
Yellow or white
Brown and blue
Green
Switch or Hub
Cable
USB
MA ANTENNA WIRE
Nº Wire color Description
1Red 7-12Vdc
2White D1
3Green D
4Black GND
5Brown RX
6Yellow TX

8A 8B
3
3
4
30 31
31 32
10
10
9600
02
02
00
09
0A 0A
33 34
32 33
ENEN
. PROGRAMMING . PROGRAMMING
INITIAL SETTING INITIAL SETTING

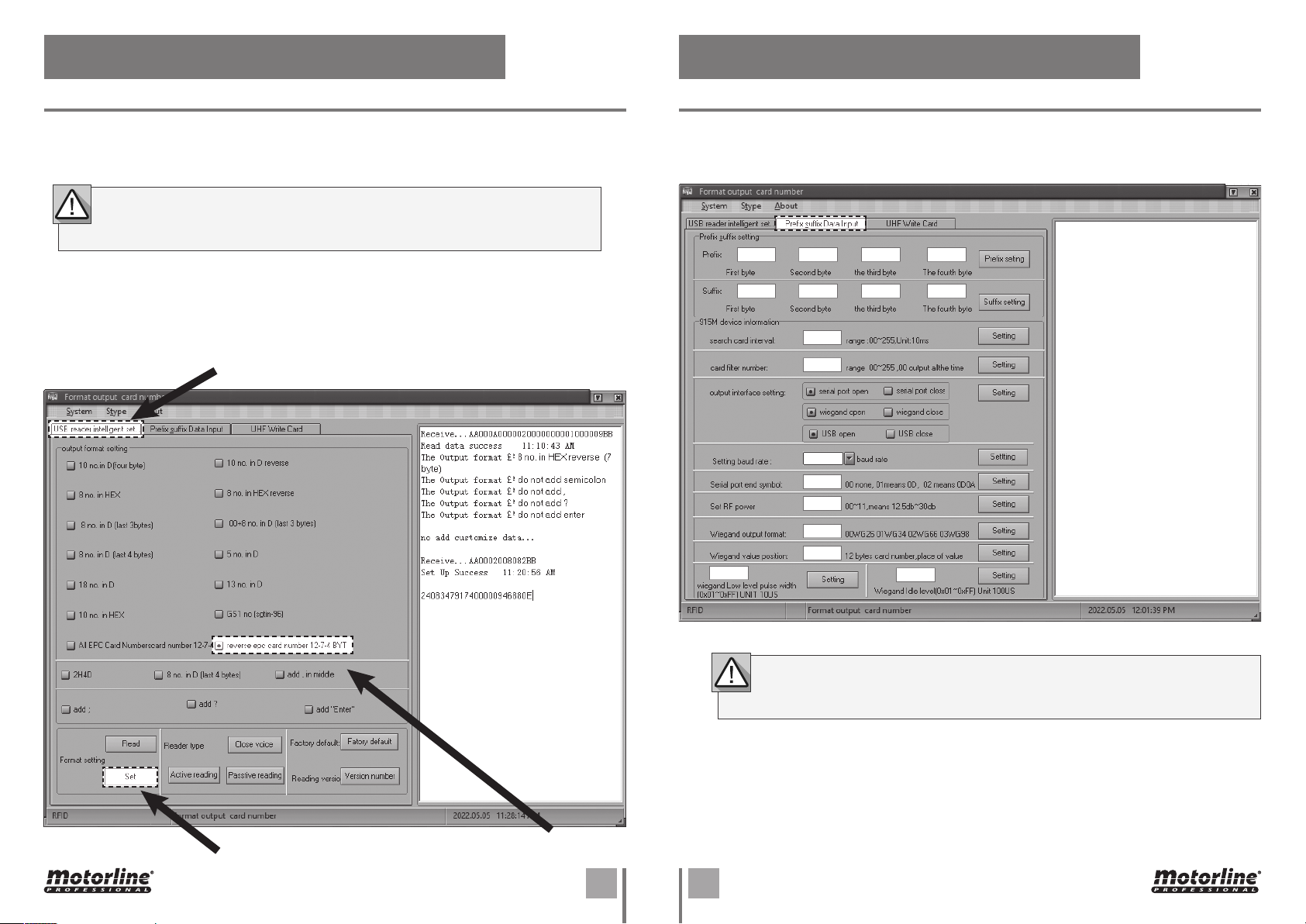

When using the device for the first time, you must program it:
1 • Connect the antenna to the computer using the USB cable.
2 • Download the software and install.
3 • On the USB reader intelligent set tab, select the option reverse epc card number 12-7-4 BYT.
4 • Click Set to send the information to the antenna and confirm.
5 • On the Prefix suffix Data Input tab, the values must remain unchanged as shown in the image.
Any alteration of these values in the table may disturb the normal functioning of the
antenna. Check the values or contact a Motorline technician to reset the values.
Attention: before connecting the USB cable to the computer, disconnect the antenna
from the MCA. When setup is complete, disconnect the USB cable and reconnect to
the MCA.

9
100
11 22 33 44 55 66 77 aa bb 11 22
EN
. PROGRAMMING
INITIAL SETTING

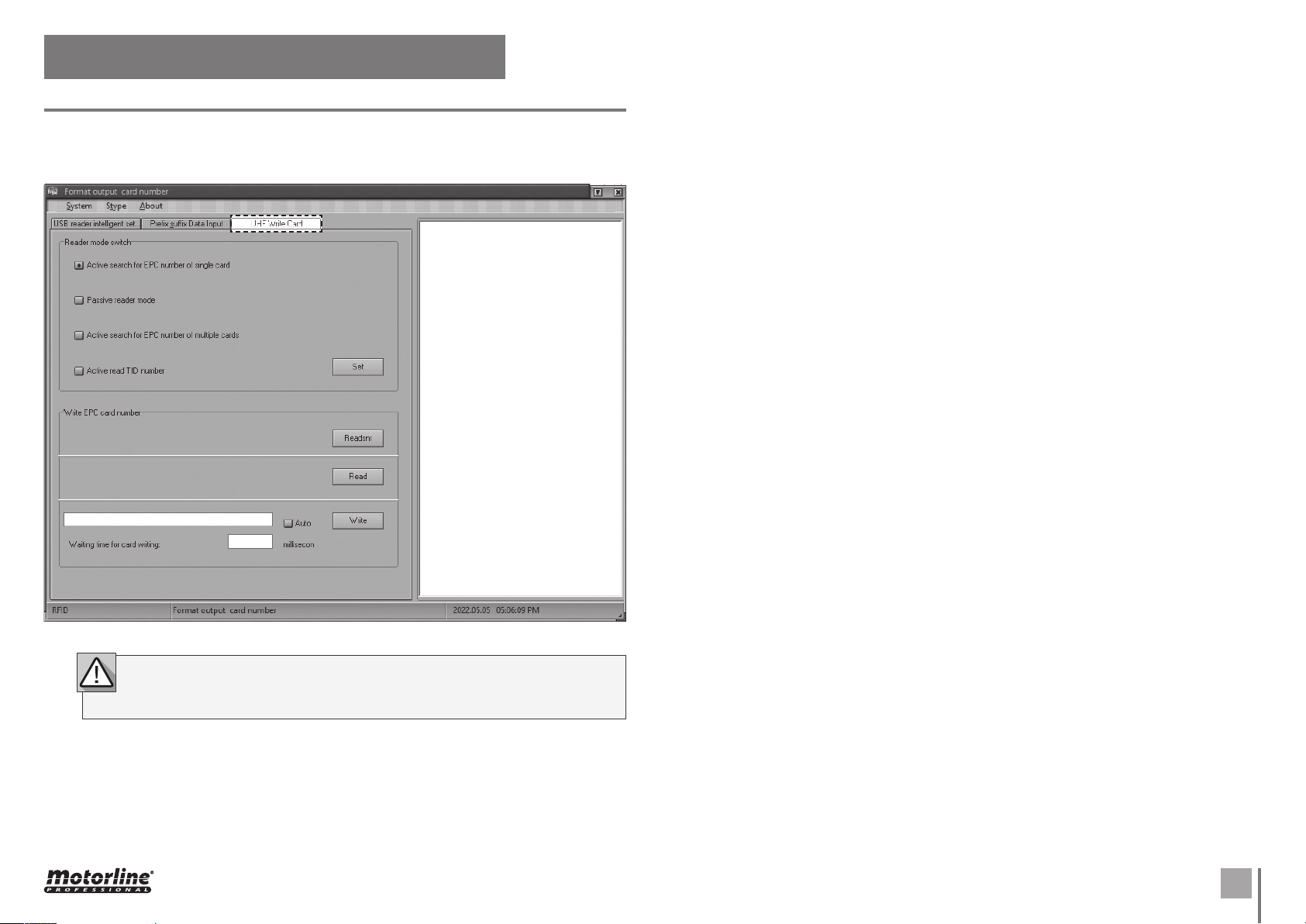

6 • In the UHF Write Card tab, the values must remain unchanged according to the image.
Any alteration of these values in the table may disturb the normal functioning of the
antenna. Check the values or contact a Motorline technician to reset the values.
