Motorola solutions WAVE TLK 100i User manual

WAVE™ TWO-WAY RADIO
TLK 100i
USER GUIDE
APRIL 2019
© 2019Motorola Solutions, Inc. All rights reserved.
MN005652A01-AA

en-XA

Contents
Important Safety Information.......................................... 4
Notice to Users...............................................................5
Handling Precautions..................................................... 6
Software Version............................................................ 7
Copyrights and Trademarks........................................... 8
Disclaimer.......................................................................9
Getting Started............................................................. 10
Chapter 1: Basic Operations........................................ 11
Attaching the Battery......................................... 11
Charging the Battery..........................................12
Attaching and Removing the Antenna............... 12
Turning the Radio On or Off.............................. 13
Adjusting the Volume.........................................13
Chapter 2: Radio Controls............................................14
Chapter 3: Status Indicators.........................................15
Icons.................................................................. 15
Battery Capacity................................................ 16
LED Indicators................................................... 17
Tones.................................................................18
Audio Tones............................................18
Indicator Tones....................................... 18
Chapter 4: Radio Calls ................................................ 19
Talkgroup and Contact List................................19
Switching Groups or Contacts................ 19
Group Calls........................................................19
Responding to Group Calls.....................19
Making Group Calls................................ 19
Private Calls...................................................... 20
Making Private Calls............................... 20
Responding to Private Calls................... 20
Chapter 5: Utilities........................................................ 22
Checking Radio Information.............................. 22
Checking Battery Strength.................................22
Cellular and Wi-Fi Values.................................. 23
Checking Cellular or Wi-Fi Signal
Strength.................................................. 23
DND...................................................................23
Turning DND On or Off........................... 23
Turning Voice Announcement On or Off........... 24
Turning Radio Alert Tones On or Off.................24
Adjusting the Display Brightness....................... 25
English
2

Turning Radio Location On or Off......................25
Turning Wi-Fi On or Off..................................... 25
Turning Radio Cellular On or Off....................... 26
Bluetooth........................................................... 26
Turning Bluetooth On or Off....................27
Searching for Bluetooth Devices............ 27
Connecting to Bluetooth Devices............27
Disconnecting from Bluetooth Devices... 28
Scan.................................................................. 28
Turning Scan On or Off...........................28
Chapter 6: Authorized Accessories List....................... 29
Batteries and Chargers Warranty.................................31
The Workmanship Warranty..............................31
The Capacity Warranty......................................31
English
3

Important Safety Information
ATTENTION!
This radio is designed to meet General Population
usage. Before using the radio, read the RF Energy
Exposure and Product Safety Guide for Portable Two-Way
Radios which contains important operating instructions for
safe usage and RF energy awareness and control for
Compliance with applicable standards and Regulations.
For a list of Motorola Solutions-approved antennas and
other accessories, visit the following website:
http://www.motorolasolutions.com
Any modification to this device, not expressly authorized by
Motorola Solutions, may void the user's authority to operate
this device.
English
4

Notice to Users
This device complies with Part 15 of the FCC rules per the
following conditions:
• This device may not cause harmful interference.
• This device must accept any interference received,
including interference that may cause undesired
operation.
CAUTION:
Changes or modifications made to this device, not
expressly approved by Motorola Solutions, could
void the authority of the user to operate this
equipment.
English
5

Handling Precautions
• Keep your radio clean and exposure to water should be
avoided to help ensure proper functionality and
performance.
• To clean the exterior surfaces of the radio, use a diluted
solution of mild dishwashing detergent and fresh water
(for example, one teaspoon of detergent to one gallon of
water).
•These surfaces should be cleaned whenever a periodic
visual inspection reveals the presence of smudges,
grease, and/or grime.
CAUTION:
The effects of certain chemicals and their vapors
can have harmful results on certain plastics.
Avoid using aerosol sprays, tuner cleaners, and
other chemicals.
English
6

Software Version
All the features described in the following sections are
supported by the software version R01.01.40.0000 or later.
Check with your dealer or system administrator for more
information.
English
7

Copyrights and Trademarks
© 2019 Motorola Solutions, Inc. All Rights Reserved
The Motorola Solutions products described in this
document may include copyrighted Motorola Solutions
computer programs. Laws in the United States and other
countries preserve for Motorola Solutions certain exclusive
rights for copyrighted computer programs. Accordingly, any
copyrighted Motorola Solutions computer programs
contained in the Motorola Solutions products described in
this document may not be copied or reproduced in any
manner without the express written permission of Motorola
Solutions.
No part of this document may be reproduced, transmitted,
stored in a retrieval system, or translated into any language
or computer language, in any form or by any means,
without the prior written permission of Motorola Solutions,
Inc.
Furthermore, the purchase of Motorola Solutions products
shall not be deemed to grant either directly or by
implication, estoppel or otherwise, any license under the
copyrights, patents or patent applications of Motorola
Solutions, except for the normal non-exclusive, royalty-free
license to use that arises by operation of law in the sale of
a product.
Trademarks
MOTOROLA, MOTO, MOTOROLA SOLUTIONS, and the
Stylized M Logo are trademarks or registered trademarks of
Motorola Trademark Holdings, LLC and are used under
license. All other trademarks are the property of their
respective owners.
Open Source Software
This Motorola Solutions product described in this document
may contain Open Source Software. For information
regarding the Open Source Software copyrights,
attributions, licensing, and usage terms refer to:
http://docs.motorolasolutions.com/legal/TLK100.html
English
8

Disclaimer
Please note that certain features, facilities, and capabilities
described in this document may not be applicable to or
licensed for use on a specific system, or may be dependent
upon the characteristics of a specific subscriber unit or
configuration of certain parameters. Please refer to your
Motorola Solutions contact for further information.
English
9

Getting Started
How to Use This Guide
This user guide covers the basic operation of the TLK 100i
Wave Two-Way Radio.
Your dealer or system administrator can customize your
radio for your specific needs. Check with your dealer or
system administrator for more information.
What Your Dealer/System Administrator Can
Tell You
You can consult your dealer or system administrator about
the following:
• What are the functions of each button?
•Which optional accessories may suit your needs?
• What are the best radio usage practices for effective
communication?
• What maintenance procedures promote longer radio
life?
English
10

Basic Operations
This chapter explains the operations to get you started on
using the radio.

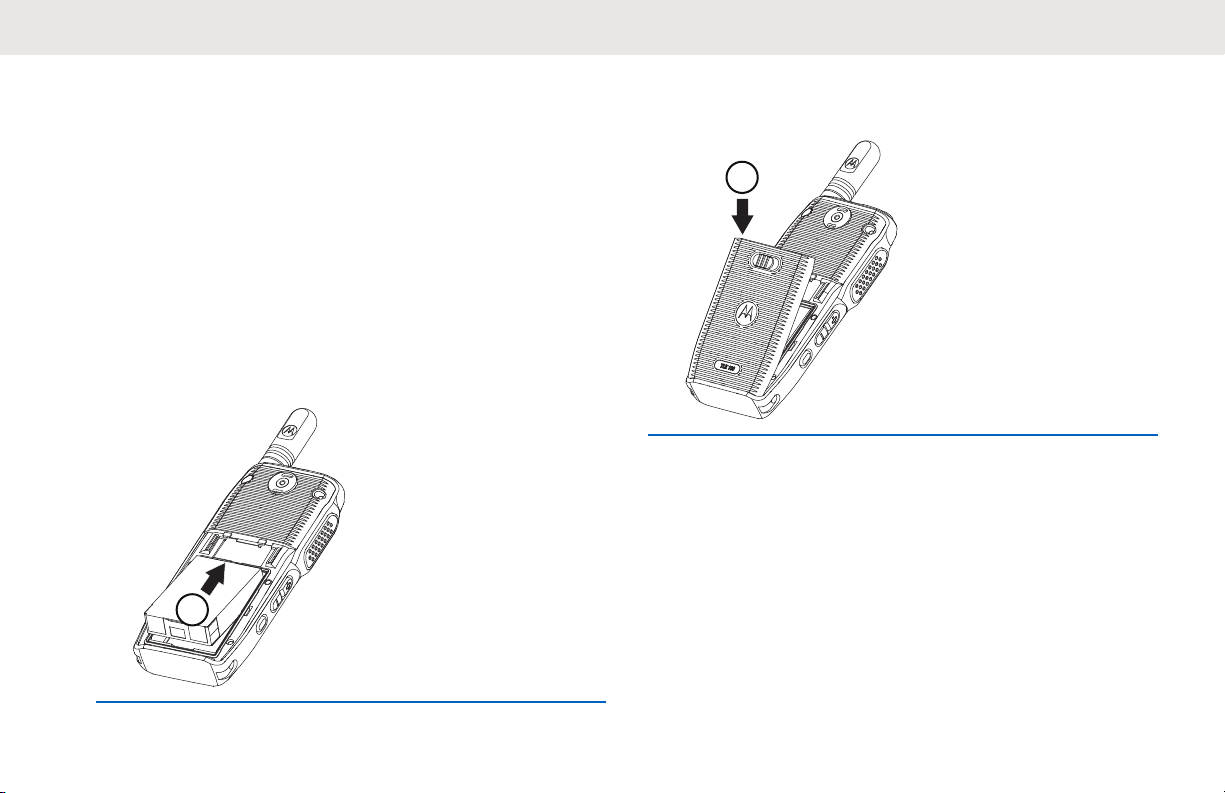

Attaching the Battery
1Align the battery contacts with the contacts inside
the battery compartment.
aInsert the contact side of the battery first.
bGently push the battery into place.
1
2Attach the battery cover by aligning it in place and
slide the battery latch until it snaps into place.
2

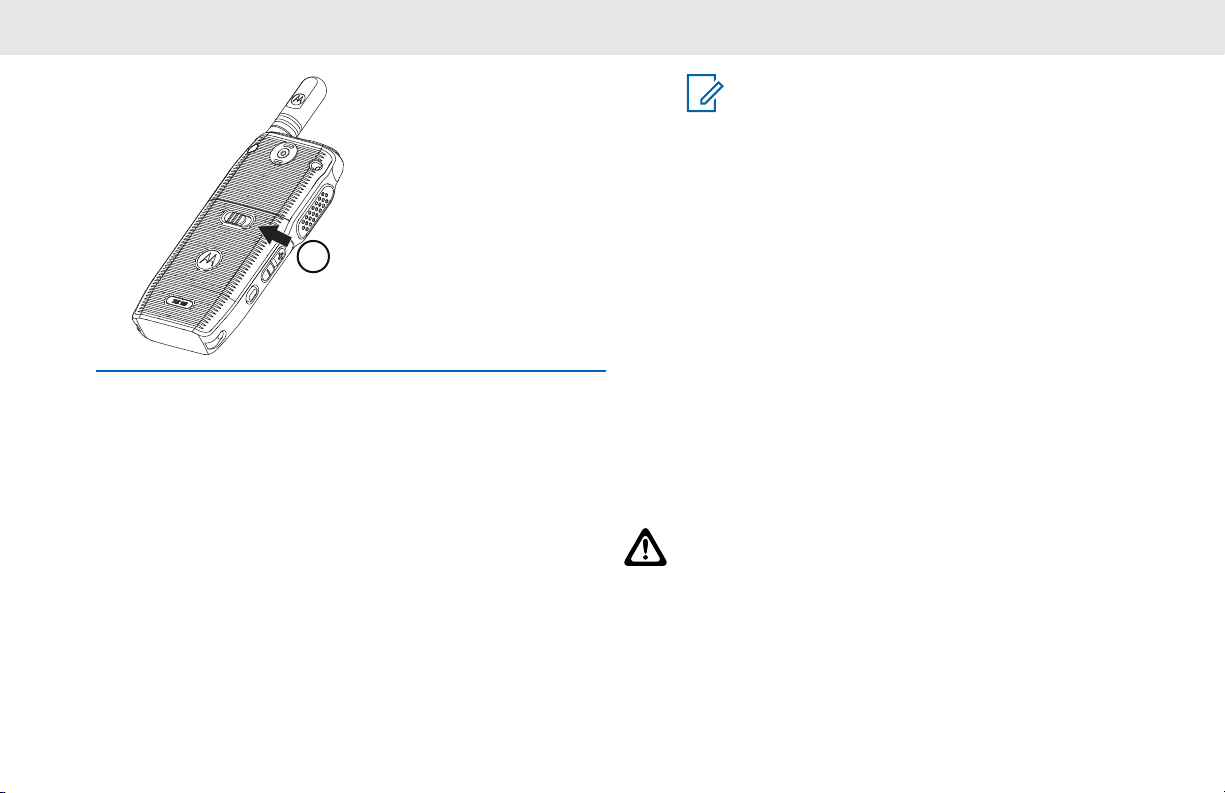

3Slide the battery latch into lock position.
English
11

3
Charging the Battery
Your radio is powered by a Lithium-Ion (Li-Ion) battery.
• To comply with warranty terms and avoid damages,
charge the battery using a Motorola Solutions
charger exactly as described in the charger user
guide.
NOTICE:
All Motorola Solutions chargers can charge
only Motorola Solutions authorized batteries.
Other batteries may not charge. Motorola
Solutions recommends that your radio
remains powered off while charging.
• For best performance, charge a new battery 4 to 5
hours before initial use.
Batteries charge best at room temperature.
The display shows the battery charging animation
momentarily. When charging is in progress, the red LED
lights up. When charging is complete, the green LED
illuminates until you detach the charger.
Attaching and Removing the
Antenna
CAUTION:
If you must replace the antenna, ensure that you
use TLK 100i antennas only. Neglecting this action
damages your radio. See Authorized Accessories
List on page 29 for recommended antennas.
Turn off your radio.
English
12

• To attach the antenna, set the antenna in the
receptacle and turn clockwise.
• To remove the antenna, turn the antenna
counterclockwise.
Turning the Radio On or Off
• To turn on your radio, press and hold the Power/Info
button.
NOTICE:
To turn on your radio when your radio is
charging, press and hold the Power/Info
button.
The green LED illuminates and the display shows a
power-on animation.
• To turn off your radio, press and hold the Power/Info
button.
Adjusting the Volume
• To increase the volume level, press the Volume Up
button.
• To decrease the volume level, press the Volume
Down button.
English
13

Radio Controls
This chapter explains the buttons and functions to control
the radio.
2
4
5
6
13
8
7
9
10
12
11
3
1
1Talkgroup/Contact List Scroll Rocker
2Power/Info Button
3LED Status Indicator
4Push-to-Talk (PTT) Button
5Volume Up and Volume Down buttons
6Menu/Contact List Button
7LED Display
8Microphone
9USB Port
10 Audio Accessory Port
11 High-Output Speaker
12 LTE Antenna
13 Charging Contacts
English
14

Status Indicators
This chapter explains the Icons, battery capacity
information, LED indicators, and tones used in the radio.

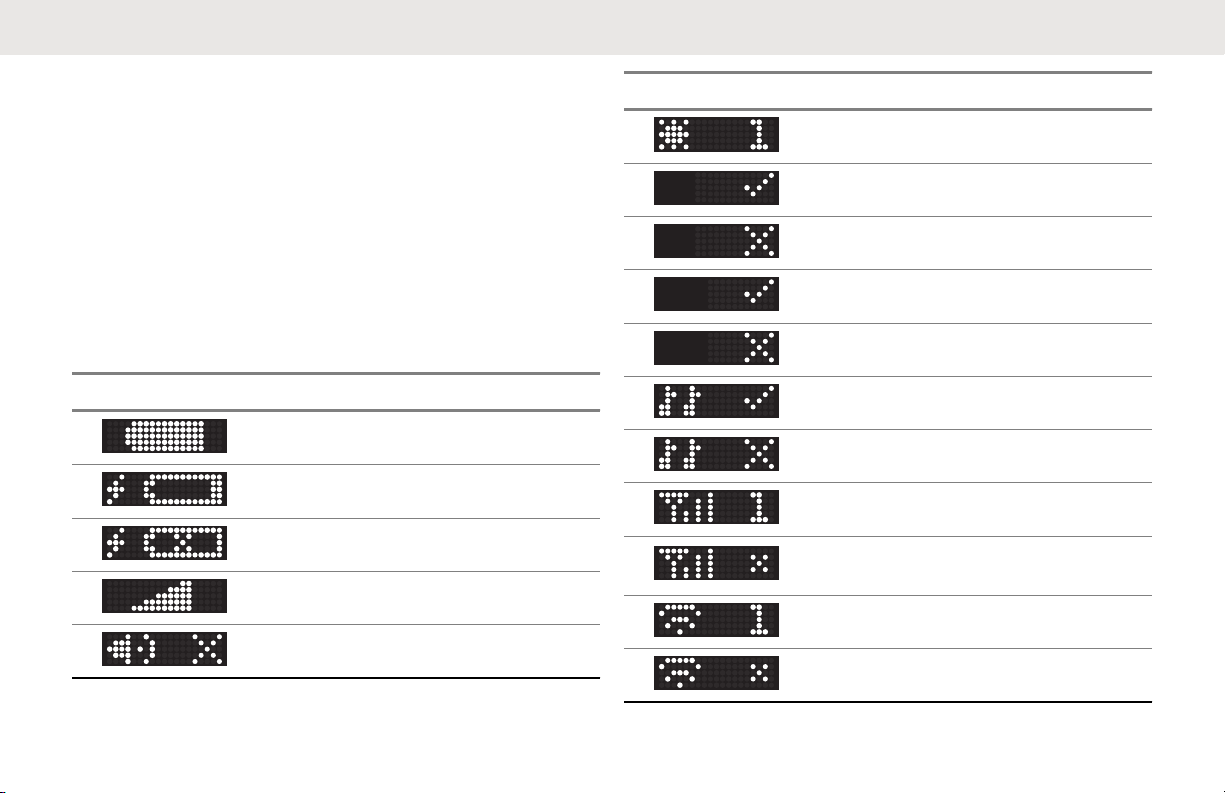

Icons
The following table shows icons which appear on your
radio display, and their description.
Table 1: Display Icons
Icon Description
Battery Level
Battery Charging
Battery Charging Error
Volume Level
Mute Mode
Icon Description
Brightness Level
Do Not Disturb On
Do Not Disturb Off
Voice Announcement On
Voice Announcement Off
Alert Tones On
Alert Tones Off
Cellular Signal Level
Cellular Connection Failed/No
SIM/Invalid SIM
Wi-Fi Signal Level
Wi-Fi Connection Failed
English
15








  





  




Icon Description
Radio Location On
Radio Location Off
Downloading Software/Software
Available1
Log Created/Uploading Log 2
Bluetooth On
Bluetooth Off
Scan On
Scan Off
Battery Capacity
The following table provides the battery capacity
information of your radio. Icons and LED Indication appear
when you press Power/Info button.
Table 2: Battery Capacity
Icon LED In-
dication
Voice An-
nouncement
Descrip-
tion
Solid
green
Battery high 80%–100%
capacity
Solid
amber
Battery medi-
um
60%–80%
capacity
Solid
amber
Battery medi-
um
25%–60%
capacity
Blink-
ing red
Battery low 5%–25%
capacity
1When software is available, the display shows a static down arrow. When software is downloading, the display
shows an animated down arrow.
2When log is created, the display shows a static down arrow. When log is uploading, the display shows an animat-
ed up arrow.
English
16

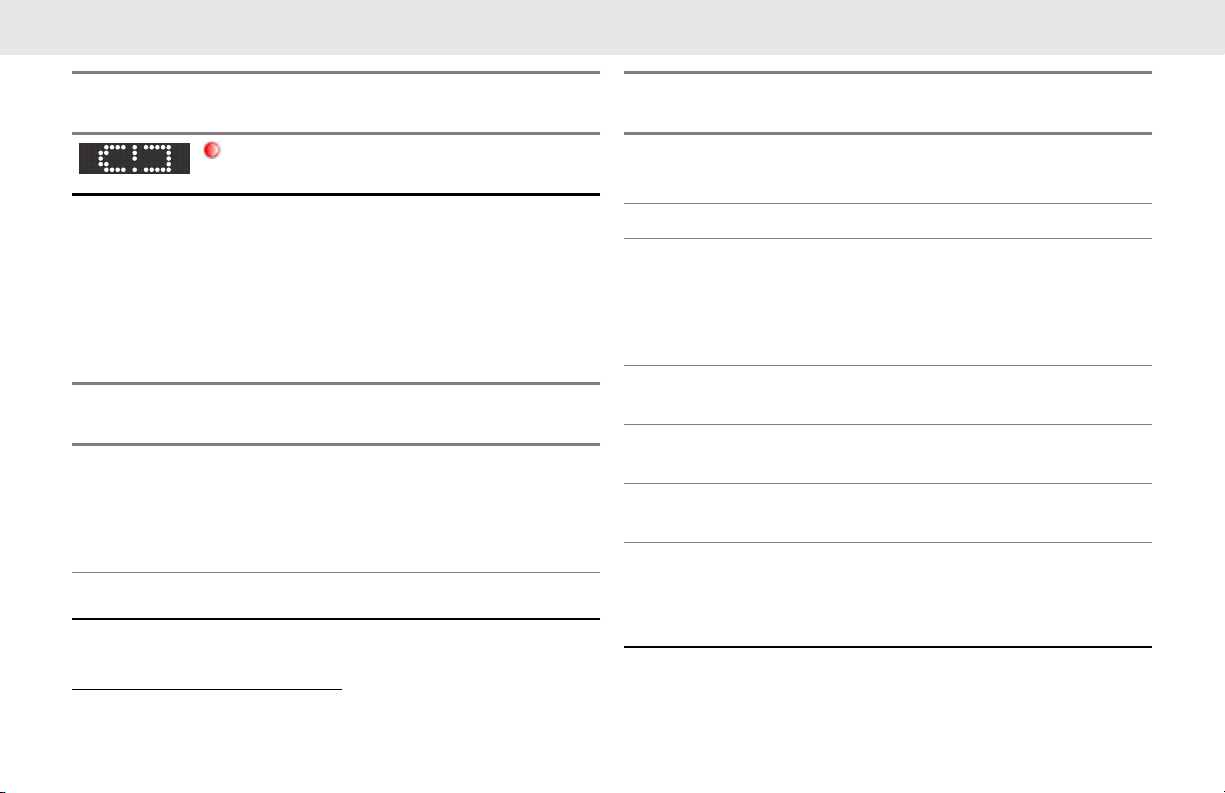

Icon LED In-
dication
Voice An-
nouncement
Descrip-
tion
Blink-
ing red
Battery low Less than
5% capacity
LED Indicators
LED indicators show the operational status and battery
charging status of your radio.
Table 3: Operational Status and Charging Status
LED Indica-
tion
Operational Mode Charge Only
Mode
Solid green • Radio is power-
ing on
• Radio is trans-
mitting
Fully charged
Blinking green • Incoming call Not applicable
LED Indica-
tion
Operational Mode Charge Only
Mode
• During call hang-
time
Solid red Not applicable Rapid charge
Blinking red • Out-of-service
• Charging failure
• Faulty battery
• Charging
failure
• Faulty bat-
tery
Blinking red
slowly
Radio out of range Radio out of
range
Blinking green
and amber
In Do Not Disturb
(DND) mode
Not applicable
Blinking am-
ber
In Scan mode Not applicable
No indication • Radio powered
off
• Radio kill3
Not applicable
3Check with your dealer or system administrator for more information.
English
17

LED Indica-
tion
Operational Mode Charge Only
Mode
• Radio is idle
Tones
The following are the tones that sound through on the radio
speaker.
High Pitched Tone
Low Pitched Tone
Audio Tones
Audio tones provide you with audible indications of the
status, or response to data received on the radio.
Continuous Tone
A monotone sound. Sounds continuously until
termination.
Periodic Tone
Sounds periodically depending on the duration set by
the radio. Tone starts, stops, and repeats itself.
Repetitive Tone
A single tone that repeats itself until it is terminated by
the user.
Momentary Tone
Sounds once for a short duration set by the radio.
Indicator Tones
Indicator tones provide you with audible indications of the
status after an action to perform a task is taken.
Positive Indicator Tone
Negative Indicator Tone
English
18

Radio Calls
This chapter explains the operations to receive, respond to,
make, and stop calls. Calls supported are Group, Private,
and Broadcast calls.
Talkgroup and Contact List
Use the Talkgroup/Contact List Scroll Rocker to see and
scroll through the talkgroup and contact list.
Switching Groups or Contacts
Long press the Menu/Contact List button to switch
talkgroups or contacts.
Group Calls
Your radio must be configured as part of a group to receive
a call from or make a call to the group of users.
Responding to Group Calls
When you receive a Group Call:
• The green LED blinks.
• Your radio generates a momentary incoming call alert
tone before unmuting to the caller's audio.
1To respond to the call, press PTT button.
The green LED lights up.
2Wait for the Talk Permit Tone to end and speak
clearly into the microphone.
3Release the PTT button to listen.
NOTICE:
The call ends when there is no voice activity
for a predetermined period.
Making Group Calls
1Select a channel with the active talkgroup.
2Press the PTT button to make the call.
The green LED lights up. The display shows the
talkgroup alias.
English
19

3Wait for the Talk Permit Tone to end and speak
clearly into the microphone.
4Release the PTT button to listen.
The green LED blinks when the target radio
responds. The display shows the talkgroup alias.
NOTICE:
The call ends when there is no voice activity
for a predetermined period. The radio returns
to the screen you were on before initiating the
call.
Private Calls
A Private Call is a call from an individual radio to another
individual radio.
Making Private Calls
1Long press Menu/Contact List button.
2To select contact, scroll contact list using
Talkgroup/Contact List Scroll Rocker until the
right contact is displayed.
NOTICE:
If "X" precedes the contact, the contact is in
Do Not Disturb (DND) mode and a reject tone
sounds when PTT button is pressed.
3Press the PTT button to make the call.
The green LED lights up.The display shows the
caller alias.
4Wait for the Talk Permit Tone to end and speak
clearly into the microphone.
5Release the PTT button to listen.
Responding to Private Calls
When you receive a Private Call:
• The green LED blinks.
• Your radio generates an inbound call alert tone before
the inbound audio call.
English
20
