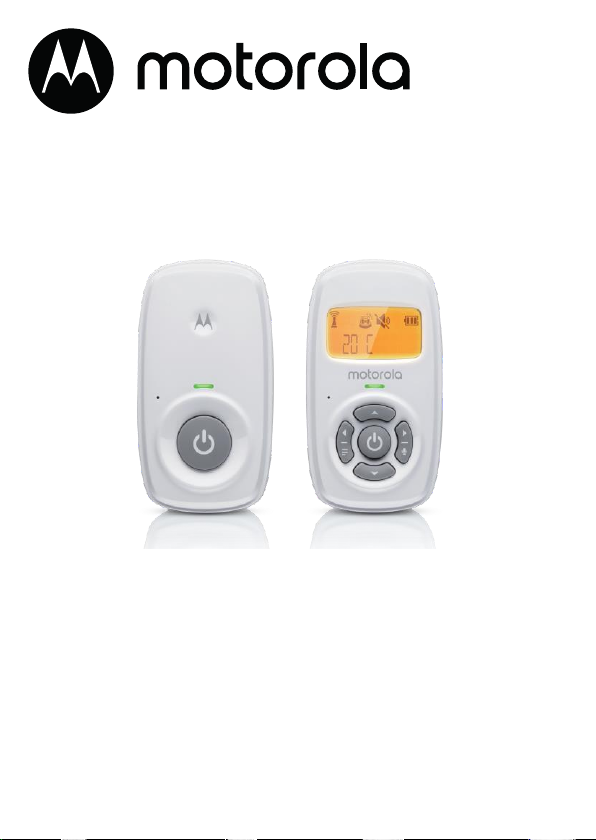

Motorola AM24
Digital Audio Baby Monitor
User Guide
For: AM24 and AM24-2

Welcome...
to your new Motorola Baby monitor!
Thank you for purchasing the Digital Audio Baby Monitor. Now
you hear your baby sleeping in another room.
Please retain your original dated sales receipt for your records.
For warranty service of your Motorola product, you will need to
provide a copy of your dated sales receipt as proof of warranty
status. Registration is not required for warranty coverage.
For product related questions, please contact us by visit:
This User Guide provides you with all the information you need
to get the most from your product.
Before you use the digital audio baby monitor, we recommend that
you insert and fully charge the battery in the parent unit, so that it
continues to work if you disconnect it from the mains power to
carry it to another location. Please read the Safety Instructions on
page 6 before you install the units.
Got everything?
• 1 x Parent Unit
• 1 x Baby Unit
• 1 x Rechargeable Ni-MH battery pack for the Parent Unit
• 1 x Battery door for Parent Unit
• 1 x Power adapter for Parent unit
• 1 x Power adapter for Baby unit
In packs with dual parent units, you will find an additional parent
unit with power adapter and rechargeable NiMH battery pack.
motorolanursery.com

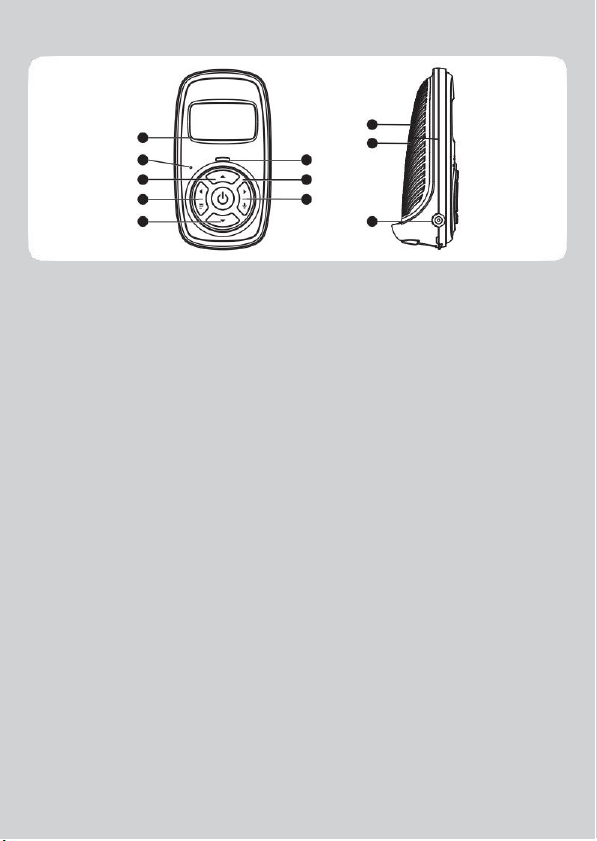

Overview of the Parent Unit
9
1
10
2
8
3
7
4
6
5
11
1. LCD Display
2. Microphone
3. UP button +
Press to increase speaker
volume. While in a menu,
press to scroll up.
4. LEFT button <
/ M
Press to access the main
menu.
While in a menu, press to
access the sub-menu, or
confirm the settings.
5. DOWN button -
Press to decrease the speaker
volume.
While in a menu, press to
move down the menu list.
6. RIGHT button >
/
T
Press to cancel settings and
go back to the previous level.
Press and hold to talk through
to be baby unit.
7. Power button 0
Press and hold to power on/
off the parent unit.
8. Power/Link indicator
On when the parent unit is
powered on and linked to the
baby unit.
Flashes when the parent unit
is linking to the baby unit
or when using Two way Talk
function.
9. Speaker
10. Battery cover
11. Power jack

Overview of the Baby Unit
1. Microphone
2. Power button 0
Press and hold to power on/off
the baby unit.
3. Speaker
4. Power indicator
On when the baby unitis
powered on.
5. Power jack
6. Temperature sensor
Important guidelines for installing your digital baby monitor
• To use your baby unit and parent unit together, you must be able to
establish a radio link between them. Note - The range may be affected
by environmental conditions.
• Any large metal object, like a refrigerator, a mirror, a filing cabinet, a
metallic door or reinforced concrete, between the baby unit and
parent unit may block the radio signal.
• The signal strength may also be reduced by other solid structures,
like walls, or by radio or electrical equipment, such as TVs, computers,
cordless or mobile phones, fluorescent lights or dimmer switches.
• If the signal is poor, try moving the parent unit and/or the baby unit to
a different position in the room.

5
Table of contents
1. Safety Instructions ..................................................................6
2. Getting Started........................................................................9
2.1 Baby unit power supply .............................................................9
2.2 Parent unit battery installation ................................................ 10
2.3 Parent unit power supply .......................................................... 11
3. Using Your Digital Audio Baby Monitor .................................12
3.1 Power on or off the Baby Unit .................................................12
3.2 Power on or off the Parent Unit ..............................................12
3.3 Speaker volume ......................................................................... 12
3.4 Select display language for the parent unit ............................ 13
3.5 Turn sound alert on or off ......................................................... 13
3.6 Reset settings to default .......................................................... 13
3.7 Two-way talk ............................................................................... 13
4. Disposal of the Device (environment) .................................14
5. Cleaning..................................................................................15
6. Troubleshooting .....................................................................16
7. General Information .......................................................................18
8. Technical Specifications........................................................23

S a T f ae b t l y e I o n f s t c r o un c t e i o nn t s
6
1. Safety Instructions

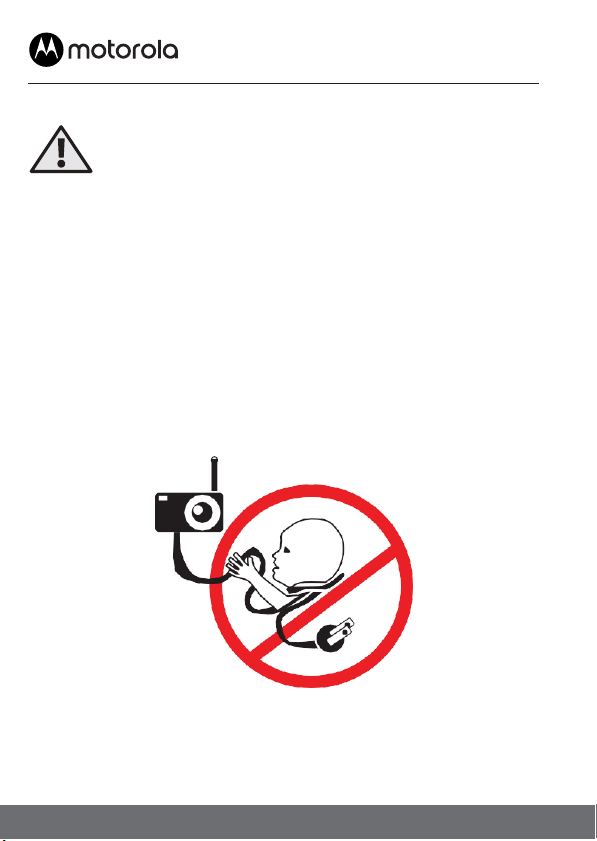

WARNING:
Strangulation Hazard. Children have
STRANGLEDincords.Keepthiscordoutof
the reach of children (more than 1metre away).
NeveruseextensioncordswithACAdapters.
Only use the AC Adapters provided.

Safety Instructions
7
WARNING
This Digital Audio Baby Monitor is compliant with all relevant
standards regarding electromagnetic fields and is, when handled as
described in the User Guide, safe to use. Therefore, always read the
instructions in this User Guide carefully before using the device.
• Adult assembly is required. Keep small parts away from children
when assembling.
• This product is not a toy. Do not allow children to play with it.
• This Digital Audio Baby Monitor is not a substitute for responsible
adult supervision.
• Keep this User Guide for future reference.
• Keep the cords out of reach of children.
• Do not cover the Digital Audio Baby Monitor with a towel or
blanket.
• Test this monitor and all its functions so that you are familiar with it
prior to actual use.
• Do not use the Digital Audio Baby Monitor in damp areas or close
to water.
• Do not install the Digital Audio Baby Monitor in extreme cold or
heat, direct sunlight, or close to a heat source.
BABY MONITOR SET UP & USE:
• Determine a location for the BABY UNIT that will allow you to
hear your baby in his/her cot.
• Place the BABY UNIT on a flat surface, such as a dresser, bureau,
or shelf or mount the Unit to a wall securely using the keyhole
slots under the stand.
• NEVER place the Baby Unit or cords within the cot.

Safety Instructions
8
• Only use the chargers and power adapters provided. Do not use
other chargers or power adapters as this may damage the device
and battery pack. The power adaptors are:
Shenzhen Huajin Electron Co., Ltd. (HJ-0600400A1-US)
or
Dongguan Everest Industrial Co., Ltd. (EP19-060040WXLA)
•
Only insert a battery pack: GPI International Ltd. (GP75AAAH2BMJZ)
• Do not touch the plug contacts with sharp or metal objects.
• Connect the power adapters to easily accessible mains power.
CAUTION
There is a risk ofexplosion ifthe battery is replaced by an incorrect
type. Dispose of used batteries according to the instructions.
Use only rechargeable battery pack with rating: 2.4V 750mAh.

Getting Started
9
• Insert the DC plug of the power adapter into the DC jack on the side
of the baby unit, as shown.
• Connect the other end of the power adapter to a suitable mains
power socket.
• The Power indicator will illuminate.
NOTE
Only use the power adapter provided (DC6V/400mA).

Getting Started
10

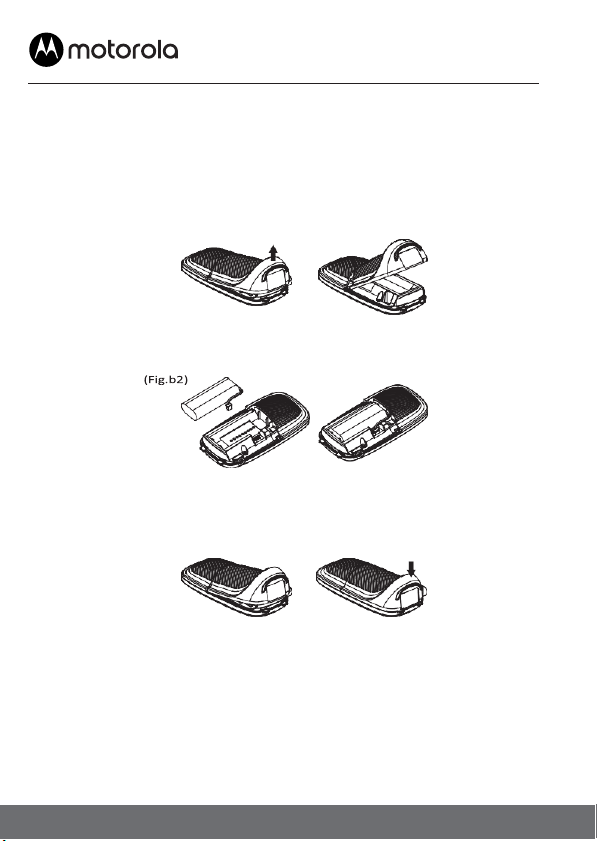

2.2 Parent unit battery installation
The rechargeable battery pack supplied should be installed so that
the Parent Unit can be moved without losing the link with the Baby
Unit. Charge the parent unit before using it for the first time and
when the parent unit indicates the battery is low.
• Open and lift the battery door up as shown in the figure. (fig.b1)
(Fig.b1)
• Insert the plug of the rechargeable battery pack into the jack
inside, fit the battery pack into the compartment. (fig.b2)
• Insert the catches at the top of the battery door then close the
door as shown in the picture. (fig.b3)
(Fig.b3)
NOTE
Only use the power adapter provided (DC6/400mA).
We recommend that you install and fully charge the battery in the
parent unit, so that it continues to work if you disconnect it from the
mains power to carry it to another location.

Getting Started
11
• Insert the DC plug of the power adapter into the DC jack on the
side of the parent unit.
• Connect the other end of the power adapter to a suitable mains
power socket,
• The parent unit will turn on.
NOTE
Only use the power adapter provided (DC6/400mA).

Using Your Digital Audio Baby M onitor
12
3. Using Your Digital Audio Baby Monitor
Please read these instructions carefully, and be aware that this
digital audio baby monitor is only intended as an aid. It is not a
substitute for responsible and proper adult supervision.
3.1 Power on or off the Baby Unit
• Press and hold 0 to power on the baby unit. The Power indicator
will illuminate.
• Press and hold 0 again to power off the baby unit. The Power
indicator will extinguish.
3.2 Power on or off the Parent Unit
• Press and hold 0 to power on the parent unit. The Power/Link
indicator will illuminate.
• Press and hold 0 again to power off the parent unit. The Power/
Link indicator will extinguish.
NOTE
If you place the parent and baby units too close together, you may
hear a high pitched noise. This is not a fault. The units are designed
to be operated at some distance apart, e.g. in separate rooms, so
move the units further apart.
If the Power/Link indicator flashes on the parent unit, they are not
linked to each other. Make sure that both units are powered on, and
reduce the distance between the units, but not closer than 1 metre.
3.3 Speaker volume
You can adjust the speaker volume of the parent unit from Volume 1
to Volume 5, or turn it off.
• Press + or - on the parent unit when it is not in use.

Using Your Digital Audio Baby M onitor
13
3.4 Select display language for the parent unit
Choose from 6 languages.
• Press
< / M
twice on the parent unit when is not in use.
• Press + or - to select ENGLISH, FRANCAIS , ESPANOL, DEUTSCH,
ITALIANO or PORTUGUES.
• Press
< / M
to confirm your selection. The display will show ‘SAVED’.
3.5 Turn sound alert on or off
You can turn on the sound alert so that the parent unit beeps when
a loud sound is detected by the baby unit. is displayed when
sound alert is enabled.
• Press
< / M
on the parent unit when it is not in use.
• Press + or - to scroll to SOUND ALERT and then press LEFT
button.
• Press
< / M to change the current setting. (Default
is off). The
display will show ‘SAVED’ to confirm the setting has changed.
3.6 Reset settings to default
• Press
< / M
on the parent unit when it is not in use.
• Press + or - to scroll to RESET and then press
< / M
.
• Press
< / M
to confirm. The display will show ‘SAVED’.
All settings will be reset to default.
3.7 Two-way talk
You can use the Talk Back feature to comfort and reassure your baby.
Whilst using Talk Back you will not be able to hear your baby until
you release the button.
• Press and hold >
/
T on the Parent unit to speak to your baby.
• Release the button to hear your baby again.

Disposal of the Device (environment)
14
4. Disposal of the Device (environment)
At the end of the product life cycle, you should not
dispose of this product with normal household waste.
Take this product to a collection point for the recycling of
electrical and electronic equipment. The symbol on the
product, user guide and/or box indicates this.
Some of the product materials can be re-used if you take them
to a recycling point. By reusing some parts or raw materials from
used products you make an important contribution to the protection
of the environment.
Please contact your local authorities in case you need more
information on the collection points in your area.
Dispose of the battery pack in an environmentally-friendly manner
according to your local regulations.

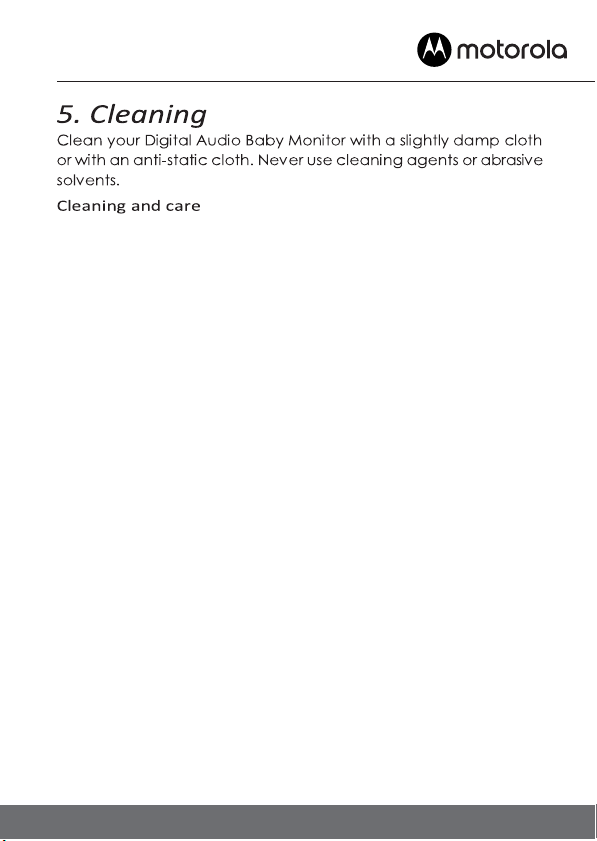

Cleaning
15
• Do not clean any part of the Digital Audio Baby Monitor with
thinners or other solvents and chemicals - this may cause
permanent damage to the product which is not covered by the
warranty.
• Keep your Digital Audio Baby Monitor away from hot, humid areas
or strong sunlight, and do not let it get wet.
• Every effort has been made to ensure high standards of reliability
of your Digital Audio Baby Monitor. However, if something does go
wrong, please do not try to repair it yourself - contact Customer
Service for assistance.
IMPORTANT
Always switch off and disconnect the power adapter before cleaning
your Digital Audio Baby Monitor.

Troubleshooting
16
6. Troubleshooting
Power/Link Indicator on the parent unit does not come on
• Check whether the parent unit is powered on.
• Check whether the supplied battery pack is correctly installed and
that they are not drained.
• Recharge the parent unit by connecting it to the mains power.
Power/link indicator on the parent unit flashes and ‘Not Linked’
displayed on the screen.
• The parent unit and the baby unit may be out of range with each
other. Reduce the distance between the units, but not closer than 1
metre.
• The baby unit may be powered off. Press and hold 0 to power on
the baby unit.
Indicator on the parent unit screen flashes
• Battery pack in the parent unit is running low. Connect the parent unit
to the mains power with the supplied power adapter for recharging.
The parent unit beeps
• The parent unit may have lost connection with the baby unit.
Reduce the distance between the parent unit and the baby unit,
but not closer than 1 metre.
• The baby unit may be powered off. Press and hold 0 to power on
the baby units.
• Battery pack in the parent unit is running low. Connect the parent
unit to the mains power with the supplied power adapter for
recharging.

Troubleshooting
17
Cannot hear sound or baby cry from the parent unit
• The volume level in the parent unit may be set too low. Increase
the volume level of the parent unit. Refer to section 3.3 For volume
level settings.
• The parent unit and the baby unit may be out of range with each
other. Reduce the distance between the units, but not closer than 1
metre.
The Digital Audio Baby Monitor system produces a high-
pitched noise
• The parent unit and the baby unit are too close to each other. Make
sure that the parent unit and baby unit are at least 1 metre away
from each other.
• The speaker volume of the parent unit may be set too high.
Decrease the volume of the parent unit. Refer to section 3.3 for
volume level settings.
Battery pack in the parent unit is running low quickly
• The volume level of the parent unit may be set too high, which
consumes power. Decrease the volume level of the parent unit.
Refer to section 3.2 for volume level settings.

General Information
18
7. General Information
If your product is not working properly, read this Quick Start
Guide or the User’s Guide of one of the models listed on page 1.
Please visit us at: motorolanursery.com/support
Consumer Products and Accessories Limited Warranty (“War-
ranty”) Thank you for purchasing this Motorola branded product
manufactured under license by Meizhou Guo Wei Electronics Co.
LTD ("MZGW").
What Does this Warranty Cover?
Subject to the exclusions contained below, MZGW warrants that
this Motorola branded product ("Product") or certified accessory
("Accessory") sold for use with this product that it manufactured
to be free from defects in materials and workmanship under normal
consumer usage for the period outlined below. This Warranty is
your exclusive warranty and is not transferable.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU
MAY HAVE OTHER RIGHTS THAT VARY BY STATE, PROVINCE OR
COUNTRY. FOR CONSUMERS WHO ARE COVERED BY CONSUMER
PROTECTION LAWS OR REGULATIONS IN THEIR COUNTRY OF
PURCHASE OR, IF DIFFERENT, THEIR COUNTRY OF RESIDENCE,
THE BENEFITS CONFERRED BY THIS LIMITED WARRANTY ARE IN
ADDITION TO ALL RIGHTS AND REMEDIES CONVEYED BY SUCH
CONSUMER PROTECTION LAWS AND REGULATIONS. FOR A FULL
UNDERSTANDING OF YOUR RIGHTS YOU SHOULD CONSULT THE
LAWS OF YOUR COUNTRY, PROVINCE OR STATE.
Who is covered?
This Warranty extends only to the first consumer purchaser, and is
not transferable.

General Information
19
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS
LIMITED WARRANTY, OTHERWISE THE REPAIR OR
REPLACEMENT PROVIDED UNDER THIS EXPRESS LIMITED
WARRANTY IS THE EXCLUSIVE REMEDY OF THE
CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS
OR IMPLIED. IN NO EVENT SHALL MOTOROLA OR MZGW
BE LIABLE, WHETHER IN CONTRACT OR TORT
(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF
THE PURCHASE PRICE OF THE PRODUCT OR ACCESSORY,
OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF
REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR OTHER FINANCIAL LOSS ARISING OUT
OF OR IN CONNECTION WITH THE ABILITY OR INABILITY
TO USE THE PRODUCTS OR ACCESSORIES TO THE FULL
EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some jurisdictions do not allow the limitation or exclusion of
incidental or consequential damages, or limitation on the length of
an implied warranty, so the above limitations or exclusions may not
apply to you. This Warranty gives you specific legal rights, and you
may also have other rights that vary from one jurisdiction to
another.
What will MZGW do?
MZGW or its authorised distributor at its option and within a
commercially reasonable time, will at no charge repair or
replace any Products or Accessories that do not conform to this
Warranty. We may use functionally equivalent reconditioned/
refurbished/pre-owned or new Products, Accessories or parts.

General Information
20
Length of Coverage Products
Covered
Consumer Products
One (1) year from the date of the
products original purchase by the first
consumer purchaser of the product.
Consumer
Accessories
Ninety (90) days from the date of the
accessories original purchase by the first
consumer purchaser of the product.
Consumer Products
and Accessories
that are Repaired
or Replaced
The balance of the original warranty
or for Ninety (90) days from the date
returned to the consumer, whichever
is longer.
Exclusions
Normal Wear and Tear. Periodic maintenance, repair and
replacement of parts due to normal wear and tear are excluded from
coverage.
Batteries. Only batteries whose fully charged capacity falls below
80% of their rated capacity and batteries that leak are covered by this
Warranty.
Abuse & Misuse. Defects or damage that result from: (a) improper
operation, storage, misuse or abuse, accident or neglect, such
as physical damage (cracks, scratches, etc.) to the surface of the
product resulting from misuse; (b) contact with liquid, water, rain,
extreme humidity or heavy perspiration, sand, dirt or the like, extreme
heat, or food; (c) use of the Products or Accessories for commercial
purposes or subjecting the Product or Accessory to abnormal usage
or conditions; or (d) other acts which are not the fault of MOTOROLA
or MZGW, are excluded from coverage. Use of Non-Motorola
branded Products and Accessories. Defects or damage that result
from the use of Non-Motorola branded or certified Products or
Accessories or other peripheral equipment are excluded from
coverage.
