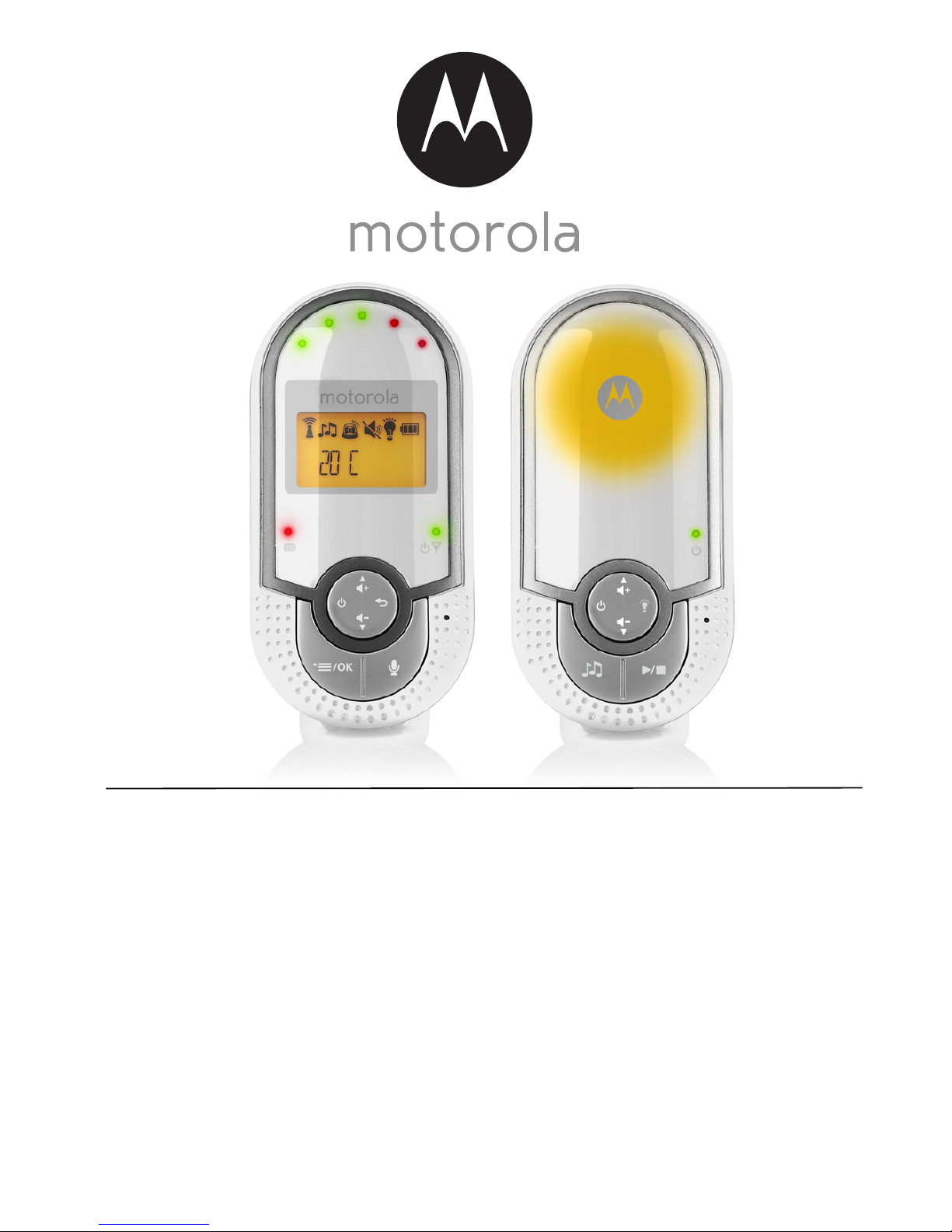

Motorola MBP16 User manual

User’s Guide
Baby Monitor
Model: MBP16
The features described in this User’s Guide are subject to modifications without prior notice.

Welcome...
to your new Motorola Baby Monitor!
Thank you for purchasing the MBP16. Now you can hear your baby sleeping
in anther room.
Please retain your original dated sales receipt for your records. For
warranty service of your Motorola product, you will need to provide a copy
of your dated sales receipt to confirm warranty status. Registration is not
required for warranty coverage.
For product related questions, please call:
This User's Guide provides you with all the information you need to get the
most from your product.
Before you can use the baby monitor, you MUST insert the battery in the
parent unit, and we recommend you fully charge the battery, so that it
continues to work if you disconnect it from the mains power to carry it to
another location. Please read the Safety Instructions on page 8 before you
install the units.
Got everything?
• 1 x Parent Unit
• 1 x Baby Unit
• 1 x Rechargeable Ni-MH battery pack for the Parent Unit
• 1 x Power adapter for the Parent Unit
• 1 x Power adapter for the Baby Unit
E-mail: [email protected]
Tel: [phone] in Turkey

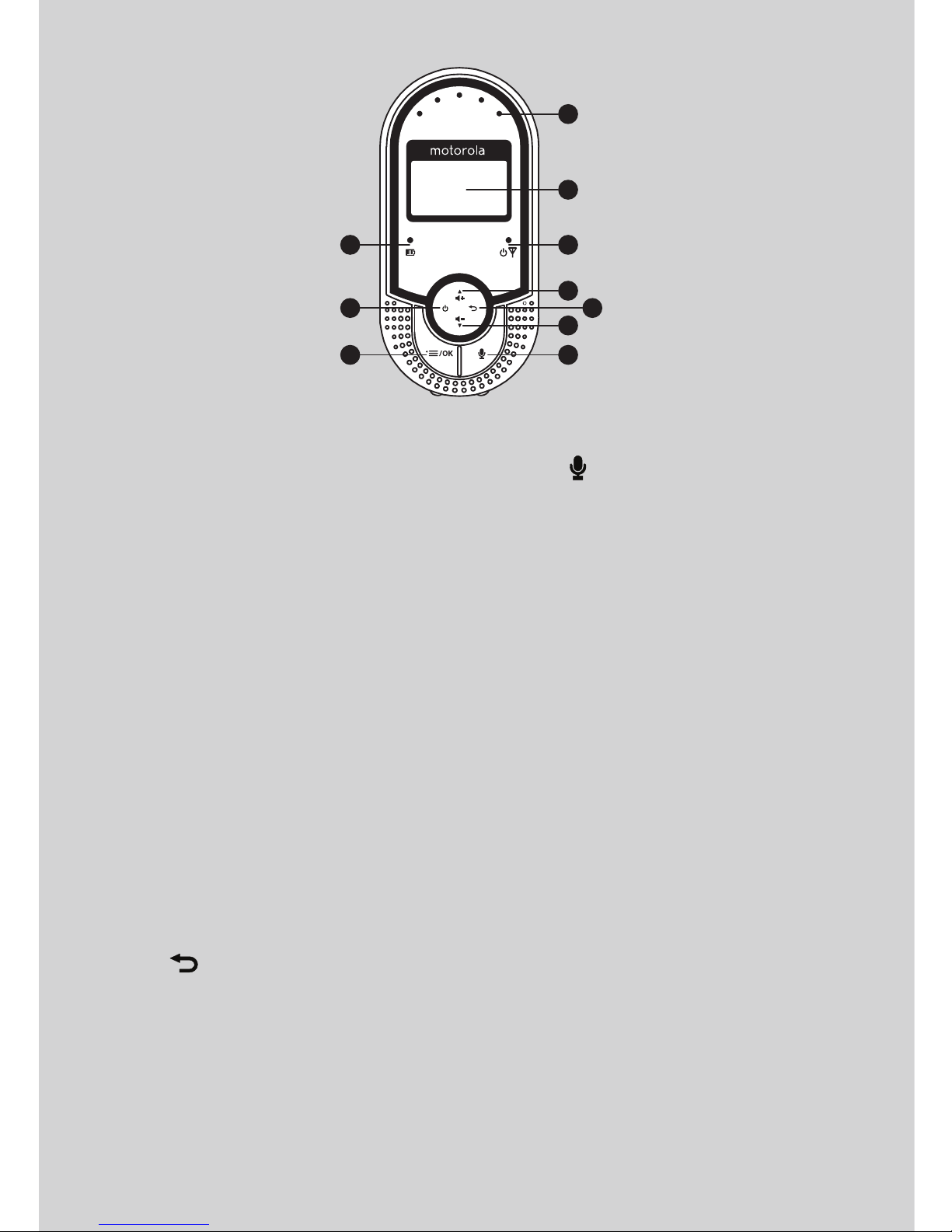

Overview of the Parent Unit
1. Sound Level Indicators
3 GREEN and 2 RED LEDs turn indicate
the audio is being picked up by
microphone of baby unit, The more LEDs
that light up, the louder the sound is. If no
LED lights up the sound level in baby’s
room is below the threshold for the
parent unit.
The LEDs are also used when adjusting
the speaker volume setting on the parent
unit, with more LEDs indicating a louder
setting, from 0 to 5.
2. LCD Display
3. Link Indicator
On when the parent unit is powered on
and linked to the baby unit.
Flashes when the parent unit is out of
range of the baby unit.
4. Up / Volume +
In idle mode: Press to increase the
speaker volume.
In menu mode: Press to move up the
menu list.
5. Back
In menu mode: Press to cancel settings
and go back to the previous level.
6. Down / Volume -
In idle mode: Press to decrease the
speaker volume.
In menu mode: Press to move down the
menu list.
7. Talk
In idle or menu mode: Press and hold to
talk through to be baby unit. Release to
quit the talk mode.
8. Menu / OK
In idle mode: Press to access the main
menu.
In menu mode: Press to access the sub-
menu, or confirm the settings.
9. Power
In idle or menu mode: Press and hold to
power on/off the parent unit.
10. Charging Indicator
On steadily when in charging mode.
Flashes when low battery is detected
during battery
NOTE operation mode.
The battery pack MUST be installed for the
indicator to be on, and for the parent unit to
operate.
8
9
10
7
6
5
4
3
2
1

Parent Unit Display
Icons Behaviors Description
Menu Structure of Parent Unit
On when parent unit is linked and in the valid range of baby unit.
Flashes when no link or out of range.
On when night light is enabled.
Off when night light is disabled.
On when lullaby is playing.
On when the speaker volume is turned off.
On when sound alert is enabled.
Flashes when sound alert is triggered.
Battery empty, needs to be charged.
1/3 battery level.
2/3 battery level.
Full battery level.
Cycles through when battery is charging.
MAIN MENU LANGUAGE SOUND ALERT NIGHTLIGHT RESET
SUB MENU ON? (if the current setting is off)
or
OFF? (if the current setting is on)
ON? (if the current setting is off)
or
OFF? (if the current setting is on)
CONFIRM?

Overview of Your Baby Unit
1. Power Indicator
On when the baby unit is switched on.
2. Up / Volume +
Press to increase the speaker volume.
3. Nightlight
Press to turn on/off the nightlight.
4. Down / Volume -
Press to decrease the speaker volume.
Press and hold to reset settings to
default.
5. Play / Stop
Press to play the lullaby.
Press again to stop playing.
6. Lullaby
Press to select the lullaby and start
playing the selected lullaby.
During lullaby playing, press to go to
the next lullaby.
7. Power
Press and hold to power on/off the
baby unit.
8. Nightlight Output
On when nightlight is turned on.
Off when nightlight is turned off.
1
6
9
7
8
5
4
3
2
Important guidelines for installing your Baby Monitor
• To use your baby unit and parent unit together, you must be able to establish
a radio link between them, and the range will be affected by environmental
conditions.
• Any large metal object, like a refrigerator, a mirror, a filing cabinet, metallic
doors or reinforced concrete, between the baby and parent unit may block
the radio signal.
• The signal strength may also be reduced by other solid structures, like walls,
or by radio or electrical equipment, such as TV’s, computers, cordless or
mobile phones, fluorescent lights or dimmer switches.
• If the signal is poor, try moving the parent and/or the baby unit to different
positions in the rooms.

6Table of contents
Table of contents
1. Safety Instructions..................................................................................... 7
2. Getting Started.......................................................................................... 9
2.1 Baby unit power supply............................................................................... 9
2.2 Parent unit battery installation .................................................................. 10
2.3 Belt clip on parent unit and baby unit....................................................... 11
3. Using Your Baby Monitor ........................................................................ 12
3.1 Power on/off the parent unit..................................................................... 12
3.2 Power on/off the baby unit ....................................................................... 12
3.3 Adjust speaker volume ............................................................................. 12
3.4 Talk Back.................................................................................................... 13
3.4.1 Adjust talk back volume ............................................................ 13
3.5 Temperature ............................................................................................. 13
3.6 Lullaby ....................................................................................................... 13
4. Parent Unit Settings................................................................................. 14
4.1 Set the language ....................................................................................... 14
4.2 Sound alert ................................................................................................ 14
4.3 Set the nightlight ....................................................................................... 14
4.4 Reset.......................................................................................................... 15
5. Disposal Of The Device (Environment).................................................. 16
6. Cleaning .................................................................................................. 17
7. Troubleshooting ...................................................................................... 18
8. General Information ................................................................................ 20

Safety Instructions 7
ENGLISH
1. Safety Instructions
This baby monitor is compliant with all relevant standards regarding
electromagnetic fields and is, when handled as described in the User's Guide,
safe to use. Therefore, always read the instructions in this User's Guide carefully
before using the device.
• Determine a location for the baby monitor that will provide the best audio
reception of your baby in his cot.
• Place the baby monitor on a flat surface, such as a dresser, bureau, or shelf.
• NEVER place the baby monitor or its cord within the cot.
• Secure the cord to the wall to keep cord away from the baby's reach.
• Adult assembly is required. Keep small parts away from children when
assembling.
• This product is not a toy. Don't allow children to play with it.
WARNING:
STRANGULATION HAZARD - Keep the Unit and adapter cords more than
NEVER place baby monitor or cords within the cot.
SECURE the cords more than 1 metre away from baby’s reach.
Never use extension cords with AC Adapters. Only use the AC Adapters
provided.
CAMERA SET UP & USE:
●Determine a location for the BABY UNIT that will provide the best view
of your baby in his/her cot.
●Place the BABY UNIT on a flat surface, such as a dresser, bureau, or
shelf or mount the Unit to a wall securely using the keyhole slots under
the stand.
●NEVER place the baby unit or cords within the cot.
●Do not place the Baby Unit or cords in the cot or within reach of the
baby (the unit and cords should be more than 1 meter away).
1 metre from the cot and out of baby’s reach.

8Safety Instructions
• This baby monitor is not a substitute for responsible adult supervision.
• Keep this User's Guide for future reference.
• Do not cover the baby monitor with a towel or blanket.
• Never use extension cords with power adapters. Only use the power
adapters provided.
• Test this monitor and all its functions so that you are familiar with it prior to
actual use.
• Do not use the baby monitor near water.
• Do not install the baby monitor near a heat source.
• Only use the chargers and power adapters provided. Do not use other
chargers or power adapters as this may damage the device and battery
pack.
• Only insert a battery pack of the same type.
• Do not touch the plug contacts with sharp or metal objects.
CAUTION
Risk of explosion if battery is replaced by an incorrect type. Dispose of used
batteries according to the instructions. Use only a battery pack with rating: 2.4V
400mAh.
Batteries should not be exposed to excessive heat such as bright sunshine or fire.

Getting Started 9
ENGLISH
2. Getting Started
2.1 Baby unit power supply
1. Insert the small plug of the power adapter into the socket on the side of the
baby unit.
2. Connect the other end of the power adapter to the mains socket.
NOTE
Only use the provided power adapter.
DC JACK
DC PLUG

10 Getting Started
2.2 Parent unit battery installation
The parent unit comes with a battery pack. Charge the battery in the parent unit
before you use it for the first time or when the parent unit indicates that the
battery is low.
1. Turn the belt clip so that it is in the hanging position.
2. Slide off the battery compartment cover.
3. Insert the wired plug of the supplied battery pack into the small socket as
shown above, and fit the battery pack into the compartment.
4. Replace the battery compartment cover.
5. Insert the small plug of the power adapter into the socket on the side of the
parent unit.
6. Connect the other end of the power adapter to the mains socket.
7. The Charging Indicator comes on.
NOTE
Only use the provided power adapter.
IMPORTANT
The battery must be installed for the parent unit to operate, even with the mains
power adapter connected.
Battery JACK
Battery PLUG

Getting Started 11
ENGLISH
2.3 Belt clip on parent unit and baby unit
1. The parent and baby units both have a clip at the back for hanging or
standing the unit.
2. In the normal state, you can use the clip to hang the unit on a belt or other
location. (Note: you should not hang the baby unit on or too near to the
baby.)
3. To change to the stand position, pull the central part of the clip away from
the unit and rotate it 180 degrees to the position shown above.

12 Using Your Baby Monitor
3. Using Your Baby Monitor
Please read these instructions carefully, and be aware that this baby monitor is
only intended as an aid. It is not a substitute for responsible, correct parental
supervision.
3.1 Power on/off the parent unit
1. When the parent unit is off, press and hold until the Link Indicator is on.
The parent unit is now powered on and will search for and link itself to the
baby unit.
2. When the parent unit is on, press and hold until the Link Indicator turns
off. The parent unit is now powered off.
3.2 Power on/off the baby unit
When the baby unit is off, press and hold until the Power Indicator is on. The
baby unit is now powered on.
When the baby unit is on, press and hold until the Power Indicator turns off.
The baby unit is now powered off.
NOTE
Do not place the parent and baby units too close together, or you may hear a
high pitched noise. This is not a fault. The units are designed to be operated at
some distance apart e.g. in separate rooms.
3.3 Adjust speaker volume
There are 5 volume levels on the baby unit, and 6 levels on the parent unit,
including VOLUME OFF.
1. Press or on the parent unit or or on baby unit to adjust the
respective volume level.
2. VOLUME OFF will be displayed if the volume of the parent unit is turned
off.
Changing the volume setting on the baby unit affects the volume at the baby
unit when you use the Talk Back feature and when playing a lullaby.

Using Your Baby Monitor 13
ENGLISH
3.4 Talk Back
You can use the Talk Back feature to comfort and reassure your baby.
Whilst using Talk Back you will not be able to hear your baby until you release the
button.
1. Press and hold on the Parent unit to speak to your baby. The display on
the Parent unit shows Talk.
2. Release the key to hear your baby again.
3.4.1 Adjust talk back volume
The baby unit has 5 volume levels from Level 1 to Level 5.
Press or on the baby unit to increase or decrease the volume
respectively.
NOTE
If a lullaby is playing, it will stop during Talk Back, but will restart from the
beginning when the Talk Back ends.
3.5 Temperature
The baby unit constantly monitors the temperature in your baby's room and
alerts you if it gets too hot (higher than 39ºC) with the unit showing "HI TEMP"
or too cold (lower than 14ºC) with "LOW TEMP".
The temperature is displayed clearly on the parent unit's idle screen. However,
it is for reference only, and there may be a small difference between the
displayed reading compared with the actual temperature. Therefore, please
check the actual temperature in the room against the display reading.
3.6 Lullaby
There are 5 lullabies available to play for your baby to sleep.
1. Press on the baby unit to select the lullaby and start playing.
2. During playback, press to step between different lullabies.
OR
Press on the baby unit to start playing the selected lullaby. Press again to
stop playing.

14 Parent Unit Settings
4. Parent Unit Settings
4.1 Set the language
1. Press to access the main menu.
2. Press and or to select your desired language.
3. Press to confirm.
4.2 Sound alert
When sound alert is set on and the parent unit volume is turned off, the parent
unit will emit a sound alert when the noise level from the baby unit exceeds a set
limit.
1. Press to access the main menu.
2. Press or to select SOUND ALERT.
3. Press to show ON? or OFF?.
4. Press to confirm.
NOTE
The sound alert icon is displayed when the Sound Alert is set on.
* The sound is audible only if the sound level at baby side reaches preset typical
sensitivity level.
4.3 Set the nightlight
1. Press to access the main menu.
2. Press or to select NIGHTLIGHT.
3. Press to show ON? or OFF?.
4. Press to confirm.
NOTE
The Nightlight can also be turned on or off at the baby unit by pressing the 1 key
on the baby unit.
NOTE
The Nightlight icon is displayed on the parent unit when the Nightlight is turned
on.

Parent Unit Settings 15
ENGLISH
4.4 Reset
You can restore all the adjustable settings back to their original factory settings.
1. Press to access the main menu.
2. Press or to select RESET.
3. Press to display CONFIRM?.
4. Press to confirm the reset.

16 Disposal Of The Device (Environment)
5. Disposal Of The Device (Environment)
At the end of the product lifecycle, you should not dispose of
this product with normal household waste. Take this product to
a collection point for the recycling of electrical and electronic
equipment. The symbol on the product, user's guide and/or
box indicates this.
Some of the product materials can be re-used if you take them
to a recycling point. By reusing some parts or raw materials from used products
you make an important contribution to the protection of the environment.
Please contact your local authorities in case you need more information on the
collection points in your area.
Dispose of the battery pack in an environmentally-friendly manner according to
your local regulations.

Cleaning 17
ENGLISH
6. Cleaning
Clean your MBP16 with a slightly damp cloth or with an anti-static cloth. Never
use cleaning agents or abrasive solvents.
Cleaning and care
• Do not clean any part of the product with thinners or other solvents and
chemicals - this may cause permanent damage to the product which is not
covered by the warranty.
• Keep your MBP16 away from hot, humid areas or strong sunlight, and don't
let it get wet.
• Every effort has been made to ensure high standards of reliability for your
MBP16. However, if something does go wrong, please do not try to repair it
yourself - contact Customer Service for assistance.

18 Troubleshooting
7. Troubleshooting
Link light on the parent unit does not come on
• Check whether the parent unit is powered on.
• Check whether the supplied battery pack is correctly installed and that it is
not drained.
• Recharge the battery in the parent unit by connecting it to the power supply.
Link light on the parent unit flashes
• The parent unit and the baby unit may be out of range with each other.
Reduce the distance between the units, but not closer than 1.5 metre.
• The baby unit may be switched off. Press and hold the key on the baby
unit to switch on the baby unit.
Low battery light on the parent unit flashes
• Battery pack in the parent unit is running low. Connect the parent unit to the
mains power with the supplied power adaptor for recharging.
The parent unit beeps
• Lost connection with the baby unit. Reduce the distance between the parent
unit and the baby unit, but not closer than 1.5 metre.
• The baby unit may be switched off. Press and hold the key on the baby
unit to switch on the baby unit.
• Battery pack in parent unit is running low. Connect the parent unit to the
mains power with the supplied power adaptor for recharging.
Cannot hear sound or baby cry from the parent unit
• The volume level in the parent unit may be set too low, increase the volume
level of the parent unit. Refer to section 3.3 for volume level settings.
• The parent unit and the baby unit may be out of range with each other.
Reduce the distance between the units, but not closer than 1.5 metre.

Troubleshooting 19
ENGLISH
The baby monitor system produces a high-pitched noise
• The parent unit and the baby unit are too close to each other. Make sure the
parent unit and baby unit are at least 1.5 metre away from each other.
• The speaker volume of the parent unit maybe set too high. Decrease the
volume of the parent unit.
Battery pack in the parent unit is running low quickly
• The volume level of the parent unit may be set too high which consumes
more power. Decrease the volume level of the parent unit. Refer to section
3.3 for volume level settings.
Talk back feature is not working
• Check that the volume is loud enough at the baby unit, refer to section 3.3.

20 General Information
8. General Information
If your product is not working properly...
1. Read this User’s Guide or the Quick Start Guide.
2. Contact Customer Service:
To order a replacement battery pack, contact customer service.
Consumer Products and Accessories Limited Warranty
("Warranty")
Thank you for purchasing this Motorola branded product manufactured under
license by Binatone Electronics International LTD ("BINATONE").
What Does this Warranty Cover?
Subject to the exclusions contained below, BINATONE warrants that this
Motorola branded product ("Product") or certified accessory ("Accessory") sold
for use with this product that it manufactured to be free from defects in materials
and workmanship under normal consumer usage for the period outlined below.
This Warranty is your exclusive warranty and is not transferable.
Who is covered?
This Warranty extends only to the first consumer purchaser, and is not transferable.
What will BINATONE do?
BINATONE or its authorised distributor at its option and within a commercially
reasonable time, will at no charge repair or replace any Products or Accessories
that does not conform to this Warranty. We may use functionally equivalent
reconditioned/ refurbished/ pre-owned or new Products, Accessories or parts.
E-mail: [email protected]
Tel: [phone] in Turkey
