User’s Guide
Smart Monitoring
Companion Models:
MBP162CONNECT

The features described in this guide are subject to modifications without prior notice.

Welcome...
to your new Motorola Smart
Monitoring Companion!
Thankyouforpurchasing theSmartMonitoringCompanion. Now
youcan hearyour babysleepin the roomoryoucan monitoryour
olderchildrenin their playroom. You can install the Companion only
from your iPhone®/ iPad® or Android™ devices and hear the Audio
Stream from your PC or Notebook, as well as from your
iPhone®/iPad® or Android™ devices.
Please keep your original dated sales receipt for your records. For
warrantyserviceofyourMotorolaproduct,youwillneedtoprovidea
copy of your dated sales receipt to confirm warranty status.
Registration is not required for warranty coverage.
For product-related questions, please call:
[phone] (UK only)*
*Calls cost 7p per minute plus your telephone company's access charge
[phone] (ROI)
Onthe Web:www.motorolastore.com/support
Email:
[e-mail]
This User’s Guide has all the information you need to make the most
outof your product.
Please read the Safety Instructions on pages 5 before you install the
unit.
Inside the Box
• 1 x Smart Monitoring Companion Unit
• 1 x Quick Start Guide

Overview of the Smart Monitoring Companion
1
2
4
3
5
6
7
1. Night Light
Lights in Amber colour for
local. Flashs when in pairing
mode.
2. Speaker
3. Powerindicator
Lights in Green when plug
the device into power socket.
4. PowerPlug
5. Night Light button
Press to turn on/off the
nightlight.
6. PAIRbutton
Press and hold for 3s to enter
to pairing mode.
Press and hold for more than 20s
to de-registerfrom Smart
Nursery App and reset to factory
default.
7. Volume buttons (/)
Press to decrease/increase
speaker volume.
Important guidelines for installing your Smart Monitoring
Companion Unit
• Use of other 2.4 GHz products, such as other wireless networks, Bluetooth™
systems or microwave ovens may cause interference with this product. Keep
the Wi-Fi® Companion Unit away from these types of products, or turn
them off if they appear to be causing interference.
• Always ensure that you have a good Wi-Fi® connection available.

Safety
Instructions
5
Table of contents
1. Safety Instructions....................................................................................5
2. Getting Started..........................................................................................6
2.1 Connecting to the power supply............................................................6
3. Using the Smart Monitoring Companion ................................................7
3.1 Set nightlight ..........................................................................................7
3.2 Adjust speaker volume...........................................................................7
4. System Requirements ...............................................................................8
5. Connecting Devices...................................................................................9
5.1 Setup.......................................................................................................9
5.2 What you need........................................................................................9
5.3 User Account and MBP162CONNECT setup on Android™ Devices ... 10
5.4 User Account and MBP162CONNECT setup on iOS® Devices........14
5.5 Reset the Smart Monitoring Companion............................................19
6. Disposal of the Device (Environment)....................................................20
7. Cleaning...................................................................................................21
8. Troubleshooting ......................................................................................22
9. General Information...............................................................................25
10. Technical Specifications..........................................................................30

4
Table ofcontents
ENGLIS H
1. SafetyInstructions
Presence of un-insulated "dangerous voltage" within the
product’s enclosure that may be of sufficient magnitude to
constitute a riskof electric shock to persons.
WARNING
:
Presence of important operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
This digital audio baby monitor is compliant with all relevant standards
regarding electromagnetic fields and is, when handled as described in the
User’s Guide, safe to use. Therefore, always read the instructions in this User’s
Guide carefully before using the device.
• Determine a location for the baby monitor that will provide the best audio
reception of your baby in its cot.
• NEVER place the baby monitor within the cot.
• Adult assembly is required. Keep small parts away from children when assembling.
• This product is not a toy. Don’t allow children to play with it.
• This baby monitor is not a substitute for responsible adult supervision.
• Keep this User’s Guide for future reference.
• Do not cover the baby monitor with a towel or blanket.
• Testthis monitor and all its functions so that you are familiar with it prior to actual
use.
• Do not use the baby monitor near water.
• Do not install the baby monitor near a heat source.
CAUTION
In order to reduce the risk offire orelectrical shock, do not expose thedevice to
water or humidity. Never disassemble the device. Opening the casing is
dangerous and will invalidate the warranty.
Inordertodisconnect theapparatus from themains completely, theunit should
be disconnected from the mains socket outlet completely.

Using the SmartMonitoring
Companion
7
2. GettingStarted
2.1 Connecting to the power supply
The Smart Monitoring Companion powers on automatically when
it is connected to the power supply.
Power Plug Power Socket
1. Choose a location with access to the electrical outlet.
2. Plug the Unit into the suitable power outlet in your baby’s room.
Ensuring sufficient clearance is given for it to detect sound and no more
than 1 metre from the baby cot.
3. When the unit is pluggedinfor the first time the greenLED illuminates and
the nightlight switcheson.

6
Getting
Started
ENGLIS H
3. Using the Smart Monitoring Companion
Please read these instructions carefully, and be aware that this Companion
Unit is only intended as an aid. It is not a substitute for responsible, correct
parental supervision.
3.1 Set nightlight
The nightlight feature is intended to give the room a soft glow so the baby
can be observed without disturbing it with bright lights.
1. When the nightlight is off, press to turn it on.
2. When the nightlight is on, press to turn it off.
3.2 Adjust speaker volume
There are 5 volume levels on the unit, including volume off.
Press > to increase or < to decrease the volume of the unit respectively, the
sound level will be detected on your iPhone®/iPad® or Android™ devices
that paired.

8
System
Requirements
4. SystemRequirements
Smartphones / Tablets: Android™ and iOS® only.
Minimum requirement: iOS 8.0, Android 5.0 or above.
For more information, please visit: https://hubbleconnected.com/
requirements.

ConnectingDevices
9
ENGLIS H
5. ConnectingDevices
How does it work?
Receive notification from
any compatible device
remotely
MBP162
CONNECT
Wi-Fi
Router Access your
MBP162CONNEC
T
locally
Hubble Service
When a user tries to access the Companion Unit, our secure server
authenticates the user’s identity and permits access to the Companion
Unit.
5.1 Setup
Plug the Smart Monitoring Companion into an electrical outlet and the Unit
will automatically switch on.The Unit must be within range of the Wi-Fi®
routerwith which you want to connect. Have the router password available
for entering during the in-app setup process.
5.2 What you need
• MBP162CONNECT
• Device with Android™ system5.0 or above
• or Any iOS® Device with iOS version 8.0 or above
Note: You can only setup via a compatible smartphone or tablet and not
via a PC.

10
ConnectingDevices
5.3 User Account and MBP162CONNECT setup
on Android™ Devices
5.3.1 Download Hubble Connect for Smart Nursery App.
• Go to Google Play™ Store to search for Hubble Connect for Smart Nursery
App.
• Download Hubble Connect for Smart Nursery App from Google
Play™ Store and install it on your Android™ device.
5.3.2 Run Smart Nursery App on Android™ Device
• Ensure that your smart device is connected to your Wi-Fi® router.
• Run Hubble Connect for Smart Nursery App, SIGN UP by entering
your accountinformation, read through the Terms & Conditions,
then select "I agree to the Terms of Use". (Pictures A1, A2)
Note: If you already have a Smart Nursery App account, please select
Already have an Account? to go to the next steps.

ConnectingDevices
11
Android
T
M
ENGLIS H
5.3.3 Add the MBP162CONNECT to your account
• Tap on Audio Monitors then tap MBP162 to add the device, read through
the features of MBP162CONNECT or tap on Skip to setup . (Pictures A3,
A4, A5)
A3 A4 A5
• PressandholdthePAIRbuttonatthefrontofMBP162CONNECT,the
nightlight blinks in amber alternately indicating that the device is
ready for pairing.

12
ConnectingDevices

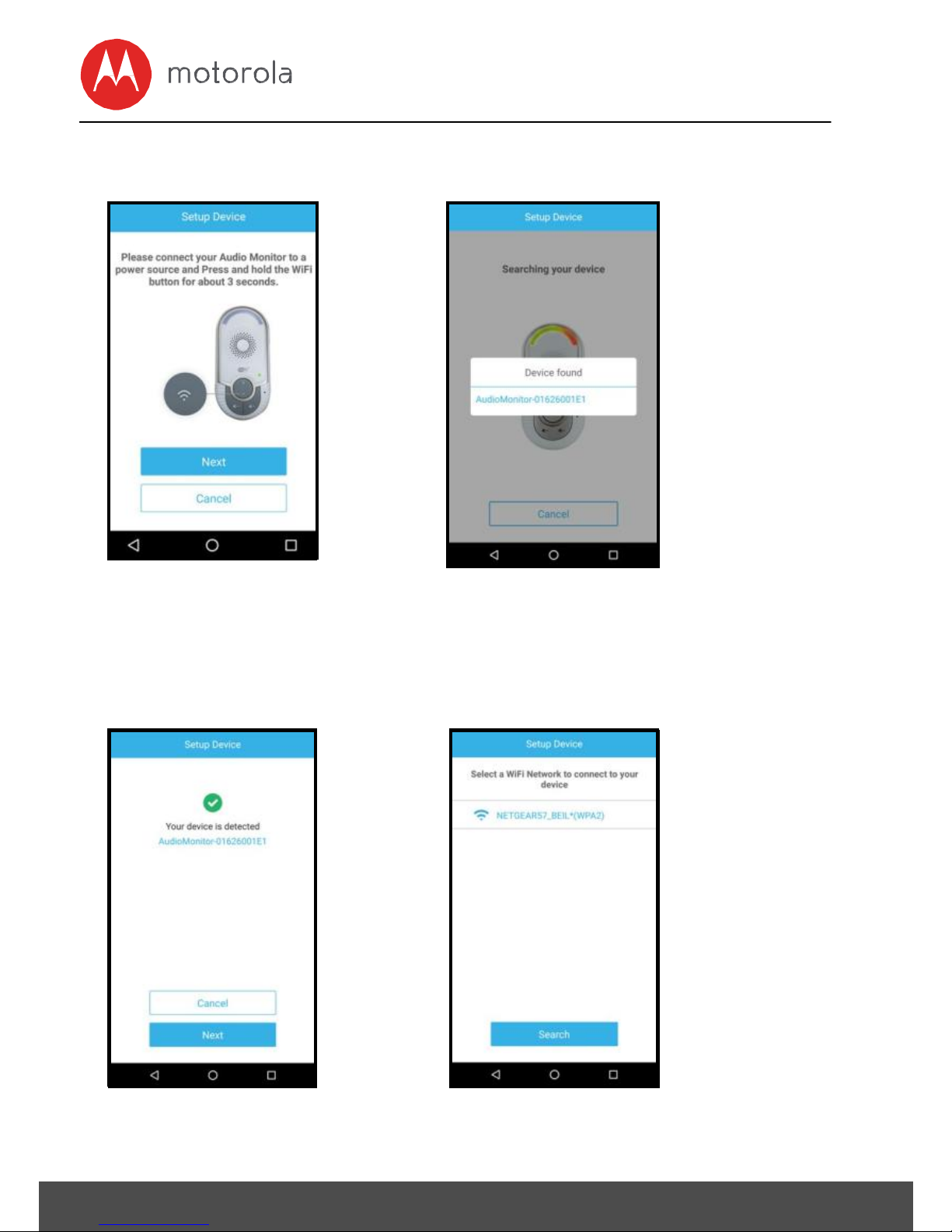

• TapNext, theAppwillautomatically searchforyourdeviceasshown
inthe picture below. (Pictures A6, A7).
A6 A7
• TapthedeviceSSID(AudioMonitor-0162XXXXXX)toconnectto the
App. (Picture A8)
• TapNext to search for the Wi-Fi router. (Picture A9)
A8 A9

ConnectingDevices
13
Android
T
M
ENGLIS H

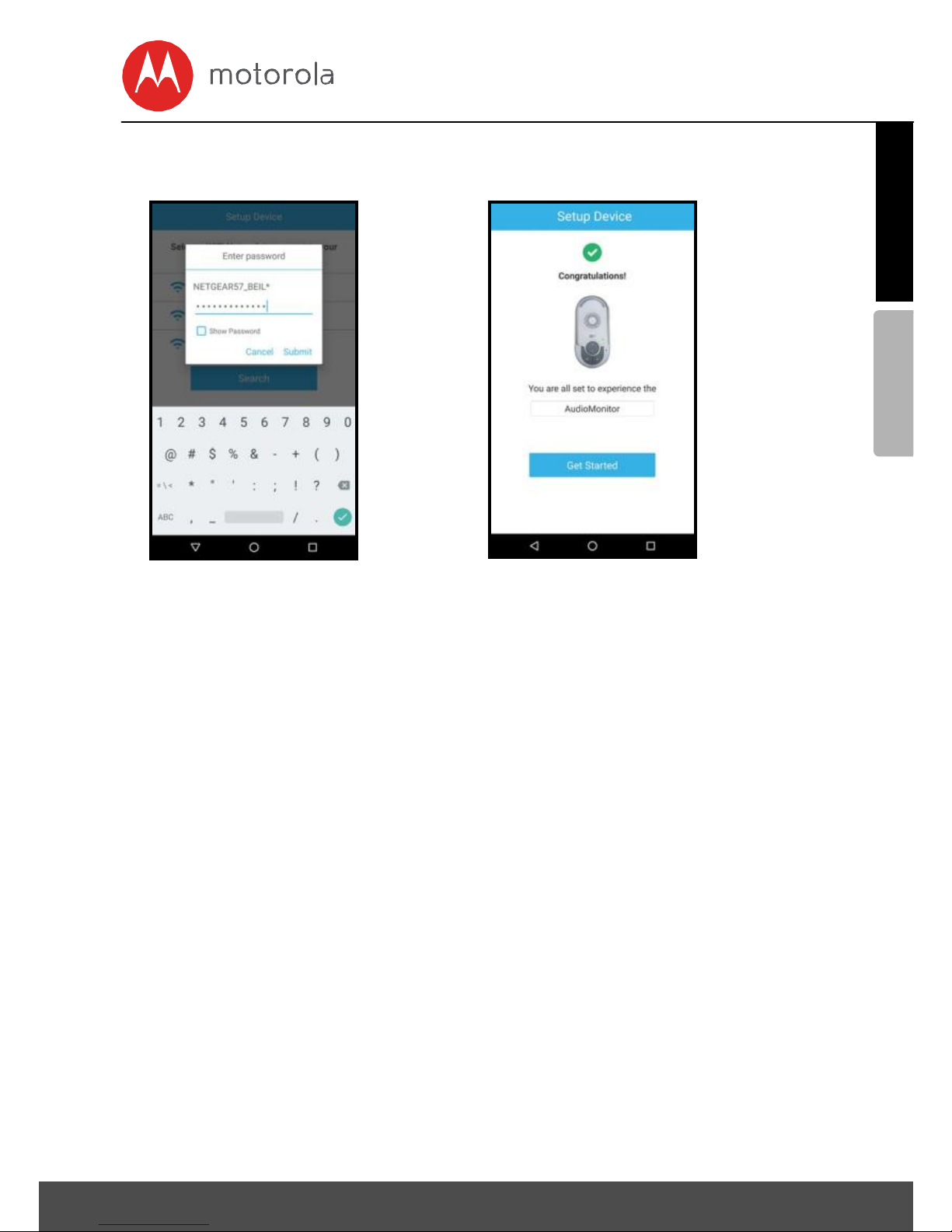

• Select your Wi-Fi® network, enter your password and then tap
Search. (PictureA10)
A10 A11
• Itwill take a few minutes for the device to connect to the Wi-Fi® the
device is successfully registered to your Samrt Nusery account. (Picture
A11)
• If connection fails, please tap Retry and repeat the steps starting from
steps 5.3.3.

14
ConnectingDevices
5.4 User Account and MBP162CONNECT setup on
iOS® Devices
5.4.1 Download Hubble Connect for Smart Nursery App
• Go to App Store to search for "Hubble Connect for Smart Nursery" App.
• Download "Hubble Connect for Smart Nursery" App and install it
on your iOS® device.

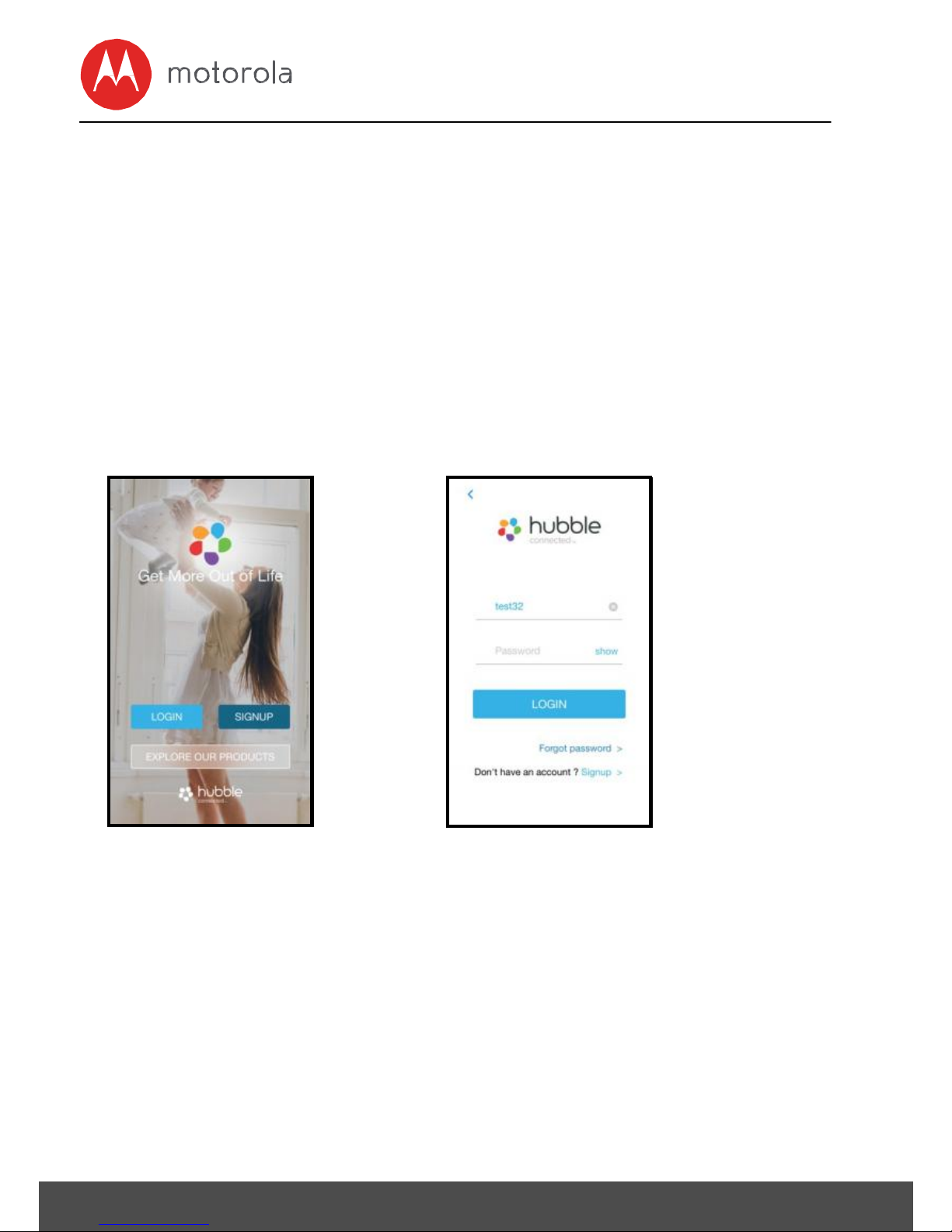

5.4.2 Run Smart Nursery App on your iOS® Device
• Ensure that your iOS® device is connected to your Wi-Fi® Router.
• Run the "Hubble Connect for Smart Nursery" App, enter your account
information,read through the Termsand Conditions, and then select "I
agree to the Terms of Use". (Pictures i1, i2)
i1 i2
Note: If you already have a Smart Nursery App account, please select
Already have an Account? to go to the next step.

ConnectingDevices
15
iOS
®
ENGLIS H

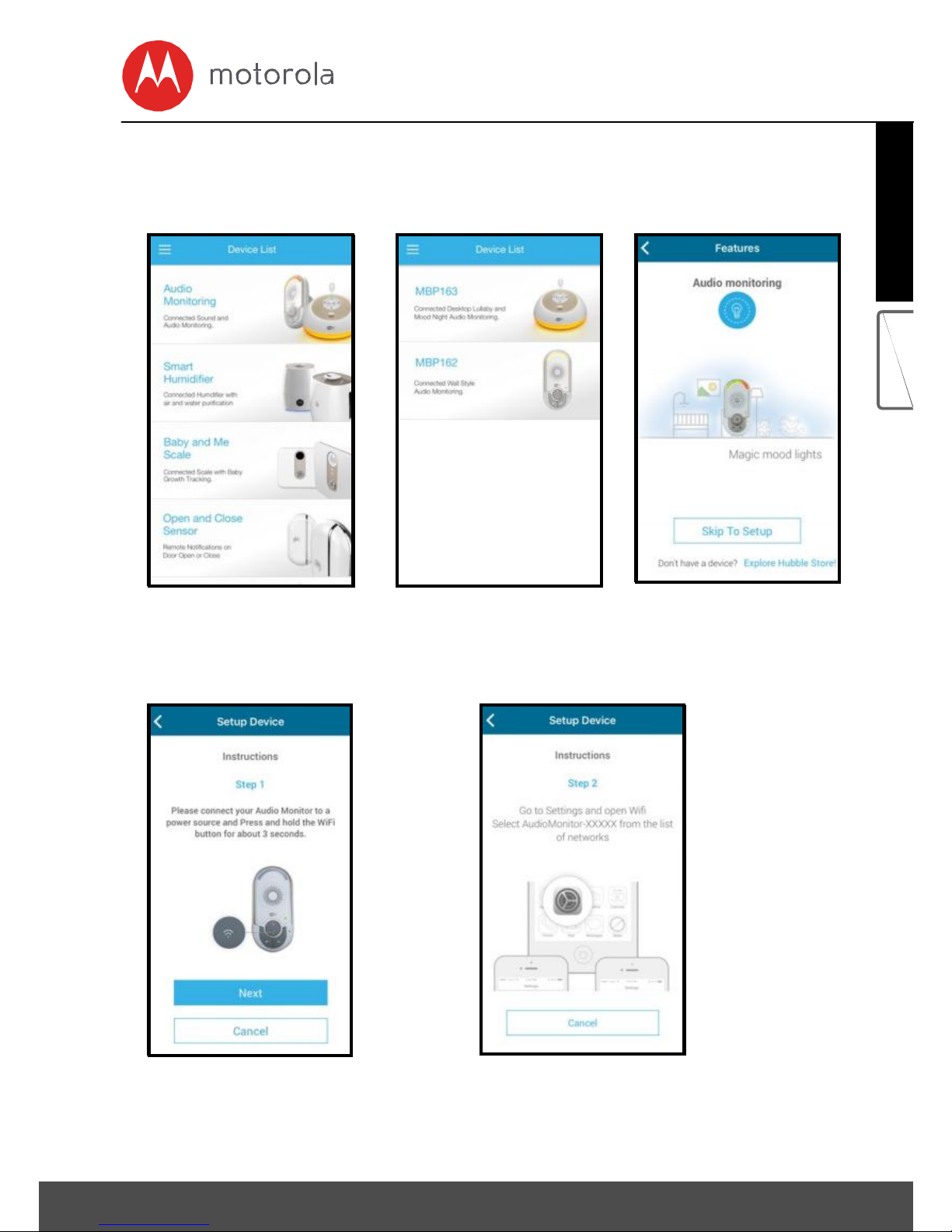

5.4.3 Add the MBP162CONNECT to your account
• Tap on Audio Monitors the tap MBP162 to add the device, read through
the features ofMBP162CONNECT or tap on Skip to setup . (Pictures i3,
i4, i5)
i3 i4 i5
• The following setup instructions will appear on the screen. (Pictures i6, i7)
I6 i7

16
ConnectingDevices
• PressandholdthePAIR buttonatthefrontofMBP162CONNECT,the
nightlight blinks indicating that the device is ready for pairing. You
will hear a series of bleeps and the power LED will flash once then
illuminate.
• Goto Settings >Wi-FimenuonyouriOS® device.(Picturei8).
• SelectyourdeviceSSID(AudioMonitor-0162XXXXXX)fromthe
listof networks. (Picture i9).
i8 i9

ConnectingDevices
17
iOS
®
ENGLIS H
• Press Home Key to return back, tap the Smart Nursery app to resume
setup, the SSID will be detected onyour iOS device.(Picture 10)
• Tap NEXT
• Select your Wi-Fi® network and tap Search. (Picture i11)
i10 i11

18
ConnectingDevices

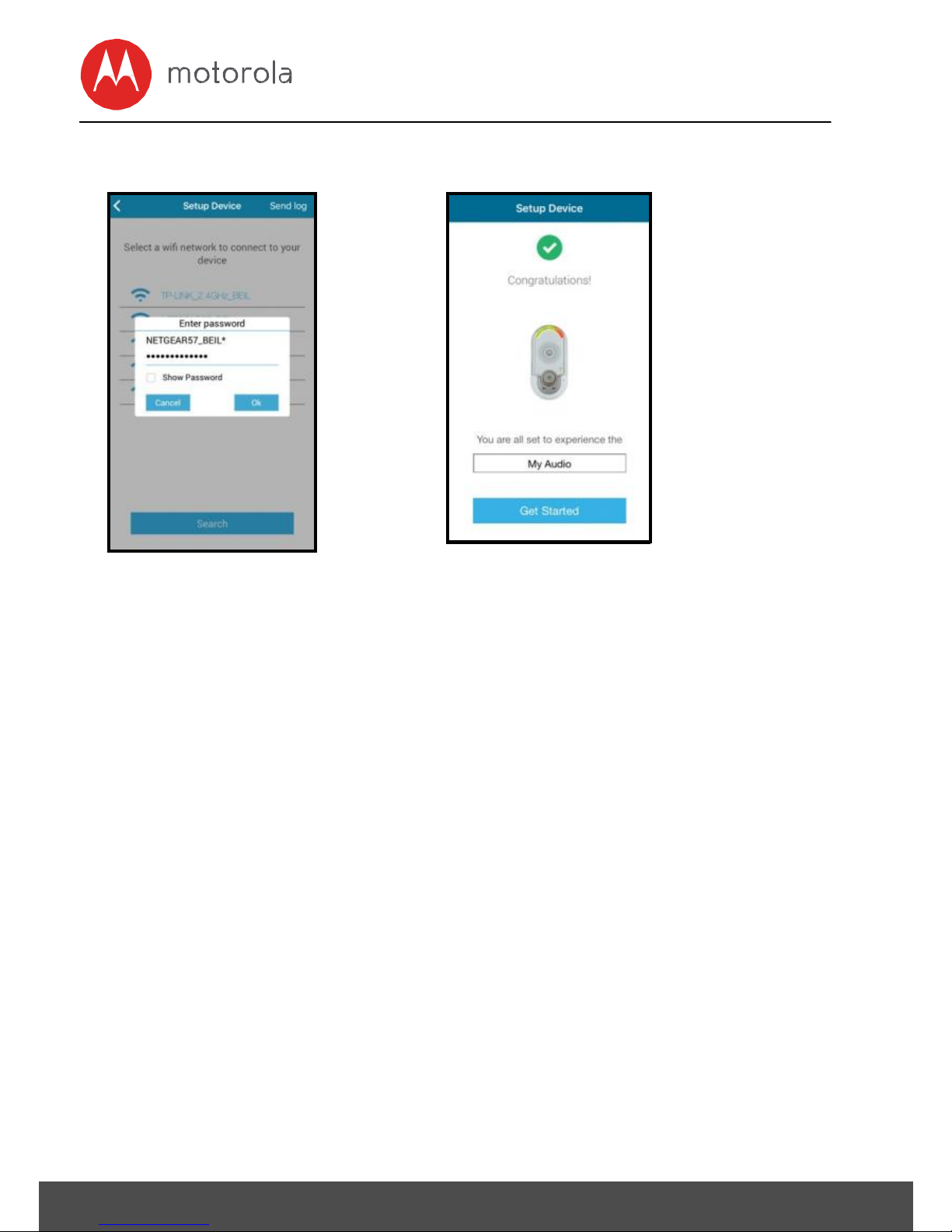

• Enter your Wi-Fi® password and tap OK. (Picture i12)
i12 i13
• Itwill take a few minutes for the device to connect to the Wi-Fi® network,
the device is successfully registered to your Samrt Nusery account.
(Picture i13)
• If connection fails, please tap Retry and repeat the steps starting from 5.4.3)
