User’s Guide
Portable Digital Audio Monitor with Baby Care Timer
The features described in this user’s guide are subject to modifications without prior notice.
Models: MBP169, MBP169-2

Welcome...
to your new Motorola Digital Audio Baby Monitor!
Thank you for purchasing the Digital Audio Baby Monitor. Now
you can hear your baby sleeping in another room. The Digital
Audio Baby Monitor also comes with a baby care timer that can
help you remember important baby-care tasks or maintain your
baby’s feeding, diaper change and napping schedule when he
or she is with other caregivers.
Please retain your original dated sales receipt for your records.
For warranty service of your Motorola product, you will need to
provide a copy of your dated sales receipt to confirm warranty
status. Registration is not required for warranty coverage.
For product-related questions, please call:
[phone] in Europe
Email: [e-mail]
This User’s Guide provides you with all the information you need
to get the most from your product.
Before you use the Digital Audio Baby Monitor, we recommend
that you insert and fully charge the battery in the parent unit,
so that it continues to work if you disconnect it from the mains
power to carry it to another location. Please read the Safety
Instructions on page 7 before you install the units.
Got everything?
• 1 x Parent Unit with desktop stand
• 1 x Baby Unit
• 1 x Rechargeable Ni-MH battery pack for the Parent Unit
• 1 x Battery door for Parent Unit
• 1 x Charging Pad (Baby Unit)
• 2 x Power adapters (Baby Unit and Parent Unit/Charging Pad)
In packs with dual parent units, you will find an additional parent
unit with power adapter and rechargeable NiMH battery pack.

Overview of the Parent Unit
1. Sound Level Indicator
2. LCD Display
3. Timer Buttons
4. Control Key Panel
UP / VOLUME+
Press to increase speaker
volume. While in a menu, press
to scroll up.
DOWN / VOLUME -
Press to decrease speaker
volume. While in a menu, press
to scroll down.
POWER ON/OFF 0
Press and hold to power on or
o.
Press to turn the screen on or
o.
MENU/SELECT
Press to enter the menu.
While in a menu, press to choose
an option, or save a setting.
TALK T
Press and hold to talk to the
baby unit.
5. Night Light
Press to turn night light on or
o.
6. Microphone
7. Lullaby
Press to start or stop lullaby
playback.
In timer setting: Press to reset
timer to 00-00
.
8. Power Jack
9. Speaker
10. Battery compartment cover
11. Desktop Stand
7
1
4
5
9
10
11
8
2
3
6

Parent Unit display icons
Connection status
- Displays when the parent unit is linked to the baby unit.
- Flashes when the link between the baby unit and the
parent unit is lost or the parent unit is out of range of the
baby unit.
Battery status
- scrolls when battery is charging.
- displays when battery is fully charged.
- displays when battery is low and needs charging.
- displays when battery is empty and needs charging.
Sound alert
- Displays when sound alert is ON.
- Flashes when sound alert is triggered.
Volume o
- Displays when speaker volume is turned o.
Night light
- Displays when night light is ON.
Lullaby
- Displays when lullaby is playing.

Overview of the Baby Unit
Important guidelines for installing your Digital Audio Baby Monitor
• To use your baby unit and parent unit together, you must be able to
establish a radio link between them, and the range will be aected by
environmental conditions.
• Any large metal object, like a refrigerator, a mirror, a filing cabinet,
a metallic door or reinforced concrete, between the baby unit and
parent unit may block the radio signal.
• The signal strength may also be reduced by other solid structures,
like walls, or by radio or electrical equipment, such as TVs, computers,
cordless or mobile phones, fluorescent lights or dimmer switches.
• If the signal is poor, try moving the parent unit and/or the baby unit to
dierent positions in the rooms.
1
23
4
5
6
1. Temperature Sensor
2. Speaker
3. Power Jack
4. Power/Link indicator
On steadily when the baby unit
is powered on and linked to the
parent unit.
O when the baby unit is
powered o.
Flashes when the baby unit is
out of range of the parent unit.
5. Control Key Panel
UP / VOLUME+
Press to increase speaker
volume.
DOWN / VOLUME -
Press to decrease speaker volume.
POWER/ LULLABY 0/
Press and hold to power the
baby unit on or o.
In idle mode: Press to enter
lullaby menu.
In lullaby menu: Press to play or
select lullaby.
PLAY/STOP
Press to start or stop lullaby
playback.
NIGHT LIGHT
Press to turn night light on or
o.
6. Microphone

6Table of contents
Table of contents
1. Safety Instructions..........................................................................7
2. Getting Started..............................................................................10
2.1 Baby unit power supply.......................................................................10
2.2 Parent unit battery installation and power supply.....................11
2.3 Desktop stand on parent unit............................................................12
2.4 Powered by portable battery on baby unit..................................12
3. Using Your Digital Audio Baby Monitor................................... 13
3.1 Power on or o ......................................................................................13
3.2 Speaker volume.......................................................................................13
3.3 Night light..................................................................................................14
3.4 Timers .........................................................................................................14
3.5 Lullaby ........................................................................................................18
3.6 Select display language for the parent unit.................................18
3.7 Turn sound alert on or o ...................................................................18
3.8 Talk to the baby unit .............................................................................19
3.9 Reset settings to default .....................................................................19
4. Disposal of the Device (environment) .................................... 20
5. Cleaning........................................................................................... 21
6. Troubleshooting ............................................................................22
7. General Information..................................................................... 24
8. Technical Specifications ............................................................. 28

7
Safety Instructions
ENGLISH
1. Safety Instructions
WARNING:
Strangulaton Hazard. Chldren have
STRANGLED n cords. Keep ths cord out of the
reach of chldren (more than 1 metre away).
Never use extenson cords wth AC Adapters.
Only use the AC Adapters provded.

8Safety Instructions
BABY MONITOR SET UP & USE:
Choose a location for the Digital Audio Baby Monitor that
will provide the best audio reception of your baby in his/
her cot.
Place the Baby Unit on a flat surface, such as a dresser,
bureau or shelf, or mount the Unit on a wall securely using
the keyhole slots under the stand.
NEVER place the Baby Unit or cords within the cot.
WARNING
This Digital Audio Baby Monitor is compliant with all relevant
standards regarding electromagnetic fields and is, when handled as
described in the User’s Guide, safe to use. Therefore, always read the
instructions in this User’s Guide carefully before using the device.
• Adult assembly is required. Keep small parts away from children
when assembling.
• This product is not a toy. Do not allow children to play with it.
• This Digital Audio Baby Monitor is not a substitute for responsible
adult supervision.
• Keep this user’s guide for future reference.
• Keep the cords out of reach of children.
• Do not cover the Digital Audio Baby Monitor with a towel or
blanket.
• Test this monitor and all its functions so that you are familiar with
it prior to actual use.
• Do not use the Digital Audio Baby Monitor in damp areas or close
to water.
• Do not install the Digital Audio Baby Monitor in extreme cold or
heat, direct sunlight, or close to a heat source.

9
Safety Instructions
ENGLISH
• Only use the chargers and power adapters provided. Do not use
other chargers or power adapters as this may damage the device
and battery pack.
• Only insert a battery pack of the same type.
• Do not touch the plug contacts with sharp or metal objects.
• Connect the power adapters to easily accessible mains power.
CAUTION
There is a risk of explosion if the battery is replaced by an incorrect
type. Dispose of used batteries according to the instructions.
Use only rechargeable battery pack with rating: 2.4V 400mAh

10 Getting Started
2. Getting Started

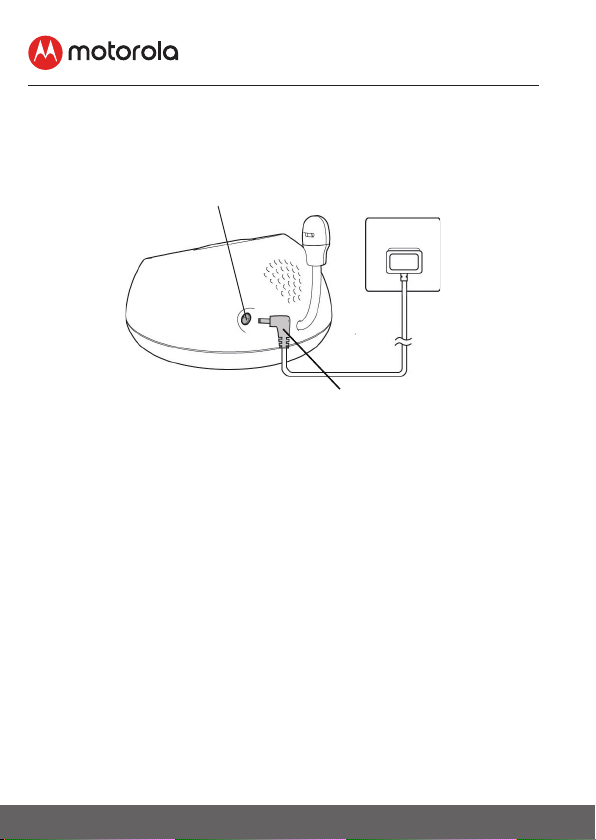

2.1 Baby unit power supply
DC JACK
DC PL
UG
1. Insert the DC plug of the power adapter with the bigger DC plug
into the DC jack on the back of the baby unit.
2. Connect the other end of the power adapter to a suitable mains
power.
NOTE
Only use the provided power adapter.

11
Getting Started
ENGLISH
2.2 Parent unit battery installation and power
supply
A rechargeable battery pack is supplied and should be fitted, so that
the parent unit can be carried to another location without losing the
link with the baby unit(s). Charge the parent unit before using it for
the first time or when the parent unit indicates that battery is low.
We recommend that the unit be charged for 15 hours prior to first
use.
DC PLUG
DC JACK
THIS SIDE UP
1. Slide off the battery compartment cover.
2. Insert the plug of the rechargeable battery pack into the jack
inside the battery compartment.
3. Fit the battery pack into the compartment, with the label THIS
SIDE UP facing up.
4. Slide the battery compartment cover back until it clicks into
place.
5. Insert the DC plug of the power adapter with the smaller DC plug
into the DC jack on the side of the parent unit.
6. Connect the other end of the power adapter to a suitable mains
power.
7. The charging indicator comes on.
NOTE
Only use the provided power adapter and battery pack.
We recommend that you install and fully charge the battery in the
parent unit, so that it continues to work if you disconnect it from the
mains power to carry it to another location.

12 Getting Started

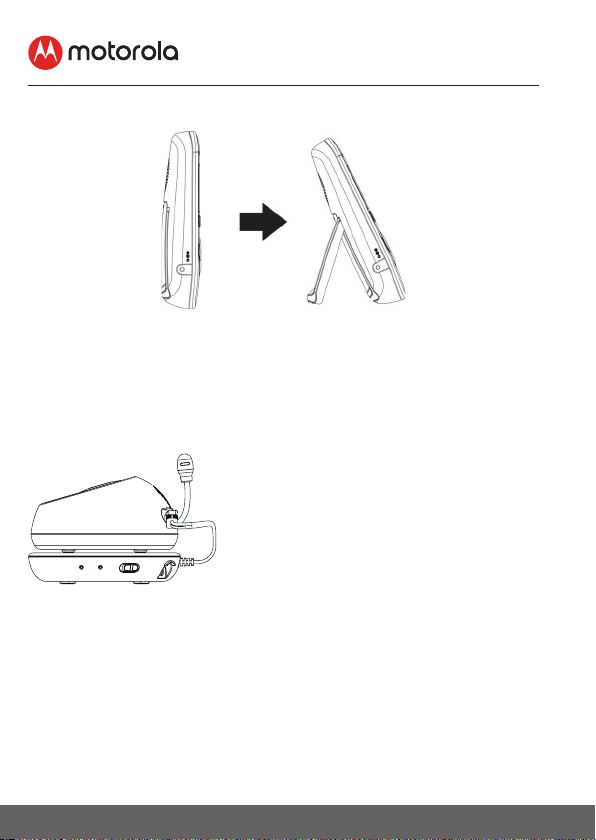

2.3 Desktop stand on parent unit
The parent unit comes with a desktop stand attached to the back of
the unit. To place the parent unit on a desk, simply pull out the stand
as shown above.
NOTE
Place the parent unit on a flat, even surface.
2.4 Powered by portable battery on baby unit
1. Insert the power plug of portable battery pack into the DC jack
on the back of baby unit as shown.
2. Switch the POWER button to the ON position to turn the Battery
Pack on, the ON/OFF indicator lights in green and the Baby Unit
is powered on.
3. The Battery Level indicator lights in red when battery is low,
connect power supply and keep for full charging.
NOTE
The battery is not a user-accessible item. Please contact the helpline
if you think it needs replacing.
The Portable battery is assembled with
a built-in rechargeable battery pack
(Ni-MH battery 3.6V, 600mAh) to
give up to 4 hours monitor operation
without power connection, please
charge the unit at least 16 hours for the
first time use.

13
Using Your Digital Audio Baby Monitor
ENGLISH
3. Using Your Digital Audio Baby
Monitor
Please read these instructions carefully, and be aware that this
Digital Audio Baby Monitor is only intended as an aid. It is not a
substitute for responsible and proper adult supervision.
3.1 Power on or o
3.1.1 Power on or o the baby unit
• Press and hold 0to power on the baby unit. The Power/Link
indicator turns on.
• Press and hold 0again to power off the baby unit. The Power/Link
indicator turns off.
3.1.2 Power on or o the parent unit
• Press and hold 0to power on the parent unit. The LCD screen
turns on.
• Press and hold 0again to power off the parent unit. The LCD
screen turns off.
NOTE
If you place the parent and baby units too close together, you may
hear a high pitched noise. This is not a fault. The units are designed
to be operated at some distance apart, e.g. in separate rooms, so
move the units further apart.
If the Power/Link indicator flashes on the baby unit or parent unit,
they are not linked to each other. Make sure that both units are
powered on, and reduce the distance between the units, but not
closer than 1 metre.
3.2 Speaker volume
3.2.1 Adjust speaker volume of the baby unit
You can adjust the speaker volume of the baby unit from Volume 1 to
Volume 5 .
• Press or on the baby unit.

14 Using Your Digital Audio Baby Monitor
3.2.2 Adjust speaker volume of the parent unit
You can adjust the speaker volume of the parent unit from Volume 1
to Volume 3 , or turn it off.
• Press or on the parent unit when it is not in use.
The sound level indicator lights up when you adjust the speaker
volume. The number of LED lights indicate how loud the volume
has been raised. When the speaker volume is set to off, the
screen displays .
3.3 Night light
Turn on night light so that the room is gently lit and isn’t so dark at
night. The soft glow can allay a child’s fears and help them or you
avoid obstacles when up and around the room at night.
3.3.1 Turn on or turn o night light on the baby
unit
1. When night light is off, press to turn it on.
The bottom part of the baby unit lights up.
2. When night light is on, press to turn it off.
3.3.2 Turn on or turn o night light on the parent
unit
1. When the night light is off, press to turn it on.
The LCD screen lights up.
2. When the night light is on, press to turn it off.
3.4 Timers
You can set timers on the parent unit to remind you or caregivers of
the time to feed the baby, change baby’s diaper or put the baby to
bed. If the time limit is reached, the corresponding timer button will
flash and the parent unit will emit an alarm for 30 seconds. Press any
key on the parent unit to stop the alarm and reset the timer to 00-00 .

15
Using Your Digital Audio Baby Monitor
ENGLISH
3.4.1 Set feeding timer
1. Press on the parent unit.
2. Press -or +to adjust the timer.
Each key press represents an interval of 30 minutes, up to an
interval of 24 hours.
If the next feeding time is 4 hours later, press -or +to adjust the
timer until 04-00 is displayed.
3. Press or to save and start the timer.
The screen will display SAVED before returning to idle screen.
The feeding timer button remains lighted when the timer is
running.
3.4.2Reset feeding timer
1. Press on the parent unit.
The timer will display on the screen.
2. Press to reset the timer to 00-00 , then press -or +to adjust
the timer.
Each key press represents an interval of 30 minutes, up to an
interval of 24 hours.
3. Press or to save and start the adjusted timer.
The screen will display SAVED before returning to idle screen.
The feeding timer button remains lighted when the timer is
running.
NOTE
If no key is pressed within 10 seconds after adjusting the timer in
step 2, the adjusted timer will be stored automatically, but the timer
will not start.
To start the timer, press and then press or .
When the time limit is reached, the feeding timer button will flash
and the parent unit will emit an alarm for 30 seconds. Press any key
on the parent unit to stop the alarm and reset the timer to 00-00 .

16 Using Your Digital Audio Baby Monitor
3.4.3Set diaper change timer
1. Press on the parent unit.
2. Press -or +to adjust the timer.
Each key press represents an interval of 30 minutes, up to an
interval of 24 hours.
If the next diaper change time is 3 hours later, press -or +to
adjust the timer until 03-00 is displayed.
3. Press or to save the timer.
The screen will display SAVED before returning to idle screen.
The diaper change timer button remains lighted when the
timer is running.
3.4.4Reset diaper change timer
1. Press on the parent unit.
The timer will display on the screen.
2. Press to reset the timer to 00-00 , then press -or +to adjust
the timer.
Each key press represents an interval of 30 minutes, up to an
interval of 24 hours.
3. Press or to save and start the adjusted timer.
The screen will display SAVED before returning to idle screen.
The diaper change timer button remains lighted when the
timer is running.
NOTE
If no key is pressed within 10 seconds after adjusting the timer in
step 2, the adjusted timer will be stored automatically, but the timer
will not start.
To start the timer, press and then press or .
When the time limit is reached, the diaper change timer button
will flash and the parent unit will emit an alarm for 30 seconds. Press
any key on the parent unit to stop the alarm and reset the timer to
00-00.

17
Using Your Digital Audio Baby Monitor
ENGLISH
3.4.5Set sleep timer
1. Press on the parent unit.
2. Press -or +to adjust the timer.
Each key press represents an interval of 30 minutes, up to an
interval of 24 hours.
If the next napping time is 2 hours later, press -or +to adjust
the timer until 02-00 is displayed.
3. Press or to save and start the timer.
The screen will display SAVED before returning to idle screen.
The sleep timer button remains lighted when the timer is
running.
3.4.6Reset sleep timer
1. Press on the parent unit.
The timer will display on the screen.
2. Press to reset the timer to 00-00 , then press -or +to adjust
the timer.
Each key press represents an interval of 30 minutes, up to an
interval of 24 hours.
3. Press or to save and start the adjusted timer.
The screen will display SAVED before returning to idle screen.
The sleep timer button remains lighted when the timer is
running.
NOTE
If no key is pressed within 10 seconds after adjusting the timer in
step 2, the adjusted timer will be stored automatically, but the timer
will not start.
To start the timer, press and then press or .
When the time limit is reached, the sleep timer button will flash
and the parent unit will emit an alarm for 30 seconds. Press any key
on the parent unit to stop the alarm and reset the timer to 00-00 .

18 Using Your Digital Audio Baby Monitor
3.5 Lullaby
You can play lullaby to drown out disturbances so that your child
can slumber peaceful and easily.
3.5.1 Select lullaby on the baby unit
1. Press 0/ on the baby unit to enter lullaby menu.
2. Press 0/ repeatedly to select your preferred lullaby.
3.5.2 Start or end lullaby playback from the baby
unit
1. Press 0/ on the baby unit to enter lullaby menu.
2. Press 0/ or to start playing the last selected lullaby.
3. Press 0/ or to end playback.
3.5.3 Start or end lullaby playback from the parent
unit
1. To start lullaby playback, press when the parent unit is not in
use.
2. To end lullaby playback, press .
3.6 Select display language for the parent unit
Choose from 3 languages.
1. Press on the parent unit when is not in use.
2. Press -or +to scroll to LANGUAGE and then press .
3. Press -or +to select ENGLISH, FRANÇAIS or ESPAÑOL.
4. Press to confirm your selection.
3.7 Turn sound alert on or o
You can turn on the sound alert so that the parent unit beeps when
a loud sound is detected by the baby unit.
is displayed when sound alert is enabled.
1. Press on the parent unit when it is not in use.
2. Press -or +to scroll to SOUND ALERT and then press .
3. Press -or +to select ON? when the current setting is off, or
OFF? when the current setting is on.
4. Press to confirm.

19
Using Your Digital Audio Baby Monitor
ENGLISH
3.8 Talk to the Baby Unit
You can use the TALK function of the parent unit to talk to and
comfort your baby.
To talk to the baby unit:
1. Press and hold Ton the parent unit.
2. Speak towards the microphone on the parent unit.
Your voice will be broadcasted to the baby unit.
3.9 Reset settings to default
1. Press and hold on the parent unit when it is not in use.
2. Press -or +to scroll to RESET and then press .
3. Press to confirm.
All settings will be reset to default.

20 Disposal of the Device (environment)
4.
Disposal of the Device
(environment)
At the end of the product life cycle, you should not
dispose of this product with normal household waste.
Take this product to a collection point for the recycling of
electrical and electronic equipment. The symbol on the
product, user’s guide and/or box indicates this.
Some of the product materials can be re-used if you take them to a
recycling point. By reusing some parts or raw materials from used
products you make an important contribution to the protection of
the environment.
Please contact your local authorities in case you need more
information on the collection points in your area.
Dispose of the battery pack in an environmentally-friendly manner
according to your local regulations.
