Motorola COMFORT45CONNECT User manual

The features described in this User’s Guide are subject to modifications without prior notice.
User’s Guide

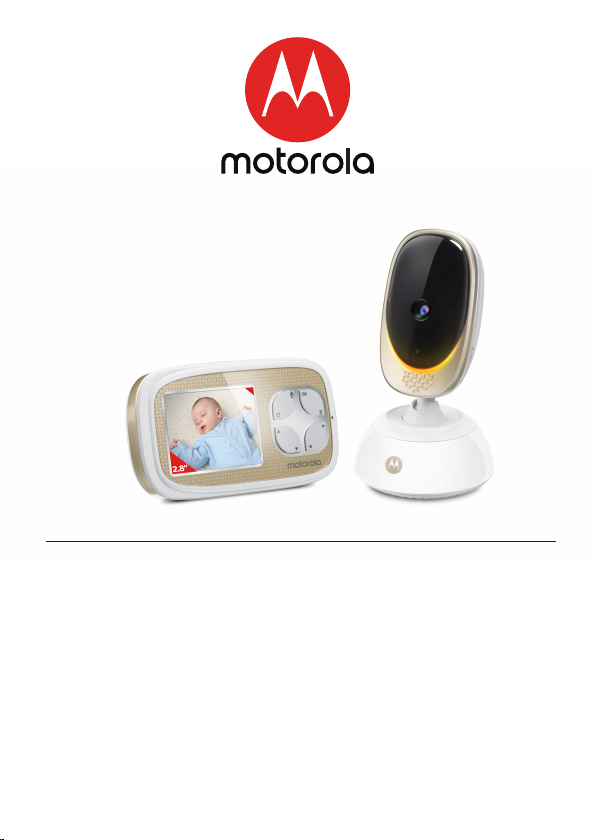

2.8" Wi-Fi®Video Baby and Home Monitor
Models: COMFORT45CONNECT, COMFORT45CONNECT-2,
COMFORT45CONNECT-3, COMFORT45CONNECT-4

Welcome...
to your new Motorola Wi-Fi®Video Baby
and Home Monitor !
Thank you for purchasing the Video Baby Monitor. Now you can see
and hear your baby sleeping in another room or you can monitor
your older children in their playroom.
Please retain your original dated sales receipt for your records. For
warranty service of your Motorola product, you will need to provide
a copy of your dated sales receipt to confirm warranty status.
Registration is not required for warranty coverage.
For product related questions, please call:
[phone] in Europe
E-mail: [e-mail]
This User’s Guide provides you with all the information you need to
get the most from your product.
Before you can use the baby monitor, we recommend you insert
and fully charge the battery in the Parent Unit, so that it continues
to work if you disconnect it from the power supply to carry it to
another location. Please read the Safety Instructions on pages 7 - 9
before you install the units.
Got everything?
• 1 x Parent Unit (with built-in Li-ion battery)
• 1 x Baby Unit (Camera)
• 2 x Power adapters (Parent Unit and Baby Unit)
In multi-camera packs, you will find one or more additional baby
units with power adapter units.

Overview of the Parent Unit

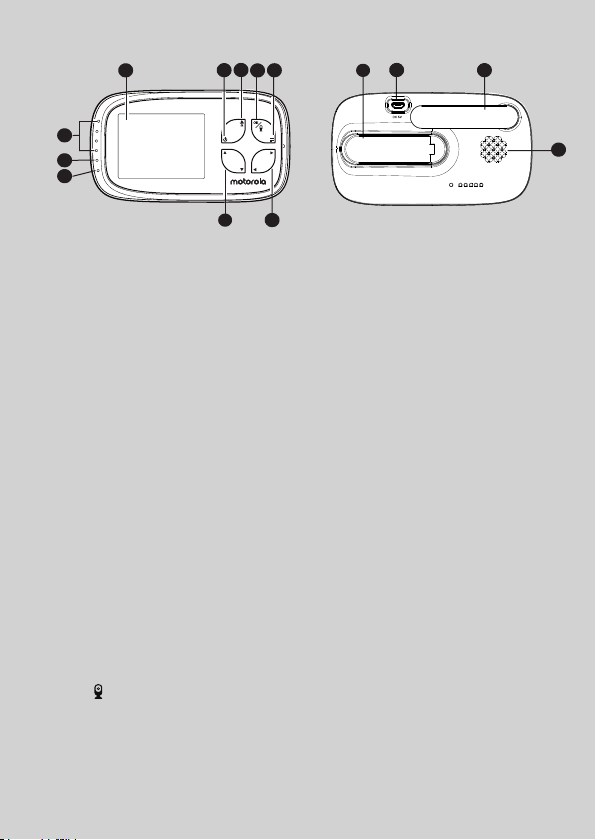

1. Display (LCD screen)
2. Battery status, Power, Sound
level, Pairing indicators
a) Lights up in blue when the
Parent Unit’s battery is being
charged.
b) Lights up in green when the
Parent Unit is switched on.
c) Green-Orange-Red-Red
Show the sound level detected
by the Baby Unit - the louder
the sound detected, the more
LEDs light up. Flashes rapidly in
green when the Parent Unit is
searching for the Baby Unit, or
is in pairing mode.Parent Unit is
searching for the Baby Unit, or is
in pairing mode.
6. Main menu button M
Press to enter/exit menu mode.
5. OK / button
When in a menu, press to choose
an item, or save a setting.
Press to enter remote scan
mode.
DOWN -
Press to decrease speaker
volume in camera viewing mode.
When in a menu, press to scroll
down.
When in remote scan mode,
press to tilt down.
8. Control key panel
LEFT <
Decrease brightness in camera
viewing mode.
When in a menu, press to scroll
left. When in remote scan mode,
press to pan left.
RIGHT >
Increase brightness in camera
viewing mode.
When in a menu, press to scroll
right.
When in remote scan mode,
press to pan right.
4. TALK BACK T
Hold down to talk back to the
baby unit.
3. Power button 0
Press and hold to switch the unit
On/Off.
Press to turn the video screen
Off/ On.
10. Power socket
9. Support Stand
12. Speaker
11. Antenna
13456910 11
78
2c
2b
2a
12
7. Control key panel
UP +
Press to increase speaker
volume in camera viewing mode.
When in a menu, press to scroll
up. When in remote scan mode,
press to tilt up.

Parent Unit display icons
Signal Strength
Camera Power Mode - AC or Battery
Camera Patrol Mode
Camera Identification Number
Speaker on / o
Audio Playlist
Zoom menu / mode
Night vision
Alarm timer
Parent unit battery status
Brightness Level
Speaker volume
Video on timer
Add camera
Delete camera
View camera
Talk back function

.

Overview of Your Baby Unit (Camera)
1
5
2
36
7
10
9
4
8
Important guidelines for installing your Baby Monitor
• To use your Video Monitor Baby and the Parent Unit together, you
must be able to establish a radio link between them, and the range
may be aected by environmental conditions.
• Any large metal object, like a refrigerator, a mirror, a filing cabinet,
metallic doors or reinforced concrete between the Baby and Parent
Units may block the radio signal.
• The signal strength may also be reduced by other solid structures, like
walls or electrical equipment, such as radios, TVs, computers, cordless
or mobile phones, fluorescent lights or dimmer switches.
• Use of other 2.4 GHz products, such as wireless networks
(Wi-Fi®routers), Bluetooth®systems, or microwave ovens, may cause
interference with this product, so keep the Baby Monitor at least 5 feet
from these types of products, or turn them o if they appear to be
causing interference.
• If the signal is weak, try moving the Parent and/or the Baby Unit to
dierent positions in the rooms.
1. Camera Lens
2. Microphone
3. Mood Light
4. Speaker
5. Light Sensor
(Night Vision Mode)
6. Pair button
Press and hold to pair with the
Parent Unit.
7. Power Adapter Socket
8. Power indicatior
Lights up in blue when the Baby
Unit is switched on and linked to
the Parent Unit.
9. Temperature Sensor
10. Power ON/OFF switch
Slide to switch the Baby Unit on
or off.

6
Table of contents
1. Safety Instructions..........................................................................8
2. Getting Started............................................................................... 11
2.1 Power Up the Baby Unit..................................................................... 11
2.2 Charge the Parent Unit......................................................................12
3. Using the Baby Monitor............................................................... 13
3.1 Setting Up...............................................................................................13
3.2 Power On or O the Baby Unit ......................................................13
3.3 Power On or O the Parent Unit ...................................................13
3.4 Night Vision Mode...............................................................................14
3.5 Talk Mode................................................................................................14
3.6 Video ON/OFF......................................................................................14
3.7 Remote Pan Scan.................................................................................14
4. Parent Unit Menu Options........................................................... 15
4.1 Adjust Speaker Volume .....................................................................15
4.2 Set the Screen Brightness................................................................15
4.3 Audio Playlist.........................................................................................15
4.3.1 Lullaby/Soothing Sounds Playback .......................................15
4.3.2 Audio Book (English only) Playback .....................................15
4.3.3 Personal Audio Recordings Playback ...................................16
4.3.4 Stop Playback.................................................................................16
4.4 Set Mood Light .....................................................................................16
4.5 Set Alarm ................................................................................................17
4.6 Power Saving Mode ............................................................................ 17
4.7 Zoom......................................................................................................... 17
4.8 Set Temperature Format...................................................................18
4.9 Add Camera (Registration)..............................................................18
4.10 View Camera..........................................................................................19
4.11 Delete Camera ......................................................................................19
Table of contents

7
ENGLISH
Table of contents
5. Wi-Fi® Internet Viewing .............................................................. 20
5.1 Minimum System Requirements....................................................20
5.2 Getting Started - Connecting Devices ........................................ 21
5.2.1 Setup..................................................................................................21
5.3 User Account and Camera Setup on Android™ Devices ..... 22
5.3.1 Power ON and Connect the Camera .................................... 22
5.3.2 Download Hubble for Motorola Monitors App ................. 22
5.3.3 Run Hubble for Motorola Monitors App on Android™
device................................................................................................22
5.3.4 Add the Camera to your account ..........................................23
5.4 User Account and Camera Setup on iPhone®/iPad® .............28
5.4.1 Power ON and Connect the Camera ....................................28
5.4.2 Download Hubble for Motorola Monitors App .................28
5.4.3 Run Hubble for Motorola Monitors App on iPhone®/
iPad® ..................................................................................................28
5.4.4 Add the Camera to your account ..........................................29
6. Camera Functions ........................................................................ 34
6.1 Connecting the Camera Unit to power ......................................34
6.2 Overview of the Features on Hubble App................................34
7. Working with PC/Notebook...................................................... 36
8. Procedure for Resetting the Camera....................................... 36
9. Disposal of the Device (environment) .....................................37
10. Cleaning...........................................................................................37
11. Help ................................................................................................. 38
12. General Information..................................................................... 46
13. Technical Specifications ............................................................. 50

8Safety Instructions
1. Safety Instructions

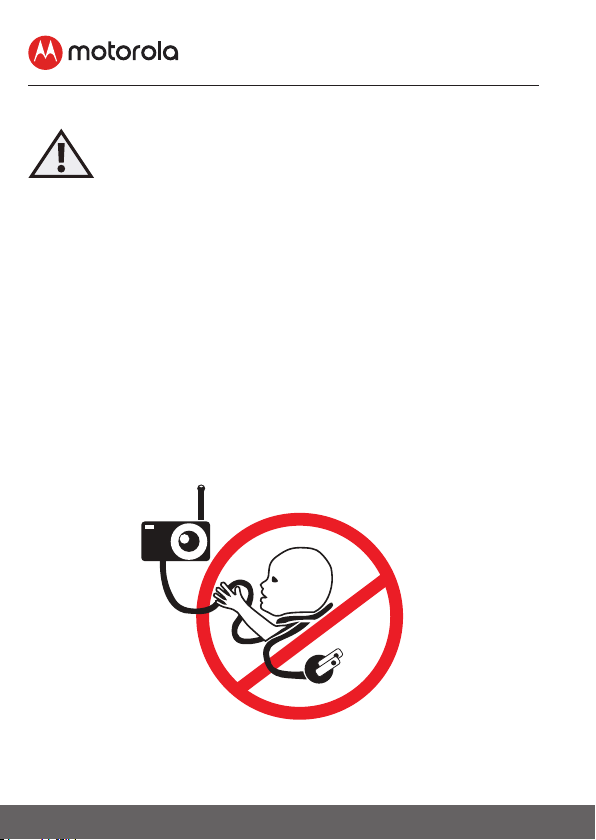

WARNING:
Strangulaton Hazard: Chldren have
STRANGLED n cords. Keep ths cord out of
the reach of chldren (more than 1metre away).
Do not remove ths tag. Never use extenson
cords wth AC Adapters. Only use the AC
Adapters provded.

9
Safety Instructions
ENGLISH
BABY UNIT SET UP & USE:
• Determine a location for the Baby Unit that will provide the
best view of your baby in his/her crib.
• Place the Baby Unit on a flat surface, such as a dresser, bureau,
or shelf or mount the Unit to a wall securely using the keyhole
slots in the underside of the stand.
• NEVER place the Baby Unit or cords within the crib.
WARNING
This Baby Monitor is compliant with all relevant standards regarding
electromagnetic fields and is, when handled as described in the
User's Guide, safe to use. Therefore, always read the instructions in
this User's Guide carefully before using the device.
• Adult assembly is required. Keep small parts away from children
when assembling.
• This product is not a toy. Do not allow children to play with it.
• This Baby Monitor is not a substitute for responsible adult
supervision.
• Keep this User’s Guide for future reference.
• Do not place the Baby Unit or cords in the crib or within reach of
the baby (the Unit and cords should be more than 1 metre away).
• Keep the cords out of reach of children.
• Do not cover the Baby Monitor with a towel or blanket.
•Test this monitor and all its functions so that you are familiar with it
prior to actual use.
• Do not use the Baby Monitor in damp areas or close to water.
• Only use the chargers and power adapters provided. Do not use
other chargers or power adapters as this may damage the device
and battery pack.
• Only insert a battery pack of the same type.

10 Safety Instructions
• Do not touch the plug contacts with sharp or metal objects.
• Connect the power adapters to easily accessible electrical outlets.
CAUTION
The Parent Unit includes a built-in, lithium-ion rechargeable battery
pack, which is not a user-accessible item. If you think the battery
needs replacing, please contact the helpline. Do not try to replace it
yourself.
Risk of explosion if battery is replaced by an unapproved battery
type. Dispose of used batteries according to their instructions.

11
Getting Started
ENGLISH
2. Getting Started

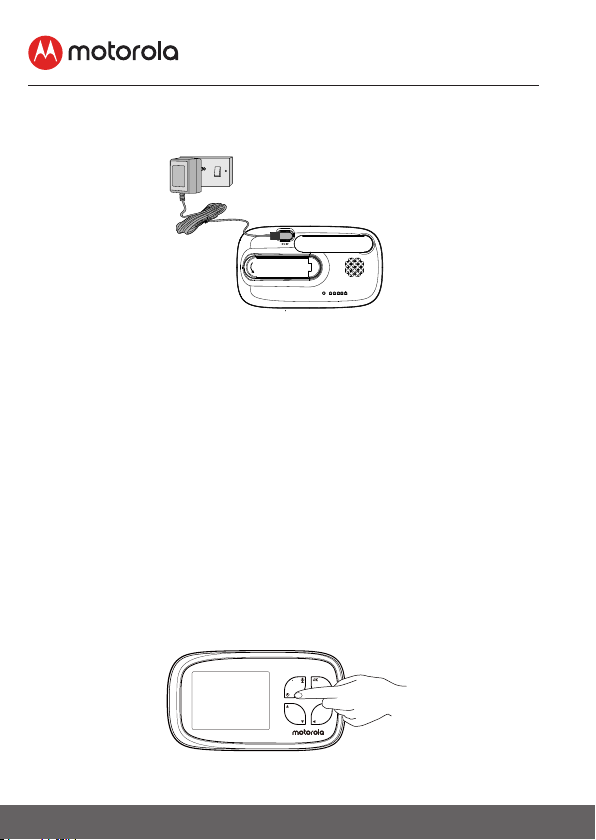

2.1 Power Up the Baby Unit
• Place the Baby unit near a suitable electrical outlet in the room
where you’re going to be monitoring your baby most of the time.
It should also be at least 3 feet away from your baby.
• Plug the micro-USB plug of power adapter (DC5V/1000mA) into
the Baby unit, connect other end to a suitable electrical outlet.
• Slide the Power
ON OFF
switch on the side of the baby unit up
to turn it on.
IMPORTANT
Only use the supplied power adapter.

12 Getting Started
2.2 Charge the Parent Unit
The Parent Unit comes with a built-in Li-ion battery.
• Plug the micro-USB plug of power adapter (DC5V/1000mA) into the
Parent unit, connect the other end to a suitable electrical outlet.
• Leave to charge for 16 hours.
The first time you use the Parent unit, or if you haven’t used it for long time,
it’ll take 16 hours to fully charge. The battery life on a single charge lasts
for 4 hours. We recommend you keep the cable plugged into an electrical
outlet if you’re going to use for longer than this or throughout the night.
When the battery gets very low, it’ll take about 30 minutes to charge
enough for you to use it for a short time. To charge the Parent unit in the
shortest amount of time, turn it off while it’s charging.
• After the Parent unit has charged for 16 hours you can switch it on.
• Before you do, move the Parent unit at least 3 feet from the Baby unit.
Any closer and you might get audio feedback sounds.
• Press and hold the
0
button to turn the Parent unit on, the Parent unit and
Baby unit are automatically linked and ready to use.

13
Using the Baby Monitor
ENGLISH
3. Using the Baby Monitor
Please read these instructions carefully, and be aware that this
baby monitor is only intended as an aid. It is not a substitute for
responsible adult supervision.
3.1 Setting Up
• Make sure that the Baby Unit and Parent Unit are both switched
on.
• Place the Baby Unit in a convenient location (e.g. on a table) and
point the camera lens towards the area you want to monitor.
NOTE
Do not place the Baby Unit within reach of a child or baby! If there
is interference with the picture or sound, try moving the units to
different locations, and ensure that they are not close to any other
electrical equipment.
If you place the Parent Unit and Baby Unit too close together, you
may hear a high pitched noise. This is not a fault. The units are
designed to be operated at some distance apart. So move the units
further apart.
3.2 Power On or O the Baby Unit
Slide the Power
ON OFF
switch to the ON position to switch on
the Baby Unit. The power indicator lights up in blue.
Slide the Power
ON OFF
switch to the OFF position to switch off
the Baby Unit. The power indicator goes off.
3.3 Power On or O the Parent Unit
Press and hold the Power 0button to switch on the Parent Unit. The
power indicator lights up in green.
Press and hold the Power 0button to switch off the Parent Unit. The
power indicator goes off.

14 Using the Baby Monitor
3.4 Night Vision Mode
The Baby Unit has high-intensity infrared LEDs for picking up clear
images in the dark. When the built-in light sensor on the side of
the Baby Unit detects a low level of ambient light, the LEDs will
automatically activate and the screen on the Parent Unit will display
in black and white. The icon will be displayed on the screen.
3.5 Talk Mode
Press and hold the TALK button Ton the parent unit to talk to your
lovely baby through the baby unit’s loudspeaker.
3.6 Video ON/OFF
When it is at standby mode, toggle Power On/Off button 0to turn
the LCD screen on or off, whilst still leaving the audio monitor on.
3.7 Remote Pan Scan
The baby monitor and camera with pan scan to keep an eye on your
child from screen, you can remotely pan scan the video image as
needed.
1. Press the O/ button to enter scan mode.
2. Press the <LEFT/>RIGHT button to pan scan.
3. Press the +UP /-DOWN button to move the image upward or
downward.
4. Press the O/ button to exit scan mode.

15
Parent Unit Menu Options
ENGLISH
4. Parent Unit Menu Options
4.1 Adjust Speaker Volume
The Parent Unit has 8 volume levels + off.
To adjust volume, press the + UP /-DOWN button when the Parent
Unit is in camera viewing mode.
4.2 Set the Screen Brightness
The Parent Unit has 8 brightness levels.
To adjust brightness, press the <LEFT />RIGHT button when the
Parent Unit is in camera viewing mode.
4.3 Audio Playlist
You can playback audio content - Lullabies, Soothing Sounds and
Audio Book (English only) on the Baby Unit. The audio content can
be downloaded and stored in the Baby Unit via Hubble App. You
have 10 preloaded lullabies/soothing sounds and 10 audio books in
the Baby Unit.
4.3.1 Lullaby/Soothing Sounds Playback
1. Press Mbutton, Audio Playlist appears at the menu bar,
2. Press O/ button to select Lullaby/Soothing Sound option,
the song name appears on the screen.
3. Press +UP /-DOWN button to view the desired Lullabies/
Soothing Sounds.
4. Press O/ button to play the selection.
4.3.2 Audio Book (English only) Playback
appears at the menu bar,1. Press Mbutton, Audio Playlist
then confirm with O/ button,
the book title appears on the screen.
3. Press +UP /-DOWN button to view the desired Audio Books.
4. Press O/ button to play the selection.
confirm with O/ button.
2. Scroll Up or Down to select
confirm with O/ button.

16 Parent Unit Menu Options
4.3.3 Personal Audio Recordings Playback
The device allows to play your personal recording, before this it
need to record your personal audio through Hubble for Motorola
App.
1. Press Mbutton, Audio Playlist appears at the menu bar，
2. Scroll + Up /- Down to select then confirm with O/
button, your recording appears on the screen.
3. Press +UP /-DOWN button to view your personal recordings.
4. Press O/button to play the selection.
4.3.4 Stop Playback
confirm with O/ button.
3. Press +UP /-DOWN button until “ Press OK to stop playing”
appears on screen then confirm with O/ button to stop.
4. Press Mbutton to exit.
4.4 Set Mood Light
The mood light feature provides a soft glow to help soothe your
baby to sleep and help keep them calm throughout the night, the
mood light has 7 colour options(or auto looping) and 3 levels of
brightness available.
1. Press Mbutton, Audio Playlist appears at the menu bar.
2. Scroll to then confirm with O/ button.
3. Scroll +UP /-DOWN to ON then press O/ button to switch
mood light on.
4. Scroll +UP /-DOWN to for color options or to adjust the
brightness of mood light.
5. When the mood light is on, select OFF then press O/ button
to switch the mood light o.
6. Press Mbutton to exit.
confirm with O/ button.
2. Scroll+ Up /- Down to select or ,
Press Mbutton, Audio Playlist appears at the menu bar，
confirm with O/ button.
+UP /-DOWN

17
Parent Unit Menu Options
ENGLISH
4.5 Set Alarm
You can use the Parent Unit to set an alarm as a reminder for you to
take care of your baby. If an alarm time is selected, the Parent Unit
will beep at the end of the selected 2, 4 or 6 hour period. To activate
an alarm, proceed as follows:
1. Press the Mbutton and the menu bar will pop up.
3. Press the +UP button or -DOWN button to select the alarm
time (6h, 4h, 2h), and the will turn on. (The default setting is
Alarm OFF.)
4. If an alarm time is selected, the Parent Unit will beep for about 1
minute after every 6, 4 or 2 hour period, and the will appear at
top of screen.
5. The alarm will sound for about 1 minute when the time is
reached, or can be stopped by pressing any button.
4.6 Power Saving Mode
1. Press the Mbutton and the menu bar will pop up.
3. Press the +UP button or -DOWN button to select auto video
o after 5 mins, 30 mins or 60 mins if operating on batteries
only.
NOTE
The audio will remain and you can press any key to switch the video
back on.
4.7 Zoom
1. Press the Mbutton and the menu bar will pop up.
3. Press the +UP button or -DOWN butto to select 1X or 2X
zoom. (The default setting is 1X.)
2. Scroll to then confirm with O/ button.
+UP /-DOWN
2. Scroll to then confirm with O/ button.
+UP /-DOWN
2. Scroll to then confirm with O/ button.
+UP /-DOWN

18 Parent Unit Menu Options
4.8 Set Temperature Format
The temperature reading from the temperature sensor at the back
of the Baby Unit will be displayed at the top of the Parent Unit LCD
screen. You can switch temperature format between Centigrade and
Fahrenheit as follows:
1. Press the Mbutton and the menu bar will pop up.
3. Press the +UP button or -DOWN button to select oC or oF.
4. Press Mbutton to exit.
4.9 Add Camera (Registration)
The Baby Unit(Camera) is pre-registered to your Parent Unit. You do
not need to register it again unless the Baby Unit (Camera) loses its
link with the Parent Unit.
To add a new compatible camera to the Parent Unit, proceed as
follows:
1. Press the MMENU button and the menu bar will pop up.
the camera list
1 2 3 4
appear on the screen.
3. Press the +UP or - DOWN button to select the desired amera,
and press the O/ button to start searching for a camera unit,
with "press PAIR on cam" shown.
Note: If a baby unit is currently paired with the Parent Unit, its
camera location (with a against it) cannot be selected for a
new registration.
4. Press and hold the PAIR button on the rear of the camera until
the Parent Unit finds the camera, beeps and PAIR OK appears
on the screen. The video from the camera will then appear.
NOTE
If a particular Baby Unit was registered previously, registering this
current Baby Unit again will cancel its old registration.
2. Scroll to then confirm with O/ button.
+UP /-DOWN
2. Scroll to then confirm with O/ button,
+UP /-DOWN

19
Parent Unit Menu Options
ENGLISH
4.10 View Camera
If you have more than one camera paired with the Parent Unit, to
select the transmission image from a specific camera, proceed as
follows:
1. Press the Mbutton and the menu+ bar will pop up.
3. Press the +UP button or -DOWN button to select the desired
camera.
4. Press the O/ button to view the picture from that camera.
Note: Only camera locations with a can be selected.
TIP
Quick Method to View Cameras instead of entering into the menu
bar. Directly press the O/ button repeatedly to select the
available Camera options from
1
2
3
4
.
4.11 Delete Camera
If you wish to delete the connection to a camera, proceed as follows:
1. Press the Mbutton and the menu bar will pop up.
3. Press the +UP button or -DOWN button to select the camera
that you wish to delete.
4. Confirm with O/ button.
5. Press -DOWN button to select , and then O/ to confirm
delete.
NOTE
You are not allowed to delete the camera if there is only one
registered camera in the system.
2. Scroll to then confirm with O/ button,
+UP /-DOWN
the camera list
1 2 3 4
appear on the screen.
2. Scroll to then confirm with O/ button,
+UP /-DOWN
the camera list
1234
appear on the screen.

20 Wi-Fi® Internet Viewing
5. Wi-Fi® Internet Viewing
5.1 Minimum System Requirements
Web Portal
Windows® 7
Mac OS® 10.7
Chrome™ 24
Internet Explorer® 9
Safari® 6
Java™ 7
Firefox® 18.0
Adobe® Flash® Player 15.0
Android™ System
Version 5.0 or above
iPhone®/iPad® iOS
Version 9.0 or above
High Speed (Wi-Fi®) Internet
At least 0.6 Mbps upload bandwidth per camera
(you can test your internet speed on this site:
http://www.speedtest.net).
