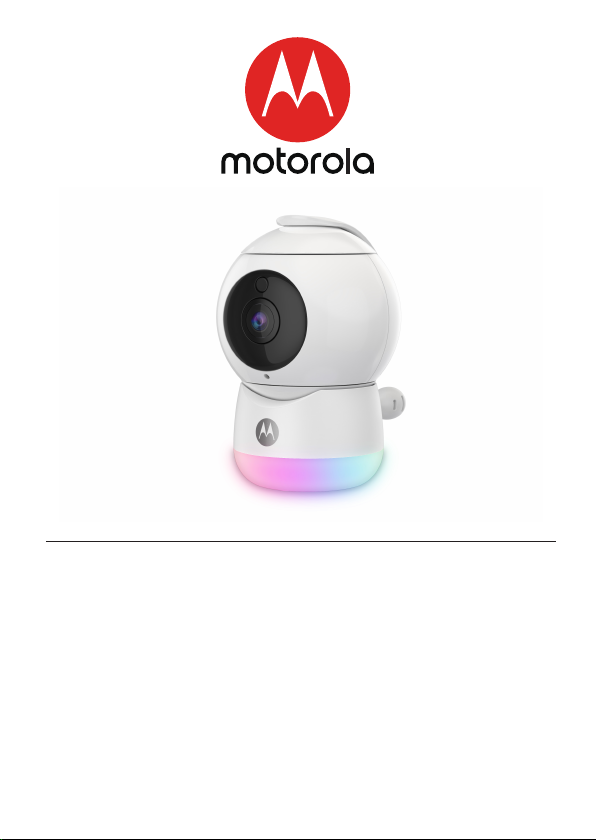

Motorola PEEKABOO User manual

USER’S GUIDE
Wi-Fi® Video Baby Camera
The features described in this user’s guide are subject to modifications without prior notice.
MODELS: PEEKABOO, PEEKABOO-2, PEEKABOO-3, PEEKABOO-4,
PEEKABOO-W, PEEKABOO-W2, PEEKABOO-W3,
PEEKABOO-W4, PEEKABOO TWIN, PEEKABOO TWIN-2,
PEEKABOO TWIN-3, PEEKABOO TWIN-4,
PEEKABOO TWIN-W, PEEKABOO TWIN-W2,
PEEKABOO TWIN-W3, PEEKABOO TWIN-W4

Welcome...
to your new Motorola Wi-Fi® Video Baby
Camera!
Thank you for purchasing your new Motorola Wi-Fi®Video Baby
Camera. If you have always wondered what happens when you
are away, wonder no more. Now you can monitor your children,
pets or property with this easy to use system. You can install the
Camera only from your iPhone®/iPad®or Android™ devices and
view the Camera video from your PC or Notebook, as well as
from your iPhone®/iPad®or Android™ devices.
Please keep your original dated sales receipt for your records.
For warranty service of your Motorola product, you will need to
provide a copy of your dated sales receipt to confirm warranty
status. Registration is not required for warranty coverage.
For product related questions, please call:
Live Chat: motorolastore.support/en.
Email: [e-mail]
This User’s Guide has all the information you need to make the
most out of your product.
Please read the Safety Instructions on pages 5 - 6 before you
install the unit.
Inside the Box
• 1 x Wi-Fi®Camera Unit
• 1 x Power Adapter
• 1 x Quick Start Guide
In multi-camera packs, you will find one or more additional Camera
Units with power adapter units.

Overview of your Camera
Important guidelines for installing your Wi-Fi®Camera Unit
• Use of other 2.4 GHz products, such as other wireless networks,
Bluetooth™ systems or microwave ovens may cause interference
with this product. Keep the Wi-Fi®Camera Unit away from these
types of products, or turn them off if they appear to be causing
interference.
• Always ensure that you have a good Wi-Fi®connection available.

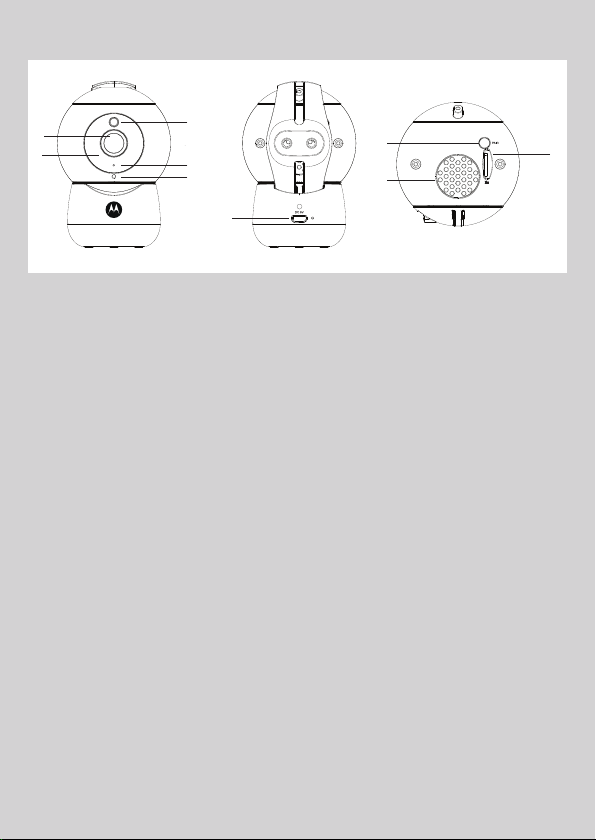

1. Light Sensor (for night
mode detection)
2. Power / Status indicator
3. Microphone
4. Camera Lens
5. Infrared LEDs (for night
vision)
6. Speaker
7. Micro USB socket
8. PAIR Button
9. SD Card slot
4
5
1
3
2
9
6
8
7

4Table of contents
Table of contents
1. Safety Instructions..........................................................................5
2. Minimum System Requirements ..................................................7
3. Getting started - Connecting Devices........................................8
3.1 Setup ............................................................................................................ 8
3.2 User Account and Camera Setup on Android™ Devices.......... 9
3.2.1 Power ON and Connect the Camera................................... 9
3.2.2 Download Hubble for Motorola Monitors App................ 9
3.2.3 Run Hubble for Motorola Monitors App on Android™
device .............................................................................................. 9
3.2.4 Add the Camera to your account........................................10
3.3 User Account and Camera Setup on iPhone®/iPad®.................14
3.3.1 Power ON and Connect the Camera..................................14
3.3.2 Download Hubble for Motorola Monitors App...............14
3.3.3 Run Hubble for Motorola Monitors App on iPhone®/
iPad® ................................................................................................14
3.3.4 Add the Camera to your account........................................15
4. Camera Functions ......................................................................... 19
4.1 Connecting the Camera Unit to power..........................................19
4.2 Overview of the Features on Hubble App....................................19
5. Working with PC/Notebook....................................................... 21
6. Procedure for Resetting the Camera........................................22
7. Help ..................................................................................................23
8. General Information..................................................................... 30
9. Technical Specifications ..............................................................37

5
ENGLISH
Safety Instructions
1. Safety Instructions
WARNING:
STRANGULATION HAZARD - In case this unit is being
used to monitor infants or children, keep the unit and
adapter cord more than 1 metre away from the cot and
out of their reach. Never place the Camera or cords within
a cot or near a bed. Secure the cord away from children’s
reach. Never use extension cords with AC Adapters. Only
use the AC Adapters provided.
Keep away from Pets - As with any electrical device,
supervision of your pet’s usage should be exercised until
your pet is acclimated to the product. If your pet is prone
to chewing, we strongly recommend you keep this and all
other electrical devices out of its reach.
Wi-Fi®CAMERA UNIT SET UP & USE:
• Place the Wi-Fi® Camera Unit on a flat surface, such as
a chest of drawers, desk etc.
• NEVER place the Wi-Fi®Camera Unit or cords within
the cot.

6Safety Instructions
WARNING
This Wi-Fi®Camera Unit is compliant with all relevant electro-
magnetic field standards and is, when handled as described in
the User’s Guide, safe to use. Therefore, always read the instruc-
tions in this User’s Guide carefully before using the device.
• Adult assembly is required due to small parts. Keep all small
parts away from children.
• This product is not a toy. Do not allow children to play with it.
• This Wi-Fi®Camera Unit is not a substitute for responsible
adult supervision.
• Keep this User Guide for future reference.
• Do not place the Wi-Fi®Camera Unit or cords in the cot or
within reach of the baby (the unit should be at least 1 metre
away).
• Keep the cords out of reach of children.
• Do not cover the Wi-Fi®Camera Unit with a towel or blanket.
• Test the Wi-Fi®Camera Unit and all its functions so that you
are familiar with it prior to use.
• Do not use the Wi-Fi®Camera Unit near water.
• Do not install the Wi-Fi®Camera Unit near a heat source.
• Only use the Power Adapter provided. Do not use other
power adapters as this may damage the device.
• Never use extension cords with Power Adapters.
• Do not touch the plug contacts with sharp or metal objects.

7
ENGLISH
Minimum System Requirements
2. Minimum System Requirements
Web Portal
• Windows®7
• Mac OS®10.7
• Chrome™ 24
• Internet Explorer®9
• Safari®6
• Java™ 7
• Firefox®18.0
• Adobe®Flash®Player 15.0
Android™ System
• Version 4.4.2 or above
iPhone®/iPad®iOS
• Version 9.0 or above
High Speed (Wi-Fi®) Internet
• At least 0.6 Mbps upload bandwidth per camera (you can
test your internet speed on this site: http://www.speedtest.
net)
• If using a MicroSD Card it can be up to 32 GB, and must be
speed class 6 above for best video quality.

8Getting started - Connecting Devices
3. Getting started - Connecting Devices
How does it work?
When a user tries to access the Camera, our Hubble server
authenticates the user’s identity and permits access to the Camera.
3.1 Setup
Connect the Camera to the Power Adapter, then plug into an
electrical outlet. The Camera must be within range of the Wi-Fi®
router with which you want to connect. Make sure the password of
the router is available for entering during the in-app setup process.
Status of LED Indication:
- Pair / Setup state: LED cycles from Blue to Red
- Unconnected state: LED is Red and Flashing
- Connected state: LED is Blue and always on
- Live Streaming: LED is Blue and Flashing
Note: You can only setup via a compatible smartphone or tablet
and not via a PC.
Access your
Camera locally
View your Camera from any
compatible device remotely
Wi-Fi RouterPeekaboo
Camera
Hubble
Service

9
ENGLISH
Getting started - Connecting Devices
3.2 User Account and Camera Setup on Android™
Devices
What you need
• Wi-Fi®Camera Unit
• Power adapter for the Camera
• Device with Android™ system version 4.4.2 and above
3.2.1 Power ON and Connect the Camera
• Connect the power adapter to an electrical outlet and insert
the plug into the micro USB socket on the side of the Camera
Unit.
• During the start-up sequence the camera will pan from left
to right and stop in the parked position. You will hear a
voice prompt “Your camera is now starting”. (This will take
approximately 30 seconds.)
• The Camera’s Red LED Flashes after the Camera has finished
booting.
3.2.2 Download Hubble for Motorola Monitors App
• Go to Google Play™ Store to search for “Hubble for Motorola
Monitors”.
• Download “Hubble for Motorola Monitors” App from Google
Play™ Store and install it on your Android™ device
3.2.3 Run Hubble for Motorola Monitors App on
Android™ device
• Ensure that your Android™ device is connected to your Wi-
Fi®router.
• Run “Hubble for Motorola Monitors” App, enter your account
information, read through the Terms of Service, then select
“By signing up you agree to our Terms & Conditions” before

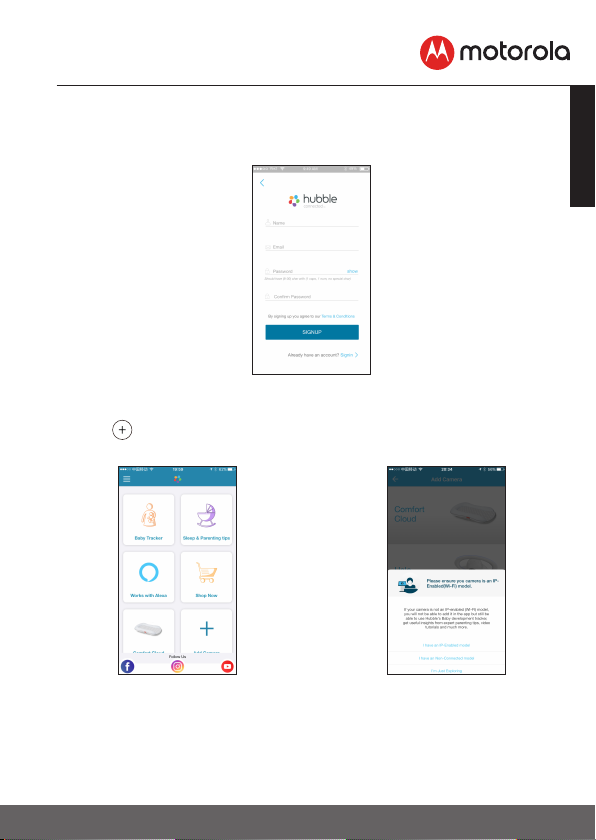

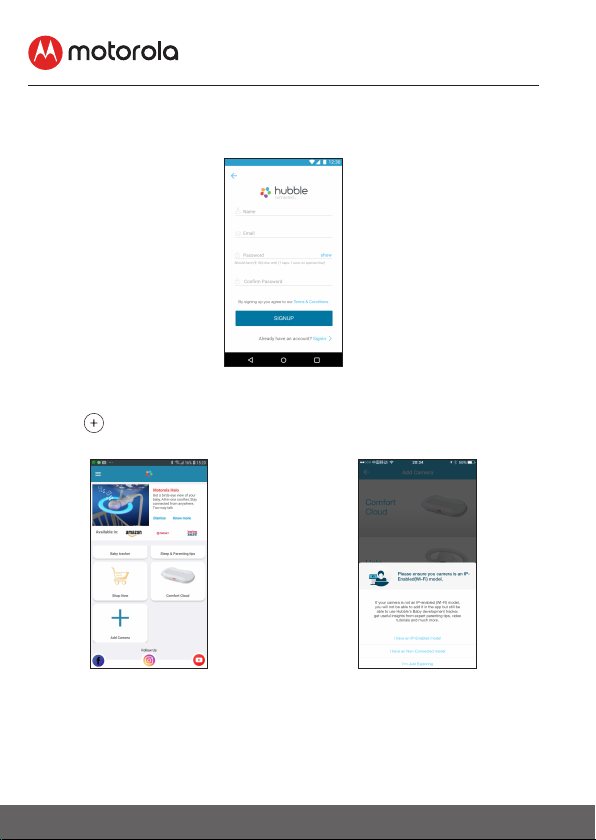

you tap SIGNUP. (Picture A1)

10 Getting started - Connecting Devices
Note:
If you already have a Hubble App account, please select Already
have an Account? to go to the next step.
A1
3.2.4 Add the Camera to your account
• Tap on the lower right corner of the screen to add camera.
(Picture A2, A2a)
A2 A2a

11
ENGLISH
Getting started - Connecting Devices
• The following setup instructions will appear on the screen.

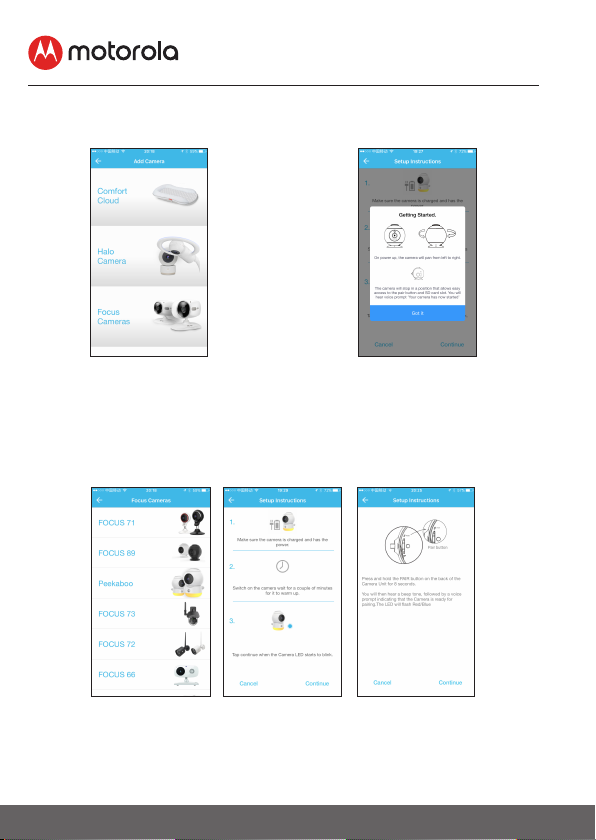

(Pictures A3, A3a)
A3 A3a
• If you have not already done so plug in and switch on the
camera, and wait for a couple of minutes for it to warm up.
• Select your camera from the list in the App.
• The following setup instructions will appear on the screen.

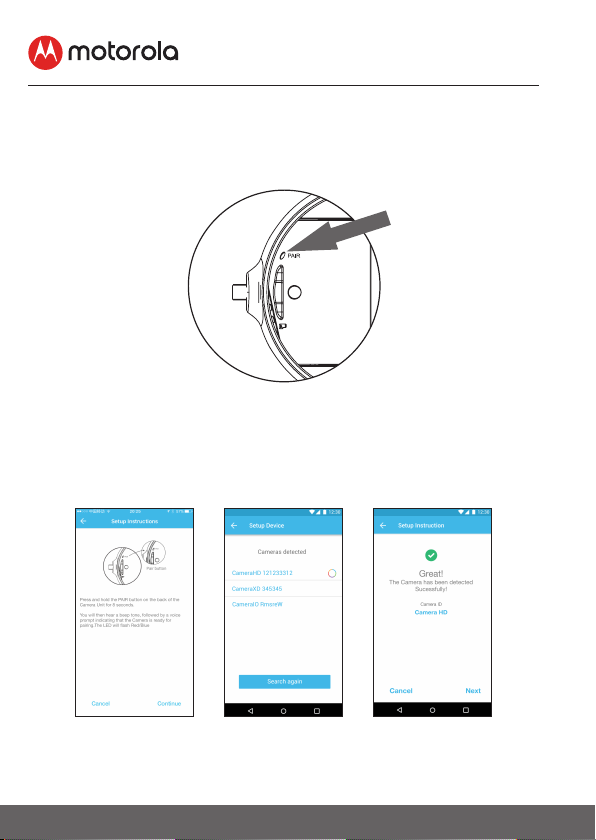

(Picture A4, A4a)
A4 A4a

12 Getting started - Connecting Devices
• To pair the camera - Press and hold the PAIR button on the
back of the Camera Unit for 8 seconds. You will then hear a
beep tone, followed by a voice prompt indicating that the
Camera is ready for pairing. The LED will flash Red / Blue.
Pair the device
• Tap Continue. (Pictures A5)
• The App will automatically search for your Camera, select your

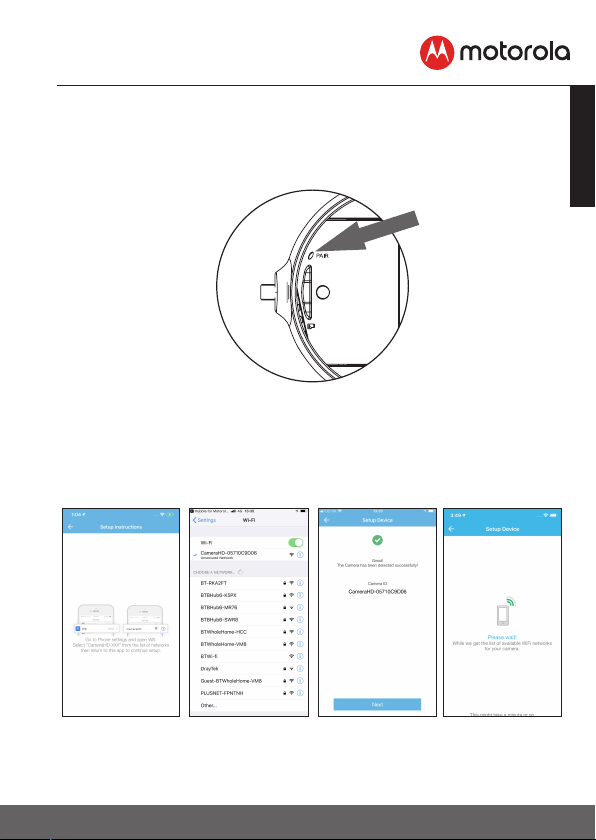

Camera from the list of networks as shown in the pictures A6
below. (Pictures A6, A7)
• The LED on the camera will cycle from Red to Blue.
A5 A6 A7

13
ENGLISH
Getting started - Connecting Devices

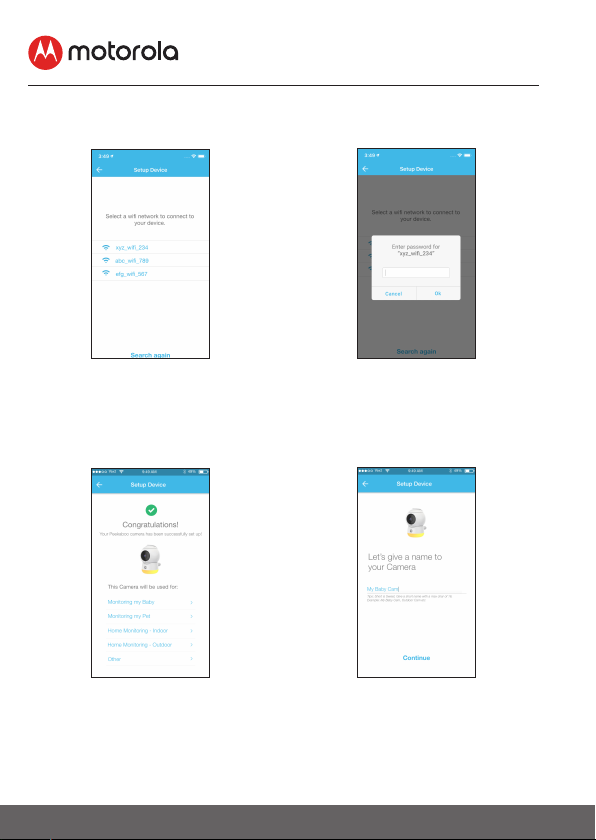

• Select your Wi-Fi® Network, enter your password and then
tap Submit. (Pictures A8, A9, A10)
A8 A9 A10
• It will take a few minutes for the Camera to connect to
the Wi-Fi®network before showing the connection status.
(Pictures A11)
• If connection fails, please tap Retry and repeat the steps
starting from 3.2.4.
A11

14 Getting started - Connecting Devices
3.3 User Account and Camera Setup on iPhone®/
iPad®
What you need
• Wi-Fi®Camera Unit
• Power adapter for the Camera
• iPhone®/iPad®with iOS version 9.0 and above
3.3.1 Power ON and Connect the Camera
• Connect the power adapter to an electrical outlet and insert
the plug into the micro USB socket on the side of the Camera
Unit.
• During the start-up sequence the camera will pan from left
to right and stop in the parked position. You will hear a
voice prompt “Your camera is now starting”. (This will take
approximately 30 seconds.)
• The Camera’s Red LED Flashes after the Camera has finished
booting.
3.3.2 Download Hubble for Motorola Monitors App
• Go to App Store to search for “Hubble for Motorola
Monitors”.
• Download “Hubble for Motorola Monitors” App and install it
on your iPhone®/iPad®.
3.3.3 Run Hubble for Motorola Monitors App on
iPhone®/iPad®
• Ensure that your iPhone®/iPad®is connected to your Wi-Fi®
Router.
• Run the “Hubble for Motorola Monitors” App, enter your
account information, read through the Terms of Service,
and then select “By signing up you agree to our Terms &
Conditions” before you tap SIGNUP. (Picture i1)

15
ENGLISH
Getting started - Connecting Devices
Note:
If you already have a Hubble App account, please select Already
have an Account? to go to the next step (Picture i1).
i1
3.3.4 Add the Camera to your account
• Tap on the lower right corner of the screen to add camera.
(Picture i2, i2a).
i2 i2a

16 Getting started - Connecting Devices
• The following setup instructions will appear on the screen.
(Pictures i3, i3a)
i3 i3a
• If you have not already done so plug in and switch on the
camera, and wait for a couple of minutes for it to warm up.
• Select your camera from the list in the App.
• The following setup instructions will appear on the screen.
(Picture i4, i4a, i5)
i4 i4a i5

17
ENGLISH
Getting started - Connecting Devices
• To pair the camera - Press and hold the PAIR button on the
back of the Camera for 8 seconds. You will then hear a beep
tone, followed by a voice prompt indicating that the Camera
is ready for pairing. The LED will flash Red / Blue.
Pair the device
• Go to Settings > Wi-Fi menu on your iPhone®/iPad®. (Picture i5a)
• Select your Camera from the list of networks. (Picture i6)
• Return to the Hubble app to resume setup and press Next
(Picture i7)
• Your device will detect available networks (Picture i8)
i5a i6 i7 i8

18 Getting started - Connecting Devices
• Select your Wi-Fi® network. (Picture i9)
• Enter your Wi-Fi® password and tap OK. (Picture i10)
i9 i10
• It will take a few minutes for the Camera Unit to connect to
the Wi-Fi® network before showing the connection status.
• Select what your camera will be used for. (Picture i11)
• Give your camera a name. (Picture i12)
i11 i12

19
ENGLISH
Camera Functions
4.Camera Functions
4.1 Connecting the Camera Unit to power
• Connect the power adapter to an electrical outlet and insert the
plug into the micro USB socket on the back of the Camera Unit.
• The Blue LED will illuminate after approximately 30 seconds
if the camera is set up. The Red LED will flash if the camera is
not set up. (Note: To switch off the device, unplug the power
supply.)
• Run the Hubble App on your smart device.
4.2 Overview of the Features on Hubble App
Event History • Tap Event History to access the
video record list that is triggered by
Motion or Sound detection.
• Delete Events Tap to delete
selected event(s).
Photo/Video • Take a photo or record a video from
your Camera.
• Tap the Video icon to activate
Video function. Tap and hold the red
button to start recording and
release to stop.
• Tap the Camera icon to switch
to Camera mode. You can capture
photos from Camera view.
Note:
Photos and videos will be stored in the
internal flash memory of your smart de-
vice, and can be accessed via the Gallery
or Media Player (Android Device). To
play videos, please use the Hubble App.

20 Camera Functions
Lullabies Tap to access the Melody menu and
select one of the 5 pre-set melodies you
wish to play on your Camera Unit.
Two-way
communication
Tap to activate the function. Press the
round button once to speak through
the Camera Unit. Toggle the button
again to listen to the audio feedback
from the Camera Unit.
Speaker Tap to toggle speaker on or off.
Setting You can change the Camera settings by
tapping on the Settings icon.
Add Camera Enter Add Camera procedures.
SD card Store Photos and Videos.
Night Light is ON.
Night Light Brightness Control with 3 levels of
selection.
Night Light Colour Control with 7 colour options.
Night Light Colour Loop with 7 colours.
Temperature scale select (
o
C /
o
F)
Readings display in BLUE, but turn RED if > 29
o
C / 84
o
F,
or < 14
o
C / 57
o
F. Displays HH
o
C /
o
F if >36
o
C / 97
o
F.
Displays LL
o
C /
o
F if < 1
o
C / 34
o
F.
