Motorola HD Dock User manual

HD Dock for
MOTOROLA
Smartphones and
Tablets
EN

EN

1EN Check it out
Check it out
here’s what you can do
Your HD Dock for Motorola Smartphones and Tablets
expands your mobile world. Movies, music, web, mobile
desktop and more—view and listen in HD on the big
screen or add a mouse and keyboard. Go ahead, check it
out:
At a glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Connect & go. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Basics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Want more?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Warning: For indoor use only. Not designed or intended
for use in a vehicle. To avoid injury, do not use this
product as a vehicle cradle/mount.
Caution: Please read the important safety, regulatory
and legal information at the back of this guide.

2At a glance EN
At a glance
the important bits, quick and easy
smartphones
Note: Red alignment mark is only for tablets and does
not light.
1
Using a protective carrying case?
If so, remove pre-installed adapter.
2
Align connectors and
connect your phone
to the dock.
Loosen lock until panel
“pops” out.
3
4
5
Center phone on the dock.
Tighten the lock.

3EN At a glance
tablets
Note: For tablets, either insert can be used. If you want
to use the dock for both a tablet and smartphone, use
the pre-installed insert.
Note: The pop-out panel is NOT intended to adjust tilt.
Note: The red alignment mark does not light.
1
Using a protective carrying case?
If so, remove pre-installed adapter.
2
If you don’t have a protective case,
you can replace the pre-installed
adapter with a special tablet
adapter (the one with the smaller
slot in the center).
3
Loosen lock until panel
“pops” out.
Align connectors and connect your
tablet to the dock.
4
5
Tighten the lock. Note: Tablet must not lean back
freely when tightening the lock.

4Connect & go EN

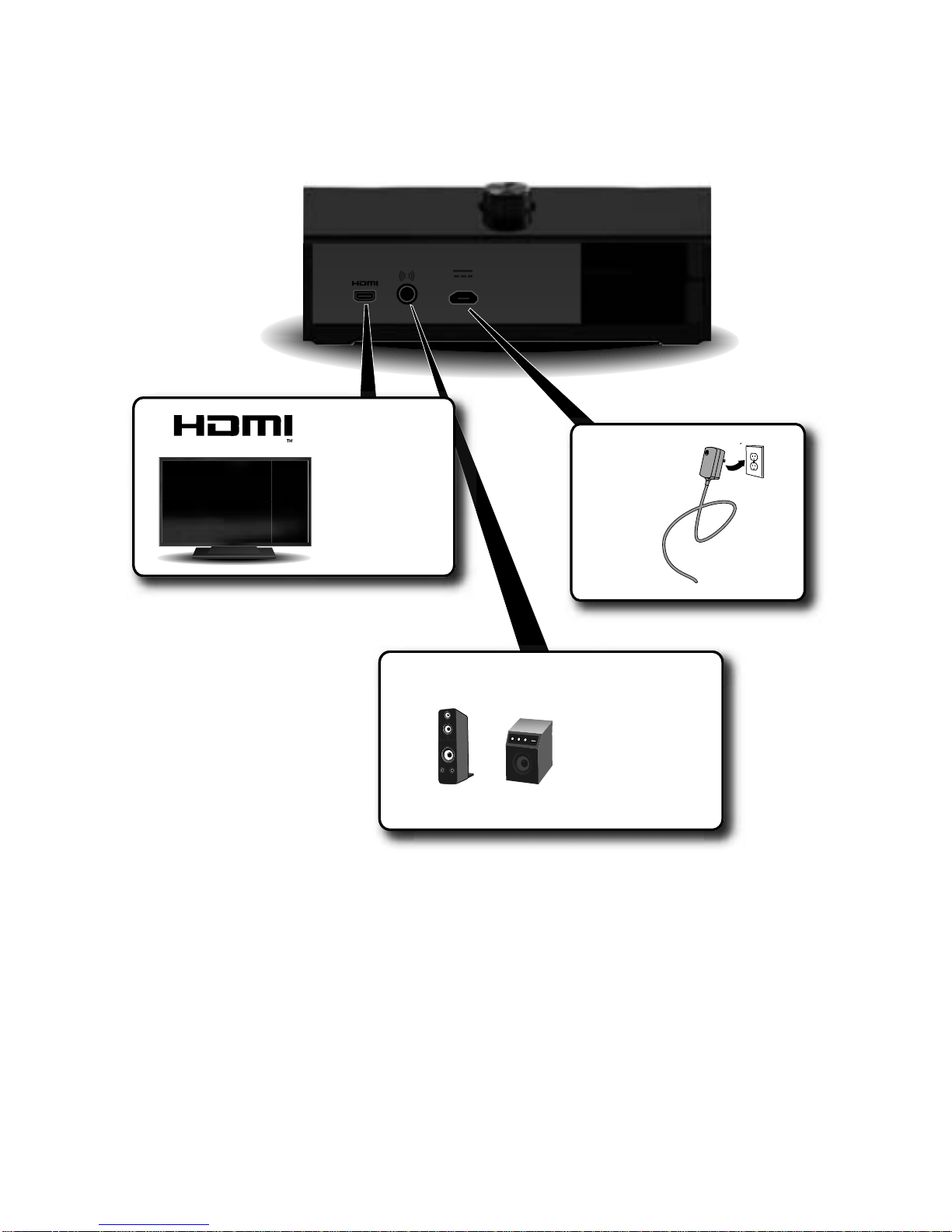

Connect & go
let’s get you connected
Note: For optimal tablet charging, use your tablet power
supply.
Note: To help keep your dock stable, remove the liners
(with red tabs) from the bottom of the dock.
HDTV or
HD Monitor
™
AUX Out Speakers,
Amp, ...
Charger

5EN Basics
Basics
Smartphones
When placing your Motorola phone in the dock, a screen
pops up allowing you to choose a specific application.
Screens vary by phone type but here is an example:
To set a default app (smart mode) that will launch each
time you dock, check Remember my selection and
select the app you want. If you have more than one
dock, you may select different default apps on each
dock.
Select an application to launch
Dismiss Picker
Office Mode
Alarm Clock
Charges your phone while plugged in
Dialer with calendar and music controls
Remember my selection
4:35

6Basics EN
Tablets
When placing your Motorola tablet in the dock, a screen
pops up thattakes you through selecting adefault app to
launch each time you dock. If you have more than one
dock, you can select different default apps on each dock.
Screens vary by tablet type but here is an example:
Mirror mode (smartphones only)
Select Mirror on display to use your phone and display
content, applications, games, browser and more on a
larger display. Mirror mode displays on the big screen
exactly what is on your phone's display.
To adjust the viewable area, select Settings > HDMI
>Overscan and move the slider to adjust the viewable
area.
Note: DRM-protected content can’t be displayed from
your phone.
Settings
Select app to launch when docked
Maps
Browser
Dialer Storage
Download Manager
Downloads
DRM Protected Content Storage
Dropbox
Dungeon Defenders
1 process and 1 service
1 process and 1 service
56.00KB
12.00KB
0.00B
0.00B
3.66MB
232KB

7EN Basics
BEDside mode (smartphones only)
You can use your phone like a clock radio while in the
dock.
55° 68°
42°
Partly Cloudy Tue, May 23
6:30
AM
PM
12:35
10:00 am - 11:00 am Status Review 2 Tues, Nov 2

8Want more? EN
Want more?
we’re here to help
Get what you need:
• Answers:
Online: User guides, online help and more at
www.motorola.com/support.
Phone: Apps > Help center
• Accessories: Find more accessories at
www.motorola.com/products.
• Social: The latest news, tips & tricks, videos and so
much more—join us on:
YouTube™ www.youtube.com/motorola
Facebook™ www.facebook.com/motorola
Twitter www.twitter.com/motomobile

9
Safety, Regulatory & Legal
Third Party Accessories
Use ofthird party accessories, including but not limited to batteries, chargers, headsets,
covers,cases, screen protectorsand memorycards,may impact your product’s performance.
In some circumstances,third partyaccessories can be dangerous and may void your product
warranty. For a list of Motorolaaccessories, visit
www.motorola.com/products
Caution AboutHigh Volume Usage
Warning: Exposure to loud noise fromany source for extended periods of time may affect
yourhearing.Thelouderthevolumesoundlevel,thelesstimeisrequiredbeforeyourhearing
could be affected. To protect your hearing:
• Limit the amount of time you use headsets or headphones at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can’t hear people speaking near you.
If you experience hearing discomfort, including the sensation ofpressure or fullness in your
ears,ringing in your ears, or muffledspeech, you should stop listening to the device through
yourheadset or headphonesand have yourhearingchecked.
Formoreinformationabout hearing,see our website at
direct.motorola.com/hellomoto/nss/AcousticSafety.asp (in English only).
Children
Keep your product and its accessories away fromsmall children. Theseproductsare
not toysand maybe hazardousto small children. For example:
• A choking hazard may exist for small, detachable parts.
• Improper use could result in loud sounds, possibly causing hearing injury.
• Improperly handled batteries could overheat and cause a burn.

10
Symbol Key
Your battery, charger, or accessory product may containsymbols, definedas follows:
European Union Directives Conformance
Statement
EU Conformance
Thisproduct complies with the applicable EUrequirements and carries the CE mark.
Symbol Definition
Important safety information follows.
Do not dispose of your product or battery in a fire.
Your product or battery may require recycling in accordance with local
laws. Contact your local regulatory authorities for more information.
Do not dispose of your product or battery with your household waste.
See “Recycling” for more information.
Do not use tools.
Forindoor useonly.
032374o
032376o
032375o

11
FCC Declaration of Conformity
FCC DoC
Per FCC CFR 47 Part 2Section 2.1077(a)
Responsible Party Name: Motorola Mobility, Inc.
Address: 8000 West Sunrise Boulevard, Suite A,
Plantation,FL33322 USA
Phone Number: 1 [phone]
Hereby declaresthatthe product:
ProductName: HDDock for MotorolaSmartphones and Tablets
Model Number:SJYN0791A, SJYN0791Band SJYN0791C
Conforms tothe following regulations: FCC Part 15,subpart B, section15.107(a), 15.107(d)
andsection15.109(a)
FCC Notice to Users
FCC Notice
The following statement applies to all products that bear the FCC logo on the
product label.
Thisequipment has been tested and found to comply with the limits for a Class B digital
device,pursuant to part 15 of the FCC Rules. See 47 CFR Sec. 15.105(b). These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses andcan radiate radio frequencyenergyand, if
notinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferenceto
radio communications.However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmfulinterference to radio or
television reception, which can be determined by turning the equipment offand on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocatethe receivingantenna.
• Increase the separation between the equipment and the receiver.
• Connecttheequipmenttoanoutletonacircuitdifferentfromthattowhichthereceiveris
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Motorola has not approved any changes or modifications to this device by the user. Any
changes or modifications could void the user’s authorityto operate the equipment. See 47
CFR Sec. 15.21.
For products that support W-Fi 802.11a (as defined in the product specificationsavailable at
www.motorola.com ), the followinginformationapplies.This equipment has the
capability to operate Wi-Fi in the 5 GHz Unlicensed National Information Infrastructure
(U-NII) band.Becausethisband isshared withMSS(MobileSatelliteService), the FCChas

12
restricted such devices to indoor use only (see 47 CFR 15.407(e)). Since wirelesshot spots
operating in thisband have the same restriction, outdoor services are not offered.
Nevertheless, please do not operate this device in Wi-Fi mode when outdoors.
Industry Canada Notice to Users
Industry Canada Notice
Operation is subject to thefollowingtwo conditions: (1)This device may not cause
interferenceand(2)Thisdevicemustacceptanyinterference,includinginterferencethatmay
cause undesired operation of the device. See RSS-GEN 7.1.5. This Class B digital apparatus
complies with Canadian ICES-003.
Use & Care
Use &Care
To care for your Motorola product, please keep it away from:
liquids of any kind
Don’t exposeyourproduct towater, rain,extremehumidity, sweat, or other
moisture. If it doesget wet,don’t try to accelerate drying with the use of an
oven or dryer, as thismay damage the product.
extreme heat or cold
Avoid temperatures below -10°C (14°F)or above 60°C (140°F). For battery
powered accessories, do not recharge your accessory in temperatures below
0°C (32°F) or above 45°C (113°F).
microwaves
Don’t try to dry your product in a microwave oven.
dust and dirt
Don’t exposeyourproduct todust,dirt, sand, food,or other inappropriate
materials.
cleaning solutions
To clean your product, use only a dry soft cloth. Don’t use alcohol or other
cleaningsolutions.

13
shock and vibration
Don’t drop your product.
Recycling
Recycling
Products & Accessories
Please do not dispose of products or electrical accessories (such as chargers,
headsets, or batteries) with your household waste,or in a fire. These items
should be disposed of in accordance with the national collection and recycling
schemes operated byyour localor regional authority. Alternatively, you may
return unwanted products and electricalaccessoriesto any Motorola Approved Service
Center in your region. Details of Motorola approved national recycling schemes, and further
information on Motorola recycling activities can be found at:
www.motorola.com/recycling
Packaging & Product Guides
Productpackagingandproductguidesshouldonlybedisposedofinaccordancewithnational
collection and recycling requirements. Please contact your regional authorities for more
details.
Software Copyright Notice
Software Copyright Notice
Motorola products may include copyrighted Motorola and third-party software stored in
semiconductor memories or other media. Lawsin the United States and other countries
preserve for Motorola and third-party software providers certain exclusive rights for
copyrighted software, such as the exclusive rights to distribute orreproduce the copyrighted
software. Accordingly, anycopyrighted software contained in Motorola products may not be
modified,reverse-engineered,distributed,orreproducedinanymannertotheextentallowed
by law. Furthermore, the purchase of Motorola products shall not be deemed to grant either
directly or by implication,estoppel, or otherwise,any license under thecopyrights, patents,
orpatentapplicationsofMotorolaoranythird-partysoftwareprovider,exceptforthenormal,
non-exclusive, royalty-free license to use that arises by operation of law in the sale of a
product.

14
Content Copyright
Content Copyright
The unauthorized copying of copyrighted materials is contrary to the provisions of the
CopyrightLawsof the UnitedStatesand other countries. This device is intended solely for
copying non-copyrighted materials, materials in which you own the copyright, or materials
which youareauthorized or legally permittedto copy. If you are uncertain about yourright to
copyany material, please contact your legal advisor.
Export Law Assurances
Export Law
Thisproduct is controlled under the export regulations of the United States of America and
Canada. The Governments of the United States of America and Canada may restrict the
exportation or re-exportation of this product to certain destinations. For further information
contacttheU.S. DepartmentofCommerceortheCanadianDepartmentofForeignAffairsand
International Trade.
Product Registration
Registration
OnlineProductRegistration:
www.motorola.com/us/productregistration
Product registration is an important step toward enjoying your new Motorola product.
Registering permits us to contactyoufor productor softwareupdates and allows you to
subscribe to updates on new products or special promotions.Registration is not required for
warranty coverage.
Please retain your original dated sales receipt for your records. For warranty service ofyour
Motorola Personal Communications Product you will need to provide a copy of yourdated
sales receipt to confirm warranty status.
Thank you for choosing a Motorola product.
Motorola Limited Warranty forthe United
States and Canada
Warranty
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola Mobility, Inc. warrants its mobile
telephones (“Products”), Motorola-branded or certifiedaccessories sold for use with these
Products(“Accessories”), and Motorola software contained on CD-ROMs or other tangible
media and sold for use with these Products(“Software”) to be free from defects in materials
andworkmanshipundernormalconsumerusagefortheperiod(s)outlinedbelow.Thislimited
warranty isa consumer's exclusive remedy, andapplies as followsto new Motorola

15
Products, Accessories, and Software purchased byconsumers in the United States or
Canada, which are accompanied by this written warranty:
Products and Accessories
Exclusions (Products and Accessories)
Normal Wear and Tear. Periodic maintenance, repairandreplacement ofparts due to
normal wear and tear areexcludedfromcoverage.
Batteries. Onlybatteries whosefully chargedcapacityfallsbelow 80% of their rated
capacityandbatteries thatleakare coveredbythis limited warranty.
Abuse & Misuse. Defects or damage that resultfrom: (a) improper operation, storage,
misuse orabuse,accidentor neglect, such asphysicaldamage(cracks, scratches, etc.) tothe
surface of the product resulting from misuse; (b) contact with liquid,water, rain, extreme
humidityor heavy perspiration, sand, dirt or thelike, extremeheat, or food; (c)useof the
Productsor Accessoriesfor commercial purposes or subjecting the Product or Accessory to
abnormalusage or conditions; or (d) other acts which are not the fault of Motorola, are
excluded fromcoverage.
Use of Non-Motorola Products and Accessories. Defects or damage that result from
the use of non-Motorola branded or certified Products,Accessories, Software or other
peripheral equipment are excluded from coverage.
Products Covered Length of Coverage
Products and Accessories
as
defined above, unless otherwise
provided for below.
One (1) year from the date of purchase by the
first consumer purchaserof the productunless
otherwise provided for below.
Decorative Accessories and
Cases.
Decorative covers, bezels,
PhoneWrap™ covers and cases.
Limited lifetime warranty for the lifetime of
ownership by the first consumer purchaser of
theproduct.
Monaural Headsets. Earbudsand
boomheadsets that transmit mono
sound through a wired connection.
Limited lifetime warranty for the lifetime of
ownership by the first consumer purchaser of
theproduct.
Products and Accessories that
are Repaired or Replaced. The balance of the original warranty or for ninety (90) days
from the date returned to the
consumer, whichever islonger.

16
Unauthorized Service or Modification. Defects or damages resulting from service,
testing,adjustment, installation, maintenance, alteration, or modificationin any way by
someone other than Motorola, orits authorized service centers, are excluded from coverage.
Altered Products. Productsor Accessories with(a) serialnumbers or date tags that have
beenremoved,alteredorobliterated;(b)brokensealsorthatshowevidenceoftampering;(c)
mismatched board serial numbers; or (d) nonconforming or non-Motorola housings, or parts,
areexcluded fromcoverage.
Communication Services. Defects,damages, or the failure ofProducts,Accessoriesor
Software due to any communication service or signal you may subscribe to or use with the
ProductsAccessoriesor Software is excluded from coverage.
Software
Exclusions (Software)
Software Embodiedin Physical Media. Nowarrantyismadethatthesoftwarewillmeet
your requirements or will work in combination with any hardware or software applications
providedbythirdparties,that theoperationofthesoftware productswillbeuninterruptedor
error free, or thatall defectsin thesoftware productswill be corrected.
Software NOT Embodied in Physical Media. Software that is not embodied in physical
media (e.g. softwarethat is downloaded from the Internet), isprovided “as is”and without
warranty.
Who is Covered?
Thiswarranty extends only tothe firstconsumerpurchaser, and isnot transferable.
What Will Motorola Do?
Motorola, at its option,will at no charge repair, replace or refund the purchase price of any
Products, Accessories or Softwarethat doesnot conformto thiswarranty. We may use
functionallyequivalentreconditioned/refurbished/pre-owned ornewProducts,Accessories
or parts. No data, software or applications added to your Product,Accessory or Software,
includingbutnot limited to personal contacts, gamesandringertones,will bereinstalled. To
Products Covered Length of Coverage
Software.
Appliesonlytophysical defectsinthemedia
thatembodiesthecopyofthesoftware(e.g.CD-ROM,or
floppydisk).
Ninety (90) days from the
date of purchase.

17
avoid losing such data, software,and applications, please create a back up prior to
requesting service.
How to Obtain Warranty Service or Other
Information
You will receive instructions on how to ship the Products, Accessoriesor Software, at your
expense,to a Motorola Authorized Repair Center. Toobtainservice,youmustinclude:(a) a
copyof your receipt, bill of saleor other comparable proofof purchase; (b) awritten
description of the problem; (c) the name of your service provider, if applicable;(d) the name
and location of the installation facility (if applicable) and, most importantly; (e) your address
andtelephonenumber.
What Other Limitations are There?
ANYIMPLIEDWARRANTIES,INCLUDINGWITHOUTLIMITATIONTHEIMPLIEDWARRANTIES
OF MERCHANTABILITY ANDFITNESSFOR A PARTICULAR PURPOSE, SHALL BE LIMITEDTO
THEDURATIONOF THISLIMITEDWARRANTY,OTHERWISETHE REPAIR,REPLACEMENT,OR
REFUND AS PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE
REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN
CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE
PURCHASEPRICE OFTHE PRODUCT, ACCESSORY OR SOFTWARE, ORFOR ANY INDIRECT,
INCIDENTAL, SPECIAL OR CONSEQUENTIALDAMAGESOF ANYKIND, OR LOSSOF
REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA,SOFTWARE
OR APPLICATIONS OROTHER FINANCIAL LOSSARISINGOUT OF OR INCONNECTION WITH
THE ABILITY OR INABILITYTO USE THE PRODUCTS, ACCESSORIES OR SOFTWARE TO THE
FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some states andjurisdictions do not allow the limitation or exclusion of incidental
or consequential damages, or limitation on the length of an implied warranty, so
the above limitations or exclusions may not apply to you. This warranty gives you
specificlegalrights,and you mayalsohaveother rights that vary from state to state
or from one jurisdiction to another.
USA 1-800-734-5870
Canada 1-800-461-4575
TTY 1-888-390-6456

18
Copyright & Trademarks
Motorola Mobility, Inc.
Consumer Advocacy Office
600 NUS Hwy45
Libertyville,IL60048
www.motorola.com
Note: Do not ship your product to the above address. If you need to return your product for
repairs, replacement,or warranty service, please contact the Motorola Customer Support
Center at:
1-800-734-5870 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575(Canada)
Certain features,services and applications are network dependent and maynot be available
in all areas; additionalterms, conditionsand/orcharges may apply.Contact your service
provider for details.
All features,functionality, and other product specifications, as well as the information
contained in this guide, are based upon the latest available information and believed to be
accurateat the time ofprinting. Motorola reserves the right to change or modify any
information or specifications without notice or obligation.
Note: The images inthis guideare examples only.
MOTOROLAand the Stylized M Logo are trademarks or registered trademarks of Motorola
TrademarkHoldings,LLC. Allother product or service namesare thepropertyof their
respective owners.
© 2011 Motorola Mobility, Inc. All rights reserved.
Caution: Motorola does not take responsibility for changes/modification to the transceiver.
Model Number:SJYN0791A, SJYN0791Band SJYN0791C
Manual Number: 68014738001-B
