Vanguard 300/305 Operator's Guide
Notice
1995 Motorola Inc.
20 Cabot Boulevard
Mansfield, Massachusetts 02048
[phone]
All rights reserved
Printed in U.S.A.
Restricted Rights Notification for U.S. Government Users
The software (including firmware) addressed in this manual is provided to the
U.S. Government under agreement which grants the government the minimum
"restricted rights" in the software, as defined in the Federal Acquisition
Regulation (FAR) or the Defense Federal Acquisition Regulation Supplement
(DFARS), whichever is applicable.
If the software is procured for use by the Department of Defense, the following
legend applies:
Restricted Rights Legend
Use, duplication, or disclosure by the Government is subject to restrictions as set
forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer
Software clause at DFARS 252.227-7013.
If the software is procured for use by any U.S. Government entity other than the
Department of Defense, the following notice applies:
Notice Notwithstanding any other lease or license agreement that may pertain to, or
accompany the delivery of, this computer software, the rights of the Government
regarding its use, reproduction, and disclosure as set forth in FAR 52.227-19(C).
Unpublished -rights reserved under the copyright laws of the United States.
Proprietary Material
Information and software in this document are proprietary to Motorola Inc. (or its
Suppliers) and without the express prior permission of an officer of Motorola Inc.,
may not be copied, reproduced, disclosed to others, published, or used, in whole
or in part, for any purpose other than that for which it is being made available.
Use of software described in this document is subject to the terms and conditions
of the Motorola Software License Agreement.
This document is for information purposes only and is subject to change without
notice.

Vanguard 300/305 Radio Frequency Interference Regulations
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules, CISPR 22 and EN 55022.
These limits are designed to provide reasonable protection against interference in
a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician to help.
Changes or modifications not expressly approved by Motorola could void the
user's authority to operate the equipment.
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
This product was FCC certified under test conditions that included use of shielded
data terminal equipment cables. Use of different cables will invalidate FCC
certification and increase the risk of causing interference to radio and TV
reception.
You can obtain the proper cables from Motorola.
Writer: Donna McLean
Project Editor: Susan L. Roswit
Publication Specialist: Paul Tavares
Illustrator: Tim Kinch
Part No.: 09965, Rev B
Publication Code: RC
First Printing: Aug. 1995
Manual is current for Release 4.50 of the Vanguard 300 operating software, and
Release 4.49 of the Vanguard 305 operating software.
To comment on this manual, please send email to: [email protected] or use the
Customer Response Card located in this manual.
Internet Information
Additional company and product information can be found on our Internet Web
page at:
http://www.mot.com/MIMS/ISG/

About ThisManual
Introduction
This manual describes features, hardware, specifications, and applications for the
Motorola Vanguard 300 and Vanguard 305 Frame Relay Access Devices
(FRADs).
For information on operating system software and configuration see the 6500
Series Documentation Kit, which includes the 6500 Series Introduction Manual
and the 6500 Series Configuration and Administration Manual.
Audience
This manual is intended for operators of the Motorola Vanguard 300/305 FRAD.
Software Revision Level
The Vanguard 300 runs Release 4.33 or higher releases of operating software. The
Vanguard 305 runs Release 4.49 or higher.
Special Notices
The following notices emphasize certain information in the manual. Each serves a
special purpose and is displayed in the format shown:
IMPORTANT: Important is used to emphasize any significant procedural information.
Caution provides you with information that, if not followed, can result in
damage to software, hardware, or data.
Warning is the most serious notice, indicating that you can be physically hurt.
How to Use This Manual
The following table describes the contents of this guide.
This chapter... Describes
Chapter 1 Vanguard 300/305 hardware and software features, and FCC
Part 68 guidelines and Telephone Company procedures.

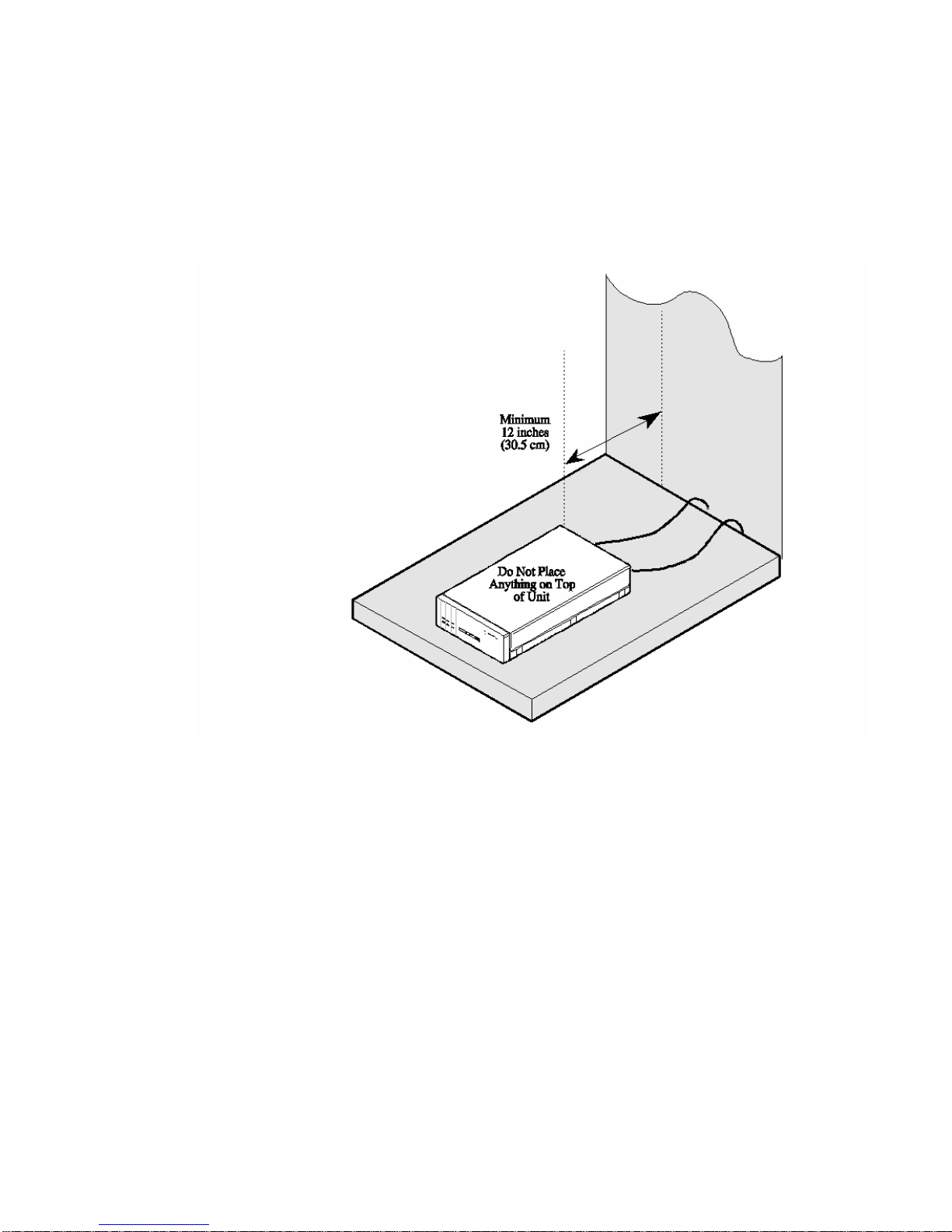

Chapter 2 Setting up a Vanguard 300/305, including site preparation,
how to unpack the unit, installationprocedures, powerup and
diagnostic procedures, and how to connect to the Control
Terminal Port

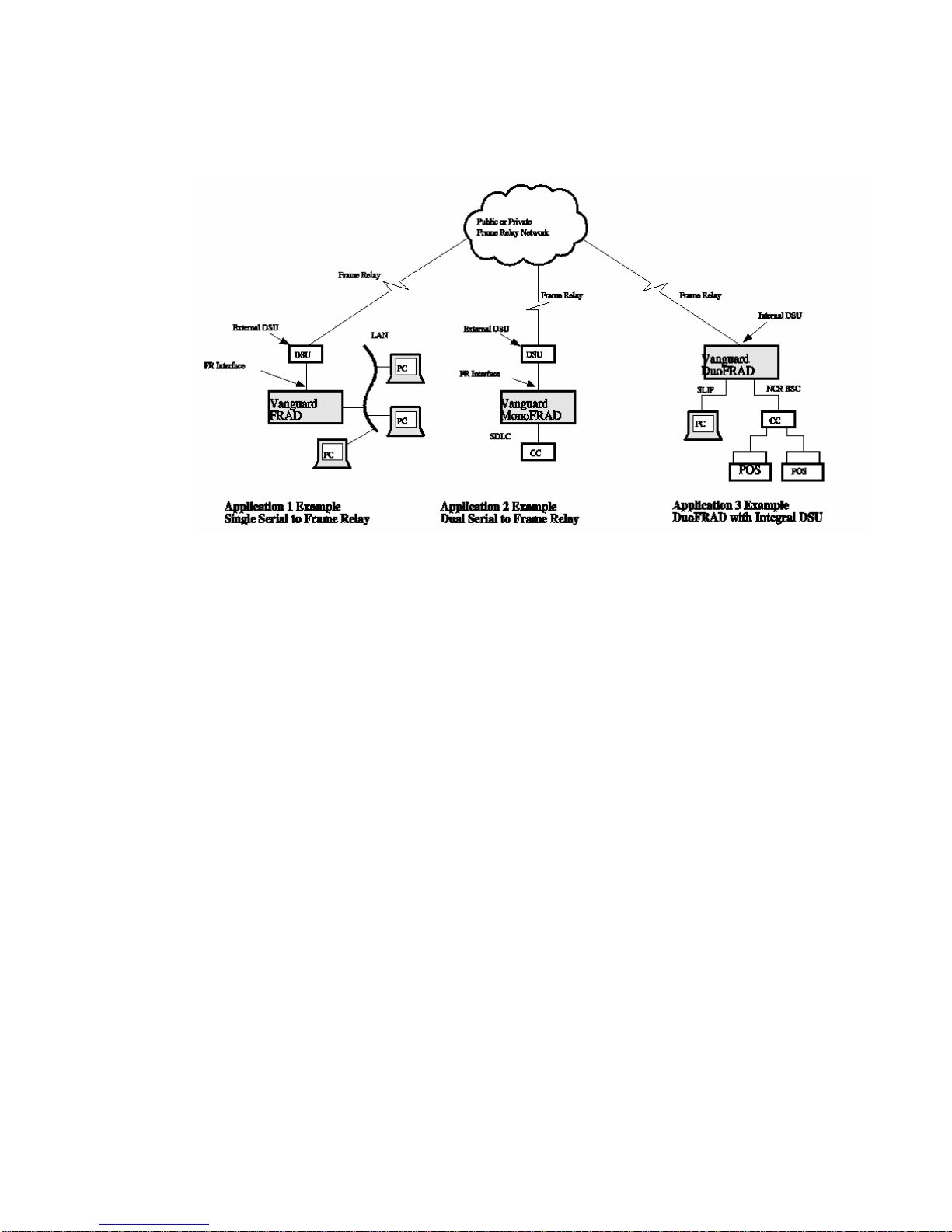

Chapter 3 Vanguard 300/305 applications and configuration
information, including step-by-step configuration sequences
Chapter 4 Maintaining the Vanguard 300/305, including replacing
option cards and troubleshooting information

Related Documentation
The following documentation is not provided with the Motorola Vanguard
300/305; it can be ordered separately. You should familiarize yourself with the
6500 Series documentation before you use the Vanguard Series.
To acquire any of these sets of documentation, refer to the following product
codes:
Product Code Documentation Kit Includes:
17460 6500 Series Documentation
Kit The printed documentation set including:
6500 Series Introduction
Manual (Part No. 09871,
Rev D)
6500 Series Configuration
and Administration Manual
(Part No. 09873, Rev D)
6500 Installation Manual
(Part No. 09872, Rev E)
6520 Installation Manual
(Part No. 09901, Rev C)
17461 Documentation Change
Notices Documentation for all software releases since the
last printing of the main
documentation set.
17313 Multi-Product CD-ROM All 6500 Series
documentation and some
Vanguard user
documentation, as was
available at the time of
release.
6500 Series documentation is prepared using FrameMaker document publishing
software.

Additional Related Documentation
The following documents contain information related to the installation and
operation of 65xx and Vanguard platforms:
•The 6500 Series Options and Protocols Binder (Part No. 09950)
Vanguard Operator's Guides
•Vanguard 100 Operator's Guide (Part No. 09962, Rev A)
•Vanguard 200 Operator's Guide (Part No. 09968, Rev A)
•Vanguard 300/305 Operator's Guide (Part No. 09965, Rev B)
Software Download Guides
•6520 Software Download Guide (Part No. 09901-6, Rev A)
•6500 PLUS Software Download Guide (Part No. 09872-2, Rev A)
•Vanguard 100 Software Download Guide (Part No. 09962-2, Rev A)
•Vanguard 200 Software Download Guide (Part No. 09968-1, Rev A)
•Vanguard 300/305 Software Download Guide (Part No. 09965-1, Rev B)
Trademarks
The following are trademarks or registered trademarks of their respective
companies or organizations.
DECconnect Digital Equipment Corporation

About the Vanguard 300/305
Overview
The Vanguard 300/305
The Motorola Vanguard 300/305 Frame Relay Access Device (FRAD) provides
serial devices with LAN Ethernet (Vanguard 300) or Token Ring (Vanguard 305)
access into public or private Frame Relay networks.
The FLASH-based Vanguard 300/305 is available in FRAD, mono FRAD, or duo
FRAD configurations with either two or three serial ports and an abundant list of
protocol choices. You can order the base unit with an integral DSU and a software
application package, making this low-cost FRAD an economical choice for
connecting remote LAN sites with both LAN and Serial traffic to public Frame
Relay services.
You can also configure extra serial ports on the mono and duo FRAD to provide a
backup link to the Frame Relay network port. Or, you can connect them to an
external analog dial modem, SW56 DSU or ISDN BRI TA, to provide an
alternate path in case of network failure.
Example of the Vanguard 300/305
The Vanguard 300/305 is available either with or without an integral DSU
daughtercard or DIM Site daughtercard in a desktop-size standalone enclosure, as
shown in Figure 1-1.
Figure 1-1. The Vanguard 300 and Vanguard 305

Features
Introduction
This section describes Vanguard 300/305 hardware configurations and standard
features.
Configurations Options
The Vanguard 300/305 is available in the following hardware configurations.
This configuration: Offers...
300 Ethernet FRAD Ethernet port, V.24 port, CTP port.
300 Ethernet FRAD with
DSU Ethernet port, DSU daughtercard in Port 1, CTP port.
300 Ethernet mono
FRAD Ethernet port, serial port with a choice of DIM port interface (V.24, V.35, V.36, or V.11) in Port 2, CTP
port.
300 Ethernet mono
FRAD with DSU Ethernet port, V.24 port, DSU daughtercard in Port 1, CTP port.
300 Ethernet duo FRAD Ethernet port, V.24 port, DIM Site daughtercard in
Port 1 with choice of DIM port interface (V.24,
V.35, V.36, or V.11), CTP port.
300 Ethernet duo FRAD
with DSU Ethernet port, V.24 port, DSU daughtercard in Port 1, serial port with a choice of DIM port interface
(V.24, V.35, V.36, or V.11) in Port 2, CTP port.
305 Token Ring FRAD Token Ring port, V.24 port, CTP port.
305 Token Ring FRAD
with DSU Token Ring port, DSU daughtercard in Port 1, CTP port.
305 Token Ring mono
FRAD Token Ring port, serial port with a choice of DIM port interface (V.24, V.35, V.36, or V.11) in Port 2,
CTP port.
305 Token Ring mono
FRAD with DSU Token Ring port, V.24 port, DSU daughtercard in Port 1, CTP port.
305 Token Ring duo
FRAD Token Ring port, V.24 port, DIM Site daughtercard in Port 1 with a choice of DIM port interface (V.24,
V.35, V.36, or V.11), CTP port.
305 Token Ring duo
FRAD with DSU Token Ring port, V.24 port, DSU daughtercard in Port 1, serial port with a choice of DIM port
interface (V.24, V.35, V.36, or V.11) in Port 2, CTP
port.

Standard Features
The Vanguard 300/305 features 1, 2, or 3 port Serial FRAD functionality with
LAN access to Frame Relay networks.
All Vanguard 300/305 base units provide the following:
•Control Terminal Port (CTP) for configuration and management
•Dual link ability
•Optional DSU
•Optional ISDN Daughtercards
•Ethernet (Vanguard 300) or Token Ring (Vanguard 305) interface
•Frame Relay and X.25 service
•X.25 PAD support
•X.25 PAD support
•Multiprotocol support
•SNMP management
•Software download through Trivial File Transfer Protocol (TFTP)
•Fully compatible with 6500 PLUS and 6520.
•RFC 877 encapsulation
CTP Port
Port 3 on the Vanguard 300/305 can be used as a CTP for configuration,
reporting, and troubleshooting. You candefault Port 3 for CTP access from the
front panel of the Vanguard. See "Connecting to the CTP" in Chapter 2 for more
details.
DSU Functionality
The DSU daughtercard functionality suits an extended range of 56 kbps point-to-
point DDS1 interface that conforms to AT&T 62310 or ANSI T1E1.4/91-006.
The DSU is FCC Part 68 registered.
Diagnostic loopbacks from the telephone company are supported; local
diagnostics are activated from the CTP.

LAN Support
The Vanguard 300 features an onboard Ethernet interface that supports both
10BaseT and AUI. The factory default is AUI.
The Vanguard 305 features an onboard Token Ring interface. Support includes:
•4 and 16 Mbps support
•Type 1 STP (DB-9)
•Type 3 UTP (RJ-45)
Frame Relay & X.25 Service
The Vanguard 300/305 provides serial devices with economical LAN access into
public or private Frame Relay WAN networks via Ethernet or Token Ring.
Because the Vanguard 300/305 also supports X.25, you can configure it as a PAD
if Frame Relay is not an immediate need. When Frame Relay service becomes
available, you can reconfigure the Vanguard 300/305 as a FRAD.
Multiprotocol Support
Support includes SDLC, Bisync, X.25, Async, IP/IPX, and Routing and Bridging,
as well as many other serialprotocols.
Software Download
Trivial File Transfer Protocol (TFTP) provides software downloading for network
software and device configurationsoftware.
RFC 877
RFC 877 encapsulation of IP datagrams over an X.25 network allows for
interoperability of Front End Processors (FEPs) that support X.25 and IP traffic as
well as router vendors supporting RFC 877/1356.

Sample Applications
Figure 1-2 shows sample applications for the Vanguard 300/305.
Figure 1-2. Vanguard 300/305 Sample Applications
Hardware
Introduction
This section describes the Vanguard 300/305 hardware components.
See the Software Release Notice (SRN) accompanying your Vanguard product for
details on hardware platformbundles currently available.
Components
Vanguard 300/305 base units include the following components:
•A motherboard
•A power supply
•One V.24 port with DB25 connector
•Optional port for daughtercard (DIM Site or DSU)
•Optional DIM port on the motherboard
•One LAN port:
§Vanguard 300: Ethernet with either 10BaseT or AUI interface
§Vanguard 305: Token Ring with connectors for both shielded
(STP) and unshielded
•(UTP) cables

•One Async port used for control port:
§Vanguard 300: DECconnect connector
§Vanguard 305: RJ45 connector
•Two MB FLASH, four MB DRAM
See Figure 1-4 for a view of the Vanguard 300/305 rear panel.
Motherboard
The motherboard supports up to three serial interfaces.
Serial Ports
The Vanguard 300/305 is available with one or two serial ports, plus an optional
third port for a daughtercard option (DSU, V.35 DIM site card, etc.). You can also
use the optional port for dial backup or as a second user port. See "Port
Characteristics" in this section for more details.
Vanguard 300 Ethernet Port
On the Vanguard 300, one port is a LAN port configured for Ethernet AUI and
10BaseT interfaces. Strapping is required during installation to configure the unit
for AUI or 10BaseT operation. The default configuration, shipped from the
factory, is 10BaseT.
Vanguard 305 Token Ring Port
On the Vanguard 305, one port is a LAN port configured for a Token Ring
connection. There are connectors for both shielded (STP) and unshielded (UTP)
cables, but only one cable can be connected at any time. No strapping is required
during installation to configure the unit as the port will automatically configure
for the connected interface.
The following table describes the port characteristics for the Vanguard 300/305.
Port
No. Connector Interface Default Speed DTE/DCE
DB25
connector for
V.24, V.35,
V.36, V.11
DIM Site
Daughtercard Frame Relay See Port 2 for DIM
speeds
• DIM Card
-Selectable
1
RJ48S
connector for
DSU
DSU
Daughtercard DSU Sync speed is 56
kbps
• DCE
• DSU -
NA

2 DB25
connector
Supported
DIMs include
V.11, V.35,
V.24, V.36,
Integral DSU
DIM Frame
Relay • Maximum async speed
is 115.2
kbps
• Maximum
sync speed
is 384 kbps
with INT
clocks or
1536 to
2048 kbps
with EXT
clocks
Selectable
3 DB25 V.24 Async
PAD • Maximum async speed
is DCE
115.2 kbps
• Maximum
synch speed
is 80 kbps
4 Async port Control
Terminal Port
(CTP) or serial
port (some
limitations).
CTP Maximum
async speed
is 19.2 kbps
DCE
LAN Vanguard 300:
Ethernet Support includes:
• 10BaseT
• AUI
Either one of
the interfaces
can be
connected and
operated, but
not
simultaneously.
Ethernet 10 Mbps N/A

Vanguard 305:
Token Ring Support includes:
• STP
• UTP
Either one of
the interfaces
can be
connected and
operated, but
not
simultaneously.
Token
Ring 4 or 16 Mbps
(Default is 4
Mbps)
N/A
Memory
Two Mbytes of FLASH memory and four Mbytes of DRAM reside on the
motherboard. An optional SIMM can be used to expand DRAM to 8 Mbytes.

Example of the Vanguard 300/305 Front Panel
Figure 1-3 shows the front panel of the Vanguard 300/305.
Figure 1-3. Vanguard 300 /305 Front Panel
Front Panel DIP Switch Definitions
The six DIP switches on the front panel are defined as follows:
Switch
Position Switch Name Down Up
1 Port 2 RI/TM Pin 22 is input on
Port 2. Pin 22 is output on Port 2.
2 Port 2 MB Pin 25 is input on
Port 2. Pin 25 is output on Port 2.
3 Port 3 RI/TM Pin 22 is input on
Port 3. Pin 22 is output on Port 3.
4 Port 3 ->CTP Normal operation Configure Port 3 as PAD
port.
5 DIAGNOSTICS Normal operation Reserved.
6 DEFAULT
NODE Normal operation Resets all configurable parameters to default values.

Example of the Vanguard 300 Back Panel
The Vanguard 300 back panel features the following connectors, as shown in
Figure 1-4.
Figure 1-4. Vanguard 300 Back Panel
Example of the Vanguard 305 Back Panel
The Vanguard 305 back panel features the following connectors, as shown in
Figure 1-5.
Figure 1-5. Vanguard 305 Back Panel

Cabling
All cables for the Vanguard 300/305 are the same cables used for the 6500 Series.
For example, DB25 cables, the 6509 EIM telco cable, and 6520 Ethernet cables
currently available for the 6500 Series can be used with the Vanguard 300/305.
The DSU telco cable is provided with the DSU daughtercard. Port 4 requires a
DECconnect interface cable on the Vanguard 300, and a straight through 8-
conductor RJ45 cable (e.g. Inmac P/N Q0462-1 or Black Box P/N RM-EL08MS-
07) for the Vanguard 305. See "Vanguard 300 Cabling Pinouts" and "Vanguard
300 Cabling Pinouts" in the "Connecting to the CTP" section in Chapter 2 for
information about the pinouts of the RJ45 to DB25 adapter.
Software
Introduction
This section describes the operating software for the Vanguard 300/305.
Operating Software
The operating software is compressed in FLASH and loaded into RAM for
operation. There are a variety of operating software bundles available for the
Vanguard family. See the Software Release Notice accompanying your Vanguard
product for feature information on the operating software for the Vanguard
300/305, and see the Vanguard 300/305 Software Download Guide (Part No.
09965-1, Rev B) for information on installing the operating software.
FCC Part 68 and Telephone Company Procedures and Requirements
for DSU
Introduction
Before the Motorola Vanguard 300/305 can be connected to the network, you
must:
•Provide the local telephone company with the equipment's registration
number
•Order the proper connections
This information is for North America only.
How to Order Connections
To order the proper connections, provide the telephone company with the
following information:
•Interface type
•Required USOC jack connector number
•Service code
•Facility interface codes

Interface Type USOC Jack
Connector Service Code Facility Interface Code
56-kbps digital interface RJ48S 6.0F 04DU5-56
Troubleshooting Your Connection
If any of your equipment is not operating correctly, immediately remove it from
the telephone line before it harms your network. If the telephone company notes
the problem, they may temporarily disconnect your service. They will notify you
in advance of the disconnection, when possible.
If advance notice is not feasible, you will be notified as soon as possible. When
youare notified, you will be given the chance to correct the problem and be
informed of your right to file a complaint with the FCC.
Customer-Provided Telephone Equipment
FCC regulations and telephone company procedures prohibit connection of
customer-provided equipment to telephone company-provided coin service
(central office-implemented systems). Connection to party lines is subject to state
tariffs.
Occasionally, the telephone company may make changes in their equipment,
operations, or procedures. If thesechanges affect your equipment or service, the
telephone company will provide written notice so you can make the necessary
changes to maintain uninterrupted service.
Contact your telephone company if you have any questions about your telephone
line.
In some circumstances, the telephone company may ask you for information
about your equipment that is connected to the telephone line. Within the United
States (at the request of the telephone company), you should provide your
equipment's FCC registration number. This number is located on the unit's label.

Setting Up the Vanguard 300/305
Overview
Introduction
This chapter describes site preparation, unpacking, and installation for the
Vanguard 300/305.
Preparing a Site
How to Choose a Site for the Vanguard 300/305
Choose a site that is within an appropriate distance of a power source. The
selected site should be free of accumulated dust and environmental extremes.
Depending on your application and the country in which the Vanguard 300/305
will operate, the power source must be a grounded 100 to 240 VAC outlet.
Warnings and Cautions
The following special notices apply to all equipment handling procedures in this
operator's guide.
Only trained, qualified technicians should perform procedures outlined in this
guide.
Motorola Vanguard 300/305 daughtercards and DIMs are sensitive to static
discharge, which can damage components. Trained, qualified technicians will
use proper handling and grounding precautions when handling a Motorola
Vanguard 300/305 daughtercard or DIM.
Ports capable of connecting to ports on other apparatus are defined as Safety
Extra Low Voltage (SELV). To conform with EN60950, ensure that these
ports are only connected to ports of the same type on other apparatus.
Avertissement
Les ports qui sont susceptibles d'etre connectes a des equipements sont
designes comme TBTS. Pour garantir la conformite a la norme EN 60950,
n'interconnecte ces ports qu'avec des ports du meme type sur des autres
materiels.
Warnung Anschlusse, die mit anderen Geraten verbindet werden konnen, sind als SELV
beschrieben. Um Konformitat mit EN 60950 zu versichern, sichern Sie es, daß
diese Anschlusse nur mit den des selben Type auf anderen Geraten verbindet
werden.

Cable Clearance/Air Circulation
To avoid overheating the unit's circuitry, you should never place anything on top
of the unit, within 1 inch (2.5 cm) of the ventilation slots on the front panel, or
within 12 inches (30.5 cm) of the back of the unit. Allow at least 12 inches (30.5
cm) in back of the unit for interfacing cable clearance and air circulation, as
shown in Figure 2-1.
Figure 2-1. Proper cable and air clearance

Unpacking
What You Should Receive
The Vanguard 300/305 is packaged in shock-absorbent packing material. Inside
your shipping carton, you should find the following items:
•Vanguard 300/305 base unit
•Operator's Guide
•Telco cable for DSU (if ordered)
How to Unpack the Vanguard 300/305
Follow these steps to unpack the Vanguard 300/305.
Step Action
1Check the shipping carton and its contents for damage.
2Open the shipping carton from the top as shown in Figure 2-2.
3Lift the Vanguard 300/305 from its shipping carton and remove the
packing material.
Vanguard 300/305 components are installed in the base unit before it is shipped
from the factory. In addition to the base unit and accompanying components, the
shipping carton may include a sleeve containing the power cord if youordered
one.
