USER’S GUIDE
LM100/m100
0
TableofContents

USER’S GUIDE
LM100/m100 i
TableofContents
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Dispatch Plus Mobile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Turning On/Off Your Mobile Unit . . . . . . . . . . . . . . . . . . . . . . 4
Automatic Turn On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Call-in-Progress Protection . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Adjusting Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operating Your Mobile Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Group Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Group Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Talkgroup Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Service Area Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Local Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Targeted Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Wide Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Service Area Restriction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Private Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Private Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Making a Private Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Receiving a Private Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Call Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Call Alert. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Sending a Call Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Receiving a Call Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Additional Information . . . . . . . . . . . . . . . . . . . . . . . . 13
Important General Safety Information. . . . . . . . . . . . . . . . 13
Cleaning Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Status Indicator Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

USER’S GUIDE
LM100/m100 1
GettingStarted
GettingStarted
WELCOME
Congratulations on your purchase of the Motorola Dispatch Plus
Mobile, representing the state-of-the-art in digital communica-
tions technology.
The Motorola Dispatch Plus Mobile allows you to communicate
with a group of individuals (Group Call mode) or privately with a
single person (Private Call mode). You can also send a Call
Alert™ to an individual indicating that you want to speak with
them.
The radio was designed with the flexibility to connect with the
Motorola Integrated Multi-Service handset. The handset allows
you to place and receive phone calls, receive alphanumeric mes-
sages, and access a number of convenience features. Contact your
sales representative for further information.
Before operating your unit, take time to read the “Important
General Safety Information” in the “Additional Information”
section.

USER’S GUIDE
LM100/m100
2
GettingStarted
GettingStarted
DISPATCH PLUS MOBILE
1. Power (On/Off)/
Volume Control
2. Talkgroup
Directional Keys
3. Status
Indicators
4. Alphanumeric
Display
10. Private Mode Key
9. Targeted
Area Key 7. Call Alert
Mode Key
Prvt Area Wide Alert
TG
5. Directional Keys
8. Wide Area
Key
11. Targeted Area
Indicator
6. Speaker
14. Microphone
13. Push-to-Talk (PTT) Button
12. Wide Area
Indicator
TG

USER’S GUIDE
LM100/m100 3
GettingStarted
GettingStarted
1. Power (On/Off)/Volume Control — Used to turn the unit on
and off. Also used to adjust volume level of the speaker.
2. Talkgroup Directional Keys — Used to select a Talkgroup
ID storage location.
3. Status Indicators — Solid or blinking lights indicate different
conditions your unit may be in. (See the “Additional Infor-
mation” section for Status Indicator information.)
4. Alphanumeric Display — A two-digit display that is backlit
for ease of viewing.
5. Directional Keys — Used to select a Radio ID storage loca-
tion or a Service Area ID storage location.
6. Speaker — Used for listening during Group Calls and Private
Calls.
7. Call Alert Mode Key — Used to send a non-voice Call Alert
to an individual.
8. Wide Area Key — Used to select all service areas when mak-
ing Group Calls.
9. Targeted Area Key — Used to select a Targeted Area when
making Group Calls.
10. Private Mode Key — Used for one-to-one private radio com-
munication.
11. Targeted Area Indicator — Lights when a Targeted Area is
selected.
12. Wide Area Indicator — Lights when Wide Area is selected.
13. Push-to-Talk (PTT) Button — Used to transmit voice. Also
used to send Call Alerts.
14. Microphone — Used for speaking during Group Calls and
Private Calls.

USER’S GUIDE
LM100/m100
4
GettingStarted
GettingStarted
TURNING ON/OFF YOUR MOBILE UNIT
The Power knob turns the mobile unit both on and off. You may
turn your mobile on or off at any time. To turn your unit on, press
the Power knob once.
Each time the mobile unit is turned on,
it performs a self-check and system reg-
istration routine. Once completed, the
last-selected talkgroup is displayed.
Automatic Turn On/Off
To enable Automatic Turn On/Off, leave
the unit’s power on before turning the
vehicle’s ignition off. Now your unit will
automatically turn on every time your vehi-
cle is turned on. Turning off your vehicle’s
ignition automatically turns off your unit.
Call-in-Progress Protection
This feature allows radio calls in
progress to continue after the vehicle’s
ignition is turned off, with no interrup-
tion to your conversation.
ADJUSTING VOLUME
The Power knob is also used to adjust the speaker volume. To in-
crease the volume level, rotate the Power knob clockwise. Rotate
the Power knob counterclockwise to decrease the volume level.
OPERATING YOUR MOBILE UNIT
To operate your mobile unit, lift the microphone to your mouth.
Press and hold the Push-to-Talk (PTT) button and speak
directly into the microphone. Release the PTT to listen. Upon
pressing PTT, you will hear one of the following alert tones:
• A high, chirp-like tone indicates that you have permission to
talk. Begin speaking after the tone.
• A low continuous tone indicates that you cannot talk at this
time. Wait a moment and try again.
• A busy-like tone indicates that the system is busy. Wait for a
call-back (high-pitched) tone, then try again.
A time-out timer limits the amount of time you can continuously
talk. When the allotted time expires, you will hear a low-pitched
cut-off tone.
The display illumi-
nates during the self-
check routine to verify
operation.
When using your
mobile unit while the
vehicle engine is off,
you are operating on
your vehicle’s battery
power, and may drain
the battery.
You must be transmit-
ting in order for Call-
in-Progress Protec-
tion to operate.

USER’S GUIDE
LM100/m100 5
GroupCall
GroupCall
GROUP CALL
Group Call mode is your radio’s default mode; each time the
radio is turned on, it is in Group Call mode. A Group Call consists
of a talkgroup and a service area. A talkgroup is an organization of
radio users who communicate with each other. Service areas are
geographic areas of coverage for your radio. Your specific service
areas are defined by your service provider.
Talkgroup Selection
A talkgroup is an organization of radio users who communicate with
each other. Your unit is equipped with Talkgroup ID storage loca-
tions, numbered 1 through 9. Each storage location is assigned a
Talkgroup ID at the time of purchase. Select a Talkgroup ID by
using or to scroll to the ID’s corresponding storage location
number.
(Example: Select Talkgroup ID 25 which is stored in location #5 (T5).
Talkgroup ID 1, which is stored in location #1 (T1), is currently selected.)
1. Press four times.
2. Press PTT.
TG TG
The display illumi-
nates during the self-
check routine to verify
operation.
TG
“T5” will flash on the
display, indicating that
you are now registering
onto this talkgroup.
When you have success-
fully registered, “T5”
will stop flashing. You
can now listen to Talk-
group ID 25. To
transmit, press PTT.

USER’S GUIDE
LM100/m100
6
GroupCall
GroupCall
Service Area Selection
When making outgoing Group Calls, you
may choose from three different service
area selections: Local Area, Targeted
Area, and Wide Area. In each case, you
are speaking with members of the talk-
group who are in that service area.
Local Area
A Local-Area Group Call allows you to communicate with talk-
group members located in the service area you are currently in.
Dispatchers are always included in a Local-Area call, regardless
of their location. Local Area is the radio’s default area; each time
the radio is turned on, Local Area is automatically selected. Your
radio is in the Local Area until Wide Area or Targeted Area is
selected.
Area selection only
applies to Group Calls
you initiate.
Service Area Selection
is independent of Talk-
group Selection.
Area Wide
If neither the Targeted
Area Indicator nor the
Wide Area Indicator
is illuminated, your
radio is in Local Area.

USER’S GUIDE
LM100/m100 7
GroupCall
GroupCall

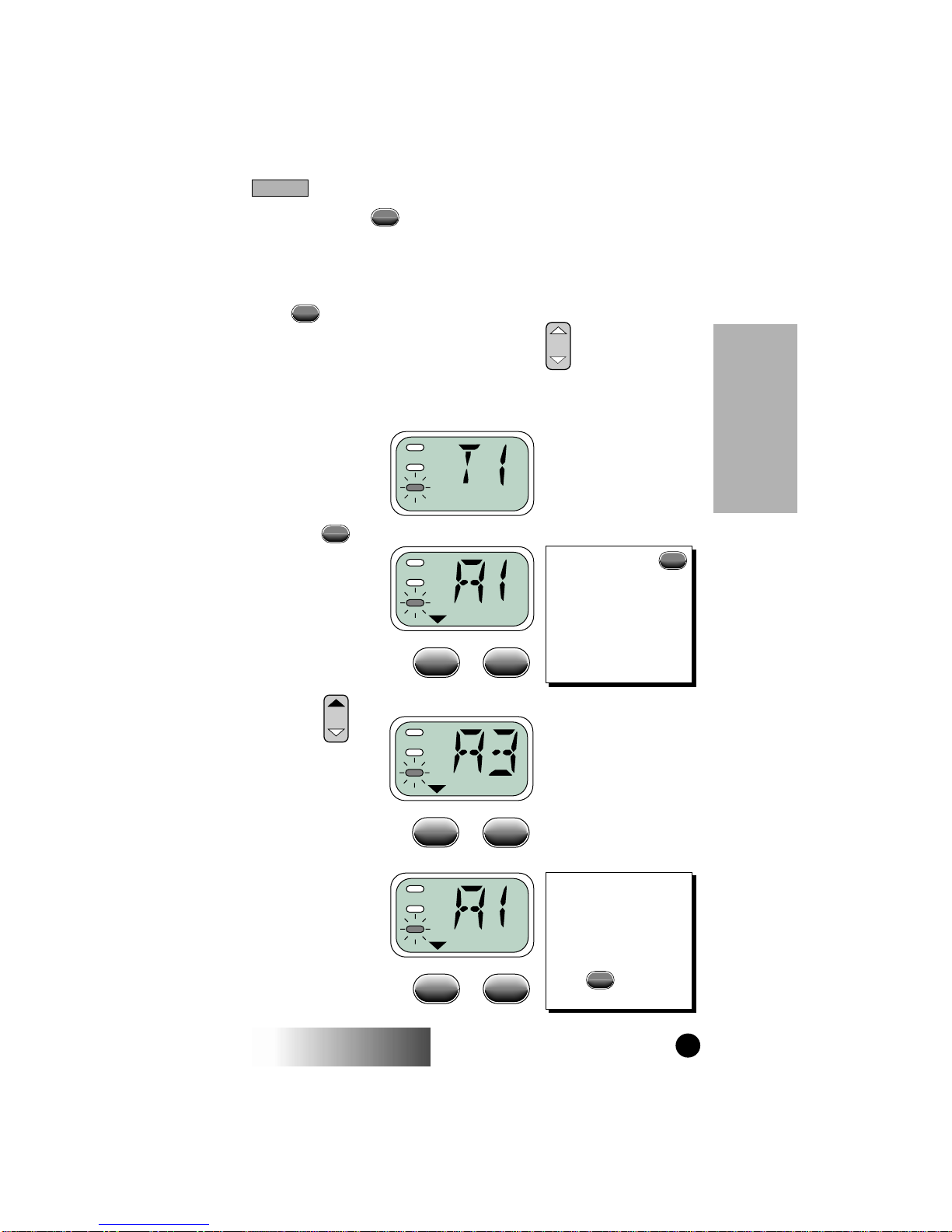

Targeted Area
A Targeted-Area Group Call allows you to communicate with talk-
group members in a specific service area. Your unit is equipped with
Service-Area ID storage locations, numbered 1 through 9. Each stor-
age location is assigned a Service-Area ID at the time of purchase.
Press , then select a Service Area by scrolling to the ID’s corre-
sponding storage location number using the keys.
(Example: Select Service Area ID 12 which is stored in Area Location #3
(A3). The currently selected talkgroup is Talkgroup ID 1, which is stored in
location #1 (T1).)
1. Press .
2. Press twice.
3. Press PTT.
Area
Area
Area
Area Wide
The light above the
key illuminates and the
letter “A” appears
before the storage loca-
tion number, indicating
that you are selecting a
Targeted Area.
Area
Area Wide
Area Wide
Pressing PTT allows
you to talk with the
“T1” Talkgroup mem-
bers currently inService-
Area ID 12.
Press again to
return to Local Area.
Area

USER’S GUIDE
LM100/m100
8
GroupCall
GroupCall

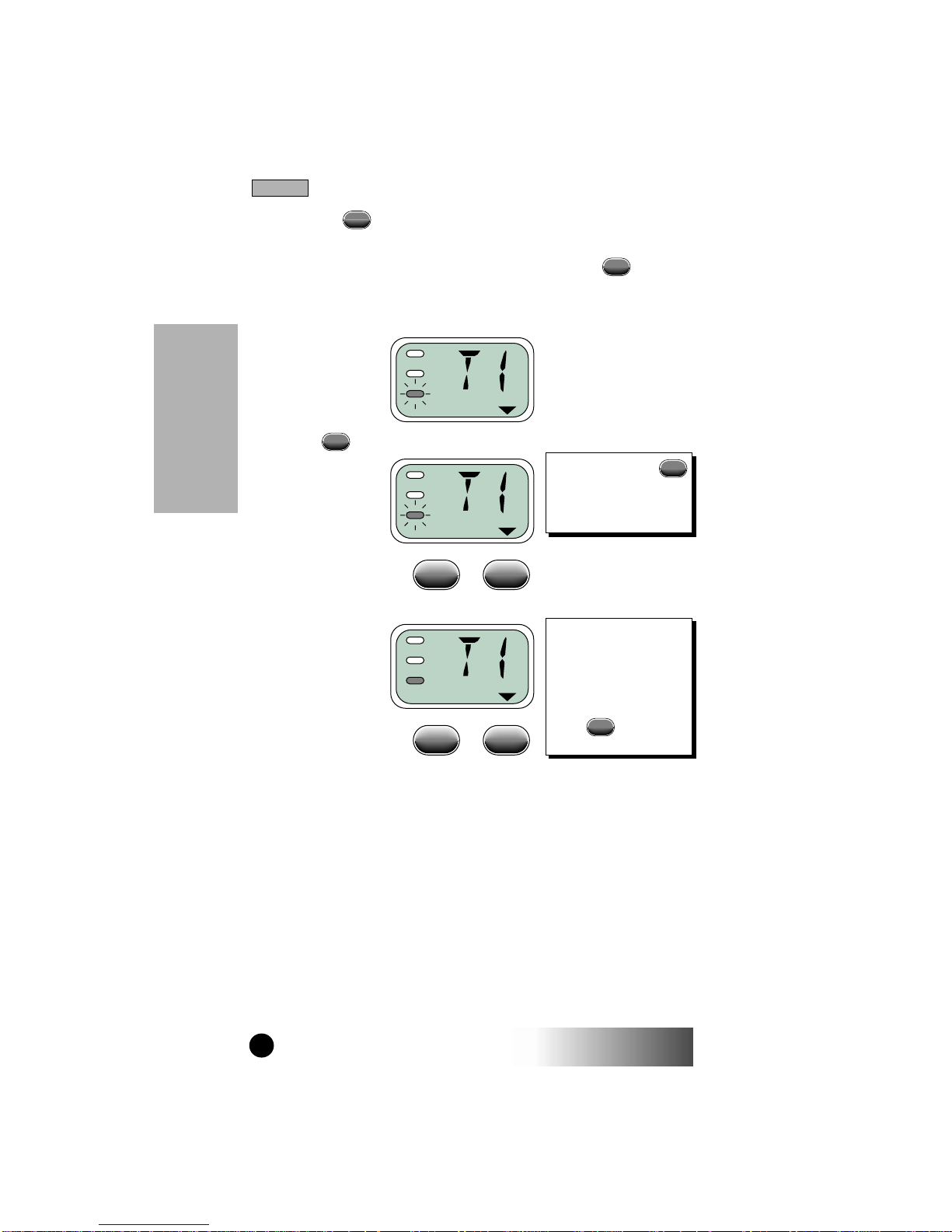

Wide Area
A Wide-Area Group Call allows you to talk with talkgroup mem-
bers in all service areas, and your dispatcher. Press to select
Wide Area.
(Example: Select Wide Area. The currently selected talkgroup is Talkgroup
ID 1 which is stored in location #1 (T1).)
1. Press .
2. Press PTT.
SERVICE AREA RESTRICTION
With the optional feature of Service Area Restriction, the top
LED will turn red when you travel outside an authorized service
area while using either Group or Private mode. The bottom LED
will blink green when you return to an authorized service area.
Wide
Wide
Wide
The light above the
key illuminates to indi-
cate Wide Area Group
Call is selected.
Wide
Area Wide
Area Wide
Pressing PTT allows
you to talk with the
“T1” Talkgroup mem-
bers in all service areas
and your dispatcher.
Press again to
return to Local Area.
Wide

USER’S GUIDE
LM100/m100 9
PrivateCall
PrivateCall
PRIVATE CALL
A Private Call is a radio call between two individuals. No other
radios can hear the conversation. Your unit is equipped with
Radio ID storage locations, numbered 1 through 9. Each storage
location is assigned a Radio ID at the time of purchase. The stor-
age location numbers and corresponding Radio IDs used to make
Private Call calls are the same storage location numbers that are
used in Call Alert. Press to enter into the Private Call mode.
Select a Radio ID by using the keys to scroll to the ID’s cor-
responding storage location
number.
Making a Private Call

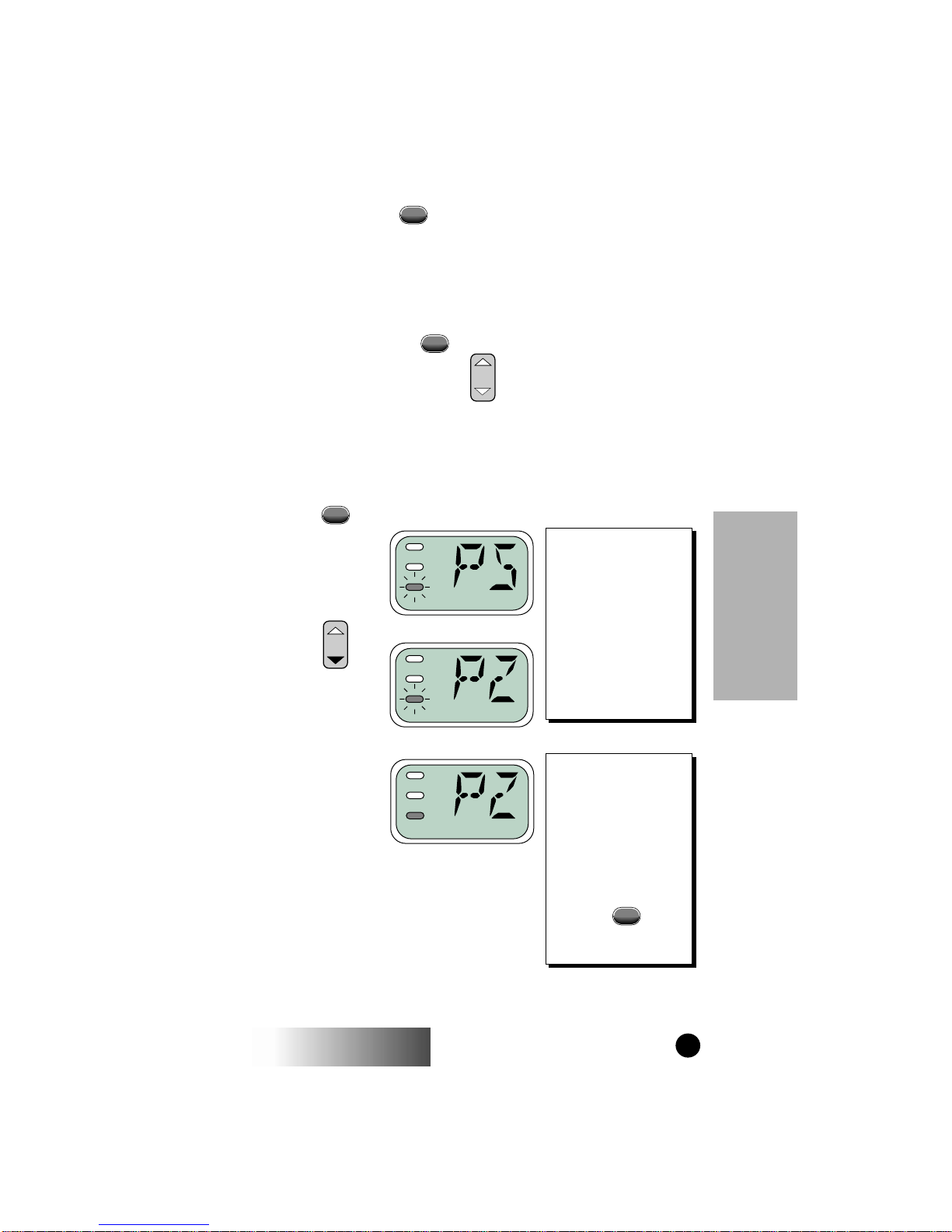

(Example: Make a Private Call to Radio ID 8, which is stored in location
#2 (P2). The last Private Call or Call Alert was with Radio ID 5 which is
stored in location #5 (P5).)
1. Press .
2. Press three times.
3. Press PTT.
Prvt
Prvt
When you enter the
Prvt mode, the storage
location number of the
last sent or received
Radio ID appears.
The letter “P” appears
before the storage loca-
tion number, indicating
that you are in Prvt
mode.
Prvt
Upon pressing PTT, you
will hear an alert tone.
Refer to “Operating
Your Mobile Unit” in
the “Getting Started”
section for a description
of these tones.
After completing your
call, press again
to return to Group Call
mode.
Prvt

USER’S GUIDE
LM100/m100
10
PrivateCall
PrivateCall
Receiving a Private Call
Two alert tones signal that you have received a Private Call. In
addition, the storage location number corresponding to the Radio
ID of the person calling you is displayed.

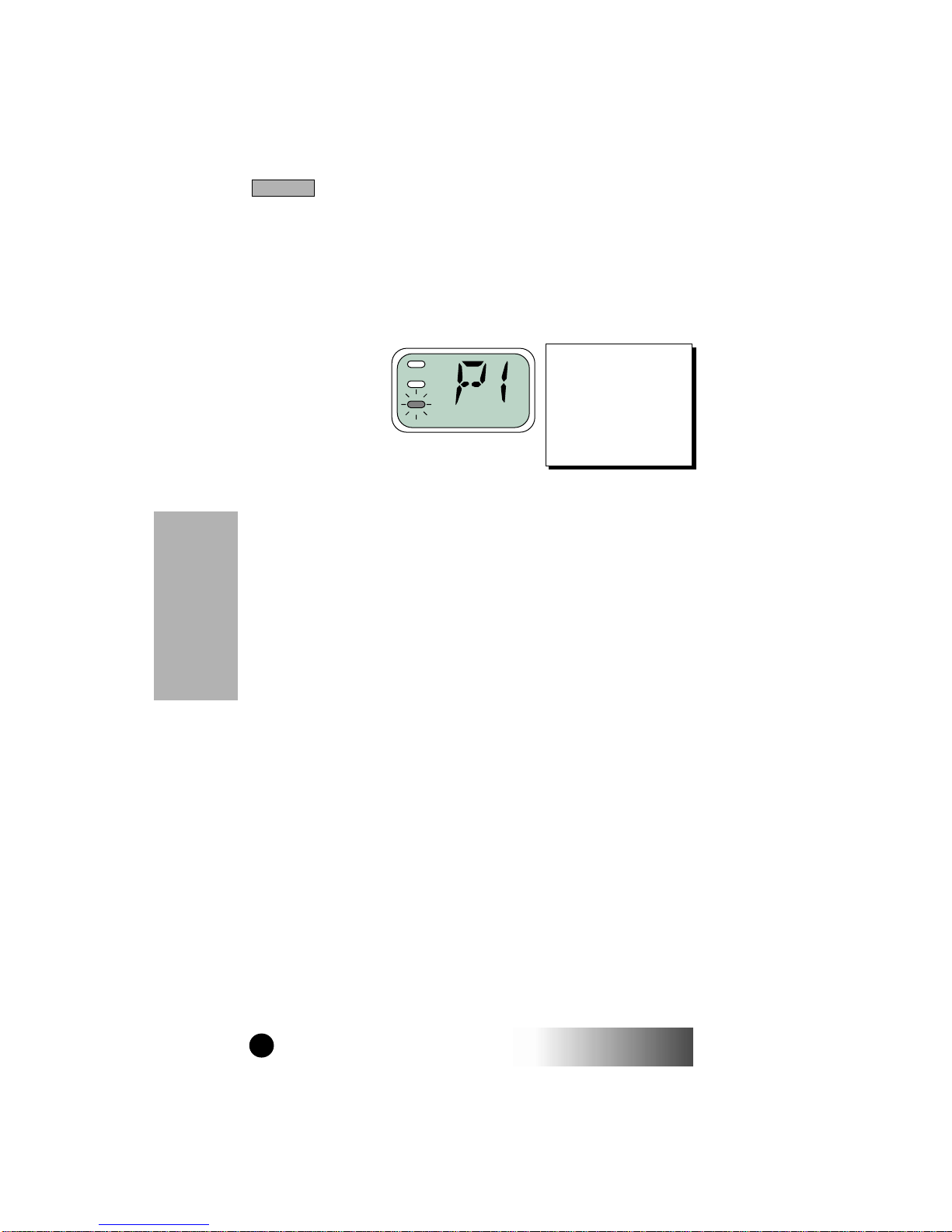

(Example: Radio ID 1, which is stored in location #1 (P1), private calls
you.)
You will immediately begin hearing the voice of the person call-
ing. To respond to the call, press and hold the PTT, then release
to listen.
If the incoming Radio
ID is not stored in
one of your storage
locations,
“P –” appears on the
display.

USER’S GUIDE
LM100/m100 11
CallAlert
CallAlert
CALL ALERT
A Call Alert notifies the targeted person that you want to get in
touch with them. Your unit is equipped with Radio ID storage
locations, numbered 1 through 9. Each location is assigned a
Radio ID at the time of purchase. The storage location numbers
and corresponding Radio IDs used to send a Call Alert are the
same storage location numbers that are used in Private Call. Press
to enter into the Call Alert mode. To scroll to the ID’s corre-
sponding storage location number, select a radio ID by using the
keys.
Sending a Call Alert

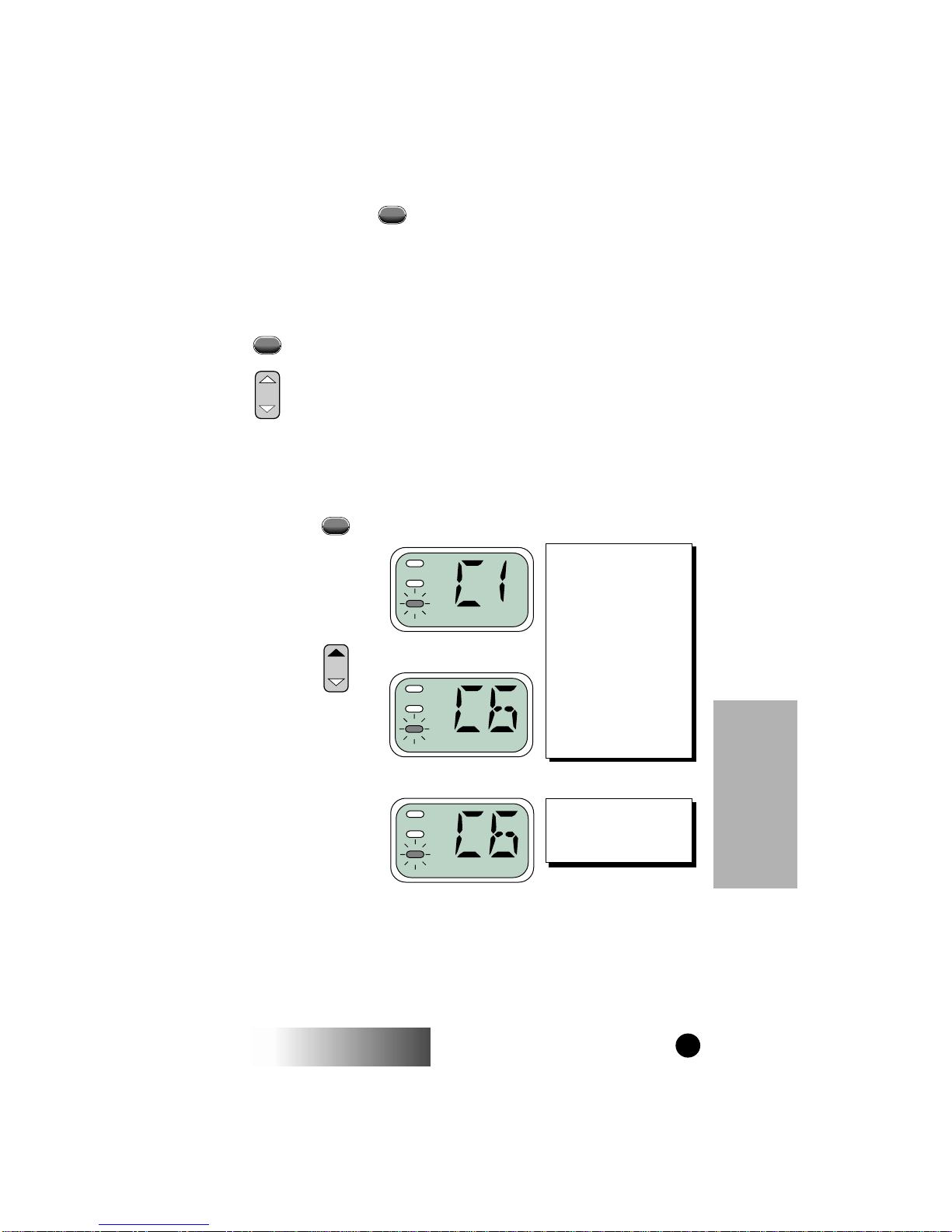

(Example: Send a Call Alert to Radio ID 3, which is stored in location #6
(C6). The last Private Call or Call Alert was with Radio ID 1, which is
stored in location #1 (C1).)
1. Press .
2. Press five times.
3. Press PTT.
Two alert tones signal when the Call Alert successfully reaches
the targeted unit. If the targeted unit is out-of-range or turned
off, four alert tones indicate that the Call Alert failed to reach the
targeted unit. After sending a Call Alert, the display automati-
cally returns to Group Call mode.
Alert
Alert
When you enter the
Alert mode, the storage
location number of the
last sent or received
Radio ID appears.
The letter “C”
appears before the
storage location num-
ber, indicating that you
are in Alert mode.
Alert
Pressing PTT sends
a Call Alert to radio
ID 3.

CallAlert
USER’S GUIDE
LM100/m100
12
CallAlert
Receiving a CallAlert
Four recurring alert tones signal that you have received a Call
Alert. In addition, the storage location number corresponding to
the Radio ID of the person attempting to contact you is dis-
played.
(Example: Radio ID 3, which is stored in location #6 (C6), is alerting
you.)
• To talk to the person:
1. Press PTT.
• If you are unable to respond to the Call Alert, press any key
on the unit (except PTT) to silence the recurring alert tones
and clear the display.
If the incoming Radio
ID is not stored in one
of your storage loca-
tions, “C –” appears
on the display.
You are always in
Prvt mode when
responding to a Call
Alert. After completing
your call, press
to return to the Group
Call mode.
Alert

USER’S GUIDE
LM100/m100 13
AdditionalInformation
AdditionalInformation
SAFETY AND GENERAL INFORMATION
IMPORTANT INFORMATION ON SAFE AND EFFICIENT
OPERATION. READ THIS INFORMATION BEFORE USING
YOUR INTEGRATED MULTI-SERVICE MOBILE RADIO.
For the safe and efficient operation of your radio, observe these
guidelines.
Your radio contains a transmitter and a receiver. When it is ON, it
receives and transmits radio frequency (RF) energy. The radio
operates in the frequency range of 806MHz to 866MHz and
employs digital modulation techniques. When you use your
radio, the system handling your call controls the power level at
which your radio transmits. The power level may typically vary
over a range from 0.03 of a watt to 3 watts.
• Exposure to Radio Frequency Energy
In August 1996 the Federal Communications Commission (FCC)
of the United States with its action in Report and Order FCC 96-
326 adopted an updated safety standard for human exposure to
radio frequency electromagnetic energy emitted by FCC regu-
lated transmitters. In addition, the International Commission on
Non-Ionizing Radiation Protection (ICNRP) has established
standards containing RF exposure guidelines. Motorola iDEN
products comply with these standards.
• Antenna and Installation Considerations
All equipment must be properly installed according to Motorola
installation instructions.
Use only the supplied or an approved antenna. Unauthorized
antennas, modifications, or attachments could impair call quality,
damage the radio, or result in violation of the ICNRP or the
FCC.
• Interference to Medical and Personal
Electronic Devices
Most electronic equipment is shielded from RF energy. How-
ever, RF energy from the radio transmitter may affect inade-
quately shielded electronic equipment.
Do not operate the radio when any person is within 6 inches (0.15
meters) of the antenna. That person may be using a pacemaker, a

USER’S GUIDE
LM100/m100
14
AdditionalInformation
AdditionalInformation
hearing aid or other personal electronic device which may not be
adequately shielded.
• Interference to other Electronic Devices
RF energy may affect improperly installed or inadequately
shielded electronic operating and entertainment systems in
motor vehicles. Check with the manufacturer or representative to
determine if these systems are adequately shielded from external
energy. Also check with the manufacturer of any equipment that
has been added to the vehicle.
• Use while driving
Check the laws and regulations on the use of telephones in the
areas where you drive. Always obey them.
•Blasting Areas and Explosives
• Potentially Explosive Atmospheres
!
C a u t i o n
When using the phone while driving, please:
• give full attention to driving and to the
road;
• use hands free operation, if available; and
• pull off the road and park before making
or answering a call if driving conditions so
require.
!
W A R N I N G
!
Do not operate the radio near electric blasting
caps, or in a blasting area, to avoid the possibil-
ity of triggering an explosion. Turn your radio
OFF when in a “blasting area” or in areas where
such requirements are posted.
!
W A R N I N G
!
Turn your radio OFF when in any area with a
potentially explosive atmosphere. It is rare, but
your radio or its accessories could generate
sparks which might trigger an explosion.

USER’S GUIDE
LM100/m100 15
AdditionalInformation
AdditionalInformation
• For Vehicles Equipped with an Air Bag
Areas with a potentially explosive atmosphere
are often, but not always, clearly marked. They
include areas such as below deck on boats, fuel
or chemical transfer or storage facilities, and
areas where the air contains chemicals or parti-
cles, such as grain, dust, or metal powders.
Do not transport or store flammable gas, liquid,
or explosives in the compartment of your vehi-
cle which contains your radio or accessories.
Vehicles powered by liquefied petroleum gas
(such as propane or butane) must comply with
the National Fire Protection Standard (NFPA-
58). For a copy of this standard, contact the
National Fire Protection Association. One Bat-
terymarch Park, Quincy, MA 02269, Attn: Publi-
cations Sales Division.
!
W A R N I N G
!
!
W A R N I N G
!
An air bag inflates with great force. DO NOT
place objects, including communication equip-
ment, in the area over the air bag or in the air
bag deployment area. If the communication
equipment is improperly installed and the air
bag inflates, this could cause serious injury.
Installation of vehicle communication equip-
ment should be performed by a professional
installer/technician qualified in the require-
ments for such installations. An air bag’s size,
shape, and deployment area can vary by vehicle
make, model, and front compartment configura-
tion (for example, bench seat vs. bucket seats).
Contact the vehicle manufacturer’s corporate
headquarters, if necessary, for specific air bag
information for the vehicle make, model, and
front compartment configuration involved in
your communication equipment installation.

USER’S GUIDE
LM100/m100
16
AdditionalInformation
AdditionalInformation
Cleaning Instructions
Clean the external surfaces of the handset with a damp cloth, using a
mild solution of dishwashing detergent and water. Some household
cleaners may contain chemicals which could seriously damage the
housing. Avoid the use of any petroleum-based solvent cleaners.
Also, avoid applying liquids directly on the unit.
Status Indicator Table
There are three status indicators to the left of the display which
visually tell you the different states of your unit. The top indica-
tor is red, the middle indicator is yellow, and the bottom is green.
Below is a description of these indicators.
Status Indicator Illuminates While:
Solid Green Talking/Transmitting
Blinking Green In Service
Solid Yellow Reserved for Future Use
Blinking Yellow Reserved for Future Use
Solid Red No Service
Blinking Red Registering on a Network
The area within which your unit operates is defined by
your service provider. Since this is a radio system, no
exact boundaries (as on a map) can be drawn. The
red status indicator (No Service) lights solid if you are
beyond range of a service area. There may be locations
within your area, such as tunnels and underground
parking facilities, where the unit may act as if it were
beyond range.

USER’S GUIDE
LM100/m100 17
AdditionalInformation
AdditionalInformation
OWNER’S INFORMATION
Mobile Equipment Identifier (IMEI)
_____________________________
Personal Radio ID
_____________________________
Date Purchased
______________
Dealer Telephone Number
_______________________
Customer Service Number
_______________________

USER’S GUIDE
LM100/m100
18
AdditionalInformation
AdditionalInformation
RADIO ID DIRECTORY
TALKGROUP ID DIRECTORY
Radio ID Name
1
2
3
4
5
6
7
8
9
Radio ID Name
1
2
3
4
5
6
7
8
9
