Motorola CB300-D User manual

CB300-D
USER GUIDE

CONTENTS
CONTENTS
RF Safety & FCC Compliance.........................4
Product Safety.............................................5-6
FCC Licensing Information .............................7
Electromagnetic Interference Compliance.....8
Industry Canada Compliance .........................9
Declaration of Conformity............................10
Warranty Covereage & Exclusions .........11-12
Computer Software Copyrights....................13
Documentation Copyrights...........................14

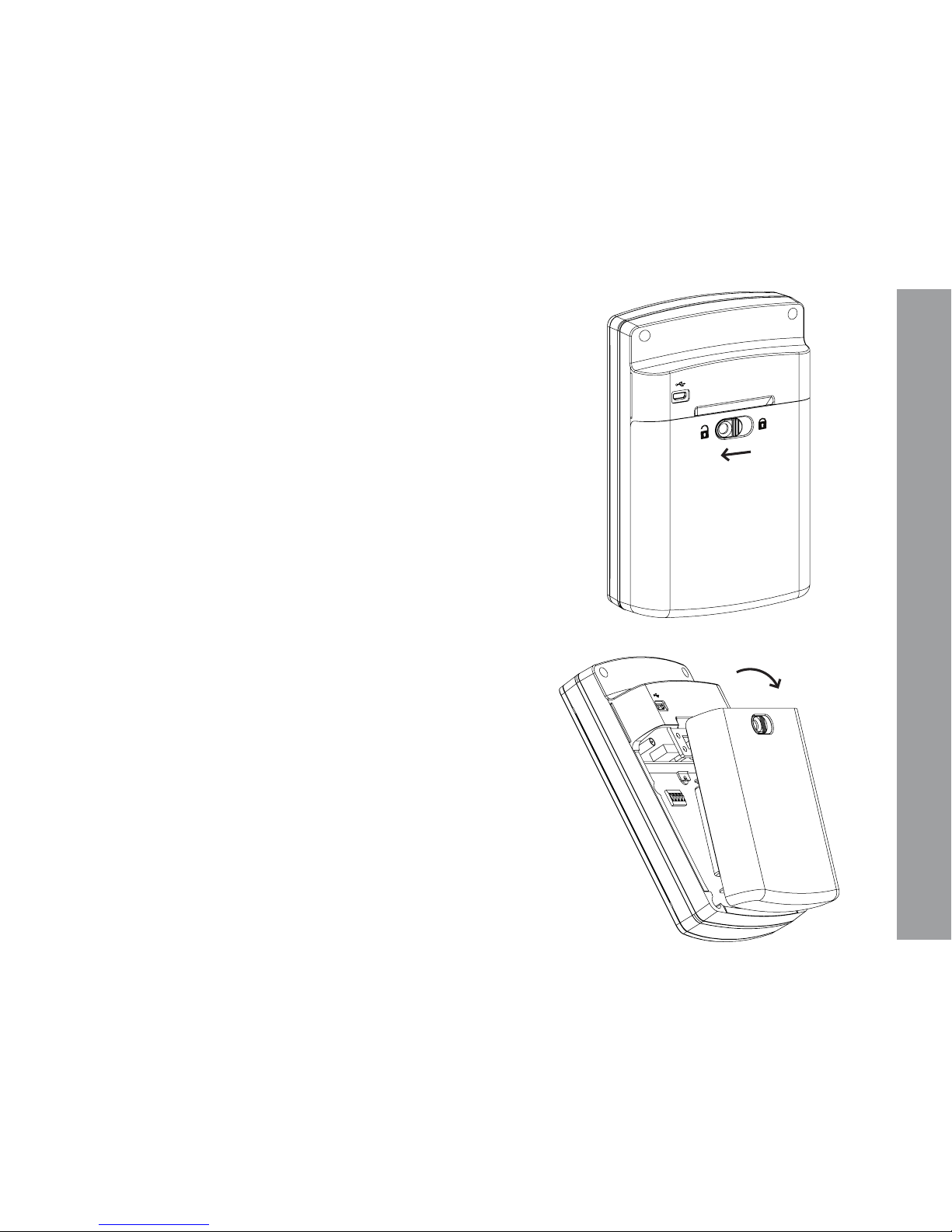

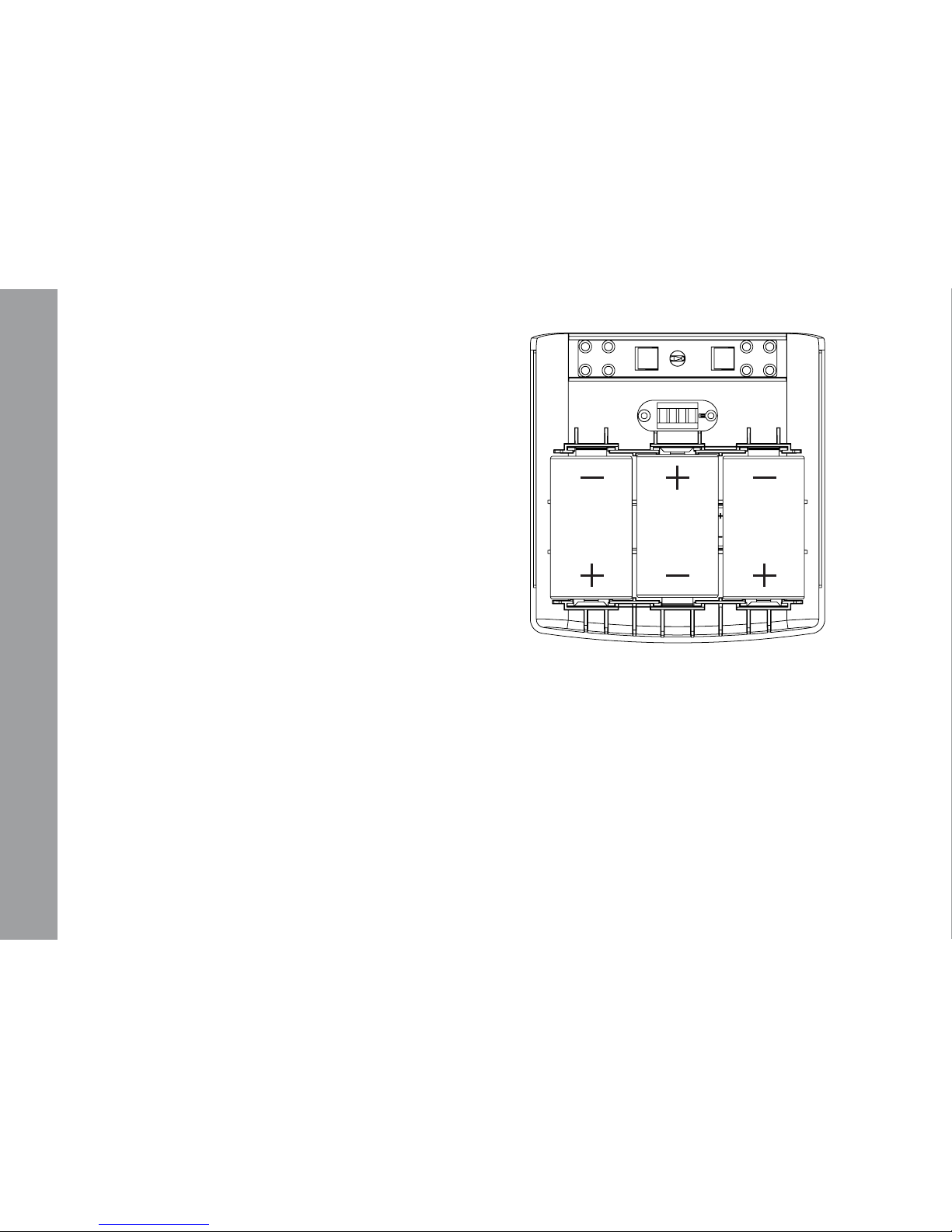

Battery Installation..................................15-16

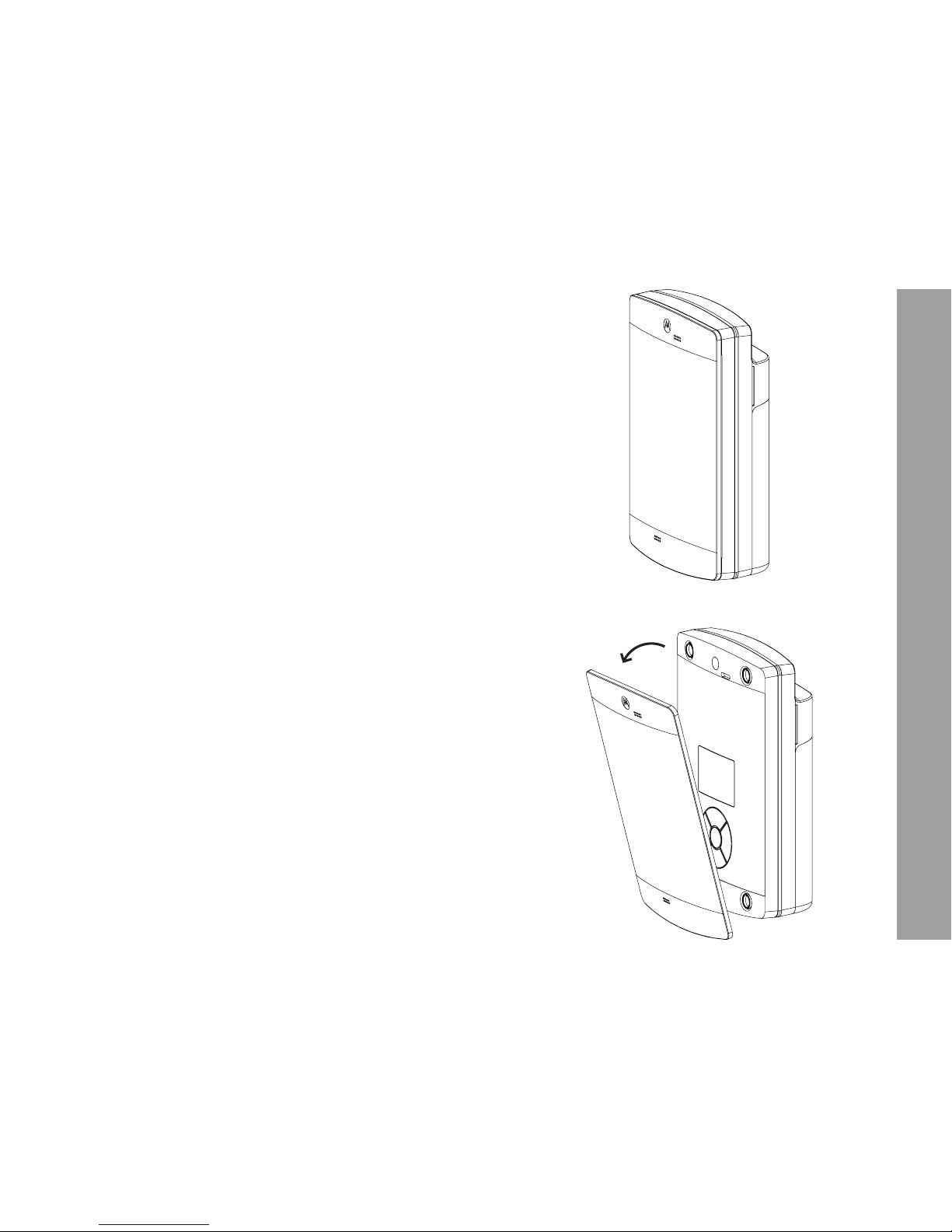

Faceplate Removal.......................................17

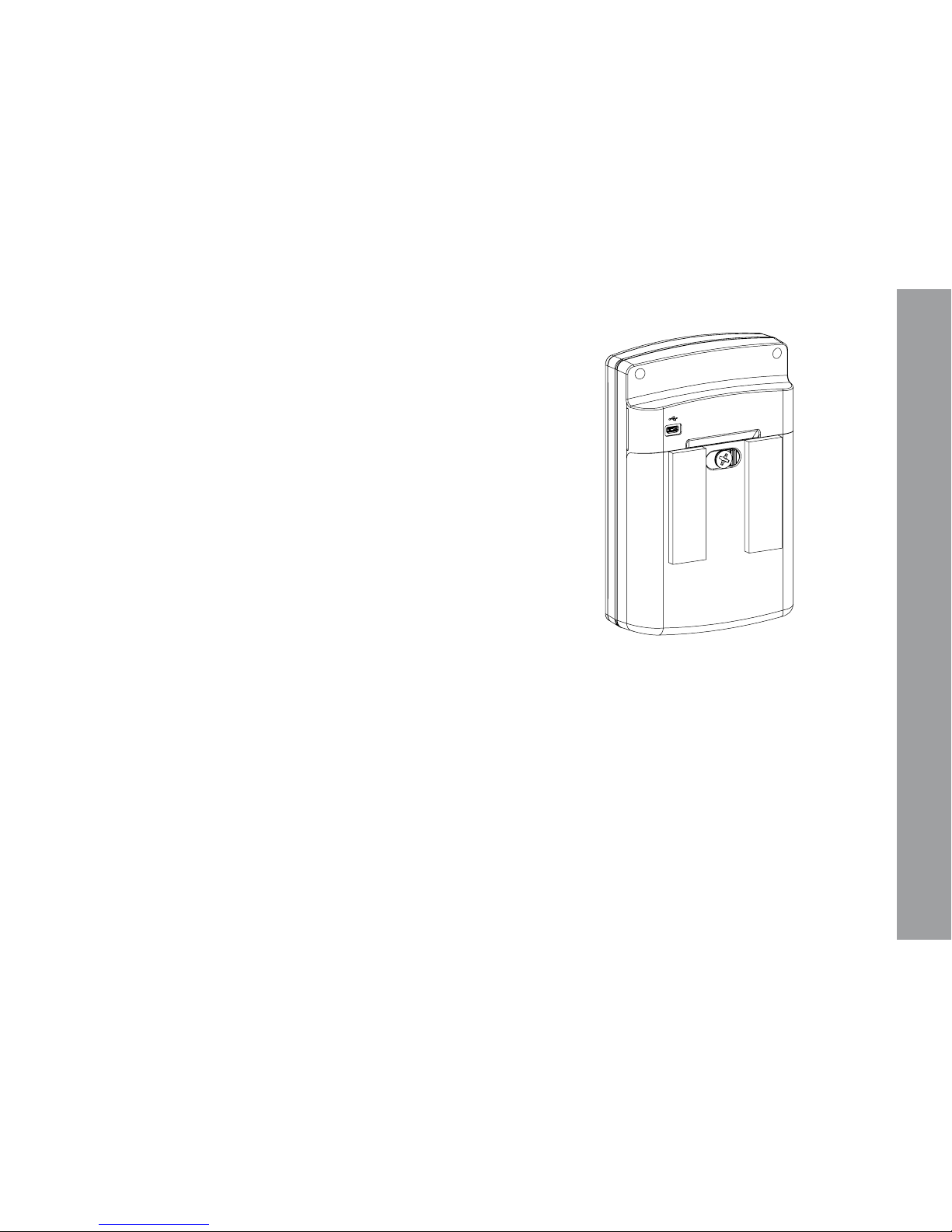

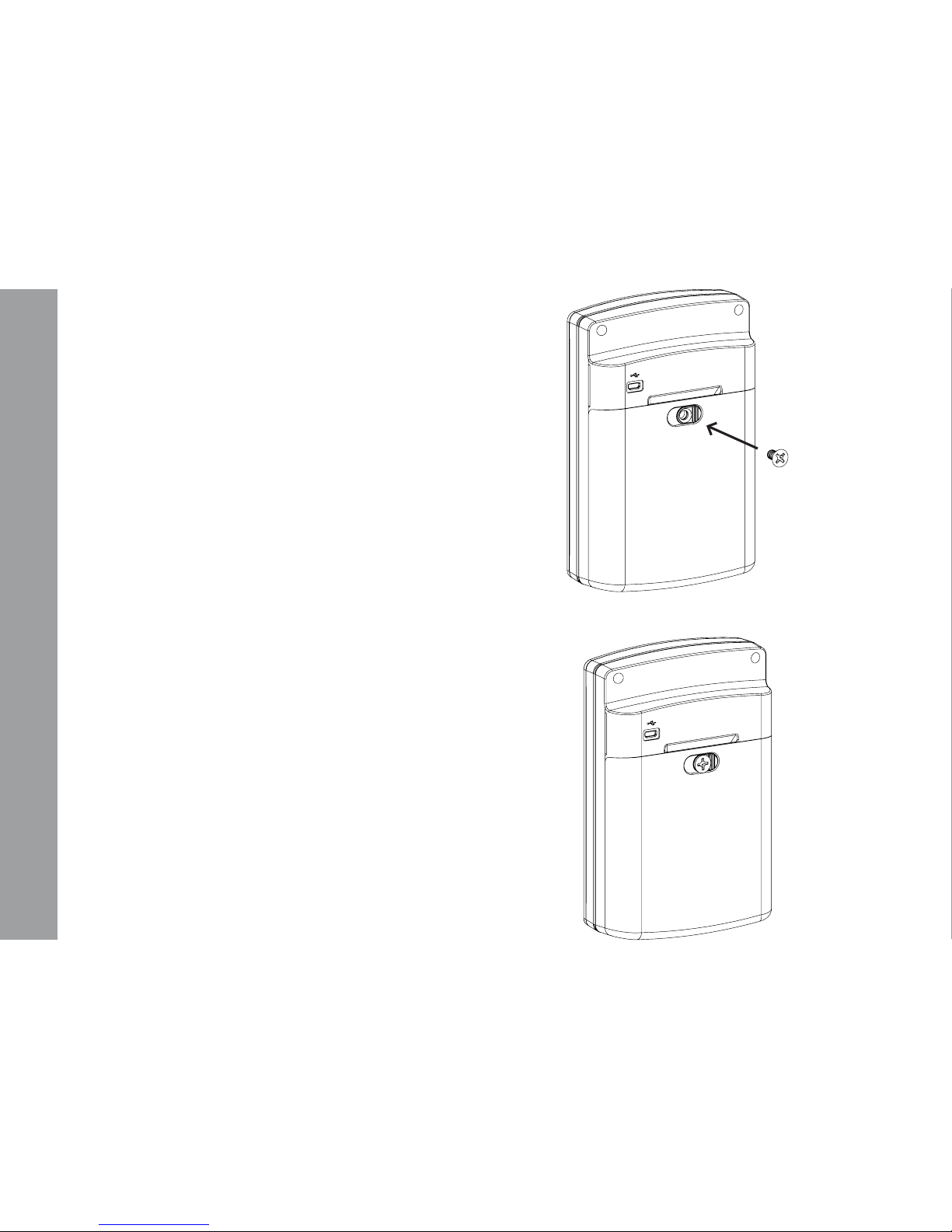

Bolt Lock Installation....................................18

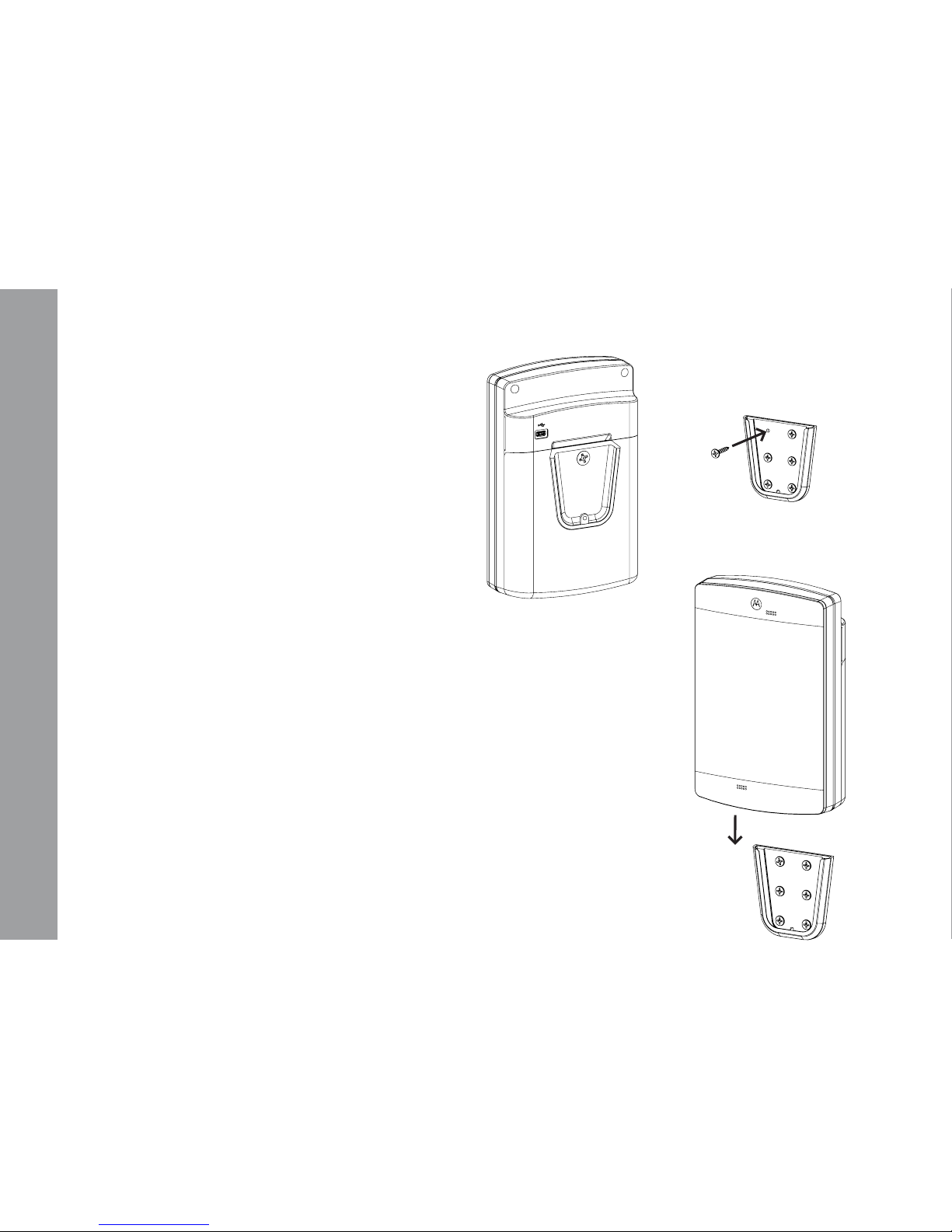

Mounting.................................................19-20
Controls Interface.........................................21
LCD Display.............................................22-23
Device & LCD Wakeup.................................24
Scrolling Menu.............................................25
Selecting a Channel.....................................26
Message Recording ................................27-28
Message Playback .......................................29
Volume Adjusting.........................................30
LCD Contrast ................................................31
Software Version .........................................32
Setting Profile ID.....................................33-34
Call Cycles....................................................35
Cycle Delay...................................................36
Channel Ready Delay...................................37
Set LED Pattern............................................38
Set Defaults .................................................39
Notes.......................................................40-41

4
RF SAFETY & FCC COMPLIANCE
RF SAFETY & FCC COMPLIANCE
This equipment has been tested and found
to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there
is no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct
the interference by one of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/
TV technician for help.
• Observe a minimum safe distance of 20 cm
from the device to the operator.
Federal Communications Commision
445 12th Street, SW
Washington, DC 20554
1-888-225-5322 (1-888-CALL FCC)
Voice: toll free 1-888-835-5322 (1-888-TELL
FCC) TTY: toll free

5
PRODUCT SAFETY
PRODUCT SAFETY
The CB300-D requires care in mounting
and servicing. Observing the following
precautions will ensure the proper function
and safety of the unit.
Do not screw through the device to mount
to a surface.
Keep the Callbox away from water, high
moisture, and high temperatures.
This equipment contains potentially
hazardous voltages.
Do not attempt to disassemble the unit.
Except for the batteries, this unit contains
absolutely no user serviceable components
and all service should be completed only by
qualified service personnel.
Do not dispose of batteries in fire. The
batteries may explode.
Do not open or mutilate the batteries, they
contain dangerous electrolytes.
Operating this unit in any capacity other
than its intended purpose may result in
system failure and possible injury and
voids any and all warranty.
•
•
•
•
•
•
•
•
CAUTION!

6
Exposure to loud noises from any source for
extended periods of time may temporarily or
permanently affect your hearing. The louder
the radio’s volume, the less time is required
before your hearing can be affected. Hearing
damage from loud noises is sometimes
undetectable at first and can have a
cumulative effect.
Use the lowest volume neccessary to
do your job.
Increase the volume only if you are in
noisy surroundings.
When using the radio, do not place the
radio’s speaker directly against your ear.
If you experience hearing discomfort,
ringing in your ears, or speeches that
are muffled, you should stop listening
to your radio, and have your hearing
checked by your doctor.
•
•
•
•
ACOUSTIC SAFETY
To protect your hearing :
PRODUCT SAFETY

7
FCC LICENSING INFORMATION
FCC LICENSING INFORMATION
This Digital Callbox is operating in the
license-free 900 MHz ISM Band (902 – 928
MHz) and are subject to the Rules and
Regulations of the Federal Communications
Commission (FCC).
NOTICE TO USERS (FCC AND
INDUSTRY CANADA)
This device complies with Part 15 of the FCC
Rules and Industry Canada’s license-exempt
RSS’s per the following conditions.
(1) This device may not cause harmful
interference.
(2) This device must accept any interference
received, including interference that may
cause undesired operation.
(3) Changes or modifications not expressly
approved by Motorola may void the user’s
authority to operate this equipment.
To comply with FCC/IC requirements,
transmitter adjustments should be made
only by or under the supervision of a person
certified as technically qualified to perform
transmitter maintenance and repairs.
Replacement of any transmitter component
(crystal, semiconductor, etc.) not authorized
by the FCC/IC equipment authorization for
this radio could violate FCC/IC rules.
NOTE: Use of this radio outside the
country where it was intended to be
distributed is subject to government
regulations and may be prohibited.

8
EMI COMPATIBILITY
ELECTROMAGNETIC INTERFERENCE
(EMI) COMPLIANCE
NOTE: Nearly every electronic device is susceptible to electromagnetic interference (EMI) if
inadequately shielded, designed, or otherwise configured for electromagnetic compatibility.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation of the device.
(3) Changes or modifications made to this device, not expressly approved by Motorola, could void
the authority of the user to operate this equipment.

9
INDUSTRY CANADA COMPLIANCE
INDUSTRY CANADA (IC) STATEMENT
(CANADA)
DÉCLARATION DE CANADA
D’INDUSTRIE (IC) (CANADA)
IC RF EXPOSURE STATEMENT
This device meets the IC requirements
for RF exposure in public or uncontrolled
environments.
DÉCLARATION D’EXPOSITION D’IC RF
Cet appareil est conforme aux conditions
de la IC en matière de RF dans des
environnements publics
ou incontrôlée.
AVERTISSEMENT D’IC
Cet appareil est conforme avec Industrie
Canada RSS standard exempts de licence
(s). Son utilisation est soumise à Les deux
conditions suivantes: 1. cet appareil ne
peut pas provoquer d’interférences et 2. cet
appareil doit accepter Toute interférence, y
compris les interférences qui peuvent causer
un mauvais fonctionnement du dispositive.
IC WARNING
This device complies with Industry Canada
license exempt RSS standard(s). Operation
is subject to the following two conditions: 1.
this device may not cause interference, and
2. this device must accept any interference,
including interference that may cause
undesired operation of the device.

10
DECLARATION OF CONFORMITY
DECLARATION OF CONFORMITY
Per FCC CFR 47 Part 2 Section 2.1077(a)
Responsible Party
Name: Motorola Solutions, Inc.
Address: 1303 East Algonquin Road,
Schaumburg IL 60196-1078, U.S.A.
Phone Number: 1-800-927-2744
Hereby declares that the product:
Model Name: CB300-D
conforms to the following regulations:
FCC Part 15, subpart B, section 15.107(a),
15.107(d), and section 15.109(a).

11
WARRANTY COVERAGE
WARRANTY COVERAGE
MOTOROLA SOLUTIONS LIMITED
WARRANTY FOR THE UNITED STATES AND
CANADA
WHAT DOES THIS WARRANTY COVER?
Subject to the exclusions on the following
page, Motorola Solutions, Inc. warrants its
CB300-D Call Boxes to be free from defects
in materials and workmanship under normal
consumer usage for the period(s) outlined
below. This limited warranty is a consumer’s
exclusive remedy, and applies as follows to
new Motorola Products, Accessories and
Software purchased by consumers in the
United States, which are accompanied by this
written warranty.
PRODUCTS COVERED
CB300-D CALL BOX
COVERAGE LENGTH
TWO (2) YEARS FROM THE DATE
OF PURCHASE

12
WARRANTY EXCLUSIONS
WARRANTY EXCLUSIONS
NORMAL WEAR AND TEAR. Periodic
maintenance, repair and replacement of parts
due to normal wear and tear are excluded
from coverage.
ABUSE & MISUSE. Defects or damage
that result from: (a) improper operation,
storage, misuse or abuse, accident or neglect,
such as physical damage (cracks, scratches,
etc.) to the surface of the product resulting
from misuse; (b) contact with liquid, water,
rain, extreme humidity or heavy perspiration,
sand, dirt or the like, extreme heat, or food;
(c) use of the Products or Accessories for
commercial purposes or subjecting the
Product or Accessory to abnormal usage or
conditions; or (d) other acts which are not
the fault of Motorola Solutions, are excluded
from coverage.
USE OF NON-MOTOROLA SOLUTIONS
PRODUCTS & ACCESSORIES. Defects
or damage that result from the use of Non-
Motorola Solutions branded or certified Products,
Accessories, Software or other peripheral
equipment are excluded from coverage.
UNAUTHORIZED SERVICE OR
MODIFICATION. Defects or damages
resulting from service, testing, adjustment,
installation, maintenance, alteration, or
modification in any way by someone other than
Motorola Solutions, or its authorized service
centers, are excluded from coverage.
ALTERED PRODUCTS. Products or
Accessories with (a) serial numbers or date tags
that have been removed, altered or obliterated;
(b) broken seals or that show evidence of
tampering; (c) mismatched board serial numbers;
or (d) nonconforming or non Motorola Solutions
housings, or parts, are excluded from coverage.

13
COMPUTER SOFTWARE COPYRIGHTS
COMPUTER SOFTWARE COPYRIGHTS
The Motorola Solutions products described in
this manual may include copyrighted Motorola
Solutions computer programs stored in
semiconductor memories or other media.
Laws in the United States and other countries
preserve for Motorola Solutions certain
exclusive rights for copyrighted computer
programs including, but not limited to, the
exclusive right to copy or reproduce in any
form the copyrighted computer program.
Accordingly, any copyrighted Motorola
computer programs contained in the
Motorola Solutions products described in
this manual may not be copied, reproduced,
modified, reverse-engineered, or distributed
in any manner without the express
written permission of Motorola Solutions.
Furthermore, the purchase of Motorola
Solutions products shall not be deemed
to grant either directly or by implication,
estoppel, or otherwise, any license under the
copyrights, patents or patent applications of
Motorola Solutions, except for the normal
nonexclusive license to use that arises by
operation of law in the sale of a product.

14
DOCUMENTATION COPYRIGHTS
DOCUMENTATION COPYRIGHTS
No duplication or distribution of this
document or any portion thereof shall take
place without the express written permission
of Motorola Solutions. No part of this
manual may be reproduced, distributed, or
transmitted in any form or by any means,
electronic or mechanical, for any purpose
without the express written permission of
Motorola Solutions.
DISCLAIMER
The information in this document is carefully
examined, and is believed to be entirely
reliable. However, no responsibility is
assumed for inaccuracies. Furthermore,
Motorola Solutions reserves the right to make
changes to any products herein to improve
readability, function, or design. Motorola
Solutions does not assume any liability
arising out of the applications or use of any
product or circuit described herein; nor does
it cover any license under its patent rights,
nor the rights of others.

15
BATTERY INSTALLATION
To install three D batteries, begin by sliding
the battery sled latch to the OPEN position.
(If a BOLT LOCK has been installed, remove it
in order to slide the latch.)
Remove the battery sled to reveal the battery
housing.
BATTERY INSTALLATION

16
BATTERY INSTALLATION
Install the three D batteries in the
configuration illustrated to the right. Replace
the battery sled, and slide the battery sled
latch to the CLOSED position.

17
FACEPLATE REMOVAL
Remove the faceplate to access the controls
interface and change the graphic insert.
The faceplate is secured at four connection
points. Firmly grasp the faceplate and pull to
disengage the connections.
FACEPLATE REMOVAL
NOTE: The faceplate acts as the Call
Button for the device. When the faceplate
is removed, the Call Button is inactive.
Refer to page 20 for additional Controls
Interface details.

18
BOLT LOCK INSTALLATION
BOLT LOCK INSTALLATION
To install a security BOLT LOCK, use a ¼–20
bolt. Screw the bolt into the area indicated to
the right.

19
MOUNTING
3M™ DUAL LOCK™ ADHESIVE STRIPS
Ensure both the back of the callbox and the
area of the surface that is being attached to
is clean, flat, and dry.
Peel off one side of the DualLock’s release
backing and firmly adhere to the left side of
the unit. Repeat this with the other DualLock
to the right side of the callbox.
Once both strips of DualLock are attached
to the callbox, peel off the white release
backing and carefully align the unit to be
level on the surface you intend to place it.
Once the callbox appears aligned, firmly
press it to the wall in one motion.
NOTE: The callbox can be removed by
applying firm pressure around the exterior
edge of the unit.

20
MOUNTING
MOUNTING CLIP
Remove the BOLT LOCK, align the positive
half of the mounting clip with the screw hole,
reinsert the BOLT LOCK, and screw until tight.
Mount the negative half of the mounting
clip in a desired area using six fasteners
appropriate for the wall material and
thickness.
Slide the device, with the positive half of
the mounting clip facing the wall, into the
negative half until the unit clicks into place.
