Motorola r765 User manual

r765/r765is
User’s Guide
6802985C35-A, draft,
August 27, 2008
@6802985C35@
r765_Armadillo.book Page 1 Wednesday, August 27, 2008 7:01 PM

IMPORTANT NOTICE: PLEASE READ
PRIOR TO USING YOUR HANDSET
The provided SIM cards are intended for use with your
handset.
Loss of certain features will result when using a SIM
card from one of the following models: i30sx, i35s,
i50sx, i55sr, i58s, i60c, i80s, i85s, i88s, i90c, i95cl
series, and the i2000 series.
For more information on SIM card compatibility, go to
www.motorola.com/iden.
Defects or damage to your Motorola handset that result
from the use of non-Motorola branded or certified
Accessories, including but not limited to replacement
housings and or other peripheral accessories, are
excluded from warranty coverage. Please refer to the
text of Motorola's Limited One Year warranty located in
this user’s guide for complete details.
r765_Armadillo.book Page iii Wednesday, August 27, 2008 7:01 PM

FCC Interference
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and on, the
user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
Changes or modifications made in the handheld
computer, not expressly approved by Motorola, will
void the user's authority to operate the equipment.
DOC_page_for FCC.fm Page i Thursday, October 2, 2008 5:21 PM

iii
Use and Care
Use and Care
Use and Care
To care for your Motorola handset, please keep it away from:
extreme heat or cold
For both handset models avoid
temperatures below -10°C/14°F
or above 60°C/140°F.
microwaves
Don’t try to dry your handset in
a microwave oven.
cleaning solutions
To clean your handset, use only
a dry soft cloth. Don’t use
alcohol or other cleaning
solutions.
r765_Armadillo.book Page iii Wednesday, August 27, 2008 7:01 PM

iv
contents
contents
Use and Care . . . . . . . . . iii
introducing your handset 1
menu map. . . . . . . . . . . . 2
handset basics . . . . . . . . 5
about this guide . . . . . . 5
insert the SIM cards. . . 5
battery and charger. . . . 7
antenna installation . . 10
antenna removal. . . . . 10
turn it on & off . . . . . . 10
SIM card security . . . . . 11
display . . . . . . . . . . . . 13
main menu . . . . . . . . . 15
text entry . . . . . . . . . . 15
navigation key. . . . . . . 17
Press the navigation key
up, down, left, or right to
scroll to items in the
display. When you scroll to
highlight the desired item,
press .. . . . . . . . . . . . . 17
volume . . . . . . . . . . . . 17
handsfree speaker . . . 18
transmitters . . . . . . . . 18
use GPS with map
software . . . . . . . . . . . 18
features for the vision
impaired . . . . . . . . . . . 20
calls . . . . . . . . . . . . . . . . 21
group calls, talkgroups,
sets, and hubs . . . . . . 21
emergency group calls
and alert notifications . 29
make a phone call. . . . 35
answer a phone call . . 36
make a private call . . . 36
answer a private call . . 37
store a phone number or
private ID . . . . . . . . . . 38
call a stored phone
number or private ID. . 38
your phone number and
Private ID . . . . . . . . . . 39
turn off a call alert . . . . 39
recent calls . . . . . . . . . 39
redial. . . . . . . . . . . . . . 40
caller ID . . . . . . . . . . . 41
call forward. . . . . . . . . 41
voice names . . . . . . . . 42
emergency calls . . . . . 42
international calls . . . . 43
speed dial . . . . . . . . . . 44
voicemail. . . . . . . . . . . 44
r765_Armadillo.book Page iv Wednesday, August 27, 2008 7:01 PM

v
contents
selective dynamic group
(SDG) calls . . . . . . . . . . 45
using your handset as a
modem . . . . . . . . . . . . 49
MOSMS messages . . . . 51
text messages. . . . . . . 51
manage memory . . . . . 54
advanced features . . . . . 56
PTV features . . . . . . . . 56
one touch PTT . . . . . . . 63
PT manager . . . . . . . . . 65
MMS . . . . . . . . . . . . . . 66
Bluetooth
®
. . . . . . . . . 80
MOTOtalk
TM . . . . . . . . . . . . . . 83
use dual SIM cards . . . 91
select frequency band. 92
customize your handset 93
ring tones . . . . . . . . . . 93
wallpaper . . . . . . . . . . . 94
datebook . . . . . . . . . . . 95
hide or show location
information . . . . . . . . . 95
other special features . . 97
advanced calling . . . . . 97
contacts. . . . . . . . . . . . 98
datebook . . . . . . . . . . . 98
GPS . . . . . . . . . . . . . . . 99
handsfree . . . . . . . . . 100
My Info . . . . . . . . . . . 101
pc applications. . . . . . 102
personalize . . . . . . . . 102
security . . . . . . . . . . . 103
TTY . . . . . . . . . . . . . . 104
Safety and General
Information . . . . . . . . . 107
Service & Repairs . . . . 113
Limited Warranty Motorola
Communications Products
(International) . . . . . . . 114
Information From the
World Health Organization
118
Patent and Trademark
Information . . . . . . . . . 120
Privacy and Data Security.
121
Smart Practices While
Driving . . . . . . . . . . . . . 122
index. . . . . . . . . . . . . . . 124
r765_Armadillo.book Page v Wednesday, August 27, 2008 7:01 PM

1
introducing your handset
Left Soft Key
Perform function
in lower left
display.
Right Soft Key
Perform function
in lower right
display.
Menu Key
From home screen,
open main menu.
Talk Key
Make &
answer calls. Power/Home/End Key
End calls, exit menu system.
OK Key
In menus & lists, press
to select highlighted option.
Earpiece
Press the Navigation key
up, down, left, or right to
highlight a menu feature.
Speaker On/Off Key
Unified Connector
Channel/Talkgroup Knob
Volume Knob Emergency Button
PTT Key
Shortcut 1 Key
Shortcut 2 Key
r765_Armadillo.book Page 1 Wednesday, August 27, 2008 7:01 PM

2
menu map
menu map
main menu
1 Net
L Java Apps
•[BuyMore]
• Location Assist
• Java System
u Settings
• (see next page)
0 VoiceRecord
• [New VoiceRec]
A Contacts
• [New Contact]
• [New SDG List]
E Messages
•[CreateMesg]
•VoiceMail
• Inbox
•Drafts
• Sent Items
• Net Alert
•SMS
P Call Forward
D Datebook
l Memo
M Call Timers
•LastCall
• Phone Reset
• Phone Lifetime
•Prvt/GrpReset
•Prvt/GrpLife
• Circuit Reset
•CircuitLifetime
• Kbytes Reset
B Recent Calls
K Shortcuts
• [New Shortcurt]
• 1)Shortcuts
• 2)Cntcs[New Contact]
• 3)Recent Calls
• 4)Contacts
• 5)Datebook
• 6)Messages
• 7)VoiceRecord
•8)Net
• 9)Call Forward
J My Info
•MyName
• Line 1
• Line 2
• Private ID
• Group ID
• Carrier IP
• IP1 Address
• IP2 Address
• Circuit Data
o Profiles
p Call Alert
c GPS
• Position
• Privacy
• Interface
r765_Armadillo.book Page 2 Wednesday, August 27, 2008 7:01 PM

3
menu map
main menu (cont.)
t Ring Tones
•[BuyMore]
• Vibrate All
• Ringer 1-12
• Vibrate
• Silent
P MOTOtalk
•GoToMOTOTalk
• Setup
•Help
O My Pictures
L Quick PTT
• PTT: Contacts
N PT Manager
•QuickPTT
• Send Message
• Send Picture
• Send Event
• Send My Info
• Send Contact
• Configure
•
TBD Location Assist
• Send Alert
• AlertReceptionListener
• Configuration
C Bluetooth
• Hands Free
• Link to Devices
• Device History
•Setup
•FindMe
This is the standard Main Menu layout.
Your handset’s menu may be a little
different.
r765_Armadillo.book Page 3 Wednesday, August 27, 2008 7:01 PM

4
menu map
settings menu
Display/Info
• Wallpaper
•TextSize
• Theme
• Home Icons
• Backlight
•Clock
• Menu View
• Large Dialing
• Contrast
• Status Light
• Language
Phone Calls
• Set Line
•AnyKeyAns
• Auto Redial
• Call Waiting
• Auto Ans
• Minute Beep
• Call Duration
• TTY
• Hearing Aid
• Notifications
• DTMF Dialing
• Prepend
2-Way Radio
• Scan
• Tkgrp Silent
•TkgrpArea
• One Touch PTT
• Alert Type
• PTT Quick Notes
•On/OffPTT
• Knob Position
• Store Rcvd Info
Personalize
• Menu Options
•UpKey
•DownKey
•LeftKey
• Right Key
• Center Key
• Left Sftkey
• Right Sftkey
Vol u me
• Line 1
• Line 2
• Messages
•Keypad
•Data
Security
• Phone Lock
• Keypad Lock
• SIM PIN
• GPS PIN
• Change Passwds
Advanced
• Alert Timeout
• Headset/Spkr
• Connectivity
• Reset Defaults
• Return to Home
•DualSIM
• Band Selection
•Transmitters
• Phone Only
• Baud Rate
These may be different depending on the
service provider.
r765_Armadillo.book Page 4 Wednesday, August 27, 2008 7:01 PM

5
handset basics
handset basics
Caution: Before using the handset for the
first time, read the Important Safety and Legal
information included in the gray-edged pages
at the back of this guide.
about this guide
This guide shows how to locate a menu
feature as follows:
Find it: > u > Phone Calls
This means that, from the home screen:
1 Press the menu key to open the
Settings menu.
2 Press the navigation key to scroll to Phone
Calls
, and press the center key to
select it.
insert the SIM cards
This handset has two SIM card slots. At least
one SIM card must be inserted to connect to
symbols
This means a feature is network or
subscription dependent and may
not be available in all areas, or might
not be offered by your service
provider. Contact customer service
for more information.
This means a feature requires an
optional accessory.
OK
r765_Armadillo.book Page 5 Wednesday, August 27, 2008 7:01 PM

6
handset basics
a network for services. Only one SIM card can
be selected for use at any time (see page 91).
Warning: To avoid loss or damage, do not
remove your SIM card from your handset
unless absolutely necessary.
1 Turn off your handset and remove your
battery before you install or remove a SIM
card.
2 Carefully slide the SIM card into your
handset, until it lies flat in the SIM card
holder.
r765_Armadillo.book Page 6 Wednesday, August 27, 2008 7:01 PM

7
handset basics
battery and charger
Battery Use & Battery Safety
• Motorola recommends you always
use Motorola-branded batteries and
chargers.
The warranty does not cover
damage caused by non-Motorola
batteries and/or chargers.
• Use only certified power supply, or UL
(Underwriters Laboratories Inc.) listed
or recognized or specific chargers:
Single-Unit Charger PMLN5197
Multi-Unit Charger WPLN4187
Caution: Use of an unqualified battery
or charger may present a risk of fire,
explosion, leakage, or other hazard.
Improper battery use, or use of a
damaged battery, may result in a fire,
explosion, or other hazard.
• Battery usage by children should be
supervised.
• Important : Motorola mobile devices
are designed to work best with
qualified batteries. If you see a
message on your display such as
Invalid
Battery
or Unable to Charge , take the
following steps:
• Remove the battery and inspect it to
confirm that it bears a Motorola
“Original Equipment” hologram;
• If there is no hologram, the battery
is not a qualified battery;
• If there is a hologram, replace the
battery and retry charging it;
• If the message remains, contact a
Motorola Authorized Service Center.
• New batteries or batteries stored for a
long time may take more time to
charge.
r765_Armadillo.book Page 7 Wednesday, August 27, 2008 7:01 PM

8
handset basics
• Charging precautions: When charging
your battery, keep it near room
temperature. Never expose batteries to
temperatures below 0°C (32°F) or
above 45°C (113°F) when charging.
Always take your mobile device with
you when you leave your vehicle.
• When storing your battery, keep it in a
cool, dry place.
• It is normal over time for battery life to
decrease, and for the battery to exhibit
shorter runtime between charges or
require more frequent or longer
charging times.
• Avoid damage to battery and mobile
device.
Do not disassemble, open,
crush, bend, deform, puncture, shred,
or submerge the battery or mobile
device. Avoid dropping the battery or
mobile device, especially on a hard
surface. If your battery or mobile
device has been subjected to such
damage, take it to a Motorola
Authorized Service Center before
using.
Do not attempt to dry it with an
appliance or heat source, such as a hair
dryer or microwave oven.
• Use care when handling a charged
battery:
Particularly when placing it
inside a pocket, purse, or other
container with metal objects. Contact
with metal objects (e.g., jewelry, keys,
beaded chains) could complete an
electrical circuit (short circuit), causing
the battery to become very hot, which
could cause damage or injury.
Promptly dispose of used batteries in
accordance with local regulations.
Contact your local recycling center for
proper battery disposal.
Warning: Never dispose of batteries in a fire
because they may explode.
r765_Armadillo.book Page 8 Wednesday, August 27, 2008 7:01 PM

9
handset basics
battery installation battery removal

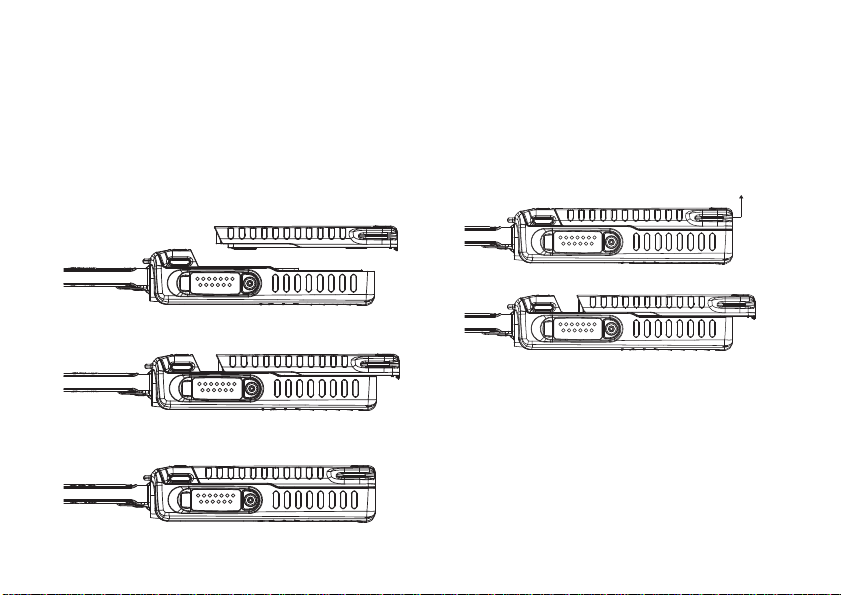

1 Release the battery latch by pulling it
upwards as shown.
2 Slide the battery towards the bottom of
the handset.
battery charging
New batteries are not fully charged.
1 Insert your handset into the charger.
2 Plug the other end of the charger into the
appropriate electrical outlet.
1 Place the battery on the back of the
handset as shown.
2 Slide the battery towards the top of the
handset until it snaps into place.
Pull latch upPull latch up
r765_Armadillo.book Page 9 Wednesday, August 27, 2008 7:01 PM

10
handset basics
For battery charging, see the user guide that
accompanies the Single-Unit Charger or the
Multi-Unit Charger.
When you charge the battery, the battery level
indicator at the upper right of the screen
shows charging progress. At least one
segment of the indicator must be visible to
ensure full handset functionality while
charging.
Tip: Motorola batteries have circuitry that
protects the battery from damage from
overcharging.
Note: This handset complies with
environmental energy consumption
requirements by notifying the user to unplug
the charger from the power outlet when the
charger is disconnected from handset/power
outlet. This notice can be dismissed
permanently by pressing
- under No .
antenna installation
Note: Attach the handset antenna before
using your handset.
1 Insert the bottom of the antenna into the
screw-in base on the top of the handset.
2 Turn clockwise until it will no longer turn.
antenna removal
1 Grip the antenna firmly and turn it counter-
clockwise until it is loose.
2 Remove the antenna from the antenna
socket.
turn it on & off
To turn on your handset, press and hold
for a few seconds or until the display turns on.
If prompted, enter your four-digit unlock code.
r765_Armadillo.book Page 10 Wednesday, August 27, 2008 7:01 PM

11
handset basics
To turn off your handset, press and hold
for two seconds.
SIM card security
Note: Except for making emergency phone
calls, your phone will not function without the
SIM card.
To prevent unauthorized use of your phone,
your SIM card is protected by a PIN that you
enter each time the phone is powered on. You
can change the PIN or turn off the
requirement that it be entered.
enter the PIN
You may be required to enter a SIM PIN when
you first use your phone.
When you receive your phone, the SIM PIN is
0000. Change your PIN to prevent fraudulent
use of the SIM card.
Important: If you enter your PIN
incorrectly 3 times, your SIM card is
blocked. To unblock your SIM card, you
must contact your service provider. See
“unblock the PIN” on page 12.
1 When the Enter SIM PIN Code screen
appears, enter your SIM PIN. An asterisk
appears for each character entered.
2 Press - under Ok .
Change the PIN
1 From the main menu, select u> Security >
Change Password > SIM PIN
.
2 At the Enter Old SIM PIN Code screen, enter the
current SIM PIN.
3 Press - under Ok .
4 At the Enter New SIM PIN Code screen, enter
the new 4 to 8-digit SIM PIN.
5 Press - under Ok .
r765_Armadillo.book Page 11 Wednesday, August 27, 2008 7:01 PM

12
handset basics
6 At the Re-enter New SIM PIN Code screen,
re-enter the new SIM PIN to confirm.
7 Press - under Ok .
turn the PIN requirement On and Off
When the SIM PIN requirement is on, you are
prompted to enter your PIN each time you
turn on your phone.
Note: If a SIM PIN is required, your phone will
not function until the SIM PIN is entered,
except for making emergency phone calls.
When the PIN requirement is off, your phone
can be used without entering a PIN.
Important: When the SIM PIN
requirement is off, the personal data on
your SIM card is not protected. Anyone
can use your phone and access your
personal data.
1 From the main menu, select u> Security >
SIM PIN.
2 Select On or Off .
3 Enter the current SIM PIN.
4 Press - under Ok .
unblock the PIN
If you enter your PIN incorrectly 3 times, your
SIM card is blocked. To unblock your SIM
card, you must contact your service provider
to get a PIN Unblock Code (PUK).
Important: If you unsuccessfully enter
the PUK code 10 times, your SIM card is
permanently blocked and must be
replaced. If this happens, all data is lost.
You will get a message to contact your
service provider. Except for making
emergency phone calls, your phone will
not function with a blocked SIM card.
To unblock the PIN:
1 Press * # 1 .
r765_Armadillo.book Page 12 Wednesday, August 27, 2008 7:01 PM

13
handset basics
2 At your service provider representative’s
request, provide the information needed
to give you a PUK code.
3 Select Unblock PIN .
4 Enter the PUK code.
5 Enter a new 4 to 8-digit SIM PIN.
6 Re-enter your SIM PIN.
7 If you entered the codes properly, SIM
Unlocked
appears on the display.
display
The home screen shows when you turn on
the handset. To dial a number from the home
screen, press number keys and .
Note: Your home screen may look different.
Soft key labels show the current soft key
functions. For soft key locations, see page 1.
TBD
Date and Time
Right Soft
Key Label
Left Soft
Key Label
Motorola
10:05 am 4/17
Contcs Mesg
r765_Armadillo.book Page 13 Wednesday, August 27, 2008 7:01 PM

14
handset basics
status indicators
Status indicators are shown at the top of the
home screen:
1 Signal Strength Indicator: Vertical bars
show the strength of the network
connection. You can’t make or receive
calls when
1 or 0 shows.
2 Active Phone Line: 1 indicates phone line
1 is ready to make calls; 2 indicates phone
line 2 is ready to make calls.
3 Speaker On/Off : Sounds associated with
Private calls and group calls can be set to
come through the earpiece rather than
through the speaker.
4RingerVibe/Off: Your handset is set to
not ring.
5 Message Indicator: Shows when
you receive a text message.
6 Packet Data: Your handset is ready to
transfer packet data or is transferring
packet data when it shows a blinking
arrow.
7 Battery Charge Indicator: A fuller battery
indicates a greater charge. Recharge the
battery when your handset shows
Low
Battery
.
TBD
1. 2. 3. 4. 5. 6. 7.
Motorola
10:05 am 4/17
Contcs Mesg
r765_Armadillo.book Page 14 Wednesday, August 27, 2008 7:01 PM
