MouKey MA20-1 User manual

MA20-1Model:

1To customersThank you very much for your support and trust in our company. In order to use this product more better.Please keep this manual properly in order to learn more about the connection method and using points of the product.Features：1.Three-way audio system2.Handmade wooden speakers3.5.0 Bluetooth functionProduct specifications：Speaker model: MA20-1Rated output power L/R: 25W+25WSignal to noise ratio L/R≥75dB(A)Input sensitivity: ≥800mV±50mVLine distortion: <0.33%@1Khz 0dBFrequency response: 40Hz-20KHz±3dB(5W/4Ω)Woofer: 4 inchesMidrange unit: 2 inchesTweeter: 1 inchesBox size:169x156x251mmNet weight:5.5KgGross weight:6.2KgPacking size:430x187x349mmWARNING:To reduce risk of fire or electric shock, do not expose this apparatus to be rain or moistured.Speaker

2Thank you for purchasing Moukey MA20-1 multimedia speakers, please read this manual carefully before operating this system.The lightning flash with arrowhead inside the triangle, is intended to alert the user to the presence of un-insulated dangerous voltage within the product’s enclosure that may be of a sufficient magnitude to constitute a risk of electric shock for person. To prevent the risk from electric shock,do not remove the cover (or back). No user- serviceable Parts inside.Only refer servicing to qualified service person.CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPENThe exclamation point inside the triangleis intended to alert the user, the presenceof important operating and maintenance(servicing) instructions in the literatureaccompanying the product.1.Read these instructions. 2.Keep your user manual. 3.Pay attention to all warnings. 4.Follow all instructions. 5.Do not use this product near water. 6.Cleaning only with dry cloth. 7.Do not use this product near water and never put this product into liquids or allow liquids to drip or spill on it. 8.Do not place appliance filled with water on this product, such as vase; nor place any form of open fire such as lit candle. 9.Do not block any ventilation openings. Please leave evough space around the speakers to ensure good ventilation (the distance should be above 5cm). Install in accordance with the manufacturer’s instructions. 10.Do not put this product near any heat sources, such as radiator, heat register, stove or other apparatus (including amplifier) .11.Do not disregard the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the outlet. 12.Protect the power cord from damage or getting pinched particularly at plugs, receptacles and the point where they exit from the apparatus. 13.Only using attachments/accessories specified by the manufacturer. 14.Please turn off this product during lightning storms or when no using it for long periods.15. Only refer all servicing to qualified service person. Servicing is required when the product is damaged, such as power supply cord or plug, liquid spilled or objects fallen into the product, has been exposed to rain or moisture, does not operate normally, or has been dropped. 16.The main plug is used to be the disconnecting devices. The disconnecting device shall remain readily operable. 17.The maximum ambient temperature is 45°C/113°F 18.Do not use strong acid, strong alkali and other chemical solvents to clean the surface of product. Please use neutral solvent or water to clean the product.Using only with the cart, stand, tripod, bracket, table specified by the manufacturer or which are sold with the apparatus. Please to be careful when moving the cart/apparatus combination in order to avoid injury from tip-over.Disposal of this product properly. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent the possibility damage for the environment or human health from uncontrolled waste disposal, recycle it responsiblly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer. For environmental safty recycling, they can deal with this product.This equipment is a class ll or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.WARNING DO NOT INGEST BATTERY, CHEMICALBURN HAZARD This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, please stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of body, please seek immediate medical attention. The battery (in remote control) shall not be exposed to heat enviorment such as sunshine or fire.Speaker

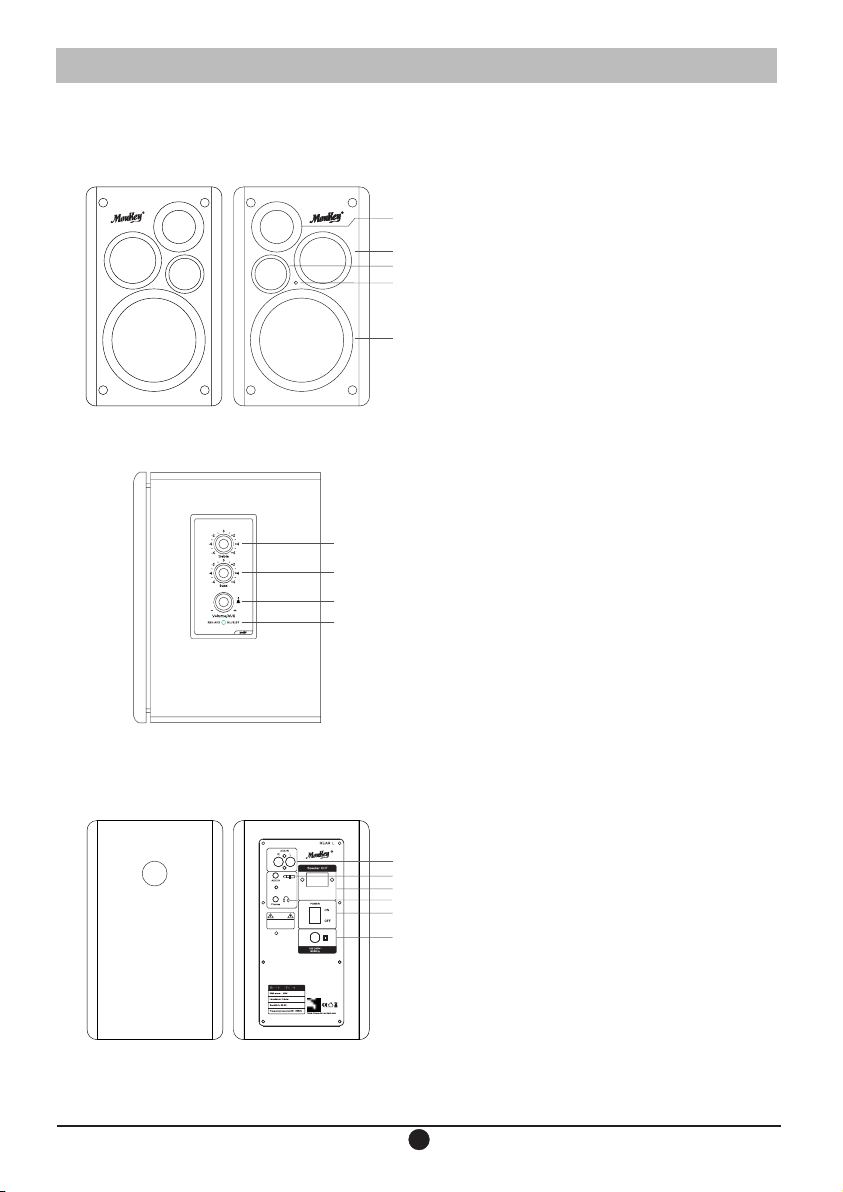

MADE IN C HINAWARNINGElect ric Sho ck Haza rd, No n Profe ssion als, Do Not Op en!1231:L 2:R 3:GNDABC1234567891011121314153A: Front viewB: Side viewC: Rear view1: Silk film tweeter x12: Midrange 2 inch x13: Vent4: Remote control receiver light5: Bass 4 inch x16: Treble adjustment knob7: Bass adjustment knob8: Volume adjustment knob9: Audio source status indicator (red AUX input, blue is Bluetooth status)10: AUX RCA input interface11: AUX 3.5mm input interface12: Speaker connection port13: Monitor output interface14: Power switch button15: Power cordSpeaker

AUX
vol put
--++
or
vol put
-+
or

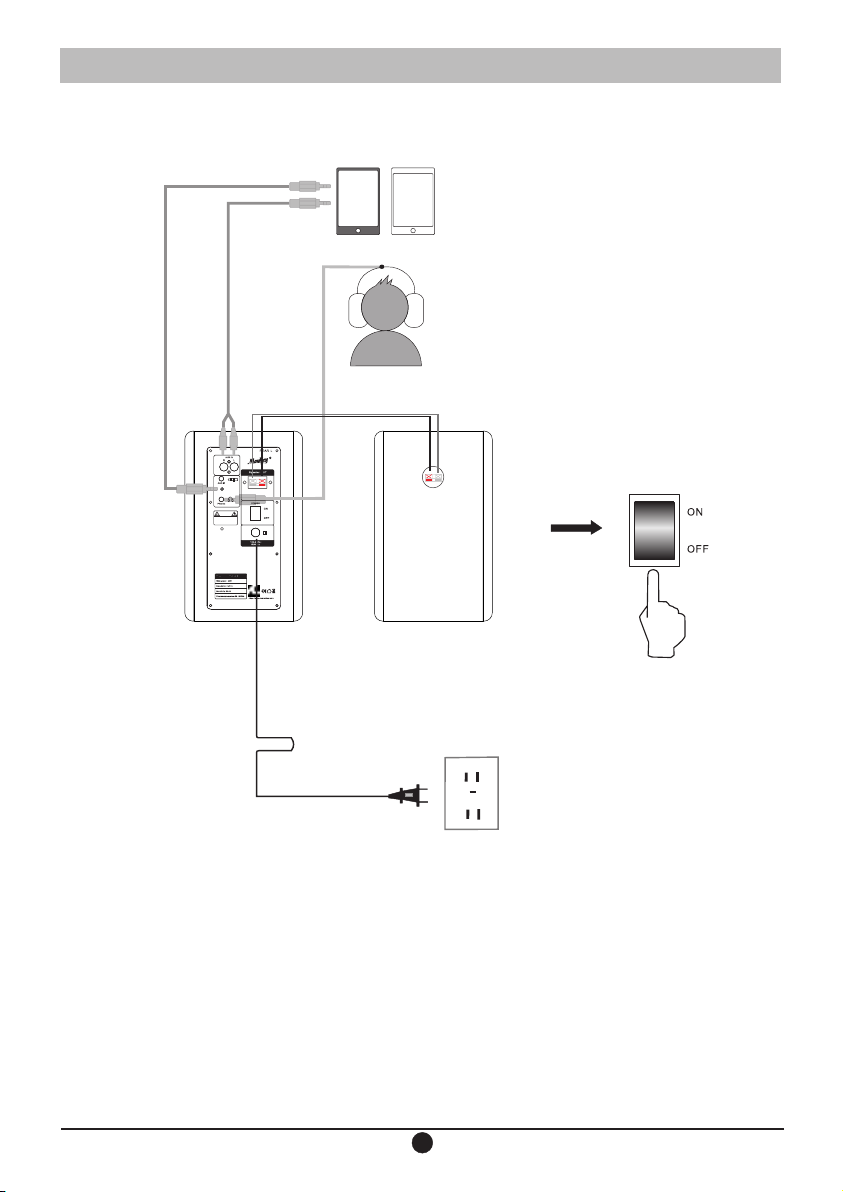

441.Press the master volume control on the active speaker or press the "AUX"button on the remote control to select LINE IN input. The indicator turns to red.2.Using audio cable to connect audio source to the speaker.3.Play your device and adjust the volume properly.Matching:1.Turn on speaker and switch to Bluetooth Mode by pressing theBluetooth button of theremote control or press the master volume control on the back panel ofthe active speaker. The colour of indicator will be blue.2. Find the "set up section" on your source devices (mobile phones,tablets, etc.) and search for nearby Bluetooth devices, you will find“Moukey MA20-1” in the list.3.Match your device to “Moukey MA20-1”Note: 1.Bluetooth connectivity and compatibility may be different amongfrom different source devices, depending on the software versions ofsource devices.2.To enjoy the Bluetooth functions of this product more better, pleaseensure your mobile device supports AZDP and AVRCP profile.Speaker

-
+MA20-121345678
1235
Battery loading:Please refer to the illustration to open the battery compartment,insert the CR 2025 battery and close the compartmentNote:1, Do not place the remote control in places that are hot and humid.2, Do not charge the batteries,3. Remove the batteries when unused for long period of time.4. The battery should not be exposed to excessive heat such asdirect sun, fire or similar.5, Danger of explosion if battery is incorrectly replaced, Replace only with the same or equivalent type.

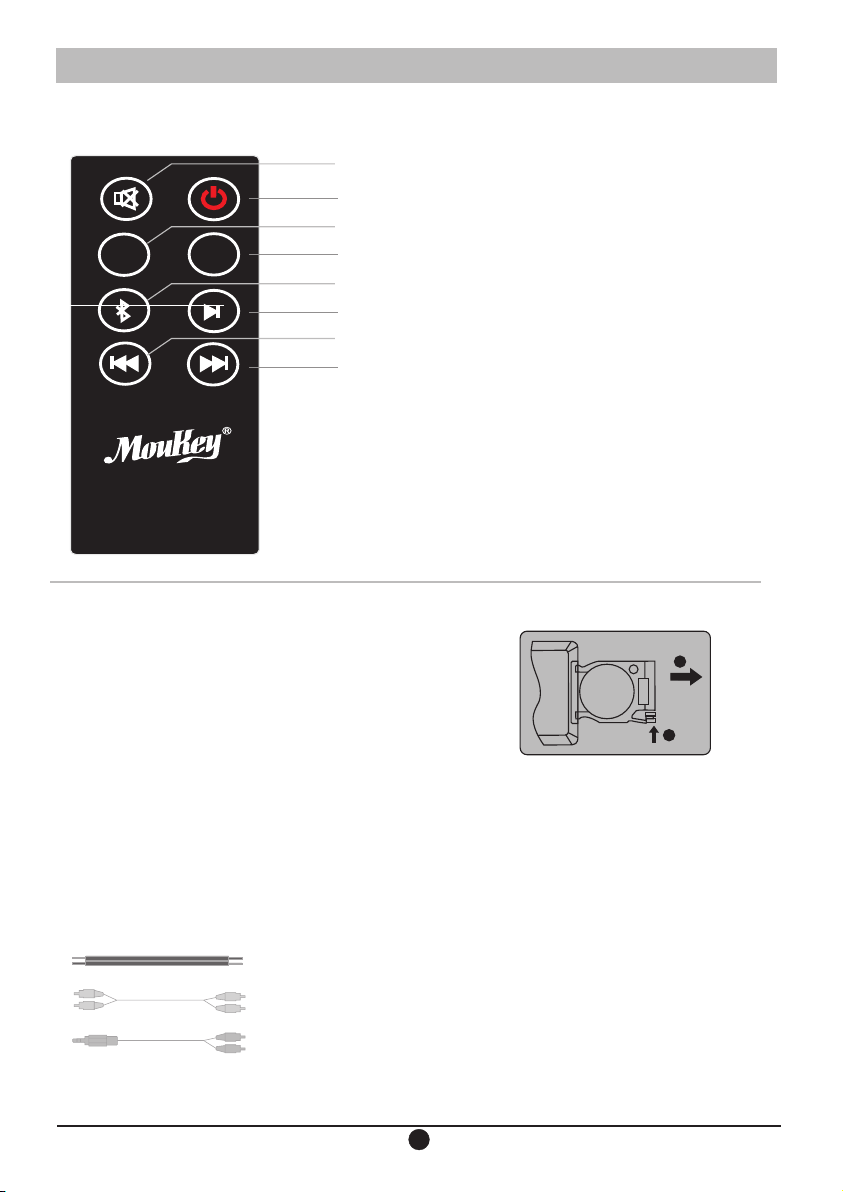

++12OPENFunction explanation:1.Mute button: Press once to mute, press againto resume playback.2.Power button: Press once to shut down. Andthe machine enters the standby state; Press againto turn on, the machine enters normal working state.3. Volume reduction: press lightly or press thevolume for a while to decrease volume continuously.4. Volume up: Tap or press the volume for a whileto increase volume continuously.5. Bluetooth selection button: Press the machineto enter the bluetooth state, the side indicator willbe blue. If the bluetooth is not connected, the blueindicator flashes that reminds the customer toconnect to the bluetooth.6.Play pause button: Press once to pause, pressagain to resume playback.7.Previous song: Click the previous song on themachine to play.8. Next song: Click the machine to playthe next song.1: 2.5 meters 0.75 square transparent line 1PCS2: 1.5 meters lotus head line 1PCS3: 1.5m 3.5mm to RCA cable 1PCSSpeaker

6MADE IN CHINAWARNINGElect ric Sho ck Haza rd, Non Pro fessi onals , Do Not Open !1231:L 2:R 3:GND 01Precautions:1: Please pay attention to the correct connection method. The positive and negative polarity cannot be connected wrongly.2: Please be careful do not to use the product under high temperature or direct sunlight.3: Please be careful do not to use the product in a humid environment.4: Please be careful do not to use the product in an environment where water splashes.Speaker

7System installation and placement:The sound effect of the system will be slightly affected by the listening environment. If you want to produce a good sound effect, you should consider properly your current location environment before the actual installation.*Appropriately placed in a position where the ears are relativelyparallel (Figure 1)*If you need a natural stereo effect, you can install left and right speakersystems in the symmetrical and equidistant positions of the listening position*The installation of the speakers should face inward and form a total angleof 60 degrees with the listening position. The left and right speakers areeach 30 degrees (see Figure 2)Figure 1Figure 2Speaker
50-60O

8Simple trouble shooting:*Sometimes something wrong may be caused by other devices, pleasecheck other devices or the using of power supply equipment.问题 检查 解决方法没有电源 请连接电源线插头到AC电源插座 连接好设备没有声音或声音小 连接设备的设定是否正确 请正确的设定设备的音源和音量 连接线是否正确 请正确的连接连接线 音量是否设定在正确的位置 请顺时针调节音量旋钮到合适的位置 电源是否开启 请将本装置后板开关拔到“1”的位置 POWER指示灯未亮 电源是否开启 请将本装置后板开关拔到“1”的位置 系统是否处于待机状态 重新开关机或按一下遥控器的电源按键 只有一只扬声器系统有声音 信号输入线是否连接好 重新接好输入线 遥控器无作用 遥控器电池是否插入正常 重新并正确地插入电池 遥控器电池是否正常 重新更换新的电池 电源线是否连接正确 声音失真 音量是否设到正确位置 请反时针方向旋转本装置侧盒的VOLUME旋钮来降低音量从连接设备来的输入电平是否正确 请正确的调节连接设备的输出电平 ProblemInspectionSolutionNo powerWhether the device is connectedPlease connect the power cord plug to the AC power outletWhether the device is connectedNo sound or low soundIs the setting of the conn-ecting device correctPlease set the sound source and volume of the device correctlyWhether the connection line is correctPlease connect the cable properlyIs the volume setting in the correct positionPlease adjust the volume knob clockwise to the appropriate positionWhether the power is onPlease pull the switch on the rear panel of this device to the "1" positionPower indicator doesn’t light upWhether the power is onPlease pull the switch on the rear panel of this device to the "1" positionWhether the system is stand byTurn on, turn off again or press the power button of the remote controlOnly one speaker system produces soundWhether the signal input line is connected properlyConnect the audio cable againThe remote control does not workIs the remote control battery inserted properlyRe-insert the battery properlyIs the remote control battery can be used properlyReplace with new batteryIs the volume setting to be the correct positionPlease turn the VOLUME knob on the side of the device counterclockwise to decrease the volumeIs the input level from the connected device properly?Please adjust the output level of the connected device properlyIs the volume adjusted to the correct positionSpeaker
