Mountz MSP619 series User manual

Mountz Inc. 1080 North 11th Street, San Jose, CA 95112 Phone: [phone] Fax: [phone] www.mountztorque.com
Page 1
Read the operation manual carefully before using the machine.

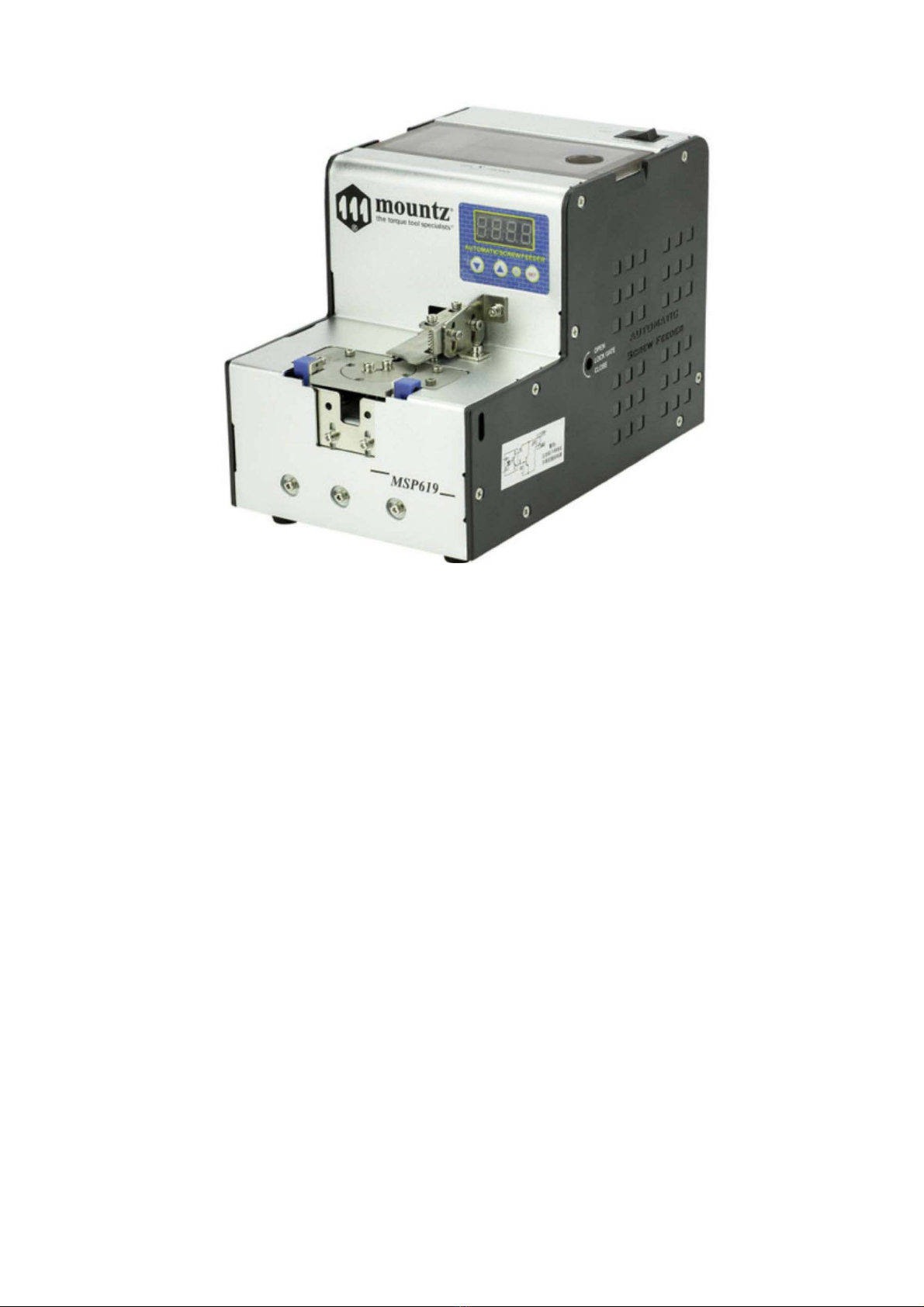

MSP Automation Digital
Display Screw
Presenters(MSP619 &
MSP1069)
Operating Instructions
Rev 1.3 (09/01/2020)

Mountz Inc. 1080 North 11th Street, San Jose, CA 95112 Phone: [phone] Fax: [phone] www.mountztorque.com
Page 2

Mountz Inc. 1080 North 11th Street, San Jose, CA 95112 Phone: [phone] Fax: [phone] www.mountztorque.com
Page 3
CONTENTS
1) Features ------------------------------------------------------------------------------- 3
2) Parameters --------------------------------------------------------------------------- 3
3) Usage & Adjustment ----------------------------------------------------------------- 4
4) Description of parts and functions ----------------------------------------------- 8
5) Output Signal ------------------------------------------------------------------------ 11
6) Part list -------------------------------------------------------------------------------- 12
7) Trouble Shooting --------------------------------------------------------------------- 14

Mountz Inc. 1080 North 11th Street, San Jose, CA 95112 Phone: [phone] Fax: [phone] www.mountztorque.com
Page 4
Features
1. Adjustable Screw Size Capacity
Fully adjustable models, as the screw presenters can be adjusted to match different
screw sizes.
2. Operates Smoothly
Screws are placed into the hopper of the screw presenter and automatically lined up for
dispensing.
3. Adjustable Speed
Control the deeding system and drive system independently. Adjust the screw feed speed.
4. Simple Operation
This simple mechanism allows trouble-free operation, eliminating jammed or stuck screws.
5. Increase Productivity Significantly
Screw presenters are small, tabletop devices used to organize and automate work areas and
production cells. Screw presenters make assemblers and the assembly process more
efficient by mechanically presenting a screw to a fixed pick up point. Conventional
assembly methods cause assemblers to inefficiently fumble with screws that are stored in
bins or shaker trays. The enhancement of productivity is estimated to improve assembly
time by nearly fifty percent.

Mountz Inc. 1080 North 11th Street, San Jose, CA 95112 Phone: [phone] Fax: [phone] www.mountztorque.com
Page 5
BEFORE USE
Read these instructions thoroughly for the proper use of this machine. Keep the manual in a safe
place so that you or the operator can refer to it whenever necessary.

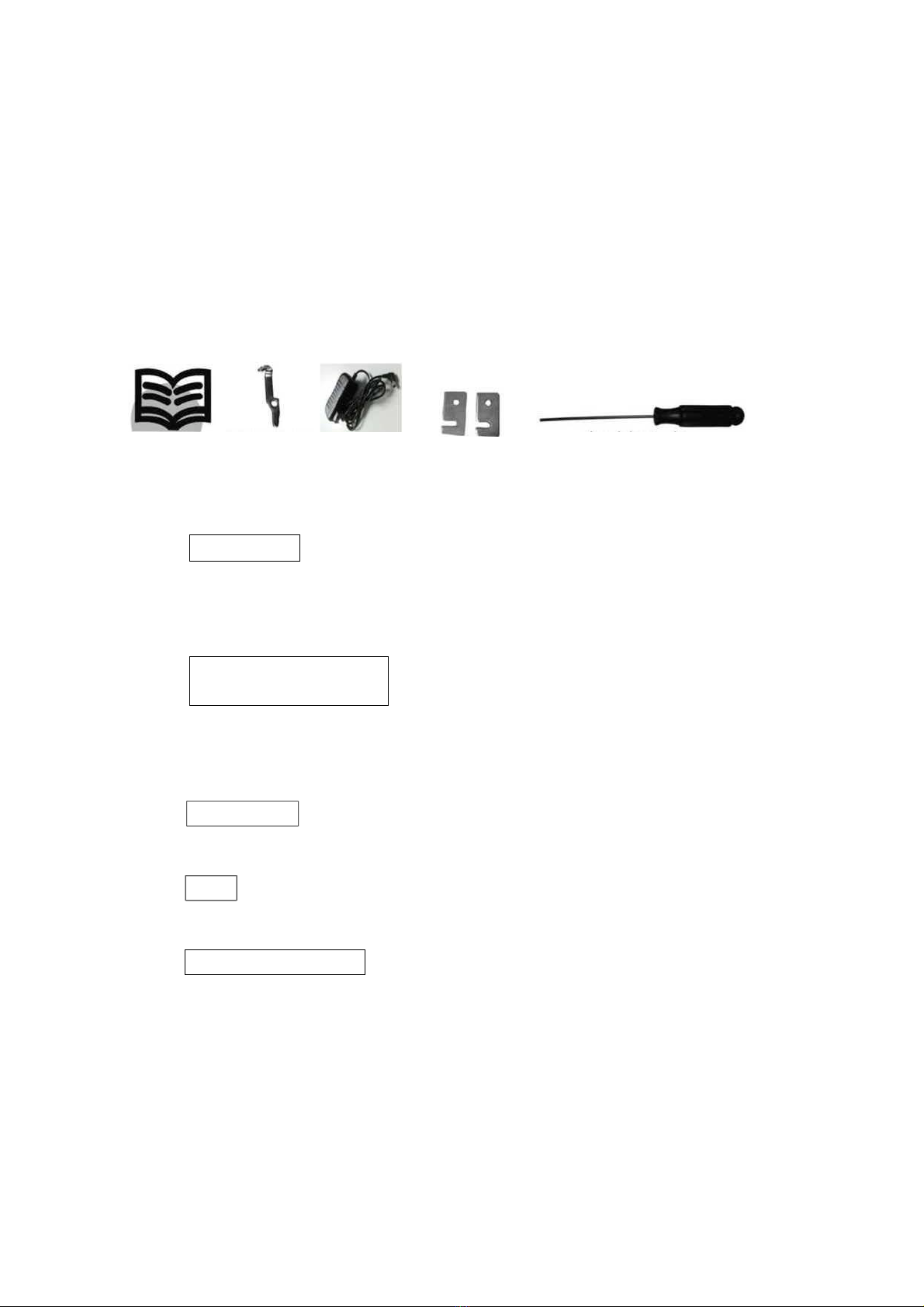

1. Accessories Included:
* Screw stopper plate , 1 pcs (1pcs is already attached to the main body)
* DC Adapter , 1 pcs
* 2 metal adjustment laminates, 4 pcs 1.2mm, 5 pcs 0.2mm (used to
adjust the holding plate)
* Hexagonal key, 1 pcs
2. For safe use
Operate the screw presenter properly in order to prevent injuries and damage
Install the screw presenter on a level, stable location that can endure it's weight and operating
conditions. If the machine falls down or turns over due to improper installation, Injuries or
property damage may result.
Caution: Do not operate this machine where flammable or corrosive gas is present. It is
extremely dangerous to use this machine under such circumstances. Do not operate this machine
in environments of high humidity.
AC adapter
Caution: Do not use any other AC adapter other than the recommended accessory.
Rail
Caution: Do not damage nor oil the rail.
Caution: Do not use oily screws, dirty screws or any screw other than those prescribed.
Installation
Operating
Environment
Suitability of screws

Mountz Inc. 1080 North 11th Street, San Jose, CA 95112 Phone: [phone] Fax: [phone] www.mountztorque.com
Page 6

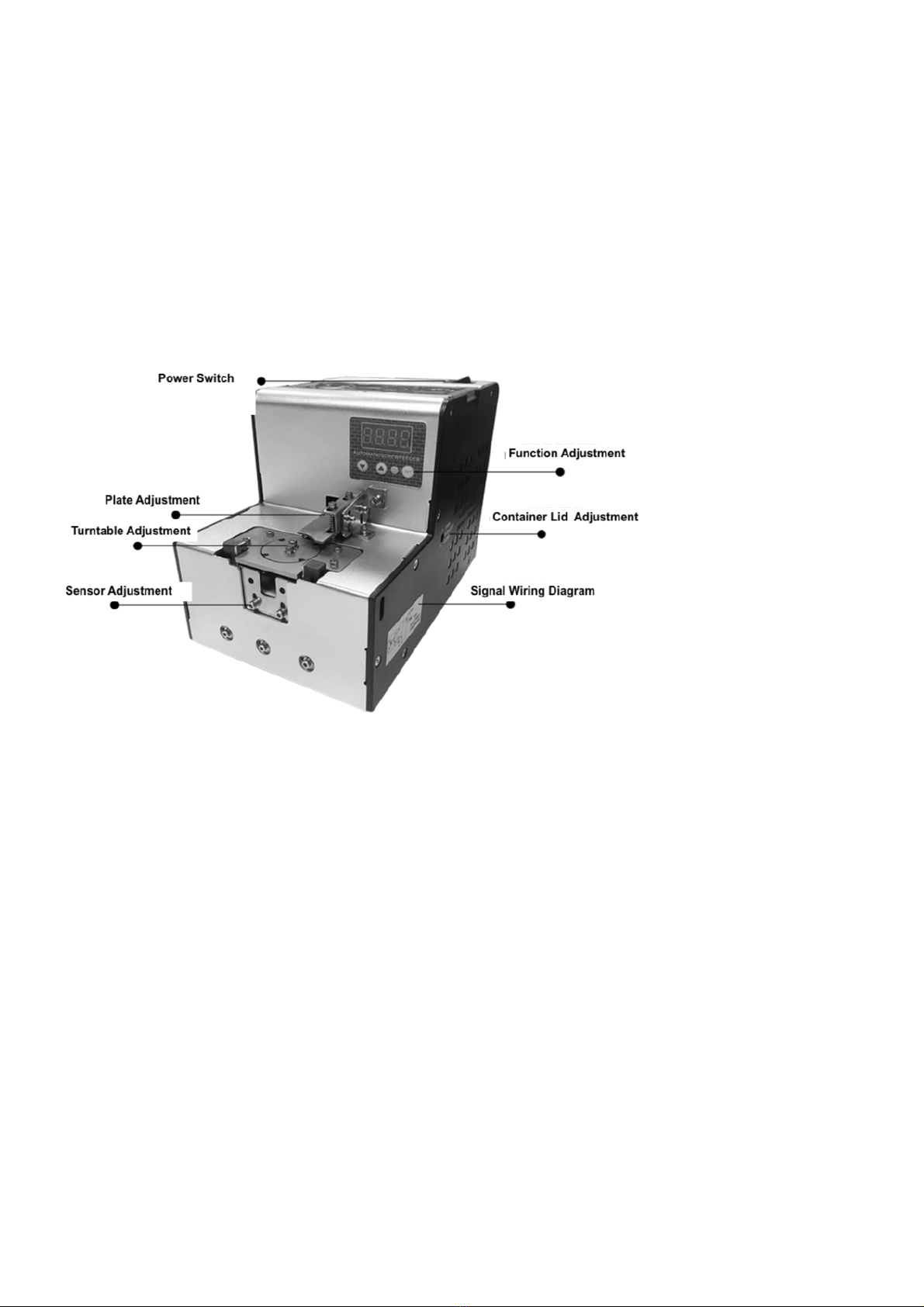

Description of parts and functions
Basic Frame

Mountz Inc. 1080 North 11th Street, San Jose, CA 95112 Phone: [phone] Fax: [phone] www.mountztorque.com
Page 7

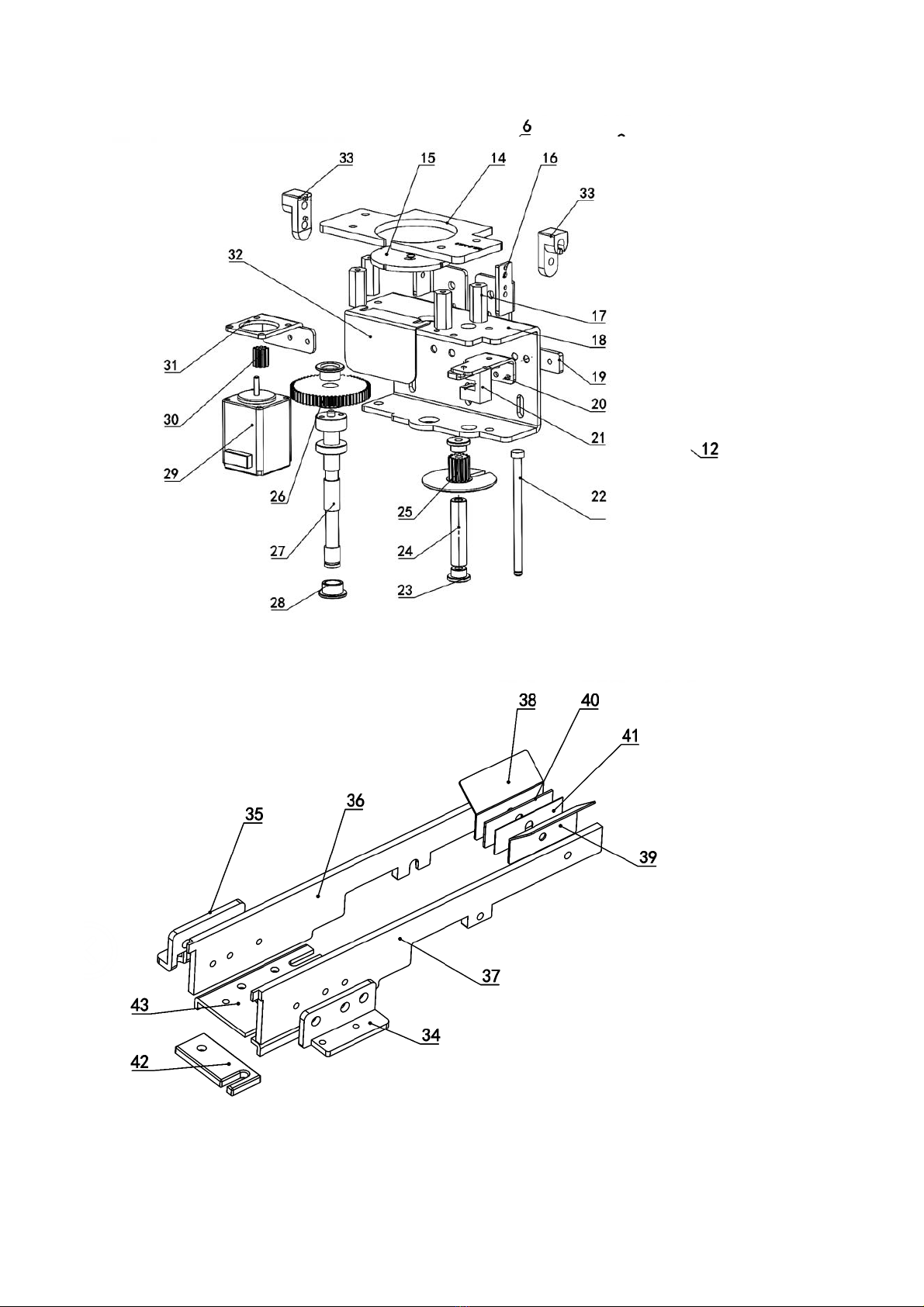

Guide Part
\
Screw rail

Mountz Inc. 1080 North 11th Street, San Jose, CA 95112 Phone: [phone] Fax: [phone] www.mountztorque.com
Page 8
Vibrating Part

Mountz Inc. 1080 North 11th Street, San Jose, CA 95112 Phone: [phone] Fax: [phone] www.mountztorque.com
Page 9
Internal structure

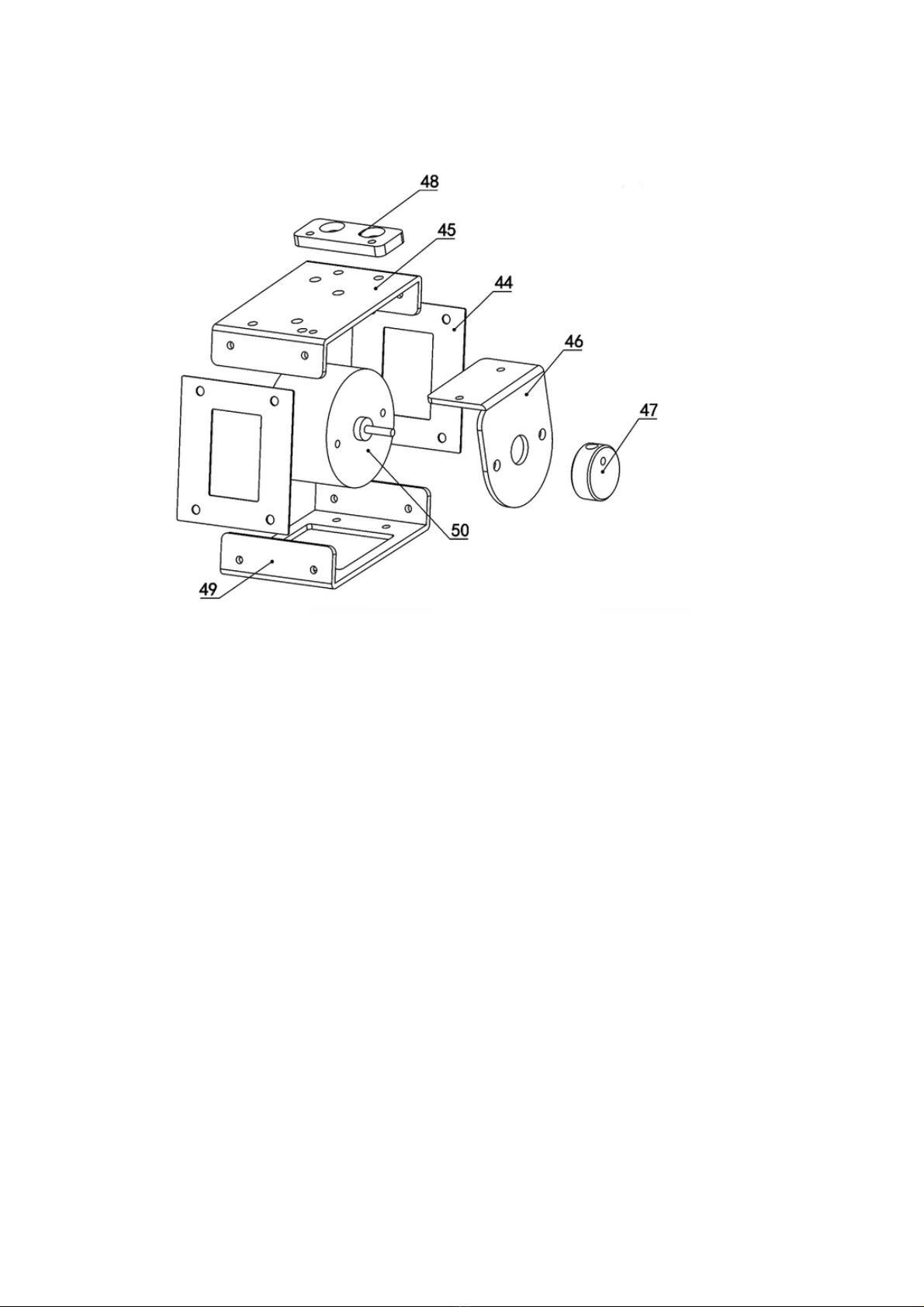

Feeding Part

Mountz Inc. 1080 North 11th Street, San Jose, CA 95112 Phone: [phone] Fax: [phone] www.mountztorque.com
Page 10

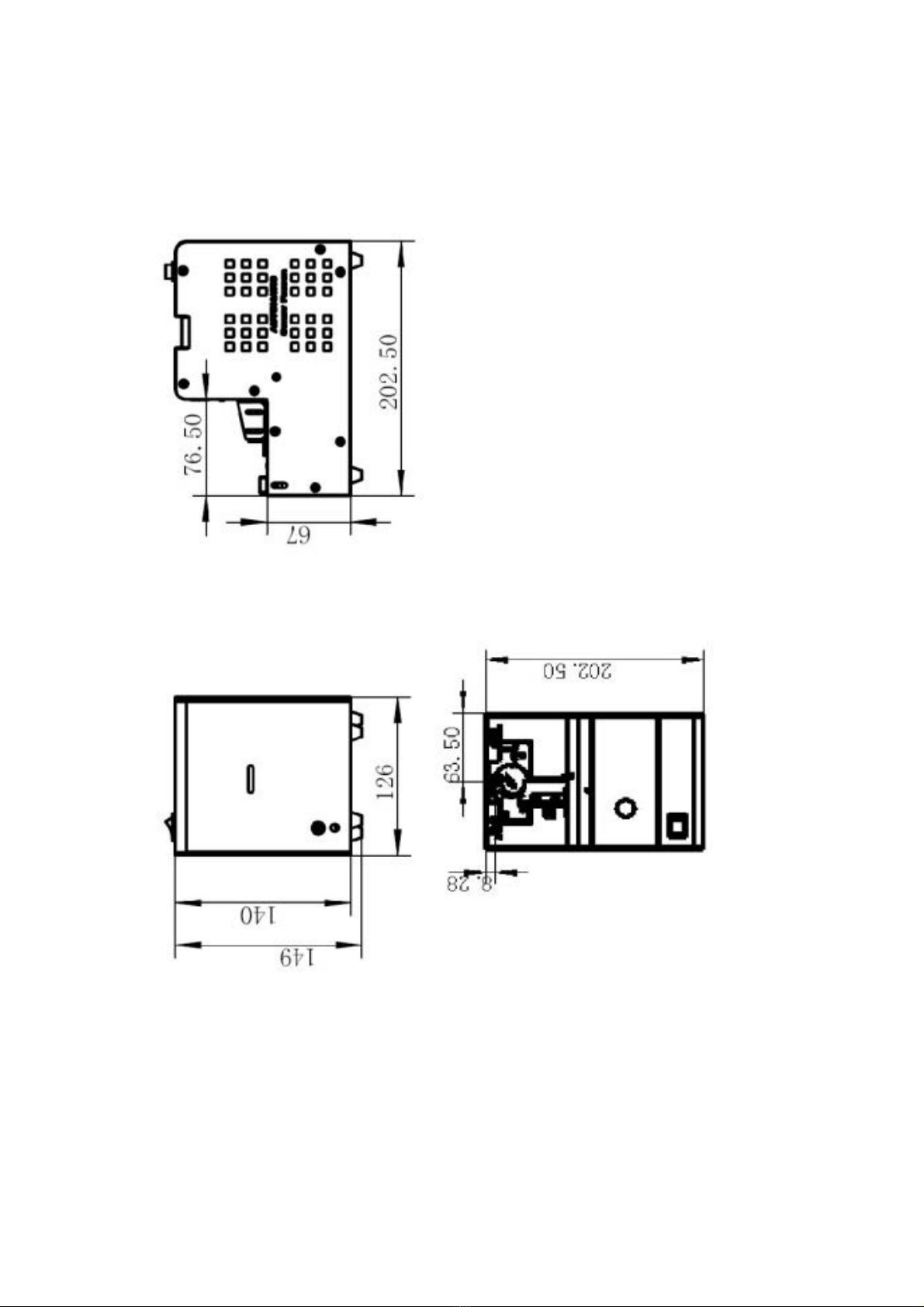

Outside View

Mountz Inc. 1080 North 11th Street, San Jose, CA 95112 Phone: [phone] Fax: [phone] www.mountztorque.com
Page 11
Output Signal
This signal is used for robotic applications. It will provide an ON and OFF signal
indicating presence of a screw on the plate so it can be picked up.
Screw present: ON
Screw not present: OFF
o Switch(ON/OFF) signal
o Screw presenter sends ON signal when there is a screw on the plate
o Screw presenter sends OFF signal when screw has been removed from plate
o Connection: Red wire 24V
o Connection: Black wire goes to PLC or control device

Mountz Inc. 1080 North 11th Street, San Jose, CA 95112 Phone: [phone] Fax: [phone] www.mountztorque.com
Page 12
No. English name Quantity Item MSP-619 Item MSP-1069G
1 Front Cover 1 MKS-0901 MKS-1001
2 Rear Cover 1 MKS-0902 MKS-1002
3 Power Switch 1 MKS-0903 MKS-1003
4 Right Cover 1 MKS-0904 MKS-1004
5 Left Cover 1 MKS-0905 MKS-1005
6 Cover Board 1 MKS-0906 MKS-1006
7 Press Plate 1 MKS-0907 MKS-1007
8Clamp Holder 1MKS-0908 MKS-1008
8.82 Feeder 1MKS-0909 MKS-1009
10 Pressing Plate / Locking Plate 1 MKS-0910 MKS-1010
11 Rotational Sub-assembly 1 MKS-0911 MKS-1011
12 Screw Rail 1 MKS-0912 MKS-1012
13 Rubber foot 4MKS-0913 MKS-1013
14 Upper plate 1MKS-0914 MKS-1014
15 Turntable 1MKS-0915 MKS-1015
16 Sensor holder 1 MKS-0916 MKS-1016
17 Spacer 4 MKS-0917 MKS-1017
18 Main frame 1MKS-0918 MKS-1018
19 Locking plate 1 MKS-0919 MKS-1019
20 Photoelectric sensor holder 1 MKS-0920 MKS-1020
21 Photoelectric sensor 1 MKS-0921 MKS-1021
22 Position gear shaft 1 MKS-0922 MKS-1022
23 sliding shaft guide 1 MKS-0923 MKS-1023
24 sliding shaft 1 MKS-0924 MKS-1024
25 Wheel positioning plate 1 MKS-0925 MKS-1025
26 Main Gear 1MKS-0926 MKS-1026
27 Main gear shaft 1 MKS-0927 MKS-1027
28 Sliding bearing 2MKS-0928 MKS-1028
29 stepping motor 1 MKS-0929 MKS-1029
30 Gear 1MKS-0930 MKS-1030
31 Stepper motor holder 1MKS-0931 MKS-1031
32 Protective Plate 1MKS-0932 MKS-1032
33 Sensor 2MKS-0933 MKS-1033
34 Guide Left 1MKS-0934 MKS-1034
35 Guide Right 1MKS-0935 MKS-1035
36 Left screw rail 1MKS-0936 MKS-1036
37 Right screw rail 1MKS-0937 MKS-1037
38 Left Rail V Funnel 1MKS-0938 MKS-1038
39 Right rail V funnel 1MKS-0939 MKS-1039
40 Blade 1.2 mm 5MKS-0940 MKS-1040
41 Blade 0.2 mm 5MKS-0941 MKS-1041
42 Rail mount gasket 1MKS-0942 MKS-1042
43 Screw rail frame 1MKS-0943 MKS-1043
44 Pannel 2MKS-0944 MKS-1044
45 Upper frame 1MKS-0945 MKS-1045

Mountz Inc. 1080 North 11th Street, San Jose, CA 95112 Phone: [phone] Fax: [phone] www.mountztorque.com
Page 13
46 Motor cover 1MKS-0946 MKS-1046
47 Wheel 1MKS-0947 MKS-1047
48 Guide block 1MKS-0948 MKS-1048
49 Bottom frame 1MKS-0949 MKS-1049
50 Motor 1MKS-0950 MKS-1050
51 Container 1MKS-0951 MKS-1051
52 Motor transmision 1MKS-0952 MKS-1052
53 Motor holder 1MKS-0953 MKS-1053
54 Cam 1MKS-0954 MKS-1054
55 Axix holder 1MKS-0955 MKS-1055
56 Nylon tube 1MKS-0956 MKS-1056
57 Motor back gear 1MKS-0957 MKS-1057
58 Partial gear 1MKS-0958 MKS-1058
59 Washer 1MKS-0959 MKS-1059
60 Nut 1MKS-0960 MKS-1060
61 Bracket 1MKS-0961 MKS-1061
62 Spring 1MKS-0962 MKS-1062
63 Brush lifter 1MKS-0963 MKS-1063
64 Nylon holder 1 MKS-0964 MKS-1064
65 Brush lofter washer 1 MKS-0965 MKS-1065
66 Rod bearing 1MKS-0966 MKS-1066
67 brush holder 3 MKS-0967 MKS-1067
68 brush lifter 5 MKS-0968 MKS-1068
69 Brush bracket 1 MKS-0969 MKS-1069
70 Brush turning rod 1 MKS-0970 MKS-1070
71 rod gear 1MKS-0971 MKS-1071
72 washer 1MKS-0972 MKS-1072
73 Nylon piece 1MKS-0973 MKS-1073
74 Right board 1MKS-0974 MKS-1074
75 Bottom board 1MKS-0975 MKS-1075
76 Circuit board 1 MKS-0976 MKS-1076
77 Circuit board holder 1 MKS-0977 MKS-1077
78 Srping 2MKS-0978 MKS-1078
79 screw block plate 1 MKS-0979 MKS-1079
80 screw block plate 1 MKS-0980 MKS-1080
81 clip 1 MKS-0981 MKS-1081
82 front board 1MKS-0982 MKS-1082
83 left board 1MKS-0983 MKS-1083
84 middle board 1MKS-0984 MKS-1084
85 mid plate bearing 4MKS-0985 MKS-1085
86 wheel 1MKS-0986 MKS-1086
87 DC socket 1 MKS-0987 MKS-1087
88 DC socket 1 MKS-0988 MKS-1088

Mountz Inc. 1080 North 11th Street, San Jose, CA 95112 Phone: [phone] Fax: [phone] www.mountztorque.com
Page 14
Trouble Shooting
Problem
Reasons
solution
No power
1.
2.
power supply is damaged
switch damage
Check for updates
Indicator lit but the
1. Sensor in wrong location or blocked
1.Check or adjust
2.Re-welding
3.Remove them
machine
form
the
machine does not
2.The power cord outlet is broken
work
3.Working part of the machine is blocked
Screw is stuck in
Screw Chamber
Screw Windows open or
brush position is wrong
Check and adjust
Screw leak out from
the container
Screw Windows open or
brush position is wrong
Check and adjust
Vibration, no stop
1.
2.
3.
Feeding delay is too long
sensor located in wrong location
sensor is not in the right position
Check and adjust
Sensor is not in
position
the
right
Screw on rail speed
is too slow
1.
2.
3.
4.
5.
6.
Feeding speed is slow and delay Is
too short
The gap of the rail is not suitable
The rail touches the board
No gap between rail and front board There
are dropped Screws between vibration
motor and bottom board
1.adjust the motor speed
2.Increase the feeding delay

Mountz Inc. 1080 North 11th Street, San Jose, CA 95112 Phone: [phone] Fax: [phone] www.mountztorque.com
Page 15
Service Centers
Corporate Headquarters & Service Center 1080
North 11th Street, San Jose, CA 95112
Phone: [phone] Fax: [phone]
Distribution & Service Center
19051 Underwood Road, Foley, AL 36535
Phone: [phone] Fax: [phone]
www.mountztorque.com
[email protected]
