Movetime Snoozy One User manual

INSTRUCTION MANUAL
Assembling and using the
Snoozy One baby stroller
E

Parts
Canopy Handle bar
2 rear wheels2 front wheels
Foot cover
Bassinet
Basket
Brake pedal
Frame
Frame
Front bar (handle)
Sport seat
Shoulder strap
3-point safety belt
Dirt protection
2

Maintenance
• Please check if the baby stroller‘s parts are loose, missing, broken or have any other
damage. Please arrange to replace or repair if necessary.
• The baby stroller should be kept away from fire or other very hot objects.
• Use neutral or soapy water to clean the textile, metal, leather and plastic surfaces.
Wipe the baby stroller gently. Do not use strong liquid chemicals. Leave it to air dry.
Never use the washing machine to clean it.
Warning
• Please read the following instructions carefully and keep it with you for reference.
• Not following the instructions could compromise the baby‘s safety.
• The baby stroller must be watched by the person in charge at all times.
• The sport seat is not suitable for babies under 6 months old.
• The product is not suitable for infants of over 17 kg (33 lbs).
• The bassinet is only suitable for babies aged 0 - 6 months.
Max. carrying capacity is 9 kg (20 lbs).
• Please make sure that the brake is released before using the baby stroller.
• Please don’t fold the baby stroller while the baby is sitting in the stroller.
• Make sure that the baby is wearing the safety belt when sitting in the sport seat.
• Don’t leave the stroller unattended on a slope.
• The max. carrying capacity for the sport seat is 17 kg (33 lbs).
• Please don’t put shopping bags or other heavy items on the baby stroller‘s handle to
prevent the stroller falling over.
• Please don’t disassemble or adjust any of the stroller‘s parts while the baby
is in the baby stroller.
• Please keep plastic bags away from the baby stroller to prevent the baby
from suocating.
• Please don’t use a more than 20 mm thick cotton blanket for the bassinet.
• The max. carrying capacity for the two hooks on the handle is 1 kg (2.2 lbs).
• The max. carrying capacity of the seat pocket on the chair’s back is 1.5 kg (3.3 lbs).
This product meets the EU EN1888-2012 and ASTM F833-15 (American Society for
Testing and Materials) standards for baby strollers. All textiles are Oeko-Tex 100®certified.
3

First steps
2 Wheels Front wheel: Put the small wheel on
the axle. The wheel is attached when you hear
a clicking sound (3).
Back wheel: Put the big wheel on the axle.
The wheel is attached when you hear a
clicking sound (4).
3 Seat Push the connecting tube into the at-
tachment (5). When this is done correctly, you
should not be able to remove the seat when
you lift it up. A clicking sound ensures that
both sides are fully engaged and secure.
4 Canopy Attach the canopy by pressing the
canopy clip into the seat frame‘s attachment
pins (6). Repeat on the other side and close
the zipper (7).
5 Front bar Attach the front bar (handle) to
the seat (8). Make sure the front bar is fully
attached.
Opening and assembling
the Snoozy One
1 Open Hold the frame on the outside and re-
lease the locking mechanism on both sides (1).
Pull the handle. The stroller is open when you
hear a clicking sound (2).
2
4
7
1
3
5
8
6
4

Assembling the bassinet
1 Assembly Connect the bassinet‘s connecting
tube into the frame‘s attachment (9). Make
sure the bassinet is fully attached.
2 Remove If you need to remove the bassinet,
push the connecting buttons on both sides and
lift up the bassinet (10).
3 Open Open the zippers inside the bassinet
on both sides of the inner bassinet (11).
Straighten up the plastic parts on both sides
(12). Close the zipper on both sides. Put the
mattress on the bottom of the bassinet.
5 Bassinet‘s canopy Attach the canopy by
pressing the clip onto bassinet frame until you
hear a clicking sound (14). Repeat the action
on the other side. Once assembled,, close the
zipper between the canopy and bassinet (15).
4 Foot cover Zip the foot cover onto the top
of the bassinet (13).
6 Front bar Attach the front bar (handle) to
the bassinet (16). Make sure the front bar is
fully attached.
12
15
11
16
14
9
10
13
5

Function and use
2 Baby sport seat Push the lever on top of the
sport seat (in the middle) (3). Adjust the seat
to one of the three positions (4).
3 Front bar (handle) Grab the front bar (han-
dle) and press the buttons on the side using
your forefingers (5). Push the front bar (han-
dle) up or down (6). There are three positions.
Adjustments
1 Handle bar Push the button, pull out the
handle bar, then release the button (1). This
baby stroller has three dierent levels to adjust
to your required height (2).
4 Canopy It is possible to attach the canopy
to the sport seat (7) or the bassinet (8). Just
close the zipper and pull the canopy to the
required position.
2
4
6
1
3
7 8
5
6

Brake
Using the brake Use your right foot to step on
the brake (11) and pull the baby stroller slightly
towards you (12). Both rear wheels are now
locked. To release the brake, step on the lever
again and push the stroller forward.
Warning: Activate the brake at all times as
soon as the stroller is at rest.
Safety belt
1 Using the safety belt Press the button to
release the safety belt (13). Sit the baby in the
sport seat. Pull the two safety straps over the
baby into the middle and insert the buckles into
the buckle until you hear a clicking sound (14).
2 Adjusting the belt lengths Push or pull the
buckle up or down until you reach the required
length (15).
Warning: Fasten the belts at all times when-
ever the baby is in the stroller.
Wheels
Fix the front wheel Pull down the lever (9) and
turn the front wheel around (10) until you hear
a clicking sound.
10
12
9
11
1413
15
7

Disassembly and folding up
2 Front bar (handle) Hold the front bar
(handle). Use your forefinger to press the
semicircular connecting button (3). The front
bar (handle) can be removed (4). Repeat on
the other side.
3 Sport seat /Bassinet Hold the sport seat/
bassinet, with both hands and use your fore-
finger to press the connecting button (5) on
both sides, pull up and remove the sport seat/
bassinet (6).
Disassembly
1 Canopy Open the zipper between the
canopy and seat or bassinet (1).Disconnect the
attachment clips and remove the canopy from
the sport seat or bassinet (2).
4 Wheels Front wheel: Press the connecting
button for the front wheel (7) and pull down
the wheel (8).
Back wheel: Press the connecting button
for the back wheel (9) and pull away the
wheel (10).
2
6
1
5
8
10
7
9
8
4
3

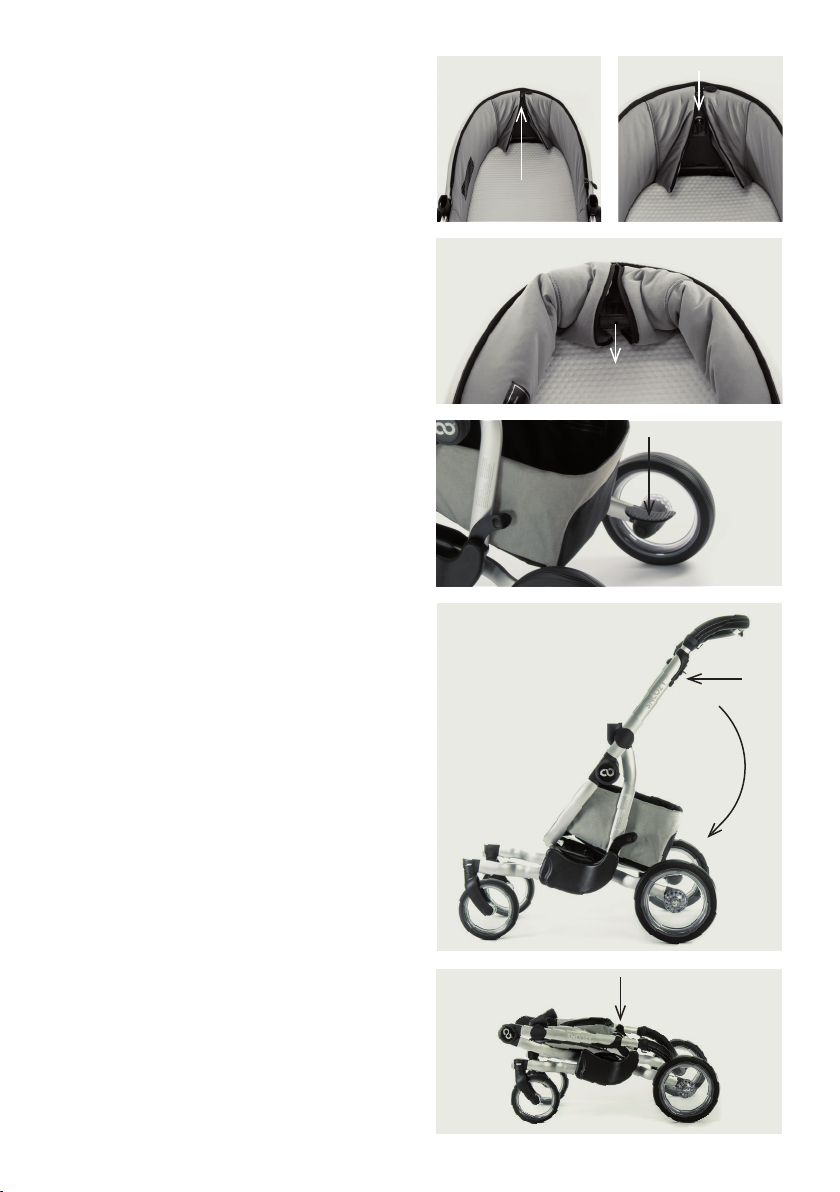

Folding up the baby stroller
1 Lock the rear wheels by stepping on the
brake with your right foot (14).
Folding up the bassinet
Remove the canopy and the front bar
(handle). Open the zipper on both sides of
the bassinet (11).
To fold the bassinet up grab the plastic part of
the bassinet and pull up the lock (12).
Push the plastic part of the bassinet inside
(13). You can now fold the bassinet up.
3 After folding up the baby stroller, lock the
locking mechanism on both sides (17).
2 Hold the handle bar on the left and right side
and push in the small buttons using your fo-
refingers. At the same time pull up the switch
lever on both sides (15). Now the baby stroller
can be folded up (16).
15
13
17
14
16
1211
9

10
Measurements and weights
Complete stroller with sport seat - open
(with canopy, handle bar)
Complete stroller with sport seat - folded
(with canopy, handle bar)
Sport seat
Complete stroller with bassinet -open
(with mattress, cover, canopy, handle bar)
Bassinet -open
(incl. mattress and cover)
Bassinet -folded
(incl. mattress and cover)
Bassinet inside
Bassinet cover
Bassinet mattress
Bassinet without cover and mattress
Frame open with 4 wheels
(without sport seat/bassinet)
Frame folded with 4 wheels
(without sport seat/bassinet)
Frame folded without wheels
(without sport seat/bassinet)
Transport basket (in frame)
26 liter volume/carry capacity: 10.0 kg
Handle bar
Canopy (sun/wind protection)
Front wheel (1 pc.)
Rear wheel (1 pc.)
length/cm
88.0
98.0
83.0
88.0
84.0
84.0
74.0
45.0
74.0
84.0
88.0
83.0
80.0
33.0
40.0
40.0
Ø 19.0
Ø 25.0
height/cm
98.5-108.0
53.5
18.0
98.5-108.0
22.5
5.0
21.5
38.0
3.0
22.5
98.5
43.0
24.0
22.0
5.0
41.0
width/cm
59.5
59.5
44.0
59.5
44.0
44.0
33.5
2.0
33.5
44.0
59.5
59.5
50.0
36.0
5.0
33.0
4.3
5.5
weight/kg
13.800
13.800
2.650
14.220
3.070
3.070
3.070
0.245
0.465
2.360
10.270
10.270
7.200
0.380
0.400
0.480
0.625
0.910
