MPI EchoBed X User manual

Echo/Vascular User Manual (15381-C) Page 1 of 46 DCR-00172
Owner’s Manual
EchoBed® X
VasScan Table™X
Owner _____________________
Model _____________________
Serial # _____________________
Date _____________________

Echo/Vascular User Manual (15381-C) Page 2 of 46 DCR-00172
Table of Contents
Symbols and Definitions...................................................................... 3
Safety Warnings & Cautions................................................................ 5
Intended Use ....................................................................................... 7
Safety Features ................................................................................... 7
Set Up.................................................................................................. 8
Transport Position................................................................................ 8
Product Illustration............................................................................... 9
Controls and Indicators......................................................................10
Use Instructions................................................................................. 14
Powering the Product..................................................................... 14
Locking the Casters........................................................................ 15
Hand Control Functions.................................................................. 16
Adjusting Surface Height................................................................ 16
Adjusting Fowler............................................................................. 16
Adjusting Trendelenburg ................................................................ 16

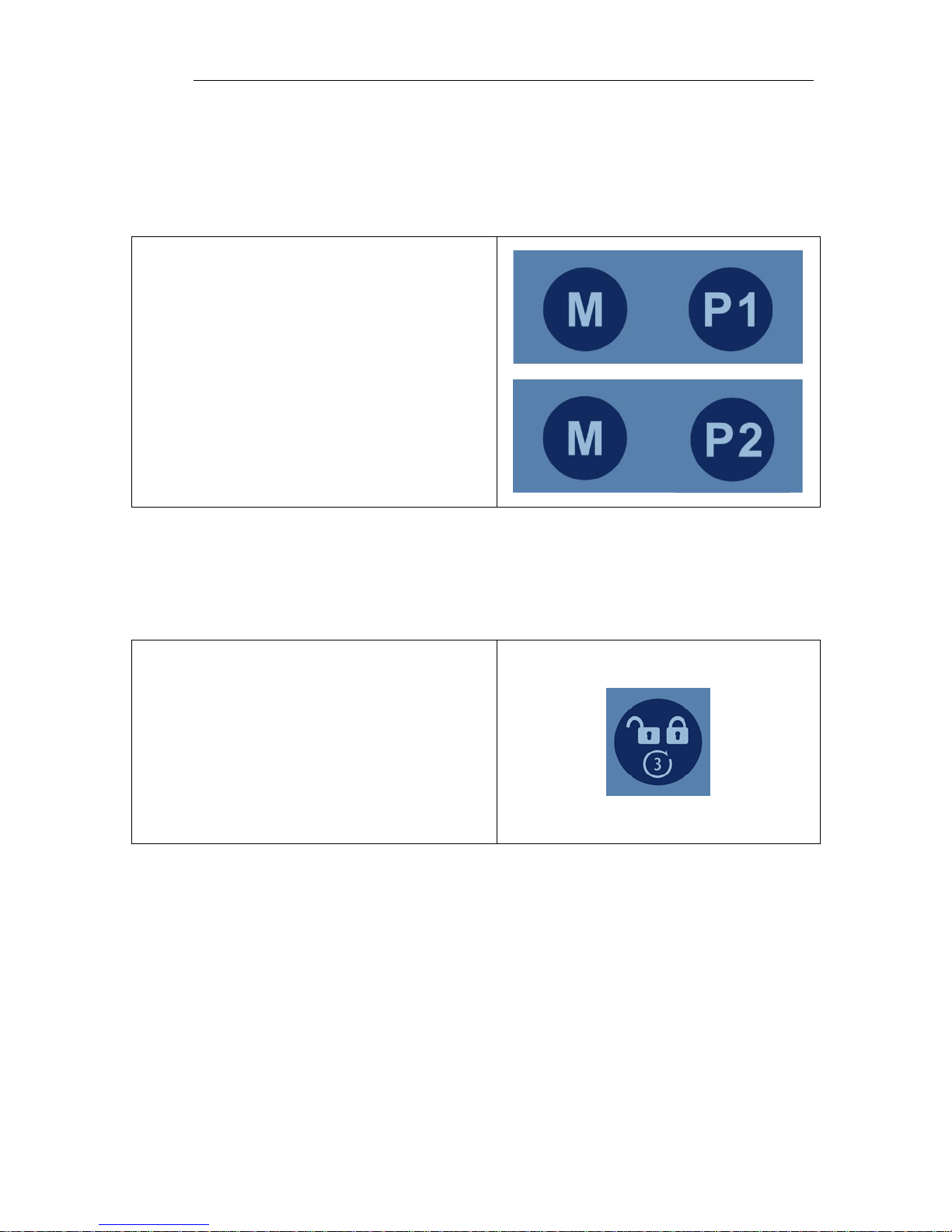

Memory Function............................................................................17
Hand Control Lock/Unlock..............................................................17
Under-bed Lights............................................................................ 18
Using the VasScan Table™ X Foot Rest .......................................19
Using the Carotid Head Rest..........................................................22
Using the Side Rails....................................................................... 23
Using the Sonographer Extension ................................................. 24
Foley Bag Clip ................................................................................ 25
Storing the Hand Control................................................................25
Under-bed Lights............................................................................ 25
IV Pole and Holder ......................................................................... 26
Optional Battery.............................................................................. 26
Positioning Wedge.......................................................................... 27
Pediatric Adaptor............................................................................27
Preventative Maintenance.................................................................28
Expected Life.....................................................................................29
Discard the Unit.................................................................................29
Cleaning.............................................................................................30
Service Calls......................................................................................32
Troubleshooting Guide ...................................................................... 33
Specifications..................................................................................... 34
Warranty ............................................................................................ 45

Echo/Vascular User Manual (15381-C) Page 3 of 46 DCR-00172

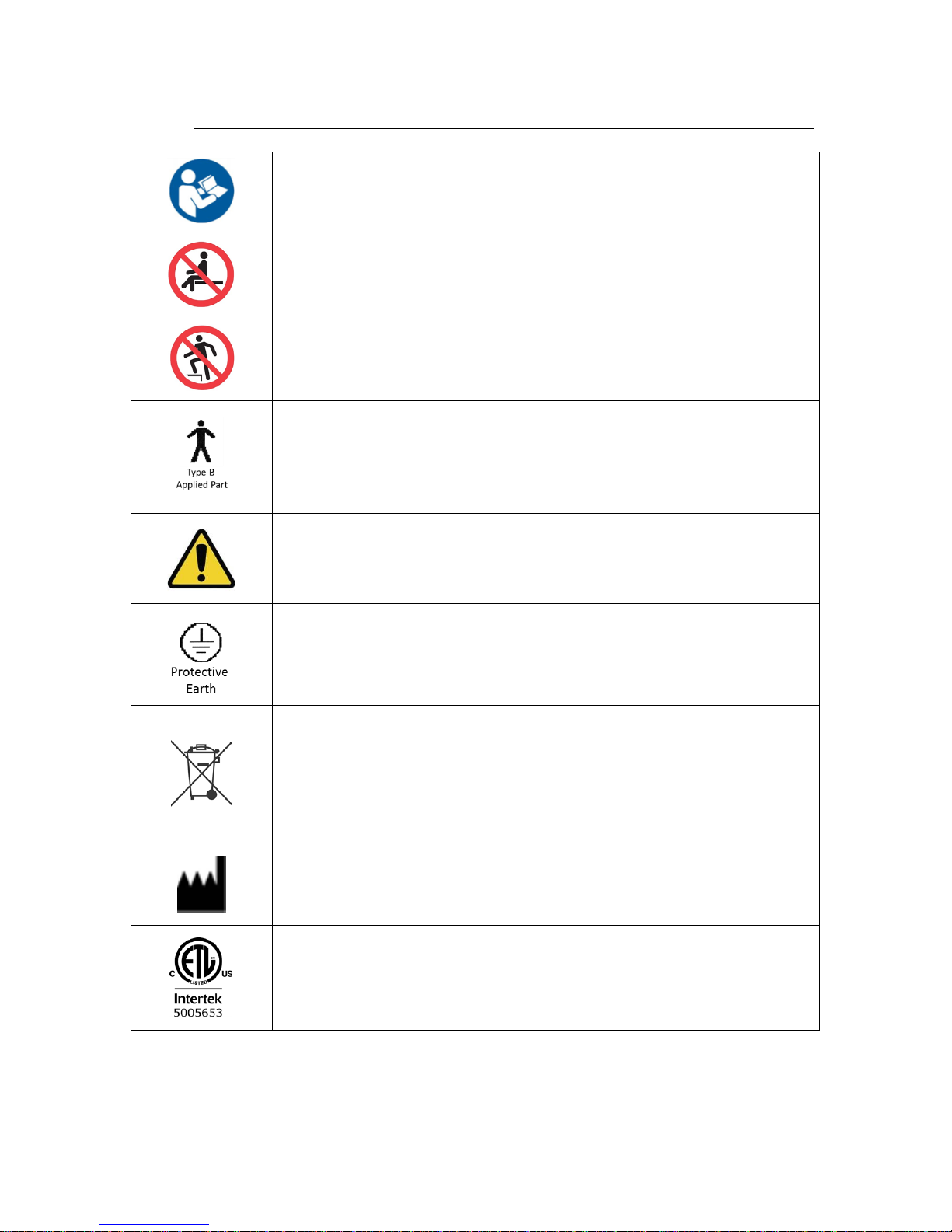

Symbols and Definitions
Warning, follow instructions for use. Failure to comply may result in
injury.
Warning, sitting is prohibited. Failure to comply may result in injury.
Warning, standing is prohibited. Failure to comply may result in
injury.
Applied Part complying with specified requirements IEC 60601-1 to
provide protection against electric shock, particularly regarding
allowable patient leakage current.
Warning/Caution, consult accompanying documents.
Any terminal which is intended for connection to an external
protective conductor for protection against electric shock in case of a
fault.
In accordance with the European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE), the product must not be
disposed as unsorted municipal waste, but should be collected
separately. Consult your instructional policies and local regulations
regarding disposal. Contact your Medical Positioning, Inc. Service
Representative if additional disposal details are required.
Manufacturer
Agency Mark

Symbols and Definitions
Echo/Vascular User Manual (15381-C) Page 4 of 46 DCR-00172
Maximum Patient Weight. Indicates the maximum patient weight
that may be placed on the product.
Safe Working Load. Indicates the sum of the patient weight and
accessories that may be placed on the product.
WARNING / CAUTION / NOTE Definition
The words WARNING, CAUTION, and NOTE carry special meanings and should be
carefully reviewed.
WARNING
Identifies a situation that could result in injury to the patient or caregiver.
CAUTION
Identifies a situation that could result in equipment damage.
Note
Provides special information to make an important instruction more clear.
European Union Representative
MDSS GmbH
Schiffgraben 41
30175 Hannover, Germany
Australian Sponsor
Emergo Australia
Level 20, Tower II
Darling Park
201 Sussex Street
Sydney, NSW 2000
Australia

Echo/Vascular User Manual (15381-C) Page 5 of 46 DCR-00172
Safety Warnings & Cautions
WARNING:
Obey these safety instructions to help prevent injury and/or equipment damage:
•Read and understand all warnings in this manual and on the unit itself prior to
use with a patient.
•The device should be operated by trained persons only.
•Authorized and qualified persons will be those who are approved by Medical
Positioning Inc. to repair or modify the product.
•Do not modify this equipment without authorization of the manufacturer.
•Equipment should only be serviced by authorized personnel.
•The procedures in this manual are only manufacturer’s suggestions. The final
responsibility for patient care with respect to this device remains with the
attending physician.
•Do not use in an oxygen rich environment.
•Do not leave patient unattended while using the product.
•To reduce the risk of electric shock, grounding reliability can only be achieved
when the equipment is connected to an equivalent receptacle marked “hospital
only” or “hospital grade”.
•If damage has occurred to the power cord, immediately remove the cord from
service. Failure to do so could result in serious injury or death.
•The battery should be periodically inspected for damage. If damage has
occurred to the battery, immediately remove the battery from service. Failure
to do so could result in serious injury or death.
•Removal of secured covers may increase the risk of electrical shock. Refer
servicing to qualified and approved personnel.
•The potential for electrical shock exists with electrical equipment. Failure to
follow facility protocols may cause death or serious injury.
•Ensure the patient is properly secured prior to using the equipment.
•To reduce the risk of a potential injury, lock casters before using equipment.
•Once the product and patient have been properly positioned for the procedure,
ensure the casters are locked and the hand controller is placed in a safe position
to prevent unwanted contact and unwanted movement of the support surface.
•To reduce the risk of the product becoming unbalanced, always position the
product in the lowest reasonable height when moving.

Safety Warnings & Cautions
Echo/Vascular User Manual (15381-C) Page 6 of 46 DCR-00172
•Verify the area around the product is free of impediments before operating to
prevent injury or equipment damage.
•Keep hands and feet clear from beneath the patient surface when lowering
surface height or making positioning adjustments in order to avoid possible
injury.
•Keep hands and feet clear of the scissor lift mechanism when operating or
making positioning adjustments in order to avoid possible injury.
•Keep hands clear of the fowler section hinges during operation to avoid possible
injury.
•Sitting at the end of the patient surfaces can result in device instability. Do not
allow a patient to sit at the head end of the patient surface.
•The footboard should be used for steep reverse Trendelenburg positions to
ensure patient stability.
•Protect vinyl upholstery from sharp objects and abrasion to avoid damage.
•Always read manufacturer’s instructions and warnings before using any cleaning
product or disinfectant. Refer to instructions located in this manual for vinyl
cleaning recommendations.
•Substances such as imaging gels and alcohol will not damage the vinyl surface
when immediately removed. Extended exposure for longer than a few minutes
can damage the top coat and will eventually discolor vinyl.
•Do not use abrasives to clean painted surfaces.
•It is recommended that the product be cleaned between patients; please follow
your facility’s documented policy.
•Keep this manual available for future reference.
•If the product is used adjacent to other electrical equipment, observe the
product and the other electrical equipment to ensure they operate as intended.
•Failure to latch Drop Sections may result in patient injury. Verify Drop Sections
are locked in position before and after use.
•Verify the head rest is secure prior to using the product.
•Verify the side rails are secure prior to using the product and after each side rail
adjustment.
•Do not exceed the weight capacity of the product.

Echo/Vascular User Manual (15381-C) Page 7 of 46 DCR-00172
Intended Use
This product is intended to be used in an environment where ultrasound and other such
diagnostic equipment is present, including hospitals, outpatient facilities, and doctor’s
offices. The product is intended to be used by trained healthcare professionals who
possess the ability to operate the product safely. The product’s movements are
controlled both manually and electronically via the product’s hand control.
The product is not intended for use in oxygen rich environments.
Safety Features
•This product is equipped with multiple automated safety features to prevent danger
or damage during use. The entire system is electrically isolated to UL/IEC 60601-1
and CAN/CSA C22.2 No. 601.1 hospital safety standards.
•The actuator assemblies are current overload protected. If overloaded, the
actuators will stop and reset automatically.
•The sealed hand control operates the actuators by directing small amounts of low
voltage D.C. current to the control box. All of the actuator drives are equipped with
internal limit switches which automatically prevent over-extension.

Echo/Vascular User Manual (15381-C) Page 8 of 46 DCR-00172
Set Up
The product has been shipped to you in “plug and play” condition. After unpacking the
product, we recommend performing an initial test of your product to ensure that each
function is in correct working order. After reviewing this manual you are ready to begin
using your product.
STEP
ACTION
1
After removing padding and packaging materials locate primary power
supply cord and attach to suitable grounded power outlet.
2
To test actuator function, locate the hand control and depress each
button one at a time. (Depressing multiple buttons simultaneously will
prevent the motor from operating.)
3
If any function does not operate, perform the test procedures listed in
the Troubleshooting Guide.
Transport Position
It is recommended that the patient surfaces be in a horizontal position if the product is
used to transport patients.

Echo/Vascular User Manual (15381-C) Page 9 of 46 DCR-00172
Product Illustration
*Optional features may be shown

Echo/Vascular User Manual (15381-C) Page 10 of 46 DCR-00172

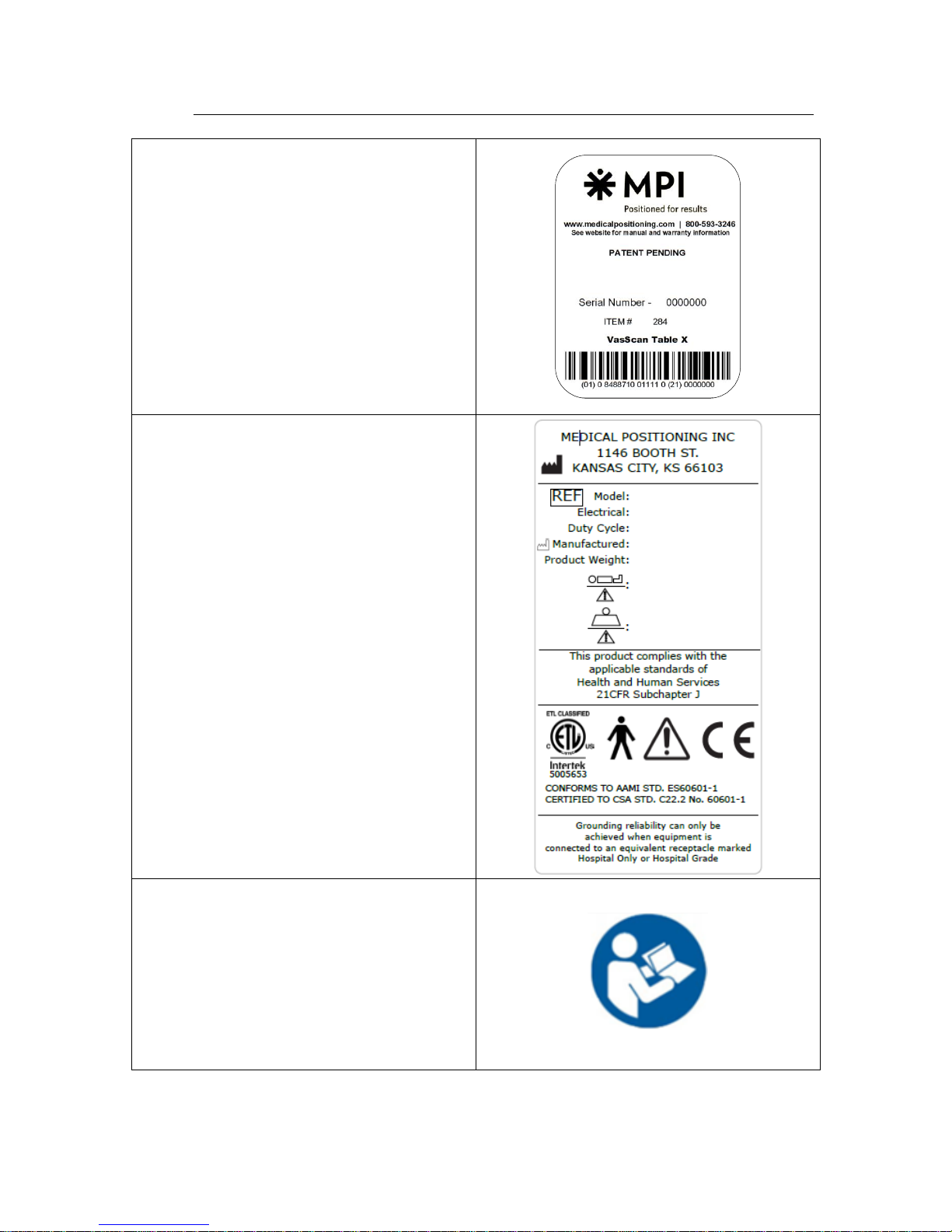

Controls and Indicators
Unique Device Identification Label
•Serial #
•Item #
•Item Description
•Unique Identifier
Certification Label
Refer to Manual Label

Controls and Indicators
Echo/Vascular User Manual (15381-C) Page 11 of 46 DCR-00172
No Sitting label
Hand Control
Note: Hand control functions will vary
depending on the model purchased. Your
hand control may differ from the images
to the right.

Controls and Indicators
Echo/Vascular User Manual (15381-C) Page 12 of 46 DCR-00172
AC Input
Battery
Pedals for Single Pedal Brake
Side Rail Release

Controls and Indicators
Echo/Vascular User Manual (15381-C) Page 13 of 46 DCR-00172
Drop Section Release
Drop Section Remote Release
Back Rest Release

Echo/Vascular User Manual (15381-C) Page 14 of 46 DCR-00172
Use Instructions
Powering the Product
The product can be powered by AC power from a wall outlet or by DC power via the
optional battery. The product is “on” whenever it is plugged into AC power or when a
charged battery is installed. The product should not be positioned in a way that would
make it difficult to remove power by unplugging the AC power cord or removing the
battery.
To apply AC power to the product, attach
the power cord to the AC input located at
the rear of the product.
To apply DC power to the product, install a
battery at the foot end of the product.
Note: The battery may be charged while it
is installed in the product by plugging the
product into AC power.
WARNING
•To reduce the risk of electrical shock, grounding reliability can only be achieved when the
equipment is connected to an equivalent receptacle marked “hospital only” or “hospital
grade.”
•If damage has occurred to the power cord, immediately remove the cord from service.
Failure to do so could result in serious injury or death.
•If damage has occurred to the battery, immediately remove the battery from service.
Failure to do so could result in serious injury or death.
•The battery should be periodically inspected for damage. Replace the battery if necessary.

Use Instructions
Echo/Vascular User Manual (15381-C) Page 15 of 46 DCR-00172
Locking the Casters
The product may be equipped with total locking casters or individual locking casters.
The total locking casters have 3 functional positions: full swivel, steer, and full lock.
•In the neutral position all four casters may swivel and roll.
•In the steer position the front casters are held in a forward facing orientation
and the rear casters are free to swivel.
•In the lock position all four casters are prevented from both rolling and swiveling.
Single Pedal Braking
Pedals are located on each side of the base
and are used to adjust the caster function.
Individual Locking Casters
The locking tab is located on each caster.
Push down to lock, lift to unlock.
WARNING
•Once the product and patient have been properly positioned for the procedure, ensure the
casters are locked and the hand controller is placed in a safe position to prevent unwanted
contact and unwanted movement of the product surface during the procedure.

Use Instructions
Echo/Vascular User Manual (15381-C) Page 16 of 46 DCR-00172
Hand Control Functions
Hand control functions will vary depending on the model purchased. Your hand control
may not include all of the functions listed below.
Adjusting Surface Height
The minimum surface height is 19” when the surface is level but will stop at heights
above this value depending on the angle of Trendelenburg or Reverse Trendelenburg.
The limitations are to protect against equipment damage and injury.
Press and hold the applicable hand control
function to adjust the seat height.
Adjusting Fowler
The fowler section may be adjusted between 0° and 65°.
Press and hold the applicable hand control
function to independently adjust the fowler.
Adjusting Trendelenburg
The Trendelenburg / Reverse Trendelenburg angle is limited at various heights in order
to protect against equipment damage and injury. Depending on the product model, the
full range of Trendelenburg / Reverse Trendelenburg will be available between 26” – 30”
of surface height.
Press and hold the applicable hand control
function to independently adjust the
Trendelenburg angle.

Use Instructions
Echo/Vascular User Manual (15381-C) Page 17 of 46 DCR-00172
Memory Function
Some product configurations have the ability for the user to set memory positions. The
control box can store two unique positions for buttons P1 and P2. The memory feature
stores the position for height, fowler, and trend.
To set a memory position, press and hold the
“M” button and then simultaneously press
and hold either “P1” or “P2”. The green LED
at the top of the hand control will flash 3
times when the memory position has been
set. Setting a memory function takes
approximately 3-4 seconds.
The memory positions can be reset to new
positions by following the instructions above.
Hand Control Lock/Unlock
The hand control function may be locked during the procedure to prevent unwanted
movement if the buttons are inadvertently depressed.
Press and hold the lock/unlock button for 3
seconds to lock functions. The green LED at
the top of the hand control will light up.
Press and hold the lock/unlock button for 3
seconds to unlock functions. The green LED
at the top of the hand control will turn off.

Use Instructions
Echo/Vascular User Manual (15381-C) Page 18 of 46 DCR-00172
Under-bed Lights
The product may be equipped with optional under-bed lights.
Press both height up-down buttons to turn
on/off the under-bed lights.
WARNING
•Verify the area around the product is free of impediments before operating to prevent
injury or equipment damage.
•Keep hands and feet clear from beneath the patient surface when lowering surface height
or making positioning adjustments in order to avoid possible injury.
•Keep hands and feet clear of the scissor lift mechanism when operating or making
positioning adjustments in order to avoid possible injury.
•Keep hands clear of the fowler section hinges during operation to avoid possible injury.

Use Instructions
Echo/Vascular User Manual (15381-C) Page 19 of 46 DCR-00172

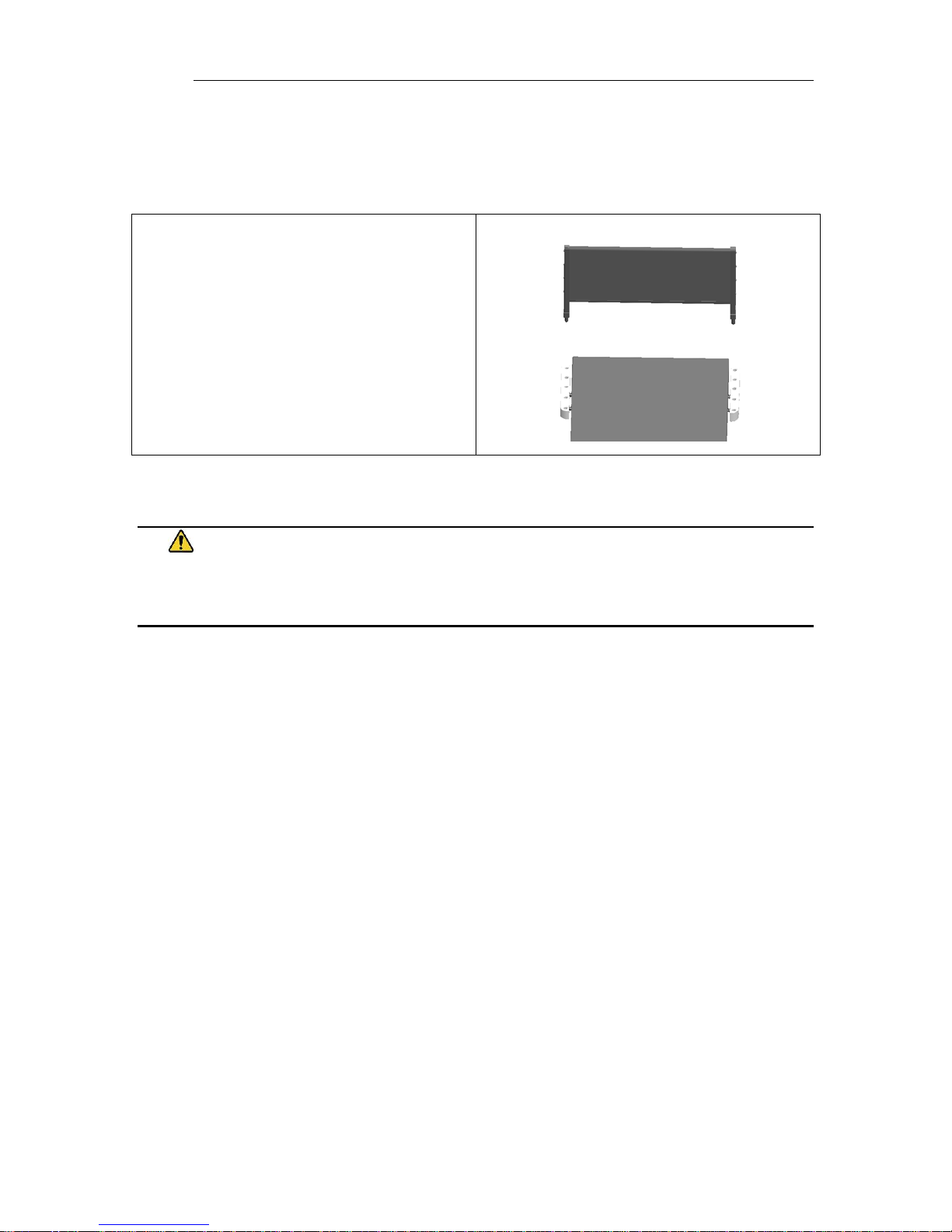

Using the VasScan Table™X Foot Rest
The VasScan Table™X is equipped with a foot rest used during procedures requiring a
reverse Trendelenburg position.
The foot rest plugs into the receiving block
located on the stationary section. The foot
rest height can be adjusted by
approximately 3” increments.
WARNING
•The footboard should be used for steep reverse Trendelenburg positions to ensure patient
stability.

Use Instructions
Echo/Vascular User Manual (15381-C) Page 20 of 46 DCR-00172

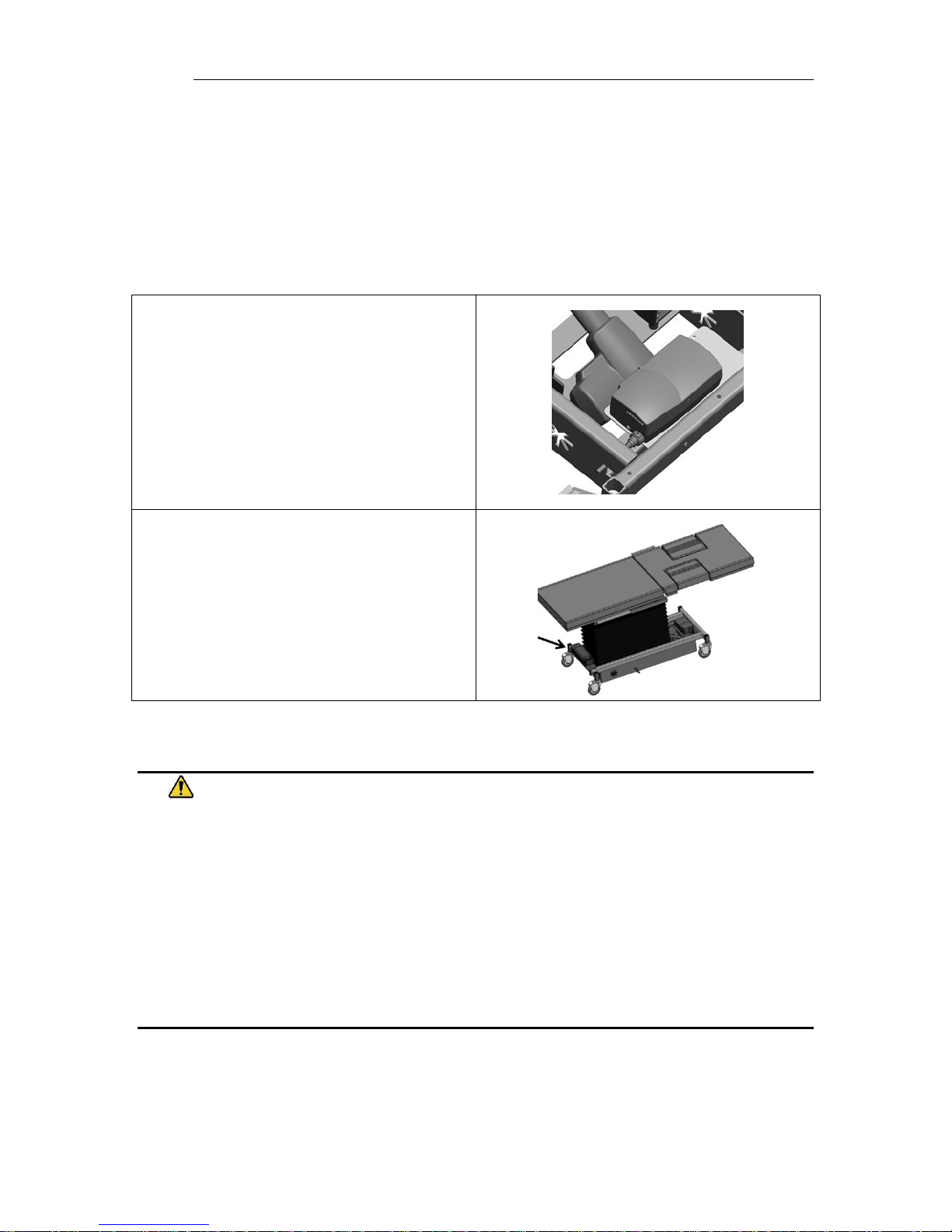

Using the Imaging Drop Section
The imaging drop section is located on the fowler section to allow ergonomic
sonographer access to the patient.
Location of Imaging Drop Section
To open the drop section, pull the handle
to release drop section latches.
Or
Use the remote release located on the
opposite side of the support surface.
To close the drop section, lift up on the
drop section up until latches engages.
WARNING
•Failure to latch Drop Sections may result in patient injury. Verify Drop Sections are locked in
position before and after use.
