ConMed Linvatec Hall PowerPro PRO6150 User manual

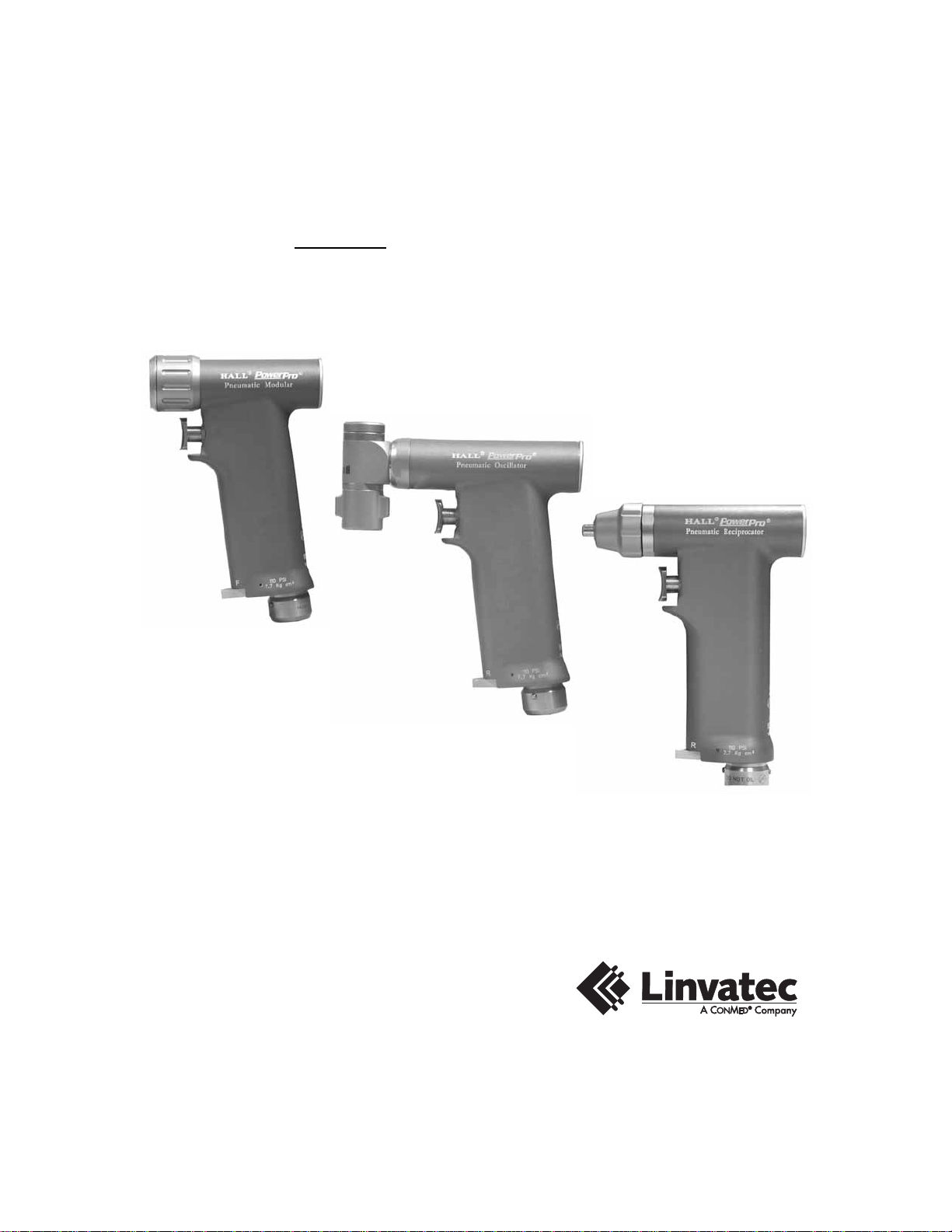

The Hall
®
PowerPro
®
Pneumatic Handpieces
Instruction Manual
(PRO6150, PRO6175, PRO6185)
PRO6150
PRO6175
PRO6185

Proprietary Information
This manual contains information deemed proprietary to Linvatec Corporation. The
information contained herein, including all of the designs and related materials, is the sole
property of Linvatec and/or its licensors. Linvatec and/or its licensors reserve all patent,
copyright and other proprietary rights to this document, including all design, manufacturing
methodology and reproduction.
This document, and any related materials, is confidential and is protected by copyright laws
and shall not be duplicated, transmitted, transcribed, stored in a retrieval system, or
translated into any human or computer language in any form or by any means, electronic,
mechanical, magnetic, manual or otherwise, or disclosed to third parties, in whole or in part,
without the prior express written consent of Linvatec.
Linvatec reserves the right to revise this publication and to make changes from time to time in
the contents hereof without obligation to notify any person of such revision or changes, unless
otherwise required by law.
Linvatec, Hall and PowerPro are trademarks or registered trademarks of Linvatec
Corporation.
© Linvatec Corporation 2003.All Rights Reserved. Printed in USA
Record the Model and Serial Numbers of the handpiece(s), and date received. Retain for
future reference.
Handpiece Model No. Serial No Date
Handpiece Model No. Serial No Date
Handpiece Model No. Serial No Date
Handpiece Model No. Serial No Date
Handpiece Model No. Serial No Date

Table of Contents Page
i
1.0 INTRODUCTION
1.1 Intended Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.2 General Warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.3 Symbol Definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
1.4 PowerPro
®
Pneumatic Modular Handpiece (PRO6150) . . . . . . . . . . . . . . . . . . . . . . .4
1.5 PowerPro Pneumatic Oscillator Handpiece (PRO6175) . . . . . . . . . . . . . . . . . . . . . . .4
1.6 PowerPro Pneumatic Reciprocator Handpiece (PRO6185) . . . . . . . . . . . . . . . . . . . . .5
2.0 INSTALLATION and OPERATION
2.1 Power Source and Regulator Installation and Operation . . . . . . . . . . . . . . . . . . . . . . .6
2.2 Connecting and Removing Attachments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
2.3 Handpiece Mode Selection and Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
2.3.1 PowerPro Pneumatic Modular Handpiece (PRO6150) Operation . . . . . . . .10
2.3.2 PowerPro Pneumatic Oscillator Handpiece (PRO6175) Blade
Installation and Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
2.3.2.1 Blade Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
2.3.2.2 Handpiece Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
2.3.3 PowerPro Pneumatic Reciprocator Handpiece (PRO6185) Blade
Installation and Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
2.3.3.1 Blade Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

ii
Table of Contents Page
3.0 MAINTENANCE
3.1 Cleaning and Sterilizing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.1.1 Cleaning Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.1.2 Handpiece Cleaning Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.1.3 Sterilization Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.1.3.1 Sterilization Warnings, Precautions and Notes. . . . . . . . . . . . . . . 16
3.2 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.0 TECHNICAL SPECIFICATIONS
4.1 Handpiece Environmental Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.2 PowerPro Pneumatic Modular Handpiece (PRO6150) . . . . . . . . . . . . . . . . . . . . . . . 20
4.3 PowerPro Pneumatic Oscillator Handpiece (PRO6175) . . . . . . . . . . . . . . . . . . . . . . 21
4.4 PowerPro Pneumatic Reciprocator Handpiece (PRO6185). . . . . . . . . . . . . . . . . . . . 21
4.5 Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

1
1.0
INTRODUCTION
t is recommended that personnel study this
manual before attempting to operate, clean,
or sterilize PowerPro
®
Pneumatic Hand-
pieces (PRO6150, PRO6175, PRO66185). The
safe and effective use of this equipment requires
the understanding of and compliance with all
warnings, cautionary notices, and instructions
marked on the product, and included in this
manual.
1.1 Intended Use
he PowerPro Pneumatic Modular Hand-
piece, along with an assortment of modu-
lar attachments, is designed to perform
bone cutting, reaming, drilling, driving screws,
sawing, and pin driving functions common to
small and large bone orthopedic surgical proce-
dures. This handpiece uses the same attach-
ments as the PowerPro Electric and Battery
Systems handpieces.
The PowerPro Pneumatic Oscillator Handpiece
is designed for sawing in small, large and trans-
verse or longitudinal bone osteotomies, removal
of the femoral head and neck, removal of the
greater trochanter, resurfacing the tibial plateau
and the distal end of the femur such as required
in total knee or total hip arthroplasties.
The PowerPro Pneumatic Reciprocator Hand-
piece is designed for sawing in large bone total
joint arthroplasties.
The fields of application for these handpieces
include: Osteotomy, Trauma, Orthopedic and
Total Joint Arthroplasty.
1.2 GeneralWarnings
1. This equipment is designed for use by med-
ical professionals completely familiar with
the required techniques and instructions for
use of the equipment. Read and follow all
warning and cautionary notices and
instructions marked on the product and
included in this manual .
2. Handpieces are factory
sealed. Do not disassemble
or lubricate, as this may
void your warranty. There are no user-ser-
viceable parts inside.
3. Eye protection is recommended
when operating equipment.
4. Use only associated Hall
®
Surgical and
Linvatec accessories (saw blades, bits, etc.).
5. Handle all equipment carefully. If the hand-
piece is dropped or damaged in any way,
return it immediately for service.
6. Prior to each use, perform the following:
• Inspect all equipment for proper
operation.
• Ensure all attachments, accessories and
hoses are correctly and completely
attached to the handpiece.
• Always inspect hoses for signs of wear
or damage. Do not use worn or
damaged hoses. Replace immediately.
• Check all equipment for any air or
nitrogen leakage. If leakage is noticed,
return for service.
I
T

2
7. Always inspect for bent, dull or dam-
aged blades or drill bits before each
use. Do not attempt to straighten or
sharpen. Do not use if damaged. After use,
dispose of properly.
8. Do not attach, insert or remove accessories
or attachments while the handpiece is oper-
ating. Place the handpiece in the safe
position, if applicable, prior to installa-
tion or removal of items . Accidental acti-
vation of the handpiece could cause injury.
9. Continually check handpiece and attach-
ments for overheating. If overheating is
noticed, discontinue use and return equip-
ment for service.
10. Do not pressurize hoses until all fittings
have been connected and checked.
11. Never operate the handpiece above 110 psi
(7.7 kg/cm
2
) dynamic pressure unless an
extension hose is added to the standard 10
foot hose. Excessive pressure may cause
damage to instrument and exert unusual
stress on the hose.
12. Do not bind drill bit or reamer during use.
Over exertion may cause patient injury, user
injury, and / or damage to the instrument.
13. The nitrogen regulator is for use with pneu-
matically powered surgical devices only.
14. After each use, thoroughly clean handpiece
and attachments (See “3.1 Cleaning and
Sterilizing” on page 15 ).

3

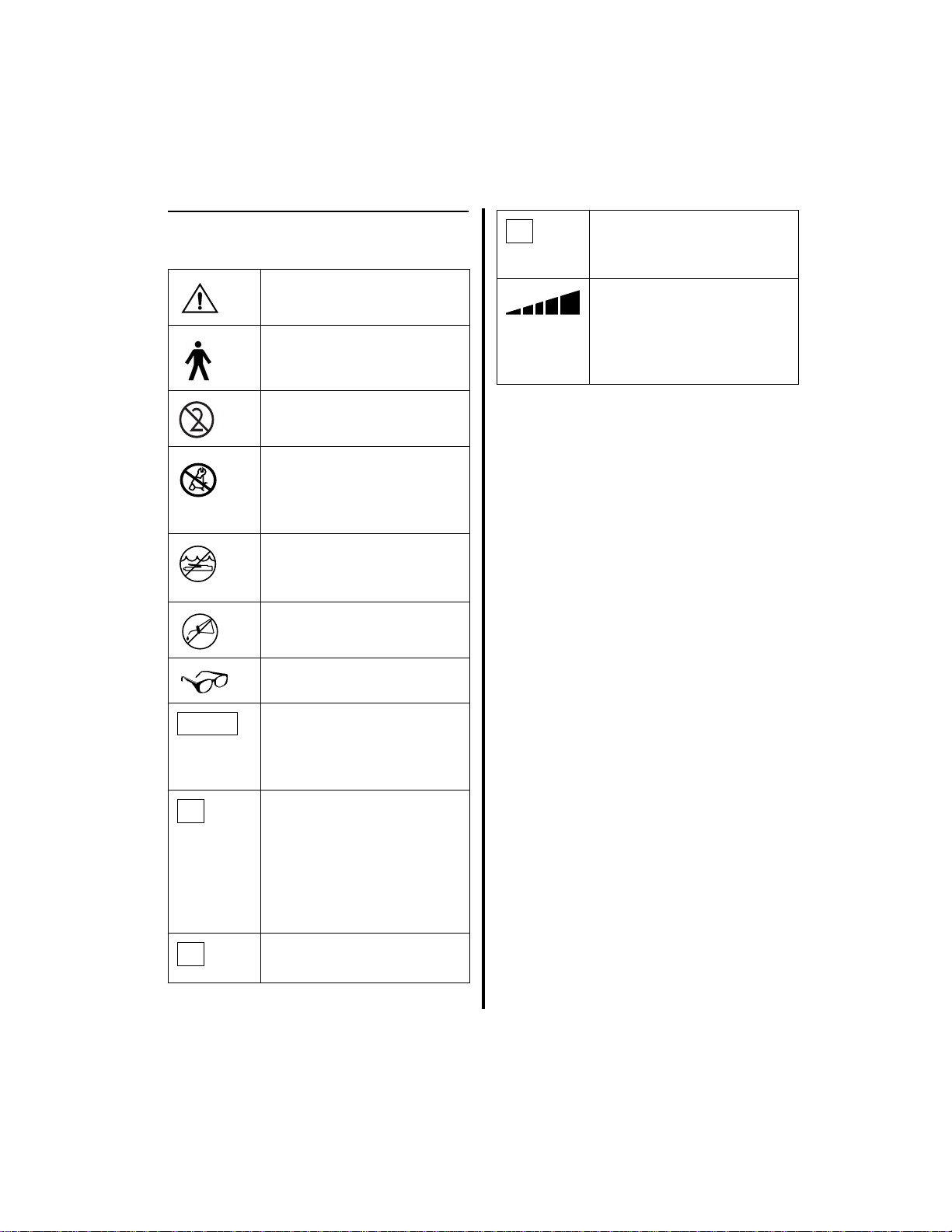

1.3 Symbol Definitions
Attention, consult accompa-
nying documents.
Type B equipment.
Single Use Only.
No user service recom-
mended. Refer servicing to
qualified Linvatec service
personnel.
Indicates handpiece should
not be immersed in any
fluid.
Indicates product should not
be oiled or lubricated.
Eye Protection Required.
Caution: Federal Law
restricts this device to sale
by or on the order of a phy-
sician.
Indicates the reverse
position for the PRO6150
Modular Handpiece or the
run position for the
PRO6175 Oscillator and
PRO6185 Reciprocator
Handpieces.
Indicates the safe position
for all handpieces.
Rx ONLY
R
S
Indicates the forward
position for the PRO6150
Modular Handpiece.
Indicates the “open” or
“lock” direction for the
PRO6175 Oscillator
handpiece blade collet
mechanism.
F

4

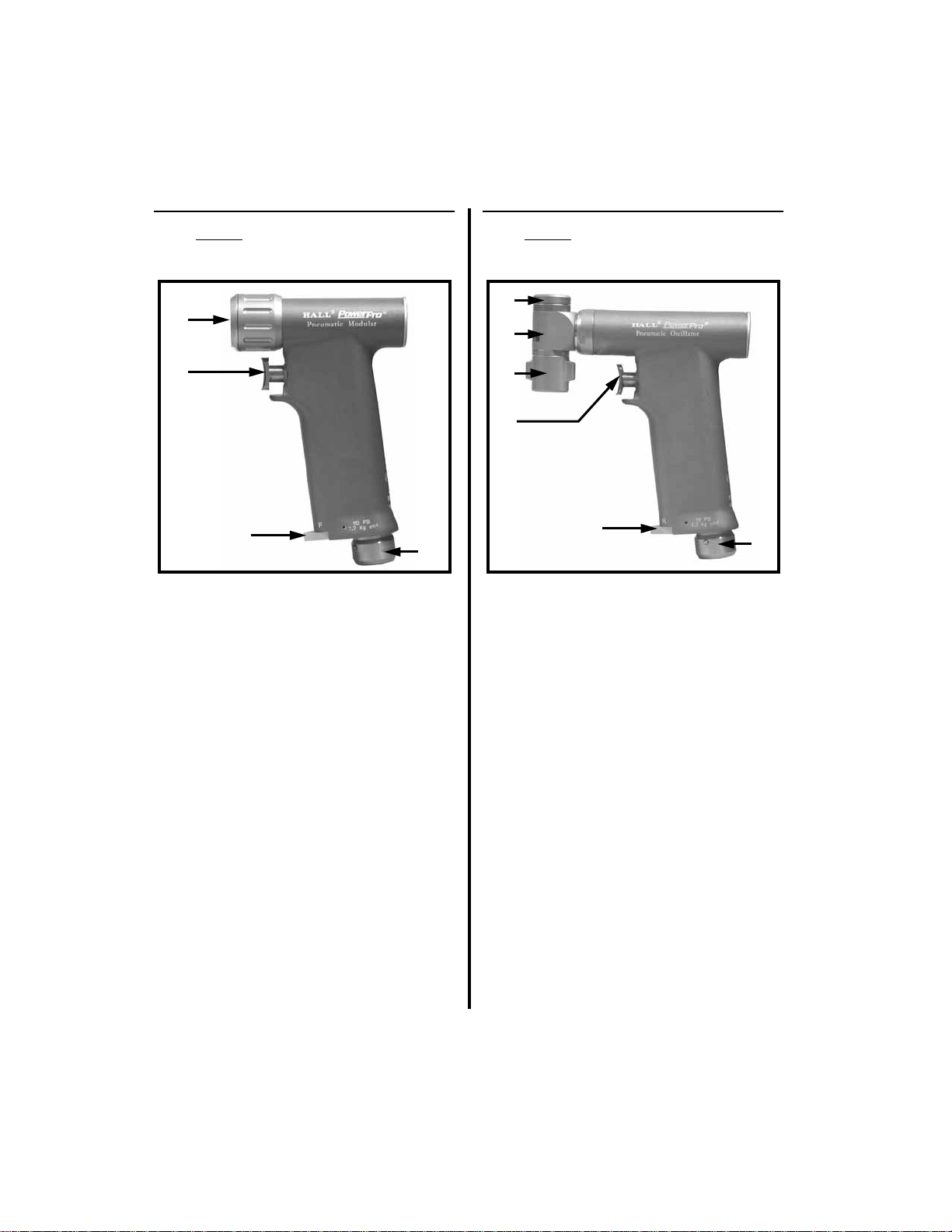

1.4
PowerPro
Pneumatic Modular
Handpiece (PRO6150)
❶
Attachment Collet-Lock — Twist to
release and remove attachments from the
handpiece. It is not necessary to twist for
insertion of attachment. Simply insert and
push attachment to lock in place.
❷
Activation Trigger — Used to activate the
handpiece. Depress when the safety/direc-
tion lever is in the forward or reverse posi-
tion to operate.
❸
Safety/Direction Lever — To operate the
handpiece, place in either the forward or
reverse position. Place in the safe position
prior to connecting or removing any attach-
ment or accessory and during non-use of
the handpiece.
❹
Hose Connector — The pneumatic hose
(5052-010) connects here.
1.5
PowerPro
Pneumatic Oscillator
Handpiece (PRO6175)
❶
Blade Locking Collet — Holds and locks
the blade in place.
❷
Rotating Head — Rotates in 90° intervals
for appropriate surgical access.To rotate the
head, grasp the rotating head, pull it straight
out from the handpiece body, and turn it to
the desired position.
❸
Blade Locking Knob — Rotate to open or
lock the blade locking collet to insert and
lock the blade securely in place.
❹
Activation Trigger — Depress when the
safety/direction lever is in the “run” posi-
tion to operate the handpiece.
❺
Safety/Direction Lever — To operate the
handpiece, place in the “run” position.
Place in the safe position prior to connect-
ing or removing an accessory and during
non-use of the handpiece.
❻
Hose Connector — The pneumatic hose
(5052-010) connects here.
❶
❷
❸
❹
❶
❷
❸
❹
❻
❺

5
1.6
PowerPro
Pneumatic
Reciprocator Handpiece
(PRO6185)
The PowerPro Battery Reciprocator Handpiece
is designed to accept Hall 5052-058 through -
061, -073, -179, -258 through -261, -273, -276
and -279 series blades. Refer to the Hall Catalog
for specific blade information.
❶
Blade Collet — Insert a blade here. Also
used to rotate the blade to any of four (4)
positions at 90° intervals for appropriate
surgical access. Blade positioning must be
done prior to locking the blade in the collet.
To rotate, grasp the blade at the base of the
collet and rotate to the desired position.
❷
Blade Locking Knob — Rotate counter-
clockwise to open the collet to insert a
blade. Rotate clockwise to lock the blade
securely in place.
❸ Activation Trigger — Used to activate the
handpiece. Depress when the safety/direc-
tion lever is in the “run” position to operate
the handpiece.
❹
Safety/Direction Lever — To operate the
handpiece, place in the “run” position.
Place in the safe position prior to connect-
ing or removing an accessory and during
non-use of the handpiece.
❺
Hose Connector — The pneumatic hose
(5052-010) connects here.
❶
❷
❸
❹
❺

6
2.0
INSTALLATION and
OPERATION
NOTES:
1. When not in use and prior to connecting
or removing attachments and accesso-
ries, always place the handpiece in its
safe position.
2. The connected attachment (drill or ream-
ing) determines the speed and torque.
2.1 Power Source and Regulator
Installation and Operation
WARNING: Not for inhalation. Does not
support life. For use with powered surgical
devices only.
Research and experience have shown that water-
pumped dry nitrogen is the ideal source for
pneumatically-powered surgical instruments.
Water-pumped dry nitrogen is 99.97% pure, and
will not support combustion or corrosion. Com-
pressed dry nitrogen is recommended as the
pneumatic power source. It is available in stan-
dard cylinders.
Compressed dry nitrogen must meet the follow-
ing specifications to ensure optimum safety for
both patient and instrument.
Nitrogen Content: 99.97% pure, dry nitrogen.
QualityAssurance: To obtain the quality of gas
needed, “water-pumped dry nitrogen, or liquid
nitrogen, pumped dry” should be specified.
Nitrogen is readily available from gas supply
houses in H cylinders holding slightly more than
300 cubic feet (8.50 cubic meters). Initial set-up
costs are relatively inexpensive as compared to
compressed air. Nitrogen can be placed in the
operating room or in a storage area and piped
into the operating room. Manifold systems are
available to eliminate frequent tank changes.
CAUTION: Do not exceed 110 psi
(7.7 kg/cm
2
) operating pressure unless a hose
longer than the standard 10 ft. Universal
Hose (5052-010) or extension hose is used.
Add an additional 1 psi for every extra foot of
hose.
The PowerPro Pneumatic handpiece should
be operated at 110 psi (7.7 kg/cm
2
) for
maximum operating efficiency, and should be
monitored by the operating pressure gauge of
the regulator. Lower pressure setting can be
set for lower speed and torque requirements.
Pressure must be set with the instrument
running to ensure proper operating pressure.
Never start a procedure if the operating
pressure gauge indicates less than 500 psi
(35.1 kg/cm
2
) in the tank. Never run the tank
pressure below 200 psi (14.0 kg/cm
2
).
The tank should be thoroughly wiped off with
disinfectant and draped prior to placement in
the operating room.Always have the tank
securely fastened to a stable object.

7

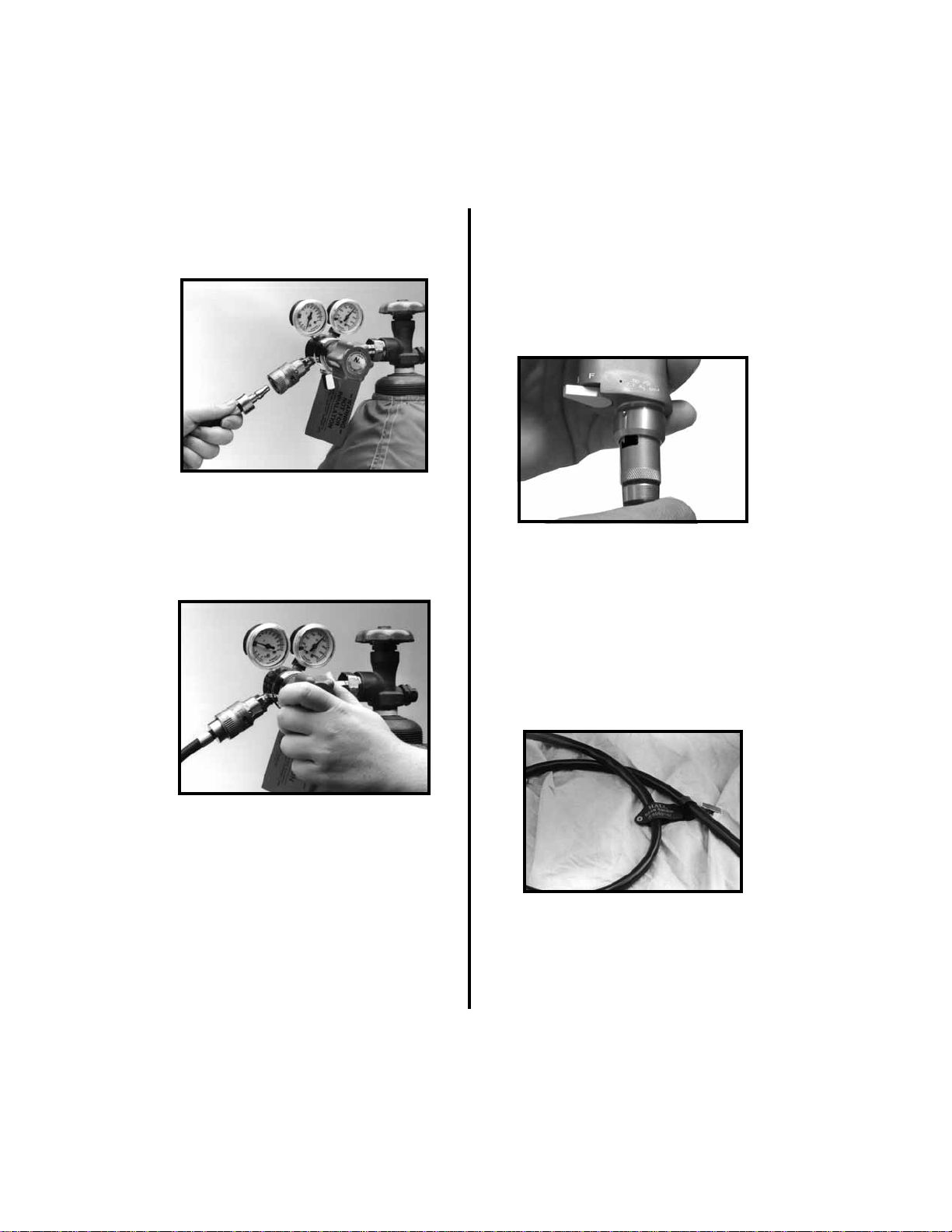

1. Prior to set-up in the operating room, open
the tank valve (counterclockwise) slowly
and allow enough gas to escape to blow out
any debris that may have accumulated in
the valve. Stay clear of the opening and the
back of the tank during this procedure.
Return the valve to the closed position.

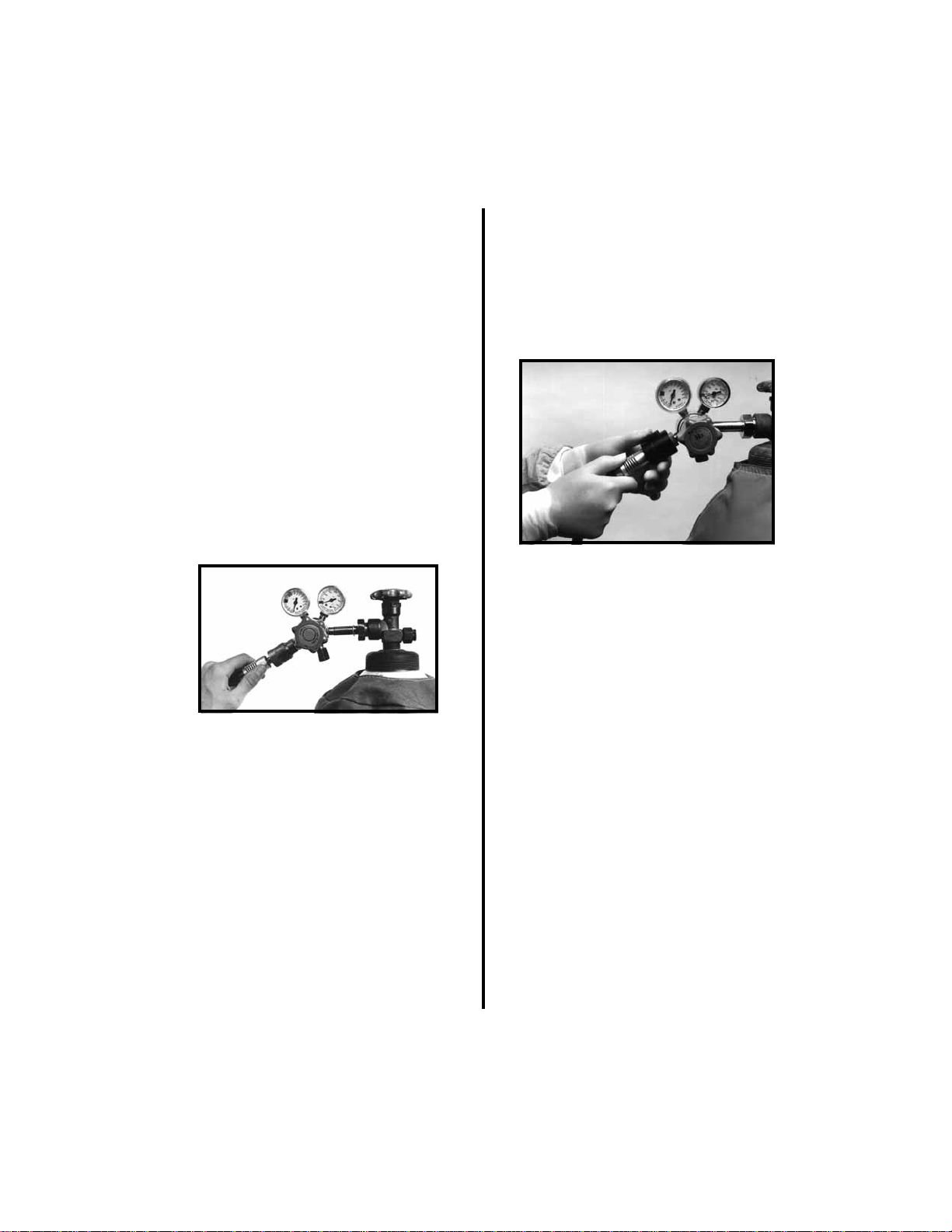

2. Install the regulator with a 1 1/8 inch
wrench.
NOTE: The threaded adaptor of the nitro-
gen regulator is designed to fit nitrogen fit-
tings only. Incompatibility of the regulator
and tank indicates a gas source other than
nitrogen or an improper regulator for use
with a nitrogen tank.

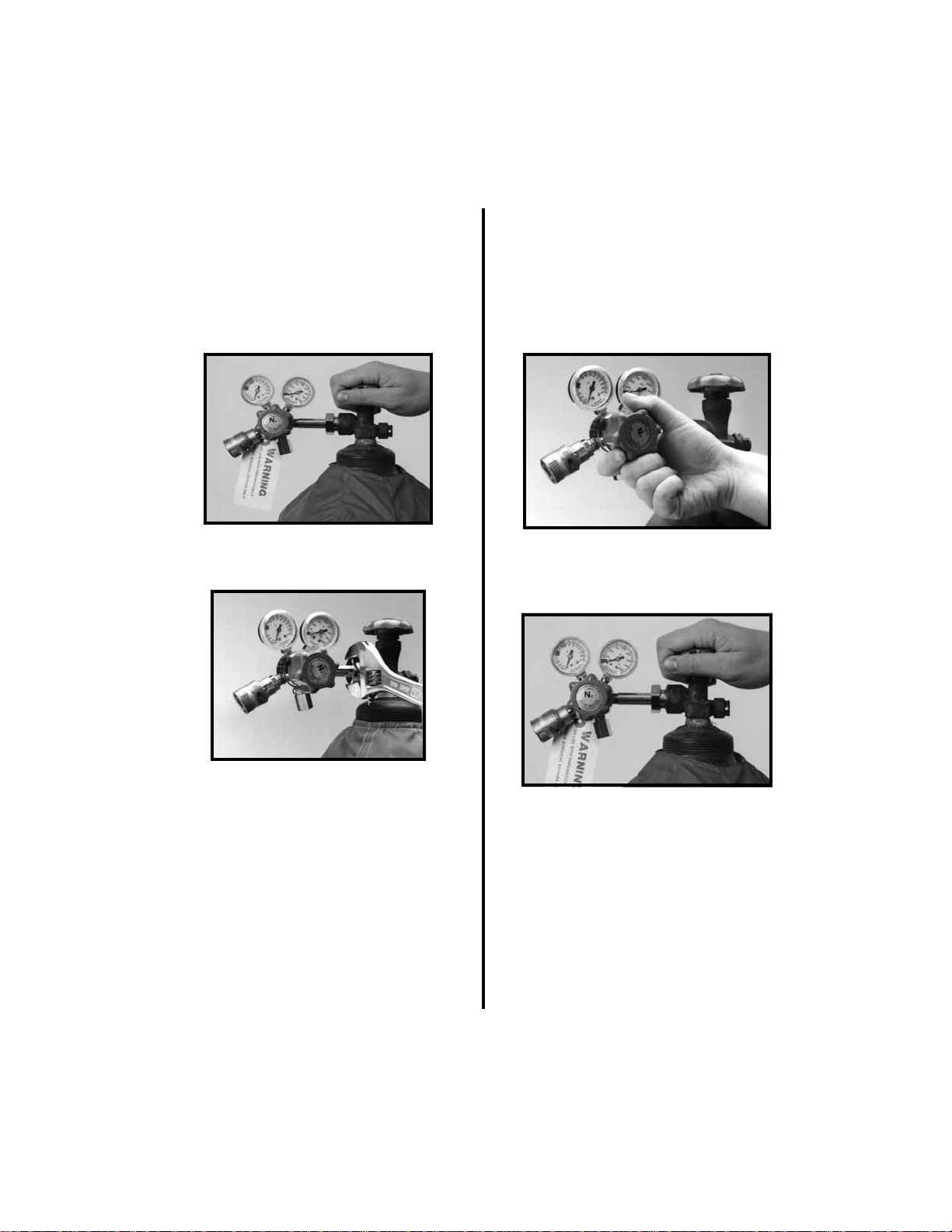

3. Once the regulator is securely installed,
ensure the regulator knob is in the full off
position by turning the regulator control
knob counterclockwise. SUDDEN PRES-
SURE EXERTED TO THE REGULA-
TOR MAY CAUSE INTERNAL
DAMAGE.
4. Slowly turn the tank valve fully open (coun-
terclockwise). This will allow nitrogen to
pressurize the regulator.

8
5. Insert the male Schrader end of the hose
into the female Schrader on the regulator
with an upward thrust.
6. Operating pressure is established by gradu-
ally turning the regulator control knob
clockwise. ALWAYS establish the desig-
nated pressure on the operating pressure
gauge with the instrument running.
7. To connect the hose to the handpiece.
(a) Place the handpiece in the safe posi-
tion.
(b) Insert the coupling end of the hose into
the fitting on the bottom of the
handpiece.
(c) Twist the hose coupling to the right
(clockwise) and slightly pull on the
hose so the internal pins securely
engage in the indentations.
(d) Attached to the Universal Hose (5052-
010) is the Hall Hose Handler.This clip
allows fixation of the hose to the
surgical drape, reducing the problem of
the hose slipping off the patient.
(e) TheVelcro
®
strap allows the hose to be
coiled, thus reducing excess hose
length. In addition, the VELCRO strap
may be used with any additional hose
and/or cable.

9
8. Before removing the instrument from the
regulator:
(a) Close the tank valve by turning it
clockwise.
(b) Activate the instrument to bleed off
line pressure.
(c) Turn the pressure regulator knob
counterclockwise until it stops.
(d) Turn the female Schrader to the right to
disengage the male Schrader fitting.
(e) The hose can then be removed from the
connector. Hold the end of the hose
securely when disengaging the male
Schrader fitting to prevent possible
damage to the diffuser.
9. If the Hall Pneumatic Connector* is being
used:
(a) Locate the button marked “PRESS”.
(b) Depress and hold the button until the
audible release of residual gas is
completed.
(c) Release the button and remove the
hose.
(d) If the hose cannot be easily removed,
depress the “PRESS” button again,
release it and remove the hose.

10
2.2 Connecting and Removing
Attachments
All attachments for the PowerPro Pneumatic
Modular Handpiece connect/disconnect in the
same manner. For more information, refer to the
PowerPro Attachment Instruction Manual or the
Information Insert supplied with each attach-
ment.

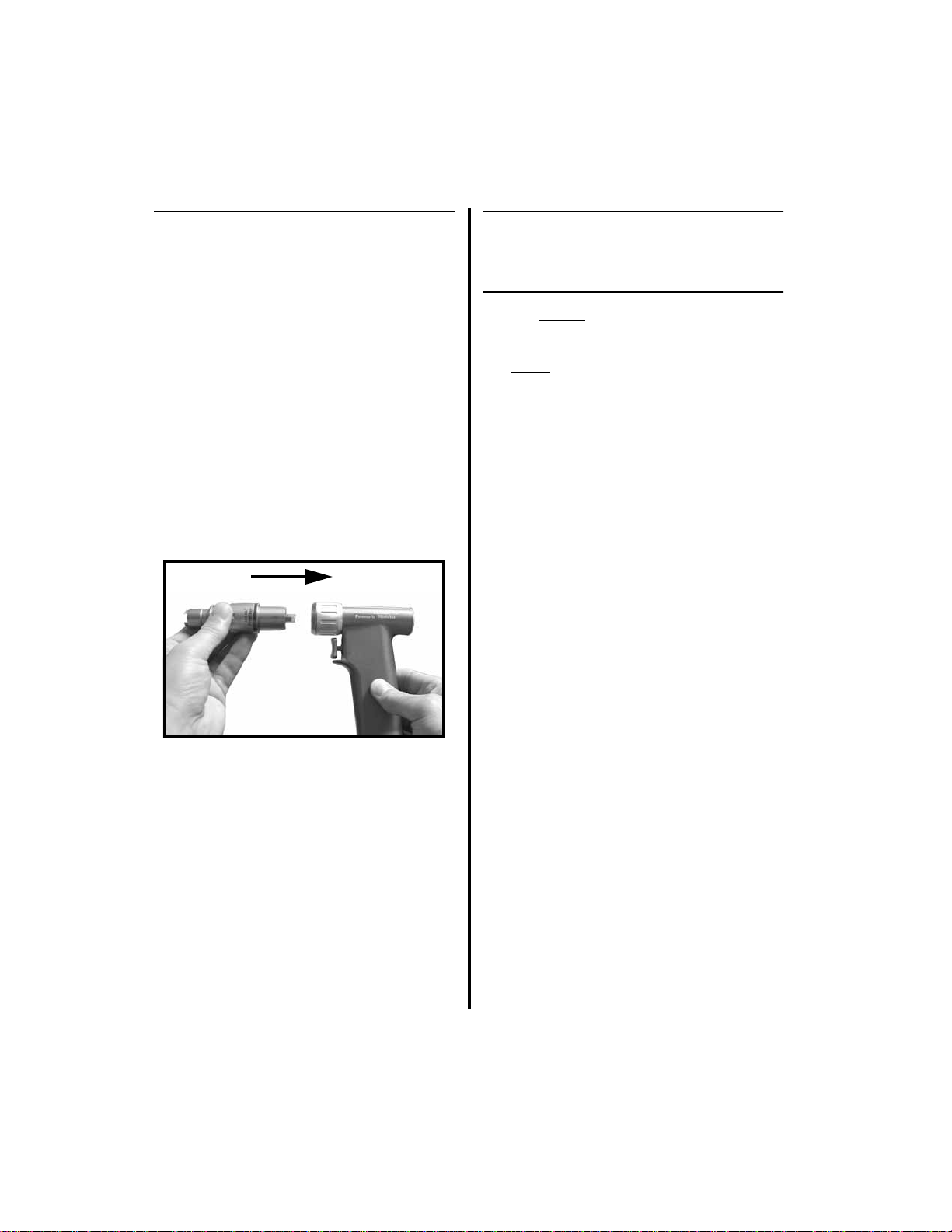

1. To connect an attachment:
(a) Place the safety/directional lever in the
safe position.
(b) Orient the attachment shaft to the hand-
piece opening. Insert the shaft and
press them until they snap together.
2. To disconnect an attachment, twist the
attachment collet-locking ring in a clock-
wise direction and remove the attachment.
2.3 Handpiece Mode Selection and
Operation
2.3.1
PowerPro Pneumatic Modular
Handpiece (PRO6150) Operation
The PowerPro Pneumatic Modular handpiece,
in conjunction with numerous attachments, is
used for drilling, and wire and pin driving. It has
a variable speed of 0-1250 rpm and a minimum
torque of 20 in. lbs. with all drilling, and wire
and pin driving attachments.A variable speed of
0-250 rpm and torque of 100 in. lbs. with the 5:1
ratio reaming attachment (identified with a blue-
colored ring).
1. To operate the handpiece, place the hand-
piece safety/direction lever in either the for-
ward or reverse position and depress the
trigger.
(a) With the safety/direction lever in the
forward position, depressing the trigger
operates the handpiece in the clockwise
direction as viewed from the rear of the
handpiece.The speed is variably con-
trolled by the trigger.
(b) With the safety/direction lever in the
reverse position, depressing the trigger
operates the handpiece in the counter-
clockwise direction as viewed from the
rear of the handpiece. The speed is
variably controlled by the trigger.

11
2.3.2 PowerPro Pneumatic Oscillator
Handpiece (PRO6175) Blade
Installation and Operation
2.3.2.1 Blade Installation

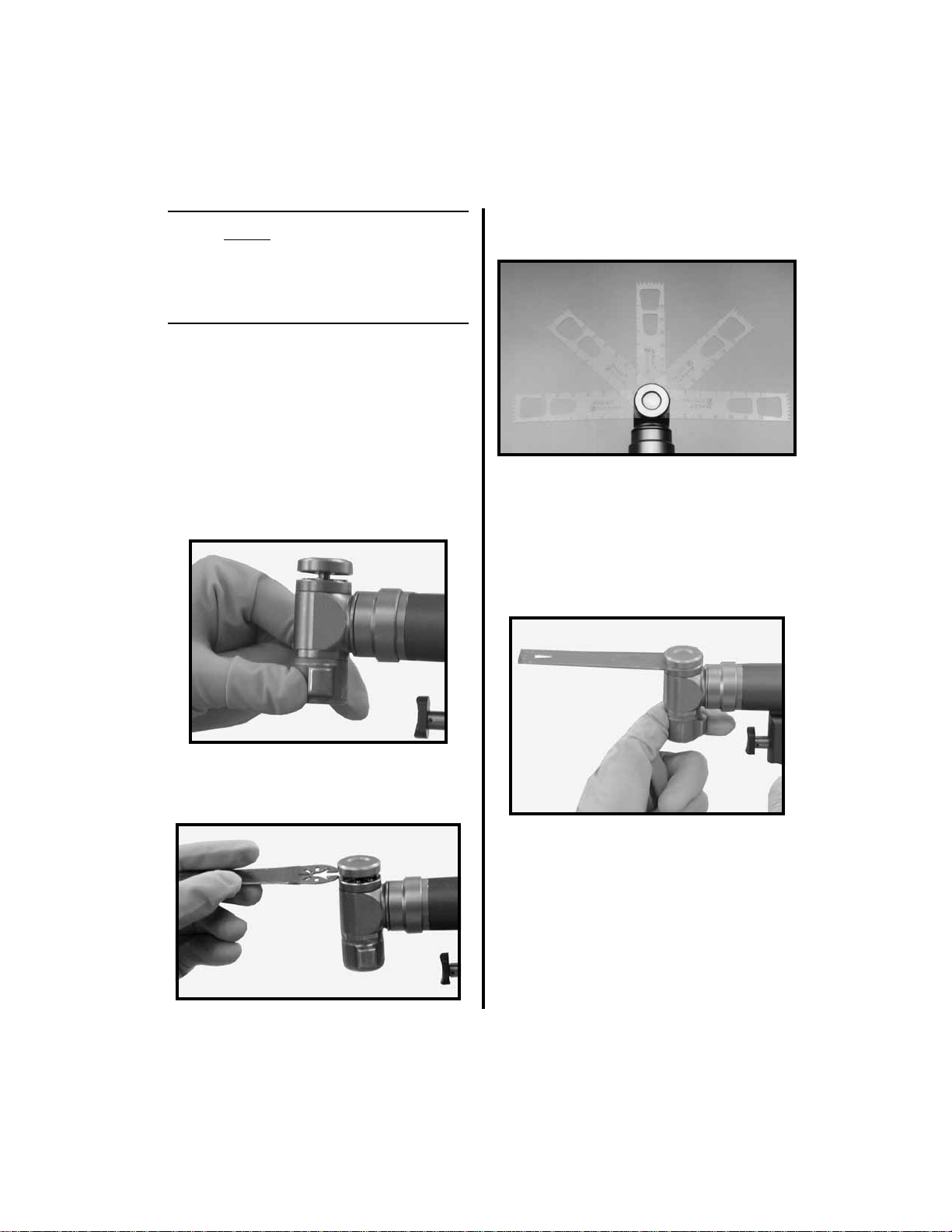

1. To attach a blade:
(a) Place the safety/direction lever in the
safe position.
(b) Rotate the blade locking knob in the
direction of the arrow to the open posi-
tion. The blade locking collet will dis-
engage.
(c) Align the blade shank to the desired
angle with the blade locking collet.
Insert the blade.
(d) Blades can be positioned 45° off the
center line in either direction.
(e) Rotate the blade locking knob in the
opposite direction of the arrow to lock
the blade into place.
WARNING: The blade locking knob must
be completely closed to hold the blade firmly
in place.
2. To remove the blade:
(a) Ensure the safety/direction lever is in
the safe position.
(b) Rotate the blade locking knob to the
open position. The blade locking collet
will disengage.
(c) Remove the blade.

12
2.3.2.2 Handpiece Operation
1. Position the rotating head to the desired
position. The rotating head may be set in
any of 4 positions at 90° intervals for the
appropriate surgical access.
(a) Ensure the safety/direction lever is in
the safe position.
(b) Pull the rotating head out and away
from the handpiece body.
(c) Twist the rotating head to the desired
position and release the rotating head.
Ensure it is locked into place and does
not rotate.
2. Move the safety/direction lever to the “run”
position.
3. To activate the handpiece, depress the
trigger.
CAUTION: When operating the PowerPro
Oscillator Handpiece, let the saw blade do the
cutting. Too much force will bind the blade
which can damage the handpiece.

13
2.3.3 PowerPro Pneumatic
Reciprocator Handpiece
(PRO6185) Blade Installation and
Operation
2.3.3.1 Blade Installation
1. To attach a blade:
(a) Place the safety/direction lever in the
safe position.
(b) Rotate the blade locking knob
counterclockwise to open the blade
collet.
(c) Completely insert the blade shank.
(d) The rotating head may be set in any of
4 positions at 90° intervals for the
appropriate surgical access. Position
the blade to the desired position by
grasping the blade at the base of the
collet and rotating it to the desired
position.
(e) Rotate the blade locking knob
clockwise to lock the blade into place.
WARNING: The blade locking knob must
be completely closed to hold the blade firmly
in place.

14
2. To operate the handpiece, move the safety/
direction lever to the “run” position and
depress the trigger.
CAUTION: Do not operate the
Reciprocator Handpiece with the collet in the
open position or without a blade locked in the
collet. Damage will occur.
3. To remove the blade:
(a) Ensure the safety/direction lever is in
the safe position.
(b) Rotate the blade locking knob
counterclockwise. The blade locking
collet will disengage. Remove the
blade.
3.0 MAINTENANCE
Regular and proper maintenance of your
PowerPro Handpieces are the best ways to pro-
tect your investment. It is essential that you have
your powered surgical instruments serviced as
scheduled in order to retain their optimum per-
formance and reliability, which will reward you
with safer, less problematic product perfor-
mance over time. The recommended mainte-
nance interval for service of your PowerPro
Handpieces is every 12 months.
Recommended care and handling of the instru-
ments include proper day-to-day operation,
cleaning, and sterilization which are extremely
important to ensure safe and efficient operation.
Your authorized Hall Surgical service depart-
ment is the most knowledgeable about the
PowerPro instruments and will provide compe-
tent and efficient service. Service at Linvatec/
Hall Surgical at the recommended service inter-
val is mandatory to keep your product warran-
ties in effect. Any services and/or repairs done
by any unauthorized repair facility may result in
reduced performance of the instruments or
instrument failure.

15
3.1 Cleaning and Sterilizing
3.1.1 Cleaning Precautions
1. Follow universal precautions for protective
apparel when handling and cleaning con-
taminated instruments.
2. Do not lubricate any handpieces.
3. Never immerse handpieces or
attachments.
4. Never clean equipment in an automatic
washer/sanitizer.
5. Never clean handpieces with bleach, chlo-
rine-based detergents, liquid or chemical
disinfectants, or any products containing
sodium hydroxide (such as, INSTRU-
KLENZ or Buell Cleaner). They will
degrade the anodized aluminum coating.
6. Never clean equipment in an ultrasonic
cleaner.
7. Saw blades and bits are single-use
only. Do not resterilize. Dispose of
properly after use.
3.1.2 Handpiece Cleaning Instructions
Clean handpieces and attachments as soon as
possible after use.
1. Remove all attachments (chucks, saws) and
accessories (saw blades, bits) from the
handpiece prior to cleaning. Keep the hand-
piece hose attached.
2. Thoroughly scrub the handpiece, handpiece
hose, and attachments with a clean, soft
brush dampened with a mild, pH-balanced
detergent. Ensure the blade locking collet
on the oscillator handpiece is in the open
position and all debris is removed from this
area. Remove all traces of blood, debris and
stains. Do Not immerse equipment in soap
solution or rinse water.
3. To clean the cannulated section of the hand-
piece and attachment:
(a) Feed the wire end of a cleaning brush
through the cannulation of the hand-
piece or attachment.
(b) Pull the brush completely through and
repeat until all debris is removed.
4. Manipulate all moving parts of the hand-
piece and attachments to ensure all debris is
removed. If not, clean again until all debris
is removed.
5. Keeping the nose of the handpiece pointed
downward, rinse under running water to
remove all traces of soap. Rinse all attach-
ments likewise.
6. Flush all surfaces free of tap water with dis-
tilled water to prevent metal discoloration.
7. Gently shake the equipment free of water
and wipe the surfaces with a clean, lint-free
towel.

16
3.1.3 Sterilization Information
team sterilization is safe and effective and
has no contraindications for its use in ster-
ilizing powered surgical handpieces and
attachments.
3.1.3.1 SterilizationWarnings,
Precautions and Notes
WARNING: Use of disinfecting solutions
for an exterior instrument wipe will not
sterilize equipment and is not recommended.
1. Do not sterilize handpieces with Ethylene
Oxide (EtO).
2. Never sterilize any handpiece in a STERIS
System, STERRAD System, Abtox Pla-
zlyte™ or comparable sterilization meth-
ods.
3. Do not sterilize handpieces in cold ster-
ilants like CIDEX.
4. Do not “Peel Pack” handpieces or attach-
ments for sterilization. Sterilization in a
sealed pouch traps moisture which can
cause damage.
5. Attachments with collet mechanisms must
be sterilized with the collet fully open.
6. Remove the hose from the Handpiece prior
to sterilization.
7. Do not use handpieces while warm. Allow
adequate time for cooling prior to use. Do
not immerse in liquid or cover with a damp
cloth to cool. Cool by exposure to room
temperature.
NOTES:
1. The following guidelines do not guaran-
tee that the device is sterile after the pro-
cedure.Your institution is still
responsible for the normal sterility assur-
ance validation.
2. Additional drying time may be required
for complete heat and moisture dissipa-
tion. Operation of a handpiece that is not
completely cool and dry may decrease
performance and/or reliability.
3. Sterilization validation is based onAAMI
guidelines (Association for the Advance-
ment of Medical Instrumentation).
4. PowerProhandpieceshavebeen validated
to be completely sterile using “flash”
sterilization techniques.
Handpieces, attachments, and the hose may be
processed in a pre-vacuum steam sterilizer
(Steam Pre-vacuum) or in a gravity (downward)
displacement sterilizer (Steam Gravity). Place
handpiece(s), hose, and/or attachments in a
PowerPro Sterilization Case (PRO5090) and
follow the recommended minimum sterilization
exposure times listed on the following page.
S
