MPS MBP-BR36S5M03.L4 User manual

MBP-BR36S5M03.L4
MBP-BR36S6M03.L4
MBP-BR36S5M03.L6
MBP-BR36S6M03.L6
MBP-BR36S5M03.L10
MBP-BR36S6M03.L10
E-Bike Battery Pack User's manual

1
FCC Statement
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions
This device may not cause harmful interference.
This device must accept any interference received,
including interference that may cause undesired
operation.”

2
FCC notice
This device has been tested and found to comply with
the limits for a Class B digital device pursuant to Part
15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This device
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not
occur in a particular installation.
If this device does cause harmful interference to radio
or television reception, which can be determined by
turning the device off and on, the user is encouraged to
try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the device and
the receiver.
Connect the device into an outlet on a circuit
different from that to which the receiver is
connected.
Consult the dealer or an experienced
radio/television technician for help

3
IC Statement
This device complies with Industry Canada
license-exempt RSS Standard(s). Operation is subject to
the following two conditions.
This device may not cause harmful interference.
This device must accept any interference received,
including interference that may cause undesired
operation.
Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de
licence.L'exploitation est autorisée aux deux conditions
suivantes:
l'appareil ne doit pas produire de brouillage, et
l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le
fonctionnement.

4
Important notice
The operating temperature ranges for the battery are
given below. Do not use the battery in temperatures
outside these ranges. If the battery is used or stored
in temperature outside these ranges, fire, injury or
problems with operation may occur.
1. During discharge: –20 °C ~ 50 °C
2. During charging: 0 °C ~ 45 °C
Store the battery in a safe place out of the reach of
infants and pets.
If the bicycle will not be ridden for a long period of
time, store it away over 60% battery capacity
remaining. In addition, take care not to let the
battery become completely empty by charging it
every 3 months.
Do not insert or remove the plug while it is wet. If
this is not observed, electric shocks may result. If
there is water leaking out of the plug, dry it
thoroughly before inserting it.
Do not leave the battery in a place exposed to direct
sunlight or other hot places. This may result in
battery leakage.
Do not leave the battery near sources of heat such as
heaters. Do not heat the battery or throw it into a fire.
Doing so may cause bursting or ignition of the
battery.
Do not place the battery into fresh water or sea water,
and do not allow the battery terminals to get wet.
Doing so may cause overheating, bursting, or
ignition of the battery.

5
Do not subject the battery to strong shocks or throw
it. If this is not observed, overheating, bursting, or
fire may occur.
Use the MPS specified charger and observe the
specified charging conditions when charging the
specified battery. Not doing so may cause
overheating, bursting, or ignition of the battery.
Don't plug the charger into the battery for a long
time when the battery is fully charged or not
charged.
Do not deform, modify, disassemble or apply solder
directly to the battery. Doing so may cause leakage,
overheating, bursting, or ignition of the battery.
Do not use the battery if it has any noticeable
scratches or other external damage. Doing so may
cause bursting, overheating or problems with
operation.
If any liquid leaking from the battery gets into your
eyes, immediately wash the affected area thoroughly
with clean water such as tap water without rubbing
your eyes, and seek medical advice immediately. If
this is not done, the battery liquid may damage your
eyes.
If any leaked fluid gets on your skin or clothes, wash
it off immediately with clean water. The leaked fluid
may damage your skin.
Use the product according to local laws and
regulations.
Please discard of used batteries according to local
regulations.

6
Product Appearance
Left View
1. Power Button
2. LED Indicator
3. Charging port
Right View
1
2
3

7
Back View
4. Power and Communication Port
Turn on/off
Long press power button
Press the power button more than 1 second to turn
on/off the battery.
You can see LED indicator when you turn on/off
battery.
Battery level button
Press the battery level button and you can know the
current battery level.
4

8
Auto power off
Battery would be powered off automatically if output
current is less than 500mA for 24 hours
Charging
Charging port is in rear side of the battery.
Please open the protection cap and plug the
charging plug into outlet for charging.
Please close the protection cap once charging is
finished and charging plug is removed.
Please refer to Charging Indicator for charging
status.
Bluetooth 4.0
Bluetooth is only supported in model
MBP-BR36S6M03.L4, MBP-BR36S6M03.L6
and MBP-BR36S6M03.L10
You can download m-bike app designed by MPS
from Google Play, please check the m-Bike App
for detailed information.
After the battery is turned on, Bluetooth function
would be available as well.

9
If Bluetooth connection is established between
battery and cell phone, the connection would be
kept even if the battery is turned off.
Charging Indicator
Short press power button
If the battery is power-on, you can short press power
button to know the battery level.
Battery Level Indicator：Green
Warning Indicator：Red
Power Button
Battery Level Indicator 1
Battery Level Indicator 2
Battery Level Indicator 3
Battery Level Indicator 4 & Warning Indicator

10
Battery Level Indicator
(4,3,2,1 )
Battery Level
75 - 100%
50 - 74%
25 - 49%
10 - 24%
0 - 9%
Charging Battery Level Indicator
Battery Level Indicator
(4,3,2,1 )
Battery Level
100%
75 - 99%
50 - 74%
25 - 49%
0 - 24%
：Lighting Up
：No light
：Blinking
：Lighting Up
：No light
：Blinking

11

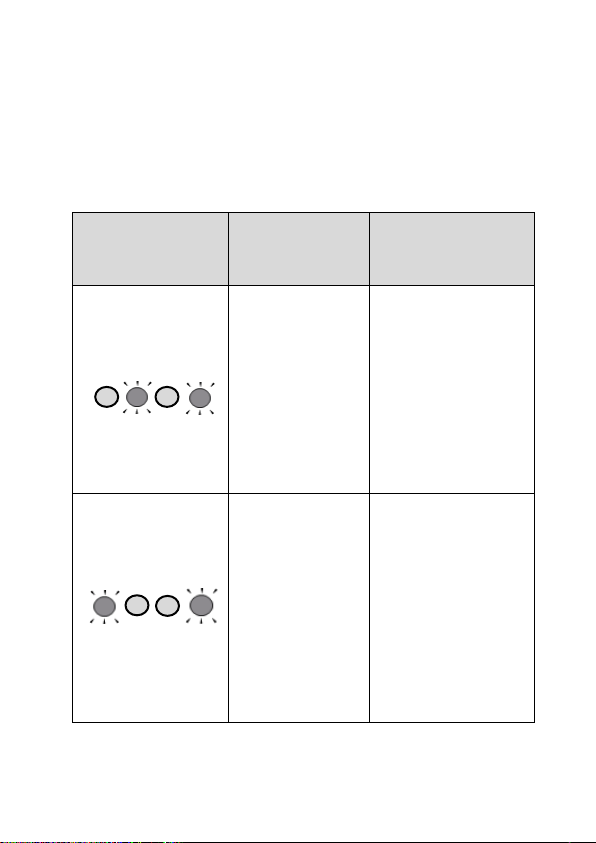

Warning Indicator
When an error occurs, warning indicator would keep
lighting up and you can get the indication condition by
the battery level LED lamps through various lighting
patterns
Battery Level
Indicator
(4,3,2,1 )
Indication
Condition
Recovery
If the
temperature
exceeds the
operating range,
the battery
output or input
is turned off.
Remove the
charger from the
battery. Leave the
battery in a room
temperature away
from direct
sunlight until the
internal
temperature of the
battery is normal.
An error occurs
during charging
If the battery is
plugged into the
charger, please
unplug the charger
and then press the
power button over
1 second to power
down the battery.
And then you can
use the battery
normally.

12
The error occurs
during
discharging.
Press power button
over 1 second to
power down the
battery, and then
you can use the
battery normally.
The battery
voltage is below
the normal
range.
Connect the
changer to the
battery for over 30
minutes.
Battery
malfunctions.
Contact the place
of purchase
Error happens
inside the
battery(level1)
Contact the place
of purchase
Error happens
inside the
battery(level2)
Contact the place
of purchase
Product Specification
Model
MBP-BR36S5M03.L4
MBP-BR36S6M03.L4
Voltage/Current
36V / 18A
：Blinking (Green)
：No light
：Lighting Up (Red)
Up

13
Capacity
10.4Ah / 374Wh
Dimension
380 x 138 x 76 mm
Weight
2.77 Kg
Charging Time
< 8 hours ( 2A Charger )
Model
MBP-BR36S5M03.L6
MBP-BR36S6M03.L6
Voltage/Current
36V / 20A
Capacity
11.4Ah / 410Wh
Dimension
380 x 138 x 76 mm
Weight
2.77 Kg
Charging Time
< 9 hours ( 2A Charger )

14
Model
MBP-BR36S5M03.L10
MBP-BR36S6M03.L10
Voltage/Current
36V / 18A
Capacity
14.0Ah / 504Wh
Dimension
380 x 138 x 76 mm
Weight
2.92 Kg
Charging Time
< 10 hours ( 2A Charger )
Company Information
MPS Energy Inc.
Address：26F, 116, Sec.1, Xintai 5th Rd. Xizhi, New
Taipei City 221 Taiwan, R.O.C.
Tel：[phone] Ext. 7536
E-mail：[e-mail]
Website：http://www.mpsenergy.com.tw/
