MQ Multiquip GLOBUG GBX12SK User manual

OPERATION MANUAL
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
GLOBUG
MODEL GBX12S
LIGHT TOWER
Revision #1 (10/02/19)
To order go to Discount-Equipment.com

We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman,
Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto, Power
Blanket, Nifty Lift, Atlas Copco, Chicago Pneumatic, Allmand, Miller Curber, Skyjack, Lull,
Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic, Dynapac,
MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti, Morrison, Contec,
Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S. Curtis, Gehl Pavers, Heli,
Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin, Rice, CH&E, General Equip-
ment ,Amida, Coleman, NAC, Gradall, Square Shooter, Kent, Stanley, Tamco, Toku, Hatz,
Kohler, Robin, Wisconsin, Northrock, Oztec, Toker TK, Rol-Air, APT, Wylie, Ingersoll Rand /
Doosan, Innovatech, Con X, Ammann, Mecalac, Makinex, Smith Surface Prep,Small Line,
Wanco, Yanmar
Discount-Equipment.com is your online resource for
commercial and industrial quality parts and equipment sales.
561-964-4949
visit us on line @ www.discount-equipment.com
TO PURCHASE THIS PRODUCT PLEASE CONTACT US
Select an option below to find your Equipment
Equipment Financing and
Extended Warranties Available

PAGE 2 —GBX12S LIGHT TOWER• OPERATION MANUAL — REV. #1 (10/02/19)
PROPOSITION 65 WARNING
To order go to Discount-Equipment.com

PAGE 4 —GBX12S LIGHT TOWER• OPERATION MANUAL — REV. #1 (10/02/19)
TABLE OF CONTENTS
GBX12S Light Tower
Proposition 65 Warning ........................................... 2
Reporting Safety Defects......................................... 3
Safety Information ............................................. 5–12
Specifications ........................................................ 14
Dimensions............................................................ 15
Footcandle Plot...................................................... 16
General Information............................................... 17

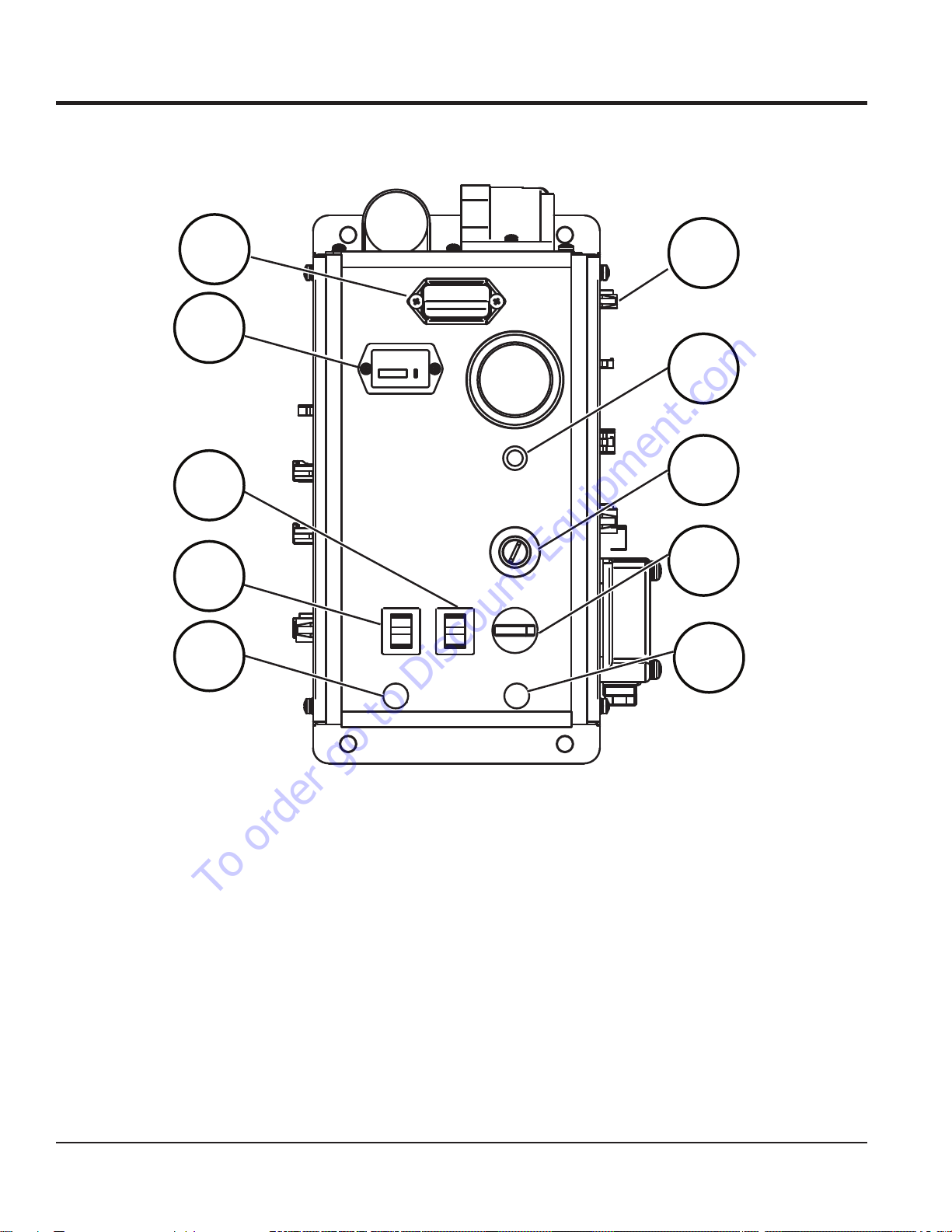

Control Panel................................................... 18–19

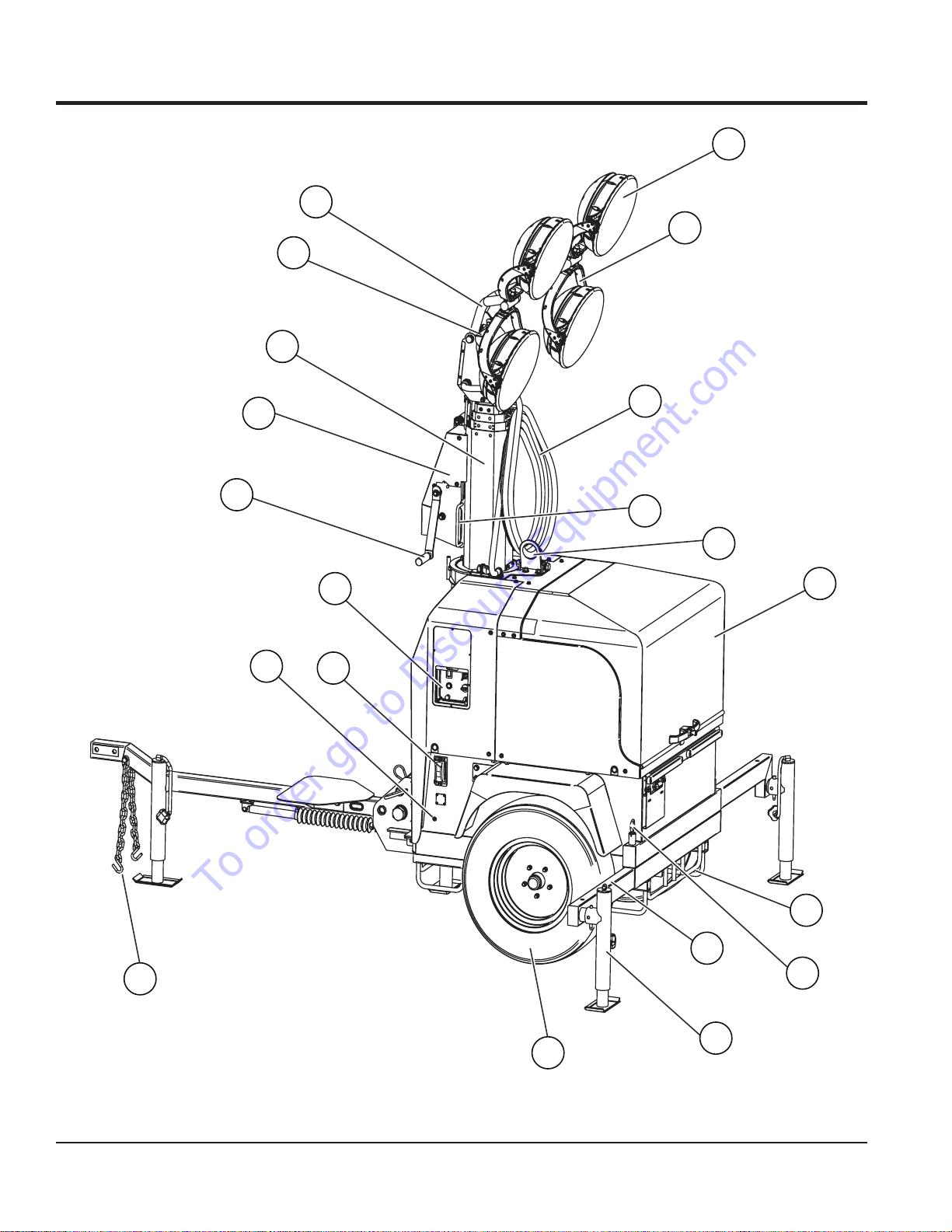

Components .................................................... 20–21
Setup ............................................................... 22–24
Operation......................................................... 25–26
Storage .................................................................. 27
Transporting........................................................... 28
Maintenance.................................................... 29–33
Troubleshooting ............................................... 34–38
Safety Guidelines — Trailers ............................. 3–52
Block Diagram ....................................................... 53
Wiring Diagram (Engine 1) .................................... 54
Wiring Diagram (Engine 2) .................................... 55
Wiring Diagram (Lights)......................................... 56
Wiring Diagram (Trailer)......................................... 57
AC Wiring Diagram ................................................ 58
DC Wiring Diagram................................................ 59
NOTICE
Specifications are subject to change without notice.
To order go to Discount-Equipment.com

GBX12S LIGHT TOWER • OPERATION MANUAL — REV. #1 (10/02/19) — PAGE 5
SAFETY INFORMATION
Do not operate or service the equipment before reading the
entire manual. Safety precautions should be followed at all
times when operating this equipment. Failure to read and
understand the safety messages and operating instructions
could result in injury to yourself and others.
SAFETY MESSAGES
The four safety messages shown below will inform you
about potential hazards that could injure you or others.The
safety messages specifically address the level of exposure
to the operator and are preceded by one of four words:
DANGER, WARNING, CAUTION
or NOTICE.
SAFETY SYMBOLS
DANGER
Indicates a hazardous situation which, if not avoided,
WILL result in DEATH or SERIOUS INJURY.
WARNING
Indicates a hazardous situation which, if not avoided,
COULD result in DEATH or SERIOUS INJURY.
CAUTION
Indicates a hazardous situation which, if not avoided,
COULD result in MINOR or MODERATE INJURY.
NOTICE
Addresses practices not related to personal injury.
SAFETY SYMBOLS
Potential hazards associated with the operation of this
equipment will be referenced with hazard symbols which
may appear throughout this manual in conjunction with
safety messages.
To order go to Discount-Equipment.com

PAGE 6 —GBX12S LIGHT TOWER• OPERATION MANUAL — REV. #1 (10/02/19)

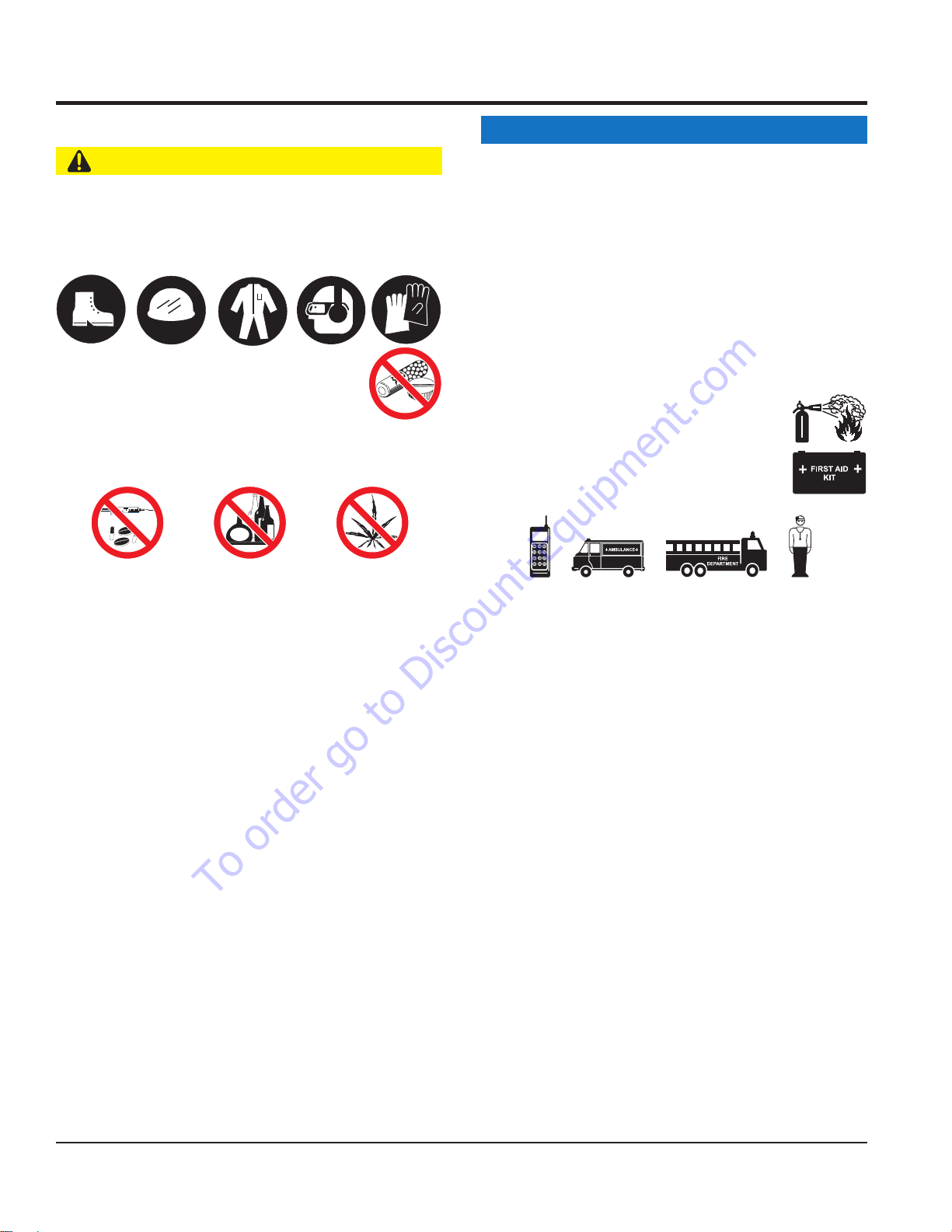

SAFETY INFORMATION
GENERAL SAFETY
CAUTION

NEVER operate this equipment without proper protective
clothing, shatterproof glasses, respiratory protection,
hearing protection, steel-toed boots and other protective
devices required by the job or city and state regulations.

NEVER operate this equipment when not
feeling well due to fatigue, illness or when
under medication.

NEVER operate this equipment under the influence of
drugs or alcohol.

ALWAYS check the equipment for loosened threads or
bolts before starting.

DO NOT use the equipment for any purpose other than
its intended purposes or applications.
NOTICE

This equipment should only be operated by trained and
qualified personnel 18 years of age and older.

Whenever necessary, replace nameplate, operation and
safety decals when they become difficult read.

Manufacturer does not assume responsibility for any
accident due to equipment modifications. Unauthorized
equipment modification will void all warranties.
NEVER
use accessories or attachments that are not
recommended by Multiquip for this equipment. Damage
to the equipment and/or injury to user may result.
ALWAYS know the location of the nearest
fire extinguisher.
ALWAYS know the location of the nearest
first aid kit.
ALWAYS
know the location of the nearest phone or
keep a phone on the job site.
Also, know the phone
numbers of the nearest ambulance, doctor and
fire
department.
This information will be invaluable in the
case of an emergency.
To order go to Discount-Equipment.com

GBX12S LIGHT TOWER • OPERATION MANUAL — REV. #1 (10/02/19) — PAGE 7
SAFETY INFORMATION
LIGHT TOWER SAFETY
DANGER

NEVER operate the equipment in an explosive
atmosphere or near combustible materials.An
explosion or fire could result causing severe
bodily harm or even death.
WARNING

NEVER disconnect any emergency or safety devices.
These devices are intended for operator safety.
Disconnection of these devices can cause severe injury,
bodily harm or even death. Disconnection of any of these
devices will void all warranties.
CAUTION

NEVER lubricate components or attempt service on a
running machine.

ALWAYS ensure light tower is on level ground before use
so that it cannot slide or shift around, endangering workers.
Always keep immediate area free of bystanders.

ALWAYS make sure trailer is leveled with all outriggers
extended before raising tower. Outriggers must remain
extended while tower is up.

ALWAYS keep area behind trailer clear of people while
raising and lowering mast.

NEVER remove safety pin or pull mast locking pin while
tower is in a raised position!

CHECK the mast and winch cables for wear. If any
problem occurs when lowering or raising the tower, STOP
immediately! Contact a trained technician for assistance.

NEVER pivot or retract mast while unit is operating.

NEVER use the light tower mast as a crane. DO NOT
lift anything with the mast.

ALWAYS lower the light tower when not in use, or if high
winds or electrical storms are expected.
NOTICE
ALWAYS
keep the immediate area surrounding the light
tower clean, neat, and free of debris.
ALWAYS keep the machine in proper running condition.

Fix damage to machine and replace any broken parts
immediately.
ALWAYS
store equipment properly when it is not being
used. Equipment should be stored in a clean, dry location
out of the reach of children and unauthorized personnel.
To prevent the light tower from overturning, NEVER
use
in winds that exceed 45 MPH (72 km/h).
LAMP SAFETY
WARNING
NEVER
attempt to replace lamp with the power on.
Always shut down the engine and turn off circuit breakers
when changing the lamp.
CAUTION
NEVER
use force when installing the lamp. Excessive force
could cause the lamp to break, causing bodily harm.
NOTICE
NEVER
leave any grease or oil residue on lamp surface
when replacing or removing lamp. This can create hot
spots, reducing the service life of the lamp.
ALWAYS make sure lamp surface is clean and dry.
ALWAYS replace with MQ recommended type lamp.
ALWAYS have a trained technician
install and remove
a lamp, or replace any damaged fixture wiring.
To order go to Discount-Equipment.com

PAGE 8 —GBX12S LIGHT TOWER• OPERATION MANUAL — REV. #1 (10/02/19)
SAFETY INFORMATION
ENGINE SAFETY
DANGER

The engine fuel exhaust gases contain poisonous carbon
monoxide. This gas is colorless and odorless, and can
cause death if inhaled.

The engine of this equipment
requires an adequate free
flow of cooling air. NEVER
operate this equipment in
any enclosed or narrow area
where free flow of the air is
restricted. If the air flow is
restricted it will cause injury to people and property and
serious damage to the equipment or engine.
WARNING

DO NOT place hands or fingers inside engine
compartment when engine is running.

NEVER operate the engine with heat shields or
guards removed.

Keep fingers, hands hair and clothing away
from all moving parts to prevent injury.

DO NOT remove the radiator cap while the engine is hot.
High pressure boiling water will gush out of the radiator
and severely scald any persons in the general area of
the generator.

DO NOT remove the coolant drain plug
while the engine is hot. Hot coolant will
gush out of the coolant tank and severely
scald any persons in the general area of
the generator.

DO NOT remove the engine oil drain plug while the
engine is hot. Hot oil will gush out of the oil tank and
severely scald any persons in the general area of the
generator.
CAUTION

NEVER touch the hot exhaust manifold,
muffler or cylinder. Allow these parts to cool
before servicing equipment.
DANGEROUS
GAS FUMES
NOTICE
NEVER
run engine without an air filter or with a dirty air
filter. Severe engine damage may occur. Service air filter
frequently to prevent engine malfunction.
NEVER tamper with the factory settings
of the engine or engine governor. Damage
to the engine or equipment can result
if operating in speed ranges above the
maximum allowable.
NEVER
tip the engine to extreme angles during lifting as
it may cause oil to gravitate into the cylinder head, making
the engine start difficult.

Wet stacking is a common problem with diesel engines
which are operated for extended periods with light or
no load applied. When a diesel engine operates without
sufficient load (less than 40% of the rated output), it will
not operate at its optimum temperature. This will allow
unburned fuel to accumulate in the exhaust system,
which can foul the fuel injectors, engine valves and
exhaust system, including turbochargers, and reduce
the operating performance.
In order for a diesel engine to operate at peak efficiency,
it must be able to provide fuel and air in the proper ratio
and at a high enough engine temperature for the engine
to completely burn all of the fuel.
Wet stacking does not usually cause any permanent
damage and can be alleviated if additional load is
applied to relieve the condition. It can reduce the system
performance and increase maintenance. Applying an
increasing load over a period of time until the excess
fuel is burned off and the system capacity is reached
usually can repair the condition. This can take several
hours to burn off the accumulated unburned fuel.

State Health Safety Codes and Public Resources
Codes specify that in certain locations, spark arresters
must be used on internal combustion engines that use
hydrocarbon fuels. A spark arrester is a device designed
to prevent accidental discharge of sparks or flames
from the engine exhaust. Spark arresters are qualified
and rated by the United States Forest Service for this
purpose. In order to comply with local laws regarding
spark arresters, consult the engine distributor or the
local Health and Safety Administrator.
To order go to Discount-Equipment.com

GBX12S LIGHT TOWER • OPERATION MANUAL — REV. #1 (10/02/19) — PAGE 9
SAFETY INFORMATION
FUEL SAFETY
DANGER

DO NOT start the engine near spilled fuel or combustible
fluids. Diesel fuel is extremely flammable and its vapors
can cause an explosion if ignited.

ALWAYS refuel in a well-ventilated area, away from
sparks and open flames.

ALWAYS use extreme caution when working with
flammable liquids.

DO NOT fill the fuel tank while the engine is running
or hot.

DO NOT overfill tank, since spilled fuel could ignite if it
comes into contact with hot engine parts or sparks from
the ignition system.

Store fuel in appropriate containers, in well-ventilated
areas and away from sparks and flames.

NEVER use fuel as a cleaning agent.

DO NOT smoke around or near the
equipment. Fire or explosion could result
from fuel vapors or if fuel is spilled on a
hot engine.
TOWING SAFETY — LIGHT TOWER
CAUTION

Check with your local county or state safety
towing regulations, in addition to meeting
Department of Transportation (DOT)
SafetyTowing Regulations, before towing
your light tower.

In order to reduce the possibility of an accident while
transporting the light tower on public roads, ALWAYS
make sure the trailer that supports the light tower and
the towing vehicle are mechanically sound and in good
operating condition.

ALWAYS shutdown engine before transporting.

Make sure the hitch and coupling of the towing vehicle
are rated equal to, or greater than the trailer “gross
vehicle weight rating.”
ALWAYS inspect the hitch and coupling for wear. NEVER
tow a trailer with defective hitches, couplings, chains, etc.

Check the tire air pressure on both towing vehicle and
trailer.
Trailer tires should be inflated to 50 psi cold.
Also check the tire tread wear on both vehicles.
ALWAYS make sure the trailer is equipped with a
safety
chain.
ALWAYS properly
attach trailer’s safety chains to towing
vehicle.
ALWAYS
make sure the vehicle and trailer directional,
backup, brake and trailer lights are connected and
working properly.
DOT Requirements include the following:
• Connect and test electric brake operation.
• Secure portable power cables in cable tray with tie
wraps.
The maximum speed for highway towing is
55 MPH
(86 km/h
) unless posted otherwise. Recommended off-
road towing is not to exceed 15 MPH (24 km/h
)or less
depending on type of terrain.

Avoid sudden stops and starts.This can cause skidding,
or jack-knifing. Smooth, gradual starts and stops will
improve towing.
Avoid sharp turns to prevent rolling.

Trailer should be adjusted to a level position at all times
when towing.

Raise and lock trailer jack stands in up position when
towing.
To order go to Discount-Equipment.com

PAGE 10 —GBX12S LIGHT TOWER• OPERATION MANUAL — REV. #1 (10/02/19)
SAFETY INFORMATION
TRANSPORTING SAFETY
CAUTION

Before lifting, make sure that light tower parts are not
damaged and screws are not loosened or lost.

ALWAYS make sure lifting device has been properly
secured to lifting hook of the equipment.

NEVER lift the equipment while engine is running.

Use adequate lifting cable (wire or rope) of sufficient
strength.

Use one point suspension hook and lift straight upwards.

If lifting through pockets, make sure forks of forklift are
inserted in pockets as far as possible before lifting.

Place chock blocks underneath wheel to prevent rolling
while parked.

Place support blocks underneath the trailer’s bumper
to prevent tipping while parked.

Use the trailer’s swivel jack to adjust the trailer height to
a level position while parked.

NEVER allow any person or animal to stand underneath
the equipment while lifting.

DO NOT lift equipment to unnecessary heights.
LIFTING BALE
FRONT
GBX
REAR
Loading and Tie-Down on Flatbed Truck
NOTICE

When loading onto flatbed truck, make sure that front
jackstand of light tower is retracted and in the horizontal
position so that the foot does not make contact with the
deck floor.

Make sure that the two side (left and right) and two rear
jackstands are in the vertical postion, slightly extended,
so that each foot makes contact with the deck floor.

Straps and chains should be routed through the transport
tie-down points located beneath each corner of the
cabinet to allow even application of force to the front
and rear of the machine.
DO NOT
secure the unit by running a strap or chain over
the tongue of the light tower. This may cause severe
damage to the unit.
TONGUE
FRONT
JACKSTAND
RETRACTED
TRANSPORT TIE-DOWN
POINT
SIDE
JACK
STAND
REAR JACK
STAND
GBX
To order go to Discount-Equipment.com

GBX12S LIGHT TOWER • OPERATION MANUAL — REV. #1 (10/02/19) — PAGE 11
SAFETY INFORMATION
ELECTRICAL SAFETY
DANGER

The electrical voltage required to operate the generator
can cause severe injury or even death through physical
contact with live circuits. Turn generator and all circuit
breakers OFF before performing maintenance on the
generator.

NEVER insert any objects into the output
receptacles during operation. This is
extremely dangerous.The possibility exists
of electrical shock, electrocution or
death.

NEVER operate light tower
or handle any electrical
equipment while standing in
water, while barefoot, while
hands are wet or in the rain.
A dangerous electrical
shock could occur, causing
severe bodily harm or
even death.

ALWAYS make sure the
area above the light tower is
open and clear of overhead
power lines and other
obstructions. The tower
extends in excess of 30
feet (9 meters). Contact
with overhead power
lines or other obstructions
could result in equipment
damage, electrical shock,
electrocution and even
death.

Similar to boom equipment, light tower may become
energized with high voltage. DO NOT operate the light
tower within a radial distance of 17 feet (5.1 meters)
from high voltage power lines. If light tower becomes
energized with high voltage, contact with the equipment
could result in electrocution.

NEVER operate GBX24S light tower in winds in excess
of 45 MPH.

NEVER operate GBX24B light tower in winds in excess
of 34 MPH.
GBX
GBX
Backfeed to a utility system can cause electrocution
and/or property damage. NEVER
connect the generator
to a building’s electrical system without a transfer switch
or other approved device. All installations should be
performed by a licensed electrician in
accordance with all applicable laws and
electrical codes. Failure to do so could
result in electrical shock or burn,
causing serious injury or even death.
Power Cord/Cable Safety
DANGER
NEVER let power cords or cables lay in water.
NEVER use damaged or worn
cables or cords when
connecting equipment to generator. Inspect for cuts in
the insulation.
NEVER grab or touch a live power
cord or cable with wet hands. The
possibility exists of electrical shock,
electrocution or death.

Make sure power cables are securely connected.
Incorrect connections may cause electrical shock and
damage to the light tower.
Grounding Safety
DANGER

The light tower is equipped with a ground terminal for
your protection. ALWAYS
complete the grounding path
from the light tower to an extrnal grounding source.
ALWAYS
make sure that electrical circuits are properly
grounded to a suitable earth ground (ground rod) per
the National Electrical Code (NEC) and local codes
before operating generator.
Severe injury or death by
electrocution
can result from operating an ungrounded
generator.
NEVER use gas piping as an electrical ground.
To order go to Discount-Equipment.com

PAGE 12 —GBX12S LIGHT TOWER• OPERATION MANUAL — REV. #1 (10/02/19)
SAFETY INFORMATION
BATTERY SAFETY
DANGER

DO NOT drop the battery. There is a possibility that the
battery will explode.

DO NOT expose the battery to open flames,
sparks, cigarettes, etc.The battery contains
combustible gases and liquids. If these
gases and liquids come into contact with a
flame or spark, an explosion could occur.
WARNING

ALWAYS wear safety glasses when handling
the battery to avoid eye irritation.The battery
contains acids that can cause injury to the
eyes and skin.

Use well-insulated gloves when picking up the battery.

ALWAYS keep the battery charged. If the battery is not
charged, combustible gas will build up.

ALWAYS recharge the battery in a well-ventilated
environment to avoid the risk of a dangerous concentration
of combustible gasses.

If the battery liquid (dilute sulfuric acid) comes into
contact with clothing or skin, rinse skin or clothing
immediately with plenty of water.

If the battery liquid (dilute sulfuric acid) comes into
contact with eyes, rinse eyes immediately with plenty
of water and contact the nearest doctor or hospital to
seek medical attention.
CAUTION

ALWAYS disconnect the NEGATIVE battery terminal
before performing service on the generator.

ALWAYS keep battery cables in good working condition.
Repair or replace all worn cables.
ENVIRONMENTAL SAFETY
NOTICE
Dispose of hazardous waste properly.
Examples of potentially hazardous waste
are used motor oil, fuel and fuel filters.
DO NOT
use food or plastic containers to dispose of
hazardous waste.
DO NOT
pour waste, oil or fuel directly onto the ground,
down a drain or into any water source.
To order go to Discount-Equipment.com

PAGE 14 —GBX12S LIGHT TOWER• OPERATION MANUAL — REV. #1 (10/02/19)
SPECIFICATIONS
Table 1. GBX12S Light Tower Specifications
Model GBX12S
Light Tower
Voltage 120 VAC
Frequency 60 Hz
Max. Current 11 A
Wind Stability 45 mph (20 m/s)
Light
Type LED Spot 300 W (X4)
Lumens 168,000 lm
Ambient Temperature 14 to 104°F (-10 to 40°C)
Mast
Format 5 Stages Telescopic
Height 23 ft (7 m)
Rotation 359°
Operation Method Manual
Trailer
Tire 23.6 in. Dia. (600 mm) x 2 Air Tire
Tire Inflation Pressure 50 psi (344.7 kPa)
Outrigger Rear: Sliding Type 2, Towbar: 1
Jack 4
Generator Output Power 3000 VA
Dimensions
Stowed 57.6 x 47.2 x 87 in
(1465 x 1200 x 2210 mm)
Working 105.1 x 96.6 x 113.4 - 302 in
(2670 x 2455 x 2,880 - 7670 mm)
Weight Operating 1,375 lb (624 kg)
Table 2. Engine Specifications
Model Kubota Z482-E4BG
Type 2 Cylinder, Liquid-cooled
EPA Certification Tier 4F
Fuel Type Diesel
Output Power 6.1 HP (4.6 kW)
Fuel Capacity 45 gal (170 L)
Oil Capacity 0.66 gal (2.5 L)
Starting Method Electric Start
Engine Protection High Temp / Low Oil
To order go to Discount-Equipment.com

GBX12S LIGHT TOWER • OPERATION MANUAL — REV. #1 (10/02/19) — PAGE 15
DIMENSIONS
Table 3. GBX24S Dimensions
Reference
Letter
Dimension
in. (mm)
A 105.1 (2,670)
B 96.6 (2,455)
C 113.4 - 302 (2,880 - 7,670)
Figure 1. GBX12S Dimensions
A
C
B
To order go to Discount-Equipment.com

PAGE 16 —GBX12S LIGHT TOWER• OPERATION MANUAL — REV. #1 (10/02/19)
FOOTCANDLE PLOT
Figure 2. Footcandle Plot
To order go to Discount-Equipment.com

GBX12S LIGHT TOWER • OPERATION MANUAL — REV. #1 (10/02/19) — PAGE 17
GENERAL INFORMATION
The Multiquip model GBX12S (4-Spot LED) is a compact,
mobile light tower that provides exceptional clear lighting
for multiple applications found in: construction, emergency
response, special events, security, and general large
projection lighting challenges.
The GBX12S utilizes four powerful 300W LED lamps that
are supported by industrial grade enclosures that withstand
high impact and inclement weather.The LED assembly has
a service life of 40,000 hours; and at full power, projects
168,000 lumens. The four lamps are adjustable to infinite
angles and direction for optimum lighting orientation.
The unit is supported by a DOT/NHSTA qualified trailer that
provides 4 adjustable jack stands, and a retractable tow bar.
A five-section, anodized, aluminum mast assembly raises
to a maximum height of 23 feet. The light tower cabinet
assembly supports the 6.1 HP(4.6 kW) diesel engine, 3 kVA
generator, control panel, and fuel tank. A lockable flip-up
rear hatch provides easy access to the engine/generator
and fuel tank.
To order go to Discount-Equipment.com

PAGE 18 —GBX12S LIGHT TOWER• OPERATION MANUAL — REV. #1 (10/02/19)
CONTROL PANEL
Figure 3. GBX12S Control Panel
1
2
3
4
6
7
8
9
10
5
To order go to Discount-Equipment.com

GBX12S LIGHT TOWER • OPERATION MANUAL — REV. #1 (10/02/19) — PAGE 19
CONTROL PANELCONTROL PANEL
1. Fuses — Provide circuit protection.
a. Fuse 1 (5 A) - protects the starter circuit
b. Fuse 2 (5 A) - protects the circuit of preheating
engine
c. Fuse 3 (10 A) - protects the ECU
d. Fuse 4 (20 A) - protects the motor winch case
e. Fuse 5 (20 A) - protects the engine key switch and
component wiring
f. Fuse 6 (30 A) - protects the circuit of the engine
heater
2. Glow Lamp — Lights to indicate engine error.
3. Ignition Key Switch — Starts the engine.
4. Actuator Switch — When turned, raises or lowers
the lampstand.
5. Outlet Breaker — 15A circuit breaker protects outlet
from overload. When there is an overload, breaker
does not work. When problem is corrected, press the
breaker to reset.
6. Lamp Breaker — 25A circuit breaker protects lamps
from overload.When there is an overload, breaker trips.
When problem is corrected, press the breaker to reset.
7. Lamp Switch (Upper) — When pressed, turns the
upper lamps on or off.
8. Lamp Switch (Lower) — When pressed, turns the
lower lamps on or off.
9. Hour Meter — Indicates the number of hours that the
machine has been in use.
10. Panel Lamp — Lights the panel.
To order go to Discount-Equipment.com

PAGE 20 —GBX12S LIGHT TOWER• OPERATION MANUAL — REV. #1 (10/02/19)
COMPONENTS
Figure 4. GBX12S Components
1
6
2
3
4
5
7
9
8
13
15
14
16
17
19
20
18
10
11
12
To order go to Discount-Equipment.com

GBX12S LIGHT TOWER • OPERATION MANUAL — REV. #1 (10/02/19) — PAGE 21
Refer to Figure 4 for the location of the components listed
below.
1. Lamp — 300 Watt LED lamp with industrial grade,
impact and weather resistant shell enclosure. Lamp
Arm — Holds the lamp and permits multiple directional
adjustments.
2. Lamp Arm — Holds the lamp and permits multiple
directional adjustments.
3. Main Lamp Power Cable — Connects the lamp
assemblies to the power output of the generator.
4. Mast Handle — Aids the operator in rotating the mast
to the desired direction. Mast lock must be disengaged
to rotate the mast.
5. Lifting Eye — Use this center of gravity lifting point
when required to transport the unit via a supportive
chain or strap. NEVER stand underneath the GBX12S
while it is being lifted.
6. Rear Hatch — Lockable and provides immediate
access to the engine, generator, fuel tank, and 12V
battery.
7. Forklift Pockets — For the ease of light tower
transportation via a forklift.
8. Locking Pin — These pins must be securely in place
once the jackstands are positioned to ensure the overall
security of the jackstands and outrigger sections.
9. Outriggers — Should always be deployed and locked
in place during operation.
10. Jackstand — Two jackstands and outrigger assemblies
are provided to properly secure the unit including on
uneven surfaces and to withstand windy operating
conditions.
11. Tires — The GBX12S utilizes two ST175/80 R-13 5-lug
pneumatic tires. Replace with only recommended type
tire. NEVER allow the rear tires to go flat.
12. Safety Chain — A safety chain is provided to be
included in the proper process of preparing the light
tower for towing.
13. Ground Terminal — Connects to ground.
14. External Power Receptacle — Provides convenient
external power.
15. Control Panel — The singular control station to start/
stop the engine, monitor the engine safeguards, view
the hour meter, adjust the lamp stand position, and
access the main circuit breakers.
16. Winch Handle — Opposing operating handles that
controls the mast sections in travel.
17. Mast Winch — A self-locking, mechanical hoist that
controls the mast sections to effectively raise and
lower the entire assembly. Always be on the lookout
for overhead obstructions. Keep immediate area free
of bystanders and debris when raising the mast.
18. Mast — 5-stage telescopic mast assembly that is
mechanically raised to a maximum height of 23 feet,
and pivots 359 degrees.
19. Actuator — Permits the adjustment of the lamp stand
via the control panel.
20. Lamp Stand — Secures the 4 LED lamps and is
electrically adjustable via the control panel.
COMPONENTS
To order go to Discount-Equipment.com
