Mr Safe BAC-100 Installation instructions

Mr Safe
Battery Accu Checker BAC-100
FULL MANUAL EN-NL

Congratulations with the purchase of your mr Safe Battery/Accu Checker. The Battery/Accu Checker
represents the latest technology in battery testing and analyzing and will provide you quickly with
accurate results using wireless technology.
1. General advice and installation notes
Read the manual and safety notes carefully before installing the mr Safe Battery/Accu Checker. If
you have any doubts, contact your qualified auto/truck electrician or mechanic.
WARNING: if the car battery is disconnected, it is possible that some management systems will be
disabled!
Extra tools may be needed for the installation
Check your vehicle manual for more information about the installation
WARNING: do not install on moving, sharp, hot or unsuitable surfaces!
2. General information
The power source must provide 12/24 Volts DC and must be able to supply the necessary current to
operate the load. The power source may be a battery or a well-regulated 12/24V DC power supply.
CAUTION: the mr Safe Battery/Accu Checker must be connected only to batteries with a nominal
output voltage of 12/24V. The unit is designed to operate with specific voltage battery. Please check
and ensure the matching of the power input before using the mr Safe Battery/Accu Checker.
Please check whether the battery voltage meets the requirements specified on the Battery/Accu
Checker rating plate. Verify that the power source is at least fuse-protected at 15A (12V) or 7.5A
(24V).
If these conditions are met, please use the 12/24V cable provided to make the connection at the
battery of the car/truck etc.
3. App
Download the free mr Safe Battery/Accu Checker from the Apple store (iOS devices) or the Google
Play Store (Android devices).
When you are using the app for the first time, you need to register with your mobile phone number.
(See (6) for detailed first time use) You will receive a verification code, type this in and choose your
password.
NOTE: The Wi-Fi function cannot be used with this device.
Open the app and click “+ Add”. Scan the QR-code on the back of your mr Safe Battery/Accu
checker.
4. Connecting
NOTE: make sure that the vehicle engine and any electrical loads are “OFF”!
-Verify the ignition key is turned OFF and that no flammable fumes are present.
-Connect the red clamp to the positive (+) terminal and the black clamp to the negative (-) terminal
pole. The Battery/Accu Checker switches on when both connections are made.
-Ensure a good connection by connecting the eyelets (m6 size 6mm /1/4” diameter) around the
terminals. The Battery/Accu Checker requires that both sides of each clamp are properly connected
before testing can take place. When there is a poor connection, the status screen will display “ no
info”. If this happens, clean the battery terminals and clamps and reconnect.

CAUTION: Reverse polarity will result in a blown fuse and may cause permanent damage.
Damage due to reverse polarity is not covered by our guarantee. Do not use with positive
ground electrical system (modern automobiles, RVs and trucks are negative ground, to check
this: verify your car manual).
5. Installation
-Select the ideal mounting position for the Battery/Accu Checker. Make sure that the cables
cannot get obstructed, or touching heat or are in the vicinity of sharp edges.
-Attach the Battery/Accu Checker with the cable ties that are supplied.
-Make sure that the Battery/Accu Checker is mounted firmly and does not move or vibrate.
-Check all the wires and make sure they cannot get loose or make connection with any heated
parts.
6. Controlling the app

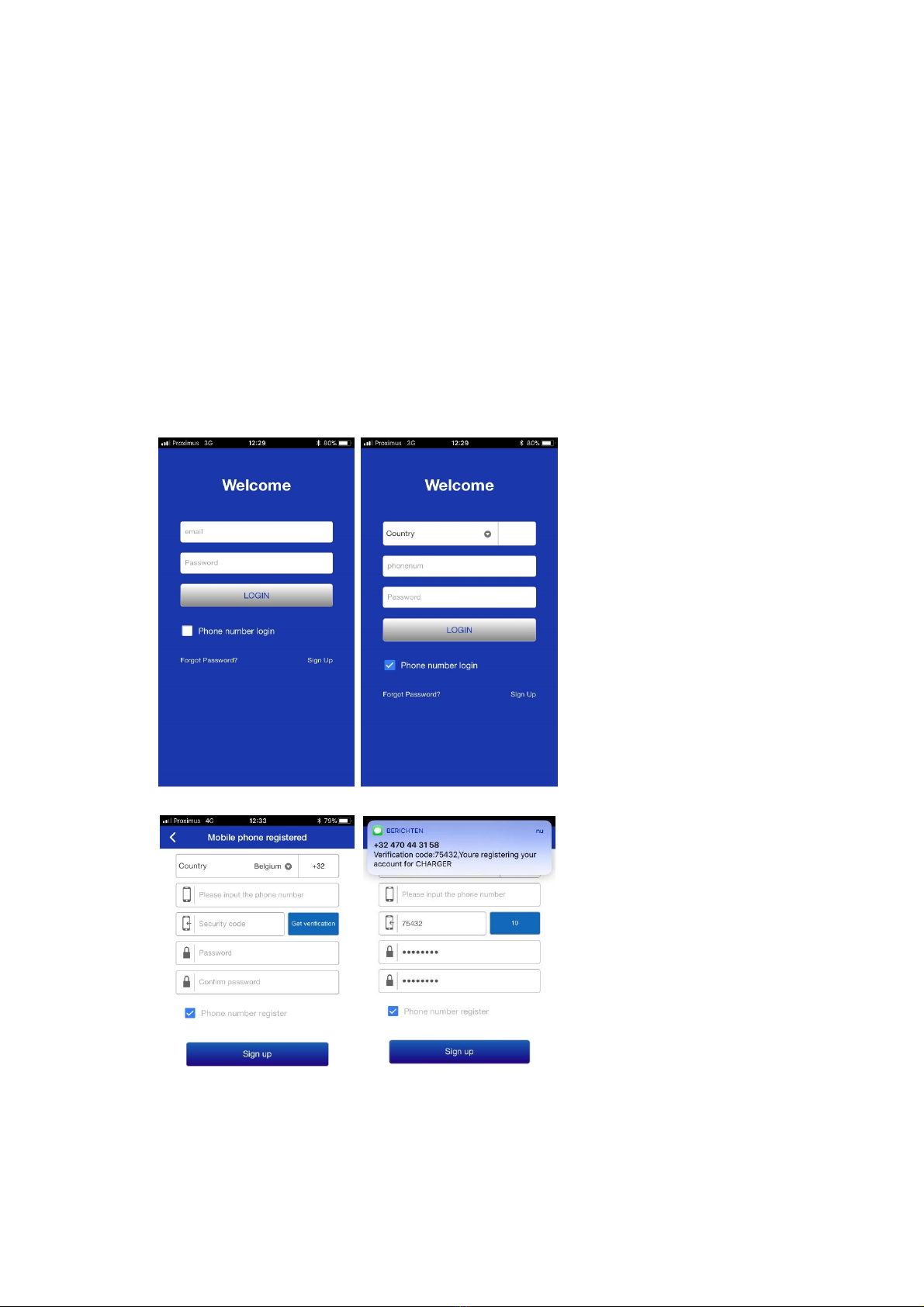

6.1 REGISTRATION
After downloading the App from
the iOS App store or Google Play
Store, you can open it on your
smartphone. For usage on tablets
there is currently no app available.
When you open the app for the
first time, you need to register
your free account:
Tap “Sign up” to start registering
your account and tick the “Phone
Number Login”-box. You have to
register with your phone number
and not with your e-mail account
(not possible with this version).
Select your country and the
country code (normally this will be
done automatically) and input your
phone number. Press “Get
Verification” to receive your
verification code.
You will receive a text message by
SMS with a verification code.
Input this in “Security Code”,
select and confirm your password
and press “Sign up” to finalize the
registration.

Once you are registered, the app will remember your account.
6.2 ADDING DEVICES
Now you can add your device. Press
“+ADD” in the bottom center on the
app, allow the app to use your
camera and scan the QR-code on the
back of your device.
The device is now visible in your list
and you can verify the state of your
battery.
NOTE: you can slide (by tapping) the status-line to check the history statistics
NOTE: you have to select 24V when you have the Battery Accu Checker connected to a
24V battery.

If you want to pair the device to a second account and you
have already installed the device (and you do not have acces
to the QR code on the back) you can always look up the QR
code in the app by pressing the icon in the upper right corner..

7. SAFETY NOTES
Do not operate the Battery/Accu Checker if the cord or plugs are damaged.
Do not operate the Battery/Accu Checker if it has received a sharp blow, has been dropped
or damaged in any way.
Do not disassemble the device. Incorrect reassembly may result in a risk of electrical shock
or fire.
NEVER smoke or allow a spark or flame in the vicinity of the device or the engine of your car.
Be extra cautious to reduce the risk of dropping a metal tool onto the battery. It might spark,
cause short-circuit on the battery or cause damage to an electrical part that may cause an
explosion.
Remove personal metal items, such as rings, bracelets, necklaces, watches, … when working
near the battery. It can easily cause a short-circuit or heat the metal items and cause burns.
Determine the voltage of your battery by verifying the car manual and make sure the output
matches the output rating of the Battery/Accu Checker.
For negative-grounded vehicles: connect POSITIVE (red) clip from the Battery/Accu Checker
to POSITIVE (POS, P, +) ungrounded post of the car battery. Connect the NEGATIVE (black)
clip to the vehicle chassis or engine block. Connect the device to a heavy gage metal part of
the frame or engine block.
Ensure that the cabling does not jam or comes in contact with hot surfaces or sharp edges.
8. Support
For all questions and additional information concerning this product, please contact
9. Guarantee
Copyright © mr Safe®. mr Safe® is a registered trademark of TE-Group NV. The mr Safe®
brand stands for superior quality products and excellent customer service. Therefore mr
Safe® warrants this product to be free from defects in materials and workmanship for a
period of two (2) years from the original purchase date of the product.

Gefeliciteerd met de aankoop van uw mr Safe Battery/Accu Checker. De Battery/Accu Checker staat
voor de laatste technologie in testen en analyseren van de batterij en zal u snel voorzien met
accurate resultaten via draadloze technologie.
1. Algemeen advies en notities bij de afbeeldingen
Lees de handleiding en veiligheidsvoorschriften zorgvuldig door vooraleer de mr Safe Battery/Accu
Checker te installeren. Bij twijfel kan u best een gecertificeerde auto/truck elektricien of monteur
contacteren.
WAARSCHUWING: wanneer de batterij ontkoppeld wordt, is het mogelijk dat sommige
beheerssystemen niet werken.
Extra gereedschap kan nodig zijn voor deze installatie.
Kijk altijd de handleiding van uw voertuig na voor meer informatie over de installatie.
WAARSCHUWING: Installeer het toestel niet op beweegbare, scherpe, warme of ongeschikte
oppervlakken.
2. Algemene informatie
De voedingsbron moet 12/24V DC zijn en moet de benodigde stroom kunnen leveren om de lading te
bedienen. De voedingsbron kan een batterij of een goed geregulariseerde 12/24V DC voeding zijn.
OPGELET: De mr Safe Battery/Accu Checker kan enkel verbonden worden aan batterijen met een
nominale uitgangsstroom van 12/24V. Het toestel is ontwikkeld om te werken met een specifiek
voltage. Gelieve zeker te stellen dat de stroomtoevoer overeenkomt alvorens de mr Safe
Battery/Accu Checker te gebruiken.
Controleer of de spanning van de batterij overeenkomt met de vereisten gespecifieerd op het
Battery/Accu Checker label. Zorg dat de voedingsbron een zekeringsbeveiliging van 15A (12V) of
7.5A (24V) heeft.
Als er aan deze voorwaarden voldaan wordt, kan u de meegeleverde 12/24V kabel aansluiten aan de
batterij van de wagen/truck etc.
3. App
Download de gratis mr Safe Battery/Accu Checker App van de Apple store (iOS toestellen) of de
Google Play Store (Android toestellen). Indien u de app voor de eerste keer gebruikt (zie (6) voor
gedetailleerde informatie) moet u registreren met uw telefoonnummer. U zal een verificatiecode
ontvangen, typ deze in en kies uw wachtwoord.
OPMERKING: De Wi-Fi functie wordt niet ondersteunt met dit type toestel.
Open de app en klik op “+ Add”. Scan de QR-code op het label achteraan de mr Safe Battery/Accu
Checker.
4. Verbinden
OPMERKING: Zorg dat de motor uitstaat en dat er geen elektrische ladingen zijn.
-Controleer dat het contact van het voertuig uitstaat en dat er geen ontvlambare gassen
aanwezig zijn.

-Verbind de rode klem met de positieve (+) pool en de zwarte klem met de negatieve (-)
pool. De Battery/Accu Checker zal aanspringen wanneer beide verbindingen gemaakt
zijn.
-Zorg voor een goede verbinding door de oogjes (m6 grootte 6mm/1/4” diameter) rond
de polen. De Battery/Accu Checker vereist dat beide kanten van de klemmen goed
aangesloten zijn alvorens er een test kan uitgevoerd worden. In geval van slechte
verbinding, zal het scherm “no info” weergeven. Indien dit gebeurt, maak dan de
batterijpolen en klemmen schoon en verbind opnieuw.
OPGELET: Omgekeerde polariteit zal resulteren in een doorgebrande zekering en kan
blijvende schade veroorzaken. Schade door omgekeerde polariteit valt niet onder de
garantie. Gebruik niet met een positief geaard elektrisch systeem (moderne auto's,
vrachtwagens,… zijn negatief geaard. Om dit te controleren: controleer de handleiding van
uw voertuig).
5. Installatie
-Selecteer de ideale bevestigingspositie voor de Battery/Accu Checker. Zorg dat er niets
de kabels kan belemmeren, dat ze geen hitte aanraken of in de buurt van scherpe kanten
liggen.
-Maak de Battery/Accu Checker vast met de meegeleverde kabelbinders.
-Zorg dat de Battery/Accu Checker stevig vasthangt en dat hij niet beweegt of kan
vibreren.
-Controleer alle draden en zorg dat ze niet los kunnen komen of verhitte onderdelen
kunnen aanraken.
6. Controlling the app
a. REGISTRATIE
Nadat u de app van de iOS App
Store of Google Play store heft
gedownload, kan u hem openen
op uw smartphone. Er is
momenteel geen app beschikbaar
voor tablets.
Wanneer u de app voor de eerste
keer gebruikt, dient u een gratis
account aan te maken: Druk op
“Sign up” om de registratie te
starten en klik het “Phone Number
Login” vakje aan. U moet
registreren via uw gsm-nummer
(via e-mail niet mogelijk in deze
versie).

Selecteer uw land en uw land-
prefix-code (deze wordt normaal
automatisch geselecteerd) en voer
uw telefoonnummer in. Druk op
“Get Verification” om uw
verificatiecode te ontvangen.
U zal een SMS ontvangen met een
verificatiecode. Geef deze in bij
“Security Code”, selecteer en
bevestig uw wachtwoord en druk
op “Sign Up” om uw registratie te
finalizeren.
Nadat u geregistreerd bent, zal de app uw account onthouden en automatisch inloggen.
b. TOESTELLEN TOEVOEGEN
U kan nu uw toestel toevoegen. Druk
op “+ADD” onderaan in het midden
van de app, geeft de app toegang tot
uw camera en scan de QR-code op de
achterkant van uw toestel.
Het toestel is nu zichtbaar in de lijst
en u kan de status van uw batterij
controleren.

OPMERKING: u kan over de statuslijn slepen om de historiek na te kijken
OPMERKING: u dient 24V te selecteren als u de Battery Accu Checker met een 24V
batterij hebt verbonden.
Indien u het toestel wil koppelen aan een tweede account en
u het toestel al geinstalleerd heeft (en u geen toegang heeft
tot de QR code op de achterkant van het toestel) kan u in de
app de QR code opvragen door op het icoon in de
rechterbovenhoek te drukken.

7. VEILIGHEIDSVOORSCHRIFTEN
Gebruik de Battery/Accu Checker niet indien de kabels of oogjes beschadigd zijn.
Gebruik de Battery/Accu Checker niet indien hij een klap gekregen heeft, gevallen is of
beschadigd is.
Ontmantel het toestel niet. Onjuiste ontmanteling geeft risico tot elektrische schok of brand.
Zorg dat er NOOIT een open vlam of ontsteking in de buurt van het toestel of de motor komt.
Wees extra voorzichtig om het risico te verkleinen dat metalen gereedschap op de batterij
valt. Dit kan voor een ontsteking zorgen, kortsluiting van de batterij of schade aan een
elektrisch onderdeel. Dit kan leiden tot een explosie.
Verwijder persoonlijke voorwerpen zoals ringen, armbanden, halskettingen, horloges,…
wanneer u in de nabijheid van de batterij werkt. Dit kan makkelijk kortsluiting veroorzaken
of het metaal zo verhitten dat het brandwonden veroorzaakt.
Bepaal de spanning van uw batterij door de handleiding van uw voertuig te lezen en zorg dat
de uitvoerstroom de vereisten van de Battery/Accu Checker tegemoetkomt.
Voor negatief-geaarde voertuigen: verbind de POSITIEF (rode) klem van de Battery/Accu
Checker met de POSITIVE (POS, P, +) ongegronde post van de autobatterij. Sluit de
NEGATIVE (zwarte) clip aan op het chassis of motorblok van het voertuig. Sluit het apparaat
aan op een zwaar metalen onderdeel van het frame of motorblok.
Zorg ervoor dat de bekabeling niet vastloopt of in contact komt met hete oppervlakken of
scherpe randen.
8. Support
Voor meer informatie, technische vragen of retouraanvragen met betrekking tot dit product
9. Garantie
Copyright © mr Safe®. mr Safe® is een gedeponeerd handelsmerk van TE-Group NV. Het
merk mr Safe® staat voor producten van superieure kwaliteit en een uitstekende
klantenservice. Daarom garandeert mr Safe® dat dit product vrij is van materiaal- en
fabricagefouten gedurende een periode van twee (2) jaar na de oorspronkelijke
aankoopdatum van het product. De voorwaarden van deze garantie en de omvang van de
verantwoordelijkheid van mr Safe® onder deze garantie kunt u downloaden vanaf de website
www.mrsafe.eu.
Table of contents
Languages:
Other Mr Safe Bicycle Accessories manuals
