mr. steam Steam@home SAH3000 Instruction manual

Steam@Home®
RESIDENTIAL STEAM GENERATOR SYSTEMS
Models: SAH3000, SAH4500, SAH6000
mr.steam
®
Feel Good Inc.
Installation, Operation & Maintenance Manual

states a hazard may cause serious injury
or death if precautions are not followed.
signals a situation where minor injury or
product damage may occur if you do not follow instructions.
IM ORTANT NOTE: This highlights information that is
especially relevant to a problem-free installation.
IMPORTANT SAFETY INSTRUCTIONS
When installing and using this electrical equipment, basic safety
precautions should always be followed, including the following:
HYPERTHERMIA
The causes, symptoms, and effects of
hyperthermia may be described as follows:
Hyperthermia occurs when the internal
temperature of the body reaches a level
several degrees above the normal body
temperature of 98.6° F. The symptoms of
hyperthermia include an increase in the
internal temperature of the body, dizziness,
lethargy, drowsiness, and fainting.
The effects of hyperthermia include:
a) Failure to perceive heat
b) Failure to recognize the need to exit the
steambath
c) Unawareness of impending risk
d) Fetal damage in pregnant women
e) Physical inability to exit the steambath
f) Unconsciousness.
The use of alcohol, drugs,
or medication can greatly increase the risk
of hyperthermia.
READ ME FIRST!
IM ORTANT NOTE: As you follow these instructions, you
will notice warning and caution symbols. This blocked infor-
mation is important for the safe and efficient installation,
operation and maintenance of this generator. These are
types of potential hazards that may occur during this instal-
lation and operation:
!CAUTION
!WARNING
1. READ AND FOLLOW ALL INSTRUCTIONS
2. To reduce the risk of injury, children
under the age of 16 should not use the steam bath.
3. To reduce the risk of injury:
A. The wet surfaces of steam enclosures may be
slippery. Use care when entering or leaving.
B. The steam head is hot. Do not touch the steam
head and avoid the steam near the steam head.
C. Prolonged use of the steam system can raise
excessively the internal human body temperature
and impair the body’s ability to regulate its internal
temperature (hyperthermia). Limit your use of
steam to 10-15 minutes until you are certain of
your body’s reaction.
!W A R N I N G
!W A R N I N G
A peel-off warning label has been provided in
the Information envelope. This label is to be
applied to the wall of the installed shower or
steam enclosure in a conspicuous location.
REDUCE THE RISK OF OVERHEATING AND SCALDING
1. EXIT I EDIATELY IF UNCO FORTABLE, DIZZY OR SLEEPY.
STAYING TOO LONG IN A HEATED AREA IS CAPABLE OF CAUSING OVERHEATING.
2. CHILDREN UNDER THE AGE OF 16 SHOULD NOT USE THE STEA BATH.
3. CHECK WITH A DOCTOR BEFORE USE IF PREGNANT, DIABETIC, IN POOR
HEALTH OR UNDER EDICAL CARE.
4. BREATHING HEATED AIR IN CONJUNCTION WITH CONSU PTION OF ALCOHOL,
DRUGS, OR EDICATION IS CAPABLE OF CAUSING UNCONSCIOUSNESS.
5. DO NOT CONTACT STEA HEAD OR STEA AT THE STEA HEAD.
REDUCE THE RISK OF SLIPPING AND FALL INJURY
1. USE CARE WHEN ENTERING OR EXITING THE STEA ROO . FLOOR AY BE SLIPPERY.
NOTE: FOR ADDITIONAL SAFETY CONSIDERATIONS SEE OWNER’S ANUAL
mr.steam®43-20 34th Street , Long Island City NY 11101 1 800 76 STEA www.mrsteam.com PUR100378 6.4/08
WARNING
!
!WA RN IN G
D. Excessive temperatures have a high potential for
causing fetal damage during the early months of
pregnancy. Pregnancy or possibly pregnant
women should consult a physician regarding
correct exposure.
E. Obese persons and persons with a history of
heart disease, low or high blood pressure, circu-
latory system problems, or diabetes should con-
sult a physician before using a steambath.
F. Persons using medication should consult a
physician before using a steambath since some
medication may induce drowsiness while other
medications may affect heart rate, blood pres-
sure and circulation.
4. SAVE THESE INSTRUCTIONS

Steam@home®Residential Steambath Generator Systems
INSTALLATION,OPERATION &MAINTENANCE MANUAL
MODELS: SA 3000, SA 4500, SA 6000
TABLE OF CONTENTS
_______________________________________________________________
Information for Installers & Homeowners
Read Me First! & Warning Sticker . . . . . . . . . . . . . . . . 1
Select Your Mr.Steam Model . . . . . . . . . . . . . . . . . . . . 2
Generator Specification Chart . . . . . . . . . . . . . . . . . . . 2
________________________________________________________________________________
INSTALLER’S SECTION
Before Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Steam Room Guidelines . . . . . . . . . . . . . . . . . . . . . . . 3
Water Quality Information . . . . . . . . . . . . . . . . . . . . . . 4
Locating the Steam Generator Unit . . . . . . . . . . . . . . . 4
Typical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

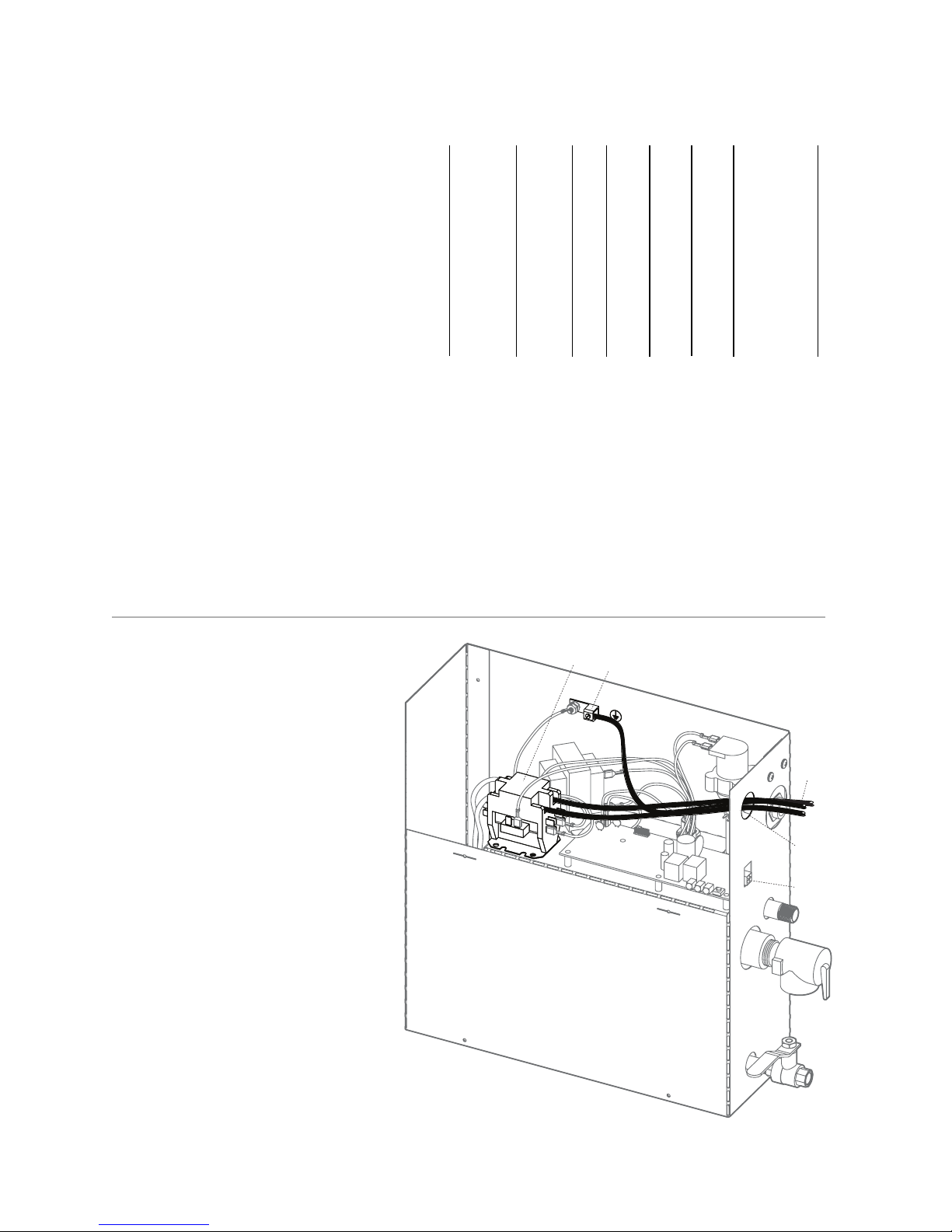

Generator Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation: Plumbing, Water Supply,
Steam Outlet, Safety Valve, Drip Pan . . . . . . . . . . . . 6
Steam ead Installation . . . . . . . . . . . . . . . . . . . . . . . 7
Electrical Specifications & Field Power Wiring . . . . . . . 8
Initial Start-Up & Checkout. . . . . . . . . . . . . . . . . . . . . 9
Troubleshooting / System Status Codes . . . . . . . . . . . . 9
Wiring Diagrams / Liquid Level Control Board . . . . . . . 10
Replacement Parts Diagram & Parts List . . . . . . . . . . 11
SteamStart™
Dimensions & Installation Instructions. . . . . . . . . . . . . 12
________________________________________________________________________________
HOMEOWNER’S SECTION
SteamStart™
Care Tips, Safety & Operating Information . . . . . . . . . . . 13
AromaSteam™EssentialOils...................13
M A D E I N U S A
PUR 100467 Rev 5.14
MODEL ____________________ SERIAL NO.____________________
mr.steam®Sussman-Automatic Corporation®•[email protected] •www.mrsteam.com
43-20 34th Street, Long Island City, NY 11101 •TEL: 1 800 76 STEAM •FAX: [phone]
9410 S. La Cienega Blvd. Inglewood CA 90301 •TEL: 1 800 72 STEAM •FAX: [phone]

mr.steam®Steam@Home® Installation, Operation & Maintenance Manual
__________________________________________________________________________
CORRECT SIZING IS IM ORTANT
Selection of the appropriate model is
important to effectively match the heating requirements of
the steam room to the steam bath generator. Do not use a
particular SA model steam generator with a room whose
“total room volume” is less than the range shown in the
SA model steam generator sizing chart below. Selection of
a model with a “total room volume” rating greater than the
“total room volume” may cause excessive temperature.
Do not use SA model steam generators in a room with
a “total room volume” of less than 60 cubic feet.
2
SELECT YOUR STEAM@HOME
Materials of construction and room size affect the steam
generator model selection.
To determine the “total room volume” multiply
length x width x height of the steam room.
STEAM@HOME GENERATOR SIZING CHART
Total Room Volume* Acrylic/Fiberglass Ceramic Tile**
60 – 75 cu. ft. SA 3000 SA 3000
76 – 110 cu. ft. SA 3000 SA 4500
111 – 150 cu. ft. SA 3000 SA 6000
In considering a purchase of this
steambath system, please note that if you are pregnant,
have a coronary condition, are in poor health, are being
treated for any other medical condition, or are using
medication or drugs, Mr.Steam recommends that you
obtain the approval of a physician before use. For infor-
mation about this product and safety issues, please call
us at 1.800.76.STEAM or log onto www.mrsteam.com
for a copy of the Installation, Operation & Maintenance
Manual.
IM ORTANT NOTE: SA Model steam generators
should not be used for rooms constructed of natural
stone, glass block and/or glass tile and/or for rooms hav-
ing a ceiling height in excess of 8 feet.
IM ORTANT NOTE: The “total room volume”
allows for a maximum of 60 feet of insulated steam line
from the SA generator to the steam room. If the 60
foot line is exceeded refer to Mr.Steam MS series of
residential steam bah generators. When locating the
steam generator consideration of control location must
be taken into account. The maximum length for a
control cable is 60 feet. A 30 foot cable is standard.
Contact Mr.Steam to purchase the optional 60 ft. cable
(PN 103978-60)
Consult with supplier of acrylic and
fiberglass enclosures for recommended steamhead
location. Use supplied Acrylic Shield PN MS-103938.
See instructions on page 7.
!WARNING
!WARNING
Steam@home Generator Specification Chart
Amps
†
Wire Water Usage Shipping
Model No. KW (for 240v/1P ) Size
‡
Gallons
††
Dimensions* Weight (lbs)
SA 3000 3.0 13 12
3
⁄ 8 14
3
⁄ 8 "L x 14
7
⁄ 8 " x 5
3
⁄ 16 "D 25
SA 4500 4.5 19 10
1
⁄ 2 14
3
⁄ 8 "L x 14
7
⁄ 8 " x 5
3
⁄ 16 "D 25
SA 6000 6.0 25 8
3
⁄ 4 14
3
⁄ 8 "L x 14
7
⁄ 8 " x 5
3
⁄ 16 "D 25
IM ORTANT NOTES:
• Add C1suffix to Model No. for 240V/1h;
• Add B1 suffix to Model No. for 208V/1h
• All Mr.Steam SAH Models are cULus Listed and CE approved.
NOTES: All SA Generators available in 240v/1P and 208v/1P . SA units are not available in 3 phase. Specify voltage with order.
† Amps are for 240v/1P rated units.
‡ Wire size (AWG) based on minimum 90˚C rated T N copper conductors.
Refer to the National Electrical Code for other types of conductors.
See page 5 for complete dimensional information.
*Dimensions are for generator only, without plumbing features.
†† Approximate water usage based on 20 minutes of operation.
!CAUTION
*For rooms with “total room volumes” greater than 150 cu. ft.
refer to Mr.Steam MS series of residential steam bath generators
** For all other room materials refer to Mr. Steam MS series
of residential steam bath generators

mr.steam®Steam@Home® Installation, Operation & Maintenance Manual
________________________________________________________________________
INSTALLER
3
8. Windows that are part of the steam room should be
double paned and tempered safety glass.
9. Limit steam room ceiling height to 8 feet.
10. A peel-off warning label has been provided in the
Information envelope (see Warning facsimile below).
This label is to be applied to the wall of the installed
shower or steam enclosure.
The SA series of steam generators are
for residential use only. Commercial or other nonresidential
applications void the warranty and may adversely affect
product performance.
BEFORE INSTALLING
Carefully inspect the Steam Generator and packaging
for shipping damage. Please contact the carrier in
the event of shipping damage, please contact the
carrier for claim information. Our customer service
department can assist you with any missing or dam-
aged parts.
Never use damaged equipment,
doing so may result in an inoperative or hazardous
installation.
IM ORTANT NOTES:
• This document contains important safety, opera-
tion and maintenance information. Leave this
document with the homeowner. Do not discard
this document.
IM ORTANT NOTE:
The following general information should be used in
conjunction with consultations with an architect,
designer and contractor in determining factors nec-
essary in providing a suitable and safe steam room.
STEAM ROOM GUIDELINES
IM ORTANT NOTES:
1. Steam room must be completely enclosed, with full
walls, door, floor and ceiling.
2. It is recommended that a gasketed door is used for heat
sealing and steam containment.
3. If smooth surfaced flooring is used, provide suitable
anti-skid strips or equivalent to prevent user slipping
and injury.
4. Walls and ceilings must be constructed of water-resist-
ant, non-corrosive surface, such as tile, molded acrylic,
or fiberglass. The ceiling should be sloped to prevent
dripping of condensate.
If acrylic or fiberglass are used as part
of the steam room enclosure. Consult with the material
manufacture and see pg. 7 for additional details.
5. Provide a floor drain.
6. No heating, venting or air conditioning devices should
be installed inside the steam room.
7. Steam room tile construction information is available
from the Tile Council of America, Inc. by purchasing the
TCA andbook for Ceramic Tile Installation. Tel: (864)
646-8453 or www.tileusa.com.
!WA RNI NG
Read these instructions before installation or service.
Although this SA steambath generator has been fully qualified
for shipment by Mr.Steam
®
, the following must be reviewed for
proper, safe and enjoyable steam bathing:
• Verify that the model and accessories are correct, including
incoming line voltage.
• Insure steambath generator has been correctly sized for the
steambath room. Pay particular attention to room volume and
construction. If any questions, please refer to Mr. Steam sizing
and selection guide on page 2.
• The physical size of the unit, clearance for plumbing servicing,
and its distance from the steam room must all be considered
before installation.
IM ORTANT NOTE: Mr.Steam SA units are intended to be oper-
ated with a Mr.Steam SteamStart™ control only, and are to be
installed strictly in accordance with the specific instructions con-
tained in this manual.
ELECTRICAL S OCK AZARD. Mr.Steam steam
generators are intended to be connected to 208V or 240V line
voltage and contain live electrical components. All installation
and service to be performed by qualified and licensed electricians
and plumbers only. Installation or service by unqualified persons
or failure to use Mr. Steam parts may void the warranty.
!WA RNI NG
!WA RNI NG
!CA UTI ON
Not Actual Size
REDUCE THE RISK OF OVERHEATING AND SCALDING
1. EXIT I EDIATELY IF UNCO FORTABLE, DIZZY OR SLEEPY.
STAYING TOO LONG IN A HEATED AREA IS CAPABLE OF CAUSING OVERHEATING.
2. CHILDREN UNDER THE AGE OF 16 SHOULD NOT USE THE STEA BATH.
3. CHECK WITH A DOCTOR BEFORE USE IF PREGNANT, DIABETIC, IN POOR
HEALTH OR UNDER EDICAL CARE.
4. BREATHING HEATED AIR IN CONJUNCTION WITH CONSU PTION OF ALCOHOL,
DRUGS, OR EDICATION IS CAPABLE OF CAUSING UNCONSCIOUSNESS.
5. DO NOT CONTACT STEA HEAD OR STEA AT THE STEA HEAD.
REDUCE THE RISK OF SLIPPING AND FALL INJURY
1. USE CARE WHEN ENTERING OR EXITING THE STEA ROO . FLOOR AY BE SLIPPERY.
NOTE: FOR ADDITIONAL SAFETY CONSIDERATIONS SEE OWNER’S ANUAL
mr.steam®43-20 34th Street , Long Island City NY 11101 1 800 76 STEA www.mrsteam.com PUR100378 6.4/08
WARNING
!

mr.steam®Steam@Home® Installation, Operation & Maintenance Manual
________________________________________________________________________
INSTALLER
4
LOCATING THE STEAM GENERATOR UNIT
Select a location as near as practical to the steam room.
Typical locations include: closet, vanity cabinet, heated attic or basement.
NOTE: The standard length of the cable for connecting the control to the steam generator is 30 feet.
The steam generator and control must be located accordingly. A 60 foot cable (PN 103978-60) is
available as a special order part if the installation re uires a longer cable.
(ITEMS 1-7)
1. DO NOT install steambath generator or plumbing lines in
unheated attic or any locations where water could freeze.
2. DO NOT install steambath generator inside steam room.
3. DO NOT install steambath generator outdoors or wherever
environmental conditions may affect the safety and/or per-
formance of the generator.
4. DO NOT install steambath generator near flammable or
corrosive materials or chemicals such as gasoline, paint
thinners, or the like. Installation in areas having high con-
centrations of chlorine (such as pool equipment room)
must be avoided.
5. Install steambath generator on a solid and level surface.
Keyhole slots are provided for wall mounting. Insure the
steam generator is properly secured and level when
mounting with keyhole slots.
6. Install steambath generator in an upright position only.
7. Steam line, safety valve, drain valve, plumbing and
steamheads become hot during operation and remain hot
after shutdown for a period of time. Provide appropriate
protection, including insulating plumbing lines. Avoid
plumbing runs and steamhead locations that can come in
contact with bathers.
!WA RNI NG IM ORTANT NOTES: (ITEMS 8-12)
8. Install anti-water hammer device as necessary.
9. Provide a minimum of (12) inches on the plumbing
side and top of the steam generator or as required for
servicing. See page 5.
10.Provide unions to facilitate installation and
disconnection of piping.
11.The SteamStart™ control may be located inside the
steam room or outside of the steam room. See
SteamStart Installation section (pg. 12) for specific
details.
NOTE: Mr.Steam Generators (inclusive of the SteamStart™
series controls) are CE and UL listed.
The Steam@home
®
steam generator
is suitable for operation in ambient temperature not
exceeding 45°C (113˚ F)
The SA series of steam generators
are for residential use only. Commercial or other
non-residential applications void the warranty and
may adversely affect product performance.
Use only Mr.Steam SteamStart™ control.
!WA RNI NG
!WA RNI NG
WATER QUALITY INFORMATION
IM ORTANT NOTE: For optimum results, the water supply should be tested prior to initial startup. If the mineral content
exceeds the following recommended limits, various external treatment processes may be used to correct the problem.
NOTE: An analysis of the on-site water must be made by a recognized and reliable water treatment
company to ascertain the existing condition and treatment required.
RECOMMENDED FEEDWATER QUALITY
ardness, ppm 8 – 85 (~0.5 – 5 gpg)
P-Alkalinity, ppm 85 – 410 (~5 – 24 gpg)
T. Alkalinity, ppm 200 – 500 (~7 – 0 gpg)
p (strength of alkalinity) 8.0 – 11.4
Every 2 months, or more often in “hard” water areas, the manual drain valve should be opened fully flushing out accu-
mulated materials, salts and other particles which are natural by-products of boiling water. See page 13 for draining
information.
Water quality can affect efficiency or result in boiler damage if neglected. Water contains impurities in solution and
suspension. These impurities concentrate within the steam generator tank. The concentration of these impurities
increases as more feedwater is introduced into the steam generator tank and steam is produced. If the impurities are
allowed to concentrate beyond certain limits, a deposit or “scale” will form on the steam generator tank’s internal
surfaces. This deposit can interfere with the proper generator operation and cause generator failure. The concentration
of these impurities is generally controlled by the feed water quality and periodically by draining the generator.

mr.steam®Steam@Home® Installation, Operation & Maintenance Manual
________________________________________________________________________
INSTALLER
5
Provide unions to facilitate installation
and disconnect of piping
Steam
Generator
Field installed
power supply
Field installed 1/2” insulated
steam supply pipe
Drain Valve should be closed
See Page 13 for draining information
Control cable
(located behind the wall)
Steam Head (shown with acrylic shield)
See page 7 for Steam Head Installation
information
SteamStart™Control
See page 12
for installation
information.
Field installed
water supply line
TY ICAL MR.STEAM INSTALLATION
To avoid unintentional steambath operation, do not locate the control
where other controls, shower heads, valves, body sprays or similar accessories within the shower
could cause confusion or interfere with the r.Steam control’s intended use and function.
Consult with supplier of acrylic, fiberglass and other
non-heat resistant enclosures for recommended steamhead location. Use
Acrylic Shield PN S-103938. See instructions provided with steam shield.
!CA UTI ON !CAUTION
NOTE: For illustrative purposes only. Consult
with qualified designer, architect or contractor
for steam room construction details.
IM ORTANT NOTE: Install cable in a dedi-
cated conduit to allow for replacement. Be
careful not to strain, staple, pinch or other-
wise damage the control cable. Do not
route in conduit with power wires.
55⁄8”
(138)
73⁄4”
(197)
11⁄4”
(32)
12”
(305)
147⁄8”
(378)
17⁄8”
(48)
33⁄8”
(86)
53⁄16”
(132)
21⁄2”
(64)
143⁄8”
(365)
11⁄2”(38)
GENERATOR DIAGRAM
WATER I LET 3/8” PT
STEAM OUTLET 3/8” PT
SAFETY VALVE 3/4” PT
MA UAL DRAI VALVE 1/4” PT
NOTE : All units in inches (mm)
Water Inlet
SteamStart™
Connection
Steam Outlet
IM ORTANT NOTE: Provide a minimum of (12) inches at
plumbing end and top of the steam generator or as required
for servicing. Alternately, provide unions as required to facili-
tate installation and disconnection of the steam generator.
IM ORTANT NOTE: The minimum clearance from com-
bustible surfaces is zero all around.
anual
Drain
Valve
Safety Valve
TO AVOID EQUI MENT DAMAGE DO NOT CONNECT
OWER SU LY DIRECTLY TO ELEMENT TERMINALS !!!
NOTE: FOR ILLUSTRATIVE UR OSES ONLY.

mr.steam®Steam@Home® Installation, Operation & Maintenance Manual
________________________________________________________________________
INSTALLER
6
INSTALLATION
LUMBING
All plumbing shall be performed by a qualified licensed plumber and
in accordance with applicable National and local codes.
• Use unions on all pipe connections.
• Use only brass piping or copper tubing as permitted by codes.
• Do not use black, galvanized, PVC pipe or PEX.
WATER SU LY (3⁄8" N T)
1. Connect hot or cold water line. If hot water line is used water temperature should not exceed 130° F.
2. Provide a shut off valve in the water supply line upstream of the steambath generator.
3. Do not overheat inlet solenoid valve with solder connections. Overheating will damage the valve.
4. Flush inlet water line thoroughly before making connection to unit.
5. Strainer recommended upstream of feed water connection.
6. For best performance water pressure should be 15 to 20 psig.
Reduce pressure as required using a suitable pressure reducing valve.
7. Provide anti-water hammer device as required.
8. Install an approved backflow preventer as required by code.
STEAM OUTLET (3⁄8" N T)
1. Do not install any valve in steam line. Flow of steam must be unobstructed.
2. Use 1/2-inch brass pipe or copper tubing from unit to steam head as permitted by codes.
3. Insulate steam line using pipe insulation rated 250° F minimum.
4. Pitch steam line 1/4" per foot towards steam head or steam generator to avoid valleys and trapping of condensate.
IM ORTANT NOTE: Running the steam line down and then up will create a trap blocking the flow of steam.
NOTE: A 1.5" diameter hole in the steam room is required to mount the steamhead.
SAFETY VALVE (3⁄4" N T)
Where permitted by local codes, provide an outlet plumbing connection for safety valve.
To insure proper and automatic safety valve operation: DO NOT connect a shut off valve
or a plug at safety valve outlet. DO NOT connect a shut off valve or any obstruction in steam supply pipe.
DO NOT connect the safety-valve output into the steam line
MANUAL DRAIN VALVE (1⁄4" N T)
Unit drains by gravity. See page 13 for draining instructions
DRI AN (PN 103867)
Mr. Steam strongly recommends the use of a drip pan in the
unlikely event of a plumbing leak.
Locate the drip pan on a solid level surface and place the steam
generator inside the drip pan. Insure the steam generator is level
(see page 4 for locating the steam generator).
The drip pan is equipped with an integral female 3⁄4" NPT fitting.
All plumbing shall be performed by a qualified licensed plumber
and in accordance with applicable national and local codes.
Check local plumbing code for receptor, trap and vent requirements. Drip pans drain by gravity.
!WA RNI NG
Drip Pan
PN: S103867

mr.steam®Steam@Home® Installation, Operation & Maintenance Manual
________________________________________________________________________
INSTALLER
7
STEP 2
STEP 3
STEP 4
Steam Supply Pipe
Use Teflon or equal
sealant on pipe threads
End of pipe to be
recessed 1/8"
(with Acrylic Shield)
Apply with silicone or
equal sealant as required
for moisture seal.
Acrylic Shield
(PN103938)
Steamhead
with Acrylic Shield
Locating Nipple
Apply silicone
in groove.
Oil Well
Oil Well
Acrylic Shield
(PN 103938)
INSTALLATION OF THE STEAM HEAD
(1⁄2”NPT, PN 103937)
WITH ACRYLIC SHIELD (PN 103938)
The Acrylic Shield (PN 103938) is for use when acrylic or other
non-heat resistant materials are used for the steamroom enclosure.
INSTALLER: Because the steam head and
direct steam emissions are very hot, locate the steam head where
incidental contact by bather with the steam head or direct steam
emission cannot occur.
IM ORTANT NOTE:These instructions are only for use in
installations using an Acrylic Shield (pur 103938).
Step 1
Locate steam head at least 12 inches from an adjacent wall or
bench and 6-12 inches above floor, except for tub/shower
enclosures, install 6 inches above tub top edge.
The steamhead shall be installed with the oil well facing up as
shown. and tightening is sufficient when teflon or equal pipe
thread sealing compound is used.
IM ORTANT NOTE:to preserve steam head finish, do not use wrench
or other tools to tighten. DO NOT use abrasive cleansers or chemi-
cals. Use only water with mild soap and a non-abrasive sponge.
Consult with supplier of acrylic, fiberglass
and other non-heat resistant enclosures for recommended
steamhead location.
Step 2
Secure a bronze drop ear fitting to a header and run a 1⁄2" copper
steam line from the steam generator to the drop ear fitting. Install
a temporary nipple (6" or longer)in the drop ear fitting to locate the
steamhead after the wall is finished.
Step 3
After the wall has been finished, mark on the nipple where the sur-
face of the wall is. Remove the nipple and measure the portion that
was in the wall (the end to your mark). Subtract 1⁄8" from that
dimension and select a brass nipple of that length to finish the
installation.
Step 4
Wrap teflon tape around the threads of the new nipple and screw
the nipple into the steamhead. Do not use wrenches or tools which
would damage the steamhead's finish.
Slide the acrylic shield onto the nipple-steamhead assembly
so the steam head sits in the acrylic shield.
Apply clear silicone in the groove on the back of the acrylic shield.
Wrap teflon tape around the threads of the nipple and screw the
nipple and steamhead assembly you just made into the drop ear fit-
ting in the wall. The steamhead should be flush with the wall and
the well must be facing up.
The acrylic shield will be sandwiched between the wall and steam
head.
!CA UTI ON
!CAU TIO N

ELECTRICAL
All electrical wiring to be installed by a qualified
licensed electrician in accordance with National
Electrical Code and local electrical code.
OWER WIRING
See “Field Power Wiring” Diagrams (below)
1. Check power voltage. Use 240V rated unit when
supply is greater than 208V. (Most homes have
240V, 1P service). Use 208V rated unit for
208V power.
2. Use minimum 90˚C/300V rated insulated
copper conductors only, sized in accordance with
National Electrical Code and local electrical code
for the current in Ampere Chart. If allowed by
codes, NM cable may require a larger wire size
than as listed on the chart.
3. Connect suitably sized equipment grounding
wire to ground terminal provided.
4. Install a separate circuit breaker between supply
and unit. Provide a power supply disconnect
within sight of the steam generator or one that is
capable of being locked in the open position.
mr.steam®Steam@Home® Installation, Operation & Maintenance Manual
________________________________________________________________________
INSTALLER
8
Contactor
Power Supply
Opening
Control Connection
See page 12 for Wiring
Field Wiring
Ground Conductor
Terminal
FIELD OWER WIRING
Models SA 3000,
SA 4500 & SA 6000
TO AVOID EQUI MENT DAMAGE DO
NOT CONNECT OWER SU LY
DIRECTLY TO ELEMENT TERMINALS!!!
L1, L2, GROUND TO BE FIELD WIRED
C ART
_____________________________________________________________________________
Max Room Wire Size
Model Volume KW Volts† Phase AMPS (AWG) for up to
No. (Cu. Ft.*) 45˚ C Ambient
_____________________________________________________________________________
208 1 15 12
SA 3000 65 3.0 240 1 13 12
_____________________________________________________________________________
208 1 22 10
SA 4500 100 4.5 240 1 19 10
_________________________________________________________________________ ____
208 1 29 8
SA 6000 150 6.0 240 1 25 8
_________________________________________________________________________ _
___
*See page 2 for room sizing.
SA units are not available in 3 phase.
FOR ILLUSTRATIVE UR OSES ONLY
5. Use two-wire supply source and equipment
grounding wire. Neutral (white) wire is not
required.
IM ORTANT NOTE:Provide a power supply disconnect within
sight of the steam generator or one that is capable of being
locked in the open position as permitted by code.

mr.steam®Steam@Home® Installation, Operation & Maintenance Manual
________________________________________________________________________
INSTALLER
9
INITIAL START-U AND CHECKOUT
1. Turn on control. Follow specific instructions pages 12.
2. Steam will begin to appear in approximately
5 minutes at the steam head.
3 .Steam will shut off automatically when 20 minute
SYSTEM STATUS
The control STEAMSTART™ may blink if the steam generator is not functioning properly.
MEANING ROBABLE CAUSE SUGGESTED REMEDY
Water level is not Water Supply is off Turn on Water Supply
satisfied within 5 min. Defective water feed solenoid Check/replace water solenoid valve
Water feed probe not functioning Check/clean probe.
Check probe wiring.
Drain Valve Open Check/Close drain valve
Incorrect Field Supply Voltage Incorrect voltage supplied Supply steam generator with the correct
(green light on liquid level to Generator voltage noted on the data plate label.
control board will be off)
Button on control is pressed Debris behind overlay cover Replace SteamStart button
for more than 5 minutes
Liquid Level Control Board malfunction Memory error in LLCB Press SteamStart button
Replace LLCB if code remains.
TROUBLESHOOTING
ELECTRICAL S OCK AZ-
ARD. Mr.Steam steam generators are connected
to 240V line voltage and contain live electrical
components. All installation and service to be
performed by qualified and licensed electricians
and plumbers only. Installation or service by
unqualified persons or failure to use Mr. Steam
parts may void the warranty.
STE 1 Check your main incoming power
to the unit.
STE 2 Verify the transformer is receiving
208/240 VAC.
STE 3 Verify that you have 24VAC coming
out of the transformer, W T & W T/BLU wires,
into the board.
STE 4 Verify that you have the green light on
the PC board.
STE 5 Verify that you have 24 VAC to the
water feed solenoid, GRY & W T/GRY wires
(will fill when needed).
STE 6 Temporarily short out the WLS (Purple wire)
and GND (Green wire) terminals and verify the contactor
engages.
STE 7 When the red light is on, verify that you have
24 VAC, RED & W T/RED wires, to the contactor.
STE 8 Check to see that you have your main voltage
on the load side of the contactor when it is engaged.
timer is up. To shut steam off manually, press
SteamStart™ again. To clear steam from enclosure area,
turn shower on before opening door.
4. If unit does not start and SteamStart backlight does not
turn on, then turn breaker off for 2 seconds and try again.
!WAR NIN G
1
2
4
6
7
83
5

mr.steam®Steam@Home® Installation, Operation & Maintenance Manual
________________________________________________________________________
INSTALLER
LIQUID LEVEL CONTROL BOARD Explanation of LED Indicators
_________________________________________________________________________________________________
GREEN LED is ON when there is 208/240 Volt incoming power connected, 24 Volt
transformer secondary output and on-board 5 Volt DC control power are present.
_________________________________________________________________________________________________
YELLOW Water level indicator–LED is OFF when no water is detected (for more that 5 seconds).
ON when water level is satisfactory.
__________________________________________________________________________________________________
RED Contactor relay indicator–LED is ON when relay is closed and sending 24 Volts to the
contactor coil. (This LED comes ON if the generator is ON.)
__________________________________________________________________________________________________
Liquid Level Control Board
N 103975B
(shown without wiring)
10
RED (Heater)
YELLOW (Water Level)
GREEN(Power)
FACTORY
WIRING
FIELD
WIRING
LEGEND
(All Diagrams)
SteamStart™
SINGLE HASE 208/240 VOLT WIRING DIAGRAMS
SA units are not available in 3 phase
MODELS:
SAH3000
SAH4500
SAH6000

mr.steam®Steam@Home® Installation, Operation & Maintenance Manual
________________________________________________________________________
INSTALLER
11
MODELS SAH3000, SAH4500, SAH6000
shown with cover removed
NOTE: FOR ILLUSTRATIVE UR OSES ONLY.
Some components may be omitted or altered for clarity.
Do not use for wiring, repair or other purposes not related to component identification.
Transformer Liquid Level
Control Board Water Feed
Solenoid
SteamStart™
Safety Valve
Drain Valve
(shown in closed position)
Stainless Steel Tank
Heating Element
Contactor
Power Supply
Opening
Steam Outlet
___________________________________________
art # Description
___________________________________________
99806 Drain Valve
99297 Safety Valve 15PSI
100479 Water Feed Solenoid Valve with filter
10477-3 Transformer 24VAC
103975B Liquid Level Control Board
100476-2 Contactor 50A 2-pole
100471-2 Probe Assembly
103938 Acrylic Shield
103978-30 Cable for SteamStart
™
(30 ft.)
103978-60 Cable for SteamStart
™
(60 ft.)
___________________________________________
RE LACEMENT ARTS LIST
Please call Technical Support at 800-76-STEAM (East Coast)
or 800-72-STEAM (West Coast) for Service Information

mr.steam®Steam@Home® Installation, Operation & Maintenance Manual
________________________________________________________________________
INSTALLER
STEAMSTART
™
On/Off Switch
Box Contents:
• SteamStart™Control
• Control Cable
INSTALLING THE STEAMSTART ™ CONTROL
The SteamStart has a 30 foot cable with a Plug & Play
connector at both ends. (Diagram 1).
A 60 foot control cable is available (103978-60). Contact a
Mr. Steam technical representative if the 60 foot cable is
required.
To avoid unintentional steambath operation,
do not locate the control where other controls, shower heads,
valves, body sprays or similar accessories within the shower
could cause confusion or interfere with the Mr.Steam con-
trol’s intended use and function.
STE 1 - Diagram 2
Drill a 7/8 inch diameter hole in a preferred wall location.
Do not oversize or undersize the hole.
STE 2 - Diagram 3
Route the cable from the wall to the steam generator.
Be careful not to strain, pinch or otherwise damage the
control cable.
STE 3 - Diagram 4
Remove and discard the peel-off paper from the switch
housing to expose the adhesive as shown in Diagram 4.
STE 4 - Diagram 5
Apply silicone (provided with SteamStart control) to the
hole in the wall as required to create a moisture seal.
Apply silicone to the back of the switch as required to seal
grout lines or as required for additional adhesion.
IM ORTANT NOTE: Use care not to apply silicone
to the adhesive gasket.
STE 5
Push cable and switch housing into the hole firmly.
STE 6 - Diagram 6
Firmly connect the Plug & Play connector to the steam
generator connector labeled SteamStart.
NOTE: The connector is keyed and will only connect
in one orientation with the tab facing up.
IM ORTANT NOTE: Install cable in a dedicated conduit to
allow for replacement. Be careful not to strain, staple,
pinch or otherwise damage the control cable.
Do not route in conduit with power wires.
30' CABLE
SWITCH LUG & LAY
CONNECTOR
DIAGRAM 1
DIAGRAM 2
DIAGRAM 3
DIAGRAM 4
DIAGRAM 5
DIAGRAM 6
12
DIMENSIONAL INFORMATION
!CA UTI ON

mr.steam®Steam@Home®Steam/Start®Controls
_________________________________________________________________________
HOMEOWNER
13
USING MR.STEAM®ESSENTIAL OILS
Enjoy AromaSteam
™
essential oils by placing a drop or two into an
unheated AromaSteam steamhead as shown in the illustration.
Only use Mr.Steam
®
AromaSteam essential oils in the Mr.Steam
®
AromaSteam steamhead.
• Use essential oils with caution. Essential oils are for
external use only. Keep out of reach of children. Essential oils
are highly concentrated and are potent substances and should
not be applied directly to the skin as they can be irritants. Use
essential oils with caution.
• Place the drops into the Mr.Steam AromaSteam steamhead
recess prior to turning on the steambath. Do not place drops in
a hot steam head as SERIOUS INJURY CAN RESULT IF YOU
DO NOT FOLLOW T IS WARNING.
• Start with one drop to gauge strength and suitability. Limit to a
maximum of a few drops for a steam bathing session.
• The bather should exit the steambath IMMEDIATELY if
dizziness occurs. If skin irritation occurs stop using the oils
immediately. Remove any excess oil by washing in mild soap
and water. If ingested, rinse mouth with water. Administer water
or milk to dilute. Contact a physician immediately.
!CAUTION
AromaSteam steam head
(install per instructions on pg.7)
Steam emission slot
AromaSteam™
10ml bottle with
integrated dropper
Recess for
essential oil
Aromatic oils should be added to
steamhead before turning on the steambath unit.
DO NOT add oil during steam bathing or when
the steam head is heated.
Flush a minimum of two-three hours after the
control has been turned off to insure that the water has cooled.
Draining immediately after a steam cycle may
expose user to scalding water and may expose PVC and other pip-
ing to high temperature water. Check local codes. The unit will
refill automatically when the control is activated again.
STEAM GENERATOR MAINTENANCE
Other than periodic draining, maintenance proce-
dures are minimal. Every 2 months, or more often in
“hard” water areas, the manual drain valve should be
opened fully flushing out accumulated materials,
salts and other particles which are natural by-prod-
ucts of boiling water.
!WA RNI NG
!CAUTION
!CA UTI ONS
Do not alter or modify any Mr. Steam products
including the steam generator or SteamStart™
controls. Doing so may result in an inoperative or
hazardous installation and will void the warranty.
IM ORTANT NOTE: Do not operate any SteamStart™
control with other than a Mr. Steam SA steam gen-
erator. Doing so may result in an inoperative installa-
tion.
This document contains important safety, operation
and maintenance information. Do not discard this
document.
Malfunction due to power spikes, lightning, fire,
freezing or flooding is not covered under the war-
ranty. Discontinue use of the steam generator or
control if the steam generator is damaged or other-
wise not functioning
SAFETY AND O ERATING INFORMATION
Use the SteamStart™ control to turn the steam generator on.
The SteamStart control will only light up when the steam
generator is on.
The steam generator will automatically shut off at 20 minutes,
to turn the steam generator off manually prior to the automatic
shut off, press the button on the SteamStart control.
The SteamStart control may blink if the steam generator is not
functioning properly (see page 9).
Do not install or use any SteamStart™
control without reading and understanding the Mr.Steam steam
generator Installation and Operation Manual (PN 100467 Rev
3.12 or higher). Failure to read and understand these instruc-
tions may result in an inoperative or hazardous installation.
A peel-off warning label has been provided in the Information
envelope This label is to be applied to the wall of the installed
shower or steam enclosure in a conspicuous location.
!WA RNI NG
CARE TI S FOR STEAM/START AND STEAMHEADS
1. Use only mild soap and water on a soft cloth to clean the control and steamhead.
2. Do not use abrasive cleansers
Tightly close bottles when storing oils.
Keep bottles away from sources of ignition.

______________________________________________________________________________________________________________________________________________
Products, information and specifications are subject to change without notice.
Please call Sales & Support at 1.800.76.STEAM (East Coast)
or 1.800.72.STEAM (West Coast) for more information.
______________________________________________________________________________________________________________________________________________
mr.steam®
Sussman-Automatic Corporation®/ [email protected] / www.mrsteam.com
43-20 34th Street, Long Island City, Y 11101 / TEL: [phone] /FAX: [phone]
9410 S. La Cienega Blvd. Inglewood CA 90301 / TEL: [phone] / FAX: [phone]
______________________________________________________________________________________________________________________________________________
2014 © Sussman-Automatic Corporation I Mr.Steam and des., AromaFlo, AutoFlush, AutoSteam, Butler Package, ChromaSteam, Clean Steam...Every Time, Club
Therapy, Digital 1, Express Steam, From Bathroom to Spa,
iGenie, iSizing, iSteam, iSteam/Plus, iTempo, iTempo/Plus, Making Wellness a Way o Li e, MusicTherapy,
Spa Package, SteamGenie, Steam on Demand, Steam@Home, SteamTherapy, Sussman, Valet Package, Virtual Spa System, Voice Genie and Voice Wizard are
registered trademarks o Sussman-Automatic Corporation. AudioWizard, A Li etime o Pleasure, HomeWizard, iButler,
iSteamTV, iTempo, iTempo/Plus, MySteam,
Smart Sizing, Steam in a Box, SteamStart, SteamStop, The Intelligent Steambath are trademarks o Sussman-Automatic Corporation.
PUR 100467 Rev 5.14
______________________________________________________________________________________________________________________________________________
