MR MControl 7 User manual

Touch Panel
MControl 7"/10"
Operating Instructions
5809776/02 EN

© All rights reserved by Maschinenfabrik Reinhausen
Dissemination and reproduction of this document and use and disclosure of its
content are strictly prohibited unless expressly permitted.
Infringements will result in liability for compensation. All rights reserved in the event
of the granting of patents, utility models or designs.
The product may have been altered since this document was published.
We reserve the right to change the technical data, design and scope of supply.
Generally the information provided and agreements made when processing the
individual quotations and orders are binding.
The original operating instructions were written in German.

Table of contents
35809776/02 EN
1 Introduction...........................................................................6
1.1 Manufacturer.................................................................................... 6
1.2 Safekeeping..................................................................................... 6
1.3 Notation conventions ....................................................................... 6
1.3.1 Hazard communication system .................................................................... 6
1.3.2 Information system....................................................................................... 8
1.3.3 Instruction system ........................................................................................ 8
1.3.4 Typographic conventions ............................................................................. 9
2 Safety...................................................................................10
2.1 Appropriate use ............................................................................. 10
2.2 Inappropriate use........................................................................... 11
2.3 Fundamental Safety Instructions ................................................... 11
2.4 Personnel qualification................................................................... 12
2.5 Personal protective equipment ...................................................... 13
3 IT security............................................................................15
4 Product description............................................................16
4.1 Scope of delivery ........................................................................... 16
4.2 Function description....................................................................... 17
4.3 Design............................................................................................ 18
4.4 Configuration examples ................................................................. 19
5 Packaging, transport and storage ....................................24
5.1 Packaging, transport and storage.................................................. 24
5.1.1 Suitability, structure and production .......................................................... 24
5.1.2 Markings..................................................................................................... 24
5.2 Transportation, receipt and handling of shipments........................ 24
5.3 Storage of shipments..................................................................... 26

Table of contents
4 5809776/02 EN
6 Mounting .............................................................................27
6.1 Preparation .................................................................................... 27
6.1.1 Required tools ............................................................................................ 27
6.1.2 Electromagnetic compatibility..................................................................... 28
6.1.3 Cable recommendation .............................................................................. 29
6.1.4 Requirements on the power supply............................................................ 29
6.2 Mounting the device....................................................................... 30
6.3 Connecting the device ................................................................... 35
7 Commissioning...................................................................38
8 Operation.............................................................................39
8.1 Operation ....................................................................................... 39
8.2 Configuring the touch panel........................................................... 42
8.2.1 Server......................................................................................................... 42
8.2.2 Network ...................................................................................................... 43
8.2.3 Display ....................................................................................................... 44
8.2.4 Time ........................................................................................................... 45
8.2.5 Security ...................................................................................................... 46
8.2.6 General ...................................................................................................... 47
8.2.7 Import & Export .......................................................................................... 47
8.2.8 Information ................................................................................................. 50
9 Maintenance and care ........................................................51
10 Fault elimination .................................................................52
10.1 General faults ................................................................................ 52
10.2 Other faults .................................................................................... 52
11 Removal...............................................................................53
12 Disposal...............................................................................54

Table of contents
55809776/02 EN
13 Technical data.....................................................................55
13.1 Display ........................................................................................... 55
13.2 Power supply ................................................................................. 55
13.3 System networking ........................................................................ 56
13.4 Ambient conditions ........................................................................ 57
13.5 Dimensions and weight.................................................................. 57
13.6 Standards and directives ............................................................... 58

1 Introduction
6 5809776/02 EN
This technical file contains detailed descriptions on the safe and proper in-
stallation, connection, commissioning and monitoring of the product.
It also includes safety instructions and general information about the prod-
uct.
This technical file is intended solely for specially trained and authorized per-
sonnel.
1.1 Manufacturer
The product is manufactured by:
Maschinenfabrik Reinhausen GmbH
Falkensteinstraße 8
93059 Regensburg, Germany
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
Further information on the product and copies of this technical file are avail-
able from this address if required.
1.2 Safekeeping
Keep this technical file and all supporting documents ready at hand and ac-
cessible for future use at all times.
1.3 Notation conventions
This section contains an overview of the symbols and textual emphasis
used.
1.3.1 Hazard communication system
Warnings in this technical file are displayed as follows.
1.3.1.1 Warning relating to section
Warnings relating to sections refer to entire chapters or sections, sub-sec-
tions or several paragraphs within this technical file. Warnings relating to
sections use the following format:

1 Introduction
75809776/02 EN
WARNING
Type of danger!
Source of the danger and outcome.
► Action
► Action
1.3.1.2 Embedded warning information
Embedded warnings refer to a particular part within a section. These warn-
ings apply to smaller units of information than the warnings relating to sec-
tions. Embedded warnings use the following format:
DANGER! Instruction for avoiding a dangerous situation.
1.3.1.3 Signal words and pictograms
The following signal words are used:
Signal word Definition
DANGER Indicates a hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING Indicates a hazardous situation which, if not avoided, could result
in death or serious injury.
CAUTION Indicates a hazardous situation which, if not avoided, could result
in minor or moderate injury.
NOTICE Indicates measures to be taken to prevent damage to property.
Table1: Signal words in warning notices

1 Introduction
8 5809776/02 EN
Pictograms warn of dangers:
Pictogram Definition
Warning of a danger point
Warning of dangerous electrical voltage
Warning of combustible substances
Warning of danger of tipping
Warning of danger of crushing
Table2: Pictograms used in warning notices
1.3.2 Information system
Information is designed to simplify and improve understanding of particular
procedures. In this technical file it is laid out as follows:
Important information.
1.3.3 Instruction system
This technical file contains single-step and multi-step instructions.

1 Introduction
95809776/02 EN
Single-step instructions
Instructions which consist of only a single process step are structured as fol-
lows:
Aim of action
üRequirements (optional).
► Step 1 of 1.
ðResult of step (optional).
ðResult of action (optional).
Multi-step instructions
Instructions which consist of several process steps are structured as follows:
Aim of action
üRequirements (optional).
1. Step 1.
ðResult of step (optional).
2. Step 2.
ðResult of step (optional).
ðResult of action (optional).
1.3.4 Typographic conventions
The following typographic conventions are used in this technical file:
Typographic convention Purpose Example
UPPERCASE Operating controls,
switches
ON/OFF
[Brackets] PC keyboard [Ctrl] + [Alt]
Bold Software operating con-
trols
Press Continue button
…>…>… Menu paths Parameter > Control pa-
rameter
Italics System messages, error
messages, signals
Function monitoring alarm
triggered
[► Number of pages]. Cross reference [► 41].
Table3: Typographic conventions

2 Safety
10 5809776/02 EN
This technical file contains detailed descriptions on the safe and proper in-
stallation, connection, commissioning, operation, and monitoring of the prod-
uct.
▪ Read this technical file through carefully to familiarize yourself with the
product.
▪ This technical file is part of the product.
▪ Read and observe the safety instructions provided in this chapter in partic-
ular.
▪ Observe the warnings in this technical file in order to avoid function-re-
lated dangers.
▪ The product is manufactured according to the state of the art. Risks to life
and limb of the user or impairment of the product and other material as-
sets may occur during use due to function-related dangers despite this.
2.1 Appropriate use
The product is a device for displaying and operating the web-based visual-
ization system of ISM® devices.
The product is designed solely for use in electrical energy systems and facili-
ties. It may be used in compliance with the requirements and conditions
listed in this technical file as well as the warnings in this technical file and the
warnings posted on the product. This applies across the entire service life of
the product, from delivery to installation and operation through to disassem-
bly and disposal.
The following is considered appropriate use:
▪ Operate the product in accordance with this technical file, the agreed-
upon delivery conditions and the technical data.
▪ Ensure that all necessary work is performed by qualified personnel only.
▪ Only use the equipment and special tools included in delivery for the in-
tended purpose and in accordance with the specifications of this technical
file.
▪ Only operate the product in industrial areas. Observe the notices in this
technical file regarding electromagnetic compatibility and the technical
data.

2 Safety
115809776/02 EN
2.2 Inappropriate use
Use is considered inappropriate if the product is used other than as de-
scribed in the "Appropriate use [►Section 2.1, Page 10]" section. In addition,
observe the following:
▪ The product is not a protective device. Do not use it to handle safety-re-
lated functions.
▪ Risk of explosion and fire from highly flammable or explosive gases, va-
pors, or dusts. Do not operate the product in areas at risk of explosion.
▪ Unauthorized or inappropriate changes to the product may lead to per-
sonal injury, material damage and operational faults. Only modify the
product after consultation with Maschinenfabrik Reinhausen GmbH.
2.3 Fundamental Safety Instructions
To prevent accidents, disruptions and damage as well as unacceptable ad-
verse effects on the environment, those responsible for transport, installa-
tion, operation, maintenance and disposal of the product or parts of the prod-
uct must ensure the following:
Work area
Untidy and poorly lit work areas can lead to accidents.
▪ Keep the work area clean and tidy.
▪ Make sure that the work area is well lit.
▪ Observe the applicable laws for accident prevention in the relevant coun-
try.
Working during operation
The product may only be operated in a sound, operational condition. Other-
wise it poses a danger to life and limb.
Explosion protection
Highly flammable or explosive gases, vapors and dusts can cause serious
explosions and fire.
▪ Do not install or operate the product in areas where a risk of explosion is
present.

2 Safety
12 5809776/02 EN
Ambient conditions
To ensure reliable and safe operation, the product must only be operated
under the ambient conditions specified in the technical data.
▪ Observe the specified operating conditions and requirements for the in-
stallation location.
Modifications and conversions
Unauthorized or inappropriate changes to the product may lead to personal
injury, material damage and operational faults.
▪ Only modify the product after consultation with the manufacturer.
Spare parts
Spare parts not approved by the manufacturer may lead to physical injury,
damage to the product and operational faults.
▪ Only use spare parts approved by the manufacturer.
▪ Contact the manufacturer.
2.4 Personnel qualification
The person responsible for assembly, commissioning, operation, mainte-
nance and inspection must ensure that the personnel are sufficiently quali-
fied.
Electrically skilled person
The electrically skilled person has a technical qualification and therefore has
the required knowledge and experience, and is also conversant with the ap-
plicable standards and regulations. The electrically skilled person is also pro-
ficient in the following:
▪ Can identify potential dangers independently and is able to avoid them.
▪ Is able to perform work on electrical systems.
▪ Is specially trained for the working environment in which (s)he works.
▪ Must satisfy the requirements of the applicable statutory regulations for
accident prevention.

2 Safety
135809776/02 EN
Electrically trained persons
An electrically trained person receives instruction and guidance from an
electrically skilled person in relation to the tasks undertaken and the poten-
tial dangers in the event of inappropriate handling as well as the protective
devices and safety measures. The electrically trained person works exclu-
sively under the guidance and supervision of an electrically skilled person.
Operator
The operator uses and operates the product in line with this technical file.
The operating company provides the operator with instruction and training
on the specific tasks and the associated potential dangers arising from im-
proper handling.
Technical Service
We strongly recommend having maintenance, repairs and retrofitting carried
out by our Technical Service department. This ensures that all work is per-
formed correctly. If maintenance is not carried out by our Technical Service
department, please ensure that the personnel who carry out the mainte-
nance are trained and authorized by Maschinenfabrik Reinhausen GmbH to
carry out the work.
Authorized personnel
Authorized personnel are trained by Maschinenfabrik Reinhausen GmbH to
carry out special maintenance.
2.5 Personal protective equipment
Personal protective equipment must be worn during work to minimize risks to
health.
▪ Always wear the personal protective equipment required for the job at
hand.
▪ Never wear damaged personal protective equipment.
▪ Observe information about personal protective equipment provided in the
work area.

2 Safety
14 5809776/02 EN
Personal protective equipment to be worn at all times
Protective clothing
Close-fitting work clothing with a low tearing
strength, with tight sleeves and with no protrud-
ing parts. It mainly serves to protect the wearer
against being caught by moving machine parts.
Safety shoes
To protect against falling heavy objects and slip-
ping on slippery surfaces.
Special personal protective equipment for particular environments
Safety glasses
To protect the eyes from flying parts and splash-
ing liquids.
Visor
To protect the face from flying parts and splash-
ing liquids or other dangerous substances.
Hard hat
To protect from falling and flying parts and mate-
rials.
Hearing protection
To protect from hearing damage.
Protective gloves
To protect from mechanical, thermal, and electri-
cal hazards.

3 IT security
155809776/02 EN
Observe the following recommendations for the secure operation of the
product.
General
▪ Ensure that only authorized personnel have access to the device.
▪ Only use the device within an ESP (electronic security perimeter). Do not
connect the device to the Internet in an unprotected state.
▪ Ensure that the device is only operated by trained personnel who are fa-
miliar with IT security.
Commissioning
Observe the following recommendations for device commissioning:
▪ Activate the SSL setting; this will secure communication to the server over
the SSL/TLS protocol.
▪ Activate the SSL warning setting. This ensures that the authenticity of the
server is verified.
▪ Utilize the ability to import your own certificates. This ensures seamless
verification of the server authenticity.
▪ Connect the device to a central log server by using the syslog interface.
Operation
Observe the following recommendations during device operation:
▪ Change the administrator password at regular intervals.
▪ Stay abreast of security updates.
Interfaces
The device uses the following interfaces for communication:
▪ ETH0
▪ ETH1

4 Product description
16 5809776/02 EN
This chapter contains an overview of the design and function of the product.
4.1 Scope of delivery
The following components are included in the scope of delivery:
▪ MControl 7" or MControl 10" touch panel
▪ Mounting brackets
▪ Cap rail adapter (optional)
▪ Technical files
Please note the following:
▪ Check the shipment for completeness on the basis of the shipping docu-
ments.
▪ Store the parts in a dry place until installation.

4 Product description
175809776/02 EN
4.2 Function description
The product is a device for displaying and operating the web-based visual-
ization system of ISM® devices. You can connect the device with up to 10
ISM® devices over an Ethernet switch and use a menu to select which ISM®
device is to be displayed. For proper function, the software (application) of
the ISM® device must correspond to version 3.310 or higher.

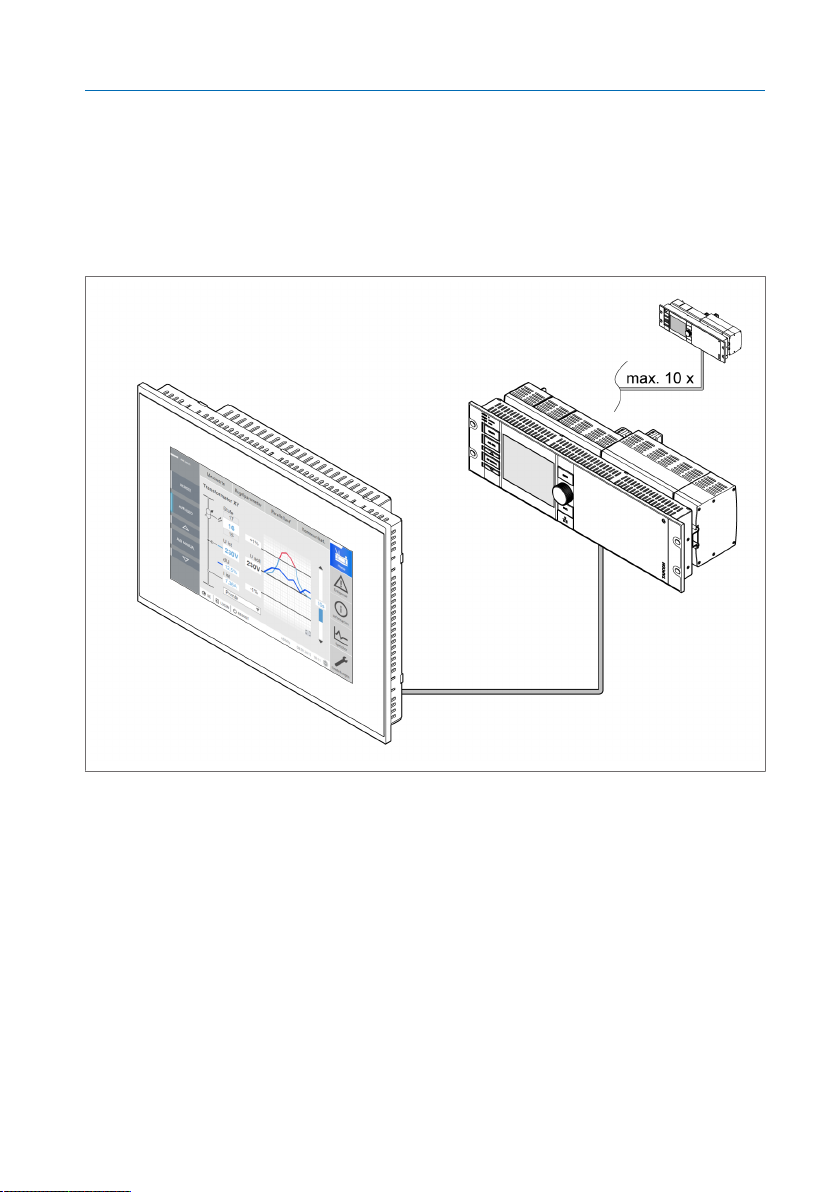

Figure1: Function description

4 Product description
18 5809776/02 EN
4.3 Design
The device has a diagonal screen size of 7" (177.8mm) or 10" (254 mm),
depending on the order.
Figure2: Front view

4 Product description
195809776/02 EN
The device has the following interfaces on the rear for connection:
Figure3: Interfaces
1 Power supply 2 USB interface (2x)
3 ETH0 network interface 4 ETH1 network interface
4.4 Configuration examples
The following examples illustrate the configuration of the interfaces for differ-
ent device applications.

4 Product description
20 5809776/02 EN
MControl with ISM® device without its own display (OT1205)
For this application, the device is configured at the plant.
CPU
1 2.1 2.2ETH
MControl
0 1ETH
ISM
Figure4: MControl with ISM® device without its own display
Interface Configuration
ISM-CPU:ETH2.1 IP address: 192.168.165.1 (not adjustable)
MControl (7"): ETH0 IP address: 192.168.165.243
Subnet mask: 255.255.255.0
MControl (10"): ETH0 IP address: 192.168.165.245
Subnet mask: 255.255.255.0
Table4: Configuration example of the interfaces (factory setting)
