MRC-1200
Small-Medium Business IP Phone
Quick Start Guide

Content
English...............................................................................1
简体中文..........................................................................7
Español............................................................................13
Français...........................................................................19
Deutsch............................................................................25
Italiano.............................................................................31
Русскй.............................................................................37

1 2
carry emergency calls to any type of hospital, law
enforcement agency, medical care unit (“Emergency
Service(s)”) or any other kind of Emergency Service.
You must make additional arrangements to access
Emergency Services. It is Your responsibility to pur-
chase SIP-compliant Internet telephone service, prop-
works as You expect. If You do not do so, it is Your re-
sponsibility to purchase traditional wireless or landline
telephone services to access Emergency Services.
MRC NETWORKS DOES NOT PROVIDE CONNEC-
TIONS TO EMERGENCY SERVICES VIA THE MRC-
1200. NEITHER MRC NETWORKS NOR ITS OFFI-
CERS, EMPLOYEES OR AFFILIATES MAY BE HELD
LIABLE FOR ANY CLAIM, DAMAGE, OR LOSS, AND
YOU HEREBY WAIVE ANY AND ALL SUCH CLAIMS
OR CAUSES OF ACTION ARISING FROM OR RE-
LATING TO YOUR INABILITY TO USE THE MRC-
1200 TO CONTACT EMERGENCY SERVICES, AND
YOUR FAILURE TO MAKE ADDITIONAL ARRANGE-
MENTS TO ACCESS EMERGENCY SERVICES IN
ACCORDANCE WITH THE IMMEDIATELY PRECED-
ING PARAGRAPH.
MRC-1200 is a next generation small-to-medium business IP phone that features
2 lines with 2 SIP accounts, a 128x40 graphical LCD, 3 XML programmable con-
text-sensitive soft keys, dual network ports with PoE and 3-way conference. The
MRC-1200 delivers superior HD audio quality, rich and leading edge telephony
features, personalized information and customizable application service, automat-
ed provisioning for easy deployment, advanced security protection for privacy, and
broad interoperability with most 3rd party SIP devices and leading SIP/NGN/IMS
platforms. It is a perfect choice for small-to-medium businesses looking for a high
quality, feature rich IP phone with affordable cost.

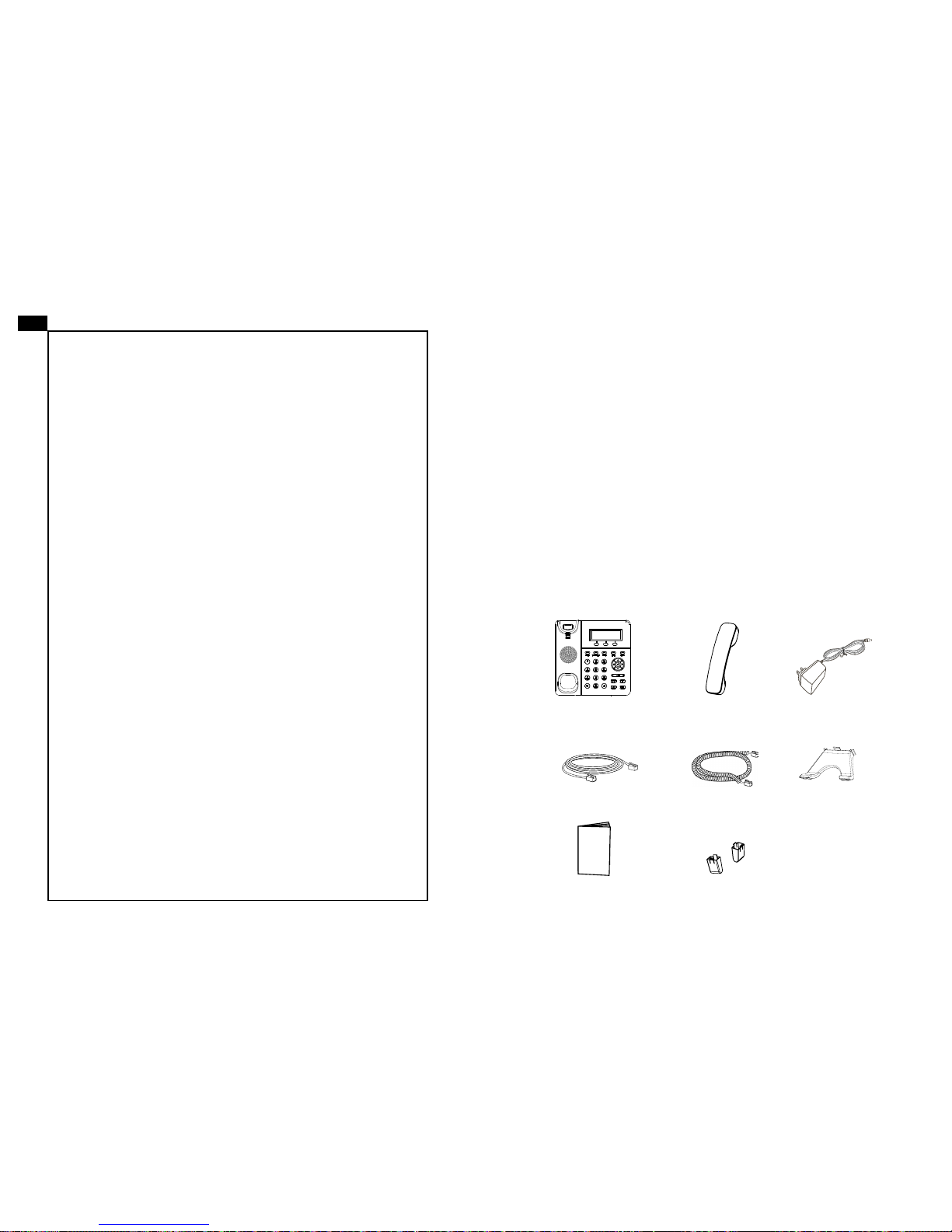

PACKAGE CONTENTS:
OVERVIEW:
EN
WARNING: Please DO NOT power cycle the MRC-1200 when the LED lights
images and cause the unit to malfunction.
1 x MRC-1200 Main Case 1 x Handset
1 x Phone Cord1 x Ethernet Cable 1 x Phone Stand
1 x 5V Power Adapter
1 x Quick Start Guide 2 x Wall Mount Spacers
PRECAUTIONS:
WARNING: Use only the power adapter included in the MRC-1200 package.

3 4
PHONE SETUP:
To setup the MRC-1200, follow the steps below:
1. Connect the handset and main phone case with the phone cord.
2. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a
router (LAN side of the router) using the Ethernet cable.
3. Connect the 5V DC output plug to the power jack on the phone; plug the power
adapter into an electrical outlet.
4. The LCD will display provisioning or rmware upgrade information. Before con-
tinuing, please wait for the date/time display to show up.
5. Using the phone embedded web server or keypad conguration menu, you can
further congure the phone using either a static IP or DHCP.
Slot for the phone
stand if placing the
phone on the table
LAN Port Power Handset Port
Wall mount holes
are available
Slot for the wall
mount spacers if
placing the phone
on the wall
Installing the Phone (Phone Stand):
For installing the phone on the table with the phone stand, attach the phone stand
to the bottom of the phone where there is a slot for the phone stand (upper part,
bottom part).
Installing the Phone (Wall Mount):
1. Attach the two wall mount spacers to the slot for wall mount spacers on the
back of the phone.
2. Attach the phone to the wall via the wall mount hole.
3. Pull out the tab on from the handset cradle (See gure below).
4. Rotate the tab and plug it back into the slot with the extension up to hold the
handset while the phone is mounted on the wall (See gure below).
Tab with extension up
Handset Rest
Tab with extension down
PC Port Headset Port
CONNECTING THE PHONE:

5 6
Note: For the detailed user manual, please download from:
http://www.mrcnetworks.com/support
1. Make sure the phone is idle.
User ID, SIP Auth ID, SIP Password.
Manual.
5. Please contact your ITSP (Internet Telephony Service Provider) for additional
1. To access the MENU, press the round MENU button.
2. Navigate the menu by using the UP/DOWN and LEFT/RIGHT buttons.
4. The phone automatically exits MENU mode when there is an incoming call, the
phone goes off-hook, or when the MENU mode is left idle for 60 seconds.
Tips For Using the Keypad:
1. Ensure your phone is powered up and connected to the Internet.
2. Press MENU button to go into menu of the phone.
3. Press the ‘down” arrow button to “Status” and press MENU button to check the
IP address.
5. The default administrator password is “admin”; the default end-user password
is “123”.
PHONE CONFIGURATION:
Soft Keys
Message Waiting Indicator
Line Keys
Navigation Keys
Menu/OK Key
Hold
Transfer Conference
Standard Keypad
Speaker
Send
Volume
Mute
Headset

7 8
MRC-1200不预设对医院，执法机构，医疗中
心(急救服务)以及各种紧急服务的紧急通话服
务。用户必须自行设定紧急通话功能。用户必
须自行购买SIP兼容的网络电话服务，正确的
设定MRC-1200使用该服务，并定期测试您的
配置以确保MRC-1200如预期工作，否则请购
买传统无线或有线电话服务来拨打紧急通话。
MRC Networks 公司的MRC-1200不支持紧急
通话服务。MRC Networks 公司、其管理者和
员工以及其相关机构对此所造成的任何索赔、
损失或者损害都不负有任何法律追究责任。
在此，您将无权对任何以及所有由于无法通过
MRC-1200拨打紧急电话以及没有遵照前段文
字描述而造成紧急通话失败的事件提出诉讼。
ZH
警告: 请不要在设备启动未完成LED灯闪烁的时候或设备的升级软件的过程中断
开电源，因为如刚才所述的操作会导致话机本身的程序损坏，进而导致设备无法
启动。
MRC-1200是一款功能丰富的中小型商务IP电话。它支持2个SIP账号下的2条线
路通讯，128x40图形化灰度LCD显示屏，3个可编辑XML应用程序软按键，2个
10/100 Mbps 自适应交换式以太网接口,支持PoE供电，三方会议。 MRC-1200具
有优异的高清晰语音质量和丰富完备的电话功能。它支持自动化的个人多媒体信
息服务、自动配置、先进的安全隐私保护设置。它广泛兼容其它第三方SIP设备及
主要SIP/NGN/IMS平台。对于追求性价比的企业用户来说，MRC-1200将是理想
的选择。
设备包装清单:
MRC-1200 话机（1台） 电话手柄（1个） 电源适配器
网线 （1根） 手柄连线（1根） 桌面支架 （1个）
快速安装手册（1本）墙体支架配件（2个）
注意事项:
产品概览:
警告: 请使用设备包装中的电源，因为使用其他没有经过认证的替代电源适配器
有可能对设备造成损害。

9 10
安装电话:
墙体支架插槽
桌面支架插槽
墙体支架配件插槽
安装电话 (墙体支架):
1. 将墙体支架插入电话背面的支架插槽中；
2. 通过墙孔将电话固定在墙上；
3. 如下图所示，将话机手柄槽下方的扣机零件取出；
4. 将该零件倒转，然后重新插入原处。此时零件凸出处在外，当电话使用墙体支
架固定在墙上时，手柄可以垂直地稳定扣入手柄槽中，不会滑落。
话机手柄插槽
凸出处向上
凸出处向下
安装电话 (桌面支架):
将桌面支架插入电话背面的支架插槽中。用户可以使用两排插槽中的一排，不用
的插槽用于不同的倾斜角度。
电话的连接:
PC端口 网络连接端口 5V电源 耳机 手柄
连线步骤：
1. 用手柄连线连接电话手柄和电话主机；
2. 用网线连接电话的网络接口和外部网络接口（如：集线器或交换机上的RJ-45网
络接口）；
3. 用电源适配器连接电话电源接口和交流电源插座；
4. 电话屏幕将会显示设备启动或固件升级信息。请耐心等待至时间/日期显示；
5. 话机启动后，用户可以在主菜单或WEB浏览器进一步设置静态IP或者DHCP，从
而获得网络连接。
