ANTENNA HEATING SYSTEM
AHS-1022
Operating manual

Version 0.1.1 2
Antenna heating system AHS-1022
Table of contents
1DESCRIPTION AND OPERATION OF THE PRODUCT ...............................................4
1.1 Description................................................................................................................................4
1.2 Technical specifications............................................................................................................4
1.3 The System components ...........................................................................................................6
1.4 Structure and operation of the System......................................................................................7
1.5 Measurement instruments, tools and appliances.......................................................................8
1.6 Marking and sealing..................................................................................................................8
1.7 Packaging..................................................................................................................................8
2DESCRIPTION AND OPERATION OF THE SYSTEM COMPONENTS.....................9
2.1 Control switchboard of antenna heating system .......................................................................9
2.2 Antenna heating unit...................................................................................................................9
2.3 Multipurpose digital repeater DR-209М.................................................................................11
2.4 Junction box КР-124PW.........................................................................................................22
3INTENDED USE...................................................................................................................23
3.1 Operational limitations............................................................................................................23
3.2 Usage preparations..................................................................................................................23
3.3 Intended use ............................................................................................................................23
4TECHNICAL SERVICE OF THE SYSTEM....................................................................25
4.1 General description .................................................................................................................25
4.2 Safety features.........................................................................................................................25
4.3 Maintenance routine................................................................................................................25
4.4 Long-term storage (preservation)............................................................................................26
4.5 Installation and dismantling....................................................................................................28
5CURRENT REPAIR.............................................................................................................29
5.1 General instructions ................................................................................................................29
5.2 Safety features.........................................................................................................................29
5.3 Current repair..........................................................................................................................29
5.4 Repair using SPTA..................................................................................................................30
6STORAGE.............................................................................................................................31
7TRANSPORTATION...........................................................................................................32
8DISPOSAL.............................................................................................................................33
9WARRANTY.........................................................................................................................34
APPENDIX А (MANDATORY) OVERALL AND INSTALLATION DIMENSIONS OF
THE SC..................................................................................................................................35
APPENDIX B (MANDATORY) CONNECTION DIAGRAMS OF THE PRODUCT........39

3 Version 0.1.1
Operating manual
This operating manual (hereinafter –OM) describes composition, structure, and
operation of Antenna heating system AHS-1022 (hereinafter –the System), as well as
instructions on safe and correct operation of the System (intended use, technical service
and current repair), and information on disposal of the System components (hereinafter –
the SC).
Only those who have read and understood this document and those who have had
special training shall be permitted to operate the System according to the applicable
regulations.
In addition to the instructions given in this document, the safety regulations and
rules applicable in the field shall be observed.
TERMS AND ABBREVIATIONS:
AHS
Antenna heating system
AHU
Antenna heating unit
CL
Check list
CSAHS
Control switchboard of antenna heating system
КР
Junction box КР-124PW
LFGS
Large fine porous granulated silica gel
OM
Operating manual
QCD
Quality control department
Repeater
Multipurpose digital repeater DR-209М
RF
Radio frequency
SC
System component
SPTA
Spare parts, tools and accessories
TH
Thermoelectric heater
TS
Technical service

Version 0.1.1 4
Antenna heating system AHS-1022
1DESCRIPTION AND OPERATION OF THE PRODUCT
1.1 Description
AHS is applied at onshore facilities, as well on sea- and river-going vessels.
The System ensures:
automatic heating of antennae installed on open deck to protect them against low
temperature using antenna heating units (hereinafter - AHU);
main/standby power switching using CSAHS and additional КРs;
temperature set up and control inside each AHU (dome) using a repeater via
digital interface RS-422;
connection of more than one AHU to one CSAHS applying КР. Maximum
number of connected AHUs to one CSAHS –20 pcs.
1.2 Technical specifications
Tables 1–5 describe technical specifications of the System and SC.
Table 1 –Main technical specifications of AHS
Parameter
Value
Main (standby) electric power supply:
voltage, V
frequency, Hz
220
50
Max. power budget, kW
4.4
Operating temperature, °C
–52…+60
Limiting temperature, °C
–60…+70
Max. maintained temperature inside dome, °С
(at ambient temperature –52 °С)
–6
Table 2 –Main technical specifications of AHU
Parameter
Value
with dome
w/o dome
Electrical power supply:
voltage, V
frequency, Hz
220
50
Max. power consumption, W
AHU-1
AHU-2
AHU-3
400
600
1000

5 Version 0.1.1
Operating manual
Parameter
Value
with dome
w/o dome
Operating temperature, °C
–52…+60
Limiting temperature, °C
–60…+70
Protection degree
IP56
–
Weight, kg
AHU-1
AHU-2
AHU-3
7.4
11.4
22.8
6.0
9.3
17.2
Overall dimensions, mm
AHU-1
AHU-2
AHU-3
Øх V
370.0 х 440.4
700.0 х 770.4
1133.1 х 1238.1
L х H х W
277.0 х 218.0 х 195.0
422.0 х 260.2 х 333.0
462.0 х 428.0 х 299.7
Table 3 –Main technical specifications of CSAHS
Parameter
Value
with repeater
w/o repeater
Electrical power supply:
voltage, V
frequency, Hz
220
50
Max. power consumption, W
5
25
Operating temperature, °C
–15…+55
Limiting temperature, °C
–60…+70
Protection degree
IP56
IP22
Weight, kg
16.6
17.8
Overall dimensions (L хH хW), mm
380 х 190 х 517
Table 4 –Main technical specifications of repeater
Parameter
Value
Rated input voltage, V DC
24
Max. power consumption, W
20
Processor
ARM Cortex-A8 (AM3359)
Portable memory card, GB
8
RAM, МB
512
Operating temperature, °C
–15…+55
Limiting temperature, °C
–60…+70
Protection degree
IP22
Weight, kg
1.6
Overall dimensions (L хH хW), mm
160.0 х 208.0 х 69.3

Version 0.1.1 6
Antenna heating system AHS-1022
Table 5 –Main technical specifications of КР
Parameter
Value
Total number of terminals
8
Number of terminals to connect consumers
7
Max. permissible voltage, V
220
Max. permissible current, А
20
Operating temperature, °C
–15…+55
Limiting temperature, °C
–60…+70
Protection degree
IP56
Weight, kg
1.9
Overall dimensions (L хH хW), mm
278 x 148 x 52
1.3 The System components
Table 6 describes the list of SC included in the System.
Note –Exact quantity of AHU and КР is defined at delivery and depends on the
customer’s facilities.
Table 6 –The System components
Name
Description
Notes
CSAHS
Main/standby input voltage switching, 220 V AC,
frequency 50 Hz per load
AHU
Antennae heating.
Antennae protection against atmospheric
precipitation
With dome
Antennae heating
W/o dome
Repeater
Temperature set up and control inside each AHU
(dome).
Visual control over AHU parameters and
conditions
КР
Connection of 2…20 AHUs to one CSAHS
To power AHU and CAN bus
connection
Depending on the applied SC the System may have four types (Table 7).

7 Version 0.1.1
Operating manual
Table 7 –The System types
Name
Quantity, pcs.
Type 1
Antenna heating unit AHU*
1…20
Control switchboard of antenna heating system CSAHS
1
Multipurpose digital repeater DR-209М
1
Junction box КР-124PW
2**
Type 2
Antenna heating unit AHU
1…20
Control switchboard of antenna heating system CSAHS
1
Junction box КР-124PW
2*
Type 3
Antenna heating unit AHU
1…20
Multipurpose digital repeater DR-209М
1
Junction box КР-124PW
2*
Type 4
Antenna heating unit AHU
1…20
* Type may change depending on size and availability of RF transparent dome.
** Applied if more than two AHUs are connected. Define quantity of delivered КРs assuming that
every seven AHUs require two КРs (to connect external power supply and data interface).
1.4 Structure and operation of the System
The Systemincludes metal cabinet CSAHS (Figure 1, position 1) that powers AHU
(figure 1, position 2) with or w/o RF transparent dome (figure 1, position 3). Temperature
set up and control inside each AHU (dome) is carried out using repeater (figure 1,
position 4). Use КР to connect 2-20 AHUs to one CSAHS simultaneously (figure 1,
position 5).
Figure 1 –The System components

Version 0.1.1 8
Antenna heating system AHS-1022
1.5 Measurement instruments, tools and appliances
Control operation of the SC using integrated controls and LED light indicators. For
more information on the controls and LEDs see section 2.
Table 8 describes amount of consumables required for the TS.
Table 8 –Consumables required for the TS
Name and identifier
of consumables
Amount of
consumables
Note
Cleaning cloth
0.10 kg
To clean surfaces of the SC –use clean cloth
To remove severe contamination –use cloth soaked in alcohol
Rectified hydrolytic
technical ethyl
alcohol
0.05 l
To soak cloth while cleaning the Product
Varnish
0.05 kg
To cover surfaces of the Product in case of paint coating
damage
Abrasive cloth
0.06 х 0.06 m
To polish surfaces of the Product in case of paint coating damage
1.6 Marking and sealing
The SC have nameplates providing the following information:
‒name;
‒power supply voltage (switching voltage –for КР);
‒protection degree (if present);
‒power consumption (if present);
‒weight;
‒serial number;
‒date of manufacturing;
‒the manufacturer’s address and trademark.
Marking of transport packaging is carried out according to the applicable
standards, and includes the following handling marks: «Fragile (goods). Handle with
care», «Keep dry», «This side up».
Sealing of the System and SC is not provided.
1.7 Packaging
AHU and CSAHS are packed in close-boarded boxes, repeater and КР –in
corrugated board boxes. All packaging of the SC include inner packaging (air bubble
film). Transport packaging is also used as a returnable packaging for transportation to
the repair location and back.
All packaging items are sealed by the manufacturer’s QC department.

9 Version 0.1.1
Operating manual
2DESCRIPTION AND OPERATION OF THE SYSTEM COMPONENTS
2.1 Control switchboard of antenna heating system
CSAHS is a painted metal cabinet. Figure 2 describes a general view of CSAHS
with an integrated repeater.
Figure 2 –CSAHS with an integrated repeater
CSAHS is mounted on the wall through the mounting holes (Figure 2, position 9).
Three LED light indicators (Figure 2, position 1) are located on the front panel
displaying CSAHS operation status (on/off), main and standby power. Once the power is
supplied, corresponding power LED is lighting up (green), when there is no power –LED
is not lighting. «ON» LED is lighting (green) together with one of the power LEDs.
Repeater is installed into CSAHS front panel (Figure 2, position 2). Use a key to
open the cabinet (Figure 2, position 3). Nameplates of the System (Figure 2, position 7)
and CSAHS (Figure 2, position 8) are attached to the side panel.
Cable glands SKINTOP MS-M 25x1.5 ensure main and standby power
connection to CSAHS (Figure 2, position 4). Use cable glands to connect KP: SKINTOP
MS-M 16x1.5 (Figure 2, position 5) for CAN bus connection, and
SKINTOP MS-M 25x1.5 (Figure 2, position 6) to connect AHU power supply.
2.2 Antenna heating unit
AHU is an RF transparent thermal insulating dome with TH and temperature
sensors installed inside it. Figure 3 describes a general view of AHU (for example,
AHU-1).

Version 0.1.1 10
Antenna heating system AHS-1022
Dependingon size(seeTable 2 and FiguresА.1–А.3) and quantityofTH, AHU may
have three types:
‒AHU-1 –small, two THs;
‒AHU-2 –medium, four THs;
‒AHU-3 –large, four THs.
From two to four THs ensure heating of each antenna (Figure 3, position 2). AHU
maybe delivered with a dome (Figure3, position 5), and without it. Temperature sensors are
located near THs to monitor current AHU temperature (Figure 3, position 4).
Use data connectors (Figure 3, position 3) and power input connectors (Figure 3,
position 1) to connect KP.
If AHU is applied together with a dome, connect AHU through cable glands at the
bottom of the dome (Figure 3, position 6), and mount it –using mounting studs (Figure 3,
position 7).
Figure 3 –AHU-1
EveryAHU has an ID number,displayedonthenameplateand setusing DIP-switch.
Description of DIP-switch positions and ID number of AHU are shown in Figure 4.

11 Version 0.1.1
Operating manual
–switch in top position
–switch in down position
Figure 4 –DIP-switch and ID number of AHU
2.3 Multipurpose digital repeater DR-209М
2.3.1 Description
Repeater is manufactured in painted metal casing; a port to connect power cable
(Figure 5, position 3), and interface RS-422 serial ports to connect data cables (Figure 5,
position 1 and 2) are located on the rear panel under the protective cover. A USB port to
connect data storage device (to update AHU and repeater software) (Figure 5, position 4)
is on the right side panel. AHU software update is available only for manufacturer’s
representatives.

Version 0.1.1 12
Antenna heating system AHS-1022
Figure 5 –Repeater’s rear panel
Controls and colour LCD screen 8" (resistive touch screen) to display visual data
are on the front panel. Figure 6 describes a general view of the repeater’s front panel.
Figure 6 –Repeater’s front panel
Table 9 according to Figure 6 describes repeater’s controls.

13 Version 0.1.1
Operating manual
Table 9 –Repeater’s controls
Position №
Control
Description
1
or Menu
To enter settings menu
2
▲
To increase backlight brightness
3
▼
To decrease backlight brightness
4
or Exit
To exit settings menu
5
To turn on (off) power
* Depends on a type of repeater.

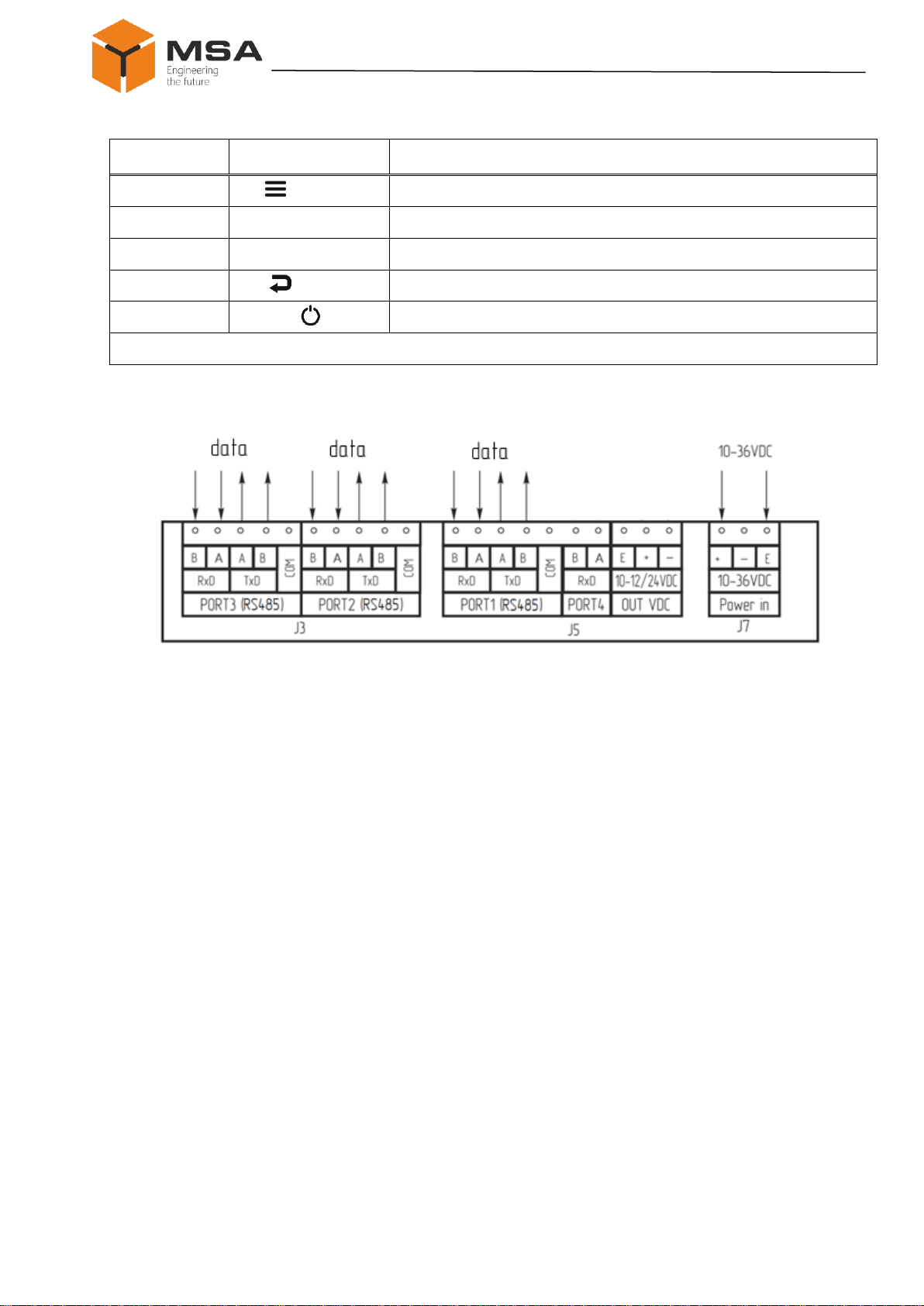

Figure 7 describes connection diagram of the repeater.
Figure 7 –Connection diagram of the repeater
2.3.2 Repeater’s software
Getting started
Once repeater is switched on, AHU initialization and operation test occur. If all
connected AHUs are on the network and operate correctly, the display will take the main
screen view, see Figure 8.
If an error occurs in AHU operation, the main screen will display «Тревога» on
the red flashing background, and the line of faulty AHU will be highlighted with
red (Figure 9, а), or «Предупреждение» on the yellow flashing background, and yellow
line of faulty AHU.
If repeater is switched on at the moment of main or standby power failure, the
main screen will display «Предупреждение» on yellow background (Figure 9, b).

Version 0.1.1 14
Antenna heating system AHS-1022
Figure 8 –Main screen view

15 Version 0.1.1
Operating manual
а)
b)
Figure 9 –Main screen view in case of error
You can see main (основное питание) and standby (резервное питание) power
indication in the bottom left corner of the main screen. If circle indication on the left is
green, power is available, if red –not available.
Press « » to open a screen with three tabs, see Figure 10. Active tab is
illuminated with blue.

Version 0.1.1 16
Antenna heating system AHS-1022
Figure 10 –Repeater’s main menu
Menu «Оборудование»
Figure 11 –Menu «Оборудование»
Table 10 according to Figure 11 describes boxes and buttons of «Оборудование»
menu.

17 Version 0.1.1
Operating manual
Table 10 –Menu «Оборудование»
Position
№
Name
Description
1
ID
AHU network address
2
Имя
AHU name
3
Состояние
AHU status («Инициализация» –initialization, «В работе» –
operating, «Предупреждение» –warning, «Тревога» –alarm)
4
Общ.Тест
To test all connected AHUs for operation errors
5
Общ.Сброс
To reset all removed errors of connected AHUs
6
To set up default parameters for all connected AHUs
7
To set up name and ID number for a new AHU
8
To edit heating parameters of the selected AHU
9
To delete the selected AHU
10
ОК
To return to the main screen
11
Отмена
To return to the main screen
Table 11 describes parameters which are displayed after pressing « » button.
Table 11 –Description of parameters
Parameter
Default value
Описание
Имя
–
AHU name
(this line appears only while editing one AHU)
Задание tзад, °С
20.0
To set up required temperature inside dome (tset)
Нижняя граница
гистерезиса -t, °С
0.0
Heating will switch on when the temperature falls lower than
«tset –0.0»
Верхняя граница
гистерезиса +t, °С
5.0
Heating will switch off when the temperature rises higher than
«tзад + 5.0»
Нижняя допустимая
граница tн, °С
–40.0
If the temperature is lower than the specified one, THs are
switched on forcefully
Верхняя допустимая
граница tв, °С
70.0
If the temperature is higher than the specified one, THs are
switched off forcefully
Нижняя допустимая
граница Iн, А
0.1
If current values of THs are lower than the specified ones,
alarm actuates
Верхняя допустимая
граница Iв, А
10000.0
If current values of THs are higher than the specified ones,
alarm actuates

Version 0.1.1 18
Antenna heating system AHS-1022
Parameter
Default value
Описание
Время на нагрев Тн, с
600.0
Time (Тн) required for temperature increase inside dome when
THs are switched on.
If time is exceeded, alarm actuates
Прирост температуры
tпза время Tн, °С
1.0
Temperature inside dome is to be increased by this value for
the specified heating time Tн
Максимальное
различие датчиков
|t1-t2| , °С
10.0
Max. difference between two temperature sensors, where t1 –
readings of first sensor, t2 –readings of second sensor.
If readings exceed the preset value, warning is displayed
Время выхода на
постоянную мощность
Тпс, с
2.0
Time after start of heating to test TH power
Время на тест Т1, с
5.0
Time to test the System.
Set 0.0 to disable this option
Период
автоматического
тестирования Т2, с
86400.0
Time for the System self-test (obligatory)
Коэффициент
измерителя тока Kcur
1.000
Coefficient to correct TH power values. Set up by the
manufacturer’s representative while providing primary settings
Датчик 1 (Д1)
Датчик 2 (Д2)
On
On
If one of the sensors has wrong readings, it may be
disconnected.
Calculations consider minimum value from the values of both
sensors
Канал 1
Канал 2
Канал 3
Канал 4
On
On
On
On
One channel corresponds to one connected TH
Текущая версия
V1.3.2
Software version of the selected AHU (this line appears only
while editing one AHU)
Default parameters include button «Отправить параметры на все ПОА»; press
this button to send the selected parameters to all connected AHUs. To change parameters
of a single AHU, choose it in the list and press « ».
While editing, «Обновление прошивки» button that may be used only by the
manufacturer’s representative is active.

19 Version 0.1.1
Operating manual
Menu «Настройки»
Menu «Настройки» is used by manufacturer’s representative while providing
primary settings of the Product. Figure 12 describes this menu.
Figure 12 –Menu «Настройки»
If power control board is included in the System, select port (Figure 12, box 1) of
connection, and operation mode «Сплатой управления питания» (Figure 12, box 2).
If power control board is not used, selectoperation mode «Без платы управления
питанием» (Figure 12, box 2) and set up supply voltage (Figure 12, box 3).
Boxes 4–6 in Figure 12 display «Норма» –when voltage complies with the preset
range, or «Авария» when voltage exceeds the range.
Button «Калибровка значений» (Figure 12, position 7) is used only by the
manufacturer’s representative while providing primary settings.
To save the provided changes in «Настройки» menu, press «ОК» (Figure 12,
position 8) to return to the main screen, or «Применить» (Figure 12, position 9) to
continue operation in this menu.
To return to the main screen without saving changes –press «Отмена»
(Figure 12, position 10).
