MSD 84665 User manual

The supplied magnet of the pickup assembly can only be installed in one position to
operate correctly. The magnet has a black stripe on one end to indicate its polarity
and correct position. This black line must point towards the pickup assembly as
shown in the figure. Also, the orange stripe must point towards the reluctor of the
distributor.
1. Position the magnet on the bottom of the pickup mount, with the black stripe on the side of the magnet facing the pickup (Figure 1).
The air gap between the pickup and reluctor should be between .018” - .030”.
2. Place a small bead of silicone sealer on the back of the pickup assembly and place it in the distributor housing. Most gasket silicone
sealers can be used. Apply a thin, but uniform layer of the supplied heat sink compound to the bottom surface of the module.
3. The existing hardware must be re-used to secure the pickup and, the module to the housing. Torque the pickup screws to 25 in-lb,
and the module screws to 10 in-lb.
BLACK
STRIPE
PICKUP
MSD Ignition Module / Pickup Kit
PN 84665
WARNING:Before installing Module, disconnect the battery
cables, always remove the Negative (-) cable first
and install it last.

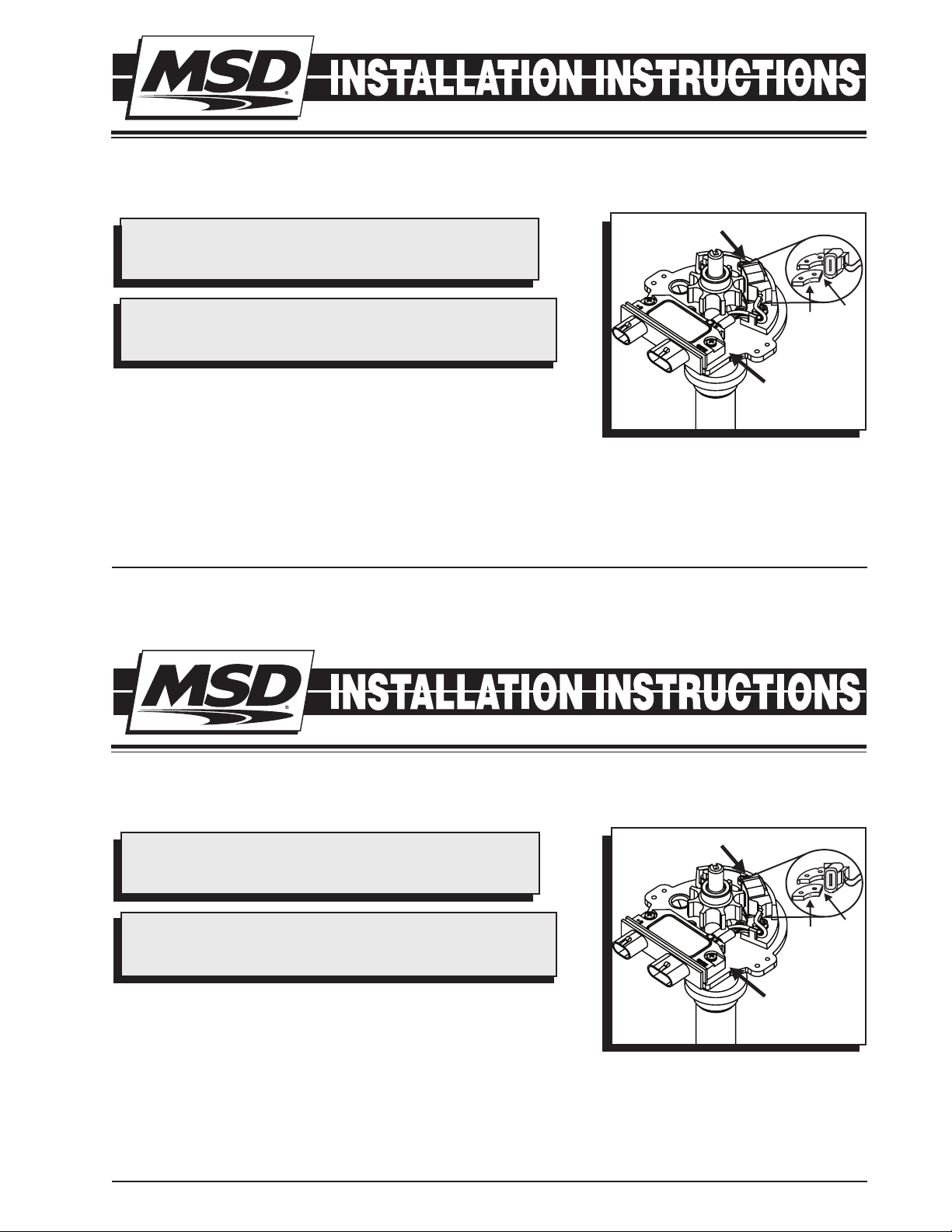

Figure 1 Replacing the Module.
Important: Read these instructions before attempting the installation.
Parts Included:
1 - Magnet 1 - Heat Sink Compound
1 - Pickup Assembly 1 - Ignition Module
ORANGE
STRIPE
MODULE
MSD• WWW . M S D P ERFORMANCE.COM • [phone]
The supplied magnet of the pickup assembly can only be installed in one position to
operate correctly. The magnet has a black stripe on one end to indicate its polarity
and correct position. This black line must point towards the pickup assembly as
shown in the figure. Also, the orange stripe must point towards the reluctor of the
distributor.
1. Position the magnet on the bottom of the pickup mount, with the black stripe on the side of the magnet facing the pickup (Figure 1).
The air gap between the pickup and reluctor should be between .018” - .030”.
2. Place a small bead of silicone sealer on the back of the pickup assembly and place it in the distributor housing. Most gasket silicone
sealers can be used. Apply a thin, but uniform layer of the supplied heat sink compound to the bottom surface of the module.
3. The existing hardware must be re-used to secure the pickup and, the module to the housing. Torque the pickup screws to 25 in-lb,
and the module screws to 10 in-lb.
BLACK
STRIPE
PICKUP
MSD Ignition Module / Pickup Kit
PN 84665
WARNING:Before installing Module, disconnect the battery
cables, always remove the Negative (-) cable first
and install it last.
Figure 1 Replacing the Module.
Important: Read these instructions before attempting the installation.
Parts Included:
1 - Magnet 1 - Heat Sink Compound
1 - Pickup Assembly 1 - Ignition Module
ORANGE
STRIPE
MODULE
MSD• WWW . M S D P ERFORMANCE.COM • [phone]

Limited Warranty
M SD warrants this product to be free from defects in material and workmanship under its intended normal use*, when properly installed
and purchased from an authorized MSD dealer, for a period of one year from the date of the original purchase. This warranty is void for any
products purchased through auction websites. If found to be defective as mentioned above, it will be repaired or replaced at the option
of MSD. Any item that is covered under this warranty will be returned free of chargeusing Groundshipping methods.
This shall constitute the sole remedy of the purchaser and the sole liability of MSD. To the extent permitted by law, the foregoing is
exclusive and in lieu of all other warranties or representation whether expressed or implied, including any implied warranty ofmerchantability
or fitness. In no event shall MSD or its suppliers be liable for special or consequential damages.
*Intended normal use means that this item is being used as was originally intended and for the original application as sold by MSD.
Any modifications to this item or if it is used on an application other than what MSD markets the product, the warranty will bevoid. It is the
sole responsibility of the customer to determine that this item will work for the application they are intending. MSD will accept no liability
for custom applications.
Service
In case of malfunction, this MSD component will be repaired free of charge according to the terms of the warranty. When returning
MSD components for warranty service, Proof of Purchasemust be supplied for verification. After the warranty period has expired, repair
service is basedon aminimum and maximum fee.
All returns must have a Return Material Authorization (RMA) number issued to them before
being returned. To obtain an RMA number please contact MSD Customer Service at 1 [phone]
or visit our website at www.msdperformance.com/rma to automatically obtain a number and shipping information.
When returning the unit for repair, leave all wires at the length in which you have them installed. Be sure to include a detailed account
of any problems experienced, and what components and accessories are installed on the vehicle. The repaired unit will be returned as
soon as possible using Ground shipping methods (ground shipping is covered by warranty). For more information, call MSD at (915)
855-7123. MSD technicians are available from 7:00 a.m. to 5:00 p.m. Monday - Friday (mountain time).
