MSE Audio SoundTube IPD-TSB2.0 Configuration guide

Install Instructions for:
IPD-TSB2.0 Dante-Enabled Soundbar
IPD-TSB2.0
by
Box Contents
© 2020 MSE Audio, and SoundTube Entertainment, Inc. All rights reserved. P# INS-IPD-TSB2.0 | Rev 10.23.2020
UL Listed _____________
1.855.663.5600 | www.soundtube.com
Do not spec or install speaker near support beam, ventilation duct or
other structure that may interfere with speaker function or dispersion.
Warning/Avertissement Warning/Avertissement
SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for
optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.
Les haut-parleurs SoundTube doivent être installés par un installateur audio professionnel ou un
entrepreneur. Pour des raisons de sécurité et de performances audio optimales, l'installateur doit suivre
toutes les instructions émises par SoundTube Entertainment.
N'installez pas à proximité d'une poutre de support, d'un conduit de
ventilation ou d'une autre structure susceptible d'interférer avec la
fonction ou la dispersion des enceintes.
Thank you for purchasing the SoundTube IPD-TSB2.0
soundbar. This high-denition 2-channel soundbar provides
outstanding dialogue and clarity along with an open, wide
sound stage.
The IPD-TSB2.0 soundbar speaker is an ultra-thin design
made to t seamlessly under a panel TV. Both table top and
wall mounting options are included with the product. For
on-wall applications, the mounting bracket has adjustments
for lining up and vertically leveling the speaker with the TV.
The soundbar cabinet also has threaded inserts for mounting
the IPD-TSB2.0 to a display wall bracket mechanism.
Note: Please check with the display mount manufacturer for
compatibility and ensure the display mount will support a
12-pound soundbar.
Regardless of application, we recommend that you take the
time to read this manual thoroughly before connecting
speakers to network switch or Dante device. In the unlikely
event that you should experience a problem with set-up or
operation, please contact an authorized SoundTube dealer
for assistance, or contact us directly via mseaudio.com or
our tech support line: 800-874-7076.
Mounting Brackets (x2)
Mounting Pins (x2)
Leveling Screws (x2)
Table Top Mounting Feet (x2)
Table Top Feet Screws (x4)
Table Top Mounting Screws (x2)
IPD-TSB2.0 Soundbar (x1)

1.855.663.5600 | www.soundtube.com
Install Instructions for:
IPD-TSB2.0 Dante-Enabled Soundbar
IPD-TSB2.0
by
1. Read Instructions - All the safety and operating
instructions should be retained before the appliance is
operated.
2. Retain Instructions - The safety and operating
instructions should be retained for future reference.
3. Heed Warnings - All warning son the appliance and in the
operating instructions should be adhered to.
4. Follow Instructions - All operating and other instructions
should be followed.
5. Water and Moisture - The appliance should not be use
near water –for example, near a bathtub, kitchen sink,
laundry machinery, in a damp basement, or near a swimming
pool, etc.
6. Carts and Stands - The appliance
should be used only with a cart or a
stand that is recommended by the
manufacturer.
7. Wall or Ceiling Mounting - The appliance should be
mounted to a wall or ceiling only as recommended by the
manufacturer.
8. Ventilation - The appliance should be situated so that its
location or position does not interfere with its proper
ventilation. For example, the appliance should not be situated
on a bed, sofa, rug, or similar surface that may block the
ventilation openings; it should not be placed into a built-in
installation such as a bookcase or cabinet that may impede
the ow of air through the ventilation openings.
9. Heat - The appliance should be situated away from heat
sources such as radiators, stoves, or other appliances that
product heat.
10. Power Source - The appliance should be connected to
a power supply only of the type described in the operating
instructions or as marked on the appliance.
11. Power Cord Protection - Power supply cords should
be routed so that they are not likely to be walked on or
pinched by items placed up or against them, paying
particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the
appliance.
12. Cleaning - The appliance should be cleaned only as
recommended by the manufacturer.
13. Non-use Periods - The power cord of the appliance
should be unplugged from the outlet when left unused for a
long period of time.
14. Object and Liquid Entry - Care should be taken so that
neither objects fall nor liquids spill into the inside of the
appliance.
15. Damage Requiring Service - The appliance should be
serviced by qualied service personnel when: a. The power
supply cord or the plug has been damaged, b. Objects have
fallen onto or liquid has been spilled into the appliance, c.
The appliance has been exposed to rain, d. The appliance
dose not appear to operate normally or exhibits a marked
change in performance, or e. The appliance has been
dropped or the cabinet damaged.
16. Servicing - The user should not attempt to service the
appliance beyond those means described in the operating
instructions. All other servicing should be referred to qualied
service personnel.
17. Grounding or Polarization - Precautions should be
taken so that the grounding or polarization means of an
appliance is not defeated.
CAUTION: To reduce the risk of electric shock, do not remove cover
service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
APPLICABLE FOR USA, CANADA OR WHERE APPROVED FOR
USAGE
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE
PLUG TO WIDE SLOT, INSERT FULLY.
ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE
LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE
CORRESPONDANTE DE LA PRESE ET POUSSER JUSQU AU FOND.

1.855.663.5600 | www.soundtube.com
Wall/Table Top Mounting Instructions for:
IPD-TSB2.0 Dante-Enabled Soundbar
IPD-TSB2.0
by
Step 1. - Choose Location and Run Cable
Determine that the desired mounting location is safe and
clear of any physical obstructions that might hinder the
proper installation of the speaker. Note: When selecting the
IPD-TSB2.0 mounting location, be sure to carefully inspect
and measure the wall where you intend to mount the speaker
and your at panel TV display. An inspection of the room, or
rooms that back up to the wall you have selected can often
alert you to potential obstacles. An electronic stud-nder is a
useful tool to assist you in selecting the speaker placement,
but be cautious as they often give false readings. For
example, if the wall happens to be a common wall for a
bathroom or kitchen, there is a good chance you will
encounter water or sewer pipes that will not be detected by a
stud-nder. It is recommended, that wherever possible, you
try to fasten mounting brackets to a vertical stud with the
appropriate wood screws. If it is not possible to mount the
brackets over the studs, then it is recommended that the
appropriate hollow wall anchors or toggle bolts be used to
mount the IPD-TSB2.0.
Run CAT5e or CAT6 Ethernet cable to the determined
location and be sure to leave about two feet of extra cable for
the nal speaker installation. Because the IPD-TSB2.0 will
mount a little over 0.5” from the wall, use an RJ45 connector
without a strain relief. If the wire is run through the wall, then
line the hole or J-Box up with the RJ45 connector on the
back of the speaker. Note: Special consideration must be
taken to run an Ethernet cable to the IPD-TSB2.0 speaker.
Be certain that the Ethernet cable will reach the rear of the
speaker where you plan to mount it. The speaker, when
installed correctly, will be slightly over 0.5” from the wall.
If the at panel monitor is not yet mounted to the wall, then
install the display rst to use as a guide for the IPD-TSB2.0.
For best appearance and optimal response characteristics, it
is recommended that the speaker be centered, and placed
below the at panel display.
Step 2.1. - Wall Mounting
For the best audio experience, the IPD-TSB2.0 should be
centrally aligned and mounted directly below the TV display.
Each IPD-TSB2.0 speaker comes with two mounting
brackets that should be installed to the wall 16 inches apart
and centrally located under the TV.
First, locate the center line of your TV display and make a
light pencil mark on the wall that is 2.5” below the bottom of
your display. Next, measure to the left of this mark exactly 8”
and make another mark at that point. Make sure this mark is
also 2.5” below the TV. Repeat this process on the right side
of the display – making sure that this mark is level with the

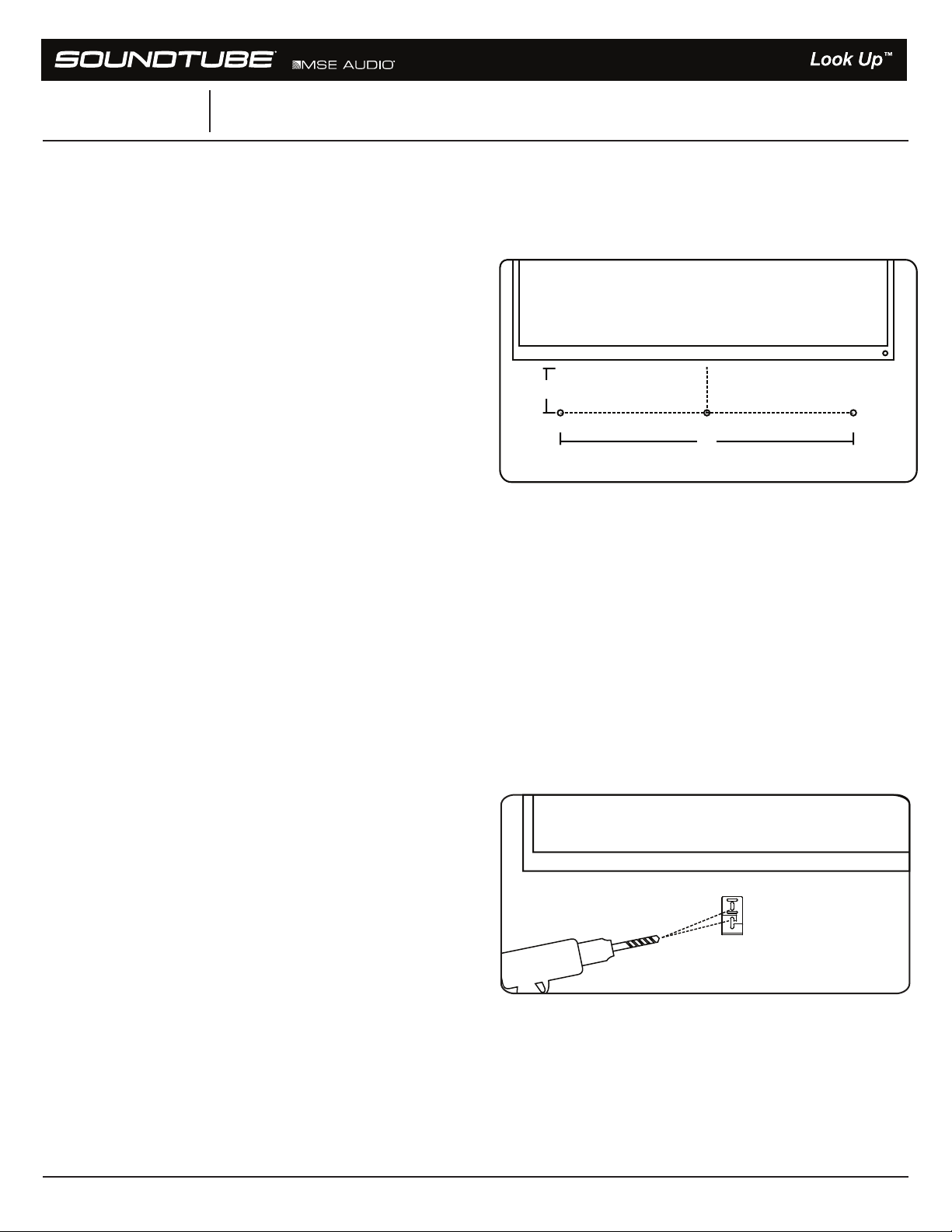

[FIGURE 1]
16”
2.5”
Flat Panel Display
[FIGURE 2]
Flat Panel Display
Using a 1/16” drill bit, drill a pilot hole at each of your two
marks above. Place one of the wall brackets on the wall and
align the pilot hole with the bottom slot on the bracket and
drill a second pilot hold in the center of the upper slot on the
bracket. (Figure 2) This hole will be 7/8” above the rst pilot
hole. Repeat this process for the bracket on the other side.
These pilot holes will let you know if your mounting bracket
location is over a wall stud or not. If it is over a stud then that
bracket can be installed with a suitable screw (for mounting
on sheet rock walls, we recommend at least a #10 x1.5” pan
head screw and a at washer between the screw and the
bracket). If the location for the bracket is not over a wall stud,
then suitable drywall anchors that can support 15 lbs each
must be used.
mark on the left side. This will create two marks that are 16”
apart and 2.5” below the bottom of your display. (Figure 1)
You have now identied the location for the two wall brackets
for the IPD-TSB2.0 speaker.
Following the guidelines above, mount the two brackets to
the wall. Once they are installed, check that the center
distance between the vertical mounting slots on the two
brackets is exactly 16” apart.

1.855.663.5600 | www.soundtube.com
by
IPD-TSB2.0
Wall/Table Top Mounting Instructions for:
IPD-TSB2.0 Dante-Enabled Soundbar

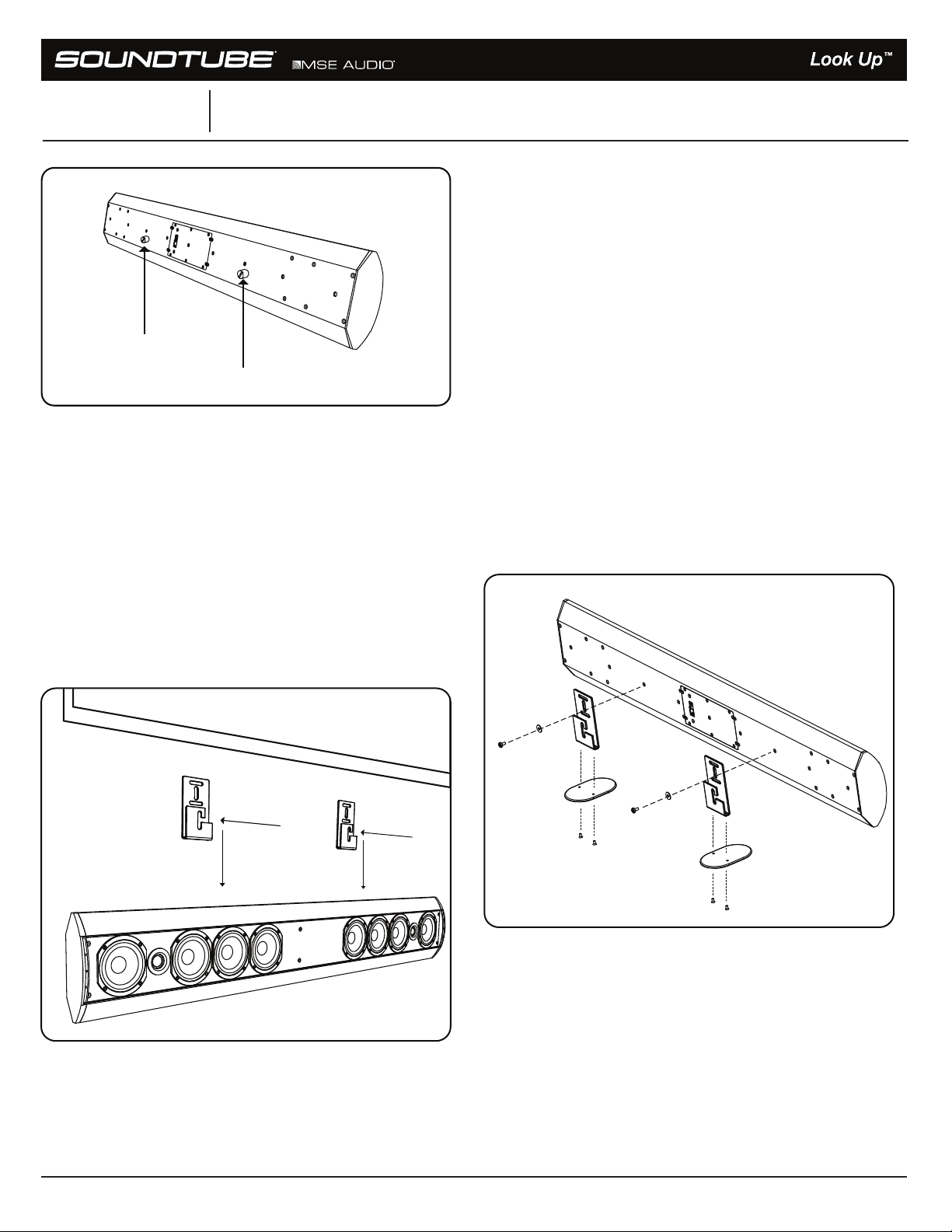

[FIGURE 3]
Locate the two holes on the back of the speaker that are 8”
apart from the center hole and install the two Mounting Pins
in these holes. (Figure 3) The IPD-TSB2.0 is now ready to
be mounted to the wall.
Connect the Ethernet cable to the RJ45 input on the rear of
the IPD-TSB2.0. Carefully slide each Mounting Pin (a.)
horizontally into the slot of the Mounting Bracket, and then
(b.) downward into the vertical slot. (Figure 4) The Leveling
Screws may be inserted into the bottom of the Mounting
Bracket and used to adjust the height and to make sure the
speaker is level. Tightening the screw will raise the speaker
and loosening will lower it.
Step 2.2 - Table Top Mounting
Place the IPD-TSB2.0 face down on a soft clean surface with
the grille on. Orient the speaker so the input terminal is on the
right hand side. (a.) To attach the Table Top Mounting Feet
to the Mounting Brackets, rst remove the Leveling Screws
from the underside of the Mounting Brackets and attach the
Table Top Mounting Feet to the bottom of the bracket using
the two supplied Table Top Feet Screws. Make sure that you
orient the feet so that the longer side points to the front of the
IPD-TSB2.0.
Repeat this for the other Mounting Bracket and Table Top
Mounting Foot. Once you have the Table Top Mounting Feet
securely fastened to the Mounting Brackets, it is now time to
mount them to the IPD-TSB2.0. (b). Align the center of the
cross section on the Mounting Bracket with the center of the
mounting holes on the rear of the speaker and fasten using
the supplied Table Top Mounting Screws for each bracket.
Note: When mounting the table top brackets, fasten the
brackets to the far end mounting holes on each side of the
speaker cabinet.
[FIGURE 5]
a.
b.
a.
b.
Step 3 - Final Adjustments
Be sure the RJ45 input connector on the rear of the speaker
is tightly in place. Tuck any excess Ethernet cable behind the
soundbar cabinet, using tie wraps if necessary to secure the
Ethernet cable.
a.
b.
a.
b.
[FIGURE 4]

1.855.663.5600 | www.soundtube.com
by
IPD-TSB2.0
Wall/Table Top Mounting Instructions for:
IPD-TSB2.0 Dante-Enabled Soundbar
Caring for your Speaker
All SoundTube speakers are nished with a high degree of
craftsmanship. We recommend using a lint-free cloth with a
small amount of glass cleaner to maintain your product.
Avoid cleaning products containing oil, oil derivatives, or
solvents.
Maintenance and Service
Because of MSE Audio’s uncompromising quality control
programs, it is unlikely that your speaker will need service if
connected and used as outlined in this manual. In the event
that a problem does occur, please contact your SoundTube
dealer. Your dealer will have the necessary
factory-authorized parts and trained technicians to quickly
restore your speaker to its original performance
specications.
Warranty
SoundTube warrants its loudspeakers to be free from
defects in material and workmanship for a period of ve (5)
years for speaker product, and three (3) years for electronic
components to the original purchaser. Purchase must be
from either the manufacturer, or an authorized SoundTube
dealer.
This warranty does not cover service or parts to repair
damage caused by misuse, abuse, damage while in transit,
alterations, unauthorized repairs, failure to follow installation
or care instructions, re, ood, or any other cause beyond
the reasonable control of SoundTube or MSE Audio. Defects
in speaker cabinets or grilles must be brought to the
attention of your dealer immediately after purchase. This
warranty will be void if the product’s serial number has been
altered or removed.
Should your SoundTube product require service, or you wish
to return your product, please call or email the MSE Audio
customer service department, or visit mseaudio.com to
complete the appropriate request form. All merchandise
returned without prior authorization will be refused.
Parts/Service
www.mseaudio.com/parts-service
[email protected]
855-663-5600
Returns
www.mseaudio.com/return-form
[email protected]
855-663-5600
Description:
Recommended Power:
Frequency Response ±10dB:
Crossover Frequency:
Max SPL @ 1M:
Tweeter(s):
Woofer(s):
Bass Radiators:
Inputs:
Grille:
Dimensions:
Weight:
Included Accessories:
Description: 2-Way Ultra-Thin
Powered Dante Soundbar
PoE, PoE+, 40W PoE
65 Hz - 20 kHz
3.5 kHz
100 dB
Two 0.75” Silk/Synthetic
Soft-Dome
Four 3” Polypropylene w/ NBR
Surround
Four 3” Polypropylene w/ NBR
Surround
RJ45
Black Powder-Coated
Pressure-t Aluminum
6.75” H x 43” W x 2.5” D
15 lbs
Wall-Mount Hardware,
Horizontal Tabletop Stands
Specications
