MSI 651M-V User manual

i
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in
which case the user will be required to correct the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits.
VOIR LANOTICE D’NSTALLATIONAVANT DE RACCORDER AU RESEAU.
Micro-Star International
MS-7005
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation
G52-M7005XD

ii
Copyright Notice
The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in
the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are
under continual improvement and we reserve the right to make changes without notice.
Trademarks
All trademarks are the properties of their respective owners.
AMD, Athlon™ Athlon™XP, Thoroughbred™ and Duron™ are registered trademarks of AMD Corporation.
Intel® and Pentium® are registered trademarks of Intel Corporation.
PS/2 and OS® 2 are registered trademarks of International Business Machines Corporation.
Microsoft® is a registered trademark of Microsoft Corporation. Windows® 98/2000/NT/XP are registered trademarks
of Microsoft Corporation.
NVIDIA, the NVIDIA logo, DualNet, and nForce are registered trademarks or trademarks of NVIDIA Corporation in the
United States and/or other countries.
Netware® is a registered trademark of Novell, Inc.
Award® is a registered trademark of Phoenix Technologies Ltd.
AMI® is a registered trademark of American Megatrends Inc.
Kensington and MicroSaver are registered trademarks of the Kensington Technology Group.
PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International Association.
Revision History
Revision Revision History Date
V2.0 First release of for PCB 2.x with chipsets SiS651 & SiS962L April 2004
V2.1 First release of Multi-language version for PCB 2.x April 2004
V2.2 USB connector pin definition updated October 2004

iii
Safety Instructions
1. Always read the safety instructions carefully.
2. Keep this User Manual for future reference.
3. Keep this equipment away from humidity.
4. Lay this equipment on a reliable flat surface before setting it up.
5. The openings on the enclosure are for air convection hence protects the equipment from overheating. Do not
cover the openings.
6. Make sure the voltage of the power source and adjust properly 110/220V before connecting the equipment to the
power inlet.
7. Place the power cord such a way that people can not step on it. Do not place anything over the power cord.
8. Always Unplug the Power Cord before inserting any add-on card or module.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause electrical shock.
11. If any of the following situations arises, get the equipment checked by a service personnel:
- The power cord or plug is damaged.
- Liquid has penetrated into the equipment.
- The equipment has been exposed to moisture.
- The equipment does not work well or you can not get it work according to User Manual.
- The equipment has dropped and damaged.
- The equipment has obvious sign of breakage.
12. Do not leave this equipment in an environment unconditioned, storage temperature above 600 C (1400F), it may
damage the equipment.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer.

iv
Table of Content
English.....................................................................1
Deutsch....................................................................15
Français...................................................................25
简体中文...................................................................37
繁體中文...................................................................49
Nederlands..............................................................60
日本語.......................................................................73

1
Introduction
Thank you for choosing the 651M-V Series (MS-7005 v2.X) microATX mainboard. The 651M-V Series
is based on SiS ® 651 & 962L chipsets for optimal system efficiency. Designed to fit the advanced Intel
® Pentium ® 4 processors in 478 pin package, the 651M-V Series delivers a high performance and
professional desktop platform solution.

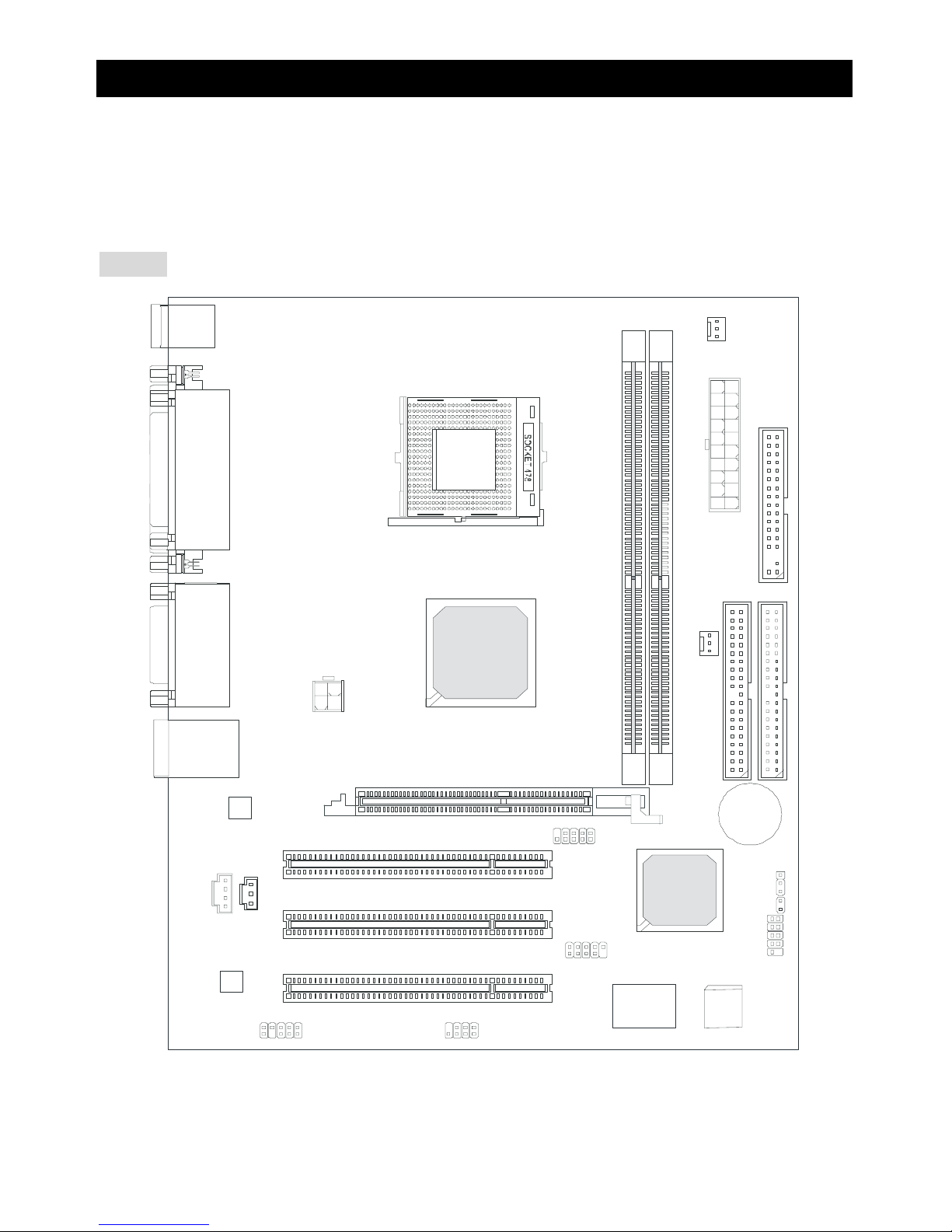

Layout
BATT
+
SiS
962L
SiS 651
DDR1
DDR2
JAUD1
ATX
PowerSupply
SYSFAN1
CPUFAN1
JFP1
JFP2
Codec
Realtek
8201BL
Winbond
W83697HF
BIOS
PCI Slot 3
PCI Slot 2
PCI Slot 1
IDE2
FDD1
IDE1
ATX12V
Top :mouse
Bottom: keyboard
T: LAN jack
B: USB ports
JCD1
AGPSlot
JCI1
JUSB1
JUSB2
JBAT1
JSP1
Top: Parallel Port
Bottom:
COM A
VGAPort
Top :
Game port
Bottom:
Mic
Line-Out
Line-In

2
Specifications
CPU
zSocket 478 for P4 processors (Northwood/Prescott) at 400 MHz/533 MHz
zSupports up to 3.06GHz and higher speed CPU
zHyper-Threading CPU
(For the latest information about CPU, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php)
Chipset
zSiS 651 (702 pin BGA)
- High performance host interface 400 MHz/533 MHz
- Supports 64 Bit high performance DDR200/266/333 memory controller
- Supports AGP 4X/2X interface with fast write transaction
- High throughput SiS MuTIOL connect to SiS962L MuTIOL Media I/O
- High performance 2D/3D and Video Accelerator
zSiS 962L MuTIOL Media I/O (371BGA)
- High performance MuTIOL connect to SiS series NB
- Integrated multi-threaded I/O link ensures concurrency of up/down stream data transfer with
1.2GB/s bandwidth
- Integrated USB 2.0/1.1 host controller and Fast Ethernet MAC controller
- Integrated audio controller with AC97 interface
- Advanced power management and PC2001 compliance
- Integrated RTC, DMA, interrupt, and keyboard controllers
- Integrated PCI to LPCC bridge
Main Memory
zSupports two memory banks using two 184-pin unbuffered DDR 200/266/333 DIMMs
zSupports up to 2GB memory size without ECC
(For the updated supporting memory modules, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php)
Slots
zOne AGP (Accelerated Graphics Port) slot that supports AGP 2.0 4X/2X
zThree PCI 2.2 32-bit Master PCI Bus slots (support 3.3V/5V PCI bus interface)

3
On-Board IDE
zDual IDE controllers integrated in SiS 962L
zSupport Bus Master, Ultra DMA 33/66/100/133 operation modes
zCan connect up to four IDE devices
On-Board Peripherals
zOn-Board Peripherals includes:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 1 serial port (COMA) and 1 VGA port
- 1 parallel port supports SPP/EPP/ECP mode
- 6 USB 2.0/1.1 ports (Rear * 2 / Front * 4)
- 1 Line-In/Line-Out/Mic-In port
- 1 game port
- 1 RJ-45 LAN connector
Audio
zAC97 link controller integrated in SiS 962L SB
z6 channels S/W audio codec Realtek ALC655 codec
- Compliance withAC97 2.2 Spec
- Meets PC2001 audio performance requirement
LAN
zSiS 962L integrated MAC + Realtek 8201BL PHY
- Support 10Mb/s and 100Mb/s auto-negotiation operation
- Compliance with PCI 2.2 and PC99 standard
zSupports Wake-On-LAN and remote Wake-up
zSupports ACPI power management
BIOS
z4MB Award BIOS with PNP BIOS, ACPI, SMBIOS 2.3, Green and Boot Block
zProvides DMI 2.0, WFM 2.0, WOL, WOR, chassis intrusion, and SMBus for system management
Dimension
zMicro-ATX Form Factor: 24.5 cm (L) x 20.0 cm (W)
Mounting
z6 mounting holes
Others
zLive BIOS/Live Driver Update
zPC2001 Compliant
zSuspends to RAM/Disk

4

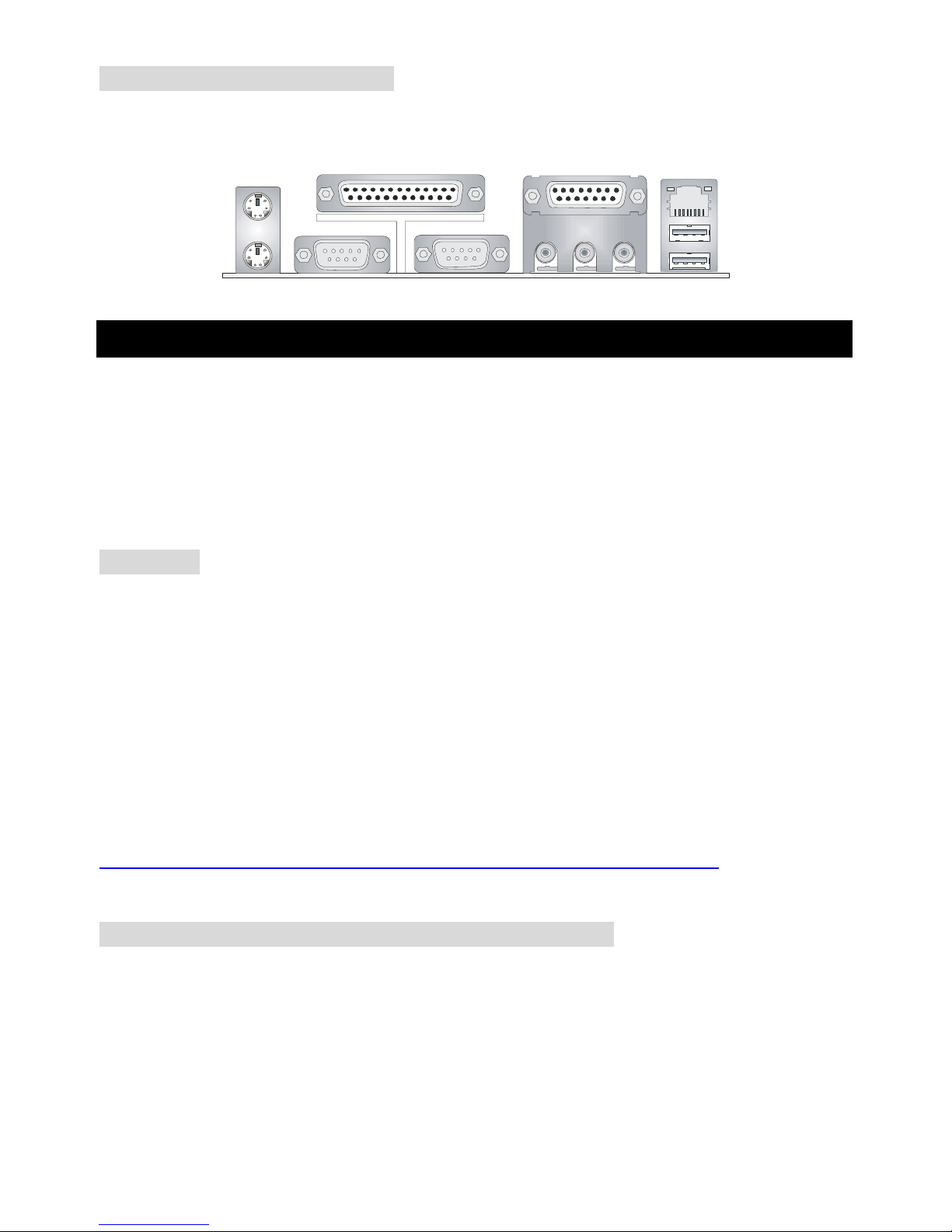

Back Panel
The back panel provides the following connectors:
Mouse
Keyboard
ParallelParallel
COMA VGAPort
L-out L-in MIC
Midi/Joystick LANLAN
USB Ports
Hardware Setup
This chapter tells you how to install the CPU, memory modules, and expansion cards, as well as how to
setup the jumpers on the mainboard. It also provides the instructions on connecting the peripheral
devices, such as the mouse, keyboard, etc.
While doing the installation, be careful in holding the components and follow the installation
procedures.
Central Processing Unit: CPU
The mainboard supports Intel®Pentium®4 Willamette, Celeron, Northwood and Prescott processor in
the 478 pin package. The mainboard uses a CPU socket called PGA478 for easy CPU installation.
When you are installing the CPU, make sure the CPU has a heat sink and a cooling fan attached
on the top to prevent overheating. If you do not find the heat sink and cooling fan, contact your
dealer to purchase and install them before turning on the computer.
For the latest information about CPU, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php
Example of CPU Core Speed Derivation Procedure
If CPU Clock = 133MHz
Core/Bus ratio = 23
then CPU core s
p
eed = Host Clock x Core/Bus ratio
= 133MHz x 23
= 3.06 GHz
Memory Speed/CPU FSB Support Matrix
Memory
FSB DDR 266 DDR 333
400MHz OK OK
533MHz OK OK

5
CPU Installation Procedures for Socket 478
1. Please turn off the power and unplug the power cord before installing the CPU.
2. Pull the lever sideways away from the socket. Make sure to raise the lever up to a 90-degree
angle.
3. Look for the gold arrow. The gold arrow should point towards the lever pivot. The CPU can only
fit in the correct orientation.
4. If the CPU is correctly installed, the pins should be completely embedded into the socket and
can not be seen. Please note that any violation of the correct installation procedures may
cause permanent damages to your mainboard.
5. Press the CPU down firmly into the socket and close the lever. As the CPU is likely to move
while the lever is being closed, always close the lever with your fingers pressing tightly on top of
the CPU to make sure the CPU is properly and completely embedded into the socket.
Installing the CPU Fan
As processor technology pushes to faster speeds and higher performance, thermal management
becomes increasingly important. To dissipate heat, you need to attach the CPU cooling fan and
heatsink on top of the CPU. Follow the instructions below to install the Heatsink/Fan:
1. Locate the CPU and its retention mechanism on the motherboard.
2. Position the heatsink onto the retention mechanism.
3. Mount the fan on top of the heatsink. Press down the fan until its four clips get wedged in the
holes of the retention mechanism.
4. Press the two levers down to fasten the fan. Each lever can be pressed down in only ONE
direction.
5. Connect the fan power cable from the mounted fan to the 3-pin fan power connector on the
board.
Memory
The mainboard provides two 184-pin unbuffered DDR200/DDR266/DDR333 DDR SDRAM, and
supports the memory size up to 2GB. To operate properly, at least one DIMM module must be installed.
For the updated supporting memory modules, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php

6
Install at least one DIMM module on the slots. Memory modules can be installed on the slots in any
order. You can install either single- or double-sided modules to meet your own needs.
Installing DDR Modules
1. The DDR DIMM has only one notch on the center of module. The module will only fit in the right
orientation.
2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in until the golden
finger on the memory module is deeply inserted in the socket.
3. The plastic clip at each side of the DIMM slot will automatically close.
NotchVolt
MSI Reminds You...
Overheating…
Overheating will seriously damage the CPU and system, always make sure the cooling fan can work
properly to protect the CPU from overheating.
Replacing the CPU…
While replacing the CPU, always turn off the ATX power supply or unplug the power supply’s power
cord from grounded outlet first to ensure the safety of CPU.
Power Supply
The mainboard supports ATX power supply for the power system. Before inserting the power supply
connector, always make sure that all components are installed properly to ensure that no damage will
be caused.
ATX 20-Pin Power Connector: CONN1
This connector allows you to connect to an ATX power supply. To
connect to theATX power supply, make sure the plug of the power supply
is inserted in the proper orientation and the pins are aligned. Then push
1
11
3.3V
3.3V
3.3V
-12V
GND
GND
GND
GND
GND
GND
GND
PW_OK
-5V
5V_SB
5V
5V
12 V 5V
PS_ON
5V
10
20

7
down the power supply firmly into the connector.
ATX 12V Power Connector: ATX12V
This 12V power connector is used to provide power to the CPU.
Floppy Disk Drive Connector: FDD1
The mainboard provides a standard floppy disk drive
connector that supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
Chassis Intrusion Switch Connector: JCI1
This connector is connected to 2-pin connector chassis switch. If the Chassis is
open, the switch will be short. The system will record this status. To clear the
warning, you must enter the BIOS setting and clear the status.
CD-In Connector: JCD1
The connector is for CD-ROM audio connector.
SPDIF-OUT Connector: JSP1
The connector is used to connect SPDIF (Sony & Philips Digital
Interconnect Format) interface for digital audio transmission.
Fan Power Connectors: CPUFAN1/SYSFAN1
The CPUFAN1 (processor fan) and SYSFAN1 (system fan) support system cooling fan
with +12V. They support three-pin head connector. When connecting the wire to
the connectors, always take note that the red wire is the positive and should be
connected to the +12V, the black wire is Ground and should be connected to GND. If
the mainboard has a System Hardware Monitor chipset on-board, you must use
a specially designed fan with speed sensor to take advantage of the CPU fan control.
MSI Reminds You...
1. Always consult the vendors for proper CPU cooling fan.
2. CPUFAN1 supports the fan control. You can install the PC Alert utility that will automatically control
the CPU fan speed according to the actual CPU temperature.
Hard Disk Connectors: IDE1 & IDE2
The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 33/66/100/133 controller that provides
GND
L
R
JCD1
3
2
1
VC CS
SPDIF0
GND
GND SENSOR
+12
V
CPUFAN
1
GND SENSOR
+12
V
SYSFAN1
1
3
2
4
GND
GND
12V 12V
2
1GND
CINTRO

8
PIO mode 0~4, Bus Master, and Ultra DMA 33/66/100/133 function. You can connect up to four hard
disk drives, CD-ROM, 120MB Floppy and other devices.
The first hard drive should always be connected to IDE1. IDE1 can connect a Master and a Slave drive.
You must configure second hard drive to Slave mode by setting the jumper accordingly. IDE2 can also
connect a Master and a Slave drive.
MSI Reminds You...
If you install two hard disks on cable, you must configure the second drive to Slave mode by setting its
jumper. Refer to the hard disk documentation supplied by hard disk vendors for jumper setting
instructions.
Front Panel Connectors: JFP1 & JFP2
The mainboard provides two front panel connectors for electrical connection to the front panel switches
and LEDs. JFP1 is compliant with Intel Front Panel I/O Connectivity Design Guide.
HDD
LED
Power
LED
Power
LED
Speaker
Reset
Switch
Power
Switch
117
9
228
10
JFP1 JFP2
Front Panel Audio Connector: JAUD1
The JAUD1 front panel audio connector allows you to connect to the front panel
audio and is compliant with Intel ® Front Panel I/O Connectivity Design Guide.
MSI Reminds You...
If you do not want to connect to the front audio header, pins 5 & 6, 9 & 10 have to be jumpered in order
to have signal output directed to the rear audio ports. Otherwise, the Line-Out connector on the back
panel will not function.
1
29
10

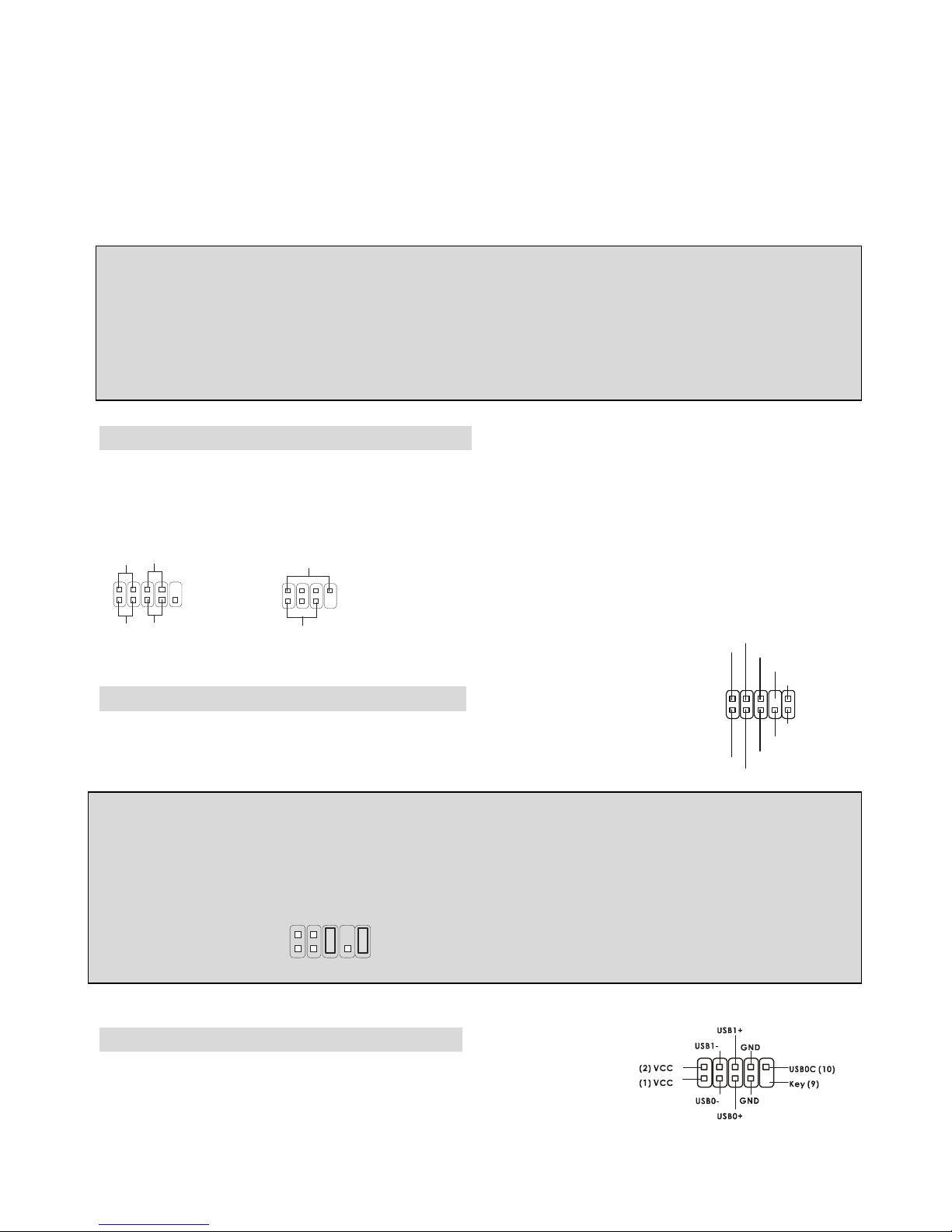

Front USB Connector: JUSB1/JUSB2
The mainboard provides two USB 2.0 pin headers JUSB1 & JUSB2 that
are compliant with Intel I/O Connectivity Design Guide. USB 2.0
technology increases data transfer rate up to a maximum throughput of 480Mbps, which is 40 times
1
29
10
AUD_MIC
AUD_MIC_BIAS
AUD_GND
AUD_VCC
AUD_FPOUT_R
AUD_RET_L
AUD_FPOUT_L
AUD_RET_R
HP_ON
KEY

9
faster than USB 1.1, and is ideal for connecting high-speed USB interface peripherals such as USB
HDD, digital cameras, MP3 players, printers, modems and the like.
Clear CMOS Jumper: JBAT1
There is a CMOS RAM on board that has a power supply from external battery
to keep the data of system configuration. With the CMOS RAM, the system can
automatically boot OS every time it is turned on. If you want to clear the system configuration, use the
JBAT1 (Clear CMOS Jumper ) to clear data. Follow the instructions to clear the data:
MSI Reminds You...
You can clear CMOS by shorting 2-3 pin while the system is off. Then return to 1-2 pin position. Avoid
clearing the CMOS while the system is on; it will damage the mainboard.
AGP (Accelerated Graphics Port) Slot
The AGP slot allows you to insert the AGP graphics card. AGP is an interface specification designed for
the throughput demands of 3D graphics. It introduces a 66MHz, 32-bit channel for the graphics
controller to directly access main memory. The slot supports 8x/4x AGP card.
PCI (Peripheral Component Interconnect) Slots
The PCI slots allow you to insert the expansion cards to meet your needs. When adding or removing
expansion cards, make sure that you unplug the power supply first. Meanwhile, read the documentation
for the expansion card to make any necessary hardware or software settings for the expansion card,
such as jumpers, switches or BIOS configuration.
PCI Interrupt Request Routing
The IRQ, abbreviation of interrupt request line and pronounced I-R-Q, are hardware lines over which
devices can send interrupt signals to the microprocessor. The PCI IRQ pins are typically connected to
the PCI bus INTA# ~ INT D# pins as follows:
Order1 Order2 Order3 Order4
PCI Slot 1 INT B# INT C# INT D# INT A#
PCI Slot 2 INT C# INT D# INT A# INT B#
PCI Slot 3 INT D# INT A# INT B# INT C#
11
3
KeepData ClearD ata
1
3

10
BIOS Setup
Once you enter Award®BIOS CMOS Setup Utility, the Main Menu (figure below) will appear on the
screen. The Main Menu allows you to select from twelve setup functions and two exit choices. Use
arrow keys to select among the items and press <Enter> to accept or enter the sub-menu.
Main Page
Standard CMOS Features
Use this menu for basic system configurations, such as time, date etc.
Advanced BIOS Features
Use this menu to setup the items of Award®special enhanced features.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and optimize your system performance.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
Power Management Setup
Use this menu to specify your settings for power management.
PNP/PCI Configurations
This entry appears if your system supports PnP/PCI.
PC Health Status
This entry shows your PC health status.

11
Frequency/Voltage Control
Use this menu to specify your settings for frequency/voltage control.
Load Fail-Safe Defaults
Use this menu to load the BIOS values for the best system performance, but the system stability may
be affected.
Load Optimized Defaults
Use this menu to load factory default settings into the BIOS for stable system performance operations.
Set Supervisor Password
Use this menu to set Supervisor Password.
Set User Password
Use this menu to set User Password.
Save & Exit Setup
Save changes to CMOS and exit setup.
Exit Without Saving
Abandon all changes and exit setup.
Frequency/Voltage Control
Use this menu to specify your settings for frequency/voltage control.
Set CPU Ratio
User may select to set the CPU ratio manually or use the default value of the motherboard
manufacturer. Settings: [Manual], [Default]

12
CPU Clock Ratio
End users can overclock the processor (only if the processor supports so) by specifying the CPU ratio
(clock multiplier) in this field. It is available only when Set CPU Ratio is set to [Manual].
Auto Detect DIMM/PCI Clk
This item is used to auto detect the PCI slots. When set to [Enabled], the system will remove (turn off)
clocks from empty PCI slots to minimize the electromagnetic interference (EMI). Settings: [Enabled],
[Disabled].
Spread Spectrum
When the motherboard clockgenerator pulses, the extremevalues (spikes) ofthe pulses creates
EMI (Electromagnetic Interference). The Spread Spectrum function reduces the EMI generated by
modulating the pulses so that the spikes of the pulses are reduced to flatter curves. If you do not have
any EMI problem, leave the setting at [Disabled] for optimal system stability and performance. But if you
are plagued by EMI, set to [Enabled] for EMI reduction. Remember to disable Spread Spectrum if you
are overclocking because even a slight jitter can introduce a temporary boost in clock speed which may
just cause your overclocked processor to lock up.
CPU Frequency
Use this item to select the appropriate clock frequency of the CPU host bus. Options are: [100MHz],
[133MHz], [Default].
DRAM Frequency
Use this item to select the appropriate frequency for your DDR SDRAM modules. Options are:
[200MHz], [266MHz], [333MHz] and [By SPD].

13
Einleitung
Vielen Dank für die Wahl des 651M-V Serie (MS-7005 v2.X) Micro ATX Mainboards. Die 651M-V Serie
basiert auf dem SiS ® 651 & 962L Chipsatz für optimale Systemeffizienz. Es wurde für den
fortgeschrittenen Intel ® Pentium ® 4 Prozessor im 478 Pin Sockel entwickelt und stellt eine schnelle
und proffessionelle Desktop Platform dar.
Layout
BATT
+
SiS
962L
SiS 651
DDR1
DDR2
JAUD1
ATX
PowerSupply
SYSFAN1
CPUFAN1
JFP1
JFP2
Codec
Realtek
8201BL
Winbond
W83697HF
BIOS
PCI Slot 3
PCI Slot 2
PCI Slot 1
IDE2
FDD1
IDE1
ATX12V
Top :mouse
Bottom: keyboard
T: LAN jack
B: USB ports
JCD1
AGPSlot
JCI1
JUSB1
JUSB2
JBAT1
JSP1
Top: Parallel Port
Bottom:
COM A
VGAPort
Top :
Game port
Bottom:
Mic
Line-Out
Line-In

14
Spezifikationen
CPU
zSockel 478 für P4 Prozessoren (Northwood/Prescott) mit 400 MHz/533 MHz FSB.
zUnterstützt bis zu 3.06GHz und schnellere CPUs.
zUnterstützt Hyper-Threading CPUs.
(Für die neuesten CPU-Kompatiblitäts-Informationen besuchen Sie bitte die folgende Webseite:
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )
Chipsatz
zSiS 651 (702 pin BGA)
- Hochgeschwindigkeits-CPU-Schnittstelle mit 400 MHz/533 MHz
- 64 Bit Hochgeschwindigkeits-Speicherkontroller für DDR200/266/333 Speicher integriert
- Unterstützt AGP 4X/2X Schnittstelle mit beschlrunigten Schreibzugriffen
- Hoher Durchsatz mit SiS MuTIOL Verbindung zum SiS962L MuTIOL Media I/O Chip
- hochgeschwindigkeits 2D/3D- und Video-Beschleuniger
zSiS 962L MuTIOL Media I/O (371BGA)
- Hochgeschwindigkits-MuTIOLzur SiS Northbridge
- Integrierte Multi-Threaded I/O Verbindung um gleichzeitige up/down Stream-Daten Transfers mit
1.2GB/s Nabdbreite sicherzustellen.
- Intergrierter USB 2.0/1.1 Host Kontroller und Fast Ethernet MAC Kontroller
- Intergrierter Audio Kontroller mitAC97 Interface
- Erweitertes Power Management und PC2001 Entsprechung
- Intergrierter RTC, DMA, Interrupt, und keyboard Kontroller
- Intergrierte PCI nach LPCC Brücke
Hauptspeicher
zUnterstützt zwei Speicherbänke für zwei 184-Pin ungepufferte DDR 200/266/333 DIMMs
zUnterstützt bis zu 2GB Speichergröße ohne ECC
(Für die neuesten CPU-Kompatiblitäts-Informationen besuchen Sie bitte die folgende Webseite:
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )
Erweiterungssteckplätze
zEin AGP (Accelerated Graphics Port) Steckplatz mit AGP 2.0 4X/2X Unterstützung
zDrei PCI 2.2 32-Bit Master PCI Bus Steckplätze (unterstützt 3.3V/5V PCI Schnittstelle)

15
On-Board IDE
zDual IDE Kontroller intergriertert in SiS 962L
zUnterstützt Bus Master, Ultra DMA 33/66/100/133 Operationsmodus
zEs können bis zu vier IDE Laufwerke angeschlossen werden
On-Board Peripherie
zOn-Board Peripherie beinhaltet:
- 1 Floppy Anschluss, unterstützt 2 Floppy mit 360K, 720K, 1.2M, 1.44M und 2.88Mbytes.
- 1 SeriellerAnschluß (COMA) und 1 VGAAnschluss
- 1 Paralleler Anschluß, unterstützt SPP/EPP/ECP Modus
- 6 USB 2.0 Anschlüsse (Rückseite * 2/ Front * 4)
- 1 Audio-Ein/Ausgang und Mikrofon-Anschluss
- 1 Joystick-Anschluss
- 1 RJ45 Netzwerkanschluss
Audio
zAC97 Audio-Kontroller intergriert in SiS 962L SB
z6 Kanal SoftwareAudio Codec Realtek ALC655
- Entspricht den AC97 v2.2 Spezifikationen und den PC2001 Audio Anforderungen.
Netzwerk
zSiS 962L intergrierter MAC + Realtek 8201BL PHY
- Unterstützt 10Mb/s und 100Mb/s mit automtischer Erkennung.
- Entspricht dem PCI 2.2 und PC99 Standard
zUnterstützt Wake-On-LAN und Remote Wake-up
zUnterstützt ACPI Power Management
BIOS
z4MB Award BIOS mit PNP BIOS,ACPI, SMBIOS 2.3, Green und Boot Block
zStellt DMI 2.0, WFM 2.0, WOL, WOR, Chassis Intrusion und SMBus for system management zur
Verfügung
Dimension
zMicro-ATX Form Factor: 24.5 cm (B) x 20.0 cm (T)
Befestigung
z6 Befestigungslöcher
Andere
zLive BIOS/Live Driver Update
zEntspricht den PC2001 Empfehlungen
zSuspend to RAM / Disk

16
Anschlüsse auf der Rückseite
Folgende Anschlüsse stehen auf der Rückseite zur Verfügung:
Mouse
Keyboard
ParallelParallel
COMA VGAPort
L-out L-in MIC
Midi/Joystick LANLAN
USB Ports
Hardware Einrichtung
Dieses Kapitel beschreibt Ihnen, wie CPU, Speichermodule und Erweiterungskarten eingesetzt werden,
und wie Jumper auf dem Mainboard eingestellt werden. Es beinhaltet auch die Anleitung, wie Sie
Peripheriegeräte wie Maus, Tastatur, usw. anschließen. Während der Installation behandeln Sie bitte
die Komponenten vorsichtig und folgen Sie genau der Anleitung.
Prozessor
Das Mainboard unterstützt Intel Pentium 4 Northwood & Prescott und Celeron Prozessoren in der
Sockel 478 Bauform. Dazu hat es einen PGA478 Sockel für die leichte CPU Installation. Um den
Prozessor vor Überhitzung zu schützen, stellen Sie sicher, dass Sie einen geeigneten
CPU-Kühler mit Lüfter auf dem Prozessor installieren. Wenn Sie keinen geeigneten Kühler für
Ihren Prozessor haben sollten, kontaktieren Sie Ihren Händler, um ein passendes Modell erwerben.
Bitte schalten Sie den PC nicht ein, wenn Sie keinen geeigneten Kühler installiert haben. (Für die
neuesten CPU-Kompatiblitäts- Informationen besuchen Sie bitte die folgende Webseite:
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )
Beispiel für die Einstellung des internen CPU-Taktes
Wenn CPU Takt = 133MHz
Taktmulti
p
likato
r
=23
dann CPU Kerntakt = Ext. Takt x Taktmulti
p
likato
r
= 133MHz x 23
= 3.06 GHz
