MSI B250M GAMING PRO User manual

1
󸙗󳽙Contents
Contents
Safety Information...........................................................................................2
Specifications...................................................................................................3
Rear I/O Panel ................................................................................................. 7
LAN Port LED Status Table................................................................................7
Overview of Components ................................................................................ 8
CPU Socket.........................................................................................................9
DIMM Slots .......................................................................................................10
PCI_E1~3: PCIe Expansion Slots......................................................................10

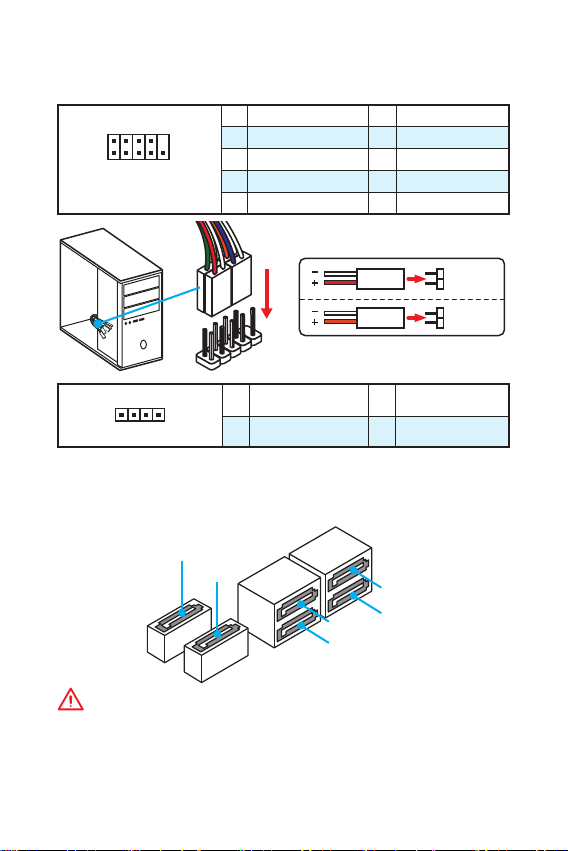

JFP1, JFP2: Front Panel Connectors...............................................................11
SATA1~6: SATA 6Gb/s Connectors...................................................................11

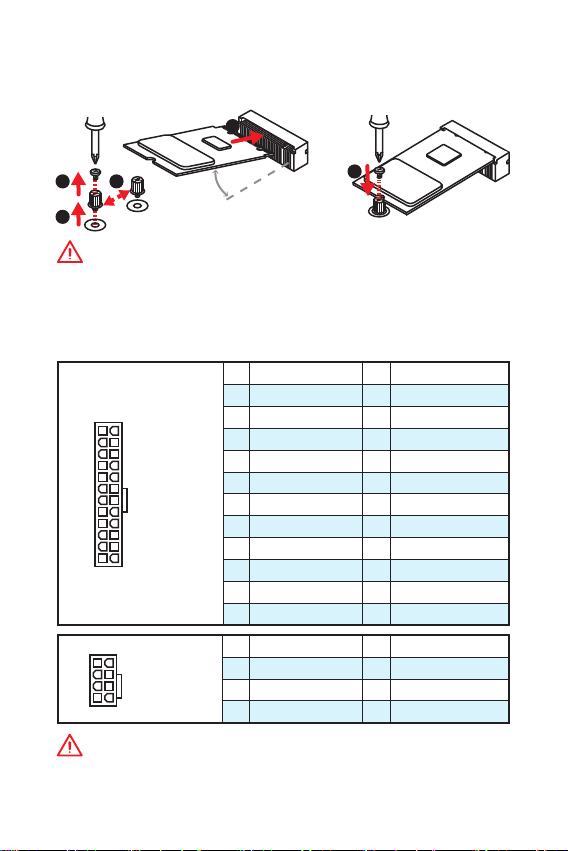

M2_1: M.2 Slot (Key M).....................................................................................12
ATX_PWR1, CPU_PWR1: Power Connectors...................................................12

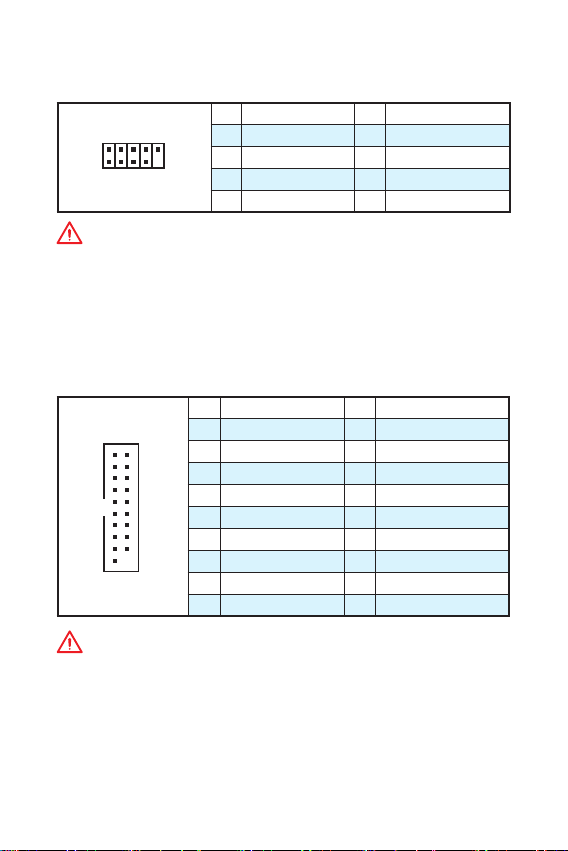

JUSB1~2: USB 2.0 Connectors ........................................................................13
JUSB3: USB 3.1 Gen1 Connector.....................................................................13

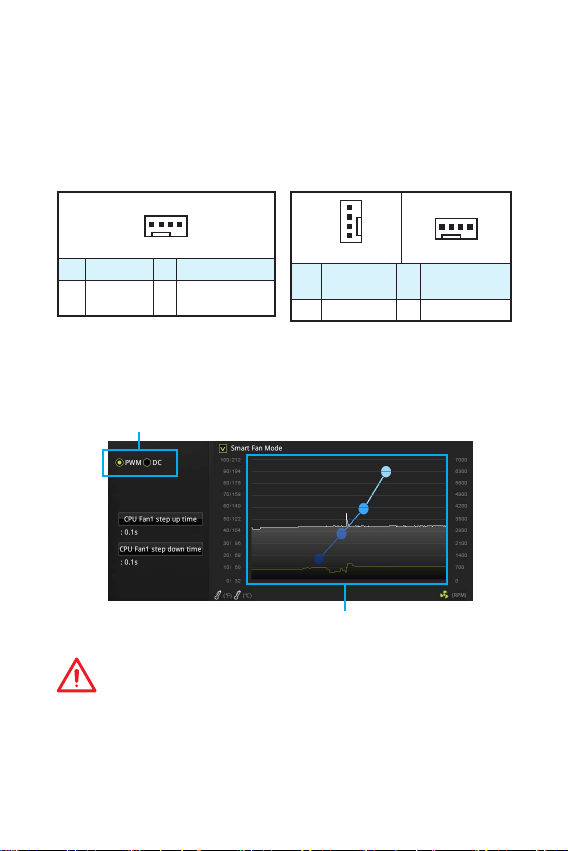

CPU_FAN1, SYS_FAN1~2: Fan Connectors .....................................................14
JTPM1: TPM Module Connector.......................................................................15
JCI1: Chassis Intrusion Connector ..................................................................15
JAUD1: Front Audio Connector ........................................................................16
JCOM1: Serial Port Connector.........................................................................16
JLPT1: Parallel Port Connector.......................................................................16
JBAT1: Clear CMOS (Reset BIOS) Jumper.......................................................17
EZ Debug LED: Debug LED indicators.............................................................17
JLED1: RGB LED connector.............................................................................17
BIOS Setup.....................................................................................................18
Entering BIOS Setup.........................................................................................18
Resetting BIOS .................................................................................................19
Updating BIOS ..................................................................................................19
Software Description..................................................................................... 20
Installing Windows®7/ 8.1/ 10.........................................................................20
Installing Drivers..............................................................................................20
Installing Utilities.............................................................................................20
Thank you for purchasing the MSI®B250M GAMING PRO
motherboard. This User Guide gives information about
board layout, component overview, BIOS setup and software
installation.

2Safety Information
Safety Information
yThe components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
yEnsure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
yHold the motherboard by the edges to avoid touching sensitive components.
yIt is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap
is not available, discharge yourself of static electricity by touching another metal
object before handling the motherboard.
yStore the motherboard in an electrostatic shielding container or on an anti-static
pad whenever the motherboard is not installed.
yBefore turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
yDo not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
yIf you need help during any installation step, please consult a certified computer
technician.
yAlways turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
yKeep this user guide for future reference.
yKeep this motherboard away from humidity.
yMake sure that your electrical outlet provides the same voltage as is indicated on
the PSU, before connecting the PSU to the electrical outlet.
yPlace the power cord such a way that people can not step on it. Do not place
anything over the power cord.
yAll cautions and warnings on the motherboard should be noted.
yIf any of the following situations arises, get the motherboard checked by service
personnel:
Liquid has penetrated into the computer.
The motherboard has been exposed to moisture.
The motherboard does not work well or you can not get it work according to user
guide.
The motherboard has been dropped and damaged.
The motherboard has obvious sign of breakage.
yDo not leave this motherboard in an environment above 60°C (140°F), it may
damage the motherboard.

3
Specifications
Specifications
CPU Supports 6th/ 7th Gen Intel®Core™i3/i5/i7 processors, and
Intel®Pentium®and Celeron®processors for Socket LGA1151
Chipset Intel® B250 Chipset
Memory
y2x DDR4 memory slots, support up to 32GB
7th Gen processors support DDR4 2400/ 2133 MHz*
6th Gen processors support DDR4 2133 MHz*
yDual channel memory architecture
* Please refer www.msi.com for more information on
compatible memory.
Expansion Slots y1x PCIe 3.0 x16 slot (supports x16 mode)
y2x PCIe 3.0 x1 slots
Onboard Graphics
y1x HDMI™port, supports a maximum resolution of
4096x2160@30Hz(7th CPU), 4096x2160@24Hz(6th CPU),
2560x1600@60Hz
y1x DVI-D port, supports a maximum resolution of
1920x1200@60Hz
y1x VGA port, supports a maximum resolution of
2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
Storage
Intel®B250 Chipset
y6x SATA 6Gb/s ports
y1x M.2 slot (Key M)*
Supports up to PCIe 3.0 x4 and SATA 6Gb/s
Supports 2242/ 2260 /2280 storage devices
Intel®Optane™ Memory Ready
Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host
Card**
* The SATA1 connector will be unavailable when an M.2 SSD
module has been installed in the M.2_1 slot.
** The Turbo U.2 Host Card is not included, please purchase
separately.
USB
Intel®B250 Chipset
y6x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1
Type-C ports on the back panel, 2 ports available through the
internal USB connector)
y6x USB 2.0 (High-speed USB) ports (2 ports on the back
panel, 4 ports available through the internal USB connector)
Audio yRealtek®ALC887 Codec
y7.1-Channel High Definition Audio
LAN 1x Intel I219-V Gigabit LAN controller
Continued on next page

4Specifications
Continued from previous page
Back Panel
Connectors
y1x PS/2 keyboard port
y1x PS/2 mouse port
y1x VGA port
y1x DVI-D port
y1x HDMI™port
y2x USB 2.0 Type-A ports
y3x USB 3.1 Gen1 Type-A ports
y1x USB 3.1 Gen1 Type-C port
y1x LAN (RJ45) port
y3x audio jacks
Internal
Connectors
y1x 24-pin ATX main power connector
y1x 8-pin ATX 12V power connector
y6x SATA 6Gb/s connectors
y2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
y1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1
Gen1 ports)
y1x 4-pin CPU fan connector
y2x 4-pin system fan connectors
y1x Front panel audio connector
y2x Front panel connectors
y1x TPM module connector
y1x Chassis Intrusion connector
y1x Serial port connector
y1x Parallel port connector
y1x RGB LED connecotr
y1x Clear CMOS jumper
I/O Controller NUVOTON NCT6795 Controller Chip
Hardware
Monitor
yCPU/System temperature detection
yCPU/System fan speed detection
yCPU/System fan speed control
Form Factor ym-ATX Form Factor
y9.6 in. x 8.1 in. (24.3 cm x 20.6 cm)
BIOS Features
y1x 128 Mb flash
yUEFI AMI BIOS
yACPI 5.0, PnP 1.0a, SM BIOS 2.8
yMulti-language
Continued on next page

5
Specifications
Continued from previous page
Software
yDrivers
yCOMMAND CENTER
yLIVE UPDATE 6
yFAST BOOT
ySUPER CHARGER
yGAMING APP
yRAMDISK
yX-BOOST
yMSI SMART TOOL
yGAMING LAN MANAGER
yXSplit Gamecaster V2
yIntel®Extreme Tuning Utility
yNorton™ Internet Security Solution
yGoogle Chrome™ ,Google Toolbar, Google Drive
ySteelSeries Engine 3
yCPU-Z MSI GAMING
yDRAGON EYE
Performance
GAMING Features
yVR READY
yAUDIO BOOST
Isolated Audio PCB
EMI Shielding
High Quality Audio Capacitors
De-pop audio circuit
yGAMING LAN
Intel®Gigabit Ethernet
GAMING Network Manager power by cFos
Electric Wave Surge
15KV anti-surge
yXSplit
XSplit GAMECASTER
XSplit BROADCASTER GAMING CERTIFIED
yWTFast GPN*
2-Month Premium License
Multi-Server Network Optimization
Advanced Lag Spike & Disconnect Reduction
* This offer is valid for a limited period only, for more
information please visit www.msi.com
Continued on next page

6Specifications
Continued from previous page
MSI Exclusive
Features
yMystic Light Extension Dedicated header for 4-pin RGB-strip
Lighting control via GAMING APP
yCLICK BIOS 5 EZ Mode & Advanced Mode Switching
Board Explorer
Hardware Monitor
yMILITARY CLASS 5 Military Class Component yMilitary Class Stability and Reliability
ESD Protection EMI Protection Humidity Protection Circuit Protection High Temperature Protection
VGA Armor Slot
yMSI Steel Armor PCI-E Steel Armor yCOMMAND CENTER
System Monitor Smart Fan Control
yRAMDISK
yLIVE UPDATE 6
yX-BOOST System Performance Enhancement
User Scenario Profile
Specification
Highlights
yDDR4 Boost Support Dual-Channel DDR4 Memory Support
Isolated DDR4 Circuit Design De-pop audio circuit
yUSB 3.1 Gen1 Type-C Ready

7
Rear I/O Panel
Rear I/O Panel
PS/2 Mouse
PS/2 Keyboard
LAN
USB 3.1 Gen1
Type-C
USB 3.1 Gen1
Type-A
USB 3.1 Gen1
Type-A
USB 2.0
DVI-D
VGA Line-in
Line-out
Mic in
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Audio 7.1-channel Configuration
To configure 7.1-channel audio, you have to connect front audio I/O module to JAUD1
connector and follow the below steps.
1. Click on the Realtek HD Audio Manager > Advanced Settings to open the dialog
below.
2. Select Mute the rear output device, when a front headphone plugged in.
3. Plug your speakers to audio jacks on rear and front I/O panel. When you plug into
a device at an audio jack, a dialogue window will pop up asking you which device
is current connected.

8Overview of Components

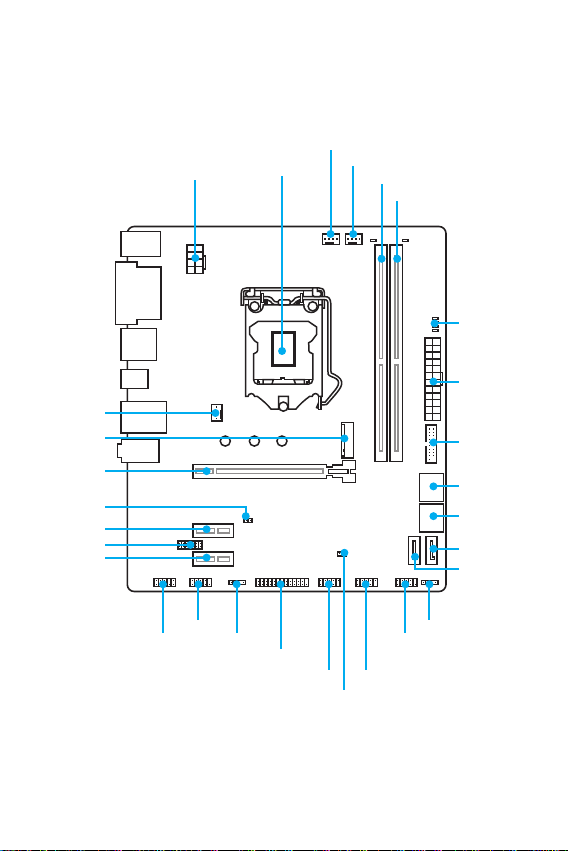

Overview of Components
CPU_FAN1
CPU Socket
PCI_E1
PCI_E2
PCI_E3
M2_1
JBAT1
JCI1
JTPM1
DIMMA1
DIMMB1
SYS_FAN1
SYS_FAN2
JUSB1JUSB2
JUSB3
JLPT1
JLED1
JCOM1
JAUD1 JFP1
JFP2
ATX_PWR1
CPU_PWR1
EZ Debug LED
SATA5
SATA6
SATA12
SATA34

9
Overview of Components
CPU Socket

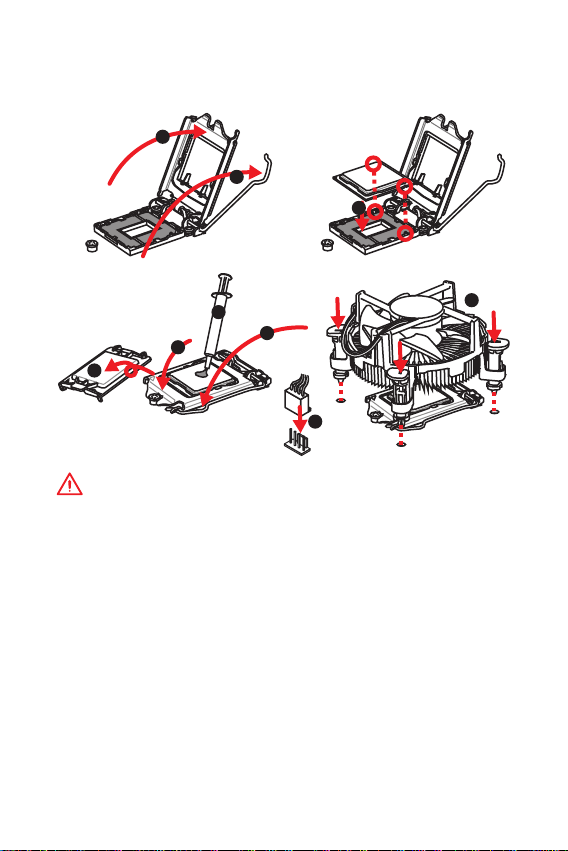

Please install the CPU into the CPU socket as shown below.
Important
y Always unplug the power cord from the power outlet before installing or removing
the CPU.
y Please retain the CPU protective cap after installing the processor. MSI will deal
with Return Merchandise Authorization (RMA) requests if only the motherboard
comes with the protective cap on the CPU socket.
y When installing a CPU, always remember to install a CPU heatsink. A CPU heatsink
is necessary to prevent overheating and maintain system stability.
y Confirm that the CPU heatsink has formed a tight seal with the CPU before booting
your system.
y Overheating can seriously damage the CPU and motherboard. Always make sure
the cooling fans work properly to protect the CPU from overheating. Be sure to
apply an even layer of thermal paste (or thermal tape) between the CPU and the
heatsink to enhance heat dissipation.
y Whenever the CPU is not installed, always protect the CPU socket pins by covering
the socket with the plastic cap.
y If you purchased a separate CPU and heatsink/ cooler, Please refer to the
documentation in the heatsink/ cooler package for more details about installation.
1
4
6
5
78
9
3
2

10 Overview of Components
DIMM Slots
Please install the memory module into the DIMM slot as shown below.
Important
y To boot up the system successfully, always insert the memory module into DIMM1
first.
y Due to chipset resource usage, the available capacity of memory will be a little less
than the amount of installed.
y Please note that the maximum capacity of addressable memory is 4GB or less
for 32-bit Windows OS due to the memory address limitation. Therefore, we
recommended that you to install 64-bit Windows OS if you want to install more than
4GB memory on the motherboard.
PCI_E1~3: PCIe Expansion Slots
PCI_E1: PCIe 3.0 x16 slot
PCI_E3: PCIe 3.0 x1 slot
PCI_E2: PCIe 3.0 x1 slot
Important
When adding or removing expansion cards, always turn off the power supply and
unplug the power supply power cable from the power outlet. Read the expansion
card󾙓s documentation to check for any necessary additional hardware or software
changes.
1
12
3
3
2
