MSI B250M MORTAR ARCTIC User manual

I
Quick Start
Quick Start
Thank you for purchasing the MSI®H270M MORTAR ARCTIC/ B250M
MORTAR ARCTIC motherboard. This Quick Start section provides
demonstration diagrams about how to install your computer. Some
of the installations also provide video demonstrations. Please link
to the URL to watch it with the web browser on your phone or tablet.
You may have even link to the URL by scanning the QR code.
Kurzanleitung
Danke, dass Sie das MSI®H270M MORTAR ARCTIC/ B250M
MORTAR ARCTIC Motherboard gewählt haben. Dieser Abschnitt der
Kurzanleitung bietet eine Demo zur Installation Ihres Computers.
Manche Installationen bieten auch die Videodemonstrationen.
Klicken Sie auf die URL, um diese Videoanleitung mit Ihrem Browser
auf Ihrem Handy oder Table anzusehen. Oder scannen Sie auch den
QR Code mit Ihrem Handy, um die URL zu öffnen.
Présentation rapide
Merci d’avoir choisi la carte mère MSI®H270M MORTAR ARCTIC/
B250M MORTAR ARCTIC . Ce manuel fournit une rapide présentation
avec des illustrations explicatives qui vous aideront à assembler
votre ordinateur. Des tutoriels vidéo sont disponibles pour certaines
étapes. Cliquez sur le lien fourni pour regarder la vidéo sur votre
téléphone ou votre tablette. Vous pouvez également accéder au lien
en scannant le QR code qui lui est associé.
Быстрый старт
Благодарим вас за покупку материнской платы MSI®H270M
MORTAR ARCTIC/ B250M MORTAR ARCTIC . Вэтом разделе
представлена информация, которая поможет вам при
сборке комьютера. Для некоторых этапов сборки имеются
видеоинструкции. Для просмотра видео, необходимо
открыть соответствующую ссылку ввеб-браузере на вашем
телефоне или планшете. Вы также можете выполнить
переход по ссылке, путем сканирования QR-кода.

II Quick Start
http://youtu.be/bf5La099urI

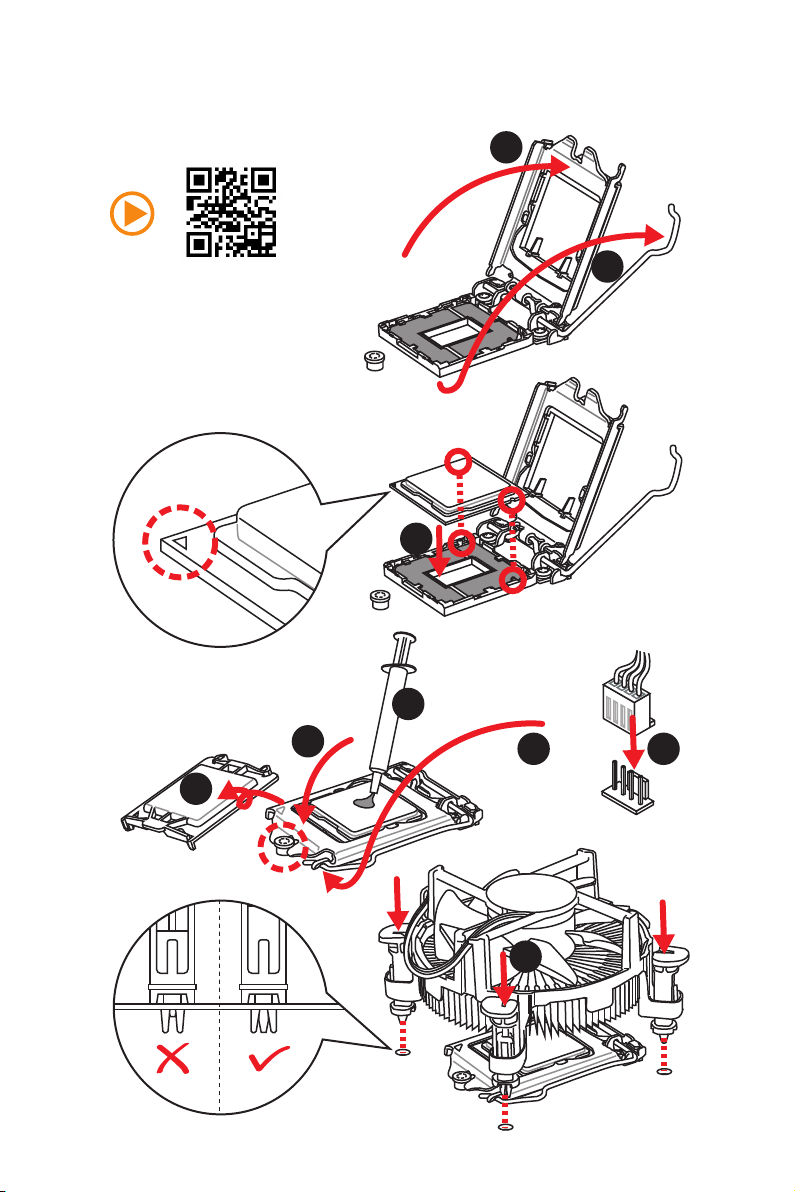

Installing a Processor/ Installation des Prozessors/ Installer un
processeur/ Установка процессора
1
2
3
6
45
7
8
9

III
Quick Start
Installing DDR4 memory/ Installation des DDR4-Speichers/
Installer une mémoire DDR4/ Установка памяти DDR4
http://youtu.be/T03aDrJPyQs
1
2
2
3
DIMMB2 DIMMB2
DIMMB1
DIMMA2 DIMMA2 DIMMA2
DIMMA1
3
1

IV Quick Start
http://youtu.be/DPELIdVNZUI
1
2 10
9
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
HDD LED
RESET SW
JFP1
HDD LED HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
Connecting the Front Panel Header/ Anschließen der
Frontpanel-Stiftleiste/ Connecter un connecteur du panneau
avant/ Подключение разъемов передней панели

V
Quick Start

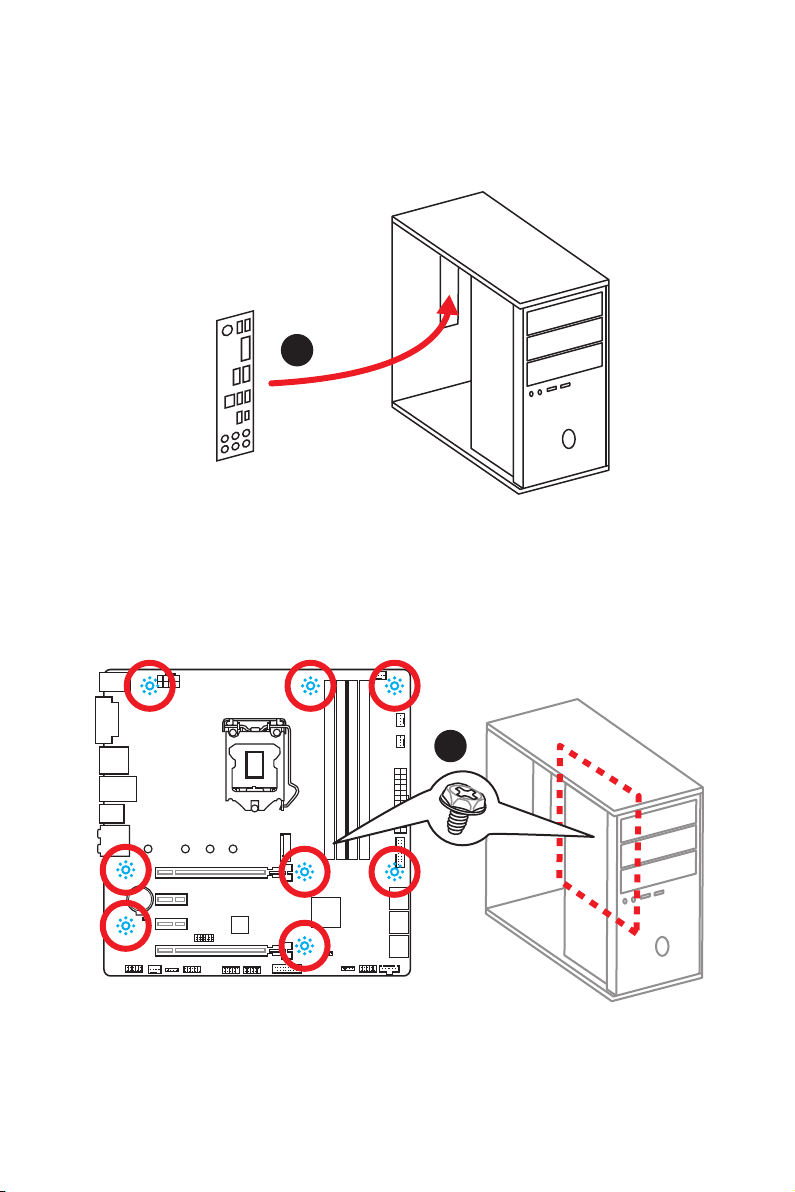

Installing the Motherboard/ Installation des Motherboards/
Installer la carte mère/ Установка материнской платы
BAT1
1
2

VI Quick Start
1
23
4
5
Installing SATA Drives/ Installation der SATA-Laufwerke/
Installer le disque dur SATA/ Установка дисков SATA
http://youtu.be/RZsMpqxythc

VII
Quick Start

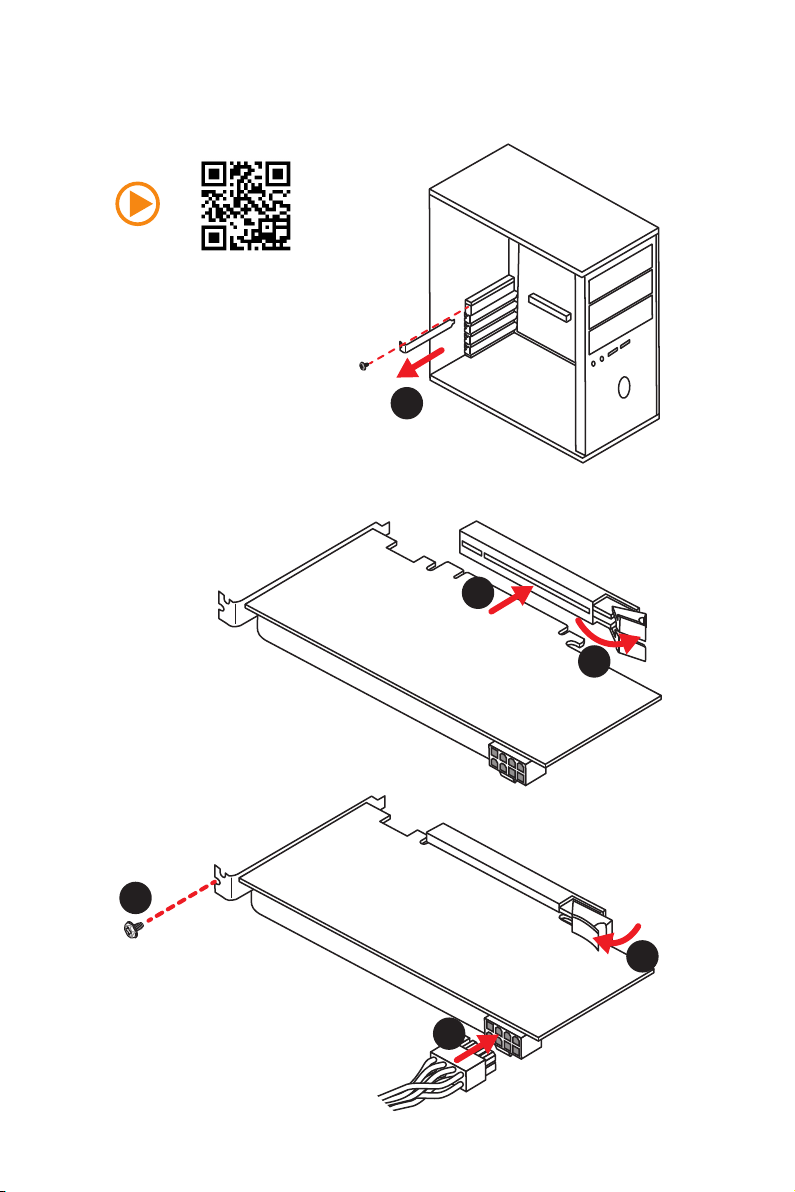

Installing a Graphics Card/ Einbau der Grafikkarte/ Installer
une carte graphique/ Установка дискретной видеокарты
http://youtu.be/mG0GZpr9w_A
1
2
3
4
5
6

VIII Quick Start

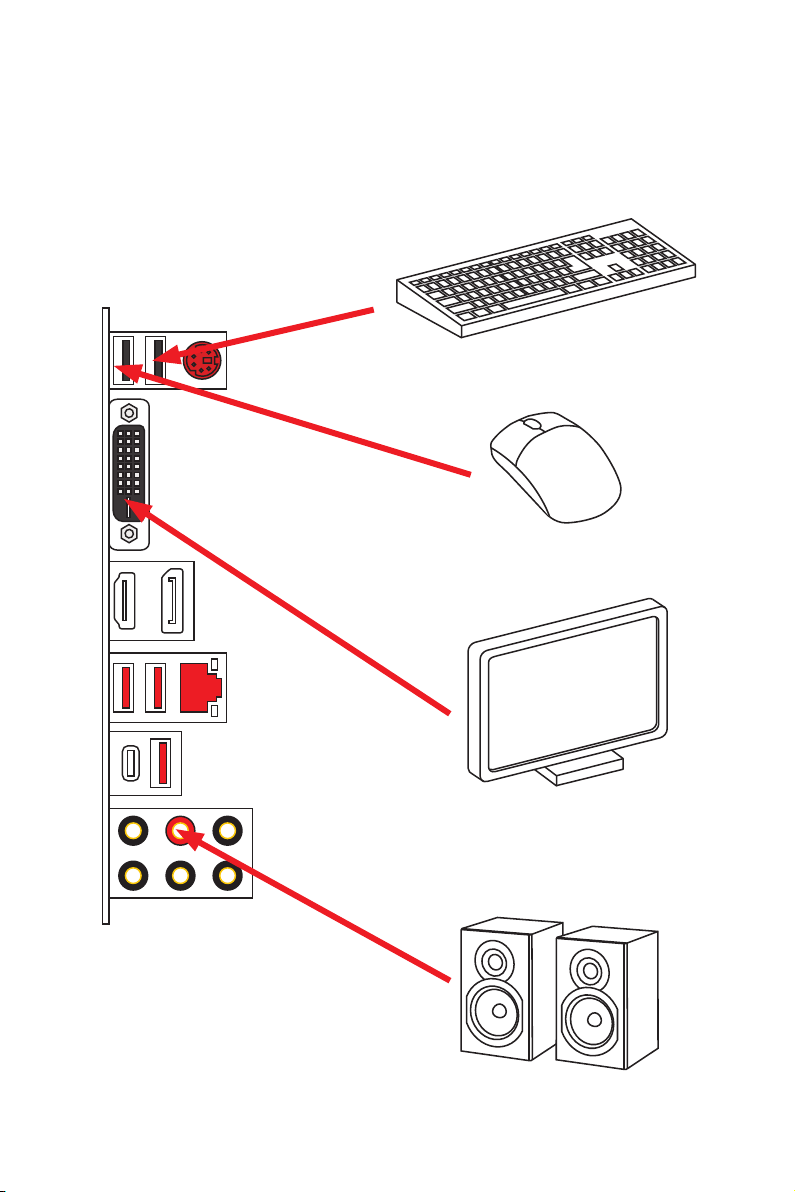

Connecting Peripheral Devices/ Peripheriegeräte/
Connecter un périphérique anschliessen/ Подключение
периферийных устройств

IX
Quick Start
Connecting the Power Connectors/ Stromanschlüsse
anschliessen/ Connecter les câbles du module d’alimentation/
Подключение разъемов питания
http://youtu.be/gkDYyR_83I4
ATX_PWR1 CPU_PWR1

XQuick Start
1
4
2
3
Power On/ Einschalten/ Mettre sous-tension/ Включение
питания

1
Contents
Contents
Safety Information................................................................................................. 2
Specifications......................................................................................................... 3
Rear I/O Panel ....................................................................................................... 8
LAN Port LED Status Table..................................................................................... 8

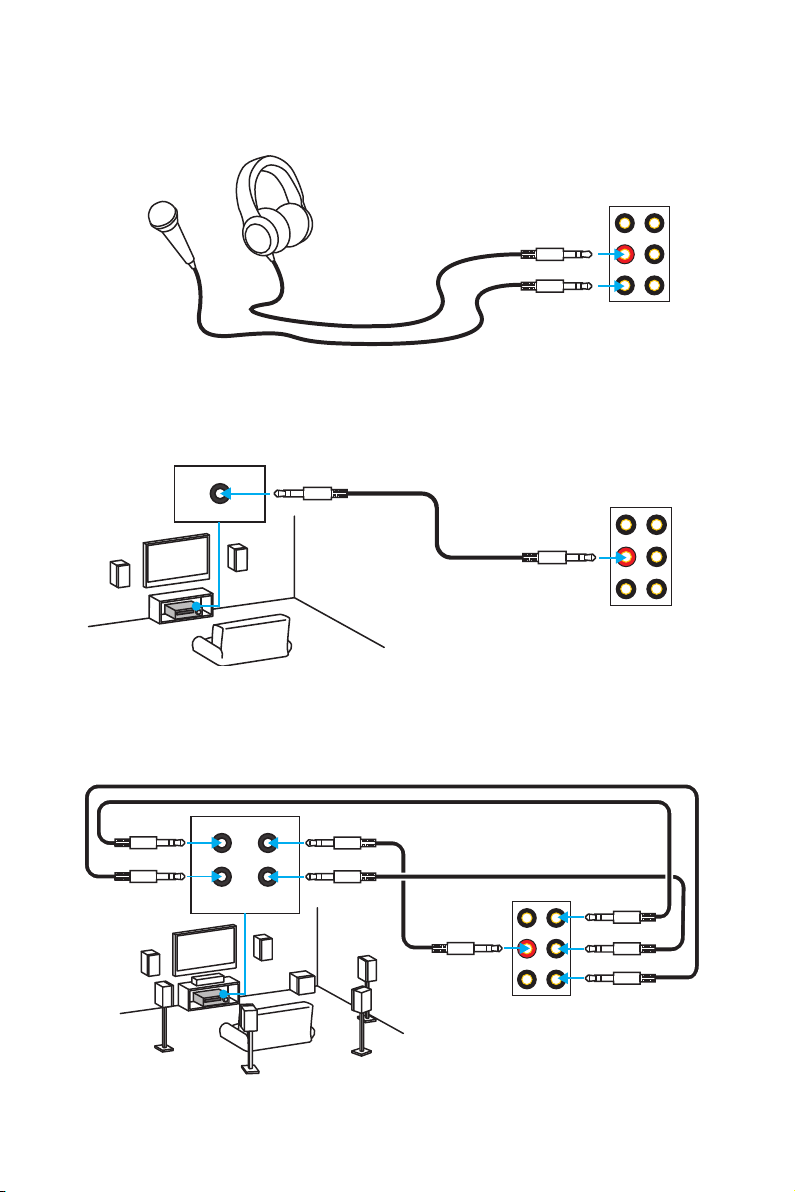

Audio Ports Configuration...................................................................................... 8
Realtek HD Audio Manager .................................................................................... 9
Overview of Components .................................................................................... 11
CPU Socket ........................................................................................................... 12
DIMM Slots............................................................................................................ 13
PCI_E1~4: PCIe Expansion Slots.......................................................................... 14
M2_1: M.2 Slot (Key M)......................................................................................... 15
SATA1~6: SATA 6Gb/s Connectors ....................................................................... 16
JFP1, JFP2: Front Panel Connectors ................................................................... 17
JCOM1: Serial Port Connector ............................................................................. 17
JAUD1: Front Audio Connector ............................................................................ 17
CPU_PWR1, ATX_PWR1: Power Connectors ....................................................... 18
JTPM1: TPM Module Connector........................................................................... 18
JUSB1~2: USB 2.0 Connectors............................................................................. 19
JUSB3~4: USB 3.1 Gen1 Connectors (optional)................................................... 19
CPU_FAN1,SYS_FAN1~3: Fan Connectors........................................................... 20
JCI1: Chassis Intrusion Connector....................................................................... 21
JBAT1: Clear CMOS (Reset BIOS) Jumper........................................................... 21
JLED1: RGB LED connector ................................................................................. 22
EZ Debug LEDs..................................................................................................... 22
BIOS Setup........................................................................................................... 23
Entering BIOS Setup............................................................................................. 23
Resetting BIOS...................................................................................................... 24
Updating BIOS....................................................................................................... 24
EZ Mode ................................................................................................................ 25
Advanced Mode .................................................................................................... 27
OC Menu................................................................................................................ 28
Software Description........................................................................................... 34
Installing Windows®7/ 8.1/ 10.............................................................................. 34
Installing Drivers .................................................................................................. 34
Installing Utilities ................................................................................................. 34

2Safety Information
Safety Information
yThe components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
yEnsure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
yHold the motherboard by the edges to avoid touching sensitive components.
yIt is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap
is not available, discharge yourself of static electricity by touching another metal
object before handling the motherboard.
yStore the motherboard in an electrostatic shielding container or on an anti-static
pad whenever the motherboard is not installed.
yBefore turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
yDo not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
yIf you need help during any installation step, please consult a certified computer
technician.
yAlways turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
yKeep this user guide for future reference.
yKeep this motherboard away from humidity.
yMake sure that your electrical outlet provides the same voltage as is indicated on
the PSU, before connecting the PSU to the electrical outlet.
yPlace the power cord such a way that people can not step on it. Do not place
anything over the power cord.
yAll cautions and warnings on the motherboard should be noted.
yIf any of the following situations arises, get the motherboard checked by service
personnel:
Liquid has penetrated into the computer.
The motherboard has been exposed to moisture.
The motherboard does not work well or you can not get it work according to user
guide.
The motherboard has been dropped and damaged.
The motherboard has obvious sign of breakage.
yDo not leave this motherboard in an environment above 60°C (140°F), it may damage
the motherboard.

3
Specifications
Specifications
CPU
ySupports 7th/6th Gen Intel®Core™i3/i5/i7 processors,
and Intel®Pentium®and Celeron®processors for Socket
LGA1151
Chipset Intel® H270/ B250 Chipset
Memory
y4x DDR4 memory slots, support up to 64GB
7th Gen processors support DDR4 2400/ 2133 MHz*
6th Gen processors support DDR4 2133 MHz*
yDual channel memory architecture
ySupports Intel®Extreme Memory Profile (XMP)**
*Please refer to www.msi.com for more information on compatible memory.
** DDR4 memory modules can only run at maximum of 2400 MHz for 7th Gen
processors and 2133 MHz for 6 th Gen processors on XMP mode.
Expansion Slots y2x PCIe 3.0 x16 slots (support x16/x4 mode)
y2x PCIe 3.0 x1 slots
Onboard Graphics
y1x DVI-D port, supporting a maximum resolution of
1920x1200@60Hz
y1x DisplayPort, supports a maximum resolution
of 4096x2304@24Hz, 2560x1600@60Hz,
3840x2160@60Hz,1920x1200@60Hz
y1x HDMI™port, supports a maximum resolution of
4096x2160@30Hz(7th Gen CPU), 4096x2160@24Hz(6th Gen
CPU), 2560x1600@60Hz
Multi-GPU ySupports 2-Way AMD®CrossFire™Technology
Storage
Intel®H270/ B250 Chipset
y6x SATA 6Gb/s ports*
y1x M.2 slot (Key M)
Support up to PCIe 3.0 x4 and SATA 6Gb/s
Supports 2242/ 2260 /2280/ 22110 storage devices
Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host
Card**
Intel®Optane™ Memory Ready***
ySupports Intel®Smart Response Technology for Intel
Core™ processors
* The SATA1 port will be unavailable when an M.2 SATA SSD module has been
installed in the M.2 slot.
** The Turbo U.2 Host Card is not included, please purchase separately.
***Intel®Optane™ Technology is only supported when using 7th Gen
processors. Before using Intel®Optane™ memory modules, please ensure
that you have updated the drivers and BIOS to the latest version from MSI
website.
Continued on next page

4Specifications
Continued from previous page
RAID
Intel®H270 Chipset
ySupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA
storage devices
USB
yIntel®H270 Chipset
8x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A
ports + 1 Type-C port on the back panel, 4 ports available
through the internal USB connectors)
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on
the back panel, 4 ports available through the internal
USB connectors)
yIntel®B250 Chipset
6x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A
ports + 1 Type-C port on the back panel, 2 ports available
through the internal USB connector)
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on
the back panel, 4 ports available through the internal
USB connectors)
Audio yRealtek®ALC892 Codec
y7.1-Channel High Definition Audio
LAN 1x Intel®I219-V Gigabit LAN controller
Back Panel
Connectors
y1x PS/2 mouse & keyboard combo port
y2x USB 2.0 ports
y1x DVI-D port
y1x DisplayPort
y1x HDMI™port
y1x LAN (RJ45) port
y3x USB 3.1 Gen1 Type-A ports
y1x USB 3.1 Gen1 Type-C port
y6x OFC audio jacks
Continued on next page

5
Specifications
Continued from previous page
Internal Connectors
y1x 24-pin ATX main power connector
y1x 8-pin ATX 12V power connector
y6x SATA 6Gb/s connectors
y1x M.2 slot
y2x USB 3.1 Gen1 connectors (supports additional 4 USB
3.1 Gen1 ports) (For H270 chipset)
y1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1
Gen1 ports) (For B250 chipset)
y2x USB 2.0 connectors (supports additional 4 USB 2.0
ports)
y1x 4-pin CPU fan connector
y3x 4-pin system fan connectors
y1x Front panel audio connector
y2x Front panel connectors
y1x Serial port connector
y1x RGB LED connector
y1x TPM module connector
y1x TBT connector
y1x Chassis Intrusion connector
y1x Clear CMOS jumper
I/O Controller NUVOTON NCT6795 Controller Chip
Hardware Monitor
yCPU/System temperature detection
yCPU/System fan speed detection
yCPU/System fan speed control
From Factor yMicro-ATX Form Factor
y9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
BIOS Features
y1x 128 Mb flash
yUEFI AMI BIOS
yACPI 5.0, PnP 1.0a, SM BIOS 2.8
yMulti-language
Continued on next page

6Specifications
Continued from previous page
Software
yDrivers
ySUPER CHARGER
yFAST BOOT
yCOMMAND CENTER
yLIVE UPDATE 6
yMSI SMART TOOL
yDRAGON EYE
yGAMING APP
yX-BOOST
yRAMDISK
yGAMING LAN Manager
yXSplit Gamecaster V2
ySteelSeries Engine 3
yCPU-Z MSI GAMING
yIntel®Extreme Tuning Utility
yNorton™Internet Security Solution
yGoogle Chrome™, Google Toolbar, Google Drive
Continued on next page

7
Specifications
Continued from previous page
MSI Special
Features
yAudio Boost
yGAMING LAN with cFos
yWTFast*
yIntel®OptaneTM Memory Ready
yTurbo M.2
ySmart Fan Control
yMystic light SYNC
yMystic Light Extension (RGB)
yGaming DNA with bottom LED
yPCI-E Steel Armor
yM.2 Steel Armor
yMuitl GPU - CrossFire Technology
yDDR4 Boost
yX-Boost
yMilitary Class 5
y7000+ Quality Test
yVR Ready
yDragon eye
yXsplit
yRAMDisk
yGAMING HOTKEY
yClick BIOS 5
* This offer is valid for a limited period only, for more information please visit
www.msi.com

8Rear I/O Panel
Rear I/O Panel
PS/2 Port LAN
USB 2.0
Audio Ports
DVI-D
DisplayPort
USB 3.1 Gen1 Type-A
USB 3.1 Gen1 Type-C
USB 3.1 Gen1 Type-A
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Audio Ports Configuration
Audio Ports Channel
2468
Line-In
Line-Out/ Front Speaker Out ●●●●
Rear Speaker Out ●●●
Center/ Subwoofer Out ● ●
Side Speaker Out ●
Mic In
(●: connected, Blank: empty)

9
Rear I/O Panel
Realtek HD Audio Manager
After installing the Realtek HD Audio driver, the Realtek HD Audio Manager icon will
appear in the system tray. Double click on the icon to launch.
Jack Status
Device
Selection
Connector
Strings
Profiles
Main Volume
Application
Enhancement
Advanced
Settings
yDevice Selection - allows you to select a audio output source to change the related
options. The check sign indicates the devices as default.
yApplication Enhancement - the array of options will provide you a complete
guidance of anticipated sound effect for both output and input device.
yMain Volume - controls the volume or balance the right/left side of the speakers
that you plugged in front or rear panel by adjust the bar.
yProfiles - toggles between profiles.
yAdvanced Settings - provides the mechanism to deal with 2 independent audio
streams.
yJack Status - depicts all render and capture devices currently connected with your
computer.
yConnector Settings - configures the connection settings.
Auto popup dialog
When you plug into a device at an audio jack, a dialogue window will pop up asking you
which device is current connected.
Each jack corresponds to its default setting as shown on the next page.

10 Rear I/O Panel
Audio jacks to headphone and microphone diagram
Audio jacks to stereo speakers diagram
Audio jacks to 7.1-channel speakers diagram
AUDIO INPUT
Rear Front
Side Center/
Subwoofer
AUDIO INPUT
