Thank you for choosing the K8MM-V Series (MS-7142 v1.X) micro ATX mainboard. The K8MM-V
Series is based on VIA ® K8M800-CE & VT8237R chipsets for optimal system efficiency. Designed to
fit the advanced AMD ® K8 Athlon64 processors in 754 pin package, the K8MM-V Series delivers a
high performance and professional desktop platform solution.
Layout
SFAN1
CPUFAN1
JPW1
FDD1
SATA1
SATA2
T:
M:
B:
Line-In
Line-Out
Mic
T: L AN j a c k
B: USB ports
Winbond
W83627THF
VIA
K8M800-CE
BATT
+
DDR1
DDR2
JWR2
JCASE1
IDE1
IDE2
JFP1
JFP2
JBAT1
JAUD1
J1
Top : Parallel Por t
Bottom:
COM A
VGA Port
Top : mouse
Bottom: keyboard
USB ports
BIOS
AGP Slot
PCI Slot 3
PCI Slot 2
PCI Slot 1
JUSB1 JUSB2
JCOM1
(Optional)
Codec
VIA
VT6103L
JSP1
VIA
VT8237R

2
Specifications
CPU
zSupports 64-bit AMD®K8 Athlon64 processor (Socket 754)
zSupports 3700+ and higher CPU
(For the latest information about CPU, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )
Chipset
zVIA®K8M800-CE Chipset
-HyperTransportTM connection to AMD K8 Athlon64 processor
- 8 or 16 bit control/address/data transfer both directions
- 800/600/400/200 MHz “Double Data Rate” operation both direction
- AGP v3.0 compliant with 8x transfer mode
- Graphic integrated
zVIA®VT8237R chipset (487 BGA)
- Supports dual channel native SATA controller up to 150MB/s
- Integrated Hardware Sound Blaster/Direct Sound AC97 audio
- Ultra DMA 66/100/133 master mode PCI EIDE controller
- ACPI & PC2001 compliant enhanced power management
- Supports USB2.0 up to 8 ports
- Supports RAID0 or RAID1
Main Memory
zSupports DDR266/333/400 DDR SDRAM for two 184-pin DDR DIMMs.
zSupports a maximum memory size of 2GB
(For the updated supporting memory modules, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )
Slots
zOne (Accelerated Graphics Port) AGP slot.
-AGP 3.0 specification compliant
zThree 32-bit Master 3.3v/5v PCI Bus slots

3
On-Board IDE
zAn IDE controller on the VIA®VT8237R chipset provides IDE HDD/CD-ROM with PIO, Bus Master
and Ultra DMA 66/100/133 operation modes
zCan connect up to 4 IDE devices
zSerial ATA/150 controller integrated by VT8237R
- Up to 150MB/s transfer rate
- Can connect up to two serial ATA devices
On-Board Peripherals
zOn-Board Peripherals include:
- 1 floppy port supports 1 FDD with 360K, 720K, 1.2M,
- 1 serial port (COMA)
- 1 VGA port
- 1 parallel port supporting SPP/EPP/ECP mode
- 8 USB2.0 ports (Rear*4/Front*4)
- 1 Audio (Line-In/Line-Out/MIC) port
- 1 RJ-45 LAN Jack
- 2 IDE ports support 4 IDE devices
- 2 serial ATA ports
- 1 JCOM1 pin header(Optional)
Audio
z6 channels software audio codec VIA VT1617A.
- Compliance with AC97 v2.3 Spec.
- Meet PC2001 audio performance requirement.
LAN
zVIA®VT6103L 10/100 Mb/s phy.
- Compliant with PCI v2.2.
- Supports ACPI Power Management.

4
BIOS
zThe mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and
expansion cards of the board automatically.
zThe mainboard provides a Desktop Management Interface (DMI) function that records your
mainboard specifications.
Dimension
zMicro-ATX Form Factor: 243mm x 195mm.
Mounting
z6 mounting holes.

5
Rear Panel
The back panel provides the following connectors:
Ke
y
board
USB Ports
Mouse
COM
p
ort
V
GA
p
ort
Parallel Port
Line In
Line Ou
t
Mic In
LAN
USB Ports
Hardware Setup
This chapter tells you how to install the CPU, memory modules, and expansion cards, as well as how to
setup the jumpers on the mainboard. It also provides the instructions on connecting the peripheral
devices, such as the mouse, keyboard, etc. While doing the installation, be careful in holding the
components and follow the installation procedures.
Central Processing Unit: CPU
The mainboard supports AMD ® Athlon64 processor. The mainboard uses a CPU socket called
Socket-754 for easy CPU installation. When you are installing the CPU, make sure the CPU has a heat
sink and a cooling fan attached on the top to prevent overheating. If you do not have the heat sink and
cooling fan, contact your dealer to purchase and install them before turning on the computer.
(For the latest information about CPU, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )
Example of CPU Core Speed Derivation Procedure
If CPU Clock = 200MHz
Core/Bus ratio = 12
then CPU core speed = Host Clock x Core/Bus ratio
= 200MHz x 12
=2.4GHz

6
Memory Speed/CPU FSB Support Matrix
Memory
FSB
DDR 266 DDR 333 DDR 400
800 MHz OK OK OK
CPU Installation Procedures for Socket 754
1. Please turn off the power and unplug the power cord before installing the CPU.
2. Pull the lever sideways away from the socket. Make sure to raise the lever up to a 90-degree
angle.
3. Look for the gold arrow on the CPU. The CPU can only fit in the correct orientation. Lower the
CPU down onto the socket.
4. If the CPU is correctly installed, the pins should be completely embedded into the socket and
can not be seen. Please note that any violation of the correct installation procedures may
cause permanent damages to your mainboard.
5. Press the CPU down firmly into the socket and close the lever. As the CPU is likely to move
while the lever is being closed, always close the lever with your fingers pressing tightly on top of
the CPU to make sure the CPU is properly and completely embedded into the socket.
Installing AMD Athlon64 CPU Cooler Set
When you are installing the CPU, make sure the CPU has a heat sink and a cooling fan attached on the
top to prevent overheating. If you do not have the heat sink and cooling fan, contact your dealer to
purchase and install them before turning on the computer.
1. Detach the shield of the backplate’s paster.
2. Turn over the mainboard, and install the backplate to the proper position.
3. Turn over the mainboard again and place the mainboard on the flat surface. Locate the two
screw holes of the mainboard.
4. Align the retention mechanism and the backplate. Fix the retention mechanism and the
backplate with two screws.

7
5. Position the cooling set onto the retention mechanism. Hook one end of the clip to hook first.
6. Press down the other end of the clip to fasten the cooling set on the top of the retention
mechanism.
7. Locate the Fix Lever, Safety Hook and the Fixed Bolt. Lift up the intensive fixed lever.
8. Fasten down the lever.
9. Make sure the safety hook completely clasps the fixed bolt of the retention mechanism.
MSI Reminds You...
While disconnecting the Safety Hook from the fixed bolt, it is necessary to keep an eye on your fingers,
because once the Safety Hook is disconnected from the fixed bolt, the fixed lever will spring back
instantly.
Memory
The mainboard provides two 184-pin unbuffered DDR266/DDR333/DDR400 DDR SDRAM, and
supports the memory size up to 2GB. To operate properly, at least one DIMM module must be installed.
(For the updated supporting memory modules, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )
Install at least one DIMM module on the slots. Memory modules can be installed on the slots in any
order. You can install either single- or double-sided modules to meet your own needs.
Installing DDR Modules
1. The DDR DIMM has only one notch on the center of module. The module will only fit in the right
orientation.
2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in until the golden
finger on the memory module is deeply inserted in the socket.
3. The plastic clip at each side of the DIMM slot will automatically close.

8
NotchVolt
Power Supply
The mainboard supports ATX power supply for the power system. Before inserting the power supply
connector, always make sure that all components are installed properly to ensure that no damage will
be caused. A 300W or above power supply is suggested.
ATX 20-Pin Power Connector: CONN1
This connector allows you to connect to an ATX power supply.
To connect to the ATX power supply, make sure the plug of
the power supply is inserted in the proper orientation and the
pins are aligned. Then push down the power supply firmly
into the connector.
ATX 12V Power Connector: JPW1
This 12V power connector is used to provide power to the CPU.
Floppy Disk Drive Connector: FDD1
The mainboard provides a standard floppy disk drive connector that supports 360K,
720K, 1.2M, 1.44M and 2.88M floppy disk types.
3.3V
-12V
GND
GND
PW_OK -5V
5V_SB 5V
12V
PS_O
N
10 20
111
GND
GND
5V
GND
GND
GND
5V
5V
3.3V
3.3V
1
3
2
4
G
ND
GND
12V
12V

9
CD-In Connector: J1
The connector is for CD-ROM audio connector.
Fan Power Connectors: CPUFAN1/SFAN1
The CPUFAN1 (processor fan) and SFAN1 (system fan) support system
cooling fan with +12V. They support three-pin head connector. When
connecting the wire to the connectors, always take note that the red wire
is the positive and should be connected to the +12V, the black wire is Ground and should be connected
to GND. If the mainboard has a System Hardware Monitor chipset on-board, you must use a specially
designed fan with speed sensor to take advantage of the CPU fan control.
MSI Reminds You...
1. Always consult the vendors for proper CPU cooling fan.
2. CPUFAN1 supports the fan control. You can install the PC Alert utility that will automatically control
the CPU fan speed according to the actual CPU temperature.
IDE Connectors: IDE1/IDE2
The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 33/66/100/133 controller that
provides PIO mode 0~4, Bus Master, and Ultra DMA 33/66/100/133 function. You can
connect up to four hard disk drives, CD-ROM, 120MB Floppy and other devices.
The first hard drive should always be connected to IDE1. IDE1 can connect a Master and a
Slave drive. You must configure second hard drive to Slave mode by setting the jumper
accordingly. IDE2 can also connect a Master and a Slave drive.
MSI Reminds You...
If you install two hard disks on cable, you must configure the second drive to Slave mode by setting its
jumper. Refer to the hard disk documentation supplied by hard disk vendors for jumper setting
instructions.
GND
L
R
+12V
GND
SENSOR
CPUFAN1 SFAN1
+12V
GND
S
EN
SO
R

10
Front Panel Connectors: JFP1/JFP2
The mainboard provides two front panel connectors for
electrical connection to the front panel switches and
LEDs. JFP1 is compliant with Intel Front Panel I/O
Connectivity Design Guide.
Front Panel Audio Connector: JAUD1
The front panel audio connector allows you to connect
to the front panel audio and is compliant with Intel ®
Front Panel I/O Connectivity Design Guide.
MSI Reminds You...
If you do not want to connect to the front audio header, pins 5 & 6, 9 & 10 have to be jumpered in order
to have signal output directed to the rear audio ports. Otherwise, the Line-Out connector on the back
panel will not function.
1
2
9
10
Front USB Connector: JUSB1/JUSB2
The mainboard provides two standard USB 2.0 pin headers JUSB1&JUSB2.
USB2.0 technology increases data transfer rate up to a maximum throughput of
480Mbps, which is 40 times faster than USB 1.1, and is ideal for connecting
high-speed USB interface peripherals such as USB HDD, digital cameras, MP3
players, printers, modems and the like.
MSI Reminds You...
Note that the pins of VCC and GND must be connected correctly, or it may cause some damage.
HDD
LED
Power
LED
Reset
Switch
Powe
r
Switch
1
9
2
10
JFP1
Power
LED
Speaker
1
7
2
8
JFP2
1
2
9
10
AUD_MIC
AUD_MIC_BIAS
AUD_GND
A
UD_V
CC
AUD_FPOUT_R
AUD_RET_L
A
UD_FPOUT_
L
AUD_RET_R
NC
KEY
1
2
9
10
GND
NC
KEY
GND VCC
VCC
U
S
B0-
US
B1-
USB0+
USB1+

11

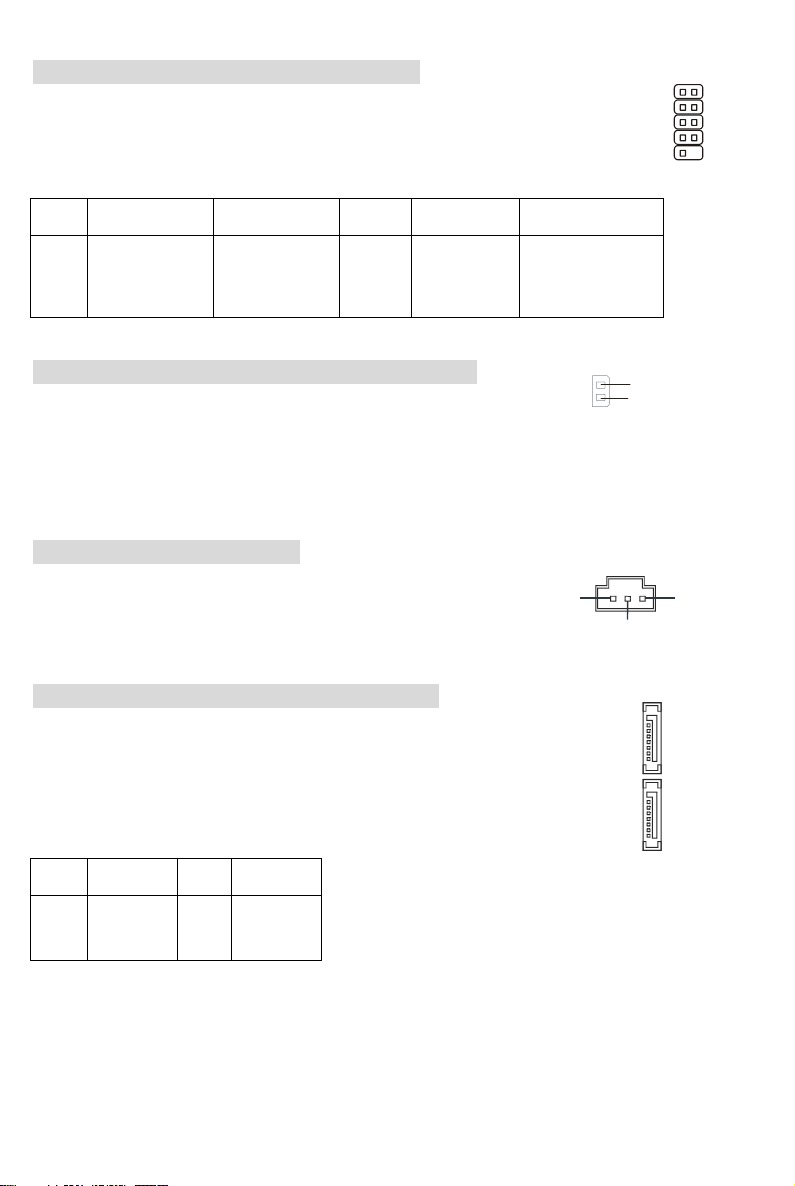

Serial Port Connector: JCOM1 (Optional)
The main board offers one serial port COM2. It is 16550A high speed communication
port that sends/receives 16 bytes FIFOs. You can attach a serial mouse or other serial
device directly to it.
PIN SIGNAL DESCRIPTION PIN SIGNAL DESCRIPTION
1
2
3
4
5
DCD
SIN
SOUT
DTR
GND
Data Carry Detect
Serial In or
Receive Data
Serial Out or
Transmit Data
6
7
8
9
DSR
RTS
CTS
RI
Data Set Ready
Request To Send
Clear To Send
Ring Indicate
Chassis Intrusion Switch Connector: JCASE1
This connector is connected to 2-pin connector chassis switch. If the
Chassis is open, the switch will be short. The system will record this status. To clear the warning, you
must enter the BIOS setting and clear the status.
SPDIF-Out Connector: JSP1
This connector is used to connect SPDIF (Sony & Philips Digital
Interconnect Format) interface for digital audio transmission.
Serial ATA HDD Connectors: SATA1/SATA2
The mainboard provides dual high-speed Serial ATA interface ports. The ports
support 1st generation Serial ATA data rates of 150 MB/s and are fully compliant
with Serial ATA 1.0 specifications. Each Serial ATA connector can connect to 1
hard disk drive.
PIN SIGNAL PIN SIGNAL
1
3
5
7
GND
TXN
RXN
GND
2
4
6
TXP
GND
RXP
1
9
2
1
0
2
1
GND
CINTRO
GN
D
S
PDIF
VCC
SATA1
SATA2
1
7
1
7

12
Clear CMOSJumper:JBAT1
ThereisaCMOSRAMon boardthathasapowersupplyfromexternal
batterytokeepthedataofsystemconfiguration.WiththeCMOS
RAM,thesystemcan automaticallybootOSeverytimeitisturned on. If youwanttoclearthesystem
configuration,usetheJBAT1(ClearCMOSJumper)tocleardata. Followtheinstructionsbelowtoclear
thedata:
MSIRemindsYou...
You can clearCMOSbyshorting 2-3pin whilethesystemisoff.Then returnto1-2pin position.Avoid
clearingtheCMOSwhilethesystemison;it willdamage themainboard.
AGP(Accelerated Graphics Port) Slot
The AGPslotallowsyoutoinserttheAGP
graphics card.AGPisaninterfacespecificationdesigned forthethroughputdemandsof3Dgraphics.It
introducesa66MHz, 32-bitchannelforthegraphics controllertodirectlyaccess mainmemory.
PCI (PeripheralComponentInterconnect) Slots
The PCIslotsallowyoutoinsert theexpansion cardstomeetyourneeds. Whenaddingorremoving
expansioncards,makesurethatyou unplugthepower
supplyfirst. Meanwhile,readthedocumentationfortheexpansion cardtomakeanynecessary
hardwareorsoftwaresettingsfortheexpansion card,suchasjumpers,switchesorBIOSconfiguration.
PCI InterruptRequestRouting
The IRQ,abbreviation of interrupt requestlineandpronouncedI-R-Q,arehardwarelinesoverwhich
devicescan sendinterrupt signalstothemicroprocessor.ThePCIIRQpinsaretypicallyconnected to
thePCIbusINTA#~INT D#pinsasfollows:
Order1 Order2 Order3 Order4
PCISlot 1 INTA# INTB# INTC# INTD#
PCISlot 2 INTB# INTC# INTD# INTA#
PCISlot 3 INTC# INTD# INTA# INTB#
1
KeepData
ClearData
1
3
1
3

13
BIOS Setup

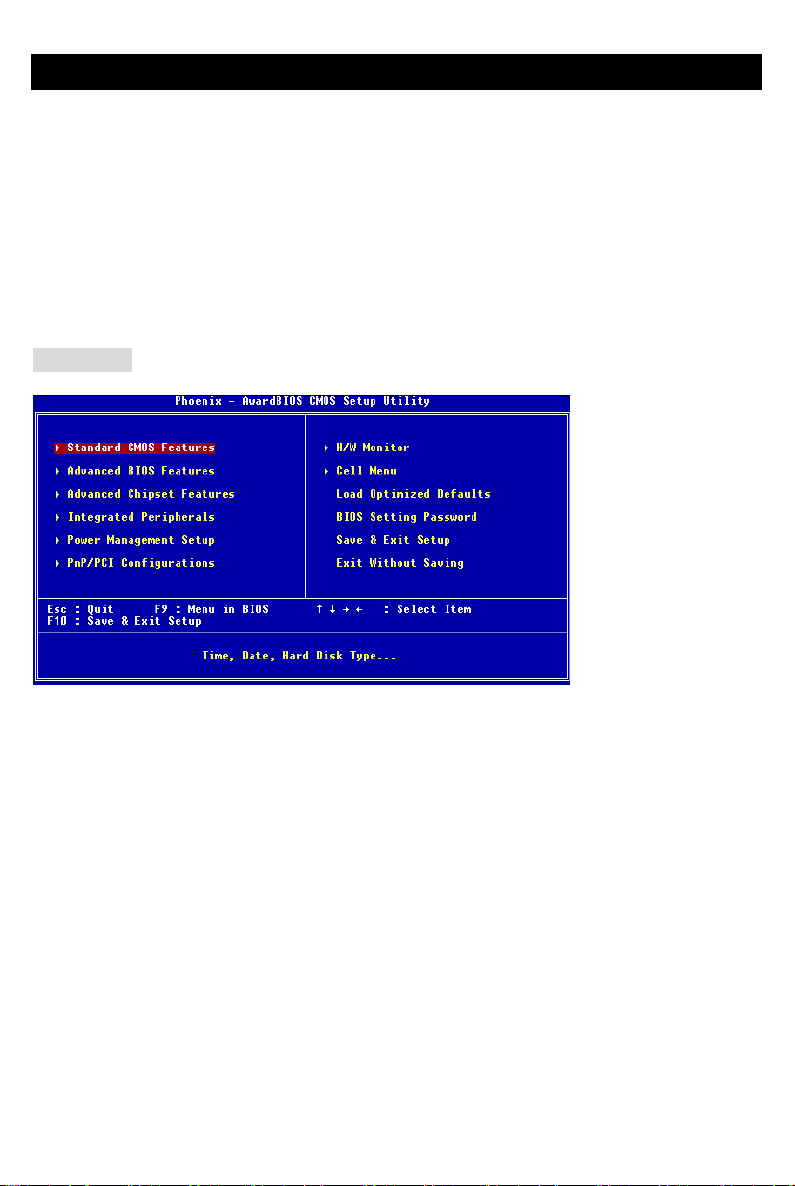

Power on the computer and the system will start POST (Power On Self Test) process. When the
message below appears on the screen, press <DEL> key to enter Setup.
DEL: Setup F11: Boot Menu TAB: Logo
If the message disappears before you respond and you still wish to enter Setup, restart the system by
turning it OFF and On or pressing the RESET button. You may also restart the system by
simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys.
Main Page
Standard CMOS Features
Use this menu for basic system configurations, such as time, date etc.
Advanced BIOS Features
Use this menu to setup the items of Award special enhanced features.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and optimize your system performance.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
Power Management Setup
Use this menu to specify your settings for power management.
PNP/PCI Configurations
This entry appears if your system supports PnP/PCI.
H/W Monitor
This entry shows the status of your CPU, fan, warning for overall system status.
Cell Menu
Use this menu to specify your settings for frequency/voltage control.

14
Load Optimized Defaults
Use this menu to load factory default settings into the BIOS for stable system performance operations.
BIOS Setting Password
Use this menu to set BIOS setting Password.
Save & Exit Setup
Save changes to CMOS and exit setup.
Exit Without Saving
Abandon all changes and exit setup.

15
Cell Menu
Current CPU Clock
It shows the current clock of CPU. Read-only.
Cool’n’Quiet control
It provides a CPU temperature detecting function to prevent your CPU’s from overheading due to the
heavy working loading.
Memory Voltage (V)
Adjusting the DDR voltage can increase the DDR speed. Any changes made to this setting may
cause a stability issue, so changing the DDR voltage for long-term purpose is NOT recommended.
AGP Voltage (V)
AGP voltage is adjustable in the field, allowing you to increase the performance of your AGP display
card when overclocking, but the stability may be affected. Setting options: 1.5V to 1.85V at 0.05V
increment.
Auto Detect PCI Clk
This item is used to auto detect the PCI slots. When set to [Enabled], the system will remove (turn off)
clocks from empty PCI slots to minimize the electromagnetic interference (EMI).
Spread Spectrum
When the motherboard’s clock generator pulses, the extreme values (spikes) of the pulses creates EMI
(Electromagnetic Interference). The Spread Spectrum function reduces the EMI generated by
modulating the pulses so that the spikes of the pulses are reduced to flatter curves. If you do not have
any EMI problem, leave the setting at Disabled for optimal system stability and performance. But if you
are plagued by EMI, set to Enabled for EMI reduction. Remember to disable Spread Spectrum if you
are overclocking because even a slight jitter can introduce a temporary boost in clock speed which may
just cause your overclocked processor to lock up.

16
