MSI MS-6367 User manual

Introduction
1-1
Chapter 1. Introduction
Chapter 1. Getting Started
Thank you for purchasing the MS-6367 v1.X M-ATX mainboard. The
MS-6367 mainboard is a superior computer mainboard based on nVIDIA Crush
11 & MCP-D chipsets for optimal system efficiency. Designed to fit the ad-
vanced AMD®Duron/Athlon processors in the 462 pin package, the MS-6367
mainboard delivers a high performance and professional desktop platform
solution.
1
Getting Started
TOPICS
Mainboard Specification 1-2
Mainboard Layout 1-5
Quick Components Guide 1-6
All manuals and user guides at all-guides.com
all-guides.com

Chapter 1
1-2
CPU
Supports Socket A for AMD®Duron/Athlon processor
Supports 650MHz, 700MHz, up to 1.5GHz or higher
Chipset
nVIDIA®Crush 11 chipset
- AGP 4x (1.5V only)
- Supports 200/266 MHz FSB
- 64-bit / 128-bit DDR memory controller
- Integrated GeForce2 MX-class advanced Graphics Processing Unit
- LDT interface to MCP (800MB/sec max)
- Multiplex DVI / TV Interface with AGP Slot
nVIDIA®nFORCE MCP-D (Media Communications Processor)
- Dual ATA/100 controller
- USB OHCI 1.0a up to 6 ports
- IEEE 802.3 compatible MAC (MII)
- Integrated Audio Processor Unit
- AC 97 2.1 Compliant Interface
- Dolby Digital S/PDIF output function
MainMemory
Supports 2 DDR DIMM
Supports a maximum memory size of 1GB
Supports either 64- or 128-bit system memory
Slots
One AGP 2.0 4x 1.5V slot
Three 32-bit Master PCI 2.2 Slots
Supports 3.3/5V PCI bus Interface
On-BoardIDE
An IDE controller on the MCP/MCP-D chipset provides IDE HDD/CD-
ROM with PIO, Bus Master and Ultra DMA 100 operation modes.
Can connect up to four IDE devices
Mainboard Specification
All manuals and user guides at all-guides.com

Introduction
1-3

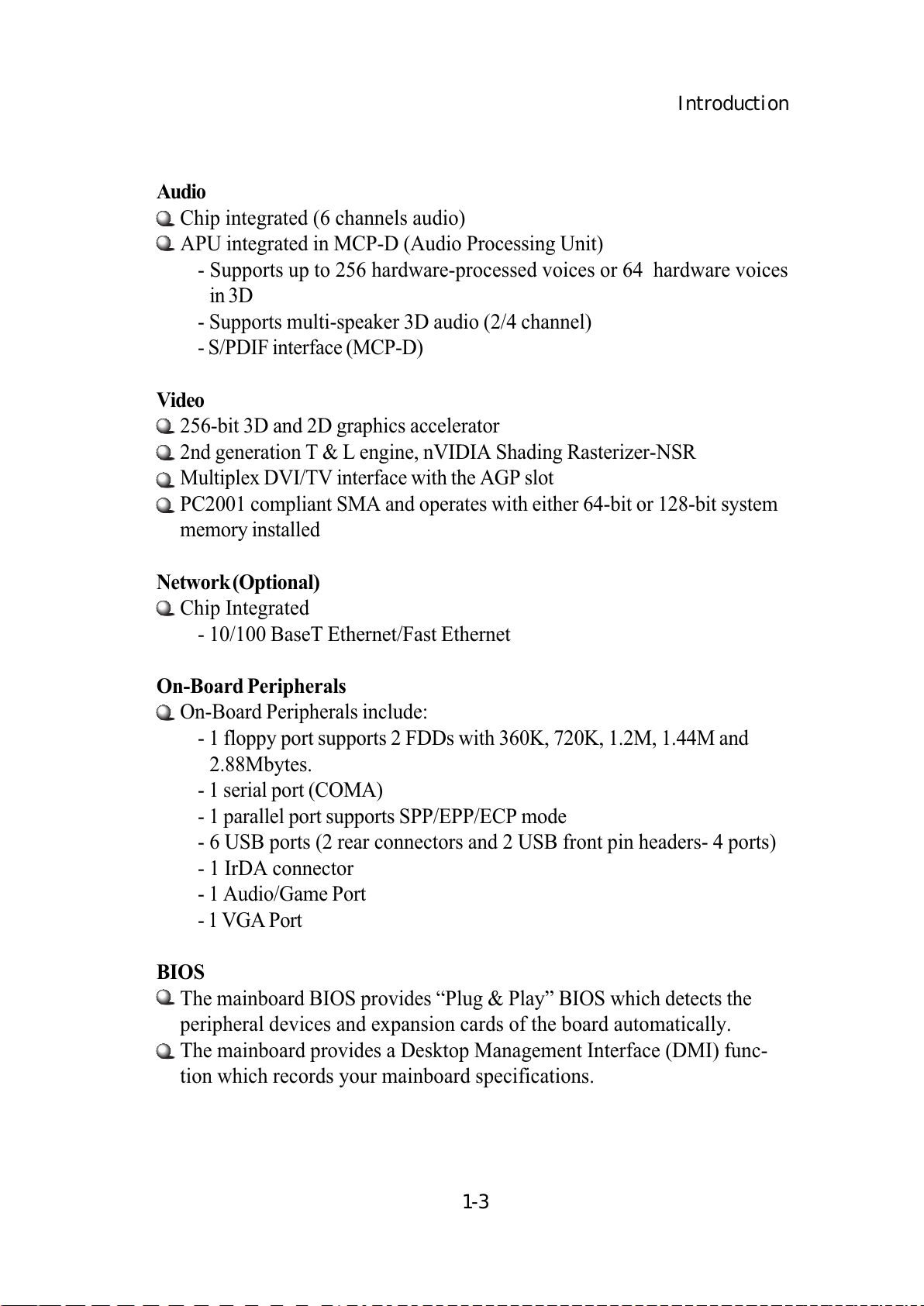

Audio
Chip integrated (6 channels audio)
APU integrated in MCP-D (Audio Processing Unit)
- Supports up to 256 hardware-processed voices or 64 hardware voices
in 3D
- Supports multi-speaker 3D audio (2/4 channel)
- S/PDIF interface (MCP-D)
Video
256-bit 3D and 2D graphics accelerator
2nd generation T & L engine, nVIDIA Shading Rasterizer-NSR
Multiplex DVI/TV interface with the AGP slot
PC2001 compliant SMA and operates with either 64-bit or 128-bit system
memory installed
Network (Optional)
Chip Integrated
- 10/100 BaseT Ethernet/Fast Ethernet
On-Board Peripherals
On-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes.
- 1 serial port (COMA)
- 1 parallel port supports SPP/EPP/ECP mode
- 6 USB ports (2 rear connectors and 2 USB front pin headers- 4 ports)
- 1 IrDA connector
- 1 Audio/Game Port
- 1 VGA Port
BIOS
The mainboard BIOS provides Plug & Play BIOS which detects the
peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) func-
tion which records your mainboard specifications.
All manuals and user guides at all-guides.com

Chapter 1
1-4
Dimension
M-ATX Form Factor: 9.6 inch x 9.6 inch
Mounting
6 mounting holes
Others
LAN Wake Up function
Modem (Internal/External) Ring Wake Up function
PC99 Color Connector
All manuals and user guides at all-guides.com

Introduction
1-5

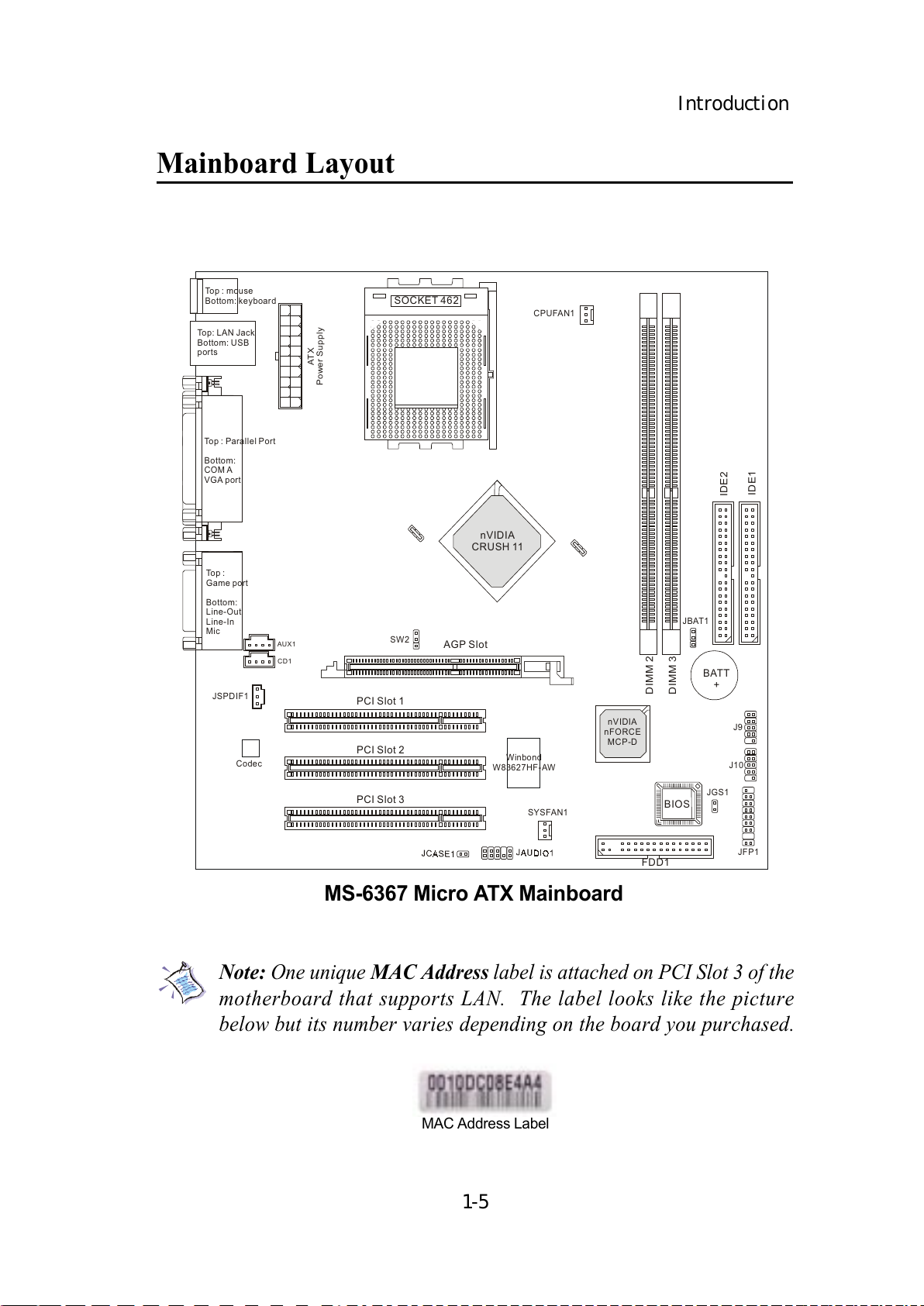

Mainboard Layout
MS-6367 Micro ATX Mainboard
Note: One unique MAC Address label is attached on PCI Slot 3 of the
motherboard that supports LAN. The label looks like the picture
below but its number varies depending on the board you purchased.
MAC Address Label
BATT
+
nVIDIA
nFORCE
MCP-D
DIMM2
DIMM3
J10
J9
JGS1
JSPDIF1
ATX
Power Supply
JFP1
SOCKET 462
BIOS
PCI Slot 3
Codec
PCI Slot 2
PCI Slot 1
nVIDIA
CRUSH 11
IDE2
IDE1
Top : Parallel Port
Bottom:
COM A
VGA port
JBAT1
SW2
Top : mouse
Bottom: keyboard
Top: LAN Jack
Bottom: USB
ports
CD1
CPUFAN1
SYSFAN1
Winbond
W83627HF-AW
AUX1
To p :
Game port
Bottom:
Line-Out
Line-In
Mic
FDD1
AGP Slot
All manuals and user guides at all-guides.com

Chapter 1
1-6
Quick Components Guide
Component Function Reference
SW2 CPU FSB Selection jumper See p. 2-4
JWR1 ATX 20-pin Power Connector See p. 2-7
JKBMS1 Mouse Connector See p. 2-8
JKBMS1 Keyboard Connector See p. 2-9
USB Connectors Connecting to USB devices See p. 2-9
COM A Connecting to Serial port See p. 2-10
VGA Connector Connecting to VGA port See p. 2-10

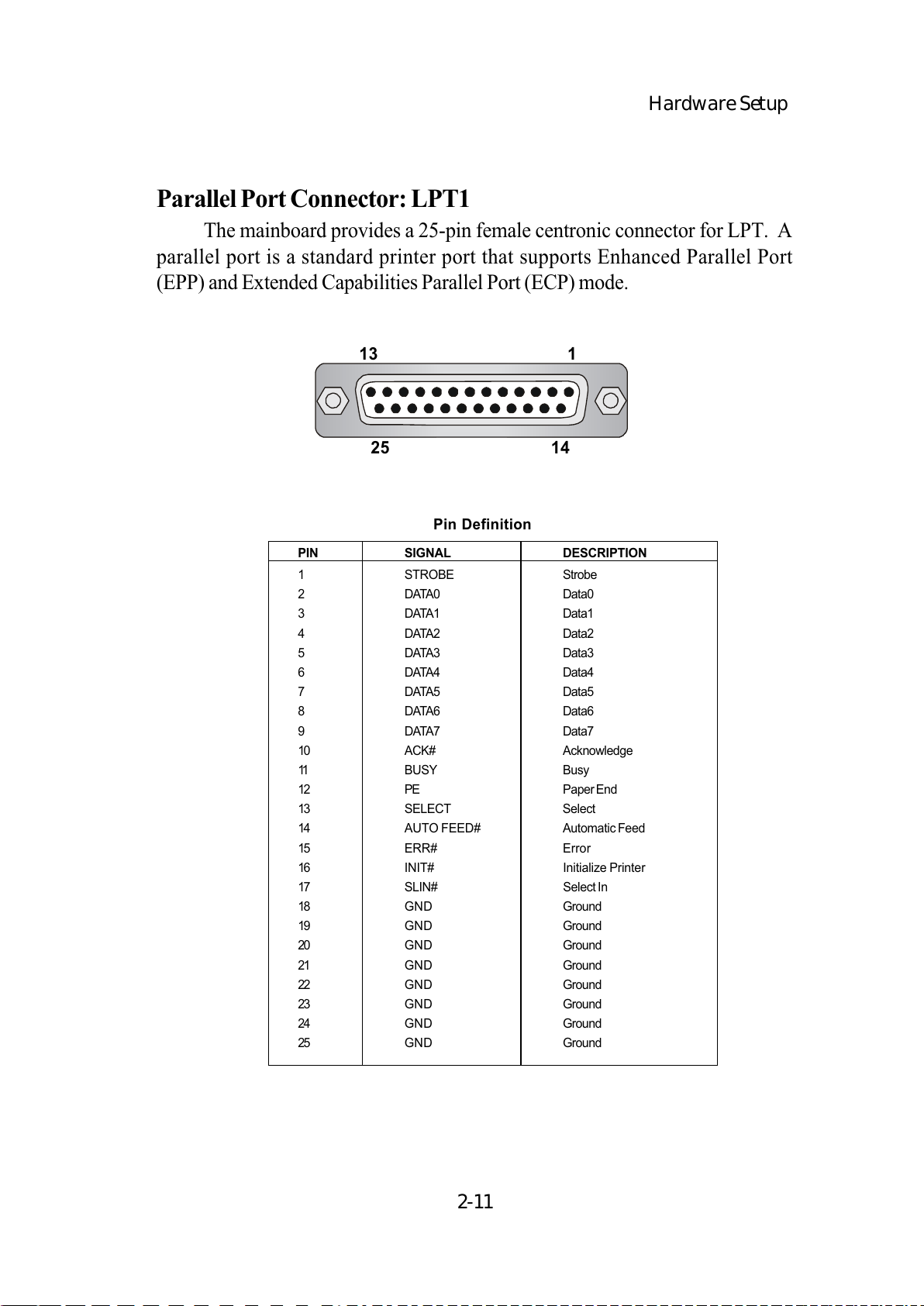

LPT1 Parallel port connector See p. 2-11
Game/Audio Connectors Connecting to Game/Audio devices See p. 2-12

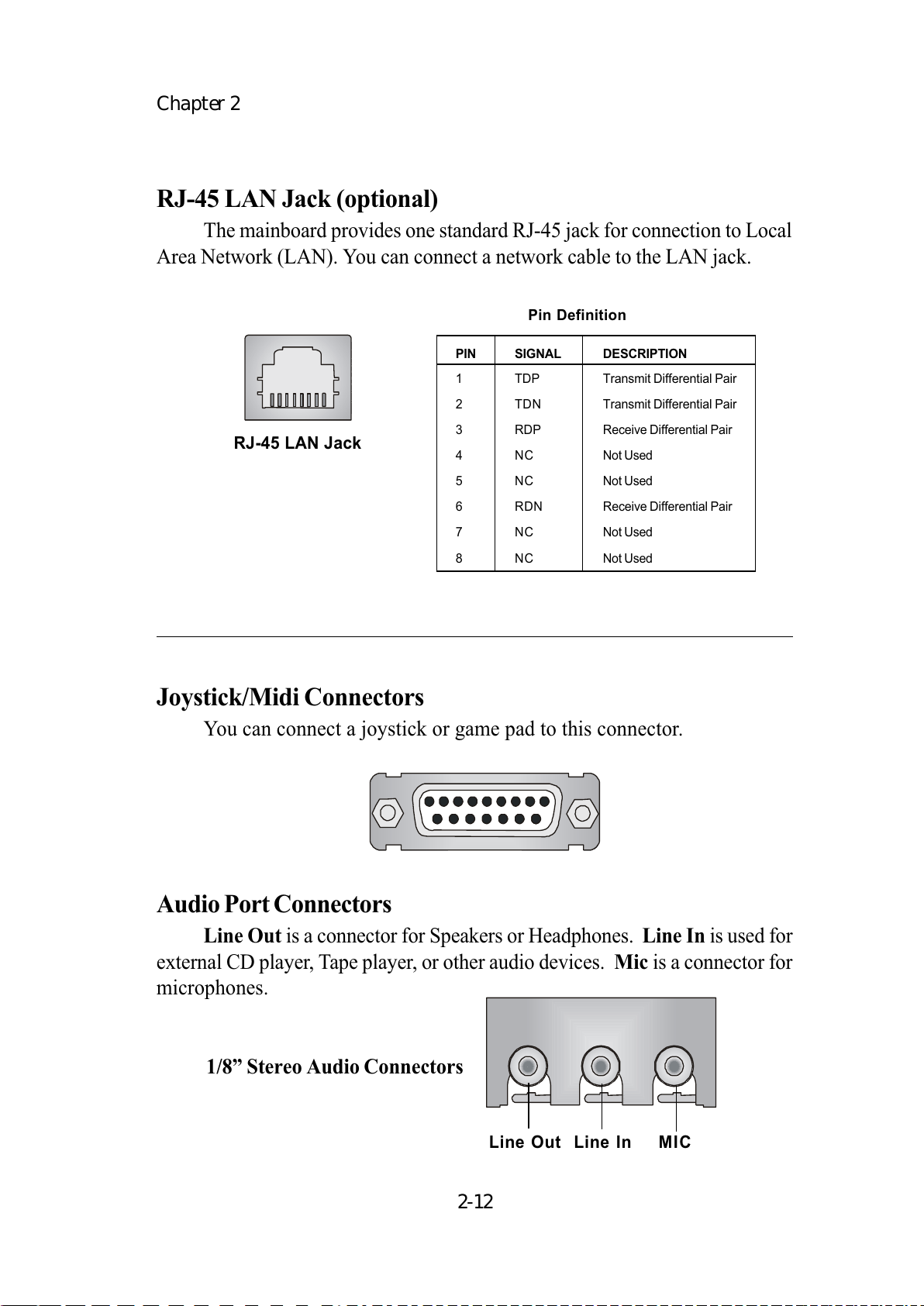

RJ-45 LAN Jack Connecting to LAN devices See p. 2-12

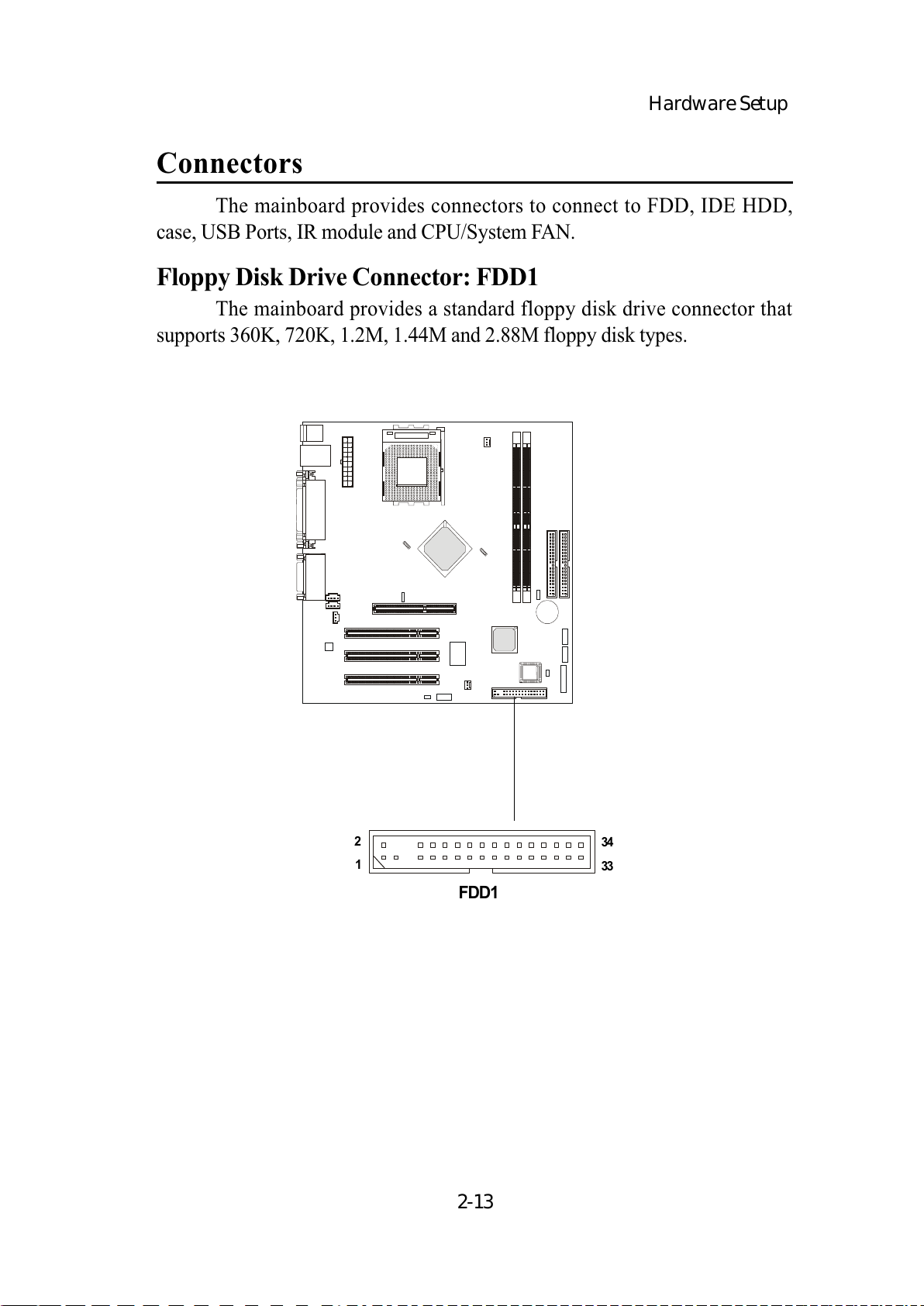

FDD1 Floppy disk drive connector See p. 2-13
IDE1~ IDE2 Hard disk connectors See p. 2-14
JFP1 Case connectors See p. 2-15
CD1 CD-in connector See p. 2-17
AUX1 Aux line-in connector See p. 2-17
JGS1 Power Saving Switch Connector See p. 2-17
JCASE1 Chassis intrusion switch See p. 2-18
J9 & J10 Front USB connectors See p. 2-18
CPUFAN1/SYSFAN1 Fan power connectors See p. 2-19
JSPDIF1 SPDIF Connector See p. 2-20
JAUDIO1 Front panel audio connector See p. 2-21
JBAT1 Clear CMOS jumper See p. 2-22
AGP Slot Connecting to expansion cards See p. 2-23
PCI Slots Connecting to expansion cards See p. 2-23
All manuals and user guides at all-guides.com
all-guides.com

Hardware Setup
2-1
Chapter 2. Hardware Setup
TOPICS
Central Processing Unit: CPU 2-2
Memory 2-5
Power Supply 2-7

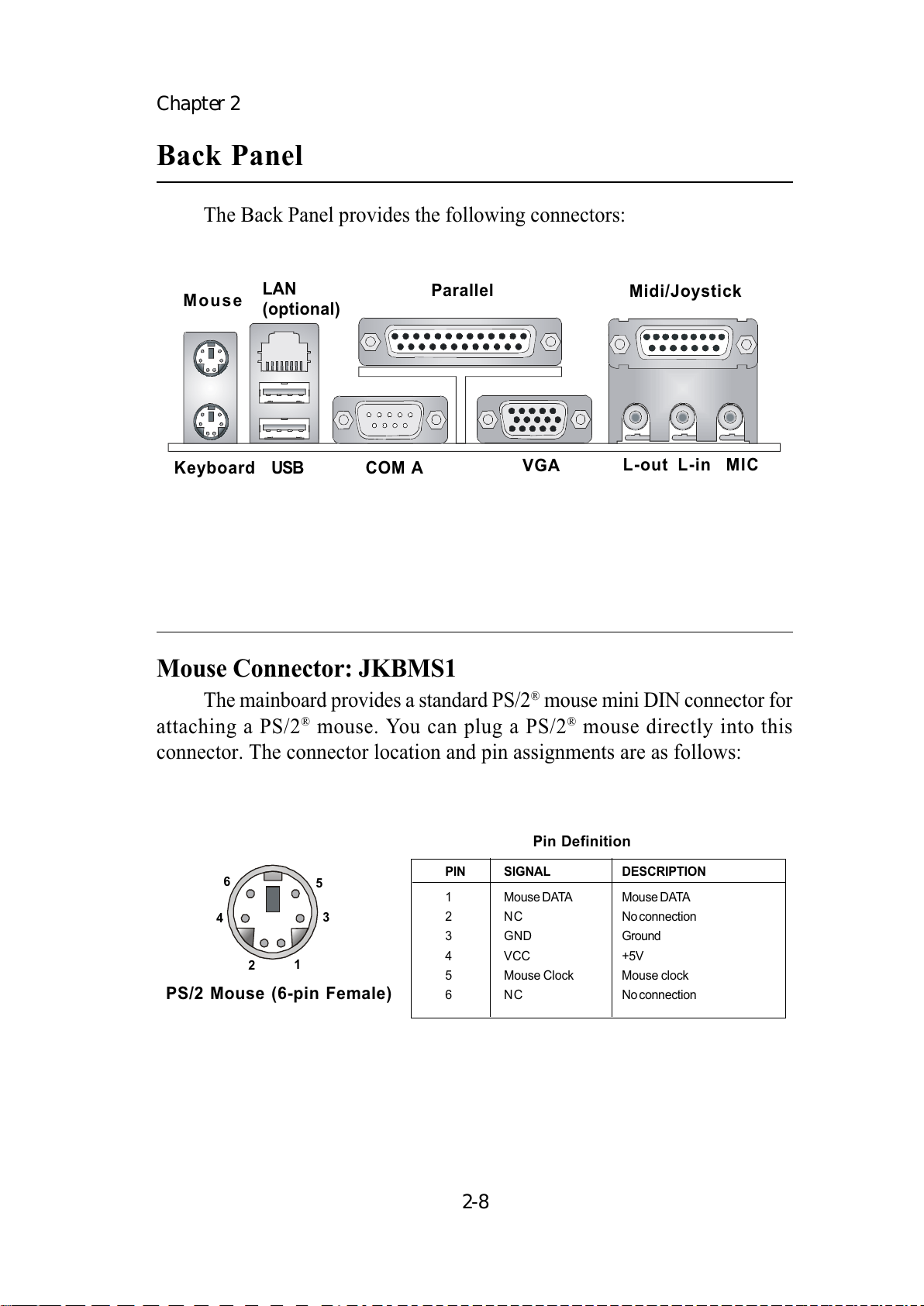

Back Panel 2-8
Connectors 2-13
Jumpers 2-22
Slots 2-23
2
Hardware Setup
This chapter provides you with the information about hardware setup
procedures. While doing the installation, be careful in holding the components
and follow the installation procedures. For some components, if you install in
the wrong orientation, the components will not work properly.
Use a grounded wrist strap before handling computer components. Static
electricity may damage the components.
All manuals and user guides at all-guides.com

Chapter 2
2-2
1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.
Central Processing Unit: CPU
CPU Installation Procedures
2. Look for the cut edge. The
cut edge should point
towards the lever pivot. The
CPU will only fit in the
correct orientation.
The mainboard supports AMD®Athlon and Duron processors.
It uses a CPU socket called Socket A for easy CPU installation. Make sure
the CPU has a Heat Sink and a cooling fan attached on the top to prevent
overheating. If you do not find the Heat Sink and cooling fan, contact your
dealer to purchase and install them before turning on the computer.
Open Lever
Cut edge
Sliding
Plate
Close
Lever
Press down
the CPU
3. Press the CPU down firmly
into the socket and close the
lever. As the CPU is likely to
move while the lever is being
closed, always close the lever
with your finger pressing
tightly on top of the CPU to
make sure the CPU is properly
& completely embedded into
the socket.
Overheating will seriously damage the CPU and system,
always make sure the cooling fan can work properly to
protect the CPU from overheating.
WARNING!
All manuals and user guides at all-guides.com

Hardware Setup
2-3

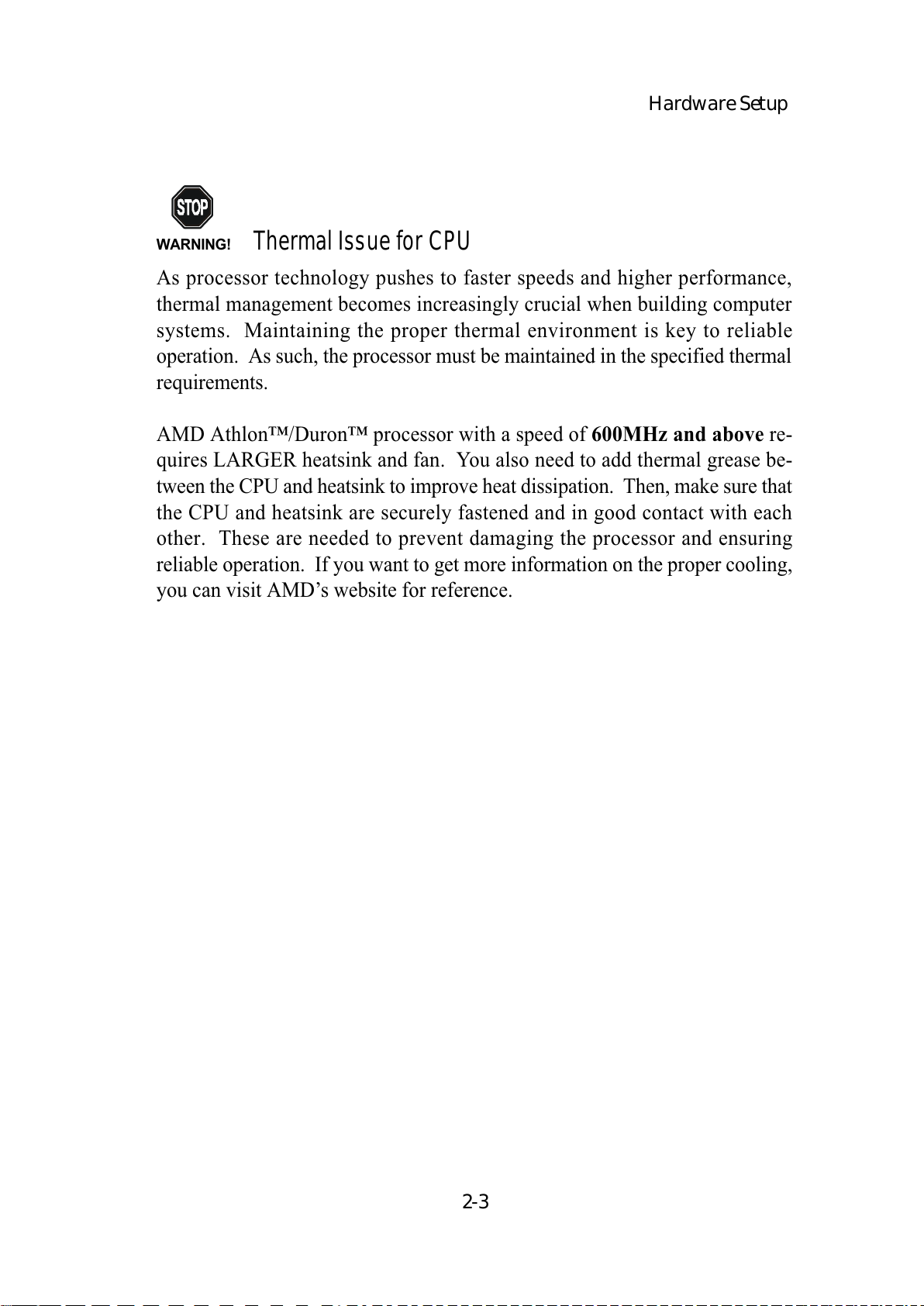

As processor technology pushes to faster speeds and higher performance,
thermal management becomes increasingly crucial when building computer
systems. Maintaining the proper thermal environment is key to reliable
operation. As such, the processor must be maintained in the specified thermal
requirements.
AMD Athlon/Duron processor with a speed of 600MHz and above re-
quires LARGER heatsink and fan. You also need to add thermal grease be-
tween the CPU and heatsink to improve heat dissipation. Then, make sure that
the CPU and heatsink are securely fastened and in good contact with each
other. These are needed to prevent damaging the processor and ensuring
reliable operation. If you want to get more information on the proper cooling,
you can visit AMDs website for reference.
WARNING! Thermal Issue for CPU
All manuals and user guides at all-guides.com

Chapter 2
2-4
CPU Core Speed Derivation Procedure
If CPUClock = 100MHz
Core/Bus ratio = 7
then CPU core speed = Host Clock x Core/Bus ratio
= 100MHzx7
= 700MHz
CPU FSB Selection Jumper: SW2
To use a 133MHz CPU, you need to set the SW2 jumper to short 1-2 pin.
To use a 100MHz CPU, set the SW2 jumper to short 2-3 pin.
SW2
1
FSB = 133MHz FSB = 100MHz
3
1
3
1
Overclocking
This motherboard is designed to support overclocking.
However, please make sure your components are able to
tolerate such abnormal setting, while doing
overclocking. Any attempt to operate beyond product
specifications is not recommended. We do not guarantee
the damages or risks caused by inadequate operation or
beyond product specifications.
WARNING!
All manuals and user guides at all-guides.com

Hardware Setup
2-5

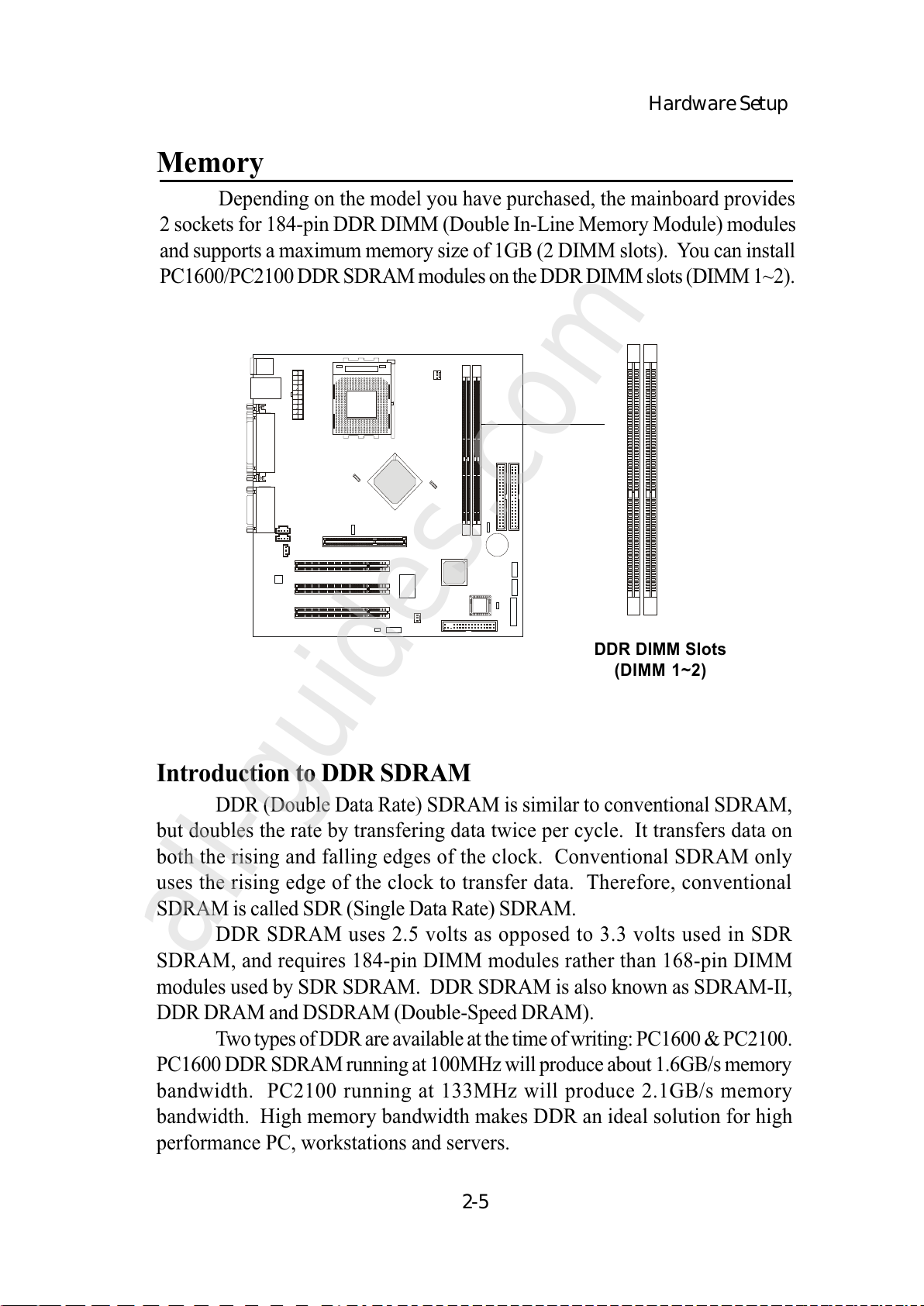

Depending on the model you have purchased, the mainboard provides
2 sockets for 184-pin DDR DIMM (Double In-Line Memory Module) modules
and supports a maximum memory size of 1GB (2 DIMM slots). You can install
PC1600/PC2100 DDR SDRAM modules on the DDR DIMM slots (DIMM 1~2).
Memory
DDR DIMM Slots
(DIMM 1~2)
Introduction to DDR SDRAM
DDR (Double Data Rate) SDRAM is similar to conventional SDRAM,
but doubles the rate by transfering data twice per cycle. It transfers data on
both the rising and falling edges of the clock. Conventional SDRAM only
uses the rising edge of the clock to transfer data. Therefore, conventional
SDRAM is called SDR (Single Data Rate) SDRAM.
DDR SDRAM uses 2.5 volts as opposed to 3.3 volts used in SDR
SDRAM, and requires 184-pin DIMM modules rather than 168-pin DIMM
modules used by SDR SDRAM. DDR SDRAM is also known as SDRAM-II,
DDR DRAM and DSDRAM (Double-Speed DRAM).
Two types of DDR are available at the time of writing: PC1600 & PC2100.
PC1600 DDR SDRAM running at 100MHz will produce about 1.6GB/s memory
bandwidth. PC2100 running at 133MHz will produce 2.1GB/s memory
bandwidth. High memory bandwidth makes DDR an ideal solution for high
performance PC, workstations and servers.
All manuals and user guides at all-guides.com
all-guides.com

Chapter 2
2-6

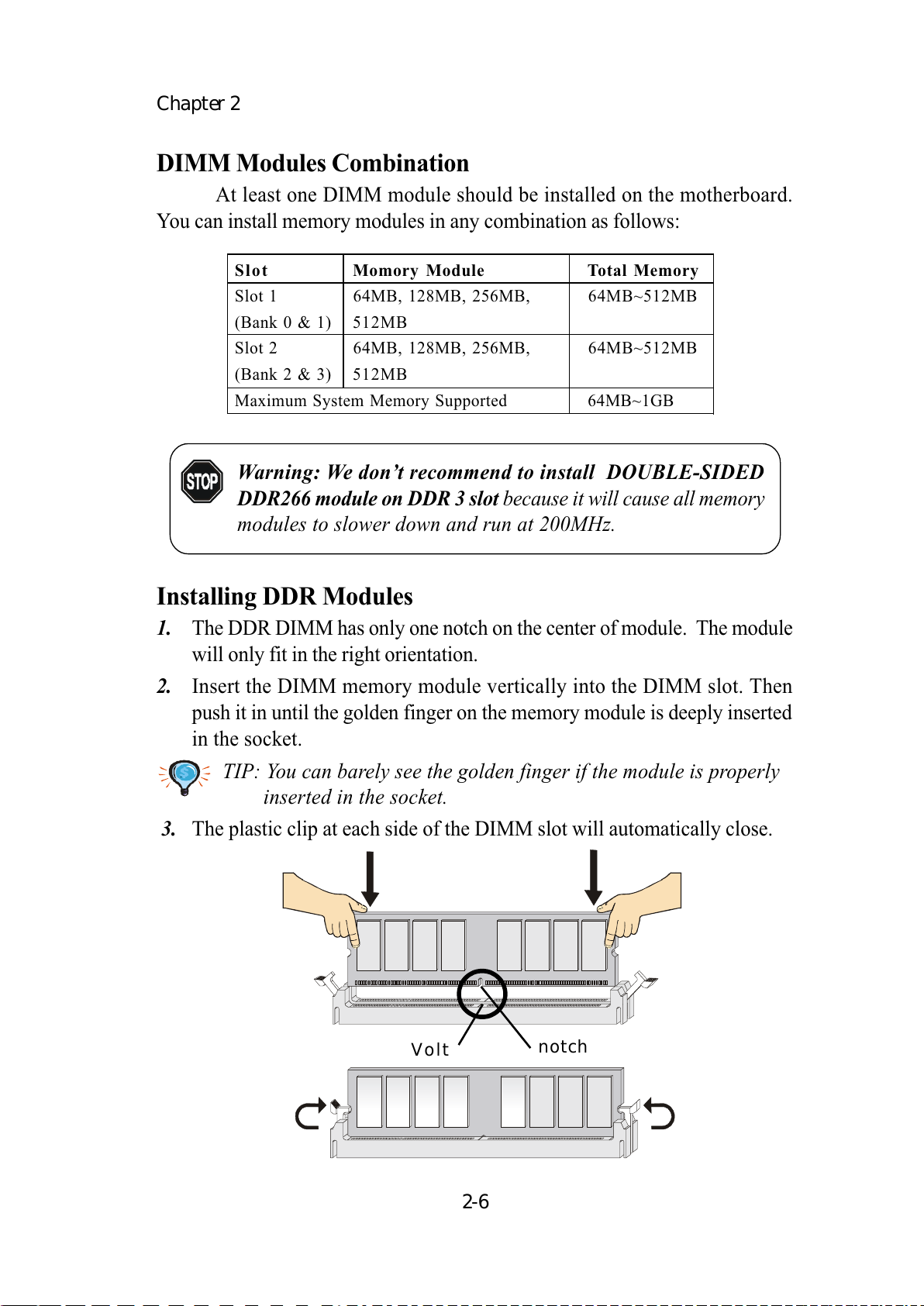

Installing DDR Modules
1. The DDR DIMM has only one notch on the center of module. The module
will only fit in the right orientation.
2. Insert the DIMM memory module vertically into the DIMM slot. Then
push it in until the golden finger on the memory module is deeply inserted
in the socket.
3. The plastic clip at each side of the DIMM slot will automatically close.
TIP: You can barely see the golden finger if the module is properly
inserted in the socket.
Volt notch
DIMM Modules Combination
At least one DIMM module should be installed on the motherboard.
You can install memory modules in any combination as follows:
Warning: We dont recommend to install DOUBLE-SIDED
DDR266 module on DDR 3 slot because it will cause all memory
modules to slower down and run at 200MHz.
Slot Momory Module Total Memory
Slot 1 64MB, 128MB, 256MB, 64MB~512MB
(Bank 0 & 1) 512MB
Slot 2 64MB, 128MB, 256MB, 64MB~512MB
(Bank 2 & 3) 512MB
Maximum System Memory Supported 64MB~1GB
All manuals and user guides at all-guides.com

Hardware Setup
2-7
Power Supply
ATX 20-Pin Power Supply
This connector allows you to connect to an ATX power supply. To
connect to the ATX power supply, make sure the plug of the power supply is
inserted in the proper orientation and the pins are aligned. Then push down
the power supply firmly into the connector.
ATX
Power Connector
The mainboard supports ATX power supply for the power system.
Before inserting the power supply connector, always make sure that all compo-
nents are installed properly to ensure that no damage will be caused.
10
1
20
11
PIN SIGNAL
11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5V
20 5V
PIN SIGNAL
1 3.3V
2 3.3V
3 GND
45V
5 GND
65V
7 GND
8 PW_OK
9 5V_SB
10 12V
All manuals and user guides at all-guides.com

Chapter 2
2-8
The Back Panel provides the following connectors:
Back Panel
Mouse Connector: JKBMS1
The mainboard provides a standard PS/2®mouse mini DIN connector for
attaching a PS/2®mouse. You can plug a PS/2®mouse directly into this
connector. The connector location and pin assignments are as follows:
Mouse
Keyboard USB
Parallel
COM A VGA
Midi/Joystick
PIN SIGNAL DESCRIPTION
1 Mouse DATA Mouse DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC No connection
Pin Definition
PS/2 Mouse (6-pin Female)
21
3
4
5
6
LAN
(optional)
L-out L-in MIC
All manuals and user guides at all-guides.com

Hardware Setup
2-9
Keyboard Connector: JKBMS1
The mainboard provides a standard PS/2®keyboard mini DIN connector
for attaching a PS/2®keyboard. You can plug a PS/2®keyboard directly into
this connector.
USB Connectors
The mainboard provides an OHCI (Open Host Controller Interface) Uni-
versal Serial Bus root for attaching USB devices such as keyboard, mouse or
other USB-compatible devices. You can plug the USB device directly into the
connector.
USB Ports
1 2 3 4
5 6 7 8
PIN SIGNAL DESCRIPTION
1 VCC +5V
2 -Data 0 Negative Data Channel 0
3 +Data0 Positive Data Channel 0
4 GND Ground
5 VCC +5V
6 -Data 1 Negative Data Channel 1
7 +Data 1 Positive Data Channel 1
8 GND Ground
USB Port Description
PIN SIGNAL DESCRIPTION
1 Keyboard DATA Keyboard DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Keyboard Clock Keyboard clock
6 NC No connection
Pin Definition
PS/2 Keyboard (6-pin Female)
21
3
4
5
6
All manuals and user guides at all-guides.com

Chapter 2
2-10
Serial Port Connector: COM A
The mainboard offers one 9-pin male DIN connector as serial port COM
A. The port is a 16550A high speed communication port that sends/receives 16
bytes FIFOs. You can attach a serial mouse or other serial devices directly to it.
9-Pin Male DIN Connectors
1 2 3 4 5
6 7 8 9
PIN SIGNAL DESCRIPTION
1 DCD Data Carry Detect
2 SIN Serial In or Receive Data
3 SOUT Serial Out or Transmit Data
4 DTR Data Terminal Ready)
5 GND Ground
6 DSR Data Set Ready
7 RTS Request To Send
8 CTS Clear To Send
9 RI Ring Indicate
Pin Definition
VGA Connector
The mainboard provides a DB 15-pin female connector to connect a VGA
monitor.
51
15 11
VGA Connector
(DB 15-pin)
Pin Signal Description
1 RED
2 GREEN
3 BLUE
4 N/C
5 GND
6 GND
7 GND
8 GND
9 +5V
10 GND
11 N/C
12 SDA
13 Horizontal Sync
14 Vertical Sync
15 SCL
All manuals and user guides at all-guides.com
all-guides.com

Hardware Setup
2-11
Parallel Port Connector: LPT1
The mainboard provides a 25-pin female centronic connector for LPT. A
parallel port is a standard printer port that supports Enhanced Parallel Port
(EPP) and Extended Capabilities Parallel Port (ECP) mode.
13 1
14
25
PIN SIGNAL DESCRIPTION
1 STROBE Strobe
2 DATA0 Data0
3 DATA1 Data1
4 DATA2 Data2
5 DATA3 Data3
6 DATA4 Data4
7 DATA5 Data5
8 DATA6 Data6
9 DATA7 Data7
10 ACK# Acknowledge
11 BUSY Busy
12 PE Paper End
13 SELECT Select
14 AUTO FEED# Automatic Feed
15 ERR# Error
16 INIT# Initialize Printer
17 SLIN# Select In
18 GND Ground
19 GND Ground
20 GND Ground
21 GND Ground
22 GND Ground
23 GND Ground
24 GND Ground
25 GND Ground
Pin Definition
All manuals and user guides at all-guides.com

Chapter 2
2-12
RJ-45 LAN Jack (optional)
The mainboard provides one standard RJ-45 jack for connection to Local
Area Network (LAN). You can connect a network cable to the LAN jack.
RJ-45 LAN Jack
Pin Definition
PIN SIGNAL DESCRIPTION
1 TDP Transmit Differential Pair
2 TDN Transmit Differential Pair
3 RDP Receive Differential Pair
4 NC Not Used
5 NC Not Used
6 RDN Receive Differential Pair
7 NC Not Used
8 NC Not Used
Joystick/Midi Connectors
You can connect a joystick or game pad to this connector.
Audio Port Connectors
Line Out is a connector for Speakers or Headphones. Line In is used for
external CD player, Tape player, or other audio devices. Mic is a connector for
microphones.
1/8 Stereo Audio Connectors
Line Out Line In MIC
All manuals and user guides at all-guides.com

Hardware Setup
2-13
The mainboard provides connectors to connect to FDD, IDE HDD,
case, USB Ports, IR module and CPU/System FAN.
Floppy Disk Drive Connector: FDD1
The mainboard provides a standard floppy disk drive connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
Connectors
FDD1
1
2
33
34
All manuals and user guides at all-guides.com

Chapter 2
2-14
Hard Disk Connectors: IDE1 & IDE2
The mainboard uses an IDE controller on the nVIDIA®MCP-D chipset
that provides PIO mode 0-4, Bus Master, and Ultra DMA 33/66/100 modes. It
has two HDD connectors IDE1 (Primary) and IDE2 (Secondary). You can
connect up to four hard disk drives, CD-ROM or 120MB Floppy to IDE1 and
IDE2.
IDE1 (Primary IDE Connector)
- The first hard disk drive should always be connected to IDE1. You can
connect a Master and a Slave drive to IDE1.
IDE2 (Secondary IDE Connector)
- You can connect a Master and a Slave drive to IDE2.
TIP
If you install two hard disks on cable, you must configure the
second drive to Slave mode by setting its jumper. Refer to the
hard disk documentation supplied by hard disk vendors for
jumper setting instructions.
IDE1IDE2
1
2
40 39
1
2
40 39
All manuals and user guides at all-guides.com
