MSI P35D3 Platinum - Motherboard - ATX User manual

i
P35D3PlatinumSeries
MS-7356(v1.X)Mainboard
G52-73561X3
7356(P35 D3Platinum)v1.0-0 Preface.p65 2007/6/13, 午 02:211

ii
CopyrightNotice
The materialinthisdocumentistheintellectual propertyof MICRO-STAR
INTERNATIONAL.Wetakeeverycareinthe preparationof thisdocument, butno
guaranteeisgivenastothecorrectnessofitscontents.Ourproductsareunder
continualimprovementand wereservetherighttomakechangeswithoutnotice.
Trademarks
Alltrademarksarethepropertiesoftheirrespectiveowners.
NVIDIA,theNVIDIAlogo,DualNet, and nForceareregisteredtrademarksortrade-
marksofNVIDIACorporationin theUnitedStatesand/orothercountries.
AMD,Athlon ,Athlon XP,Thoroughbred ,andDuron areregisteredtrade-
marksofAMDCorporation.
Intel®andPentium®areregisteredtrademarksofIntelCorporation.
PS/2and OS®/2areregisteredtrademarksofInternationalBusiness Machines
Corporation.
Windows®95/98/2000/NT/XP/Vistaareregisteredtrademarks ofMicrosoft
Corporation.
Netware®isaregisteredtrademarkofNovell,Inc.
Award®isaregisteredtrademarkofPhoenixTechnologiesLtd.
AMI®isaregisteredtrademarkofAmericanMegatrendsInc.
RevisionHistory
Revision RevisionHistory Date
V1.0 FirstreleaseforP35 D3Platinum June2007
TechnicalSupport
Ifaproblemariseswithyoursystemandnosolutioncanbeobtainedfromtheuser’s
manual,pleasecontactyourplaceofpurchaseorlocaldistributor.Alternatively,
pleasetrythefollowing helpresourcesforfurtherguidance.
Visit theMSI websiteforFAQ,technical guide,BIOSupdates,driverupdates,
andotherinformation: http://global.msi.com.tw/index.php?
func=faqIndex
Contactourtechnicalstaff at: http://support.msi.com.tw/
7356(P35 D3Platinum)v1.0-0 Preface.p65 2007/6/13, 午 02:212

iii
SafetyInstructions
CAUTION: Dangerofexplosionifbatteryisincorrectlyreplaced.
Replaceonlywiththe sameorequivalenttype recommendedbythe
manufacturer.
1. Alwaysread thesafetyinstructionscarefully.
2. KeepthisUser’sManualforfuturereference.
3. Keepthisequipmentawayfromhumidity.
4. Laythisequipmentonareliableflatsurfacebeforesetting itup.
5. Theopeningsontheenclosureareforairconvectionhenceprotectstheequip-
ment fromoverheating.DONOTCOVERTHEOPENINGS.
6. Makesurethevoltageofthe powersourceandadjustproperly110/220Vbe-
foreconnectingtheequipmenttothepowerinlet.
7. Placethe powercordsuchawaythatpeoplecannotstepon it. Donotplace
anythingoverthepowercord.
8. AlwaysUnplug thePowerCordbeforeinsertinganyadd-oncardormodule.
9. All cautionsand warningsontheequipmentshouldbenoted.
10. Neverpouranyliquidintotheopeningthatcoulddamage orcauseelectrical
shock.
11. If anyof thefollowing situationsarises, gettheequipmentcheckedbyaservice
personnel:
†Thepowercordorplugisdamaged.
†Liquid haspenetratedintotheequipment.
†Theequipmenthasbeen exposedtomoisture.
†Theequipmenthasnotworkwelloryoucannotgetitworkaccording to
User’sManual.
†Theequipmenthasdroppedand damaged.
†Theequipmenthasobvioussign of breakage.
12.DONOTLEAVETHISEQUIPMENTINANENVIRONMENTUNCONDITIONED,STOR-
AGETEMPERATUREABOVE600 C(1400F),IT MAYDAMAGETHEEQUIPMENT.
7356(P35 D3Platinum)v1.0-0 Preface.p65 2007/6/13, 午 02:213

iv
FCC-BRadio Frequency Interference Statement
Thisequipmenthasbeen
tested and found tocomply
withthe limitsforaClassB
digitaldevice,pursuanttoPart
15of the FCCRules.Theselimitsaredesignedtoprovidereasonable protection
againstharmful interferenceinaresidentialinstallation.Thisequipmentgenerates,
usesand canradiateradiofrequencyenergyand,ifnotinstalledand used in accor-
dancewiththeinstructions,maycauseharmful interferencetoradiocommunications.
However,thereisno guarantee thatinterferencewill notoccurin aparticular
installation.Ifthisequipmentdoescauseharmful interferencetoradioortelevision
reception,whichcanbedeterminedbyturning theequipmentoff and on,the useris
encouragedtotrytocorrecttheinterferencebyone ormoreof themeasureslisted
below.
†Reorientorrelocatethereceiving antenna.
†Increasetheseparationbetweentheequipmentand receiver.
†Connecttheequipmentintoanoutleton acircuitdifferentfromthatto
whichthereceiverisconnected.
†Consultthedealeroranexperiencedradio/televisiontechnicianforhelp.
Notice1
Thechangesormodificationsnotexpresslyapprovedbythepartyresponsible for
compliancecould void theuser’sauthoritytooperatetheequipment.
Notice2
Shieldedinterfacecablesand A.C.powercord,ifany,mustbeusedinorderto
complywiththeemissionlimits.
VOIRLANOTICED ’INSTALLATIONAVANTDERACCORDERAURESEAU.
Micro-StarInternational
MS-7356
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe
followingtwoconditions:
(1)thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustaccept anyinterferencereceived,includinginterferencethat
maycauseundesiredoperation.
7356(P35 D3Platinum)v1.0-0 Preface.p65 2007/6/13, 午 02:214

v

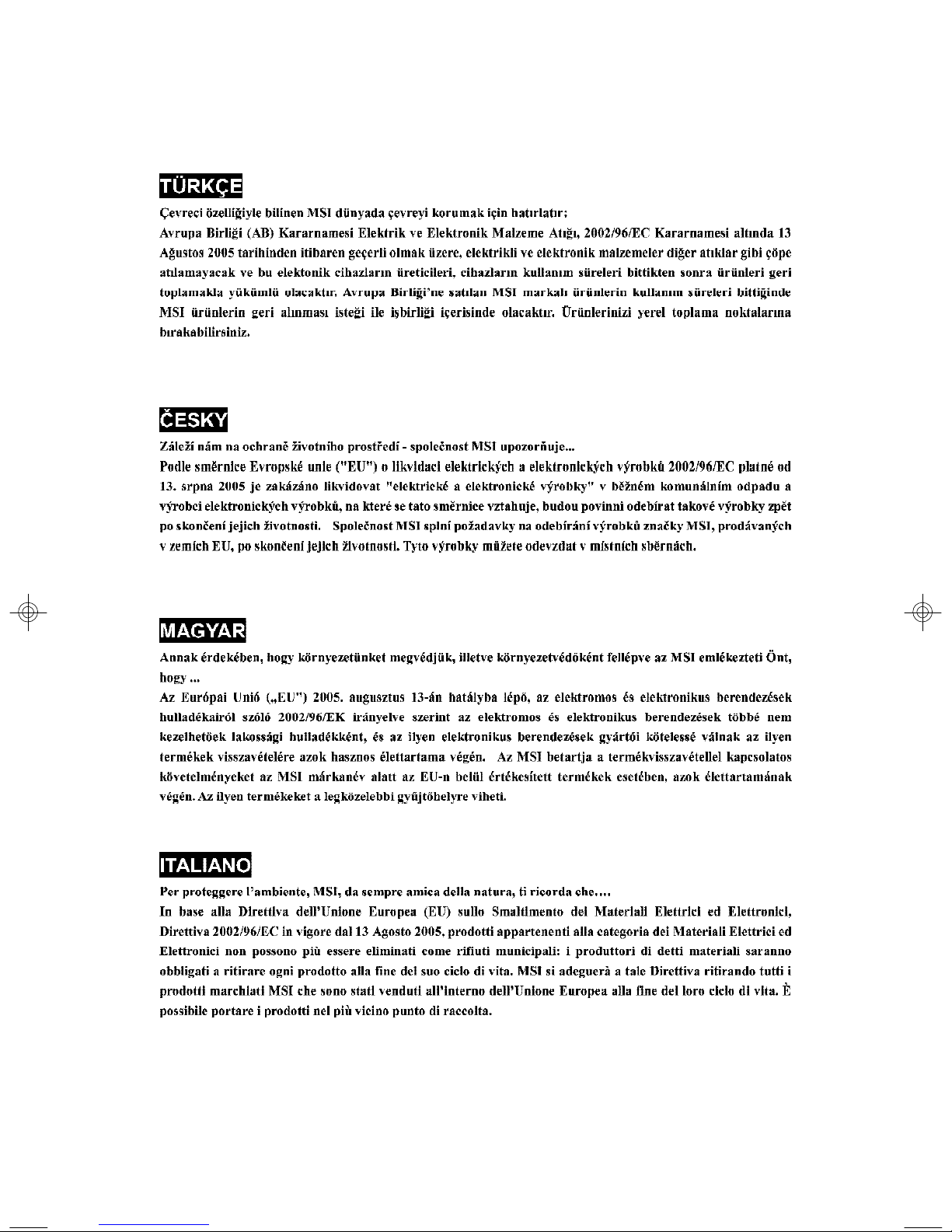

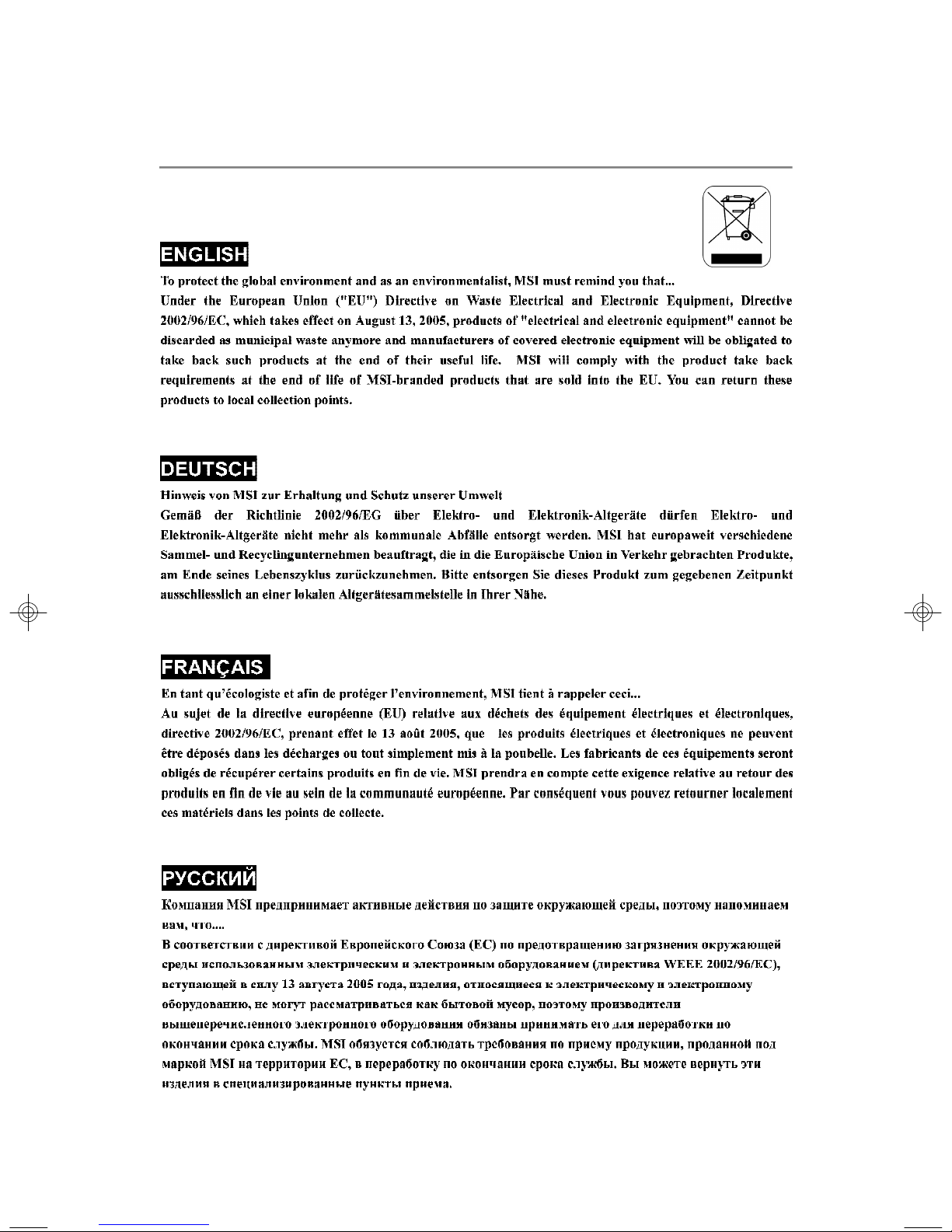

WEEE (WasteElectricaland ElectronicEquipment) Statement
7356(P35 D3Platinum)v1.0-0 Preface.p65 2007/6/13, 午 02:215

vi
7356(P35 D3Platinum)v1.0-0 Preface.p65 2007/6/13, 午 02:216

vii
7356(P35 D3Platinum)v1.0-0 Preface.p65 2007/6/13, 午 02:217

viii
CONTENTS
CopyrightNotice..............................................................................................................ii
Trademarks.......................................................................................................................ii
RevisionHistory..............................................................................................................ii
Technical Support...........................................................................................................ii
SafetyInstructions.........................................................................................................iii
FCC-B RadioFrequencyInterferenceStatement........................................................iv
WEEE(WasteElectricalandElectronicEquipment)Statement....................................v
Chapter1.GettingStarted....................................................................................1-1
MainboardSpecifications...................................................................................1-2
MainboardLayout................................................................................................1-4
PackingChecklist.................................................................................................1-4
Chapter2.HardwareSetup..................................................................................2-1
Quick ComponentsGuide....................................................................................2-2
CPU(CentralProcessingUnit)............................................................................2-2
Memory.................................................................................................................2-7
PowerSupply.....................................................................................................2-11
BackPanel..........................................................................................................2-12
Connectors........................................................................................................2-14
Jumper................................................................................................................2-21
Button.................................................................................................................2-22
Slots....................................................................................................................2-23
LEDStatusIndicators........................................................................................2-25
Chapter3BIOSSetup.............................................................................................3-1
EnteringSetup.....................................................................................................3-2
TheMainMenu.....................................................................................................3-4
StandardCMOSFeatures...................................................................................3-6
AdvancedBIOSFeatures...................................................................................3-9
IntegratedPeripherals.......................................................................................3-12
PowerManagementSetup...............................................................................3-14
PNP/PCIConfigurations.....................................................................................3-17
H/WMonitor........................................................................................................3-19
Cell Menu............................................................................................................3-20
LoadFail-Safe/Optimized Defaults.................................................................3-26
BIOSSetting Password.....................................................................................3-27
AppendixARealtekALC888/ALC888TAudio..................................................A-1
InstallingtheRealtekHDAudioDriver................................................................A-2
SoftwareConfiguration......................................................................................A-4
HardwareSetup................................................................................................A-19
7356(P35 D3Platinum)v1.0-0 Preface.p65 2007/6/13, 午 02:218

ix
AppendixBDualCoreCenter..............................................................................B-1
Activating DualCoreCenter...............................................................................B-2
Main......................................................................................................................B-3
DOT (DynamicOverClocking).............................................................................B-5
Clock.....................................................................................................................B-6
Voltage.................................................................................................................B-7
FANSpeed...........................................................................................................B-8
Temperature.........................................................................................................B-9
UserProfile........................................................................................................B-10
AppendixCIntelICH9RSATARAID.....................................................................C-1
ICH9RIntroduction...............................................................................................C-2
BIOSConfiguration..............................................................................................C-3
Installing Driver....................................................................................................C-9
Installing Software............................................................................................C-11
RAIDMigrationInstructions...............................................................................C-15
DegradedRAIDArray........................................................................................C-22
7356(P35 D3Platinum)v1.0-0 Preface.p65 2007/6/13, 午 02:219

1-1
Getting Started
Getting Started
Chapter1
Thankyouforchoosing theP35D3PlatinumSeries(MS-
7356 v1.X)ATXmainboard.TheP35D3PlatinumSeries
mainboardsarebasedon Intel P35&ICH9R chipsets
foroptimal systemefficiency.Designed tofittheadvanced
Intel Core2Quad/Core2Duo/Pentium/Celeron
LGA775 processor,theP35D3PlatinumSeriesdelivera
high performanceand professionaldesktopplatform
solution.
7356(P35 D3Platinum)v1.0-1.p65 2007/6/13, 午 02:211

MS-7356Mainboard
1-2
MainboardSpecifications
ProcessorSupport
-SupportsIntel®Core2Quad/Core2Duobasedprocessorsin
LGA775 package.
-SupportsIntel®Yorkfield,WolfdaleintheLGA775 package.
(ForthelatestinformationaboutCPU,pleasevisithttp://global.
msi.com.tw/index.php?func=cpuform)
SupportedFSB
-1333/1066/800 MHz
Chipset
-NorthBridge:Intel®P35chipset
-SouthBridge: Intel®ICH9Rchipset
MemorySupport
-DDR31066/800SDRAM(8GBMax)
-4DDR3DIMMs(240pin/1.5V)
(Formoreinformationoncompatiblecomponents,pleasevisit
http://global.msi.com.tw/index.php?func=testreport)
LAN
-SupportsPCIELAN10/100/1000 Fast EthernetbyRealtek8111B
Audio (optional)
-ChipintegratedbyRealtek®ALC888/ALC888T
-Flexible8-channelaudiowithjacksensing
-CompliantwithAzalia1.0Spec
-MeetMicrosoft VistaPremiumspec
-SupportVoIPCard(onlyforALC888T)
IDE
-1IDEportbyMarvell88SE6111
-SupportsUltraDMA66/100/133 mode
-SupportsPIO,BusMasteroperationmode
SATA
-4SATAII portsplus2eSATAbyICH9R
-1SATAII portbyMarvell 88SE6111
-Supportsstorageanddatatransfersatupto300MB/s
RAID
-SupportsIntelMartixStorageTechnology(AHCI+RAID0/1/5/10)
byICH9R
1394
-Supports1394byVIAVT6308
FDD
-1floppyport
-Supports1FDD with360KB, 720KB,1.2MB,1.44MBand 2.88MB
7356(P35 D3Platinum)v1.0-1.p65 2007/6/13, 午 02:212

1-3
Getting Started
Connectors
Back panel
-1PS/2mouseport
-1PS/2keyboardport
-2eSATAports(supportCommand Based PortMultipliers)
-6USB 2.0Ports
-1LANjack(10/100/1000)
-6flexibleaudiojacks
-11394 port
-1OpticalS/PDIF-Out
On-BoardPinheaders/ Connectors
-3USB 2.0pinheaders
-11394 pinheader
-1chasisintrusionconnector
-1SPDIF-outpinheader
-1CD-inconnector
-2H/WOCpinheaders(optional)
-1frontaudiopinheader
-1serialpinheader
Slots
-1PCI Expressx16slot
-2PCI Expressx1slots
-1PCI Expressx4slot
-2PCIslots
-Support3.3V/5VPCIbusInterface
FormFactor
-ATX (30.5cmX24.5cm)
Mounting
-9mounting holes
7356(P35 D3Platinum)v1.0-1.p65 2007/6/13, 午 02:213

MS-7356Mainboard
1-4
P35D3 PlatinumSeries
(MS-7356 v1.X)ATXMainboard
MainboardLayout
D
I
M
M
1
D
I
M
M
3
D
I
M
M
2
D
I
M
M
4
Intel
P35
PCI 2
PCI 1
PCI_E3
Codec
I/OChip
PCI_E2
PCI_E1
BATT
+
JAUD1
CPUFAN1
JPW1
JPW2
SYSFAN1
SYSFAN4
SYSFAN3
J1394_1
JCOM1
FDD1
JCD_IN1
JSPDIF2
JUSB3 JUSB2 JUSB1
JFP2 JFP1
SATA7
SATA6 SATA5
SATA4 SATA3
IDE1
ATX1
Top:mouse
Bottom:
keyboard
Top:LAN jack
Bottom:
USBports
eSATAports
T:
M:
B:
Line-In
Line-Out
Mic
T:RS-Out
M:CS-Out
B:SS-Out
Top :
USB Ports
Bottom:
Intel
ICH9R
SW1
PCI_E4
JSLIC1
(optional)
SYSFAN2
SYSFAN5
JB1
JB2
(optional)
JCASE1
7356(P35 D3Platinum)v1.0-1.p65 2007/6/13, 午 02:214

1-5
Getting Started
PackingChecklist
*The picturesareforreferenceonlyandmayvaryfromthepackingcontentsofthe
productyoupurchased.
PowerCable
User’sGuide
andQuickGuide
MSImotherboard MSIDriver/UtilityCD
FloppyCable
IDECable
Back IOShield
1394 Bracket(Optional)
SATACable
externalSATACable
(Optional)
ATXExtender(Optional)
7356(P35 D3Platinum)v1.0-1.p65 2007/6/13, 午 02:215

2-1
HardwareSetup
HardwareSetup
Chapter2
Thischapterprovidesyou withtheinformation about
hardwaresetupprocedures.Whiledoingthe installation,
becarefulinholdingthecomponentsandfollowthe
installationprocedures.Forsomecomponents,ifyou
install inthewrong orientation,thecomponentswillnot
workproperly.
Useagroundedwrist strapbeforehandlingcomputer
components.Staticelectricitymaydamagethe
components.
7356v1.0CH2Hardware Setup.p65 2007/6/13, 午 02:211

MS-7356Mainboard
2-2
Quick ComponentsGuide
CPU, p.2-3 CPUFAN,
p.2-16
DDR3,
p.2-7
ATX1,
p.2-11
SYSFAN4,
p.2-16
IDE1,
p.2-14
SATA3~7,
p.2-15
JFP1,2,
p.2-18
JUSB1~3,
p.2-20
SYSFAN3,
p.2-16
J1394_1,
p.2-17
FDD1,
p.2-14
JSPDIF2,
p.2-17
JCD-IN1,
p.2-19
JAUD1,
p.2-19
PCI,
p.2-23
JCOM1,
p.2-20
PCI_E,
p.2-23
SYSFAN1,
p.2-16
Back Panel,
p.2-12
JPW1,
p.2-11
JPW2,
p.2-11
JCASE1,
p.2-16
SW1,
p.2-22
SYSFAN5,
p.2-16
SYSFAN2,
p.2-16
JSLIC1,
p.2-15
JB1,JB2,
p.2-21
7356v1.0CH2Hardware Setup.p65 2007/6/13, 午 02:212

2-3
HardwareSetup
CPU(CentralProcessingUnit)
Whenyou areinstalling theCPU, makesuretoinstallthecoolertoprevent
overheating. If youdonothavetheCPUcooler, consultyourdealerbeforeturning
onthecomputer.
Forthelatest informationaboutCPU,pleasevisit http://global.msi.com.tw/index.php?
func=cpuform
Introduction toLGA775 CPU
Thesurfaceof LGA775 CPU.
Remembertoapplysomether-
malpasteon itforbetterheat
dispersion.
Yellowtriangleis the Pin1indicator
Thepin-padsideofLGA775
CPU.
Yellowtriangleis the Pin1indicator
Alignment Key Alignment Key
Important
Overheating
Overheating will seriouslydamage the CPUand system.Always makesure
thecoolingfancanworkproperlytoprotectthe CPUfromoverheating.Make
surethatyouapplyan even layerofthermalpaste(orthermaltape)between
the CPUand the heatsinktoenhanceheatdissipation.
ReplaceingtheCPU
WhilereplacingtheCPU,alwaysturnofftheATXpowersupplyorunplug the
powersupply spowercordfromthegrounded outlet firsttoensurethe safety
ofCPU.
Overclocking
Thismainboardisdesigned tosupportoverclocking.However,pleasemake
sureyourcomponentsareabletotoleratesuchabnormalsetting,while
doing overclocking.Anyattempttooperatebeyond productspecificationsis
notrecommended. Wedonotguaranteethedamages orrisks caused
byinadequateoperation orbeyondproductspecifications.
7356v1.0CH2Hardware Setup.p65 2007/6/13, 午 02:213

MS-7356Mainboard
2-4
Important
1.ConfirmifyourCPUcoolerisfirmlyinstalledbeforeturning on yoursystem.
2.Donottouchthe CPUsocketpinstoavoiddamaging.
3.The availabilityoftheCPUlandside coverdependsonyourCPUpacking.
2.Removethe capfromleverhinge
side(asthe arrowshows).
1.TheCPUsockethasaplasticcapon
ittoprotectthe contactfromdamage.
BeforeyouinstalltheCPU,always
coverittoprotectthesocket pin.
3.Thepinsof socketreveal.
CPU&Cooler Installation
When youareinstalling theCPU, make suretheCPUhasacoolerattached on
thetoptopreventoverheating. Meanwhile, do notforgettoapplysomethermal
pasteonCPUbeforeinstalling theheatsink/coolerfanforbetterheatdispersion.
Followthestepsbelowtoinstall theCPU&coolercorrectly.Wrong installationwill
causethedamageofyourCPU&mainboard.
4.Opentheloadlever.
7356v1.0CH2Hardware Setup.p65 2007/6/13, 午 02:214

2-5
HardwareSetup
6.Afterconfirmingthe CPUdirection
forcorrectmating,putdownthe
CPUin thesockethousing frame.
Besuretograspontheedgeof
theCPUbase.Notethatthe align-
mentkeysarematched.
8.Covertheload plateontothe
package.
7.VisuallyinspectiftheCPUis
seatedwell intothesocket. If not,
takeoutthe CPUwithpurevertical
motionand reinstall.
alignment
key
5.Lifttheloadleverup andopenthe
loadplate.
7356v1.0CH2Hardware Setup.p65 2007/6/13, 午 02:215

MS-7356Mainboard
2-6
10. Aligntheholeson themainboard
withtheheatsink.Pushdownthe
cooleruntilitsfourclipsget
wedged intothe holesofthe
mainboard.
12.Turnoverthe mainboardtocon-
firmthattheclip-endsarecor-
rectlyinserted.
11.Press thefourhooksdowntofas-
ten thecooler.Thenrotatethelock-
ing switch(refertothecorrectdi-
rectionmarkedonit)tolockthe
hooks.
9.Press downtheloadleverlightly
ontothe loadplate,and thense-
curetheleverwiththehookunder
retentiontab.
locking
switch
Important
1.Readthe CPUstatusinBIOS(Chapter3).
2. WheneverCPUisnot installed,always protect yourCPUsocketpinwiththe
plasticcap covered (showninFigure1)toavoiddamaging.
3.Mainboardphotosshowninthissection arefordemonstration oftheCPU/
coolerinstallation only.The appearanceofyourmainboardmayvarydepend-
ingonthemodel you purchase.
7356v1.0CH2Hardware Setup.p65 2007/6/13, 午 02:216
