MSI Z170A KRAIT GAMING User manual

I
Quick Start
Quick Start
Thank you for purchasing the MSI®Z170A GAMING M7
motherboard. This Quick Start section provides demonstration
diagrams about how to install your computer. Some of the
installations also provide video demonstrations. Please link to the
URL to watch it with the web browser on your phone or tablet. You
may have even link to the URL by scanning the QR code.
Kurzanleitung
Danke, dass Sie das MSI®Z170A GAMING M7 Motherboard
gewählt haben. Dieser Abschnitt der Kurzanleitung bietet eine Demo
zur Installation Ihres Computers. Manche Installationen bieten
auch die Videodemonstrationen. Klicken Sie auf die URL, um diese
Videoanleitung mit Ihrem Browser auf Ihrem Handy oder Table
anzusehen. Oder scannen Sie auch den QR Code mit Ihrem Handy,
um die URL zu öffnen.
Présentation rapide
Merci d’avoir choisi la carte mère MSI®Z170A GAMING M7.
Ce manuel fournit une rapide présentation avec des illustrations
explicatives qui vous aideront à assembler votre ordinateur. Des
tutoriels vidéo sont disponibles pour certaines étapes. Cliquez sur
le lien fourni pour regarder la vidéo sur votre téléphone ou votre
tablette. Vous pouvez également accéder au lien en scannant le QR
code qui lui est associé.
Быстрый старт
Благодарим вас за покупку материнской платы MSI®Z170A
GAMING M7. В этом разделе представлена информация,
которая поможет вам при сборке комьютера. Для некоторых
этапов сборки имеются видеоинструкции. Для просмотра видео,
необходимо открыть соответствующую ссылку в веб-браузере
на вашем телефоне или планшете. Вы также можете выполнить
переход по ссылке, путем сканирования QR-кода.

II Quick Start
http://youtu.be/bf5La099urI
Installing a Processor/ Installation des Prozessors/ Installer
un processeur/ Установка процессора
1
2
3
6
45
7
8
9

III
Quick Start
1
1
2
2
3
3

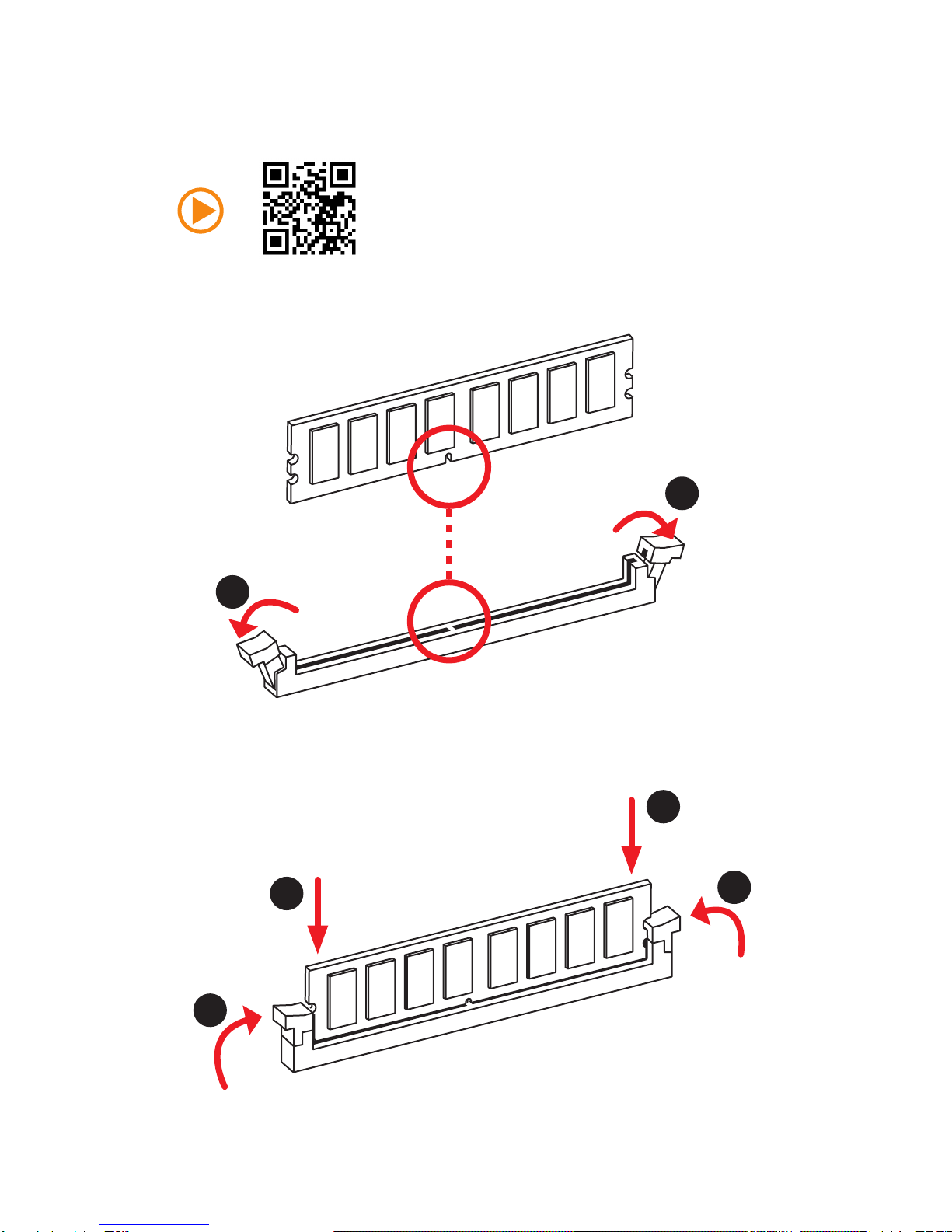

Installing DDR4 memory/ Installation des DDR4-Speichers/
Installer une mémoire DDR4/ Установка памяти DDR4
http://youtu.be/T03aDrJPyQs

IV Quick Start
Connecting the Front Panel Header/ Anschließen der
Frontpanel-Stiftleiste/ Connecter un connecteur du panneau
avant/ Подключение разъемов передней панели
http://youtu.be/DPELIdVNZUI
1
2 10
9
JFP1
1 HDD LED + 2 Power LED +
3HDD LED - 4Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
HDD LED
RESET SW
JFP1
HDD LED HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED

V
Quick Start

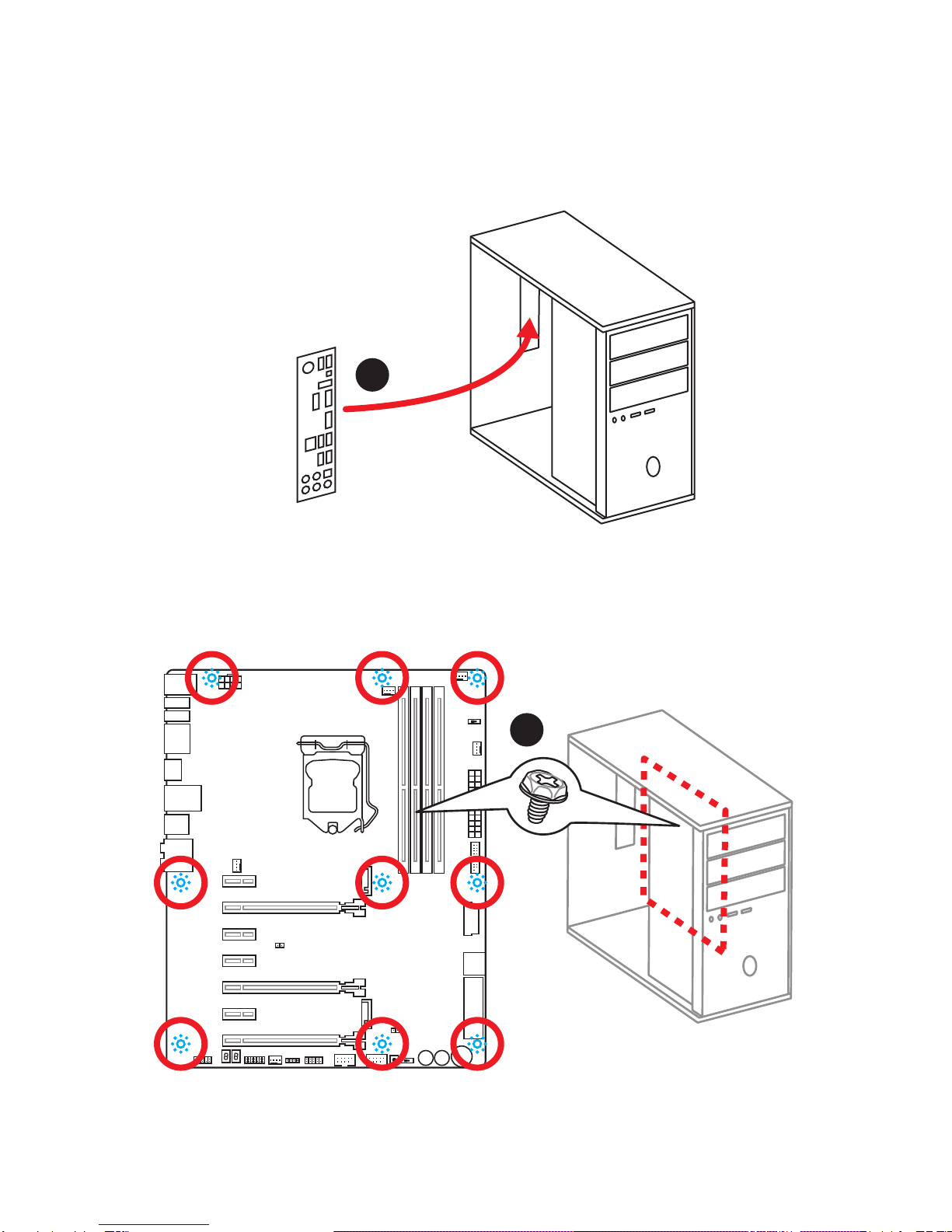

Installing the Motherboard/ Installation des Motherboards/
Installer la carte mère/ Установка материнской платы
1
2

VI Quick Start

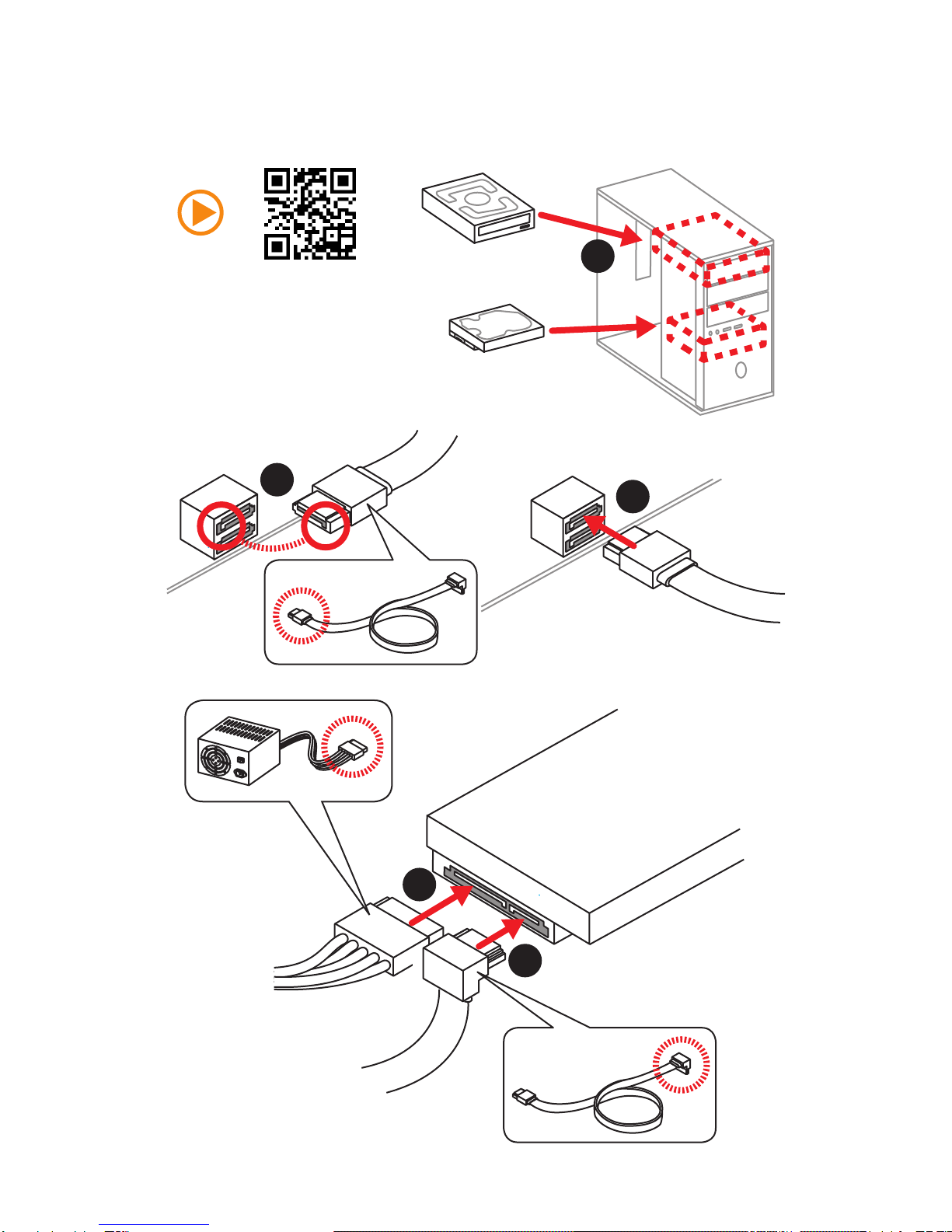

Installing SATA Drives/ Installation der SATA-Laufwerke/
Installer le disque dur SATA/ Установка дисков SATA
http://youtu.be/RZsMpqxythc
1
23
4
5

VII
Quick Start
1
4
5

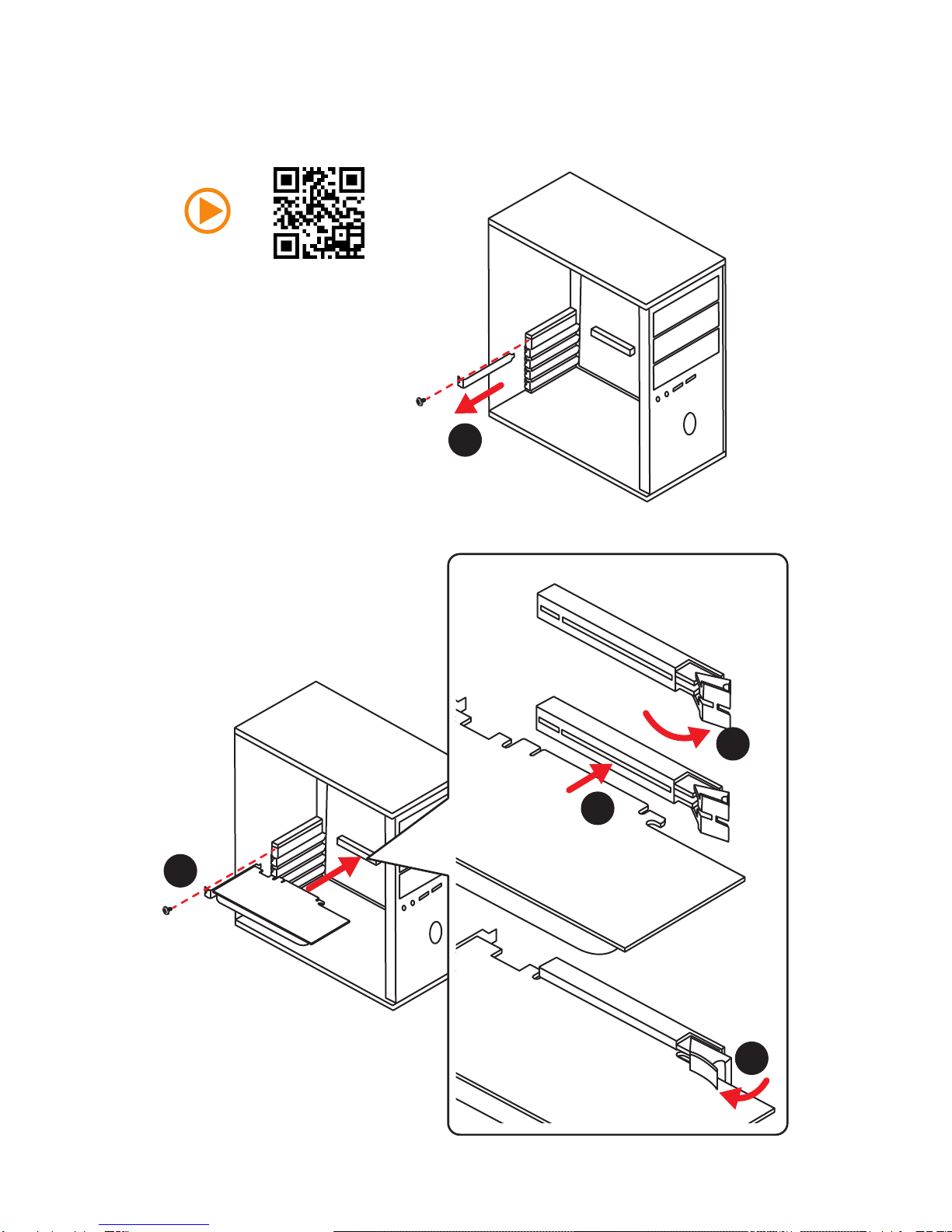

Installing a Graphics Card/ Einbau der Grafikkarte/ Installer
une carte graphique/ Установка дискретной видеокарты
http://youtu.be/mG0GZpr9w_A
2
3

VIII Quick Start
Connecting Peripheral Devices/ Peripheriegeräte/
Connecter un périphérique anschliessen/ Подключение
периферийных устройств

IX
Quick Start

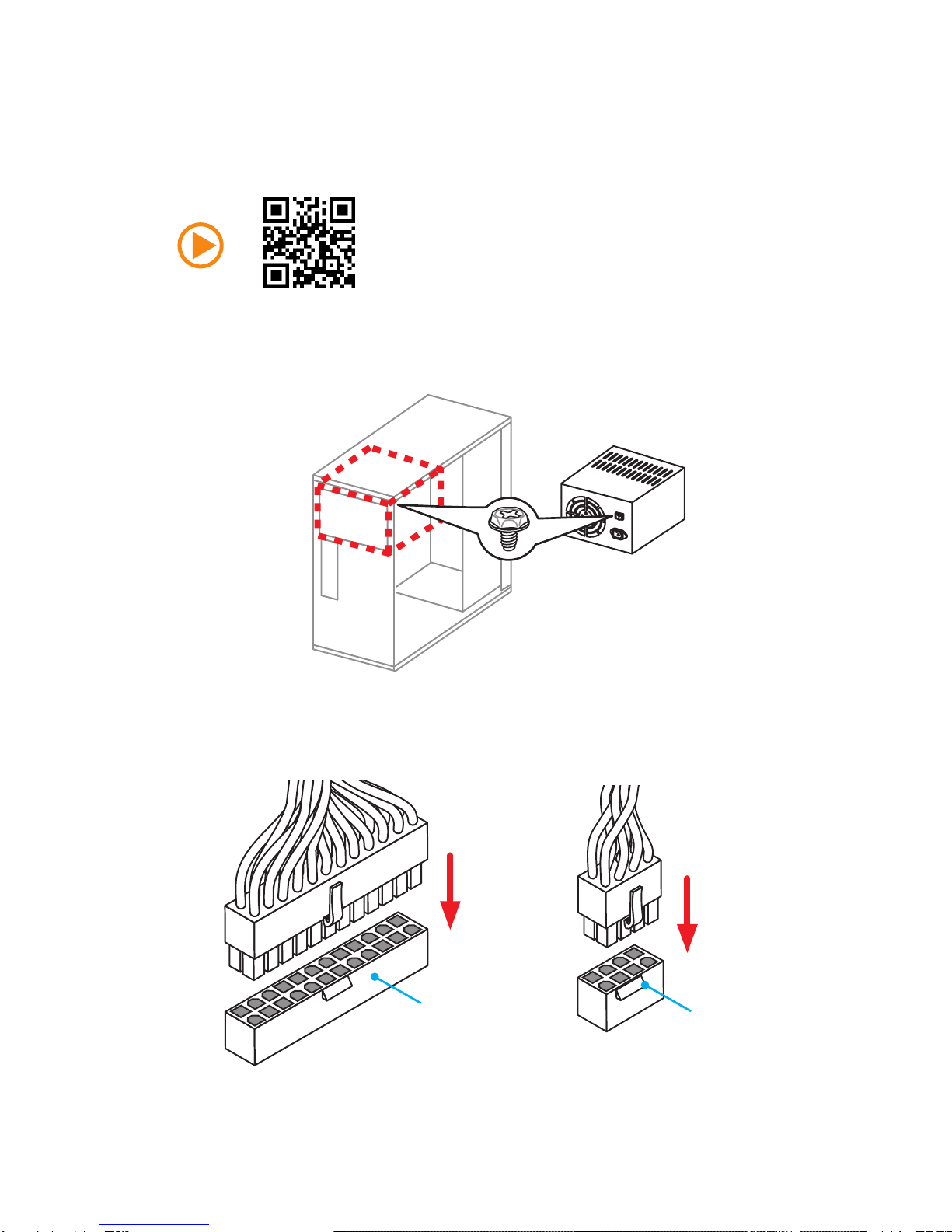

Connecting the Power Connectors/ Stromanschlüsse
anschliessen/ Connecter les câbles du module
d’alimentation/ Подключение разъемов питания
http://youtu.be/gkDYyR_83I4
JPWR1 JPWR2

XQuick Start

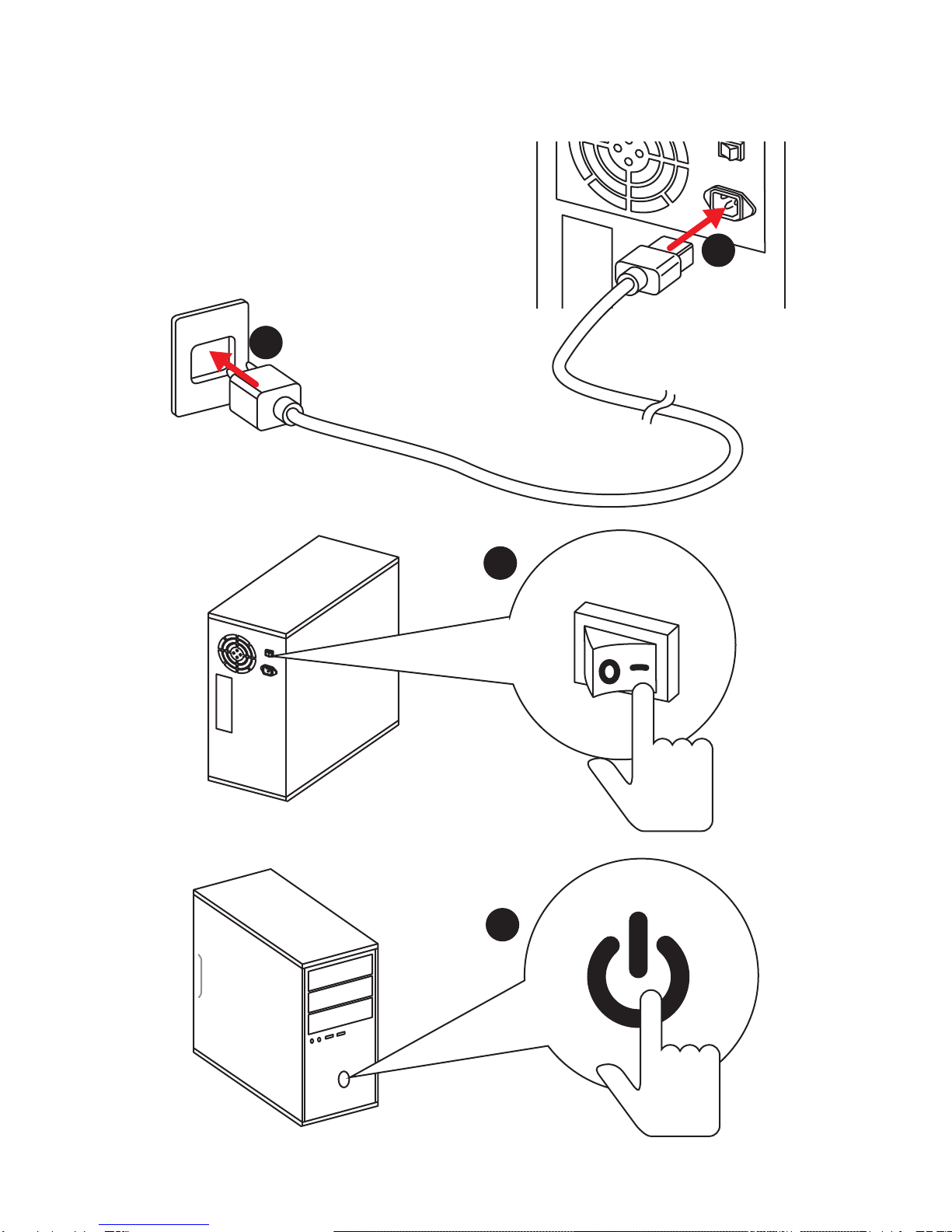

Power On/ Einschalten/ Mettre sous-tension/ Включение
питания
1
4
2
3

1
Contents
Contents
Safety Information...................................................................................................2
Specifications ..........................................................................................................3

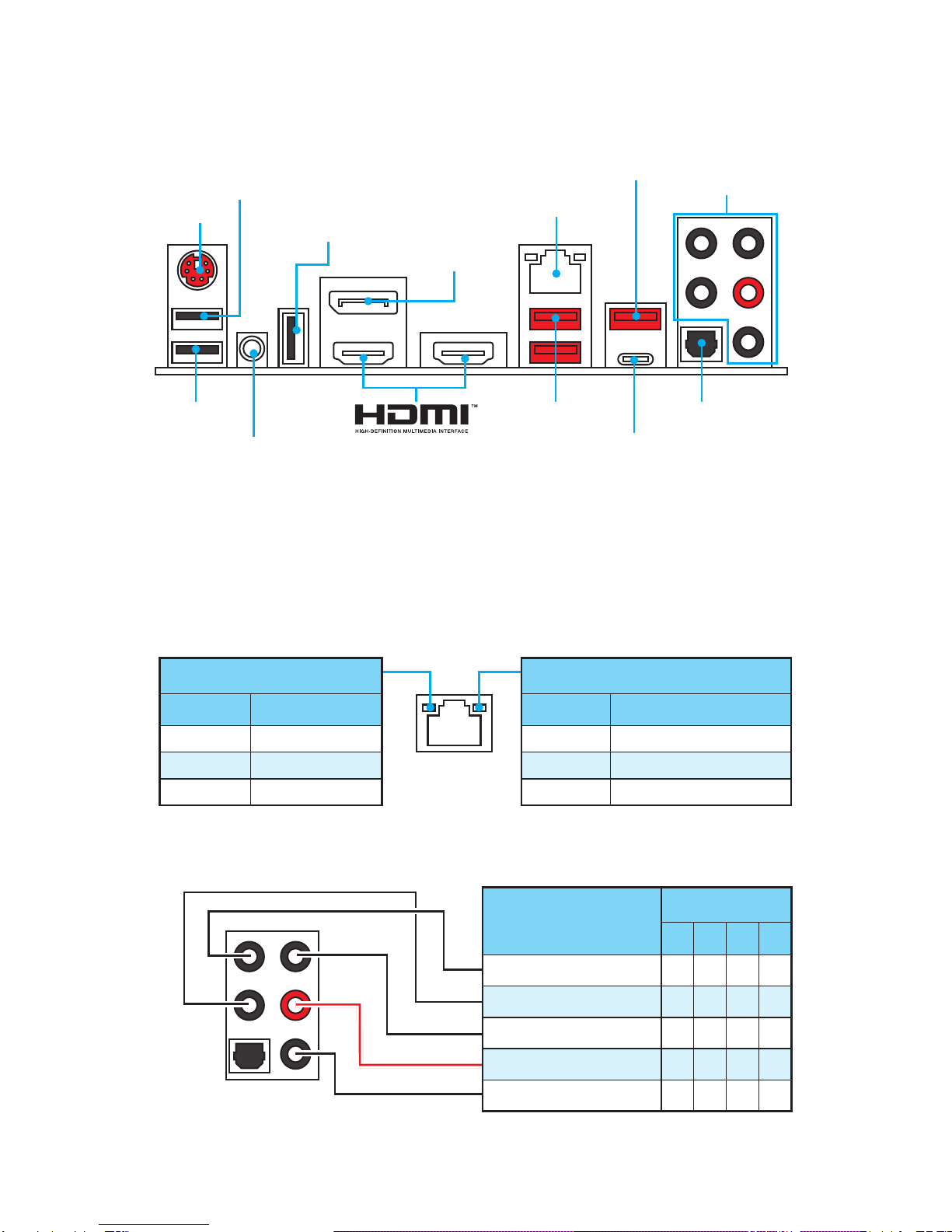

Rear I/O Panel ........................................................................................................10
LAN Port LED Status Table............................................................................... 10
Audio Ports Configuration.................................................................................. 10
Overview of Components....................................................................................12
CPU Socket ....................................................................................................... 13
DIMM Slots ........................................................................................................ 14
PCI_E1~7: PCIe Expansion Slots...................................................................... 15
SATA1~6: SATA 6Gb/s Connectors.................................................................. 17
SE1_43-SE2_65: SATAe Connectors ............................................................... 17
M2_1~2: M.2 Slots............................................................................................. 18
OC1: GAME BOOST Knob ............................................................................... 21
POWER1, RESET1: Power Button, Reset Button............................................. 22
JPWR1~2: Power Connectors........................................................................... 22
JFP1, JFP2: Front Panel Connectors................................................................ 23
JUSB3~4: USB 3.1 Gen1 Connectors............................................................... 23
JAUD1: Front Audio Connector......................................................................... 24
JUSB1~2: USB 2.0 Connectors......................................................................... 25
JTPM1: TPM Module Connector ....................................................................... 25
CPUFAN1~2, SYSFAN1~3: Fan Connectors.................................................... 26
JCI1: Chassis Intrusion Connector.................................................................... 27
FLASHB1: BIOS FLASHBACK+ Button ............................................................ 27
HOT_KEY1: HOTKEY Main Switch................................................................... 28
SLOW_1: Slow Mode Booting Switch................................................................ 29
JBAT1: Clear CMOS (Reset BIOS) Jumper ...................................................... 29
LED Status Indicators...........................................................................................30
LED Status Table .............................................................................................. 30
Debug Code LED Table .................................................................................... 31
BIOS Setup.............................................................................................................32
Entering BIOS Setup ......................................................................................... 32
Resetting BIOS.................................................................................................. 33
Updating BIOS................................................................................................... 33
EZ Mode ............................................................................................................ 35
Advanced Mode ................................................................................................ 37
OC Menu ........................................................................................................... 38
Software Description............................................................................................46

2Safety Information
Safety Information
●The components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
●Ensure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
●Hold the motherboard by the edges to avoid touching sensitive components.
●It is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is
not available, discharge yourself of static electricity by touching another metal object
before handling the motherboard.
●Store the motherboard in an electrostatic shielding container or on an anti-static pad
whenever the motherboard is not installed.
●Before turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
●Do not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
●If you need help during any installation step, please consult a certified computer
technician.
●Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
●Keep this user guide for future reference.
●Keep this motherboard away from humidity.
●Make sure that your electrical outlet provides the same voltage as is indicated on
the PSU, before connecting the PSU to the electrical outlet.
●Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.
●All cautions and warnings on the motherboard should be noted.
●If any of the following situations arises, get the motherboard checked by service
personnel:
▶Liquid has penetrated into the computer.
▶The motherboard has been exposed to moisture.
▶The motherboard does not work well or you can not get it work according to user
guide.
▶The motherboard has been dropped and damaged.
▶The motherboard has obvious sign of breakage.
●Do not leave this motherboard in an environment above 60°C (140°F), it may
damage the motherboard.

3
Speci󰄈cations
Specifications
CPU Supports 6th Gen Intel®Core™i3/i5/i7 processors, and Intel®
Pentium®and Celeron®processors for Socket LGA1151
Chipset Intel® Z170 Chipset
Memory
●4x DDR4 memory slots, support up to 64GB
▶Supports DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/
2800(OC)/ 2600(OC)/ 2400/ 2133 MHz
●Dual channel memory architecture
●Supports non-ECC, un-buffered memory
●Supports Intel®Extreme Memory Profile (XMP)
Expansion Slots
●3x PCIe 3.0 x16 slots (support x16, x8/x8, x8/x8/x4 or x8/
x8/x2 modes)
●4x PCIe 3.0 x1 slots
Onboard Graphics
●2x HDMI™ports, support a maximum resolution of
4096x2160@24Hz, 2560x1600@60Hz
●1x DisplayPort, support a maximum resolution
of 4096x2304@24Hz, 2560x1600@60Hz,
3840x2160@60Hz, 1920x1200@60Hz
Multi-GPU ●Supports 3-Way AMD®CrossFire™Technology
●Supports 2-Way NVIDIA®SLI™Technology
Storage
Intel®Z170 Chipset
●6x SATA 6Gb/s ports*
●2x M.2 slots
▶Supports PCIe 3.0 x4 and SATA 6Gb/s standards,
4.2cm/ 6cm/ 8cm length M.2 SSD cards
▶Supports PCIe 3.0 x4 NVMe Mini-SAS SSD with Turbo
U.2 Host Card**
●2x SATAe ports (PCIe 3.0 x2)***
●Supports Intel®Smart Response Technology for Intel
Core™ processors
* M.2, SATA and SATAe ports maximum support 1x M.2_PCIe + 6x SATAs
or 1x M.2_SATA + 1x M.2_PCIe + 4x SATAs. Please refer to page 19 for
M.2 slots with examples of various combination possibilities.
** The Turbo U.2 Host Card is not included, please purchase separately.
*** SATAe port is backward compatible with SATA.
Continued on next page

4Speci󰄈cations
Continued from previous page
RAID
Intel®Z170 Chipset
●Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA
storage devices
●Supports RAID 0 and RAID1 for M.2 PCIe storage
devices*
* M.2 PCIe RAID volume can be created with UEFI BIOS
USB
●ASMedia®ASM1142 Chipset
▶1x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) port on
the back panel
▶1x USB 3.1 Gen2 Type-C port on the back panel
●Intel®Z170 Chipset
▶6x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on
the back panel, 4 ports available through the internal
USB connector)
▶7x USB 2.0 (High-speed USB) ports (3 ports on the
back panel, 4 ports available through the internal USB
connectors)
Audio
●Realtek®ALC1150 Codec
●7.1-Channel High Definition Audio
●Supports S/PDIF output
LAN 1x Killer™E2400 Gigabit LAN controller
Back Panel
Connectors
●1x PS/2 keyboard/ mouse port
●3x USB 2.0 ports
▶1x HOTKEY port
▶1x BIOS FLASHBACK+ port
●1x Clear CMOS button
●2x HDMI™ports
●1x DisplayPort
●1x USB 3.1 Gen2 port
●1x USB 3.1 Gen2 Type-C port
●2x USB 3.1 Gen1 ports
●1x LAN (RJ45) port
●1x Optical S/PDIF OUT connector
●5x OFC audio jacks
Continued on next page

5
Speci󰄈cations
Continued from previous page
Internal Connectors
●1x 24-pin ATX main power connector
●1x 8-pin ATX 12V power connector
●6x SATA 6Gb/s connectors
●2x SATAe connectors
●2x USB 2.0 connectors (supports additional 4 USB 2.0
ports)
●2x USB 3.1 Gen1 connectors (supports additional 4 USB
3.1 Gen1 ports)
●2x 4-pin CPU fan connectors
●3x 4-pin system fan connectors
●1x Front panel audio connector
●2x Front panel connectors
●1x TPM module connector
●1x Chassis Intrusion connector
●1x GAME BOOST button
●1x Power button
●1x Reset button
●1x BIOS FLASHBACK+ button
●1x HOTKEY switch
●1x Slow mode switch
●1x Clear CMOS jumper
●1x 2-Digit Debug Code LED
I/O Controller NUVOTON NCT6793 Controller Chip
Hardware Monitor
●CPU/System temperature detection
●CPU/System fan speed detection
●CPU/System fan speed control
Form Factor ●ATX Form Factor
●12 in. x 9.6 in. (30.5 cm x 24.4 cm)
BIOS Features
●1x 64 Mb flash
●UEFI AMI BIOS
●ACPI 5.0, PnP 1.0a, SM BIOS 2.8
●Multi-language
Continued on next page

6Speci󰄈cations
Continued from previous page
Software
●Drivers
●COMMAND CENTER
●LIVE UPDATE 6
●FAST BOOT
●SUPER CHARGER
●GAMING APP
●ECO CENTER
●M-CLOUD
●RAMDISK
●Killer Network Manager
●Nahimic Audio
●XSplit Gamecaster V2
●Intel®Extreme Tuning Utility
●Norton™Security
●Google Chrome™,Google Toolbar, Google Drive
●SteelSeries Engine 3
●CPU-Z
Continued on next page

7
Speci󰄈cations
Continued from previous page
Enthusiast GAMING
Features
●AUDIO BOOST 3
▶Isolated Audio PCB
▶EMI Shielding
▶Dual Headphone Amplifiers
▶High Quality Audio Capacitors
▶Golden Audio Connectors
●GAME BOOST
▶Easy Overclocking
▶7 Gear Clock Change
●GAMING LAN
▶Killer E2400 Ethernet
▶Killer Network Manager
▶EMI Shielding
▶Electric Wave Surge
●GAMING APP
▶System Mode Switching: OC/Gaming/Silent
▶Gaming Hotkey
▶Gaming Mouse Control
●Optimized Thermal Design
▶Heat-pipe Direct Touch Technology
▶Dual Touch Thermal Design
●Nahimic
▶Sound Effect Equalizer
▶Microphone Noise Reduction
▶HD Audio Recorder
●XSplit
▶XSplit Gamecaster
▶XSplit Broadcaster
Continued on next page

8Speci󰄈cations
Continued from previous page
MSI Exclusive
Features
●CLICK BIOS 5
▶EZ Mode & Advanced Mode Switching
▶Board Explorer
▶Hardware Monitor
●BIOS FLASHBACK+
●MILITARY CLASS 5
▶Military Class Component
▶Military Class Stability and Reliability
-ESD Protection
-EMI Protection
-Humidity Protection
-Circuit Protection
-High Temperature Protection
-VGA Armor Slot
●COMMAND CENTER
▶System Monitor
▶Smart Fan Control
●RAMDISK
●LIVE UPDATE 6
●M-CLOUD
●ECO Center
●USB Redrivers
Continued on next page

9
Speci󰄈cations
Continued from previous page
Specification
Highlights
●DDR4 Boost Support
▶Dual-Channel DDR4 Memory Support
▶Isolated DDR4 Circuit Design
▶DDR4 XMP Ready
●PCI Express 3.0 Support
▶2-Way Nvidia SLITM Support
▶3-Way AMD CrossFireTM Support
●USB 3.1 Gen2 Ready
▶USB 3.1 Gen2 (10 Gb/s) Type-C Ready
▶USB 3.1 Gen2 (10 Gb/s) Type-A Ready
●Twin Turbo M.2 Ready
▶Dual M.2 RAID Support
▶PCIe 3.0 x4 (32 Gb/s) Support
▶PCIe / SATA Dual Mode Support
●SATA Express Support
●NVMe / AHCI Driver Support
●Mini-SAS HD Support (Optional)

10 Rear I/O Panel
Rear I/O Panel
PS/2 LAN
USB 2.0/
HOTKEY
USB 2.0/
BIOS FLASHBACK+
USB 3.1 Gen1
USB 3.1 Gen2
Audio Ports
Clear CMOS
USB 2.0
USB 3.1 Gen2 Type-C
Optical S/PDIF-Out
DisplayPort
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Audio Ports Configuration
Audio Ports Channel
2468
Center/ Subwoofer Out ● ●
Rear Speaker Out ●●●
Line-In/ Side Speaker Out ●
Line-Out/ Front Speaker Out ● ● ● ●
Mic In
(●: connected, Blank: empty)
●HOTKEY port - Please refer to page 28 for Using HOTKEY function.
●Clear CMOS button - Power off your computer. Press and hold the Clear CMOS
button for 5 seconds to reset BIOS to default values.
●BIOS FLASHBACK+ port - Please refer to page 34 for Updating BIOS with
BIOS FLASHBACK+.
